Save a Quilt Block After You Unhoop Too Soon: Re-Hooping on a Brother Innov-is VE2200 with Registration Lines That Actually Match

The "Undo Button" for Embroidery: How to Rescue a Design After You’ve Unhooped It

You know that sinking feeling in the pit of your stomach: you unhoop a quilt block, trim it up, and only then realize a line of topstitching is missing. Or perhaps the block popped out of the hoop mid-project, and now nothing lines up.

In my 20 years of embroidery education, I’ve seen this cause more tears than any other mistake. Most beginners panic and try to force the fabric back into the hoop, which inevitably leads to crooked designs and "hoop burn" creases that ruin the texture.

There is a better way. It’s a rescue technique used by industry pros called "Registration Floating."

Martyn Smith from Sweet Pea recently demonstrated this reliable recovery workflow on a Brother Innov-is VE2200. The concept is simple but precise: instead of guessing, you stitch a registration map onto fresh stabilizer, then float your finished block on top to match it perfecty.

The "Unhooped Too Early" Reality Check: Why You Can't Just Re-Hoop

When a block has already been stitched and trimmed, the fibers have changed. They have relaxed, adjusted to the thread tension, and often shrunk slightly under the heat of an iron.

If you try to clamp this block back inside the inner and outer rings of a traditional hoop (the "sandwich" method), two things happen:

1. Distortion: You will pull the square block into a rhombus shape.
2. Hoop Burn: You risk crushing the existing embroidery stitches under the hoop’s plastic rim.

The fix is to stop fighting the hoop. Instead, we create a new, accurate placement map on fresh stabilizer and tape the block to it. This technique bridges the gap between digital precision and the physical reality of fabric.

Step 1: Precision Prep – The "Drum Skin" Foundation

Before you touch the screen, we must establish a zero-movement foundation. If your stabilizer is loose, your rescue attempt will fail.

The Setup: Hoop one layer of fresh tearaway stabilizer in your standard 5x7 hoop. Because we are rescuing a cotton quilt block, tearaway is the industry standard—it provides stability during the stitch but removes cleanly unlike cutaway, which adds bulk.

The Sensory Check (Tactile & Auditory):

• Touch: Run your fingers briskly across the stabilizer. It should feel tight, like a drum skin.
• Sound: Tap it. You should hear a distinct, hollow thump. If it sounds dull or loose, re-hoop.

Martyn uses a self-healing cutting mat (pink in the photos) to ensure the hoop sits perfectly flat during alignment. If you are doing this on a soft surface like an ironing board, the hoop will rock, and your alignment will drift. This is why a dedicated hooping station for embroidery machine is a staple in professional shops—it eliminates "hoop wobble" and wrist strain, ensuring your foundation is geometrically true.

Prep Checklist: Don't Start Without These

• Fresh tearaway stabilizer hooped drum-tight (listen for the "thump").
• Standard 5x7 hoop (or the exact size used for the original file).
• Pink washi tape or low-tack masking tape, pre-torn into 1-inch strips (do not tear off the roll while holding the fabric).
• A rigid, flat surface (cutting mat or table).
• Bobbin Check: Ensure you have enough bobbin thread to finish the rescue. Running out now is a disaster.


Step 2: Build the Registration Template on the Machine

We need the machine to tell us exactly where the design begins.

On the Brother interface (or your specific machine), go back to the beginning of the design. Then, skip forward through the steps to find the "placement line" or the outer outline of the main shape (in this case, the letter "A").

Stitch this outline directly onto the bare stabilizer. Do not use thread that matches the stabilizer. Use a contrasting color (like black or blue) so you can see it clearly. This stitched line is your absolute truth—it shows exactly where the needle will travel.

Pro Tip: If your design has a basting box or a square die-line, use that. If not, the largest main element (the letter) is your best reference point.

Many users struggle here because they trust the LCD screen's grid more than the physical needle. The screen is an approximation; the stitched line is reality. If you are navigating a brother embroidery machine, take your time skipping tracks to ensure you selected the correct outline step.

Warning: Physical Safety
Keep fingers, scissors, and loose tape tails well away from the active needle area. When test-stitching or aligning, a needle strike can shatter the needle, sending metal shards flying. Always keep hands outside the "red zone" of the hoop while the machine is running.

Step 3: The "Feel-and-Match" Alignment (The Critical Skill)

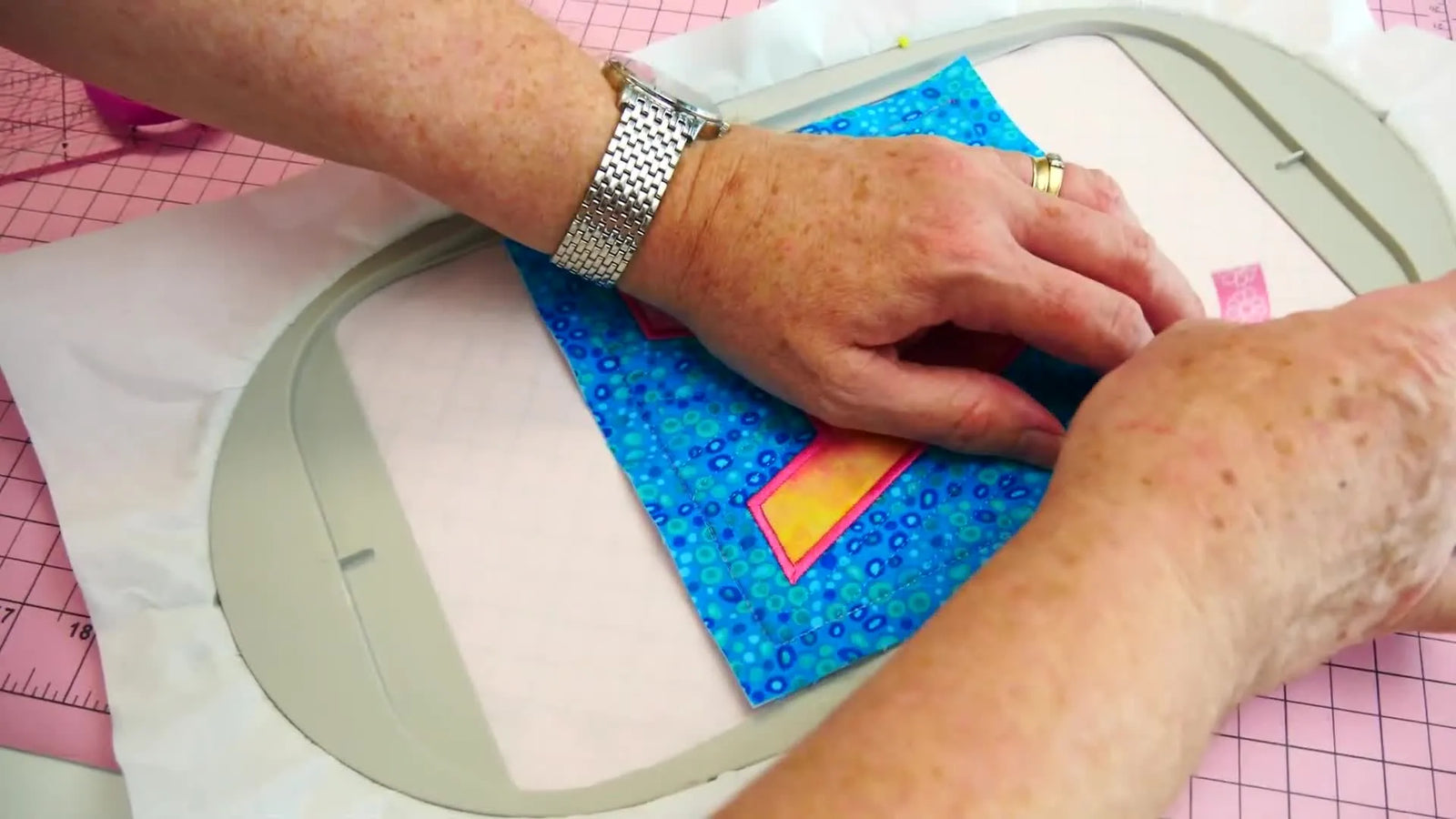

Now comes the "Floating" technique. You will place your trimmed quilt block on top of the hoop, aligning the embroidered letter on your fabric with the stitched outline on the stabilizer.

The Sensory Goal: You are looking for a "lock-in" effect. Since the embroidery on your fabric has thickness, you can often feel it nest into the grooves of the registration stitches on the stabilizer.

The "Shrinkage Factor": Expert Note: Cotton shrinks. If you pressed your block with steam after unhooping (which we all do), it may be 1mm to 2mm smaller than the registration line.

• Don't Panic: This is normal physics.
• The Fix: You may need to apply very gentle tension—stretching the block slightly—so the corners of the letter "A" meet the corners of the template. You are returning the fabric to the tension state it held when it was originally hooped.




Step 4: Tape it Like a Pro (Anchor & Stretch)

Do not try to tape the whole thing at once. Use the Anchor -> Stretch -> Lock method.

1. Anchor: Align the top-left corner of the design. Press it down and tape it firmly.
2. Stretch: Gently smooth the fabric toward the bottom-right corner, feeling for that "lock-in" with the template.
3. Lock: Tape the opposite corner.

Martyn uses short pieces of tape. Long strips can buckle and pull the fabric causing ripples. We are creating a floating embroidery hoop setup where the tape acts as the clamps. Use Washi tape (paper tape) rather than aggressively sticky duct tape, which leaves residue on needles.

Setup Checklist: The "Pre-Flight" Inspection

• Visually verify: Does the embroidered edge align with the registration line on all 4 sides?
• Tactile Check: Run your hand over the block. Is it flat? Any bubbles mean fabric shifting.
• Tape placement: Is the tape clear of the specific area you are about to stitch? (Don't sew through tape if you can avoid it—it gums up the needle).
• Hoop security: Is the hoop locked firmly into the machine arm? Listen for the click.


Step 5: The Rescue Stitch (Operation Mode)

Slide the hoop back onto the machine. Navigate to the step you missed—here, the internal topstitching line inside the "A".

Speed Control (Crucial): Your machine might be capable of 1000 SPM (Stitches Per Minute), but do not use it.

• Sweet Spot: Slow your machine down to 350 - 500 SPM.
• Why: Floating fabric is less stable than hooped fabric. High speed can push the fabric wave ahead of the foot, causing misalignment.

Watch the first 10 stitches like a hawk. If the needle lands perfectly in the ditch, you can relax slightly. Martyn notes this works about 98% of the time. It is rarely "laser perfect" to the micron, but it is invisible to the naked eye from 12 inches away. That is the definition of a successful rescue.

Operation Checklist: Monitoring the Save

• Speed: Machine set to minimum/medium speed (approx. 400 SPM).
• Sound: Listen for a "crunch" or sharp "click." If you hear this, the needle is hitting the thick seam allowance or deflectng. Stop immediately.
• Hands Off: Do not push or pull the hoop while it moves. Let the feed mechanism do the work.
• Tape Removal: Peel tape away slowly and parallel to the fabric to avoid distorting the fresh stitches.


Troubleshooting: When It Doesn't Go According to Plan

Even experts encounter variables. Here is how to diagnose common failures.

Decision Tree: Choosing the Right Stabilizer

A successful rescue starts with the right foundation.

• Is the fabric a standard Cotton Quilt Block?
  • YES -> Use Tearaway. It’s rigid enough for alignment but removes easily without stressing the stitches.
• Is the fabric Stretchy (T-shirt/Knit)?
  • YES -> Use Cutaway (secured with temporary spray adhesive). Tearaway will fail because the knit will stretch while you tape it.
• Is the fabric "Floaty" or Slippery (Silk/Rayon)?
  • YES -> Use Sticky/Adhesive Tearaway. Tape alone won't hold it against the needle friction.

The Professional Upgrade: Moving Beyond Tape

While the "Tape and Float" method is a lifesaver for occasional mistakes, it is slow. If you find yourself battling alignment issues daily, or if you are running production batches (50+ items), your tools might be the bottleneck.

1. The "Hoop Burn" & Wrist Pain Problem: If dragging fabric into stiff hoops is hurting your hands or leaving permanent "shiny rings" (hoop burn) on delicate items, the industry solution is magnetic frames.

2. The Solution: Magnetic Hoops Magnetic embroidery hoops allow you to clamp the fabric instantly without forcing it into a ring. You simply lay the fabric over the bottom frame and snap the top frame on.

• Benefit: Zero hoop burn.
• Speed: Hooping time reduced by 60%.
• Adjustment: You can make micro-adjustments to alignment without un-hooping the whole garment.

Note: When looking for embroidery hoops for brother machines or other brands, ensure you match the connection bracket type to your specific model arm width.

3. The Production Leap: If you are consistently limited by single-needle speed and color changes, consider the leap to a multi-needle system like the SEWTECH line. Combined with commercial magnetic frames, you move from "hobbyist rescue" to "industrial efficiency."

Warning: Magnet Safety
Commercial magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: They can snap effective instantly—keep fingers clear.
* Medical Risk: Keep magnets at least 6 inches away from pacemakers and ICDs.
* Electronics: Do not place phones or verify cards directly on the magnets.

Tool Notes from the Bench: The "Rescue Kit"

Keep these items in a specific drawer so you are ready when things go wrong:

• Fresh Needle (Size 75/11): A sharp needle prevents drag on floated fabric.
• Pink Washi Tape: Low residue, high visibility.
• Standard embroidery machine hoops: Keep a clean, dedicated 5x7 hoop just for rescue work so it hasn't been warped by thick items.
• Precision Tweezers: For removing tape stuck under stitches.
• hoopmaster (Optional): If you scale up, fixture systems aid in consistent placement from the start.

Final Thought

Martyn’s final result shows the missing topstitch line restored perfectly. My advice to you: Don’t chase museum-grade perfection on a rescue job. Chase "Invisible to the Customer."

If the design is saved, the block is flat, and the machine is still running, you have won.

FAQ

• Q: How can Brother Innov-is VE2200 users rescue an embroidery design after the quilt block has been unhooped and trimmed?
  A: Use “registration floating”: stitch a placement outline on fresh hooped stabilizer, then tape the finished block on top to match that outline.
  • Hoop one layer of fresh tearaway stabilizer drum-tight in the same 5x7 hoop size used originally.
  • Stitch the design’s placement line/outer outline onto the bare stabilizer using a contrasting thread color.
  • Float the trimmed block on top and align the existing embroidery to the stitched outline, then tape using short strips.
  • Success check: the embroidered edge visually matches the registration line on all four sides and the block feels flat with no bubbles.
  • If it still fails: re-check stabilizer tightness and confirm the correct outline step was selected before stitching the template.
• Q: What is the correct “drum-skin” stabilizer tension check for registration floating on a Brother Innov-is VE2200 5x7 hoop?
  A: The stabilizer must be tight enough to feel like a drum skin and sound like a hollow “thump” when tapped.
  • Re-hoop with fresh tearaway stabilizer until the surface is evenly tight (no soft zones near the ring).
  • Place the hoop on a rigid flat surface (cutting mat/table) so the hoop does not rock during alignment.
  • Avoid setting up on soft surfaces that cause hoop wobble and alignment drift.
  • Success check: brisk finger rub feels uniformly tight and a tap produces a distinct hollow thump, not a dull sound.
  • If it still fails: switch to a flatter work surface and re-seat the hoop to eliminate wobble before stitching the registration line.
• Q: Why do Brother Innov-is VE2200 rescue stitches shift 1–2 mm after unhooping a cotton quilt block and pressing with steam?
  A: Light shrinkage after pressing is common; gently tension the block during alignment so the design corners meet the stitched template.
  • Anchor one correct corner first with tape, then smooth toward the opposite corner.
  • Apply very gentle stretch while “feel-and-matching” the raised embroidery into the registration stitches.
  • Lock the opposite corner with tape using short pieces to prevent buckling.
  • Success check: the letter/shape “locks in” by feel and the corners meet the template without ripples.
  • If it still fails: re-stitch the registration outline on fresh stabilizer to confirm the template is accurate and not from the wrong step.
• Q: How can Brother Innov-is VE2200 users fix “loopy” or loose stitches during floating (flagging/bouncing) on a taped quilt block?
  A: Slow the machine down and add surface stability so the floated fabric does not bounce under the needle.
  • Reduce speed to the low range used for floating work (a safe target is 350–500 SPM as shown for this method).
  • Add a layer of water-soluble topping to help weigh down and control the fabric surface.
  • Verify tape is anchoring the fabric flat without bubbles and keep tape away from the stitch path when possible.
  • Success check: the first 10 stitches land cleanly without loops and the fabric stays flat instead of lifting with the needle.
  • If it still fails: re-tape using the Anchor → Stretch → Lock method with shorter tape pieces to remove hidden slack.
• Q: What should Brother Innov-is VE2200 users do if the embroidery needle breaks or makes a loud thud during a floated rescue stitch on thick seams?
  A: Stop immediately and remove the cause of needle deflection—thick seams and tape ridges are common culprits.
  • Power down/stop and move the needle away from the bulky area before restarting.
  • Change to a stronger needle option (the method notes using Size 90/14 or Titanium when deflection happens).
  • Re-position tape so the presser foot does not strike a tape ridge and keep tape tails clear of the needle area.
  • Success check: the machine runs the next test stitches without a sharp “click/crunch,” and the needle penetrates smoothly.
  • If it still fails: re-align the block so the stitch path avoids the thickest seam allowance section where possible.
• Q: What machine-safety rule should Brother Innov-is VE2200 users follow when aligning and test-stitching a registration template in a 5x7 hoop?
  A: Keep hands, scissors, and tape tails completely outside the active needle area during any stitching or test runs.
  • Hold the fabric and tape only when the machine is stopped; never “steady” fabric while the needle is moving.
  • Trim or fold back loose tape ends so nothing can get pulled into the needle path.
  • Watch the first few stitches from a safe distance and be ready to stop if alignment is off.
  • Success check: no part of the hand enters the hoop’s needle travel zone while the machine is running.
  • If it still fails: pause more often—alignment work should be stop-and-check, not continuous stitching.
• Q: When should embroidery users upgrade from tape-floating to magnetic embroidery hoops, and when does a multi-needle SEWTECH machine become the next step?
  A: Upgrade tools when the bottleneck is repeatability and handling: first reduce hooping damage/time with magnetic hoops, then consider a multi-needle system if single-needle workflow limits output.
  • Choose Level 1 (technique): use registration floating and slow-speed operation when mistakes are occasional and alignment is the main issue.
  • Choose Level 2 (tool): use magnetic hoops if traditional hooping causes hoop burn, wrist pain, or constant re-hooping to micro-adjust placement.
  • Choose Level 3 (capacity): consider a multi-needle SEWTECH machine if frequent color changes and single-needle speed cap daily throughput in production runs.
  • Success check: hooping becomes faster with fewer fabric marks, and alignment adjustments require less rework.
  • If it still fails: confirm the hoop/frame connection bracket matches the machine arm so the frame seats correctly and does not introduce a consistent offset.
