In my 20 years managing embroidery production floors and teaching novices, I have seen more projects fail due to file management errors than actual mechanical failures. There is a specific type of heartbreak that occurs when you finish a complex design, hit "Save," and later realize you locked yourself out of editing it—or worse, sent a file to the machine that caused a bird’s nest because the format didn’t carry the correct tension data.

Embroidery is not just art; it is a manufacturing process. The software (Creative DRAWings) is the blueprint phase, and the machine is the construction site. If the blueprint doesn't speak the language of the construction crew, the building collapses.

This guide acts as your Standard Operating Procedure (SOP). We will move beyond simple "Save As" instructions and establish a professional workflow that protects your time, preserves your editable masters, and ensures your machine—whether a single-needle home unit or a multi-head commercial beast—runs smoothly.

1. The Psychology of Saving: The "Three-Future" Strategy

Most beginners treat "Saving" as a single action. Professionals view it as creating three distinct futures for their design. When you are staring at your finished teddy bear outline in Creative DRAWings, you are not just saving a file; you are generating assets for three different purposes.

The video tutorial touches on this, but let’s deepen the logic. You must create:

1. The Source of Truth (The Native File): This allows you to edit nodes, curves, and densities later.
2. The Manufacturing Instruction (The Stitch File): This tells the needle where to go (X/Y coordinates).
3. The Cross-Platform Asset (The Export): This is for automated quilters or cutters.

If you skip step #1 and only save the stitch file (like a .PES or .DST), you have "flattened" your design. You cannot easily change the density or underlay later without degrading quality. It is the difference between saving a Photoshop file with layers versus saving a flat JPEG.

2. Pre-Flight Preparation: Folder Architecture & Naming

Before you click any buttons, we need to talk about digital hygiene. In a shop environment, a file named bear_final_final_v2.pes is a disaster waiting to happen.

The "Find It in 6 Months" Folder Structure

Create a standardized hierarchy on your drive. This minimizes cognitive load when you are rushing to fulfill an order.

• Logic: Client/Category > Project Name > File Type
• Example Structure:
  • /Embroidery_Projects
    • /Kids_Designs
      • /TeddyBear_Outline_2023
        • 01_MASTER_EDITABLE (Contains .DRAW files)
        • 02_MACHINE_PRODUCTION (Contains .PES, .DST, .JEF)
        • 03_QUILTING_EXPORTS (Contains .DXF, .CQP)
        • 04_TECH_SHEETS (PDFs of color sequence)

The "Sensory" Naming Convention

A good filename tells you what the file feels like before you open it.

• Bad: Bear.draw
• Good: Bear_Outline_4x4_Jersey.draw

Why include "Jersey"? Because the density and pull compensation parameters you set in the software are dictated by the fabric. If you try tostitch a design tuned for denim onto jersey knit, it will pucker.

Phase 1 Checklist: The Pre-Save Protocol

• Fabric Check: Have you adjusted the pull compensation in the software for your specific fabric (e.g., increased overlap for pique knit)?
• Visual Logic: Zoom in to 100%. Do the underlay stitches look sufficient to support the top stitches?
• Center Check: Is the design centered in the workspace? (Most machines center automatically, but off-center files can cause frame limit errors).
• The 5mm Rule: Ensure no stitch is longer than 12mm (unless it's a trim) and no stitch is shorter than 0.3mm (which causes thread build-up).


3. The Non-Negotiable Master: Saving as .DRAW

The instructor in the visual guide demonstrates the first crucial step: File > Save As > DRAWings Files (*.Draw).

This file is your safety net. It contains vector data—mathematical lines and curves—rather than just stitch points.

Why is this critical? Imagine you buy a new machine next year. If you have the .DRAW file, you can simply open it, select the new machine profile, and the software will recalculate the stitches perfectly. If you only have a .DST file, resizing it by even 20% can ruin the stitch density, leading to gaps or needle breaks.

Execution Steps

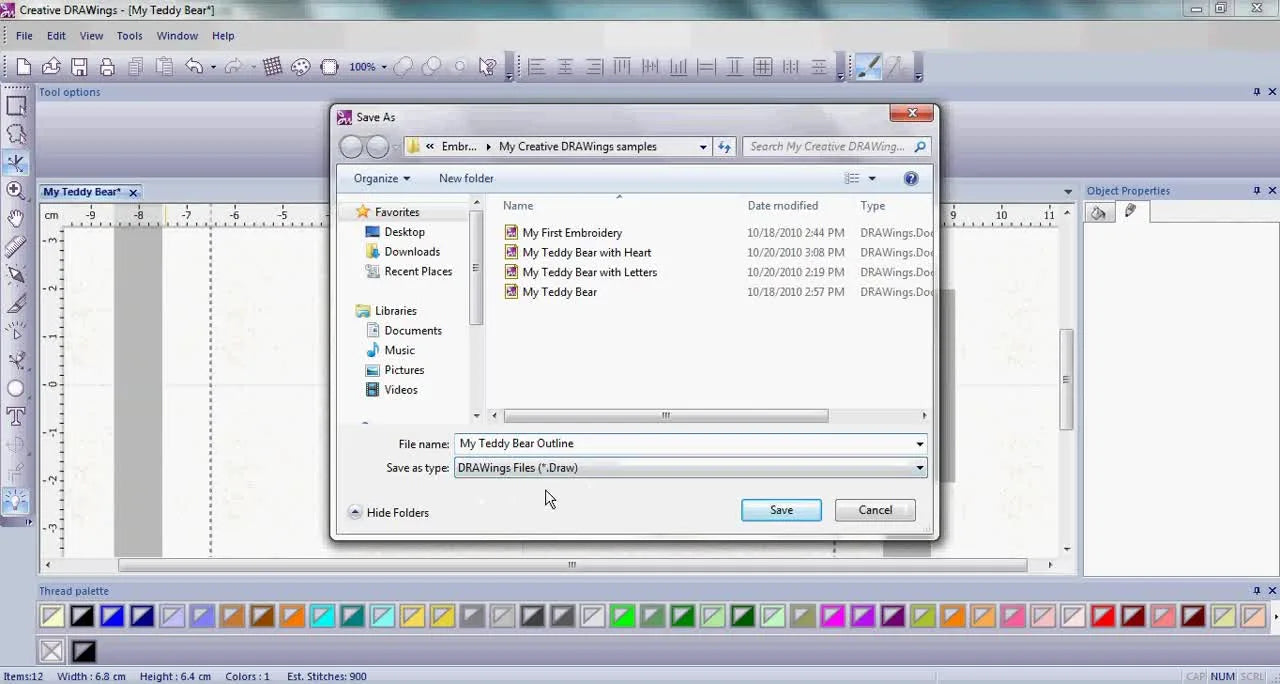

1. Navigate to File > Save As.
2. In the Save as type dropdown, ensure DRAWings Files (*.Draw) is selected.
3. Name the file clearly (e.g., TeddyBear_Master_v1).
4. Sensory Check: Watch the top tab of the software window. It must change from "Untitled" to your filename with the .Draw extension.


Warning: The USB Stick Trap
Never save your Master .DRAW file directly to a USB stick. USB drives are prone to corruption due to static or premature removal. Always save to your hard drive first, then copy the Machine file to the USB stick. This ensures your hard drive always holds the uncorrupted backup.

4. The Manufacturing Output: Saving for Your Specific Machine

Once the Master is secure, you must translate that design into a language your machine understands. This is where file formats like .PES, .DST, .JEF, and .EXP come into play.

Different manufacturers speak different dialects:

• Brother/Babylock: .PES
• Janome: .JEF
• Tajima/Commercial: .DST
• Melco: .EXP




The Hidden Variable: The Hoop and The Stabilizer

Saving the file is only half the battle. The software assumes you will hoop the fabric perfectly. In reality, physics interferes.

When you take this file to the machine, you will face physical constraints.

• Hoop Burn: Beginners often over-tighten traditional hoops, leaving permanent white rings on delicate fabrics like velvet or dark performance wear.
• Drifting: If you have hand/wrist fatigue, you might not tighten the screw enough, causing the fabric to slip during stitching, ruining the registration.

The Commercial Solution: This is why many production shops utilize magnetic embroidery hoops. Unlike screw-tightened hoops, magnetic frames clamp the fabric instantly with vertical force. This eliminates the "tug of war" distortion and prevents hoop burn.

If you are struggling to get your saved design to stitch out square, or if you dread the hooping process:

• Users of Japanese machines often search for magnetic hoops for janome embroidery machines to solve slippage issues on slippery poly-blends.
• Brother users frequently upgrade to a magnetic hoop for brother compatible frame to speed up multidirectional hooping.
• For bulk production (like 50 left-chest logos), using a hooping station for embroidery alongside magnetic hoops ensures every logo lands in the exact same spot, matching the coordinates in your saved file.

Phase 2 Checklist: The Machine Setup

• Format Match: Does the file extension match your machine brand? (e.g., .PES for Brother).
• Hoop Selection: Does the design size fit within the internal dimensions of your chosen hoop? (Leave a 10mm safety margin).
• Stabilizer Pairing:
  • Stretchy fabric (Knits/Polos): Cutaway Stabilizer (Must utilize).
  • Stable fabric (Woven/Denim): Tearaway Stabilizer.
  • High stitch count: Two layers of stabilizer + temporary spray adhesive.
• Needle Check: Are you using a fresh needle? (Rule of thumb: Change needle every 8 hours of stitching or 50,000 stitches).

5. The Quilting Bridge: Exporting for Long-Arm Systems

Creative DRAWings is unique because it bridges the gap between embroidery and automated quilting. The instructor demonstrates File > Export > To Quilt.

This function strips away stitch instructions (like underlay and pull compensation) and exports a pure vector path for machines that move continuously, like Long-Arm Quilters.

Key Formats:

• DXF: A standard CAD format used by many cutters and plotters.
• CQP: CompuQuilter.
• HQF: Handi Quilter Pro-Stitcher.
• PLT: Plotter files.






Why "Export" is different from "Save As"

• Save As retains the properties of the object (this is a satin stitch, this has density 0.4mm).
• Export often converts the object into shapes or paths.
• If you send a Quilting export (DXF) to an embroidery machine, the machine won't know how to stitch it (no satin vs. tatami info). It will just see a line.

6. Decision Tree: Which File Do I Need?

Use this logic flow to determine your action steps immediately after finishing a design.

• Question 1: Will I ever need to change the size, density, or text later?
  • YES: Save as .DRAW (Native).
  • NO: (Save as .DRAW anyway. Always safe, never sorry.)
• Question 2: Am I stitching this on an embroidery machine?
  • YES: Save As -> Select Machine Format (e.g., .PES/.DST).
  • Action: Check your magnetic embroidery hoops size constraints to ensure the design fits.
• Question 3: Am I sending this to a laser cutter or a Long-Arm Quilter?
  • YES: File -> Export -> Select Vector/Quilt Format (e.g., .DXF).
• Question 4: Do I need to show the client a proof?
  • YES: File -> Export -> To Image (PNG/JPG). Never send the stitch file to a client; they can't open it, and you lose control of the asset.

7. Troubleshooting: When Good Files Go Bad

Even with perfect saving habits, issues arise. Here is my breakdown of common symptoms and fixes, ordered from least invasive (user error) to most invasive (hardware).

8. Safety & Workflow Efficiency

While software is safe, the transition to the machine introduces physical risks.

Magnet Safety Warning:
If you upgrade to magnetic embroidery hoop systems, be aware that these utilize high-power neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with deliberate care.
* Medical Devices: Keep standard distance from pacemakers, just as you would with any strong magnetic device.
* Electronics: Do not place USB sticks containing your design files directly on the magnet; while flash memory is generally resistant, it is bad practice to mix data storage and strong magnetic fields.

Hidden Consumables List

To ensure your perfectly saved file stitches perfectly, keep these often-forgotten items in your drawer:

1. Isopropanol (Rubbing Alcohol): To clean the needle bar and adhesive residue from your hoops.
2. Compressed Air: To blow lint out of the bobbin case (essential when using cut-away stabilizer which generates dust).
3. Tweezers: For threading needles and picking out jump stitches.
4. Temporary Spray Adhesive (505): Vital for floating fabric on magnetic hoops if you aren't clamping it directly.

Summary

The difference between a hobbyist and a master is process. By adopting the "Save Master -> Save Production -> Export Utility" workflow, you insulate yourself from software changes, machine upgrades, and file corruption.

Remember, the goal of the software is to drive the needle. But the quality of the stitch depends on the synergy between your file, your stabilizer, and your hoop. Whether you are using standard frames or upgrading to a hooping station for embroidery for commercial precision, it all starts with a clean, well-architected file.

Save early, save often, and always save your .DRAW master first.
