SewArt Beginner Basics That Actually Stick: Clean Shapes, Better Stitch Angles, and PES Files You Can Trust

Master SewArt Digitizing: A Field Guide from Shape to Stitch

If you are new to embroidery digitizing, the first time you click “make stitches” can trigger a specific kind of anxiety. It is the fear that you are about to break a needle, ruin a garment, or waste expensive thread.

As someone who has trained hundreds of operators, let me assure you: You are not going to break the machine if you follow the physics.

The workflow in this SewArt lesson is intentionally stripped down. We will draw a clean shape, convert it to stitches manually (avoiding the "Auto-Digitize" trap), control three specific settings that dictate quality, and inspect the file before a single needle moves.

I prefer this approach because it builds replicable muscle memory. You will learn that where you click matters (seed points), that density is a mathematical trade-off (coverage vs. stiffness), and that previewing stitch points is the only way to save money on ruined blanks.

Set Up SewArt on Day One Without Fighting the Interface (Shape Tool, Canvas, and That “Missing Tab” Panic)

Open SewArt. Your eyes should scan for the Shape Tool on the main toolbar. In the workflow, we click the Shape Tool and select a geometric primitive from the right-side panel.

The "Missing Tab" Panic: If your screen does not match the tutorial and you cannot find the shape tab, pause. Do not reinstall. SewArt interfaces change based on your current Mode. You are likely in "Stitch Mode" when you need to be in "Drawing Mode."

The Visual Check: Look at the top toolbar.

• Drawing Mode: You see pencil icons, paint buckets, and shapes.
• Stitch Mode: You see sewing machine icons, thread spools, and density numbers.
• Action: If you see stitch parameters, find the "New" or "Back" icon to return to drawing.


The “Hidden” Prep Before You Draw Anything: Keep Your Artwork Editable

Before drawing, we must address the "Garbage In, Garbage Out" rule. The instructor demonstrates color reduction, explaining that web images often contain hidden "noise"—thousands of near-identical colors that confuse the software.

The Expert Perspective: Digitizing is 80% preparation and 20% settings. If you plan to digitize a pencil sketch or a complex logo, you must clean the image first. Reduce the colors to the exact number of thread spools you intend to use (e.g., 2, 3, or 4 colors).

Hidden Consumables: Before you start, ensure you have these physical items ready next to your machine. New digitizers always forget them:

• Fresh Needles: A 75/11 Ballpoint for knits or 90/14 Sharp for wovens.
• Scrap Fabric: Never test on the final garment.
• Temporary Spray Adhesive (505): For floating fabric if needed.

Prep Checklist (Critical Pre-Flight):

• Interface Check: Confirm you can access the Shape Tool and the panel is visible.
• Source Integrity: Decide if you are using a focused shape (easy) or a dirty jpeg (needs color reduction).
• File Strategy: Commit to saving two files: the .BMP/.JPG (Working File) and the .PES (Stitch File).
• Hardware Check: Ensure your hoop size in the software matches the physical hoop you will clip onto the machine.

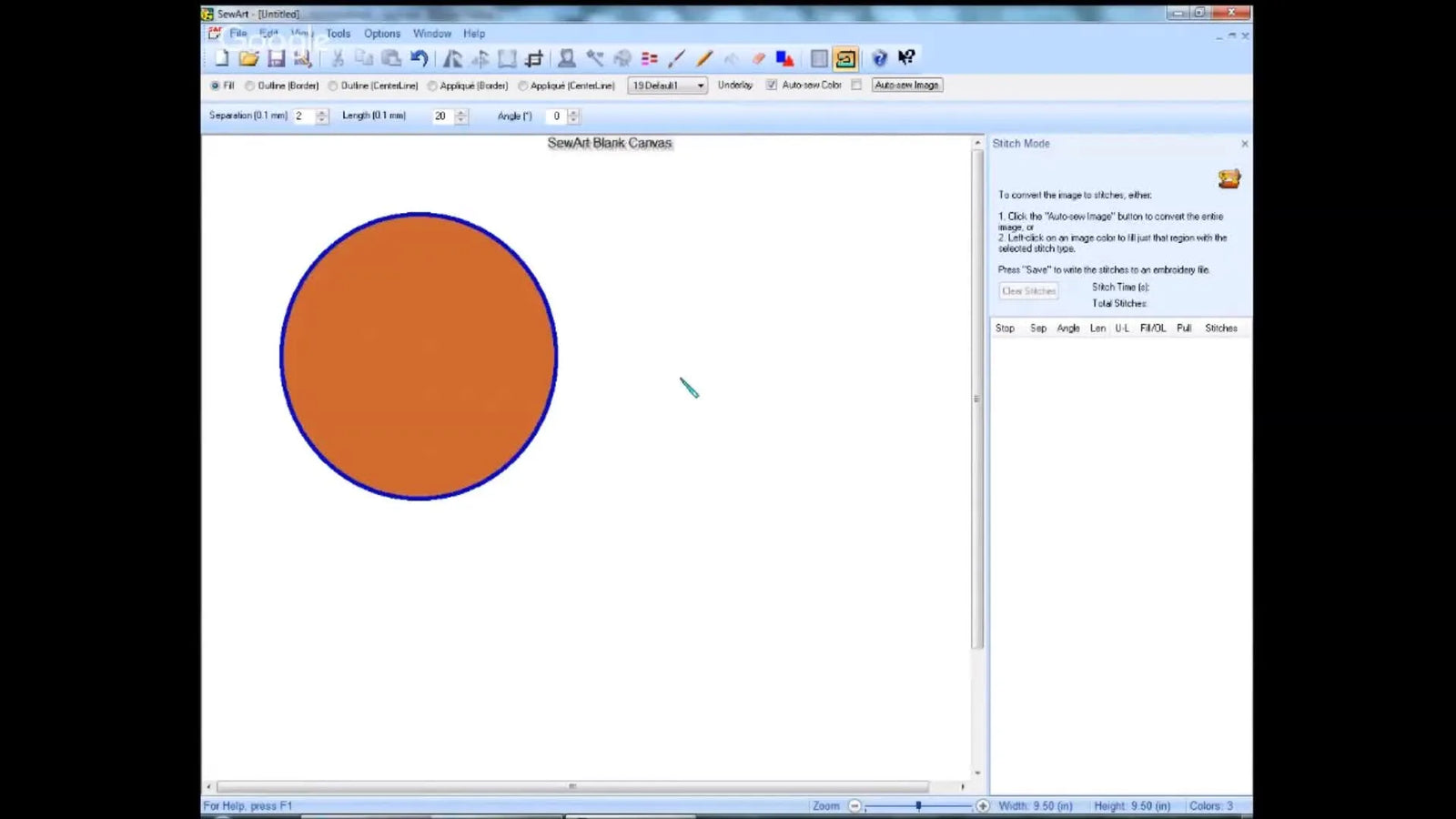

Draw a Circle in SewArt’s Shape Tool (And Why Ovals Happen When You Drag)

We start with a circle because it tests tension equally in all directions.

Action Steps:

1. Click the Shape Tool.
2. Select the Circle icon.
3. Click-and-Drag diagonally on the canvas.
4. Release when sizing is correct.

The Geometric Nuance: If you drag unevenly, you create an oval. While SewArt allows this, realize that ovals have different "pull compensation" requirements than circles. For this lesson, try to keep it perfectly round to understand how standard density works.

Once the shape looks right, click the Shape Tool icon again to deactivate it.

Flip the Sewing Machine Icon in SewArt to Enter Manual Stitch Creation Mode (Skip Auto-Sew for Cleaner Results)

To transmute a drawing into machine language, click the Sewing Machine Icon.

Psychological Safety: You will be tempted to click "Auto-Sew Image." Resist this. Auto-digitizing often creates erratic stitch paths that result in "bird nests" (jammed thread under the throat plate). Manual creation gives you control over the pathing.

When you click the icon, watch the toolbar change. You are now in Stitch Creation Mode.

Dial In SewArt Fill Stitch Settings: Separation (Density), Stitch Length (Texture), and Stitch Angle (Direction)

This is the cockpit of your machine. Three dials control everything. If you set these wrong, no amount of stabilizer will save you.

1. Separation (Density)

In SewArt, "Separation" defines the gap between rows of stitches.

• The Physics: Lower number = Higher Density (More thread). Higher number = Lower Density (More fabric showing).
• The Sweet Spot: Default is often around 10-15 (depending on version units).
• Safety Rule: Do not drop this below 2 or 3 unless you are on heavy canvas. Too much density cuts a hole in the fabric like a stamp perforation.

2. Length (Stitch Length)

This controls how long the thread travels before the needle penetrates again.

• The Setting: The instructor recommends 20 (approx 2.0mm standard).
• Sensory Check: If stitches are too long (>50/5mm), they will snag on buttons or zippers (Snag Hazard). If too short (<10/1mm), they will bury themselves and create a hard, bullet-proof patch. Stay at 20-25 for standard fills.

3. Angle (Stitch Direction)

• The Setting: 0° (Horizontal), 90° (Vertical), or 45° (Diagonal).
• Why it Matters: Embroidery pushes and pulls fabric. If you stitch everything at 0°, your circle will turn into a vertical oval because the fabric creates an accordion effect. 45° is generally the safest, most aesthetically pleasing angle for fills.

Note for Production: If you are digitizing for a batch of 50 shirts, record these settings. A density that works on a thick hoodie will cause puckering on a thin performance tee.

Setup Checklist (Before Generating Stitches):

• Mode Verification: Cursor has changed to a needle icon.
• Length Safety: Stitch Length is ~20. Anything over 40 is a snag risk; anything under 10 is a thread break risk.
• Angle Strategy: Select 45° or -45° for the fill to maximize cover and minimize distortion.
• Fill Type: Choose Default Fill (Tatami) for large areas to avoid "looping."

Warning (Mechanical Safety): When moving from software to the physical machine, keep fingers clear of the needle bar. If you are trimming jump threads with scissors, STOP the machine completely. Do not trim while the machine is moving—this is the #1 cause of needle-through-finger injuries.

The Seed Point Habit in SewArt: Click the Top/Side of the Shape So Your Fill Doesn’t Start in the Middle

In SewArt, your mouse click determines the Entry Point (Seed Point).

The "Ink Spread" Visualization: Imagine pouring ink onto the shape. Where you click is where the ink starts flowing.

• The Mistake: Clicking the dead center. This forces the machine to spiral out or jump awkwardly, often leaving a hole or "navel" in the center of the design.
• The Fix: Click the edge (Top or Side). This forces a linear, logical "sweep" of stitching across the shape.

Action:

1. Move the needle cursor to the top rim of the circle.
2. Click once.
3. Visual Confirmation: You should see a texture overlay appear instantly. This confirms the shape is now filled with data.


Save the SewArt Working Image First, Then Export the PES Embroidery File (And Why “Join Threads” Changes Editing)

You must save twice. This is non-negotiable.

1. File → Save As (Image): Save the .BMP/JPG. This is your "source code." You need this if you ever want to change the size or shape later.
2. File → Save As (Stitch): Save as .PES (Brother/Baby Lock standard) or .DST (Commercial standard).

The "Join Threads" Switch: The instructor unchecks "Join Threads."

• Why: If checked, the software welds all same-color sections into one block.
• Pro Strategy: Uncheck it. This keeps every circle and square as a separate "object" in your stitch file. If you later decide to delete just the square, you can do so without breaking the circle.


Build a Second Test Shape in SewArt: Square + Pattern Fill (Heart Texture) + 45° Angle for Dimension

Let's reinforce the habit with a second object.

1. Clear Stitches (or undo).
2. Return to Shape Tool -> Select Square.
3. Return to Stitch Mode.

The Texture Upgrade: Instead of a flat fill, select Pattern Fill (e.g., Hearts). Change the angle to 45°.

• Visual Logic: A pattern fill at 45° looks more premium and less "computerized" than a grid straight on.

Troubleshooting Mis-Clicks: If you accidentally click the blue outline instead of the white inside, you will digitize a thin border contour instead of a fill.

• Recovery: Right-click the color stop in the right panel -> Delete Color. Or simply click "Undo."


Preview the PES in SewWhat-Pro: Zoom Until You See Stitch Points (Because Texture Lies at Normal Zoom)

We now switch to SewWhat-Pro (or any viewer/editor).

The "Trust but Verify" Protocol: At 100% zoom, the screen shows you a lie—a pretty texture.

• Action: Zoom in to 600% or 800%. Stop when you see individual black dots (needle penetrations).
• What to look for:
  • Are the dots evenly spaced?
  • Are there clusters of dots right on top of each other? (These break needles).
  • Are the jumps (long lines) clear?

The Physical Test: No software preview replaces a sew-out. You must sew this on a scrap.

A Decision Tree You’ll Actually Use: Fabric → Stabilizer → Test Sew-Out

Use this logic flow to determine your physical setup.

1. Identify your Material:

• Stable Woven (Denim, Twill, Towel): Structure is rigid.
• Unstable Knit (T-shirt, Hoodie, Jersey): Structure stretches.

2. Select Stabilizer (The Foundation):

• Woven: Use Tear-away (Light) or Cut-away (Heavy).
• Knit: MUST use Cut-away (No-Show Mesh or 2.5oz). Tear-away will result in gaps and skewed circles.
• Texture (Towel): Add Water Soluble Topping (Solvy) to keep stitches from sinking.

3. The Hooping Decision:

• Standard Method: Hoop tight enough to sound like a drum skin (audible "thump").
• Production Method: If you are sewing knits, standard hoops often leave "hoop burn" (shiny rings). This is where professionals search for how to use magnetic embroidery hoop techniques. Magnetic systems clamp without friction, preventing fabric shine and distortion.

Warning (Magnet Safety): High-end magnetic hoops use Neodymium magnets. They can pinch skin severely and interfere with pacemakers. Slide them apart; never pry them. Keep them at least 6 inches away from medical devices.

The “Why” Behind Gaps, Loops, and Flat Texture: What Your Stitch Settings Are Really Doing to Fabric

When you look at your test sew-out, use this diagnostic guide:

The Problem: "The design feels like a bulletproof vest."

• Cause: Density (Separation) is too high (number too low), or Stitch Length is too short.
• Fix: Increase Separation by 10%.

The Problem: "I see the fabric color peeking through the threads."

• Cause: Density is too low, OR the fabric stretched during sewing.
• Fix: First, check your hooping. If the fabric is loose, no density will fix it. If tight, decrease Separation.

The Problem: "Gaps appear between the outline and the fill."

• Cause: Pull Compensation. The fill pulled the fabric inward.
• Fix: In SewArt, you may need to slightly over-size the fill or change the Angle so it doesn't pull away from the border.

The Workflow Upgrade: If you are consistently seeing gaps on T-shirts, the issue is likely movement in the hoop. An embroidery hooping system creates a repeatable station where you can verify alignment and tension before the hoop touches the machine.

Comment Questions, Answered Like a Working Embroidery Shop: SewArt vs SewWhat-Pro, Trials, and Text/Letters

Q: What is the difference between SewArt and SewWhat-Pro? A: SewArt is the Writer (Creates stitches from art). SewWhat-Pro is the Editor (Refines, resizes, and merges existing stitches). You create in one, polish in the other.

Q: Can I type letters in SewArt? A: SewArt treats everything as an image. If you import a picture of text, it will digitize it as a shape. For crisp, professional lettering, you generally want a program with "Keyboard Lettering" capabilities, or you import pre-digitized fonts into SewWhat-Pro.

Q: Can stitch angle make my foam design pop 3D? A: No. 3D Puff requires Satin Columns with specific "capping" at the ends to cut the foam. A fill stitch (Tatami) will simply punch perforations in the foam and flatten it. Do not attempt 3D foam with standard fills.

The Upgrade Path That Saves Your Wrists (and Your Time): From “One-Off Testing” to Repeatable Hooping

Once you master the software, the bottleneck moves to the physical world.

Level 1: The Hobbyist You use the plastic hoops that came with the machine. You tighten the screw by hand.

• Pain Point: Hand strain and "hoop burn" marks on dark fabrics.

Level 2: The Volume Crafter You are making 20 shirts for a family reunion.

• The Upgrade: This is when many users look for a hoop master embroidery hooping station equivalent or simply better hoops.
• The Solution: magnetic embroidery hoops allow you to hoop a shirt in 5 seconds without adjusting screws. They automatically adjust to the thickness of the fabric (from thin cotton to thick fleece).

Level 3: The Production Shop You are running a multi-needle machine for profit.

• The Upgrade: Speed is money. magnetic frames for embroidery machine setups are standard here because they hold strong at 1000 stitches per minute.
• Specific Applications: If you use a Brother multi-needle, a hooping station for brother embroidery machine ensures that the logo is in the exact same spot on every left chest. For difficult items like infant onesies or tight cuffs, a specialized sleeve hoop is often the only tool that fits.

Operation Checklist (The "Go/No-Go" Final):

• Visual Verify: Open the export in an editor. Do gaps exist?
• Physical Setup: Needle is fresh? Thread path is clear?
• Tactile Hoop Check: Is the fabric drum-tight? (If using Magnetic Hoops, is the magnet fully seated?)
• Test Sew: Run the file on scrap.
• Validation: Does the test match the screen? If yes, proceed to the final garment.

Digitizing is not magic; it is a recipe. Good ingredients (clean art), precise settings (density/angle), and the right cookware (stabilizers/hoops) yield the perfect result every time.

FAQ

• Q: In SewArt, how do SewArt Drawing Mode vs SewArt Stitch Mode cause the “missing Shape Tool tab” problem?
  A: Switch back to SewArt Drawing Mode—SewArt hides shape controls when SewArt Stitch Mode is active.
  • Click the “New” or “Back” icon until the top toolbar shows pencils/paint buckets/shapes (not thread spools/density numbers).
  • Open the Shape Tool again and confirm the right-side shape panel appears.
  • Avoid reinstalling first; this issue is usually just the wrong mode.
  • Success check: The toolbar shows drawing icons and the Circle/Square shapes are selectable.
  • If it still fails: Reset the workspace/layout in SewArt (if available) and re-open the project to force the panels to refresh.
• Q: What is the SewArt color reduction step, and why does a “dirty JPEG” create bad stitches in SewArt digitizing?
  A: Reduce the artwork colors to the exact thread count before digitizing—too many near-identical colors often create noisy, unpredictable stitch regions.
  • Start with a clean image and reduce colors to the number of thread spools you actually plan to sew (for example 2–4).
  • Save two files on purpose: a working image file (.BMP/.JPG) and a stitch file (.PES/.DST).
  • Keep scrap fabric and fresh needles ready before testing, so you do not risk the final garment.
  • Success check: The image looks “flat” in color blocks (not speckled), and SewArt produces a single clean filled area instead of fragmented patches.
  • If it still fails: Re-clean the source image again (less noise, fewer colors) before adjusting stitch settings.
• Q: In SewArt fill stitches, how do SewArt Separation (density), SewArt Stitch Length, and SewArt Stitch Angle settings prevent puckering, holes, and “bulletproof” stiffness?
  A: Use safe starting settings—Separation around 10–15, Stitch Length around 20, and a 45° angle—then adjust from a test sew-out.
  • Set Separation so it is not extreme; do not drop below 2–3 except on heavy fabric because overly dense fills can perforate fabric.
  • Keep Stitch Length near 20 (about 2.0 mm) for standard fills; very long stitches can snag, very short stitches can cause thread stress and hardness.
  • Choose 45° or -45° Stitch Angle to reduce distortion versus stitching everything at 0°.
  • Success check: The sew-out feels flexible (not board-stiff) and the fill looks even without fabric showing through.
  • If it still fails: Correct hooping/stabilizer first, then fine-tune Separation up/down in small steps based on the sew-out symptoms.
• Q: In SewArt manual stitch creation, how does the SewArt seed point (entry point) stop a fill stitch from starting in the middle and leaving a “navel” hole?
  A: Click the edge of the shape (top or side) as the SewArt seed point—avoid clicking the center.
  • Enter SewArt Stitch Creation Mode (needle cursor), then move the cursor to the top rim or side edge of the circle.
  • Click once to generate the fill so stitches sweep across logically instead of spiraling awkwardly.
  • Re-do the click if you accidentally start in the wrong place.
  • Success check: The fill preview appears instantly and the stitch direction looks like an even “sweep,” not a tight center cluster.
  • If it still fails: Zoom in and re-click a different edge position to change the entry path.
• Q: Why should SewArt “Join Threads” be unchecked when exporting a SewArt PES embroidery file, and how does that affect later editing in SewWhat-Pro?
  A: Uncheck “Join Threads” to keep same-color areas as separate objects—this makes later edits and deletions easier in SewWhat-Pro.
  • Save the working image first (File → Save As Image .BMP/.JPG) so resizing/redrawing stays editable.
  • Export the stitch file second (File → Save As Stitch .PES or .DST).
  • Keep “Join Threads” unchecked so shapes do not get welded into one block.
  • Success check: In an editor/viewer, individual shapes remain selectable/separable instead of merged.
  • If it still fails: Re-export from SewArt with “Join Threads” unchecked; welded objects usually cannot be cleanly “un-welded” after the fact.
• Q: How does SewWhat-Pro stitch-point preview at 600%–800% prevent needle breaks and bad texture when checking a SewArt PES file?
  A: Zoom until you see individual needle penetration dots—normal zoom can hide dangerous stitch clusters and jump issues.
  • Open the exported PES in SewWhat-Pro (or another viewer/editor).
  • Zoom to 600%–800% until the black dots (needle points) are clearly visible.
  • Look for dot pile-ups (overstitching) and overly long jump lines that could cause problems on fabric.
  • Success check: Dots are evenly spaced with no tight clusters sitting on top of each other.
  • If it still fails: Return to SewArt and adjust density/entry point, then re-export and re-check before sewing on a real garment.
• Q: What are the safety rules for trimming jump threads near the needle bar on an embroidery machine during SewArt test sew-outs?
  A: Stop the machine completely before trimming—never cut threads while the needle bar is moving.
  • Press stop and wait for all motion to fully halt before placing hands near the needle area.
  • Keep fingers clear of the needle bar path at all times, especially when reaching under the presser foot area.
  • Use scissors only when the machine is stationary.
  • Success check: Hands never enter the needle area while the machine is running, and trims are clean without sudden thread pulls.
  • If it still fails: Slow the workflow down and plan trim points; rushing is the most common cause of needle-through-finger injuries.
• Q: How do neodymium magnetic embroidery hoops reduce hoop burn on knit T-shirts, and what neodymium magnet safety rules prevent pinched fingers and pacemaker risk?
  A: Magnetic embroidery hoops clamp fabric without screw friction (often reducing hoop burn), but neodymium magnets must be handled by sliding—not prying.
  • Use magnetic hoops when standard hoops leave shiny rings or distort knits during hooping.
  • Slide magnets apart to remove them; do not pry them upward to avoid sudden snap-back pinches.
  • Keep neodymium magnets at least 6 inches away from medical devices (including pacemakers).
  • Success check: The garment is held securely with less surface shine, and the magnet seats fully without gaps.
  • If it still fails: Re-check stabilizer choice and hooping tension first; movement in the hoop can still cause gaps even with magnetic clamping.
