SewWhat-Pro “Join Threads” That Actually Cuts Color Stops: Turn 10 Stops Into 5 Without Re-Digitizing

Master Batch Production: Stop Babysitting Your Embroidery Machine

If you’ve ever loaded a mirrored design—like a pair of earrings—into your machine and thought, “Why is it stopping again? It’s the same thread color!” you are not alone.

The panic is real. You hear the machine slow down, the rhythmic thump-thump-thump fades into silence, and the dreaded "Change Thread" beep sounds. But when you look at the screen, it asks for the exact same spool you just used.

In this guide, based on a practical SewWhat-Pro workflow, we will move beyond basic buttons. We will teach you how to eliminate unnecessary stops, turning a frazzled hobbyist session into a streamlined production run. We will fix the software first, and then look at how your physical tools—like machine embroidery hoops—can keep up with your new speed.

The "Why": Anatomy of a Wasted Afternoon

To fix the problem, you must understand how the machine "thinks." It doesn't see a pair of butterfly earrings; it sees a list of commands.

The Scenario: You have a Left Earring and a Right Earring.

• Left Earring: Stops 1, 2, 3, 4, 5.
• Right Earring: Stops 1, 2, 3, 4, 5.
• Total Stops: 10.

Even if Stop 1 (Left) and Stop 1 (Right) are both "Black," the machine reads them as separate events because they are separated by other colors in the sequence. Your goal is to tell the machine: "Do all the Black at once, then all the Red at once."

The Production Reality Check

If you are making one pair for a gift, 10 stops is annoying. If you are making 20 pairs for an Etsy order, 10 stops is a disaster.

• Time Loss: 20 pairs x 5 extra stops x 1 minute (stop/start/trim time) = 100 minutes of wasted time.
• Quality Risk: Every time the machine stops, you risk bumping the hoop or losing tension consistency.

Phase 1: The Pre-Flight Safety Check

Before clicking any "Join" buttons in SewWhat-Pro, we need to verify the file is safe to modify.

Crucial Concept: The "Digital Twin" Software is literal. If one thread is labeled "Brother 001 White" and the other is just "White," SewWhat-Pro may refuse to join them. They must match exactly.

Pro Tip for Vinyl/Delicate Fabrics:
When you optimize a file to stitch all colors at once, the machine will jump back and forth between the left and right items. This creates diagonal travel stitches.
* Action: Ensure your fabric is hooped drum-tight. If you hear a "thudding" sound rather than a crisp "tapping" sound during stitching, your fabric is too loose.
* Tooling: This is where standard plastic hoops fail. They slip. Professionals often switch to magnetic embroidery hoops for batching small items because the magnetic force clamps vinyl instantly without the "hoop burn" (fabric crushing) caused by tightening screws.

Prep Checklist: Verify Before You Click

• Backup: Save a copy of your original file (e.g., Earrings_Original.pes).
• Visual Count: Look at the color bar on the right. Are there 10 stops for what looks like 5 colors?
• Color Inspection: Click on the specific color blocks. Do they share the exact same color palette/number?
• Hoop Check: If you are optimizing for speed, is your hoop ready? (Loose hooping + fast travel stitches = shifted designs).

Phase 2: Mastering "Join Threads" in SewWhat-Pro

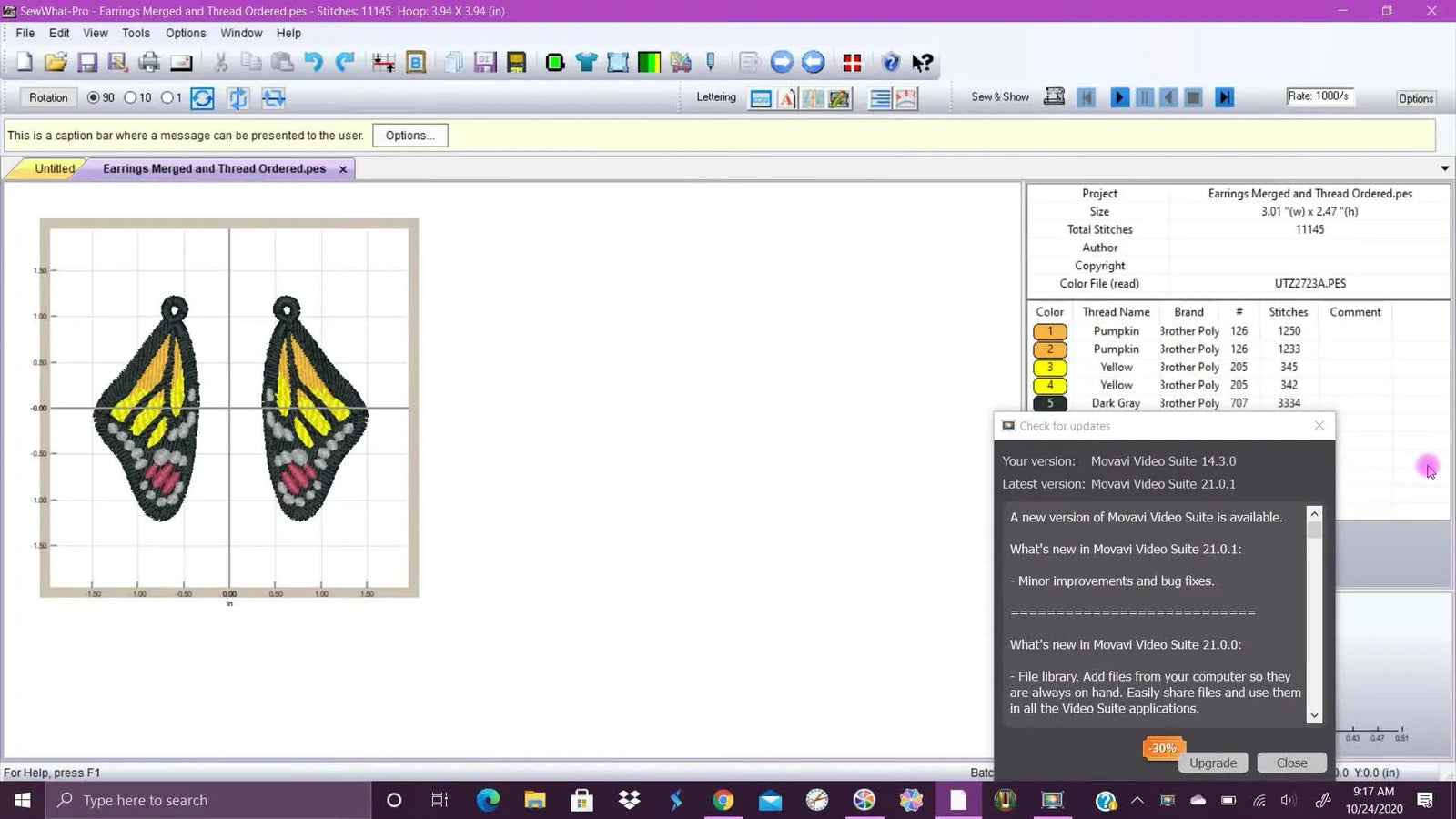

In the video, the instructor navigates to Edit → Join Threads. This is your command center.

You are presented with three behaviors. Understanding the difference is critical:

1. Join ALL ADJACENT threads: Only joins if Blue is right next to Blue in the list.
2. Join ALL threads: The "Nuclear Option." It searches the entire list and groups all matching Blue together, regardless of where they are.
3. Start at thread...: Useful if you want to keep the underlay (first steps) separate but join the top colors.


The Common Rookie Mistake

The instructor demonstrates a common failure: using "Join Adjacent" on a mixed file.

• The Colors: Left-Red, Left-Blue, Right-Red, Right-Blue.
• The Action: Click "Join Adjacent."
• The Result: Nothing happens.
• The Why: Left-Red and Right-Red are not neighbors. They are separated by Left-Blue.


To fix this, we must either manually drag colors next to each other (tedious) or use the "Join ALL" function (smart).

Phase 3: The Secret Step – Standardization

Before the "Join" command will work, the software must agree that the colors are identical. In the tutorial, the instructor merges two files, which often messes up color coding.

The Fix: She manually selects the non-matching blocks in the thread palette and forces them to be the same. She changes the 4th and 9th stops to the exact same "Yellow."

Sensory Self-Check: Look closely at the RGB codes or names in your software. Color #2 might be "Deep Gold" and Color #7 might be "Gold." To you, they look the same. To the machine, they are strangers. Rename them to match exactly.

Phase 4: The "Join ALL" Payoff

Once the colors are standardized and the file is loaded:

1. Go to Edit → Join Threads.
2. Select Join ALL threads of same color.
3. Click OK.


The Result: Watch the color list on the right. It should instantly collapse from 10 stops down to 5 stops.

Now, your machine will stitch the Yellow on the Left Earring, perform a jump stitch, and immediately stitch the Yellow on the Right Earring. Zero human intervention required.

Software & Setup Checklist

• Standardize: Did you force all "almost same" colors to be identical?
• Join Mode: Did you use "Join ALL" for mixed lists?
• Path Check: Simulate the stitch-out on screen. Watch the travel lines.
• Speed Calibration: Since the machine now travels between items, lower your max speed.
  • Expert Value: Reduce from 800 SPM to 600 SPM for safe travel on small items.

Warning: Optimized files create long jump stitches between items. Keep your hands clear! When the machine finishes the Left Earring, it will accelerate quickly to the Right Earring. Do not try to trim threads while the machine is moving.

Phase 5: Saving and Decision Making

Always use File → Save As and append _SEM (Sorted/Edited/Merged) or _Joined to the filename. Never overwrite your master file.

Decision Tree: The Efficiency Logic

Optimization isn't just about software. It's about the bottleneck in your workflow. Use this tree to solve the right problem:

Problem: "Software says 5 stops, machine still stops 10 times."

• Diagnosis: Your machine might have a "Trim Command" set to "Stop."
• Fix: Check your machine's settings menu for "Stop at Jump Codes."

Problem: "I fixed the file, but I spend 15 minutes hooping each batch."

• Diagnosis: Your physical workflow is the bottleneck.
• Fix: Hardware upgrade. If you struggle with screws and alignment, a magnetic hooping station ensures you place the fabric effectively in seconds, not minutes.

Problem: "My delicate patterns are shifting between left and right items."

• Diagnosis: Fabric movement (Flagging). The hoop isn't holding tight enough for the travel stitches.
• Fix: Use a stronger stabilizer (Cutaway over Tearaway) and upgrade to magnetic embroidery hoops which clamp the entire perimeter evenly, unlike standard hoops that only pinch near the screw.

Troubleshooting: When It Doesn't Work

Even with this guide, things can go wrong. Here is your rapid-response table:

The "Expert" Upgrade: Beyond the Single Needle

By joining threads, you are squeezing the maximum efficiency out of a single-needle machine. You have removed the "Start/Stop" delay.

However, if you find yourself running these optimized batches for 4+ hours a day, acknowledge the limit.

• Level 1: Optimize File (This Tutorial).
• Level 2: Faster Hooping (Magnetic Hoops / Stations).
• Level 3: True Automation.
  • If you are printing money with earrings but losing your mind changing threads for the next batch, this is the trigger point for a Multi-Needle Machine (like the SEWTECH series). A multi-needle doesn't need "joined threads"—it simply switches needles automatically.

Warning - Magnet Safety: If you choose to upgrade to magnetic frames, be aware they use powerful Neodymium magnets. They can pinch fingers severely and must be kept away from pacemakers and sensitive electronics.

Final Operational Checklist

• File: Design_Joined.pes loaded.
• Hoop: Fabric is "drum tight" (tap it to hear the sound).
• Needle: Fresh 75/11 needle installed (sharp needles reduce drag on travel stitches).
• Zone: Clear the stitch area of scissors and spare bobbins.
• Test: Run the first jump stitch at low speed (slide speed control to to 50%).

You have now moved from "pushing buttons" to "managing production." Let the machine do the work.

FAQ

• Q: Why does a Brother single-needle embroidery machine beep “Change Thread” even when the next stop uses the same spool color in a mirrored earrings batch?
  A: The Brother single-needle embroidery machine is reading separate color-change events, not “same-looking” thread, so identical colors must be standardized and joined in the file.
  • Standardize: Make the duplicate colors match exactly (same name/number in the palette) before joining.
  • Join: Use SewWhat-Pro Edit → Join Threads → Join ALL threads of same color (not “Join Adjacent” for mixed sequences).
  • Save: Use Save As and add _Joined (do not overwrite the original).
  • Success check: The color list collapses (example: 10 stops becomes 5) and the machine no longer pauses between the left/right item for the same color.
  • If it still fails… Check whether the machine is set to stop at trim/jump commands (e.g., a “Stop at Jump Codes” type setting).
• Q: Why does SewWhat-Pro “Join ALL ADJACENT threads” do nothing on a Left-Red, Left-Blue, Right-Red, Right-Blue file for a Brother PES earrings batch?
  A: “Join ALL ADJACENT” only merges matching colors that are neighbors in the stop list, so it will not join Left-Red with Right-Red when Left-Blue sits between them.
  • Switch: Choose Edit → Join Threads → Join ALL threads for mixed color orders.
  • Verify: Click each color block and confirm the “same” colors truly match (names/numbers), then run Join again.
  • Preview: Simulate the stitch-out and watch the travel/jump lines between items.
  • Success check: Reds group together into one red section, blues group together into one blue section, reducing stops.
  • If it still fails… Re-check for “almost the same” colors (e.g., “Gold” vs “Deep Gold”) and rename to match exactly.
• Q: How can a Brother single-needle embroidery machine operator prevent shifting when an optimized joined-color file creates long jump stitches between left and right earrings?
  A: Prevent fabric movement first—tight hooping and stabilization matter more after joining because the machine will travel fast between items.
  • Hoop: Re-hoop so the fabric is drum-tight before running the joined file.
  • Stabilize: Use a stronger stabilizer choice (the guide notes Cutaway over Tearaway for better hold on shifting/flagging cases).
  • Slow down: Reduce speed for safer travel (a safe starting point in the guide is 800 SPM down to 600 SPM on small items).
  • Success check: The second item lands in the correct position and travel stitches do not “drag” the fabric.
  • If it still fails… Confirm the hoop is fully locked into the machine arm and consider upgrading the hooping method if standard hoops slip during travel.
• Q: What is the fastest way to reduce thread breaks during travel stitches on a Brother single-needle embroidery machine after joining colors in SewWhat-Pro?
  A: Lower speed and remove common thread-path snags, because travel segments can stress thread more than normal fills.
  • Slow down: Drop running speed; the troubleshooting safe value shown is 500 SPM when breaks happen during travel.
  • Check path: Re-thread and confirm the thread is not catching on the spool cap.
  • Observe: Run the first travel/jump at reduced speed before committing to full speed.
  • Success check: The machine completes the jump/travel segment without snapping and resumes stitching cleanly.
  • If it still fails… Revisit file simulation for excessive travel and lower speed further as needed (machine manual settings may vary).
• Q: What is the correct “drum-tight” hooping standard for a Brother single-needle embroidery machine when batching small items with long travel stitches?
  A: Use the sound-and-feel test: the fabric should be drum-tight so travel stitches don’t cause shifting.
  • Tap-test: Tap the hooped area; aim for a crisp “tapping” sound, not a dull “thudding” sound.
  • Re-hoop: If it sounds dull, re-hoop tighter before stitching the optimized file.
  • Stabilize: Pair with appropriate stabilizer so the fabric stays flat during rapid movement.
  • Success check: The hooped fabric feels firm and the machine stitches travel lines without puckering or displacement.
  • If it still fails… If standard hoops slip or cause fabric crushing/marks, consider a magnetic hooping method for more even perimeter clamping.
• Q: What needle and workspace safety steps should a Brother single-needle embroidery machine operator follow when running a joined-color file with fast jumps between items?
  A: Treat long jumps like rapid machine moves—keep hands and tools out of the stitch field and start the first jump at low speed.
  • Clear zone: Remove scissors, bobbins, and loose items from the stitch area before starting.
  • Hands off: Do not try to trim threads while the machine is moving between left/right items.
  • Start slow: Run the first jump at low speed (the guide suggests sliding speed control to 50% for the initial test).
  • Success check: The machine completes the first jump safely with no near-contact and no snagging on tools.
  • If it still fails… Pause the machine before any manual trimming and re-check travel paths in the on-screen simulation.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops for batch production on a Brother single-needle embroidery machine?
  A: Use magnetic hoops with caution because strong Neodymium magnets can pinch fingers and must be kept away from pacemakers and sensitive electronics.
  • Handle carefully: Keep fingers out of pinch points when magnets clamp down.
  • Keep clear: Do not place magnets near pacemakers or sensitive devices.
  • Stage safely: Set the hoop parts down deliberately so they do not snap together unexpectedly.
  • Success check: The hoop closes without finger pinches and the fabric is held evenly without slipping.
  • If it still fails… Switch to a slower, two-hand placement technique and verify the work area is free of metal tools that can get pulled in.
• Q: If optimizing a Brother single-needle earrings file in SewWhat-Pro removes stops but batch production is still slow, when should the workflow move from file optimization to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Use the bottleneck: fix software first, upgrade hooping if setup time is the drag, and consider a multi-needle machine when daily production time is dominated by repeated manual thread changes.
  • Level 1 (Technique): Join and standardize colors so the file truly reduces stops and needs less babysitting.
  • Level 2 (Tooling): If hooping/alignment takes minutes per piece or causes wrist strain, upgrade the hooping method (magnetic hooping can speed clamping and reduce slip/marks).
  • Level 3 (Capacity): If optimized batches run 4+ hours/day and thread changing is the main limiter, a multi-needle platform (e.g., SEWTECH) removes most manual color-change downtime.
  • Success check: The chosen upgrade removes the actual bottleneck (stops vs hooping time vs constant thread changes) rather than just adding new gear.
  • If it still fails… Time one full batch (stitch time + stops + hooping) and identify which step consumes the most minutes before changing anything else.
