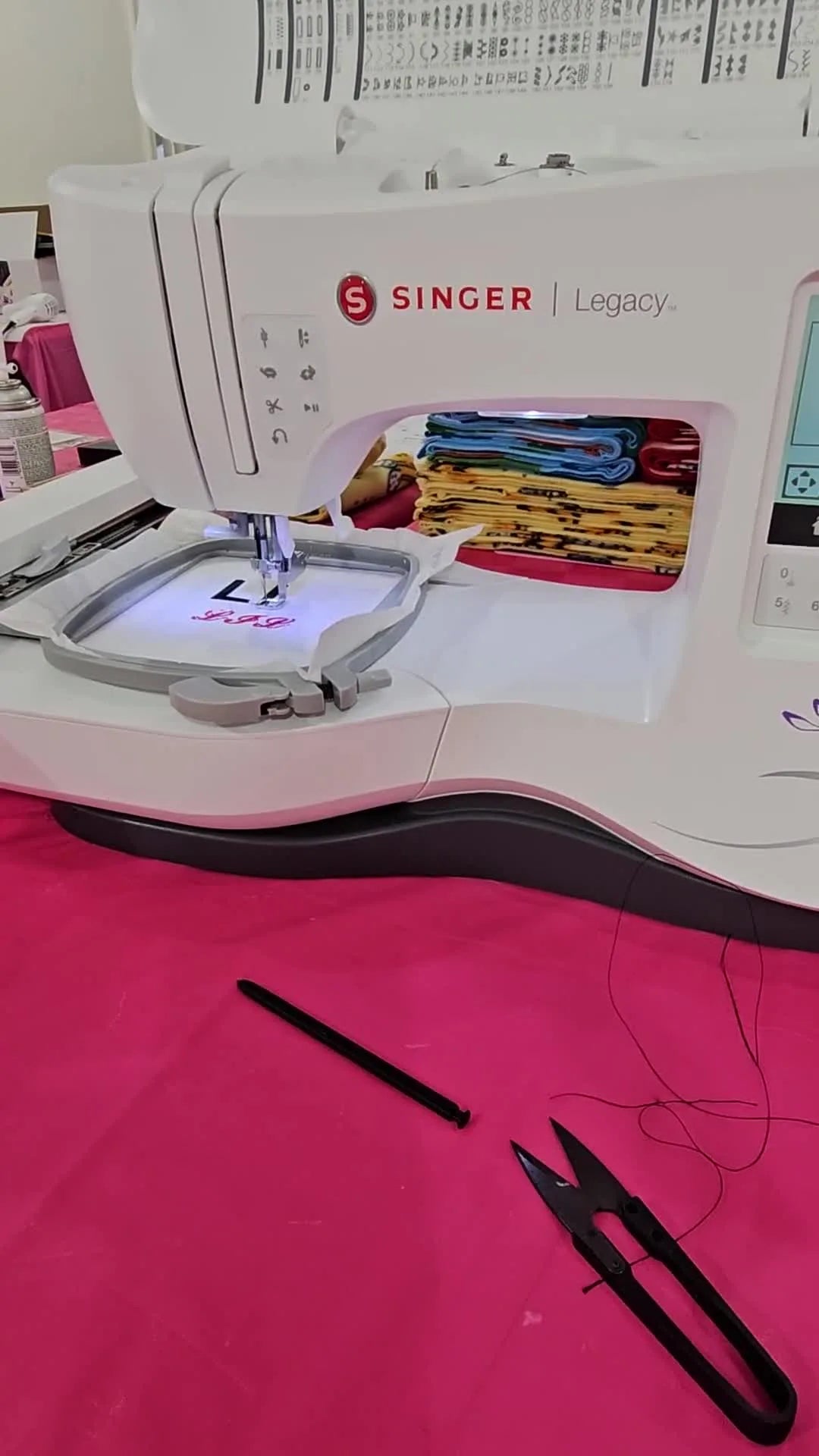

Singer Legacy SE300: Thread, Trace, and Stitch Your First “LIL” Monogram Without the Usual Beginner Headaches

Master the Singer Legacy SE300: A Professional’s Guide to Perfect Monograms

By Your Chief Embroidery Education Officer

If you are staring at your Singer Legacy SE300 and thinking, "I just want it to stitch one clean name without drama," you are in the right place. I have spent two years dissecting the learning curve of this machine, and here is the truth: The SE300 is perfectly capable of producing crisp satin letters—as long as you respect the physics of the machine.

Embroidery is not just about pressing a button; it is an interaction between thread tension, fabric stability, and accurate hooping. This guide rebuilds the workflow to professional standards, focusing on the specific "LIL" monogram production. We will cover correct upper threading (the #1 cause of failure), programming on the touchscreen, managing the "scissors" stop, and verifying your results.

Calm the Panic: What the Singer Legacy SE300 Is (and Isn’t) Telling You When It “Stops”

The first time the SE300 pauses mid-operation and throws a scissors/trim prompt, beginners often freeze. They assume the machine has jammed or an error has occurred.

Let’s reframe this: That stop is a feature, not a bug.

In the demo workflow, the machine performs a few "tie-in" stitches (locking the thread in place) and then stops. This is your specific opportunity to trim the starting thread tail. If the machine didn't stop here, that long tail would get whipped around by the needle bar and stitched permanently into your design, creating a messy "bird's nest" or an ugly lump under the satin column.

Think of it like a safety checkpoint.

Two quick mindset shifts to prevent 80% of beginner frustration:

1. A pause is a prompt: The machine is handing control back to you for a manual task (trimming).
2. Ugly stitches are rarely the machine's fault: Most "bad" first monograms come from poor hooping (physics) or incorrect stabilizer choice (materials), not the machine's motor.


The Threading Path That Actually Works on the Singer Legacy SE300 (Even With Big Hands)

In the video, the presenter stops to re-thread because the thread was "too loose." This is a critical "real-world" moment. If the upper thread is not seated deeply between the tension discs, the machine cannot apply drag to the thread. Without drag, you get loops on top of your fabric and a mess underneath.

Experience Check: When threading, hold the thread spool with your right hand to create tension, and pull the thread through the path with your left hand. You should feel a distinct resistance—similar to flossing your teeth. If it slides with zero friction, you missed the tension discs.

Follow the numbered path on the machine casing exactly:

1. Guide: Bring the thread down the right channel.
2. Take-Up: Go up the left channel ensuring the thread slips into the metal take-up lever (the arm that moves up and down). Listen for the click or look closely to ensure it is hooked.
3. Needle Bar: Come back down toward the needle.
4. Auto-Threader: Use the built-in automatic needle threader lever to push the thread through the needle eye.

The key detail from the demo: after the auto-threader creates the loop behind the needle, you must pull that loop through manually to leave a usable tail of about 4 inches.

Why this matters (the “physics” in plain English)

Satin stitches (used for lettering) are dense, side-to-side swings of the needle. As the needle accelerates (up to 700-800 stitches per minute on this machine), the thread needs consistent tension to lay flat.

If your threading is loose:

• The Tail: You get a long starting tail that tangles.
• The Edges: Your letters will look jagged or "saw-toothed" instead of smooth.
• The Column: The satin stitch will feel soft and spongy rather than tight and crisp.

When you look at comparisons of various singer embroidery machine models, the primary difference often isn't just the stitches per minute, but the forgiveness of the tension system. The SE300 requires you to be precise here.

Prep Checklist (before you touch the touchscreen)

• Fresh Needle: Is a new 75/11 Embroidery needle installed? (Old needles cause loops).
• Tension Check: Does the upper thread feel "floss-tight" in the tension discs?
• Thread Path: Is the thread clearly hooked through the take-up lever eye?
• Bobbin Check: Is the bobbin case free of lint, and is the bobbin wound smoothly?
• Tool Readiness: Are your embroidery nippers/scissors within arm's reach?
• Material: Is your fabric hooped with the correct stabilizer (Cut-away for knits)?


Touchscreen Monogram Setup on the Singer Legacy SE300: “Large Letters,” Then Move It Where You Want

The SE300 has a built-in computer, meaning you don't always need a laptop to do simple names. The video demonstrates programming "LIL" directly on the machine.

The On-Screen Flow:

1. Select the "Large Letters" font category.
2. Type LIL using the interface keyboard.
3. Crucial Step: Use the directional arrows to move the design toward the top of the hoop area.

The Risk: The presenter moves the design because the center of the fabric was already used. This is common practice, but it introduces a danger zone: The Hoop Strike. When you move a design off-center, you increase the risk of the needle bar hitting the plastic edge of the hoop if you miscalculate. Never navigate blindly.

The One Toggle That Saves Your Sanity: SE300 Monochrome Mode So It Won’t Stop Between Letters

In the demo, the presenter taps a specific icon—a spool with circular arrows—known as Monochrome Mode.

This is not just a convenience feature; it is an essential workflow control for single-needle machines.

• Default Behavior (Multi-Color Logic): The machine treats every distinct letter or object as a separate "color block." It will stitch "L", stop, cut the thread, and ask you to change thread (even if you want the next letter in the same color).
• Monochrome Behavior (The Fix): It tells the machine "Ignore color stops; stitch everything in one continuous run."

If you are using the SE300 as a dedicated monogram machine for personalization businesses (like stitching team names on 20 shirts), this single setting cuts your production time by 30%. It turns a "stop-and-go" frustration into a smooth production rhythm.

Hoop Size Reality Check: Selecting the 100×100 mm Hoop (and the Upgrade Trap People Mentioned)

In the video, the hoop selection is clearly set to 100×100 mm (4x4 inches). This is the standard hoop that limits vibration and ensures good registration for small logos.

The Upgrade Trap: A serious pitfall appeared in the comments of the source video. Owners reported buying extra hoops—specifically the 5x7 or the specialized endless embroidery hoop (used for stitching long borders without unhooping)—only to find they couldn't use them.

Why? Because some non-standard hoop sizes require a digital file update (a driver update for the machine to recognize the new hoop dimensions). If Singer support or the download server for legacy models is unavailable, you cannot "unlock" that hoop size on your screen.

The Strategy:

1. Check First: Turn on your machine and cycle through the available hoop list before buying accessories.
2. Verify: If the size isn't listed, do not buy the hoop until you have successfully installed the firmware update that enables it.
3. Stick to Standard: For 90% of work, the 100x100 and 150x260 hoops included with the machine are your workhorses.

The Trace Button Is Your Insurance Policy: Watch the Hoop Hit Four Corners Before You Stitch

The presenter presses Trace. The hoop physically travels to the four corners (cardinal points) of the design's imaginary box.

Adopt this habit immediately. I tell all my students: If you didn't trace, you aren't ready to stitch.

What to look for during the Trace:

• Visual Clearance: Does the presser foot get dangerously close (within 2-3mm) to the inner edge of the plastic hoop?
• Fabric Security: Does the trace move over an area where the fabric might be bunched up or where a clamp is in the way?
• Centering: Is the design actually where you thought it was?

If the trace looks tight, do not "hope for the best." Stop. Move the design inward on the touchscreen and trace again. Hope is not a strategy in embroidery.

The Clean-Start Ritual: Trim the Long Tail *Before* You Press Start

Right before hitting the green button, the presenter manually trims the excess thread tail.

Why? If you leave a 4-inch tail hanging loose, the erratic air currents and needle movement can whip that tail under the foot. It gets stitched over, creating a lump that can break a needle or ruin the flatness of your satin stitch.

Warning: Mechanical Safety. Keep scissors and fingers well away from the needle area. Never reach under the presser foot while the machine is capable of moving. Only trim when the machine is at a complete stop.

Start, Tie-In, Stop: Handling the SE300 “Scissors” Prompt Without Losing Your Place

Here is the controlled sequence demonstrated:

1. Press Start.
2. Machine stitches a few "fixing stitches" (slowly).
3. Machine STOPS and displays the scissors icon.
4. User trims the remaining tail flush with the fabric.
5. User presses the Checkmark on screen to resume.


The Pro Tip: When you trim at step 4, get your scissors as close to the fabric as possible (curved applique scissors are excellent here). This ensures you don't have a little "whisker" of thread poking out of your L. Once you press the checkmark, the machine will accelerate to full speed.

Satin Stitch Letters on the Singer Legacy SE300: What to Watch While It’s Running

The machine is now executing the satin stitches for L, I, and L.

Do not just stare at the needle. Use your senses to monitor the health of the stitch-out:

1. Sound (Auditory): You want a rhythmic thump-thump-thump. A grinding noise or a harsh clack indicates a needle strike or a thread jam.
2. Sight (Visual): Watch the thread spool. Is it unwinding smoothly? If it's jumping or getting caught on the spool cap, pause immediately.
3. Fabric Movement: Is the fabric "flagging" (bouncing up and down with the needle)? If so, your hooping is too loose.

The Hooping Bottleneck: If you find yourself doing this "LIL" logo on 50 shirts, you will quickly discover that the stitching takes 2 minutes, but the hooping takes 5 minutes. This is where efficiency dies.

For repeatable placement (e.g., left chest logos), professionals use a hooping station for machine embroidery. This device holds the hoop and garment in a fixed position, ensuring every shirt is hooped at the exact same measurement without measuring tape.

Setup Checklist (right before you commit to the stitch-out)

• Hoop Match: Does the screen show 100x100mm, and is the 100x100mm hoop installed?
• Monochrome: Is the "spool with arrows" icon active (for single-color text)?
• Trace: Did you run the trace and confirm >5mm clearance from the edge?
• Tail: Is the top thread tail trimmed to avoid tangles?
• Speed: For beginners, have you lowered the speed slider to ~500 SPM (Stitches Per Minute) for better control?

“Job Finished” on the Screen: Unhooping Without Distorting Your Fresh Satin Stitches

The screen displays a green checkmark. The job is done.

Unlatch the hoop carefully. Remove the inner hoop. Critical Technique: Do not "pop" the fabric out aggressively. Satin stitches are heavy. If you yank the fabric while it is still warm and under tension, you can distort the fibers, causing the letters to pucker. Gentle removal is key.

The Black-on-White Sample Test: A Fast Way to Judge Tension and Satin Density

The presenter shows the final result: Black thread on White stabilizer.

This is the ultimate diagnostic test called the "H Test" (or in this case, the L Test). White stabilizer acts as a contrast agent.

How to Read Your Sample:

1. Top View: You should see solid black satin. If you see white bobbin thread poking up (called "railroading"), your upper tension is too tight.
2. Bottom View: Flip it over. You should see a white column of bobbin thread down the center, taking up about 1/3 of the width, with black thread wrapping 1/3 on each side.
   • If you see all black on the bottom: Upper tension is too loose.
   • If you see all white on the bottom: Upper tension is too tight.

Stabilizer Decision Tree for Lettering Like “LIL”

The video uses Cut-Away Stabilizer. This is the correct choice for most applications, but let's formalize the logic so you don't ruin a good shirt.

Stabilizer Decision Tree:

• 1. Is the fabric stretchy (T-shirt, Polo, Knit)?
  • YES: You MUST use Cut-Away stabilizer. Tear-away will result in broken stitches and gaps as the fabric stretches.
  • NO: Proceed to question 2.
• 2. Is the fabric unstable or loose weave (Linen, light cotton)?
  • YES: Use Cut-Away (Mesh or Standard) to provide a foundation.
  • NO: Proceed to question 3.
• 3. Is the fabric a stable woven (Denim, Canvas, Twill)?
  • YES: You can use Tear-Away stabilizer.
• Hidden Consumable: If your fabric has a "nap" or deep texture (like a towel or velvet), you also need a Water Soluble Topper (like Solvy) on top of the fabric to keep the stitches from sinking into the fluff.

Hooping Speed vs. Hooping Quality: Where Beginners Lose Time (and How to Get It Back)

The video uses the standard plastic hoop included with the SE300. While functional, standard hoops are the primary source of two major pain points:

1. Hoop Burn: The friction ring leaves a permanent "shine" or crease on delicate fabrics.
2. Hand Strain: Tightening the screw to get "drum-tight" tension is physically demanding.

If you are moving from hobbyist to small business, you need to solve these friction points.

The Solution Hierarchy:

• Level 1 (Technique): Use hooping stations (like the HoopMaster system) to standardize placement. This solves the "crooked logo" problem but not the hoop burn.
• Level 2 (Comfort & Speed): Switch to magnetic embroidery hoops. These use powerful magnets to clamp the fabric rather than friction.
  • Benefit: No screw tightening (saves your wrists).
  • Benefit: No friction ring (eliminates hoop burn on velvet/performance wear).
  • Benefit: 3x faster hooping time.
• Level 3 (Scaling): If you are doing 50+ items a day, a single-needle machine like the SE300 becomes the bottleneck. This is when you look at multi-needle machines that allow you to queue up colors.

Warning: Magnet Safety. Modern magnetic hoops utilize industrial-strength Neodymium magnets. They are incredibly strong.
* Pinch Hazard: Fingers can get severely pinched between the magnets.
* Medical Devices: Keep at least 6 inches away from pacemakers or insulin pumps.

The Comment-Section Reality Check: Don’t Buy Extra Hoops Blind—Build a Reliable Workflow First

Many professionals constantly search for embroidery machine hoops compatible with their legacy machines, hoping a larger hoop will solve their design limitation issues.

Here is the truth: A larger hoop doesn't make you a better embroiderer; a better workflow does.

My Advice: Master the 100x100 hoop workflow first (Thread → Program → Monochrome → Trace → Stitch → Inspect). Once you can hit "Start" without your heart rate spiking, then consider upgrading your tools. If you struggle with hooping thick items (like hoodies) or "slippery" items (like silk), that is the specific signal to investigate magnetic embroidery hoops or a dedicated hoop master embroidery hooping station—tools designed to handle difficult substrates that standard plastic hoops degrade.

Operation Checklist (the “no surprises” run you can repeat every time)

• Re-thread: Check the upper thread path if tension felt inconsistent on the last run.
• Needle: Ensure the needle isn't bent (roll it on a flat table to check).
• Program: Large Letters → "LIL" → Position → Monochrome ON.
• Hoop: 100x100mm installed and selected on screen.
• Material: Fabric + Cut-Away + Spray Adhesive (if needed) loaded smooth as a drum skin.
• Safety: Trace run successful? Hands clear?
• Execution: Start → Trim Tail → Resume → Finish.
• Quality: Inspect bobbin ratio on the back (1/3 white center).

By following this "physics-first" approach, you stop fighting the SE300 and start partnering with it. Happy stitching.

FAQ

• Q: Why does the Singer Legacy SE300 stop and show the scissors/trim icon right after pressing Start?
  A: This is a normal tie-in + trim prompt, not a jam—trim the starting tail and resume.
  • Trim the top thread tail close to the fabric only when the machine is fully stopped.
  • Tap the on-screen checkmark to continue stitching after trimming.
  • Success check: After resuming, the satin stitches start cleanly without a lump or “bird’s nest” at the first stitches.
  • If it still fails: Re-thread the upper thread and confirm the thread is seated in the tension discs and take-up lever.
• Q: How do you re-thread the Singer Legacy SE300 upper thread so the tension discs actually grab the thread (to stop loops and loose stitches)?
  A: Re-thread with deliberate “floss-tight” resistance—if the thread slides with no friction, the tension discs were missed.
  • Hold the spool to create light drag while pulling the thread through the path.
  • Follow the numbered channels and confirm the thread is hooked into the take-up lever.
  • Use the auto-threader, then pull the loop through by hand and leave about a 4-inch tail.
  • Success check: You feel distinct resistance while threading (like dental floss), and the stitch-out does not form loose loops.
  • If it still fails: Clean lint from the bobbin area and re-check that the take-up lever is truly threaded.
• Q: How do you use Monochrome Mode on the Singer Legacy SE300 so the machine does not stop between letters when stitching one-color monograms?
  A: Turn on Monochrome Mode (spool with circular arrows) so the SE300 ignores color stops and runs the letters continuously.
  • Program the letters (example: “LIL”) in the built-in Large Letters font.
  • Tap the Monochrome Mode icon before starting the stitch-out.
  • Success check: The machine stitches the full name/monogram without stopping to “change color” between letters.
  • If it still fails: Reconfirm the Monochrome icon is active and restart the design from the beginning of the run.
• Q: How do you prevent a Singer Legacy SE300 hoop strike after moving a design toward the edge of a 100×100 mm hoop?
  A: Always run the Trace function and confirm clearance before stitching—never trust off-center placement without tracing.
  • Move the design on the touchscreen only after selecting the correct hoop size (100×100 mm if that hoop is installed).
  • Press Trace and watch the hoop travel to the design’s boundary points.
  • Stop and reposition inward if the presser foot gets within about 2–3 mm of the hoop’s inner edge.
  • Success check: Trace shows safe clearance all around and nothing comes close to the hoop edge during motion.
  • If it still fails: Reduce design size or return the design closer to center and trace again.
• Q: How can Singer Legacy SE300 users judge correct embroidery tension using a black thread on white stabilizer sample (top and bottom)?
  A: Use the “ratio check”: the top should look solid, and the underside should show bobbin down the center with top thread wrapping both sides.
  • Inspect the top: look for solid satin coverage without bobbin thread peeking through (railroading).
  • Flip the sample: aim for a bobbin-thread column down the center (~1/3 width), with top thread on both sides.
  • Success check: The underside shows a centered bobbin column rather than all-black or all-white dominance.
  • If it still fails: Re-thread the upper path (most common cause) and re-test before changing other settings.
• Q: Which stabilizer should be used on the Singer Legacy SE300 for satin-stitch lettering on knits vs wovens (and when is a water-soluble topper needed)?
  A: Match stabilizer to fabric behavior: Cut-away for stretchy/unstable fabrics, tear-away for stable wovens, and add topper for textured surfaces.
  • Choose Cut-away for T-shirts, polos, and other knits (stretchy fabrics).
  • Choose Cut-away for unstable/loose weaves (often linen or light cotton) to prevent distortion.
  • Choose Tear-away for stable wovens like denim/canvas/twill.
  • Add water-soluble topper on towels/velvet/high-nap fabrics to prevent stitches sinking.
  • Success check: Letters stay crisp with minimal puckering and do not sink into texture after stitching.
  • If it still fails: Re-check hooping tightness (avoid fabric “flagging”) and verify the fabric is supported smoothly “like a drum.”
• Q: How can Singer Legacy SE300 users reduce hoop burn, hand strain, and slow hooping time without immediately replacing the embroidery machine?
  A: Use a step-up approach: improve hooping technique first, then consider magnetic hoops for speed/comfort, then scale to multi-needle only if volume demands it.
  • Level 1 (Technique): Standardize placement with a hooping station to reduce crooked logos and re-hooping.
  • Level 2 (Tool upgrade): Switch to magnetic embroidery hoops to avoid screw tightening and reduce hoop burn on sensitive fabrics.
  • Level 3 (Production scaling): If hooping becomes the bottleneck at high daily volume, consider a multi-needle machine for faster throughput.
  • Success check: Hooping time drops and fabric shows fewer marks while maintaining stable stitching (less flagging and fewer restarts).
  • If it still fails: Slow the machine speed (a safe starting point is lowering to ~500 SPM for control) and verify stabilizer choice before upgrading equipment.
