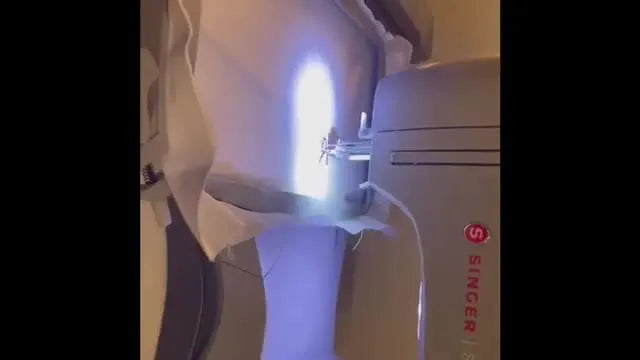

Singer Superb Embroidery Machine: Your First 6x10 Stitch Test (and How to Stop “Dancing” Letters Before They Ruin an Order)

Master the First Stitch: A Professional’s Guide to Registration, Stabilizers, and Setup on the Singer Superb

If you’ve ever watched a machine stitch a beautiful first letter… and then the next letters start “dancing” up and down like they’re on a trampoline, you’re not alone. Registration issues—where the outline doesn't match the fill, or letters drift off the baseline—are the most common source of frustration for machine embroidery novices.

Kathy’s recent first stitch test on a second-hand Singer Superb is a perfect real-world case study. The machine is capable, and the built-in fonts look great on screen, but small setup details (hoop orientation, hoop security, and thread tails) can quietly wreck your output. Embroidery is an "experience science"; machines don't feel the fabric, you do.

This post upgrades Kathy's initial stitch-out into a repeatable, industrial-grade routine. Whether you are moving from a 4x4 field to a 6x10, or trying to stitch names on T-shirts without wasting expensive blanks, this guide provides the physics, the sensory checks, and the logic you need to succeed.

The “4x4 Ceiling” Moment: Why a Singer Superb 6x10 Field Changes What You Can Sell

Kathy’s motivation for buying the Singer Superb was strategic: she outgrew the 4x4 limit on her Brother SE600 and needed a larger canvas for T-shirt designs. This is the "4x4 Ceiling." It is the exact moment many hobbyists hit when they transition to "prosumer" status. Name drops, left-chest logos, and jacket back designs are often physically impossible or visually awkward when you’re boxed into a 100mm x 100mm square.

If you are shopping or upgrading, searching for an embroidery machine 6x10 hoop isn’t just about specs—it’s about workflow efficiency. A 6x10 field allows you to batch multiple patches in one run or stitch "XL" lettering without re-hooping.

The Commercial Reality: Kathy mentions keeping two machines: one for small patches and one for garments. This is a smart "Bridge Strategy." However, as you scale, you will find that single-needle machines (which require a thread change for every color) become the bottleneck.

• Level 1 Operation: 1 Single-needle machine (Time spent changing thread: 40%).
• Level 2 Operation (Kathy's stage): 2 Single-needle machines (Time spent changing thread: 30%).
• Level 3 Operation: Multi-needle machine (Time spent changing thread: <5%).


Buying a Second-Hand Singer Superb Without Regret: The Quick Checks That Prevent Day-One Weirdness

Kathy bought her Singer Superb second-hand. While it looked brand new, used machines introduce "Unknown History." Before you blame the digitizer or the machine mechanics for an error, you must perform a "Zero-Point Calibration."

The "Hidden" Prep (Sensory & Mechanical Checks):

1. The Bobbin Case "Floss" Check: Remove the bobbin case. Clean out lint (lint creates drag). When you pull the bobbin thread, it should feel smooth—like pulling dental floss—not jerky.
2. The Needle Tip Test: Run the tip of the needle gently over your fingernail. If it scratches your nail, it has a burr. Replace it immediately. A burred needle acts like a tiny saw, cutting fabric fibers and causing registration drift.
3. Hoop Integrity: Inspect the inner hoop. If the plastic is stressed or warped from previous overtightening, it cannot grip fabric evenly.

If you are coming from a smaller platform, you might be used to a specific workflow. The limitations of a brother 4x4 embroidery hoop train you to be conservative with size, but a larger 6x10 hoop introduces more surface area for fabric to shift. This means stabilization becomes twice as critical.

Hidden Consumables Checklist:

• Fresh Needles: 75/11 Ballpoint (for knits) or 75/11 Sharp (for wovens).
• Silicon/Sewing Oil: Ideally distinct from household oil (check manual points).
• Temporary Adhesive Spray (505): Vital for floating stabilizers.

Prep Checklist (Pre-Flight Protocol):

• Needle Check: A fresh needle (75/11 is the sweet spot for general use) is installed with the flat side facing correctly.
• Path Check: Top thread is seated deep in the tension disks. (Tip: Thread with the presser foot UP to open disks, then lower foot to lock tension).
• Bobbin Check: You see the "H" pattern or correct feedback when pulling the bobbin thread; tails are cut to 3 inches.
• Clearance Check: The embroidery arm has full range of motion; no walls or coffee cups in the danger zone.
• Hoop Tactile Check: Fabric is taut. Tap it nearby the center. You want a dull "thud" (like a watermelon), not a high-pitched "ping" (too tight) and not a silent squish (too loose).


The Built-In Font Stitch Test on the Singer Superb: What “Normal” Looks Like (and What Doesn’t)

Kathy stitches her name using the machine’s built-in fonts in pink thread. This is a satin stitch (zig-zag column). Rule of Thumb: Always test a new machine with built-in fonts first. They are calibrated to the machine’s internal stepper motors, removing "bad digitizing" as a variable.

The "Sweet Spot" Settings for Testing:

• Speed: Do not run at max speed instantly. Set the machine to 400-600 SPM (Stitches Per Minute). This reduces vibration and gives you time to hit stop if something goes wrong.
• Tension: Look at the back of the satin stitch. You should see 1/3 bobbin thread (white) in the center, flanked by 1/3 top color on each side.

When you run a lettering test, you are auditing three specific metrics:

1. Baseline Consistency: Do the letters "A" and "n" sit on the exact same imaginary floor?
2. Column Density: Can you see the fabric through the stitches? (You shouldn't).
3. Push/Pull Compensation: Are the letters round, or are they squashed?

If you are new to the specific quirks of singer embroidery machines, do not panic if the first run fails. Mechanical calibration takes 10 minutes; learning to hoop correctly takes practice.

The Scissors Icon Pause: Handling Jump Stitches Without Creating a Registration Problem

Kathy notices the Singer Superb pauses, displays a scissors icon, and waits for her to trim. This is a critical feature, not a bug. In single-needle embroidery, "jump stitches" (the thread connecting letter A to letter B) can wreak havoc on registration.

The Physics of the "Drag": If you leave a long thread tail or jump stitch, the foot can catch it on the next pass. When the foot catches a loop, it tugs the fabric microscopically to the side. Result: The next letter stitches 1mm to the right, ruining the alignment.

Warning: Mechanical Safety Hazard. Keep fingers, scissors tips, and loose clothing/sleeves at least 4 inches away from the needle bar area. Always wait for the green button to turn red (or the machine to come to a complete dead stop) before reaching in to trim.

The "Surgeon's Trim" Technique:

1. Wait for the full stop and prompt.
2. Slide curved embroidery scissors (curved tips facing UP) under the jump thread.
3. Clip the thread close to the surface—aim for 1-2mm length.
4. Verify the tail is not trapped under the presser foot before resuming.


The “Dancing Letters” Problem on the Singer Superb: Why Text Jumps Up and Down Mid-Name

Kathy identifies the core issue: her name is "going up and down," violating the baseline. She rightly suspects hooping issues or the hoop being backwards.

The Root Cause Analysis: "Dancing Letters" are rarely a machine timing issue. They are almost always a Physics Issue called "Flagging."

• Flagging: If the fabric is loose in the hoop, it bounces up with the needle. The fabric moves horizontally while the needle is in the air. When the needle comes down, it hits a different spot than intended.

In professional shops, this symptom is diagnosed in this order:

1. Hoop Obstruction: The hoop hit the machine body or a wall (User error).
2. Hoop Slippage: The fabric is slipping out of the hoop frame because the screw wasn’t tight enough.
3. Stabilizer Failure: The stabilizer isn't supporting the fabric structure.

If you are hand-hooping tricky items and fighting slippage, mastering the art of hooping for embroidery machine is the highest-ROI skill you can learn. However, if your wrists hurt or you cannot get consistent tension, you have reached a "Tool Limit."

The “Hidden” Hoop Security Checkpoint: The One Thing That Makes the Screen Lie

Kathy wonders if she “doesn’t have something secure.” She shows the hoop attachment point. This is the number one mechanical failure point for new users.

The "Click-Lock" Auditory Check: When you slide the hoop onto the embroidery arm carriage, you must listen for a distinct mechanism engagement.

• The Sound: A sharp SNAP or CLICK.
• The Feel: Once attached, try to wiggle the hoop frame left and right. It should feel rigidly connected to the arm. If there is "play" (wobble), your registration will be off.

The "Drum Skin" Myth vs. Reality: You want the fabric taut, but not stretched to the point of distortion.

• The Test: Pull the fabric gently in the hoop. Do the grid lines on the woven fabric bow or curve? If yes, you over-stretched.
• The Solution: Use Magnetic Hoops.

Traditional hoops rely on friction and a thumbscrew. This creates uneven pressure (tight near the screw, loose opposite). magnetic embroidery hoops use powerful magnets to clamp the fabric straight down with uniform pressure around the entire perimeter. This eliminates "hoop burn" (shiny crush marks) and prevents fabric slippage during high-speed stitching.

Warning: Magnetic Hazard. Magnetic frames are industrial-strength. They can pinch skin severely—handle with care. KEEP AWAY from pacemakers, insulin pumps, and magnetic storage media (credit cards, hard drives).

Fabric + Stabilizer Decision Tree for Lettering: Stop Guessing Before You Waste T-Shirts

Kathy is testing on white fabric, but her goal is T-shirts. Stitching on T-shirt knits is the "Boss Fight" of embroidery registration. Knits stretch; embroidery pulls. Without the right backing, the fabric will pucker.

Use this decision tree to select the correct stabilizer. Do not guess.

Decision Tree: Stabilizer Selection Logic

1. Is the fabric STRETCHY? (e.g., T-Shirt, Jersey, Performance Wear)
   • YES: You MUST use Cutaway stabilizer. No exceptions. Tearaway will tear during the stitch, causing the heavy satin letters to collapse and dance.
   • Pro Tip: Use "Fusible Poly Mesh" (No Show Mesh) for lighter shirts to keep it soft.
2. Is the fabric STABLE/WOVEN? (e.g., Denim, Canvas, Towel, Dress Shirt)
   • YES: You can use Tearaway stabilizer. Ideally, use a "Medium Weight" tearaway.
   • Pro Tip: If the design is very dense (lots of stitches), add a layer of Cutaway for insurance.
3. Does the fabric have TEXTURE/PILE? (e.g., Towel, Velvet, Fleece)
   • YES: You need a Water Soluble Topper (Solvy) on top AND the appropriate backing (Cutaway/Tearaway) underneath. The topper prevents stitches from sinking into the fluff.
4. Is the item a HAT/CAP?
   • YES: Requires stiff Cap Backing (heavy tearaway). You generally need a specialized hoop or a dedicated multi-needle machine for best results.


When to Blame the File (and When Not To): Built-In Fonts vs USB Designs on the Singer Superb

Kathy considers loading her own design via USB. This is a smart diagnostic step.

The Logic of File Troubleshooting:

• Built-in Fonts: Stored in the machine’s ROM. They are optimized for the machine's maximum speed and tension. If these stitch poorly, the problem is Physical (Hooping/Machine).
• USB/External Files: Created by software (like Embrilliance or Wilcom). If built-in fonts stitch perfectly but your logo looks terrible, the problem is Digital (Density settings/Pull compensation).

Diagnostic Rule: Never troubleshoot machine tension or hooping using a purchased or downloaded file. Always calibrate with a built-in "B" or "H" block letter first.

The Repeatable Fix: Re-run the Name Test With These Checkpoints (So You Can Ship Orders Confidently)

Kathy has orders to ship. To move from "goofy" results to sellable goods, we need a controlled re-test.

The Fix Protocol (Step-by-Step):

1. Re-Hoop from Scratch: Remove the fabric. Iron it flat. Apply fresh stabilizer (Cutaway if it's a knit).
2. Float the Stabilizer (Optional but safer): Hoop the stabilizer only (drum tight). Spray lightly with adhesive. Smooth the fabric onto the stabilizer. This prevents stretching the fabric during hooping.
3. Use a Hooping Aid: If you struggle to align fabric straight, consider a hooping station for embroidery machine. These tools hold the hoop static while you align the garment, ensuring the chest logo isn't crooked.
4. Confirm Orientation: Ensure the inner hoop arrow matches the outer hoop arrow.
5. Run the Test: Stitch the name "TEST" at 600 SPM.
6. Observation: Watch the entry and exit points of the needle. Is the fabric "flagging" (bouncing)? If yes, stop => tighter hoop needed.


Troubleshooting “Letters Not Lining Up”: Symptom → Likely Cause → Fastest Fix

Kathy observed mixed results—some letters okay, some drifting. This intermittency is a clue.

The Upgrade Path That Actually Makes Sense: From Brother SE600 to Singer Superb to Multi-Needle (Without Buying Twice)

Kathy’s long-term goal is a Ricoma multi-needle machine for hats. This effectively maps the "Embroidery Professional Lifecycle."

The Graduation Logic:

1. The Hobbyist: Uses a brother se600 hoop. Great for learning, terrible for production due to size limits.
2. The Side Hustler (Kathy): Moves to a 6x10 single-needle (Singer Superb/Brother PE800). Gains size, but fights speed and hooping consistency.
   • The "Cheat Code" Upgrade: Instead of buying a $10,000 machine immediately, professionals first upgrade their hoops. Adding a set of magnetic hoop for brother or Singer specific frames solves the registration issues by mechanically enforcing perfect tension.
3. The Business Owner: Moves to a Multi-Needle (6, 10, or 15 needles).
   • The Trigger: When you are turning away orders for 50 caps or 100 polos because you can't re-thread fast enough.
   • The Search: While many search for ricoma embroidery machines, smart business owners compare specs on motor torque, needle count, and hoop ecosystems. Brands like Sewtech offer industrial-grade multi-needle solutions that integrate seamlessly with high-efficiency magnetic framing systems, often at a better ROI point.

Setup Checklist (Before Paid Production):

• Design file: Test stitched on scrap fabric similar to the final garment.
• Bobbin: Full bobbin loaded (never start a big run on low bobbin).
• Hoop: Magnetic hoop used for knits/slippery fabrics to ensure lock-down.
• Stabilizer: Correct "sandwich" selected (e.g., Cutaway + T-shirt + Solvy).


The “Results” Mindset: Turn This Test Stitch Into a Reliable Production Routine

Kathy’s video is honest—she’s troubleshooting in real-time. The difference between a frustrated hobbyist and a confident producer is the System.

The Production Takeaway: Don't rely on luck. Rely on physics.

1. Secure the fabric (Magnetic hoops/Cutaway).
2. Secure the machine (Needle/Thread path).
3. Secure the environment (Clear table/Trim tails).

If you are constantly fighting hoop burn or "soft" tension in the center of a 6x10 field, a magnetic hoop for brother (or your specific reliable aftermarket equivalent for Singer) is the most logical tool upgrade. It bridges the gap between home machine struggles and industrial consistency.

Operation Checklist (Post-Stitch Quality Control):

• Visual: No white bobbin thread showing on top.
• Tactile: The embroidery feels flexible, not "bulletproof" (unless it's a patch).
• Registration: The outline sits exactly on the edge of the color fill.
• Cleanliness: All jump stitches are trimmed flush; no "bird's nests" on the back.


If your letters are still drifting after performing the "Click-Lock" check and swapping to cutaway stabilizer, consult your manual’s troubleshooting section regarding the "Embroidery Unit Calibration." But for 90% of users, the issue is simply holding the fabric still while the needle does the dancing. Secure the fabric, and the machine will do the rest.

FAQ

• Q: What quick pre-flight checks prevent “day-one weirdness” on a second-hand Singer Superb embroidery machine?
  A: Do a fast lint/needle/hoop inspection before blaming the design file—most first-run problems are physical, not digital.
  • Clean: Remove the bobbin case, clear lint, and pull bobbin thread to confirm it feels smooth (not jerky).
  • Replace: Run the needle tip over a fingernail; if it scratches, replace the needle immediately.
  • Inspect: Check the inner hoop for warping or stress cracks that prevent even grip.
  • Success check: Bobbin thread pulls smoothly “like dental floss,” and the hoop holds fabric evenly without obvious loose zones.
  • If it still fails: Re-thread the top path with the presser foot UP (to open tension disks), then re-test using a built-in font.
• Q: What stitch test settings should be used on a Singer Superb built-in font to diagnose embroidery registration problems?
  A: Use a built-in lettering test at moderate speed so the Singer Superb can be evaluated without “bad digitizing” variables.
  • Set: Run at 400–600 SPM instead of max speed.
  • Verify: Check satin stitch tension from the back—aim for about 1/3 bobbin thread in the center with top thread on both sides.
  • Audit: Look for baseline consistency, full coverage (no fabric showing through columns), and normal letter shape (not squashed).
  • Success check: Letters sit on one baseline and the back shows a balanced “1/3 bobbin” look.
  • If it still fails: Re-hoop and stabilize again before changing tension settings—hooping/stabilizer issues commonly mimic tension problems.
• Q: Why does a Singer Superb pause with a scissors icon during embroidery, and how should jump stitches be trimmed without causing misregistration?
  A: The Singer Superb pause is a helpful jump-stitch trim prompt—trim cleanly so loose threads cannot get caught and drag the fabric.
  • Wait: Let the machine come to a complete stop before reaching near the needle area.
  • Clip: Slide curved embroidery scissors under the jump thread and trim to about 1–2 mm above the surface.
  • Confirm: Make sure no tail is trapped under the presser foot before pressing start.
  • Success check: No long thread tails remain that could snag on the next stitch path.
  • If it still fails: Reduce leftover tails even more aggressively and watch for any thread catching that correlates with baseline waviness.
• Q: Why do Singer Superb embroidery letters “dance” up and down mid-name, and what is the fastest fix for fabric flagging?
  A: “Dancing letters” on a Singer Superb are usually fabric flagging from loose hooping or weak stabilization—lock the fabric down first.
  • Check: Confirm the hoop is not hitting the machine body, table edge, wall, or being dragged by garment weight.
  • Re-hoop: Re-hoop with proper tension (taut but not distorted) and use the correct stabilizer (cutaway for knits).
  • Upgrade: If consistent tension is hard to achieve, use a magnetic hoop to clamp evenly and prevent slippage.
  • Success check: During stitching, the fabric does not visibly bounce up/down with the needle (reduced “flagging”).
  • If it still fails: Stop and redo hoop attachment and stabilizer choice—intermittent baseline shifts are often mechanical attachment or support issues.
• Q: How can Singer Superb users verify the embroidery hoop is properly attached to the embroidery arm to prevent registration drift?
  A: The Singer Superb hoop must “click-lock” rigidly—any wobble at the carriage connection can cause drifting.
  • Listen: Slide the hoop onto the embroidery arm until a distinct SNAP/CLICK is heard.
  • Wiggle-test: Gently move the attached hoop left/right; it should feel rigid with no “play.”
  • Re-seat: If it feels loose, remove and reattach until the lock engagement is solid.
  • Success check: The hoop feels firmly locked to the carriage with no wobble when gently pushed.
  • If it still fails: Re-check the work area for obstructions and re-hoop—attachment problems and fabric movement often show similar symptoms.
• Q: What stabilizer should be used for lettering on T-shirts with a Singer Superb embroidery machine to prevent puckering and misregistration?
  A: For stretchy T-shirt knits on a Singer Superb, use cutaway stabilizer—tearaway commonly fails under dense satin lettering.
  • Choose: Use cutaway stabilizer for knits; consider fusible poly mesh (no-show mesh) when softness matters.
  • Add: Use a water-soluble topper on textured/piled fabrics so stitches don’t sink.
  • Apply: Consider “floating” fabric onto hooped stabilizer with temporary adhesive spray to avoid stretching the shirt while hooping.
  • Success check: After stitching, lettering sits flat with minimal puckering and the baseline stays consistent.
  • If it still fails: Re-hoop using a more secure method (including magnetic hooping) and re-test with a built-in font at 600 SPM.
• Q: When should Singer Superb owners upgrade from technique fixes to magnetic hoops or a multi-needle machine for production efficiency?
  A: Use a tiered approach: fix hooping/stabilizer first, upgrade to magnetic hoops when consistency is the limit, and move to multi-needle when thread changes become the bottleneck.
  • Level 1 (Technique): Re-hoop correctly, trim jump stitches at stops, slow to 400–600 SPM, and match stabilizer to fabric.
  • Level 2 (Tool): Add magnetic hoops when slippage, hoop burn, or inconsistent tension keeps repeating despite correct technique.
  • Level 3 (Capacity): Move to a multi-needle machine when color changes dominate production time and order volume outgrows single-needle workflow.
  • Success check: Runs complete without baseline drift, and repeat jobs require minimal re-hooping/rework.
  • If it still fails: If built-in fonts still drift after hoop security + cutaway stabilizer, consult the machine manual for embroidery unit calibration checks.
