The Ultimate Guide to "Sketchy" Lettering: How to Digitize It Correctly & Why the Machine Matters

When a customer asks for “sketchy” lettering—those clean, parallel rows of running stitches that look hand-drawn—you can absolutely build it in Floriani Total Control U (FTCU) without turning your file into a trim-happy mess.

However, machine embroidery is a game of physics, not just pixels. This workflow is intermediate digitizing: it’s not hard, but it rewards discipline. The two big mistakes I see (even from experienced users running commercial shops) are:

1. The "Ping-Pong" Effect: Duplicating text without splitting it first, resulting in a machine that jumps wildly between letters, causing thread breaks and messy backs.
2. The "Kerning Trap": Thickening letters with offsets and never fixing the spacing, creating a dense blob that ruins the readability.

Below is the specific method to master this look, calibrated with safe parameters for real-world production.

The “Sketchy Text” Look Starts With the Embassy Running Stitch Font (Not Satin)

The effect is built from parallel rows of running stitches, not satin columns. That choice is critical because a satin font creates a solid wall of thread. If you duplicate satin with offsets, you create a stiff, "bulletproof" patch that puckers the fabric and breaks needles.

In the demo, the instructor types the word “Test” using the Embassy running stitch font. The key strategy is to begin with a thin, single-line style. Think of this as your skeleton; we will add the flesh later.

If you’re chasing a clean, modern “drawn” look, this is also where you decide how bold you want the final text to feel.

• One line: Light, airy, minimal thread impact. Good for delicate knits.
• Two lines: Clearly sketchy, flexible.
• Three lines (Recommended): Bold, visible at a distance, mimics a pen stroke.

Expert Note on Speed: Because running stitches are lighter, your machine can theoretically run fast. However, for clean text, I recommend capping your speed at 600–750 SPM (Stitches Per Minute). Listen to your machine: a rhythmic, consistent hum yields better curves than a frantic, high-speed rattle.

The Hidden Prep Pros Do First: Set Up Your Workspace So Editing Doesn’t Get Messy

Before you start duplicating anything, get your file into a state where edits are predictable. This is "Mise-en-place" for digitizers.

In the video, the instructor begins by hiding reference images so the workspace is clear. This prevents the "Fatal Click"—accidentally selecting the background image instead of your 0.4mm stitch line.

Prep Checklist: The "Clean Bench" Protocol

• Font Check: Confirm you are using a running stitch font (e.g., Embassy).
• Space Check: Place text on the canvas with empty space.
• Visual Check: Open your Object List. You cannot do this technique blindly; you must see the layers.
• Consumable Check: Ensure you have sharp 75/11 needles and 40wt thread ready.
• Target Definition: Decide on 2 rows or 3 rows before start.

Split Text to Characters in Block Edit Mode—This Is What Prevents Excess Trims Later

Here’s the move that separates “it looks fine on screen” from “it sews clean on a machine.”

In the video, the instructor right-clicks in Block Edit Mode and chooses Split Block → Split Text to Characters. Think of this as exploding the word into individual LEGO bricks.

The Physics of Why: Once you start contour duplicating, each letter becomes multiple objects (Inner T, Middle T, Outer T). If you keep the text as one big block, the machine will sew "Inner T-E-S-T", then jump back to sew "Middle T-E-S-T". This causes the machine to "ping-pong" across the hoop.

By splitting, you set yourself up to merge layers later, ensuring the machine finishes the letter "T" completely (all 3 rows) before moving to "E".

If you skip this, you risk:

• Bird nests: Caused by constant tension changes from jumps.
• Visible tails: Ugly connecting threads that you have to trim by hand.
• Hoop Movement: Excessive travel increases the chance of registration errors.

Use Contour Duplicate in Floriani FTCU With a 0.4 mm Offset to Create Parallel Rows

After splitting, the instructor switches back to Select mode, grabs the letters, and chooses Contour Duplicate.

He sets the offset to 0.4 mm.

Why 0.4 mm? The "Sweet Spot": Standard 40wt embroidery thread is roughly 0.4mm pixels wide on screen, but physically, it "blooms" slightly. A 0.4mm gap provides enough negative space for the fabric to show through, creating that distinct "sketchy" separation.

• < 0.3mm: The threads merge into a messy satin-like blob.
• > 0.6mm: The lines look disconnected, like a registration error.

Warning: Physical Safety
Contour duplication increases stitch count in clear geometric progressions. If you scale this text down after duplicating, the density increases dangerously. Never scale composed sketchy text down more than 10%. You risk needle deflection (needle hitting the throat plate) or fabric tearing.

Watch out: If Contour Duplicate is missing, your software tier may be too low. This is a standard restriction in basic versions.

Build Thickness With a Second Contour Duplicate—Then Expect Kerning to Break

From the “two-row” result, the instructor runs Contour Duplicate again to add a third line. This is where the text starts to pop.

He demonstrates that choosing outside contour caused the T to crowd the e.

Expert Reality Check: This is not a mistake; it is geometry. When you add 0.4mm to the outside of a letter, you are effectively making the letter 0.8mm wider (0.4 on left + 0.4 on right). The original spacing (kerning) cannot handle this bulk. Expect to fix spacing. Do not panic when letters touch; it is part of the process.

The Clean Stitch-Path Trick: Merge Each Letter’s Contour Layers So It Sews as One Unit

This is the optimization step that makes the file stitch like a professional design, not a hobbyist experiment.

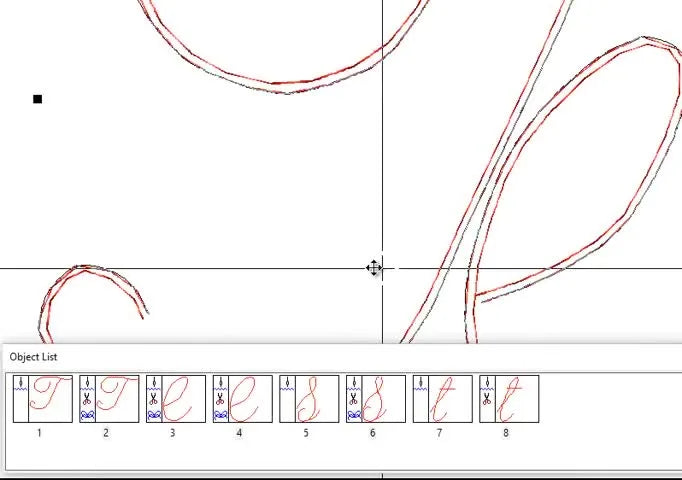

The instructor uses the Object List to select the original “T” and its two contour copies, then right-clicks Merge. He repeats for e, s, and t.

After merging, the Object List collapses into four clean objects.

The Production Value:

1. Reduced Trims: The machine ties in once, sews all three lines of the 'T', and jumps once to the 'E'.
2. Registration Accuracy: Because the fabric hasn't had time to shift between pass 1 and pass 3, the lines remain perfectly parallel.
3. Stability: This prevents the dreaded "hoop burn" or fabric distortion that happens when a machine keeps revisiting the same area. This is a concept often searched under embroidery machine hoops management—keeping the fabric stable while the machine works efficiently.

Fix Crowding Fast: Nudge Kerning With the Number Pad (4/6/8/2)

Once the letters are merged, spacing adjustments are safe.

In the video, the instructor nudges letters using the number pad (4=Left, 6=Right). He moves a merged T away from the e.

The Visual Anchor: Look for the "River of Fabric." You should see a consistent stream of fabric color flowing between the letters. If the river leads into a dam (letters touching), nudge it open.

Setup Checklist: The "Go/No-Go" Pre-Export Audit

• Structure: Verify Object List shows 1 merged object per letter (T, e, s, t).
• Spacing: Visual check—do letters have breathing room?
• Pathing: Run the "Slow Redraw" simulator. Does it finish one letter before moving to the next?
• Save: Save as a working file (e.g., .WAF) before exporting to machine format (.PES, .DST).

The “Why It Works” on Fabric: Density, Stabilization, and Hooping Pressure Still Decide the Final Look

Software is theoretical. Fabric is physical. Even perfect digits will fail if the physics of the hoop are wrong.

Parallel running stitches are stable, but they have zero "pull compensation." They will not pull the fabric tight, but they will sink into plush fabrics.

Decision Tree: Fabric → Stabilizer Strategy

1. Is the fabric Stable (Denim, Twill, Canvas)?
   • Strategy: Tearaway (2 layers) + Standard Hoop.
   • Risk: Minimal.
2. Is the fabric Stretchy (T-Shirt, Performance Knit)?
   • Strategy: No-Show Mesh (Cutaway) + Fusible Interfacing (optional).
   • Tip: Use a ballpoint needle to avoid cutting fabric yarns.
3. Is the fabric Plush (Hoodie, Towel)?
   • Strategy: Heavy Cutaway + Water Soluble Topping (Solvy).
   • Why: The topping keeps the 0.4mm gaps from being swallowed by the pile.

The "Hoop Burn" Factor: Sketchy text is delicate. If you hoop a delicate garment too tightly in a traditional plastic hoop to stabilize it, you risk permanent "hoop burn" rings. This is a classic frustration point.

Professional shops often transition to magnetic embroidery hoops for these exact scenarios. Because the magnets hold the fabric firmly without the friction-twist of a traditional hoop, you get stability without the burn marks. It’s a tool upgrade that solves a physical problem the software can't fix.

Warning: Magnet Safety
Professional magnetic hoops use industrial-strength magnets (Neodymium). They can snap together with crushing force. Pinch Hazard: Keep fingers clear of the mating surfaces. Pacemaker Safety: Keep these hoops at least 6 inches away from medical implants.

Troubleshooting the Two Problems Everyone Hits: Missing Tools and Ugly Spacing

When things look wrong, stick to this diagnostic path.

The Upgrade Path That Actually Makes Sense: From Hobby Workflow to Production Workflow

This text effect illustrates perfectly how "hobby" and "pro" workflows diverge.

• The Hobbyist: Tolerates 20 jumps and trims because they are running one shirt.
• The Pro: Merges layers because 5 saved seconds x 100 shirts = Profit.

Identifying Your bottleneck: If you execute this digitizing perfectly but still hate the process, diagnose your physical bottleneck:

1. "My wrist hurts from hooping": If alignment is killing your joy (or your wrist), a hooping station for machine embroidery ensures your "Sketchy Text" lands in the exact same spot on every left chest.
2. "Setup takes longer than sewing": If precise alignment takes you 5 minutes per shirt, consider investing in hooping stations combined with magnetic frames to cut that time to 30 seconds.
3. "I need more speed": If you are running 50+ items, a single-needle machine is your limit. This is the criteria for upgrading to a multi-needle machine (like the SEWTECH series), which allows you to prep the next hoop while the current one sews.

Operation Checklist: The Final "Tarmac" Check

• Test Sew: Run on scrap fabric similar to final garment.
• Top Tension: Ensure no bobbin thread (white) is pulling to the top. Running stitches are thin; tension must be balanced.
• Topping: Did you lay down water-soluble film for that hoodie?
• Hoop Check: Push on the fabric in the hoop. Does it deflect slightly but bounce back immediately? That is correct tension.

By following the Split → Contour (0.4mm) → Merge → Nudge workflow, you transform a generic font into a custom, high-value stylistic element. Master the software steps, but respect the physics of the hoop, and your results will look like you drew them by hand.

FAQ

• Q: In Floriani Total Control U (FTCU), how do I prevent the “ping-pong” stitch-out when digitizing sketchy lettering with Contour Duplicate?
  A: Split the word into individual characters before any contour duplication, then merge each letter’s contour layers so the machine finishes one letter at a time.
  • Do: In Block Edit Mode, right-click and use Split Block → Split Text to Characters.
  • Do: Apply Contour Duplicate (0.4 mm) to build 2–3 parallel rows, then use the Object List to Merge each letter’s layers (e.g., T + T copies).
  • Success check: Slow Redraw shows the machine completing all rows of T, then moving to E, instead of jumping back and forth across the hoop.
  • If it still fails: Re-check the Object List—there should be one merged object per letter, not separate “inner/middle/outer” objects scattered through the sew order.
• Q: In Floriani Total Control U (FTCU), what 0.4 mm Contour Duplicate offset should I use for “sketchy” running-stitch lettering, and how do I know the spacing is correct?
  A: Use 0.4 mm as the safe starting point for 40wt thread to keep clean, parallel separation without turning into a blob.
  • Set: Choose Contour Duplicate and enter 0.4 mm offset.
  • Avoid: Going below ~0.3 mm (lines may merge) or above ~0.6 mm (lines may look disconnected).
  • Success check: On-screen (and in stitch preview), each line stays distinct with a visible, consistent gap—no “satin-like” fill look.
  • If it still fails: Test sew on similar fabric—plush fabric may visually swallow gaps unless a water-soluble topping is added.
• Q: In Floriani Total Control U (FTCU), how do I fix kerning when Contour Duplicate makes letters overlap in sketchy lettering (example: “T” crowding “e”)?
  A: Expect kerning to break after thickening; merge each letter first, then nudge spacing with the number pad.
  • Do: Merge each letter’s contour layers using the Object List (one merged object per letter).
  • Do: Nudge letters using the number pad (4 left, 6 right; 8/2 up/down if needed).
  • Success check: Look for a consistent “river of fabric” between letters—no touching, no cramped “dam” points.
  • If it still fails: Re-check whether the contour was added to the outside and increased width; reduce boldness (2 rows instead of 3) or re-space before export.
• Q: In Floriani Total Control U (FTCU), what prep checklist prevents messy edits when selecting thin 0.4 mm running-stitch lettering objects?
  A: Clear the workspace and confirm layers/consumables before editing so clicks and selections stay predictable.
  • Hide: Remove or hide reference images so the background cannot be accidentally selected.
  • Open: Keep the Object List visible so layer selection is deliberate, not guesswork.
  • Verify: Confirm a running-stitch font (e.g., Embassy), plus sharp 75/11 needle and 40wt thread are ready.
  • Success check: Clicking selects the stitch objects reliably (not the background), and the Object List clearly shows what will be edited or merged.
  • If it still fails: Zoom in and select from the Object List first, then edit on-canvas only after the correct object highlights.
• Q: For sketchy running-stitch lettering, what machine speed (SPM) is a safe starting point for clean curves and consistent stitch quality?
  A: Cap speed at 600–750 SPM for cleaner text, even though running stitches can technically run faster.
  • Set: Start in the 600–750 SPM range and evaluate the stitch quality before increasing.
  • Listen: Prefer a steady, rhythmic hum over a high-speed rattle.
  • Success check: Curves look smooth and consistent, with fewer visible wobbles and no frantic vibration during direction changes.
  • If it still fails: Slow down further and re-check hooping stability—wobble often comes from fabric shift, not only speed.
• Q: For sketchy lettering on hoodies or towels, what stabilizer and topping combination prevents the 0.4 mm gaps from disappearing into plush fabric?
  A: Use heavy cutaway + water-soluble topping to keep the running-stitch rows visible over pile.
  • Hoop: Pair plush fabric with heavy cutaway stabilizer for support.
  • Add: Lay water-soluble topping (Solvy) on top before stitching.
  • Success check: After sewing, the parallel lines remain visibly separated instead of sinking and visually merging into the nap.
  • If it still fails: Re-check hooping tension and consider whether the fabric pile is still swallowing the gaps—topping coverage must fully span the lettering area.
• Q: When digitizing sketchy lettering with Contour Duplicate in Floriani Total Control U (FTCU), why is scaling the finished text down risky, and what is the safe limit?
  A: Avoid scaling composed sketchy text down more than 10% after duplication because density rises fast and can cause needle deflection or fabric damage.
  • Do: Finalize size first, then run Split → Contour (0.4 mm) → Merge → Nudge.
  • Avoid: Shrinking the fully duplicated lettering beyond the 10% limit.
  • Success check: The design stitches without harsh penetration, fabric tearing, or abnormal needle behavior (no striking or aggressive punching).
  • If it still fails: Rebuild the lettering at the correct size from the original thin running-stitch “skeleton” rather than trying to scale a finished multi-row build.
• Q: What magnetic embroidery hoop safety rules should operators follow when using industrial-strength magnetic hoops to reduce hoop burn on delicate garments?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical implants; strong magnets can snap together with crushing force.
  • Do: Keep fingers clear of mating surfaces when closing the frame—let the magnets seat under control.
  • Do: Keep magnetic hoops at least 6 inches away from pacemakers or similar medical implants.
  • Success check: The fabric is held firmly without over-tightening pressure rings, and the hoop closes without sudden snapping onto fingers.
  • If it still fails: Stop and reposition calmly—never force magnets together; adjust alignment first, then bring parts together slowly and deliberately.
