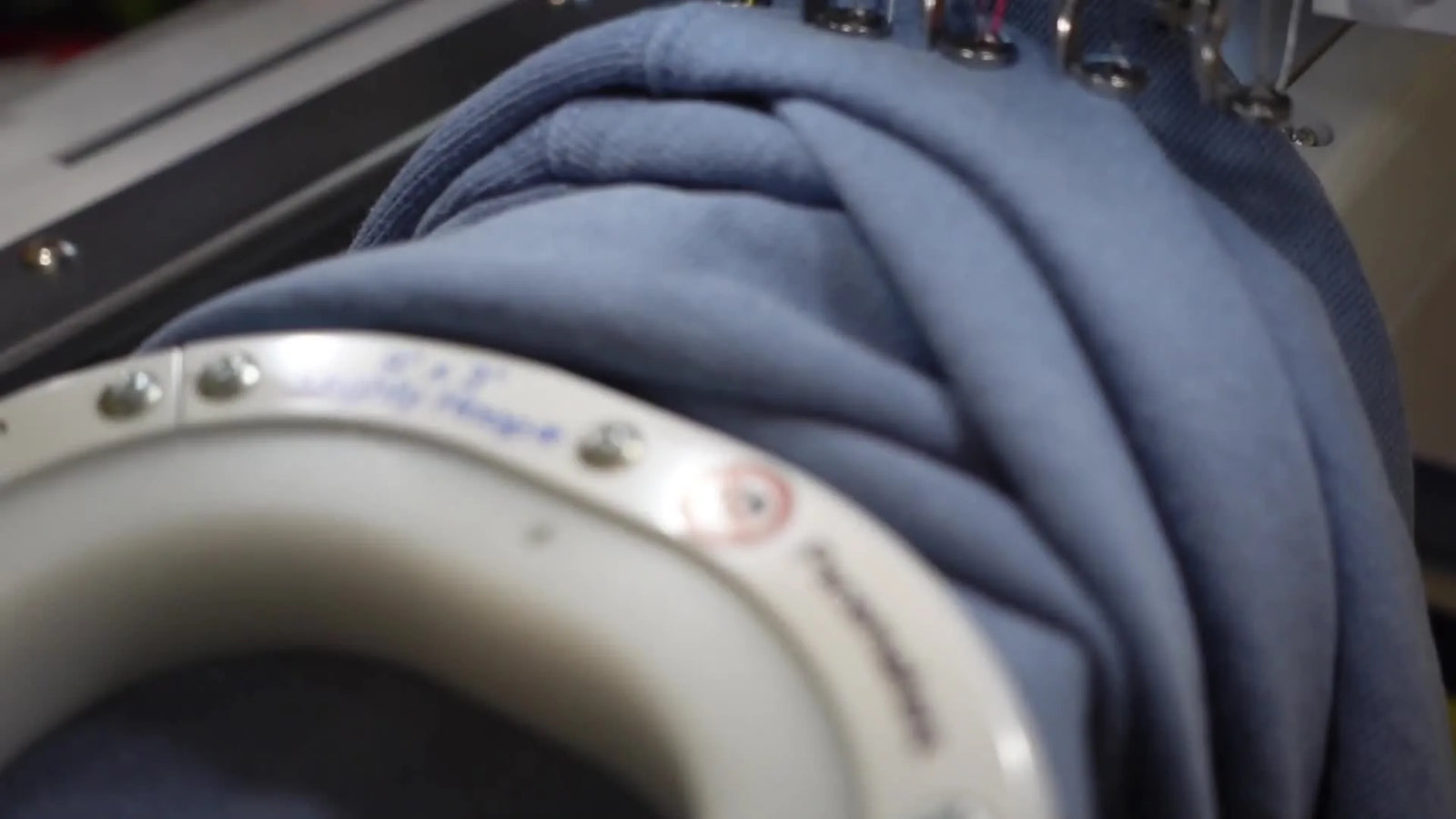

Sleeve Embroidery on a Brother PR1055X Without the Headache: Hooping a Finished Sweatshirt with a 9x3 Magnetic Hoop

The Ultimate Guide to Sweatshirt Sleeve Embroidery: A Zero-Friction Workflow

Sleeves are where confident embroiderers suddenly start second-guessing themselves. A finished sweatshirt is bulky, tubular, and unforgiving. The fear is real: stitch the sleeve shut, and you’ve ruined a garment.

The good news: once you learn a repeatable loading routine, rigid safety protocols, and the right "sensory checks," sleeve work becomes predictable (and fast enough to be profitable).

In this breakdown, we analyze a project where Jan stitches a name (“Henry”) on the left sleeve of a finished zip-up sweatshirt using a Brother PR1055X and a 9x3 magnetic sleeve hoop. I’m going to rebuild her method into a shop-ready workflow, adding the "sweet spot" settings and safety checks that prevent machine damage.

Why a 9x3 Magnetic Sleeve Hoop Solves the “Tubular Item” Problem Before It Starts

If you’ve ever tried to clamp a thick sweatshirt sleeve in a standard plastic hoop, you know the struggle: you fight the tube, you distort the knit fabric by pulling it taut, and you often end up with "hoop burn"—permanent rings crushed into the fabric pile.

Jan uses a narrow magnetic hoop specifically sized for sleeves. This choice does more than just "make it fit."

1. Physics Check: Standard hoops rely on friction and distortion to hold fabric. Magnetic hoops rely on vertical clamping force. This allows the knit fabric to sit naturally without being stretched out of shape instantly.
2. Productivity: You eliminate the thumbscrew tightening battle.

When customers ask me what single accessory changes sleeve work the most, it’s almost always magnetic embroidery hoops. Not because they are trendy, but because they reduce hooping time by 50% and virtually eliminate hoop burn on sensitive fleece.

Safety Warning (Magnets): These are industrial-strength magnets. They are strong enough to pinch fingers severely. Never place your fingers between the rings. If you have a pacemaker, consult your doctor before using magnetic hoops.

The Hidden Prep Pros Do First: Cutaway Stabilizer + A Hooping Fixture

Jan starts by securing cutaway stabilizer to the bottom ring using the plastic insert from her hooping station fixture. This is one of those “small” steps that prevents 80% of sleeve frustration.

The "Why" (Material Science): Sweatshirts are knits. They stretch. If your stabilizer shifts even 1mm while you are loading the sleeve, your design will distort. Jan’s rule is the industry standard for apparel: Always use Cutaway Stabilizer.

• Tearaway perforates and leaves the heavy stitches unsupported after one wash.
• Cutaway remains as a permanent foundation, locking the knit fibers in place.

Consumable Tip: For a standard 8-10oz sweatshirt, use a 2.5oz or 3.0oz Cutaway. Use temporary adhesive spray (like weak 505) or the fixture technique shown to marry the backing to the hoop before the garment touches it.

Prep Checklist (The clean table protocol):

• Stabilizer: 1 sheet of 2.5-3.0oz Cutaway, secured to the bottom ring so it cannot shift.
• Threads: Pick colors now (Jan uses Blue/Red) to avoid mid-setup thread changes.
• Tools: Sharp curved snips (dull scissors snag loops) and a water-soluble marking pen.
• Bobbin: Check your bobbin. Is it at least 50% full? Changing a bobbin inside a sleeve is a nightmare.


The “Big Opening to Small Opening” Feed: Protecting the Cuff

Jan’s hooping strategy is the one I teach in production environments: Feed from the biggest opening to the smallest.

She opens the neckline (largest opening), inserts the bottom hoop assembly through the neck, and then guides it down into the sleeve toward the cuff.

Why this matters: If you shove the hoop up from the tight cuff, you risk stretching the wrist ribbing permanently. By feeding from the neck, the garment stays relaxed. If you are using a specialized tool like the mighty hoop 9x3, this "neck-to-sleeve" feed turns a wrestling match into a 10-second glide.

Template-First Placement: Center Crease + Paper Template

Jan already has a crease line to find the sleeve center. She then uses a printed paper template to visualize exactly where the design will land before snapping the top frame on.

The Visual Anchor: Never "eyeball" a sleeve. Once a sleeve is loaded on the machine's free arm, the curvature plays tricks on your eyes. A straight line might look curved.

1. Place the template on the flat table.
2. Adjust height (distance from cuff). Standard placement is 1" to 1.5" above the cuff seam.
3. Tape it or hold it, then snap the magnetic top frame down.

The Sound of Success: When using magnetic hoops, listen for a sharp, confident CLACK. If the sound is dull or muffled, the fabric might be bunched between the magnets, reducing holding power.

Loading a Brother PR1055X Free Arm Without Jams: The Bulk-Lift Move

This is the critical failure point. The hoop mounts fine, but the heavy sweatshirt body gets trapped under the machine arm. If you stitch now, you will sew the sleeve to the chest of the hoodie.

The "Bulk Lift" Maneuver:

1. Feed the garment onto the machine arm.
2. As the hoop clicks into the driver, LIFT the bulk of the sweatshirt up and over the back of the machine head.
3. Sensory Check: The hoop should float. The heavy fabric must hang freely behind the machine body, not resting on the pantograph (the moving arm).

If you are running a high-end multi-needle like the brother pr1055x, treat "bulk management" as a safety step. The machine motors are strong enough to tear fabric if it gets caught.

Two Setup Mistakes That Can Quietly Damage Your Machine

Jan hits two common errors. These happen to everyone, usually when rushing to finish an order.

Mistake #1: The Backward Hoop

She notices the hoop brackets aren't facing the machine mount.

• Fix: Un-hoop and rotate 180 degrees.
• Prevention: Mark the "Machine End" of your top hoop with a small piece of painter's tape or a silver Sharpie.

Mistake #2: The "Forgot-the-Insert" Disaster

This is the "Oh No" moment. The white plastic insert is used only on the hooping station to hold the stabilizer. It acts as a table. Use it on the machine, and you will crash the needle bar.

Warning (Hardware Damage): NEVER run the machine with the plastic hooping insert still inside the hoop. It creates a collision hazard that can bend your needle bar or shatter the reciprocal.

The Clean-Behind-the-Arm Check: The "Two-Finger" Swipe

Jan walks behind the machine to check clearance. Do not skip this.

The Tactile Protocol: Before you even look at the screen, reach behind the cylinder arm. Run two fingers between the hanging fabric and the machine bed.

• Pass: Your fingers glide smoothly.
• Fail: You feel tension, a lump, or a snag.
• Fix: Adjust the bulk until it hangs loosely. Tension here will cause "flagging" (bouncing fabric) and result in poor registration or thread breaks.


The Trace Ritual on Third-Party Hoops: Defining the Safe Corridor

Jan is very clear here: because she is using a third-party hoop, she must trace. The machine does not natively know the exact dimensions of this specific magnetic frame.

She runs a trial trace and sees the needle bar moving dangerously close to the metal hoop wall.

Warning (Needle Strike): On a narrow 3-inch sleeve hoop, your margin for error is often less than 5mm. Always run a trace (or "Check" function). If the needle hits the magnetic frame at 800 stitches per minute, the needle will shatter, and metal shards can fly toward your eyes.

When the Design Is Too Wide: Resize, Trace, Repeat

Jan’s fix for the clearance problem is the practical shop solution:

1. Resize: She shrinks the design slightly on the PR screen.
2. Verify: She re-runs the trace.
3. Loop: She repeats this until there is a visual "Safe Zone" of air between the needle bar and the hoop wall.

This is the reality of sleeve hoops: you are working inside a narrow corridor. If you are shopping for a dedicated sleeve solution, look for a mighty hoop sleeve hoop designed with low-profile edges to maximize this stitching field.

The One Setting People Forget: Hoop Size Configuration

Jan mentions she had been using a 5x5 hoop previously. The machine thinks the 5x5 implies a certain safe zone. She must manually tell the machine a new (or wider) hoop limits apply.

On a multi-needle machine, selecting the correct hoop (or the closest approximation for third-party hoops) allows the machine's software to prevent you from centering a design that physically cannot fit.

Setup Checklist (At the Machine):

• Hoop Config: Is the correct hoop selected on the screen?
• Insert Check: Is the white plastic insert removed?
• Orientation: Are the brackets facing the machine?
• Center: Use the "Snowman" sticker or manual jog to center the needle over your template mark.
• Trace: Run the trace. Does the presser foot clear the hoop edge by at least 2mm?


Stitching the Name and Footprint: Speed and Sound

Jan stitches the design. For tubular sleeves on a multi-needle, I recommend a "Beginner Sweet Spot" speed of 600-700 SPM (Stitches Per Minute).

• Expert Speed: 900+ SPM.
• Why Slow Down? Sleeves bounce. Slower speeds reduce vibration and give you more time to hit the "Stop" button if the fabric underneath begins to bunch.

Sensory monitoring: Listen to the machine. A consistent "thump-thump-thump" is good. A sharp "slapping" sound usually means the sleeve is flagging (bouncing) and you may need to adjust the hoop height or slow down.

Post-Stitch Cleanup: The "Retail Finish"

Jan removes the hoop and turns the sleeve inside out.

Trimming Protocol: Trim the cutaway stabilizer leaving a margin of about 1/4 inch to 1/2 inch around the design.

• Too close: You risk cutting the locking knots.
• Too far: The wearer will feel a stiff square against their arm.
• Shape: Round the corners of the stabilizer. Sharp corners poke the skin; rounded corners are soft.


A Simple Stabilizer Decision Tree for Sleeve Success

Don't guess. Use this logic flow for sweatshirt sleeves.

Decision Tree: Stabilizer Selection

1. Is the fabric stretchy? (Knit/Jersey/Fleece)
   • YES -> Go to #2.
   • NO (Denim/Woven) -> You may use Tearaway.
2. Is it a wearable garment that will be washed?
   • YES -> USE CUTAWAY. (Absolute Rule).
   • NO -> You can experiment (but Cutaway is still safer).
3. Is the fleece very thick/spongy?
   • YES -> Use Solvy (Water Soluble Topping) on top to prevent stitches from sinking.
   • NO -> Standard Cutaway is sufficient.


The Finished “Dad” Sweatshirt Reveal

Jan shows the finished sleeve. It is straight, legible, and because she used a magnetic hoop, there is no "hoop burn" ring to steam out later.

Pro Design Tip: For sleeves, avoid wide block fonts. They wrap around the arm curvature and become hard to read. Use vertical stacking or narrower script fonts for better legibility on the human body.

The Upgrade Path: From "Frustrated Hobbyist" to "Production Pro"

If you are just doing one gift, you can struggle through with a standard hoop. But if you are doing team hoodies or customer orders, the "pain points" Jan avoided are exactly what will slow you down.

Here is your logical upgrade path when you are ready to remove the friction:

1. Placement Pain: If you hate measuring, a fixture like the hoop master embroidery hooping station ensures the sleeve loads centrally every single time.
2. Hooping Pain: If your wrists hurt from clamping thick fleece, or you are tired of hoop burn, Magnetic Hoops are the industry solution. They pay for themselves in time saved.
3. Volume Pain: If you are stitching 50 sleeves, a single-needle machine will bottleneck you. Moving to a multi-needle platform like SEWTECH allows you to preserve your color settings, queue jobs, and use industrial-grade magnetic frames natively.

Final Operation Checklist (Pre-Flight):

• Bulk Lifted: Fabric is hanging freely behind the pantograph.
• Trace Cleared: You have visually confirmed the needle bar does not hit the frame.
• Speed Set: Machine speed is set to a safe 600-700 SPM.
• Bobbin Check: You have enough thread to finish the run.


By following Jan’s sequence—Cutaway stabilizer, "Neck-to-Sleeve" feed, bulk lift, and the mandatory trace—you turn the most intimidating part of the sweatshirt into a standard, boring, profitable procedure. And in the embroidery business, "boring" means everything is working perfectly.

FAQ

• Q: How do I prevent hoop burn when embroidering a finished sweatshirt sleeve using a 9x3 magnetic sleeve hoop?
  A: Use a sleeve-sized magnetic hoop and clamp without stretching the knit fabric.
  • Choose a narrow 9x3 magnetic sleeve hoop so the sleeve sits naturally instead of being pulled tight.
  • Feed the hoop from the neckline down into the sleeve to avoid stressing the cuff ribbing.
  • Snap the top frame straight down (do not “drag” it into place) to avoid shifting the pile.
  • Success check: After unhooping, the fleece pile should not show a crushed ring that needs steaming out.
  • If it still fails: Reduce bulk under the hoop area and re-hoop so no fabric is bunched between the magnetic rings.
• Q: What stabilizer should be used for sweatshirt sleeve embroidery on knit fleece to avoid distortion after washing?
  A: Use cutaway stabilizer as the default for wearable, washable sweatshirt sleeves.
  • Secure 2.5oz–3.0oz cutaway to the bottom ring before the garment touches the hoop so it cannot shift.
  • Avoid tearaway on sweatshirt knits because it can perforate and leave heavy stitches unsupported after washing.
  • Add water-soluble topping if the fleece is very thick/spongy and stitches tend to sink.
  • Success check: The stitched name stays the same shape when the sleeve relaxes off the hoop (no waviness or stretched letters).
  • If it still fails: Re-check that the stabilizer did not slide during loading; re-hoop with the backing fixed to the ring first.
• Q: How do I load a finished zip-up sweatshirt onto a Brother PR1055X free arm without stitching the sleeve to the hoodie body?
  A: Do the “bulk lift” so the garment body hangs freely behind the machine, not under the arm.
  • Feed the garment onto the cylinder/free arm, then mount the hoop into the driver.
  • Lift the bulk of the sweatshirt up and over the back of the machine head before pressing start.
  • Swipe behind the arm to confirm nothing is trapped or tensioned against the machine bed.
  • Success check: The hoop “floats” and the heavy sweatshirt body hangs freely behind the machine (no drag on the moving arm).
  • If it still fails: Stop immediately, unmount the hoop, and re-route the garment so the body is fully clear of the pantograph path.
• Q: How can I avoid damaging a Brother PR1055X when using a sleeve hooping station insert with a magnetic sleeve hoop?
  A: Never run the machine with the white plastic hooping station insert still inside the hoop.
  • Remove the insert immediately after it has helped hold the stabilizer during hooping on the station.
  • Visually confirm the hoop interior is clear before attaching the hoop to the machine.
  • Treat “insert removed” as a mandatory pre-flight step before tracing or stitching.
  • Success check: You can see open hoop space with only fabric + stabilizer—no rigid insert plate inside the frame.
  • If it still fails: Power down and inspect for any contact marks; replace the needle before resuming as a safe starting point.
• Q: Why must a trace/check be run on a Brother PR1055X when using a third-party 9x3 magnetic sleeve hoop, and what clearance is considered safe?
  A: Run a trace every time because the machine may not know the exact safe boundary of a third-party hoop.
  • Use the machine’s trace/check function and watch the needle path approach the hoop wall.
  • Resize the design on-screen if the trace shows the needle bar traveling too close to the frame edge.
  • Repeat trace after every resize until the design path stays comfortably inside the stitching corridor.
  • Success check: The presser foot clears the hoop edge by at least 2mm during trace and you can see “air” between path and hoop wall.
  • If it still fails: Stop and choose a narrower design/layout for sleeves; do not force a wide design into a 3-inch corridor.
• Q: What are the most common setup mistakes with sleeve magnetic hoops on a Brother PR1055X, and how do I catch them before stitching?
  A: Check hoop orientation and hoop size configuration before you stitch—these two errors are very common when rushing.
  • Rotate the hoop 180° if the hoop brackets are not facing the machine mount (mark the “machine end” with tape for consistency).
  • Select the correct hoop size (or closest option) on the PR1055X screen so the software’s safe zone matches reality.
  • Center the needle over the placement mark/template before stitching.
  • Success check: The hoop mounts smoothly with correct bracket orientation, and the trace stays inside the physical hoop opening.
  • If it still fails: Re-run the full at-machine checklist (hoop config, insert removed, orientation, center, trace) before restarting.
• Q: What is a safe stitch speed for embroidering tubular sweatshirt sleeves on a Brother PR1055X, and how can sleeve flagging be detected?
  A: Start at 600–700 SPM to reduce vibration and flagging on sleeves, then increase only after consistent results.
  • Set speed to 600–700 SPM for a beginner-safe starting point on tubular sleeves.
  • Listen during stitching; slow down if the machine sound turns into sharp “slapping,” which often indicates flagging/bouncing fabric.
  • Stop and adjust bulk management if the sleeve begins to bunch underneath while running.
  • Success check: The machine sound stays consistent (“thump-thump-thump”) and the stitches register cleanly without repeated thread breaks.
  • If it still fails: Re-check clearance behind the arm with the two-finger swipe and re-trace to confirm the design is not too close to the hoop wall.
