SmartStitch 10-Needle vs SmartStitch S1501: The Real Shop-Test Differences (and the Magnetic Hoop Bracket Trap)

If you have ever uncrated a new multi-needle machine, felt that first wave of adrenaline, and then immediately hit a “wait… why doesn’t this fit?” moment—welcome to the reality of commercial embroidery. It is a discipline where mechanical precision meets soft, unpredictable fabrics, and the learning curve is often defined by frustration.

In the source video, a working shop owner runs a SmartStitch 10-needle alongside his older 15-needle unit. He calls out the differences that actually matter when you are pushing 130 hats through production. But for a new operator, the headline isn’t just “10 vs 15 needles.” The headline is: Your workflow lives or dies on accessories, tension consistency, and how fast you can move from job to job without downtime.

Don’t Panic: What the SmartStitch 10-Needle vs 15-Needle Comparison Really Means in a Busy Hat Shop

The creator’s situation is one I diagnose constantly in growing shops: the reliable 15-needle machine has been the workhorse, orders are stacking up, and the next machine purchase needs to expand capacity without blowing the budget or breaking the workflow.

Here is the cognitive reframe required for this decision:

• The Capacity Myth: You rarely need 15 colors for a single logo. Corporate logos are typically 2-4 colors; complex crests are 6-8.
• The Real Constraint: It is not the needle count; it is the needle interval. A 15-needle head is physically wider, which can sometimes limit clearance on very small infant items or deep pockets compared to a slimmer 10-needle profile.
• The Production Math: If you are researching a smartstitch embroidery machine 1501, asking "Do I need 15 colors?" is the wrong question. The right question is: "Does this machine share the same hoops and brackets as my current fleet?"

Expert Verdict: The comprehensive sweet spot for most startups is indeed the 10-12 needle range. It covers 99% of commercial logos while often offering a slightly more forgiving learning curve for threading.

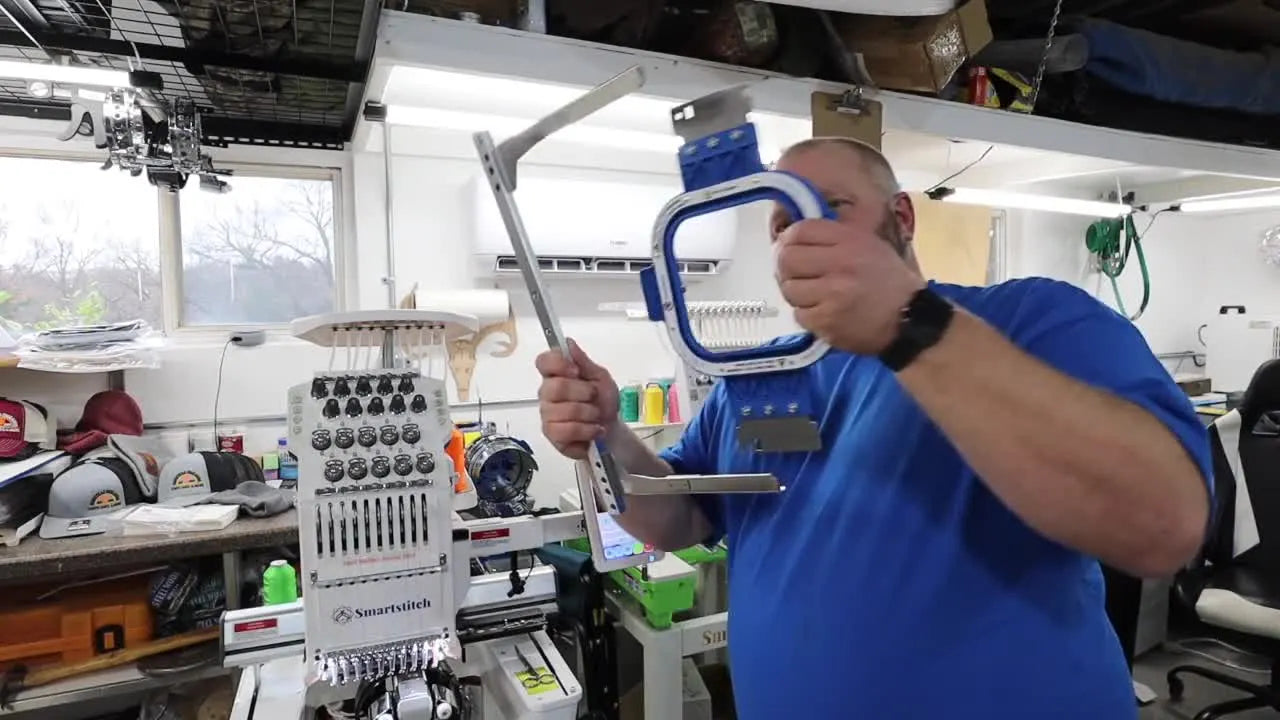

The Magnetic Hoop Bracket Reality Check: Why Your 15-Needle Brackets May Not Fit the SmartStitch 10-Needle Bar

This is the single biggest pain point in the video, and it is a classic "gotcha" in the industry. The creator physically tries to attach his trusty magnetic hoop brackets—essential for speed—to the new machine, only to find the screw holes on the pantograph arm don't align.

The Physics of the Mismatch

Embroidery machines are precise CNC robots. The mounting arm (pantograph) has a specific Geometry of Attachment:

1. Arm Width: The physical width of the metal bar.
2. Hole Spacing: The distance between the screw centers (often 360mm, 400mm, or 500mm, but variations exist).

If you force a bracket that is 2mm off, you create Torque (Twist).

• Torque leads to Vibration.
• Vibration leads to Needle Deflection.
• Needle Deflection leads to broken needles and ruined hats.

The Fix Paths (Level 1 to Level 3)

The video suggests fabricating a new bar or drilling holes (Level 1 DIY). However, for a professional shop, we need a scalable solution.

• Level 1 (Fabrication): Only attempt if you are a machinist. Ovaling out holes introduces "play," which kills registration accuracy.
• Level 2 (Standardization): Many operators searching for smartstitch mighty hoop solutions are actually looking for standardized brackets. The industry solution is to buy Frame/Hoop Kits specifically mapped to your machine's model year.
• Level 3 (Ecosystem Upgrade): If you are running mixed fleets (e.g., a Ricoma and a SmartStitch), consider upgrading to universal Industrial Magnetic Hoops (like those from SEWTECH) where you can swap just the brackets while keeping the valuable hoop itself in rotation.

Warning (Magnetic Safety): Magnetic hoops use Neodymium magnets with pull forces exceeding 15kg. They can pinch fingers severely and interfere with pacemakers. Never rest a magnetic hoop on the machine's control panel (screen), as it can corrupt data components.

The Cap Driver “Click Test”: Installing the Hat Driver So You Don’t Chase Ghost Problems Later

The creator installs the cap driver and emphasizes the “snap/click” sound. In my training sessions, I call this an Audible Anchor. You must hear it, or you are not safe to sew.

Setup for hats is the most intimidating task for beginners. A cap driver that is 99% installed will allow the machine to run, but the hat will "shudder" during high-speed satin stitches.

The "Shake" Diagnostic

Once clicked in:

1. Grab the cap driver firmly.
2. Try to wiggle it left/right.
3. Success Metric: There should be zero play. It should feel welded to the machine.
4. Check the Rail: Ensure the pantograph rail is lubricated (usually with white lithium grease or clear oil, depends on manual). A dry rail causes "stepped" designs where the outline doesn't match the fill.

Pro Production Tip: The machine in the video shipped with one cap ring (hooping station). In a production environment, this is a bottleneck. Always budget for a second cap ring immediately. While one hat is sewing (5-10 minutes), you should be hooping the next one. This increases hourly profit by 30%.

The Needle Plate + Side Guard Detail That Prevents “Cap Popping” and Debris Buildup

The video highlights a critical auditory cue: the "Popping" sound on hats.

Understanding "Flagging"

When a needle penetrates a hat, the fabric tries to lift up with the needle as it exits. This is called Flagging.

• The Problem: If the fabric flags too much, the loop of thread below the plate collapses, and the hook misses it. Result: Skipped stitches or shredding.
• The Plate Solution: 15-needle machines often have a "Raised" needle plate for hats. This effectively lowers the gap between the plate and the cap driver, pinning the fabric down. The 10-needle in the video uses a standard plate.
• The Fix: If you hear popping, you must increase Presser Foot Height marginally (if adjustable) or ensure your cap backing consists of stiff tear-away or heavy cut-away to stiffen the structure.

The Side Guard Controversy

The creator removes the side plastic guard to let trimmings fall out.

• The Risk: Trimmings (birdsnests) building up inside the arm can wrap around the main shaft sensor, causing "Main Shaft Error" codes.
• The Safety Protocol:

Warning (Mechanical Safety): Removing guards exposes high-speed belts and shafts. Only operate without guards if you have a strict "No Loose Clothing/Jewelry" policy and the machine is in a controlled environment. Never reach into the arm while the machine is powered on.

The New Upper Tension Design: Micro-Adjustments With the Grey Dials (and Why That’s a Big Deal)

Tension is not a "set it and forget it" setting; it is a dynamic relationship between top thread, bobbin thread, and fabric drag.

The video shows the 10-needle machine featuring large tension knobs plus smaller grey dials. This allows for Micro-Grading.

The "Sweet Spot" Data (Expert Calibration)

Novices guess tension. Pros measure it. Whether you are using a mechanical gauge (Towa) or the "I-Test" (inspecting the back of the embroidery), aim for these targets:

• Rayon Thread (40wt): slightly lower tension (Top: 100-110gf).
• Polyester Thread (40wt): higher tension (Top: 110-130gf).
• Bobbin Tension: Standardize this first! Set bobbin cases to 18-22gf (or the "drop test": hold thread, case should not drop until you wiggle your hand).

The Sensory Check: Look at the back of a satin column (like a letter 'I'). You want to see 1/3 Top Color — 1/3 White Bobbin — 1/3 Top Color.

• Too much white? Top tension is too tight.
• No white? Top tension is too loose.

Use the small grey dials to make 2-click adjustments. Wait 500 stitches to see the result.

The Foam Pad Under the Thread Cones: A Simple Upgrade That Stops High-Speed Snags

The creator points out the grey foam pad under the cones. This prevents the thread from slipping under the cone base—a common cause of sudden "snap" thread breaks that leave no tail.

Hidden Consumables Checklist

To run a machine like this smoothly, you need more than just thread. You need the "Invisible Toolkit":

• Thread Nets: Essential for metallic or slippery rayon threads to prevent pooling.
• Temporary Spray Adhesive (KK100/505): Crucial for applique or puff 3D foam.
• Needles: Keep sizes 75/11 (Standard) and 90/14 (Canvas/Denim) on hand. Stick to Ballpoint for knits/hats and Sharp for wovens.

The “Hidden” Prep Before You Run 130 Hats: What I’d Check on Day One

Before you accept that first order, you must perform a "Pre-Flight Check." This prevents the 3 AM panic when a deadline looms and the machine jams.

If you plan to utilize magnetic hoops for embroidery machines to maximize throughput, your machine mechanics must be perfect because you will be running faster.

Prep Checklist: The Zero-Failure Launch

• Bobbin Case Hygiene: Remove the bobbin case. Blow out the hook assembly with compressed air (short bursts). A single lint ball here causes tension nightmares.
• Needle Orientation: Ensure the "scarf" (the indentation above the eye) is facing directly to the back (away from you). A 5-degree rotation can cause skipped stitches.
• Lubrication: Add one drop of oil to the rotary hook race (consult manual). Do this every day before starting.
• File Transfer: Clean your USB drive. Too many files on a stick can slow down the machine's processor.
• Bracket Compatibility: If upgrading, verify the hole pattern on your pantograph arm matches your new hoop brackets.


Setup That Scales: A Hat/Workwear Stabilizer Decision Tree You Can Actually Use

The creator mentions doing hats and Dickies shirts. This covers 80% of the market. The number one reason designs pucker or distort is not the machine—it is the Stabilizer Strategy.

Use this decision tree to stop guessing.

Decision Tree: Interaction of Fabric & Stabilizer

1. Is the item a Structured Hat (e.g., Richardson 112)?
   • Yes: use Tear-Away (2.5oz). The hat provides the structure.
   • No (Unstructured/Dad Hat): Use Cut-Away or specialized Cap Backing (3.0oz) to prevent distortion.
2. Is the item a Knit (Polo/T-Shirt)?
   • Yes: You MUST use Cut-Away. No exceptions. Knits stretch; tear-away will break and the design will deform.
   • Expert Tip: Add a layer of Water Soluble Topping on top to keep stitches from sinking into the pique knit.
3. Is the item a Stiff Woven (Carhartt/Dickies)?
   • Yes: Tear-Away is usually sufficient. But if the design has dense fills (>15,000 stitches), swap to Medium Cut-Away.

When using magnetic embroidery hoops, ensure the stabilizer extends at least 1 inch past the magnetic grip area to ensure Tautness (drum-skin feel).

Operation: The Repeatable Routine That Keeps Two Machines Productive (Not Just Running)

The creator uses a digital TOWA gauge. This is the mark of a professional. If you want to scale, you cannot rely on "feeling" the thread.

Operation Checklist: End-of-Run Habits

• The Thread Path Audit: Before pressing start on a new batch, run your finger along the thread path. Is the thread caught on a guide? Is it wrapped around the antenna?
• Speed Management:
  • Beginner Zone: 600-700 SPM (Stitches Per Minute). Safe, high quality.
  • Pro Zone: 850-950 SPM. Only use this on stable items (bags/jackets) with dialed-in tension.
  • Hat Zone: 600-750 SPM. Never run caps at max speed; the centrifugal force causes registration loss.
• Hoop Check: Before starting, slide your finger between the presser foot and the hoop/garment to ensure clearance. This prevents the dreaded "Hoop Strike."

The Questions Everyone Asks in Comments (Expert Answers)

The comments section of the video reveals the common anxieties of new owners.

“Which software should I use?”

The creator mentions Hatch.

• Expert Take: Start with Auto-Digitizing or simple lettering software (like Hatch or Chroma). For complex logos, Outsource to a professional digitizer ($10-$15 fee) until you learn the art. Bad digitizing breaks needles, no matter how good the machine is.

“Which Mighty Hoop works with the 10-needle?”

This is the most confusing area.

• Expert Take: You must measure your mounting arm width (e.g., 36cm). When searching for a mighty hoop for smartstitch, do not just look at the hoop size (e.g., 5x5). Look for the "Fixture" or "Bracket" specification.

Troubleshooting Map: Symptoms → Likely Cause → Fix

Stop guessing. Use this logical flow to diagnose issues.

The Upgrade Mindset: How to Scale Hats Without Buying the Biggest Machine Every Time

The creator explains that he chose the 10-needle to save money while maintaining growth. This is smart. In the embroidery business, Redundancy > Complexity. Two 10-needle machines are often better than one massive dual-head machine because if one goes down, you are still 50% operational.

The Tool Upgrade Path

When the pain of production hits, follow this upgrade path:

1. Level 1 (Technique): Master your tension and hooping on standard hoops.
2. Level 2 (Speed): If you are doing runs of 20+ shirts, buy a hooping station for machine embroidery and a set of Magnetic Hoops. This reduces wrist strain and creates consistent placement.
3. Level 3 (Capacity): When you consistently reject orders due to timeline, add another head (like a smartstitch s1501 or another 10-needle).

Finally, pay attention to the small details. A truly compatible smartstitch embroidery frame and bracket set makes your workflow fluid. Do not force-fit accessories; the time you save by buying the correct tool pays for itself in one Saved Saturday.

FAQ

• Q: Why do SmartStitch 15-needle magnetic hoop brackets not align with the SmartStitch 10-needle pantograph arm screw holes?
  A: This is common—SmartStitch 10-needle and 15-needle units may use different pantograph arm geometry (arm width and hole spacing), so the bracket holes won’t line up.
  • Measure: Check the pantograph arm width and the exact center-to-center hole spacing before buying or swapping brackets.
  • Avoid: Do not force-fit a bracket that is even slightly off, because twist (torque) can create vibration and needle deflection.
  • Choose: Use machine-specific bracket/frame kits mapped to the correct model/arm pattern, or use an industrial magnetic hoop system where only brackets change.
  • Success check: The bracket seats flat with no rocking or “spring,” and screws tighten without pulling the bracket sideways.
  • If it still fails… Stop and confirm the machine’s mounting pattern with the supplier before drilling or ovaling holes (registration accuracy can suffer).
• Q: How do SmartStitch multi-needle operators perform the cap driver “click test” to prevent hat shaking during embroidery?
  A: Install the cap driver until the audible “snap/click” is heard, then verify there is zero play before sewing.
  • Install: Push/seat the cap driver fully until the click is heard (do not accept “almost installed”).
  • Test: Grab the cap driver and wiggle left/right firmly.
  • Maintain: Confirm the pantograph rail is lubricated per the machine manual (a dry rail can cause stepped/misaligned results).
  • Success check: The cap driver feels “welded on”—no movement and no shuddering when running satin stitches.
  • If it still fails… Slow cap speed into the 600–750 SPM range and re-check the driver seating again.
• Q: What should the back of a SmartStitch satin column look like to confirm correct top tension and bobbin tension?
  A: Use the satin “I” test—aim for a balanced 1/3 top color, 1/3 white bobbin, 1/3 top color on the reverse side.
  • Standardize: Set bobbin tension first (commonly 18–22 gf, or use the drop test where the case doesn’t drop until you wiggle your hand).
  • Adjust: Use the SmartStitch grey micro-dials for small, controlled changes (make tiny adjustments, then let the machine sew).
  • Verify: Wait about 500 stitches after an adjustment before judging the result.
  • Success check: The reverse side shows the clean 1/3–1/3–1/3 balance without loops or excessive white.
  • If it still fails… Rethread with the presser foot UP and re-check the thread path for a missed tension disc.
• Q: How do you stop birdnesting under the needle plate on a SmartStitch multi-needle embroidery machine during startup?
  A: The fastest fix is a full rethread with the presser foot UP, because birdnesting often starts when thread is not seated in the tension discs.
  • Rethread: Remove the thread and rethread completely with the presser foot lifted.
  • Inspect: Run a finger along the full thread path to confirm the thread is not snagged on a guide or wrapped incorrectly.
  • Clean: Blow out lint in the hook/bobbin area with short bursts of compressed air (lint can destabilize tension).
  • Success check: The first 20–50 stitches form cleanly with no wad of thread building under the plate.
  • If it still fails… Inspect the rotary hook area for burrs or damage that could be catching thread.
• Q: What causes SmartStitch needle breaks on caps, and what is the safest first fix before changing needles?
  A: Needle breaks on caps are commonly caused by cap driver play or fabric “flagging,” so verify the driver is fully locked and reduce speed first.
  • Confirm: Re-do the cap driver click test and ensure there is zero wiggle.
  • Reduce: Drop cap sewing speed to around 600 SPM to stabilize the sew field.
  • Stabilize: Use stiff cap backing (tear-away for structured hats; heavier cut-away/cap backing for unstructured hats) to reduce flagging.
  • Success check: The cap stops “shuddering,” and the machine runs a satin area without audible impacts or repeated needle snaps.
  • If it still fails… Swap to a fresh needle immediately (cheapest variable), then consider stronger needle options if appropriate for the job.
• Q: What is the SmartStitch pre-flight checklist to run high-volume hats without midnight jams (bobbin case, needle orientation, oiling, USB, bracket fit)?
  A: Do a short day-one pre-flight—clean, confirm needle setup, oil correctly, and verify accessory compatibility before accepting volume runs.
  • Clean: Remove the bobbin case and blow out the hook area with short bursts of compressed air.
  • Align: Confirm the needle scarf is facing directly to the back (a small rotation can cause skipped stitches).
  • Oil: Add one drop of oil to the rotary hook race as directed by the machine manual (do this daily before starting).
  • Prepare: Keep the USB drive clean—too many files can slow loading on some machines.
  • Verify: Check pantograph arm hole pattern/spacing before installing hoop brackets or magnetic hoop brackets.
  • Success check: The machine starts a test design smoothly—no immediate birdnesting, no skipped stitches, and no accessory wobble.
  • If it still fails… Pause production and isolate one variable at a time (threading → needle → bobbin/hook cleanliness → bracket fit).
• Q: What magnetic hoop safety rules should SmartStitch operators follow when using industrial magnetic embroidery hoops near the machine?
  A: Treat magnetic hoops as high-force tools—neodymium magnets can pinch fingers and can interfere with medical devices.
  • Keep hands clear: Separate the rings carefully to avoid finger pinch injuries (pull force can exceed 15 kg).
  • Protect people: Do not use around pacemakers or similar devices; keep magnets away from anyone at risk.
  • Protect equipment: Never rest a magnetic hoop on the machine control panel/screen area.
  • Success check: The hoop is handled without sudden “snap” closures, and fingers stay out of the closing zone every time.
  • If it still fails… Switch to slower, two-handed handling and set a fixed “safe placement” spot on the table (not on the machine).
