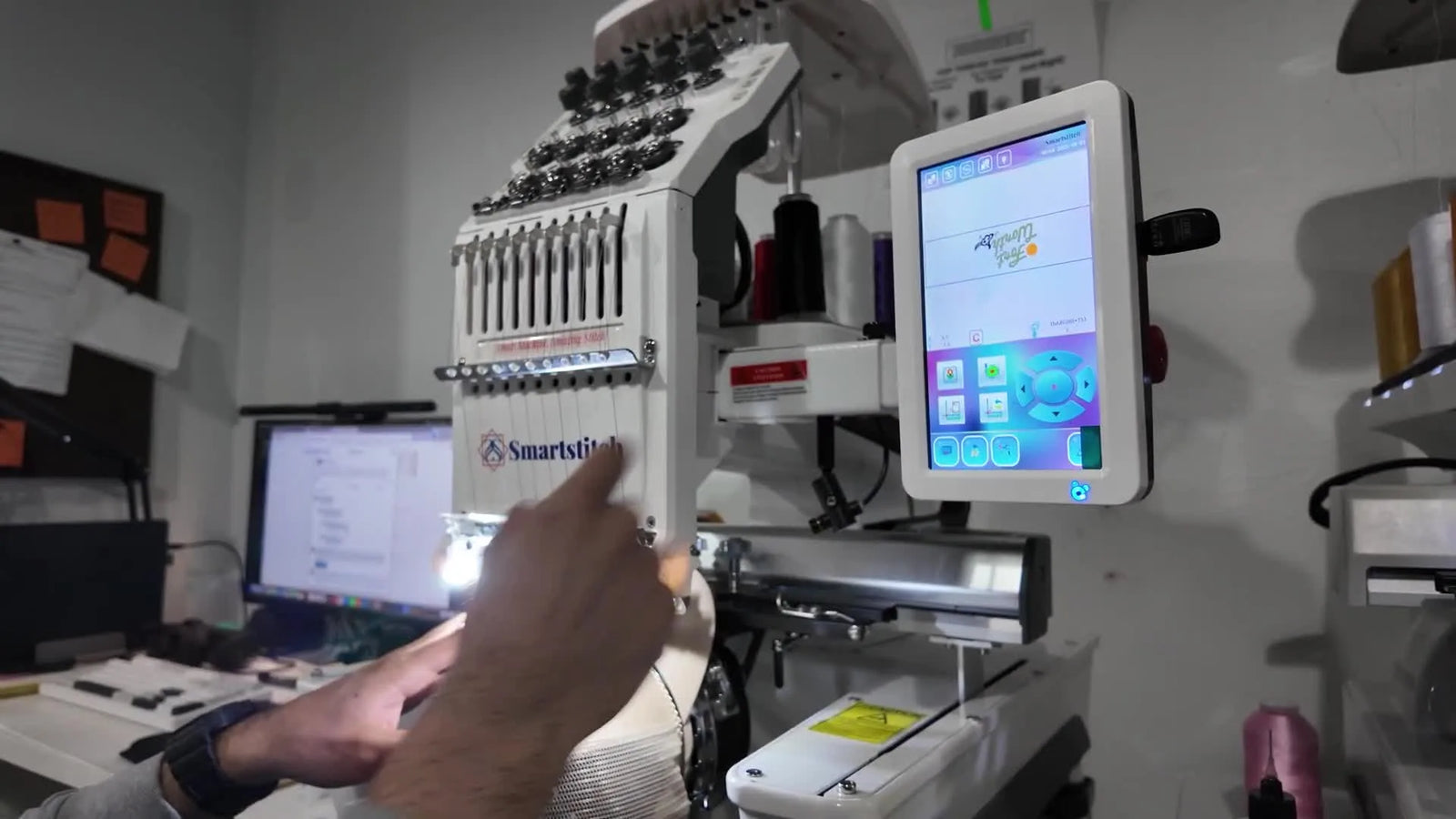

Smartstitch 10001 Multi-Color Hat Embroidery That Doesn’t Break Needles: From DST Import to a Clean 3-Color Finish

Multi-color hat embroidery on a structured cap is the ultimate stress test for any machine operator. It looks straightforward until the first needle deflection snaps a tip off inside the cap driver, or the design registers beautifully on screen but prints "all green" and off-center on the finished product.

This guide rebuilds the workflow of running a 3-color design on a structured OTTO trucker hat using a Smartstitch 10001. We will move beyond simple steps and look at the tactile feedback—the sounds, resistance levels, and visual checks—that separate a ruined hat from a sellable product. We will cover DST import logic, the "dental floss" tension check, needle-based centering, and the critical clearancing required to protect your machine.

Don’t Panic When the DST File Imports “All Green”—That’s Normal

The first moment of fear for a beginner usually happens right after import. You load a colorful logo, but on the Smartstitch screen, it appears as a monochromatic blob (often green or blue).

Here is the principle you must understand: DST files are machine code, not art files. They contain coordinates (X/Y movement) and commands (trim/stop), but they do not contain color data. When the host loads the file from the USB and assigns it an internal memory slot (e.g., No. 71), the machine defaults to a single visualization color.

This requires a mental shift from "printing" to "plotting." You are the color manager now. The machine will simply stop when the file says "Stop," and it will use whichever needle you have assigned to that sequence.

Pro Tip from the Shop Floor: Before touching a single setting, perform a "Sanity Check" on the stitch count and dimensions. In this specific workflow, the design is 106.6 × 61.4 mm with 5,856 stitches.

• Visual Check: Does the shape match?
• Data Check: Is the size appropriate for a hat profile (usually max height 55-60mm for safe clearance)?

Checking these numbers prevents the disaster of running a jacket-back file on a cap frame.

The “Hidden” Prep Smartstitch Owners Skip: Thread Plan and Tool Staging

Successful embroidery is 90% preparation and 10% running. Before you even look at the cap driver, you need to stage your environment. In the walkthrough, the operator identifies a missing color (Brothread 517 Dark Olive) and performs a swap.

The "Hidden" Consumables List: Beginners often focus on the machine and thread, but you should also have these staged:

1. Curve-tipped Snippers: For trimming jump stitches close to the fabric.
2. Tweezers: For grabbing thread tails through the needle eye.
3. Spare Needles (75/11 Sharp): Structured hats are tough; if you hear a popping sound, you may have dulled a needle.
4. Pen and Paper: Write down your color sequence (e.g., 1: Olive, 2: Black, 3: Orange). Do not rely on your memory.

Prep Checklist (Pre-Import):

• File Verification: Ensure file is DST format (machine will not read JPG/PNG).
• Physical Staging: Place thread cones in the expected order on the rack.
• Needle Check: Run your finger gently over the tips of the active needles. if you feel a burr, change it immediately to prevent thread shredding.
• Bobbin Check: Open the bobbin case. Ensure it is free of lint and the bobbin has at least 50% thread remaining.

The Pull-Through Thread Change: The "Dental Floss" Tension Check

To change the thread color efficiently, the operator uses the "pull-through" method: cutting the old thread at the spool, tying the new thread on, and pulling it through the machine path. This saves minutes of re-threading time, but it introduces a risk: the knot.

The Sensory Anchor: When pulling the new thread through, pay attention to the resistance.

• The Feel: You should feel a consistent, slight drag—similar to pulling dental floss between your teeth.
• The Sound: If you hear a loud snap or mechanical whir, the knot may have jumped out of the tension discs.

In the example, the knot fails because it was tied too loosely (likely an overhand knot). I recommend a Square Knot (Reef Knot) because it is flat and passes through guides easily.

If the knot breaks or gets stuck, you must re-thread manually. Crucially, ensure the thread is seated deeply between the tension discs. Floss it back and forth until you feel it "seat." If the thread rides on top of the discs, you will have zero tension, resulting in massive birdnesting on the underside of the hat.

Warning: Mechanical Safety. Keep fingers, snippers, and loose clothing/jewelry away from the take-up levers and needle area when the machine is active. A moving cap frame generates significant torque and can crush fingers against the frame bar.

Make the Screen Match Reality: Palette vs. Assignment

The Smartstitch interface separates "Display Color" from "Needle Assignment." The operator navigates to Settings > User Parameters > Assistant Parameters > Needle Bar Palette.

Here, he updates the visual representation (Needle 7 to Olive, Needle 1 to Black, etc.) so the screen matches reality. This tells the machine nothing about how to sew—it is purely for the operator's peace of mind.

The critical step is Needle Assignment.

• Sequence: 7 (Olive) → 1 (Black) → 9 (Orange).
• Verification: Ensure Needle 7 actually has Olive thread.


If you are looking for a standard operating procedure (SOP) for your shop, this color-mapping step is vital. Many users searching for a reliable smartstitch hat hoop workflow fail here because they rely on the default colors.

Setup Checklist (Machine Configuration):

• Palette Match: update screen colors to match physical threads.
• Sequence Assigned: Input the correct needle order for the DST file.
• Tail Length: Ensure every active needle has a 4–5 inch thread tail.
• Clearance: Ensure the cap driver area is empty of tools.

Cap Driver Loading: The Sweatband Move That Saves Hats

Loading a structured trucker hat onto a cap driver is a physical skill. The operator demonstrates a non-negotiable step: Flip the sweatband out.

The Physics of the Hooping: Structured hats have buckram (stiff mesh) in the front two panels. They fight against being flattened. The sweatband adds significantly to this thickness. If you leave the sweatband tucked in, two things happen:

1. Reduction of Sewing Area: You lose about 10-15mm of printable height.
2. Mechanical Risk: The foot can catch on the thick sweatband ridge, causing registration loss.

Commercial Insight: Hooping is the bottleneck. It takes 2 minutes to hoop and 5 minutes to sew. If you are doing production runs of 50+ hats, your hands will cramp. This is the "Trigger Point" where professionals upgrade their tools. Adding a hooping station for embroidery stabilizes the cap during this wrestling match, ensuring the center seam stays straight. If your volume increases further, moving to specialized industrial magnetic frames becomes the only way to maintain speed without operator injury.

Centering: Trust the Needle, Ignore the Laser

The operator gives advice that contradicts many manuals but aligns with veteran experience: Ignore the laser guide.

Lasers can drift due to vibration. The needle is absolute reality.

1. Action: Select the starting needle (Needle 7).
2. Visual Check: Manually lower the needle bar (carefully!) until the tip is hovering millimeters above the cap.
3. Alignment: Jog the X-axis until the needle tip creates a visual line with the center seam of the hat.
4. Height Check: Ensure the design is not too low (near the bill) or too high (on the curve).


If you are researching hooping for embroidery machine setups, remember that "Needle Zeroing" is the industry standard for precision.

The Trace Test: Your Insurance Policy

Refusing to trace is the quickest way to break a $30 cap driver. The operator uses the "Flower" icon to run a perimeter trace.

The "Red Screen" Error: During the trace, the screen overlay turns red. This is a safety feature indicating the design coordinates exceed the set soft limits of the cap frame (usually the Y-axis is too low).

• The Fix: Jog the design upwards (Y+) until the trace remains inside the safe zone.


Troubleshooting a Stuck Needle Bar: If you manually lower the needle and it gets stuck or won't return to "Head Up" position:

• Method A: Press the "100" button (resets main shaft angle to 100 degrees).
• Method B: Toggle between needle numbers (e.g., switch to Needle 6 then back to 7) to force a mechanical reset.

Warning: Collision Risk. During the trace, watch the needle bar's proximity to the metal cap frame and the bill clamp. Do not look at the screen; look at the metal. If the needle clamp comes within 5mm of the metal frame, STOP and adjust. A collision at 700 RPM sends shrapnel flying.

Running the 3-Color Job: Speed and Stability

The operator presses Start. The machine accelerates to 700 SPM (Stitches Per Minute).

Experience Calibration: While 700 SPM is shown, I recommend Beginners start at 550-600 SPM.

• Why? Structured hats bounce. Lower speeds reduce flag (fabric bouncing), resulting in sharper lettering and fewer thread breaks. Only increase speed once you trust your hooping technique.

The sequence runs: Olive → Black → Orange. The operator notes that while the run was successful, there are "strings to clean up."

The Upgrade Path: When to Switch Tools If you find yourself constantly fighting hoop burn (marks left by the frame) or re-hooping due to slippage during these runs, you have hit the limit of standard mechanical hoops.

• Level 1 Fix: Use better stabilizer and tighter manual hooping.
• Level 2 Upgrade: Invest in magnetic embroidery hoops. These use powerful magnets to clamp the fabric without the friction-burn of plastic rings. They are significantly faster to load.
• Level 3 Scale: If you cannot keep up with orders, the bottleneck is the machine itself. A single-head limits you to one item at a time. This is when shifting to a SEWTECH multi-head ecosystem becomes a business necessity rather than a luxury.

Warning: Magnetic Safety. If upgrading to magnetic hoops (like Mighty Hoops or similar), be aware they carry a severe Pinch Hazard. The magnets are strong enough to break fingers. Do not use if you have a pacemaker.

Troubleshooting: The "Symptom-Cause-Fix" Matrix

When things go wrong, do not guess. Use this matrix to diagnose the issue based on the video's context and general mechanics.

If you are already using advanced setups like smartstitch embroidery hoops, ensure your "hoop selection" in the machine settings matches the physical hoop dimensions to prevent false "Red Screen" errors.

The Stabilizer Decision Tree: What to Put Inside

A viewer asked a critical question: "What backing/stabilizer do I use?" The video omits this, but here is the industry standard logic for structured hats:

1. Is the Hat Structured (Hard front)?

• YES: Use Tearaway backing. The hat provides the support; the backing just adds friction.
• NO (Dad hat/Unstructured): Use Cutaway backing (2.5oz or 3.0oz). The fabric is too floppy and needs permanent structural support.

2. Is the Design Dense (High stitch count)?

• YES: Add a second layer of Tearaway.
• NO: Single layer is sufficient.

3. Is the Design Detailed Lettering?

• Action: Consider using a Ballpoint Needle (75/11) to slide between the heavy heavy canvas fibers rather than piercing (and cutting) them.

The Roadmap to Efficiency

Once you master the 3-color hat on the Smartstitch, your challenge shifts from "Can I do it?" to "How fast can I do it?"

1. Process Discipline: Use the Needle-Center method and the Red Screen trace every time.
2. Tool Optimization: If you are struggling with fatiguing clamps, look up compatibility for mighty hoop for smartstitch or similar magnetic systems. Reducing operator strain reduces errors.
3. Environment: Keep your "Hidden Consumables" stocked and your thread path clean.

The Smartstitch 10001 is a capable tool, but it yields to physics just like any industrial machine. Respect the tension, verify the path, and trust the needle.

Operation Checklist (Post-Run)

• Sanity Check: Inspect the inside of the cap. Did the sweatband get caught in the sew line?
• Registration: Did the black outline line up with the orange fill? If not, check hoop tightness.
• Trimming: Trim all jump stitches flush with the fabric using curved snips (do not pull them!).
• Reset: Return the machine to the start position (or 100 degrees) before removing the cap driver.
• Thread Check: Glance at your cones—if one is low, change it now before the next run starts.

FAQ

• Q: Why does a Smartstitch 10001 DST file import as “all green” on the Smartstitch screen for multi-color hat embroidery?
  A: This is common—DST files do not contain color data, so Smartstitch 10001 may display the whole design in one default color even when the stitch data is correct.
  • Verify stitch count and dimensions immediately before sewing.
  • Assign the correct needle sequence so each “Stop” matches the intended color change.
  • Update Needle Bar Palette only to make the screen match the physical threads (visual aid, not sewing logic).
  • Success check: The design outline and size on-screen match expectations, and the needle sequence shows the intended order (e.g., color 1 → color 2 → color 3).
  • If it still fails… re-check that the file is actually DST and that the design size fits a cap’s safe height (often 55–60 mm for clearance, depending on cap driver setup).
• Q: What “hidden consumables” should be staged before running a 3-color structured hat on a Smartstitch 10001 cap driver?
  A: Stage the tools first—most hat failures start as rushed prep, not a machine defect.
  • Place curve-tipped snippers, tweezers, and spare 75/11 sharp needles within reach.
  • Check the bobbin case for lint and confirm the bobbin is not near empty (a safe habit is keeping at least ~50% remaining).
  • Write down the needle/color plan on paper instead of relying on memory.
  • Success check: No pauses mid-run to search for tools, and thread tails/jump stitches can be trimmed cleanly without pulling the work off-center.
  • If it still fails… slow down and repeat the pre-run checks (needle tip burrs and bobbin lint are frequent hidden causes of shredding and nesting).
• Q: How do Smartstitch 10001 operators use the pull-through thread change without causing birdnesting from missed tension discs?
  A: Use pull-through for speed, but confirm the thread is seated in the tension discs with a “dental floss” feel before stitching.
  • Tie a flat square knot (reef knot) to reduce snagging during pull-through.
  • Pull the new thread through and feel for consistent slight drag (not free-sliding, not jerky).
  • If resistance suddenly drops or “snaps,” stop and re-thread manually to re-seat the thread between the discs.
  • Success check: The thread feels like dental floss—steady, controlled drag—and the first stitches do not produce a loose underside loop pile.
  • If it still fails… cut out any knot that is hanging up in guides and fully re-thread; missed discs commonly cause immediate underside nesting.
• Q: How does a Smartstitch 10001 operator center a structured trucker hat design accurately on the cap seam when the laser guide drifts?
  A: Trust the needle tip, not the laser—needle-based centering is the reality check on a Smartstitch 10001 cap driver.
  • Select the starting needle and carefully lower the needle bar until the tip hovers just above the hat.
  • Jog X-axis until the needle tip visually lines up with the center seam.
  • Jog Y-axis to avoid sewing too close to the bill and to maintain safe clearance.
  • Success check: The needle tip “tracks” the seam visually, and the design start point sits where the eye expects on the crown before any stitching begins.
  • If it still fails… re-hoop with the sweatband flipped out and confirm the hat is not twisted on the driver (twist is a common cause of “perfect on screen, off-center on hat”).
• Q: What does the Smartstitch 10001 “red screen” during the cap frame trace test mean, and how do operators fix it safely?
  A: The red overlay during trace usually means the design exceeds the cap frame soft limits (often too low on Y), so move the design upward before sewing.
  • Run the perimeter trace and watch the metal clearance near the cap frame and bill clamp (look at hardware, not the screen).
  • Jog the design up (Y+) until the trace stays inside the safe zone without triggering red.
  • Stop immediately if the needle clamp approaches within a few millimeters of any metal.
  • Success check: The full trace completes without red limits and without near-collision points around clamps/frame edges.
  • If it still fails… confirm the selected hoop/frame setting matches the physical cap frame dimensions to avoid false limit warnings.
• Q: What should a Smartstitch 10001 operator do when the needle bar gets stuck down after manually lowering it during hat setup?
  A: Don’t force it—use the machine’s reset actions to return the head safely.
  • Press the “100” button to reset the main shaft angle to 100 degrees.
  • Switch to a different needle number and then back to the target needle to trigger a mechanical reset.
  • Clear the area of tools and ensure nothing is binding around the cap driver before resuming.
  • Success check: The head returns to “Head Up” normally and needle changes complete without grinding or hesitation.
  • If it still fails… power down and consult the Smartstitch manual/service process; continuing while stuck risks collision damage.
• Q: If structured hat embroidery on a Smartstitch 10001 keeps slipping, leaving hoop burn, or requiring re-hooping, when should operators move from technique fixes to magnetic hoops or a multi-head SEWTECH machine?
  A: Use a tiered approach: optimize technique first, upgrade the hoop when loading and slippage become the bottleneck, and upgrade the machine when capacity becomes the bottleneck.
  • Level 1 (Technique): Improve stabilizer choice and tighten hooping/loading consistency to reduce movement and bounce.
  • Level 2 (Tool): Switch to magnetic hoops when frequent re-hooping, clamp fatigue, or hoop marks persist (magnetic clamping is often faster and reduces friction burns).
  • Level 3 (Capacity): Move to a SEWTECH multi-head setup when orders outpace single-head throughput and hooping time dominates labor.
  • Success check: Fewer re-hoops per batch, cleaner registration between colors, and reduced operator strain over long runs.
  • If it still fails… review safety and handling—magnetic systems have severe pinch hazard and must be used with strict hand positioning and (if applicable) medical-device precautions.
