Smartstitch 15-Needle Maintenance That Actually Prevents Thread Breaks: Matt’s Daily Oil + Weekly Grease Routine (and the Hat vs Flats Traps)

The 15-Needle Survival Guide: A Master Class in Maintenance & Peace of Mind

Commercial embroidery machines don’t usually “die suddenly”—they whisper before they scream. It starts with a color change that sounds a little too clunky. Then, the machine gets louder during high-speed fills. Finally, tension drifts, and you find yourself chasing thread breaks while a client’s deadline looms.

If you are running a multi-needle head, you are not just an operator; you are a pilot. And like any pilot, your safety lies in the pre-flight check. This guide is your flight manual.

Based on insights from Matt—a shop owner who successfully integrated embroidery into a laser business—we have reconstructed a maintenance rhythm that turns anxiety into predictability. Whether you are running a SEWTECH workhorse or a Smartstitch unit, the physics of rotary hooks and reciprocating bars remain the same.

The Panic-to-Plan Primer: What 15-Needle Owners Should Do *Before* the First Stitch

If you are new to this game, the first week with a 15 needle embroidery machine can feel like defusing a bomb. Every noise triggers a spike of adrenaline. Let’s calibrate your expectations.

Most “mystery problems” aren’t electronic ghosts. They are physical realities caused by three boring enemies: Lint, Friction, and Impact.

1. Lint is a parasite: It soaks up oil and turns it into sludge.
2. Friction is a thief: It steals your motor's power and ruins stitch precision.
3. Impact is a silent killer: Dropping a bobbin case just once can deform it by a millimeter, costing you hours of tension troubleshooting.

The Mindset Shift:

• Daily Maintenance = Friction Control. You are oiling high-speed rotation points to prevent heat.
• Weekly Maintenance = Smooth Travel. You are greasing sliding rails to ensure precision.
• Production Philosophy: You don't clean the machine to make it look pretty; you clean it to make it print money.

Warning: Physical Safety
Never put your hands near the needle bars or rotary hook while the machine is powered on or in a "Ready" state. A multi-needle machine can cycle instantly. When blowing out the bobbin case, keep fingers clear of gears. If you need to adhere to a strict safety protocol: E-Stop engaged or Power Off whenever your fingers enter the "Kill Zone" (the throat plate area).

The “Hidden” Prep Pros Don’t Skip: Tools, Consumables, and a Clean-Hands Workflow

Matt calls out a few tools that simply make the job easier. But as an educator, I want to add the "Invisible Consumables"—the things you don't know you need until it's too late.

The Pro Toolkit (Matt’s Essentials + Expert Additions):

• Precision Oil Dispenser: You need a needle-tip bottle. Standard nozzles dispense "blobs," but you need "micro-drops."
• White Lithium Grease: Specifically the WD-40 Specialist with the red straw. Do not use standard WD-40 (which is a solvent, not a lubricant).
• Compressed Air/Electric Duster: Essential for blasting lint out of the hook assembly.
• Check-Spring Tool: A small hook or dental pick to gently test spring return.
• "Catch" Rag: A specific towel that never touches clean garments.


Phase 1: Prep Checklist (Do this *before* touching metal)

• Safe State: Ensure the machine is powered down or E-Stop is engaged.
• The "Surgery" Zone: Lay a paper towel under the rotary hook area to catch dripping oil (puddles ruin profit).
• Tool Verify: Confirm your white lithium grease has the straw attached. Spraying without the straw creates a mess that attracts lint.
• Bobbin Safety: Remove the bobbin case and place it in a magnetic tray or a dedicated cup. Never balance it on the edge of the machine table.
• Visual Inspection: Look at the needle plate hole. Is it scarred from needle strikes? Burrs here will shred thread regardless of your tension settings.

A small expert note: Oil and grease are not interchangeable. Oil is for things that spin fast (rotary hook). Grease is for things that slide slowly (rails). Mixing them creates a grinding paste that destroys machines.

The Daily “Bobbin + Hook Reset”: Cleaning the Sensory Way

Matt’s daily routine starts the same way every time. This isn't just cleaning; it's a reset button for your tension.

The Action:

1. Remove the bobbin case.
2. Remove the bobbin spool from the case.
3. The "Hiss" Test: Use your air duster to blow out the bobbin case and the rotary hook assembly.
   • Sensory Check: You should verify a visible cloud of dust exiting the machine. If you don't see lint flying, you aren't getting deep enough.
4. Reinstall.


The "Why" (Physics of lint): Lint in the bobbin case effectively changes the tension spring's pressure. A flake of dust under the tension flap can drop your bobbin tension to zero, causing "bird nesting" (looping) on the top of the garment.

Checkpoints for Success

• Visual: The inside of the bobbin case (the black Teflon or metal area) should be spotless.
• Tactile: Run your fingernail gently over the edge of the bobbin case. It should feel smooth like glass. If you feel a "catch" or scratch, that case is now a liability.

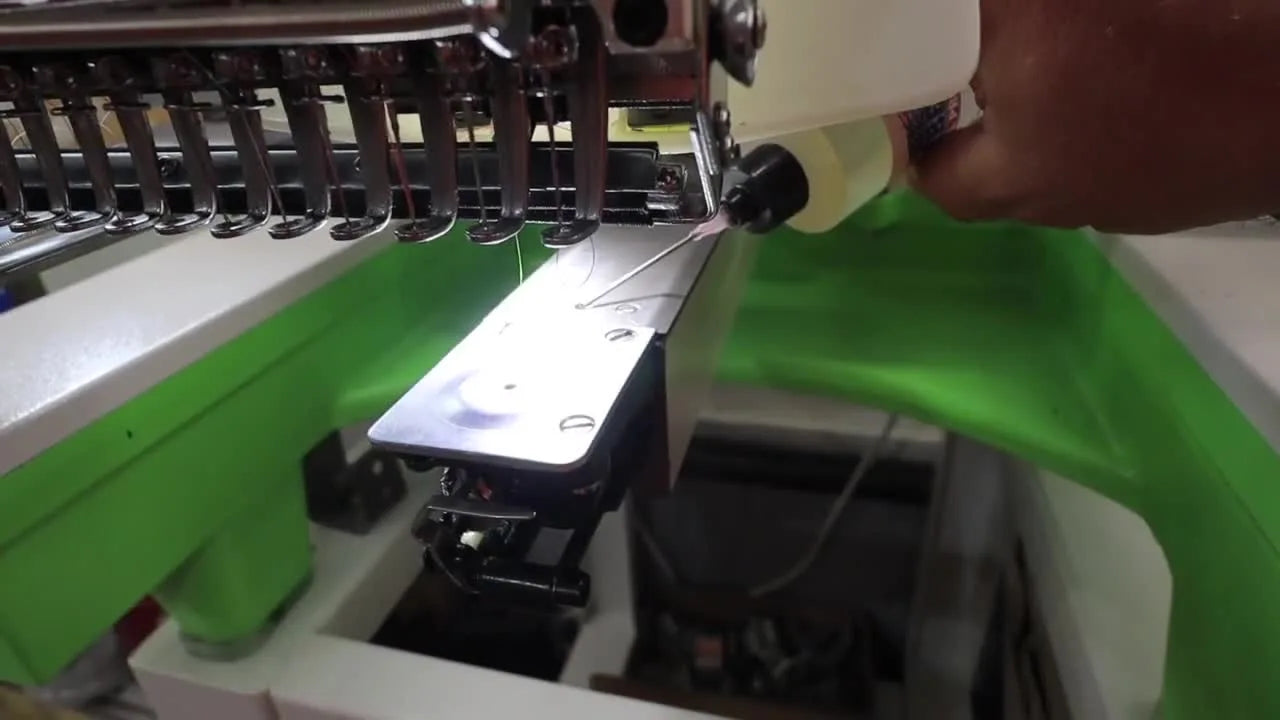

The 3-Drops-and-2-Drops Rule: Oiling the Rotary Hook (The Sweet Spot)

This is the most critical maintenance step for any smartstitch 1501 or similar industrial clone. The rotary hook spins at 1,000+ RPM. Without oil, it generates heat, expands, and eventually seizes.

Matt’s Protocol:

1. The Oil Port: Look for the small hole (often marked with yellow/red paint) on the rotary hook assembly.
   • Action: Apply 3 drops.
2. The Raceway: The gap between the spinning hook and the stationary black casing.
   • Action: Apply 2 drops.


Expert Calibration: The "drop" size matters. If you are using a standard bottle, 3 drops might be a flood. If using a needle-point oiler, 3 drops is perfect.

• Sensory Anchor: After oiling, run the machine for 10 seconds without thread. Listen. The sound should change from a dry "whir" to a wet, smooth "hum."

Warning: The Stain Hazard
More oil is not "more protection." It is more danger. Over-oiling causes centrifugal force to fling oil droplets onto the back of your crisp white t-shirts. Always run a test stitch on scrap fabric (a "warm-up run") after maintenance to clear excess fluid.

The Yellow-Sticker Habit: Oiling Body Ports

The machine manual will label ports with yellow "OIL" stickers. Matt’s routine simplifies this:

• Side Oil Port: 1 drop.
• Lower Side Port: 2 drops.
• Rear Oil Port: 2-3 drops.


What to watch for: If oil immediately pools and runs down the side of the machine, the cleaning wick inside requires service, or you are dispensing too fast. The oil should disappear into the machine like water into a sponge.

The 15-Spring Detail: Upper Tension Assembly

Here is a detail many beginners miss. Matt oils each individual take-up spring on the tension assembly.

• Action: 1-2 drops on each spring.
• Frequency: Manufacturer says weekly; Matt prefers daily micro-dosing (1 drop).


Why this matters: In multi-needle production, "stick-slip" friction is the enemy. If a spring sticks, it delays the thread take-up, leaving a loop on the fabric. By keeping these lubricated, the springs react instantly to the machine's high-speed jerks.

Phase 2: Setup Checklist (The "Liquid" Audit)

• Hook Port: 3 drops applied.
• Raceway Gap: 2 drops applied.
• Body Ports: Side (1), Lower (2), Rear (2-3) applied.
• Springs: Micro-dose (1 drop) on all active needles.
• Wipe Down: Check the needle plate for any oil splatter.
• Test Cycle: Run the machine empty for 10 seconds to distribute fluid (optional but recommended).

The Weekly Smoothness Upgrade: Greasing Rails & Shafts

While oil flows, grease stays. Weekly greasing ensures the head moves left and right (X-axis) and the needle bars move up and down (reciprocators) without grinding.

The Setup: On the Smartstitch (or SEWTECH) interface, move the head to Needle 1. This exposes the right-side mechanics.

• Tool: Screwdriver. Remove the single screw holding the side faceplate.




The "Less Is More" Grease Method: Matt uses WD-40 White Lithium Grease.

1. Shake the can like you are mixing spray paint. The lithium separates from the carrier solvent.
2. Target: The main silver aluminum sliding shaft, the upper rail, and the secondary rear shaft.
3. Application: A quick burst.




Sensory Anchor (Visual): You are looking for a sheen, not a layer. If it looks like frosting on a cake, wipe it off. It should look like a thin, wet film. Excess grease traps dust and creates "grinding paste."

The Forgotten Roller: Color Change Mechanism

There is a moving arm on the right side responsible for the heavy lifting of color changes.

• Action: Apply a squirt of grease to the rollers/moving points.
• Result: Matt notes significantly smoother operation.


If your machine makes a loud CLUNK when switching from Needle 1 to Needle 15, this area is likely dry.

The "Needle Point" Reality Check: The RG Trap

Matt highlights a frustration that drives new owners crazy: Perfect settings, perfect maintenance, but terrible stitch quality on hats.

He highlights a pack of Groz-Beckert needles labeled 75/11 RG.

• Verdict: "BAD" for hats.


The Expert Explanation: "RG" stands for "Round Point Groz-Beckert" (slightly rounded). It is designed to slide between the fibers of knits (polos/t-shirts) to avoid cutting them. However, Hats (especially Richardson 112s) are made of buckram—a stiff, cardboard-like material. A rounded needle struggles to pierce it, causing deflection.

• The Fix: Use Sharp Points for hats and structured caps. They punch clean holes, ensuring the thread travels straight.
• The Keyword: If you are building a workflow around a smartstitch hat hoop, your needle choice dictates your success more than your digitizing does.

The Bobbin Case Pivot: Hacking Your Tension

Matt advises keeping multiple spare bobbin cases and labeling them "Hats" and "Flats."

Why this is Genius:

• Physics: Hats are thick and curved; they often require slightly different tension dynamics than flat t-shirts.
• Workflow: Instead of spending 10 minutes adjusting one bobbin case screw every time you switch jobs, you simply swap the pre-calibrated case.
• Drop Insurance: If you drop a case (and you will), you are not out of business. You swap to the spare and keep earning money.

Hardware Trap: The Needle Plate Swap

The Rule:

• Flat Needle Plate: Use for shirts, jackets, towels.
• Raised Needle Plate: Use exclusively for caps/hats.


Using a flat plate on a hat leaves a gap between the fabric and the plate. This gap allows the fabric to "flag" (bounce up and down), which causes skipped stitches and thread breaks. The raised plate minimizes this gap.

Decision Tree: The "What Am I Stitching?" Logic flow

Stop guessing. Follow this logic path before you press start.

When using a smartstitch s1501 for mixed media, standardization is your best friend.

The Upgrade Path: When to Buy Your Way Out of Problems

One of the most revealing comments in Matt's video discussion was about magnetic embroidery hoops.

As a consultant, I see shop owners try to "skill" their way out of "tool" problems.

• Pain Point: You are hooping 50 polos. Your wrists hurt. You are wrestling with screws. You leave "hoop burn" (shiny rings) on the fabric.
• The Solution: This is not a technique failure; it is a tool failure.
• The Upgrade: Magnetic Hoops (like the Mighty Hoops often paired with industrial machines, or models available for home machines) clamp fabric instantly without friction burns.

The "Scale" Strategy: If you find your single-needle machine creates a bottleneck, or you are spending more time changing thread colors than stitching, that is the "Trigger Moment."

• Level 1: Better Consumables (Isacord thread, pre-wound bobbins).
• Level 2: Better Hooping (Magnetic frames, hooping stations).
• Level 3: Better Iron (Moving from single needle to a SEWTECH multi-needle setup).

Warning: Magnet Safety
Magnetic hoops are industrial tools. They snap together with enough force to pinch skin severely.
* Pacemakers: Keep magnetic hoops at least 12 inches away from anyone with a pacemaker.
* Electronics: Keep phones and credit cards away.
* Handling: Always store them with the provided spacers. Never let two magnets snap together without a barrier.

Operation Checklist: The "Ready to Run" Sign-Off

You have oiled, greased, and swapped plates. Do not ruin the garment now.

• Bobbin Seated: Listen for the "Click" when inserting the case. If it doesn't click, it will fly out.
• Plate Wipe: Run a clean paper towel over the needle plate one last time to catch micro-pools of oil.
• Faceplate Secure: Screw tight? (Hand-tight, don't strip it).
• Correct Plate: Are you doing hats? Is the Raised Plate on?
• Test Sew: Run a minimal "H-test" or a small star on scrap fabric.
  • Check: Is the bobbin thread showing 1/3 in the center of the back?
  • Check: Are there oil spots?

The Peace of Mind Payoff

Matt’s maintenance routine isn't just about preserving the machine; it's about preserving you. When you know your hook is oiled, your rails are greased, and your needle matches your fabric, the fear evaporates.

The difference between a hobbyist and a professional isn't just the machine they own; it's the routine they keep. A clean machine is a quiet machine. And in this business, a quiet machine is the sound of profit.

If you are ready to stop fighting your equipment and start scaling your output, remember: Maintenance first, then upgrades. When you have mastered the maintenance, check out the SEWTECH line of multi-needle machines and accessories—because eventually, you are going to need more needles.

FAQ

• Q: How do I safely clean and oil a 15-needle commercial embroidery machine rotary hook area without risking finger injury?
  A: Put the machine in a true safe state first, then only work in the throat-plate “kill zone” when motion cannot start.
  • Engage E-Stop or power the machine off before hands go near the needle bars, hook, gears, or throat plate.
  • Remove the bobbin case and place it in a dedicated cup/tray (do not balance it on the table edge).
  • Blow lint out of the bobbin case and hook assembly with compressed air/electric duster while keeping fingers clear of gears.
  • Apply hook oil using controlled micro-drops (not a flood), then run an empty cycle briefly to distribute oil.
  • Success check: The machine sound changes from a dry “whir” to a smoother “hum,” and there is no visible oil splatter on the needle plate.
  • If it still fails… stop and verify the machine is not in “Ready” state before troubleshooting deeper or reaching inside again.
• Q: How do I stop bird nesting (looping) caused by lint in the bobbin case on a 15-needle embroidery machine?
  A: Treat bird nesting as a lint-and-bobbin-case reset problem first: clean the bobbin case and rotary hook assembly daily.
  • Remove the bobbin case, then remove the bobbin spool from the case.
  • Blow out lint from both the bobbin case and the rotary hook assembly until a visible dust cloud exits.
  • Reinstall the bobbin spool and bobbin case securely.
  • Success check: The inside surfaces of the bobbin case look spotless, and the bobbin case edge feels smooth “like glass” with a fingernail.
  • If it still fails… inspect the bobbin case edge for a catch/scratch (damage) and consider swapping to a spare bobbin case to isolate the issue.
• Q: What is the correct “3-drops-and-2-drops” rotary hook oiling method for Smartstitch 1501 / SEWTECH-style multi-needle embroidery machines?
  A: Use 3 drops in the hook oil port and 2 drops in the hook raceway gap, then clear excess oil before sewing garments.
  • Locate the rotary hook oil port (often paint-marked) and apply 3 controlled drops with a needle-tip oiler.
  • Apply 2 drops into the raceway gap between the spinning hook and the stationary casing.
  • Run the machine about 10 seconds without thread to distribute oil and fling off excess safely.
  • Success check: After the short run, the hook area sounds smoother and the needle plate wipes clean without fresh oil pooling.
  • If it still fails… reduce oil volume (drop size may be too large) and always do a scrap “warm-up run” to prevent staining.
• Q: How can I tell if oiling ports on a Smartstitch / SEWTECH multi-needle embroidery machine are absorbing correctly versus pooling and leaking?
  A: Oil should wick in—not run down the machine—so pooling usually means over-dispensing or a wick/cleaning issue.
  • Apply only the stated micro-amounts to the labeled oil ports (side: 1 drop; lower side: 2 drops; rear: 2–3 drops).
  • Dispense slowly with a precision oiler so the oil can absorb instead of flooding.
  • Wipe any immediate exterior runoff to avoid attracting lint.
  • Success check: Oil disappears into the port “like water into a sponge,” with no immediate streaking down the machine body.
  • If it still fails… suspect the internal wick/absorption path needs service and avoid adding more oil to “force it in.”
• Q: How do I grease the side rails and shafts weekly on a Smartstitch / SEWTECH 15-needle embroidery machine without creating lint-attracting “grinding paste”?
  A: Apply white lithium grease as a thin sheen on sliding parts only—never a thick layer.
  • Move the head to Needle 1 to expose right-side mechanics, then remove the side faceplate screw and faceplate.
  • Shake the white lithium grease can well, then spray a quick burst on the main sliding shaft, upper rail, and rear shaft.
  • Wipe off any excess until it looks like a wet film, not “frosting.”
  • Success check: The greased parts show an even sheen with no clumps, and head travel sounds/feels smoother during operation.
  • If it still fails… clean off heavy buildup (excess grease traps dust) and reapply minimally.
• Q: Why does a Smartstitch / SEWTECH 15-needle embroidery machine clunk loudly during color changes from Needle 1 to Needle 15?
  A: A loud clunk during needle changes often means the color-change mechanism rollers/moving points are running dry and need grease.
  • Open access to the right-side mechanism (as done for weekly greasing).
  • Apply a small squirt of white lithium grease to the rollers and moving contact points in the color-change mechanism.
  • Cycle needle changes to distribute lubricant and confirm smoother motion.
  • Success check: Needle changes sound noticeably smoother with reduced “CLUNK,” especially across large jumps (Needle 1 to Needle 15).
  • If it still fails… inspect for missed grease points or schedule mechanical inspection before continued high-speed production.
• Q: What needle point and needle plate should be used for structured hats on a Smartstitch / SEWTECH multi-needle embroidery machine to prevent deflection, skipped stitches, and thread breaks?
  A: Use sharp-point needles and a raised needle plate for caps; avoid round-point (RG) needles on stiff buckram hats.
  • Install sharp-point needles for structured hats (rounded RG points can deflect on buckram and degrade stitch quality).
  • Swap to the raised needle plate dedicated to caps (do not run hats with a flat plate).
  • Hoop and stabilize caps with cap-appropriate tearaway as your baseline workflow.
  • Success check: The fabric does not “flag” (bounce) at the needle plate, and stitches form consistently without repeated skips/breaks.
  • If it still fails… recheck that the raised plate is actually installed and consider separating bobbin cases labeled for “Hats” vs “Flats” to avoid constant re-tensioning.
