Snap, Stitch, Repeat: Using a MaggieFrame Magnetic Hoop + Sew Tech Hooping Station to Center Black T-Shirt Logos Fast

If you have ever stood in front of a multi-needle machine with a stack of black cotton T-shirts, you know the specific flavor of anxiety that kicks in. Black fabric is unforgiving—it shows every speck of lint, every trace of “hoop burn,” and worst of all, any misalignment of white thread screams at you from across the room. The thought process is usually: “If I mis-center this logo by half an inch, I am effectively buying this shirt.”

If that fear sounds familiar, this guide is your exit strategy.

We are going to deconstruct a workflow that transforms "guessing" into "engineering." By combining a Sew Tech hooping station, a MaggieFrame magnetic hoop, and a Brother multi-needle machine, we create a closed-loop system where the result is determined before you press the start button.

In this industry-grade breakdown, I will walk you through the exact sequence required to run a production batch of logos on knitwear. I will translate the raw actions into sensory checkpoints—what you should feel, hear, and see—and provide the safety margins that separate a ruined garment from a sellable product.

Don’t Panic—Magnetic Hoops Aren’t “Cheating,” They’re Consistency (MaggieFrame Magnetic Hoop)

A lot of embroiderers, particularly those trained on traditional tubular hoops, feel suspicious the first time they encounter magnets. The fear is valid: “Will it actually hold a heavy sweatshirt?” or “Will the fabric slip at 800 stitches per minute (SPM)?”

Here is the physics: Traditional hoops rely on friction created by forcing an inner ring into an outer ring. This distorts the fabric fibers (creating "hoop burn") and requires significant wrist strength. Magnetic systems, like the MaggieFrame, rely on clamping force. They sandwich the fabric flatly between two plates.

When you are searching for a magnetic embroidery hoop, look past the hype. You aren't looking for a "magic fix"; you are looking for a tool that eliminates fiber distortion. For knits specifically, which are prone to stretching out of shape during hooping, magnetic frames are not "cheating"—they are the industry standard for maintaining fabric integrity.

The “Hidden” Prep Pros Do Before the First Shirt Hits the Station (Cutaway Stabilizer + Chalk)

The video demo uses a standard black cotton T-shirt, tailor’s chalk, and a sheet of cutaway stabilizer. To the untrained eye, this looks like basic prep. To a pro, this is where the profit is secured.

What the video does (and why it matters)

The presenter marks only the first shirt with chalk to establish the placement baseline. This is a crucial distinction: In a production run of 50 shirts, you do not mark 50 shirts. You mark one to calibrate your station, lock the station down, and then trust the mechanical jig for the remaining 49.

Expert Insight: The “Cutaway” Rule

T-shirts are unstable knits. If you pull them, they stretch. If you rely on Tearaway stabilizer, the integrity of the design relies entirely on the fabric—which is stretchy. Eventually, the stitches will distort, or "tunnel."

The Golden Rule: If the fabric stretches (T-shirts, hoodies, polos), the backing must not stretch. You must use Cutaway stabilizer. It acts as the permanent foundation for your stitches.

Prep Checklist: The "Mise-en-place"

Before you touch the machine, ensure this ecosystem is ready:

• Stabilizer Audit: Pre-cut your Cutaway sheets. Don't cut as you go.
• Adhesion Strategy: Use a very light mist of temporary spray adhesive (like 505) on the stabilizer if you are new. It prevents the backing from sliding before the magnets snap shut.
• Consumable Check: Do you have a fresh embroidery needle (Ballpoint 75/11 is ideal for knits)? A burred needle will cut holes in a black tee instantly.
• The "Lint Check": Wipe the magnetic surfaces of your hoop with a clean cloth. Stray thread or lint between magnets significantly reduces holding power.


Lock the Bottom Frame Into the Sew Tech Hooping Station Like You Mean It (Station Setup)

The hooping station is your coordinate system. If the station moves, your logo moves.

The Tactile Setup

1. Separate the Hoop: Take the green top frame off. Hold the metal bottom frame.
2. The Docking: Slide the metal bottom frame into the designated slot on the white hooping station/board.
3. The "Click": You aren't just placing it; you are seating it. You should feel a definitive mechanical stop.

Checkpoints (Sensory Anchors)

• Touch: Run your finger along the joint where the hoop meets the station. It should be perfectly flush.
• Sound: Listen for the "clack" of metal hitting the jig stops.
• Stability: Wiggle it. If there is play (movement) greater than 1mm, check the station adjustment screws. It must be rigid.

Using a magnetic hooping station allows you to offload the "thinking" part of alignment to the hardware. Once this base is locked, you stop measuring and start loading.

Backing First, Always: Placing Cutaway Stabilizer So It Actually Supports the Knit

In the video, the presenter lays the stabilizer over the bottom frame. Because the bottom frame is metal, the magnets often grab the stabilizer slightly, which is helpful.

The "Drum Skin" Test

1. Lay the Cutaway stabilizer so it fully covers the embroidery field with at least 1 inch of overhang on all sides.
2. Smooth it flat.
3. The Test: Tap the stabilizer. It doesn't need to be tight yet, but it must be flat. Any wrinkles here will become permanent creases in your shirt later.

Why this prevents rework

If the stabilizer is loose under the shirt, the machine foot will push the fabric around during stitching, creating "birds nests" (tangles) underneath. The backing is your anchor; treat it with respect.

The Fast Centering Trick: Draping a Black T-Shirt and Aligning Chalk to Station Guides

This is the failure point for most beginners: The "Tug of War." They put the shirt on and then pull it violently to center it. Stop pulling.

The "Drape and Smooth" Technique

1. Load: Pull the shirt over the station board, ensuring the front of the shirt is facing up.
2. Gravity Align: Let the shirt fall naturally.
3. Micro-Adjust: Instead of pulling the fabric (which stretches the knit), lift the fabric slightly and place it down where it needs to go.
4. Reference: Align your chalk crosshair (from the first shirt) with the station's grid lines or center notch.

Pro Tip: The Neckline Anchor

Always ensure the neckline is perfectly perpendicular to the station. If the neck is crooked, the logo will be crooked, even if the center point is correct.

When utilizing a hooping station for brother embroidery machine, the station itself mimics the machine's arm. This means satisfied orientation here equals satisfied orientation on the needle bar.

The Acrylic Alignment Tool Moment: How to Make “Same Place Every Time” Real

Humans have terrible depth perception. We think we are centered, but we are usually 3mm to the right. The clear acrylic alignment arm eliminates parallax error.

What you do (The Mechanical Auditor)

1. Swing or lower the acrylic fixture over the shirt.
2. Look through the clear plastic.
3. Match the "C" (Center) slot of the tool to your chalk mark.

Why this works

This tool forces you to be honest. It physically blocks you from hooping until the shirt is perfectly positioned. For production runs, you eventually stop marking lines on the shirt and start using the shirt's own landmarks (like the distance from the collar) against the ruler on the acrylic tool.

If you are learning how to use magnetic embroidery hoop systems for bulk orders, this gauge is your best friend. It turns a "feeling" into a "coordinate."

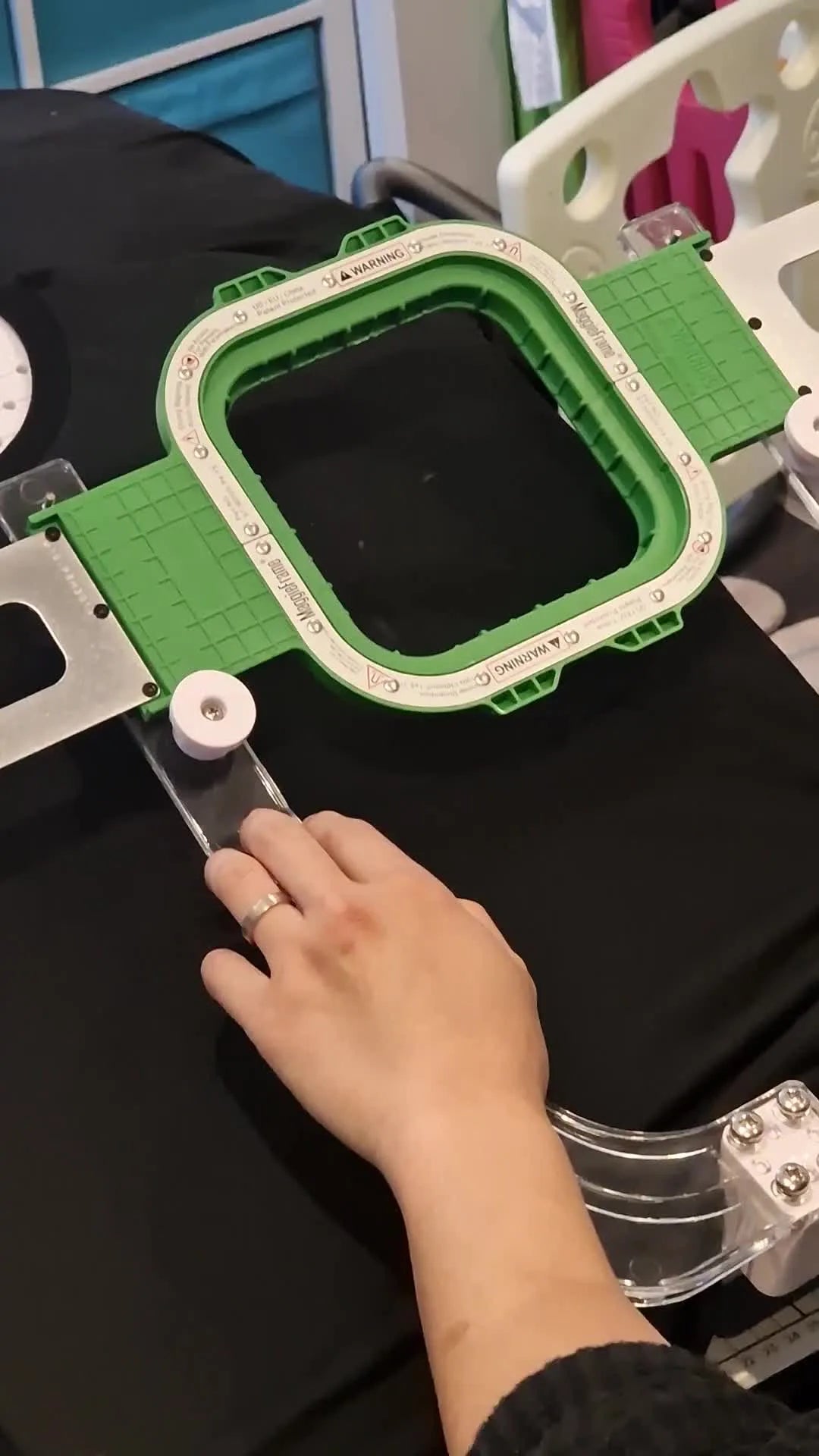

The Magnetic Snap: Closing the MaggieFrame Top Frame Without Shifting the Shirt

This is the moment of truth. You have the perfect alignment; now you must lock it without moving it.

The "Hover and Drop" Technique

1. Hover: Hold the green top magnetic frame about an inch above the shirt.
2. Align: Match the white etched arrows on the hoop to the guidelines on the station logic.
3. Secure: Don't just let go. Bring it down flatly.

Warning: Pinch Hazard. These magnets are industrial strength. Do not place your fingers between the top and bottom frames. Hold the top frame by the outer edges or the designated handles. A "blood blister" is a painful lesson.

The "No-Shift" Protocol

• Anchor First: Secure the top edge first (lightly), then lower the bottom edge.
• The Check: Before you fully release pressure, engage your core muscles and press down firmly on the designated white circles/corners.
• Underside Check: (Critical) Slide your hand under the frame to ensure you haven't caught the back of the shirt or a sleeve. Stitching a shirt closed is the rookie mistake we all make once.

For those running a Brother PR series and seeking a magnetic hoop for brother, the primary advantage here is that the hoop doesn't "walk" or twist the fabric as a screw-tightened hoop does.

The Live Run on a Brother Multi-Needle Embroidery Machine: Settings Check Before You Hit Green

The video shows the hooped shirt locked into the Brother machine arms. The screen shows 800 SPM (Stitches Per Minute).

Critical Data Analysis

• Speed: 800 SPM.
• Stitches: 2,534.
• Colors: 4.

The "Newbie Sweet Spot"

While the video shows 800 SPM, I recommend a safety buffer for your first 10 shirts.

• Start at 600-700 SPM. Why? Lower speeds reduce the "push-pull" effect on knits and lower the risk of thread breaks. You can ramp up to 800+ once you trust your stabilizer combo.
• Thread Tension: Check your bobbin case. Use index-finger tension (it should pull smoothly, like dental floss, not loose and not jerky).

A brother magnetic hoop is rigid, but physics still applies. If you run too fast on unstable cotton, the fabric moves inside the hoop's grip.

Un-Hooping in Seconds: The Real Time Saver for Bulk T-Shirt Logos

The machine finishes. The thread trimmer cuts. Now, watch the hands in the video.

The "Pop" Method

1. Pull the hoop off the machine arm.
2. Lift the tab/edge of the magnetic top frame.
3. Pop. It releases instantly.

The Hidden ROI

There is no unscrewing. There is no prying. The fabric isn't wrinkled from being crushed in a plastic ring.

• Standard Hoop: 20-30 seconds to unhoop.
• Magnetic Hoop: 2 seconds to unhoop.
• Math: On 100 shirts, you just saved nearly an hour of pure labor.

This speed is the defining feature of magnetic embroidery frames; they minimize the "Machine Idle Time."

The “Why” Behind the Speed: Physics of Hooping, Knit Recovery, and Placement Repeatability

Let's look under the hood at why this system produces better embroidery, not just faster embroidery.

1. Compression vs. Torture

Standard hoops distort the weave of the fabric (torture). You have to stretch the fabric to get it tight. When you unhoop, the fabric relaxes, and your perfect circle becomes an oval. Magnetic hoops use vertical compression. The fabric stays in its "relaxed state." The design you stitch is the design you get.

2. The "floating" effect

Because the fabric isn't stretched to death, the embroidery sits on top of the knit structure rather than sinking into a distorted valley.

If you are comparing magnetic embroidery hoops, realize that you are buying dimensional stability.

Decision Tree: Choosing Stabilizer for T-Shirt Logos (So You Don’t Waste Shirts)

The video uses Cutaway on a standard tee. Here is your logic map for deviating from that.

START: Identify Your Substrate (Fabric)

• Scenario A: Standard Cotton T-Shirt (Black/White)
  • Action: 2.5oz Cutaway Stabilizer.
  • Needle: 75/11 Ballpoint.
• Scenario B: Performance Knit / Dri-Fit (Slippery/Stretchy)
  • Action: No-Show Mesh (Nylon) Fusible Stabilizer. (It is lighter but strong).
  • Pre-Treat: Use temporary spray adhesive to stop the slippery fabric from moving.
• Scenario C: Heavyweight Hoodie
  • Action: Heavy Cutaway OR two layers of medium Cutaway.
  • Adjustment: Increase magnetic hoop gap if adjustable, or ensure magnets have full contact.
• Scenario D: Fabric has "Fuzz" or Pile (Velvet/Fleece)
  • Action: Add a Water Soluble Topping (Solvy) firmly on top before clicking the magnet. This prevents stitches from sinking.

Note: Never use Tearaway on a T-shirt. It will look good for 5 minutes, then fail after the first wash.

Setup Checklist: Dial In the Station Once, Then Run Like a Production Line

Print this out and stick it to your wall.

• Station Logic: Bottom frame verified flush in station jig (No wobble).
• Prep: Cutaway backing pre-cut to size (Make 10% more than you need).
• Calibration: Shirt #1 marked with chalk and aligned to the station grid.
• Tool Check: Acrylic gauge confirms chalk mark is true Center.
• Machine: Loading arm is clear.
• Speed: Set to 700 SPM (Safety speed) for the first run.
• Orientation: Double-check the "Up" arrow on your design file matches the neck of the shirt.


Troubleshooting the Stuff That Ruins Batches: Symptoms → Likely Cause → Fix

Real life is messier than a video. Here is how to fix it when it goes wrong.

Magnet Safety and Shop Reality: Protect Hands, Phones, and Pacemakers

We must respect the tools.

Warning: Magnetic Field Hazard.
* Pacemakers: Keep these hoops at least 6-12 inches away from implanted medical devices.
* Electronics: Do not lay your smartphone, credit cards, or USB sticks directly on the magnets.
* Handling: Store hoops separated by the foam spacers provided. Trying to pry two industrial magnets apart without the spacer is a wrestling match you might lose.

The Upgrade Path That Actually Makes Sense: From One-Off Hooping to Repeat Orders

The video demonstrates a system that works. But when should you invest in it? Here is the commercial reality.

Trigger: "My wrists hurt."

Criteria: If you are hooping 20+ items a day using screw-tightened hoops, you are risking repetitive strain injury (RSI). The Solution: Magnetic Hoops. They require zero wrist torque. This is a health and safety upgrade as much as a productivity one.

Trigger: "I can't get through my orders fast enough."

Criteria: You are spending more time prepping than stitching. The Solution: Sew Tech Hooping Station. By offloading the alignment to the station, you cut prep time by 50%.

Trigger: "I want to do mass production/Contract work."

Criteria: You cannot afford to change threads manually 15 times a shirt. The Solution: Multi-Needle Machines (like the SEWTECH series). Combined with large magnetic frames, these machines allow you to load a jacket back, press start, and walk away for 40 minutes. This is how you scale from "hobby" to "business."

Operation Checklist: The Repeatable “Batch Rhythm” for Black T-Shirt Logos

1. Load: Bottom frame in station. Stabilizer on.
2. Drape: Shirt on. Gravity align. Neckline straight.
3. Verify: Drop the acrylic tool. Check center.
4. Snap: Top frame on. Fingers clear. Check underside.
5. Run: Load to machine. Trace (if new design). Stitch.
6. Clear: Remove hoop. Pop magnet. Rack shirt.
7. Reset: Do it again.


If you adopt only one habit from this guide, let it be this: Trust the fixture, not your eyes. Your eyes get tired; the hooping station does not. By standardizing your variables—stabilizer, tension, alignment—you remove the fear of the black tee and replace it with the confidence of a manufacturer.

FAQ

• Q: How do I prevent hoop burn on black cotton T-shirts when using a MaggieFrame magnetic hoop on a Brother multi-needle embroidery machine?
  A: Use magnetic clamping (not friction stretching) and avoid leaving the garment clamped longer than needed—this is common and usually fixable.
  • Hoop: Drape the shirt naturally on the station and “hover and drop” the top frame straight down (do not tug-stretch the knit).
  • Reduce: Un-hoop immediately after stitching instead of letting shirts sit in the frame during breaks.
  • Recover: Steam the shiny ring lightly (do not iron) to relax the fibers.
  • Success check: The fabric surface looks matte again and the knit does not show a crushed ring in angled light.
  • If it still fails: Recheck that the shirt was not pulled tight during centering; stretching during hooping is the usual cause.
• Q: What is the correct stabilizer choice for a black cotton T-shirt logo when hooping with a MaggieFrame magnetic embroidery frame?
  A: Use Cutaway stabilizer for T-shirts because the fabric stretches and the backing must not stretch.
  • Choose: Use 2.5oz Cutaway for a standard cotton T-shirt.
  • Place: Cover the full embroidery field with at least 1 inch overhang on all sides.
  • Secure: Mist a very light temporary spray adhesive on the stabilizer if sliding is happening during hooping.
  • Success check: Tap the stabilizer before the shirt goes on—flat and wrinkle-free (no ripples) is the target.
  • If it still fails: If the knit is slippery/performance fabric, switch to No-Show Mesh (nylon) fusible stabilizer and keep the adhesive step.
• Q: How do I know the Sew Tech hooping station is set correctly so logo placement repeats on every shirt?
  A: The bottom frame must be fully seated and rigid in the station—if the station moves, the logo moves.
  • Dock: Slide the metal bottom frame into the station slot until it hits a definitive stop.
  • Verify: Run a finger along the joint—everything should feel perfectly flush.
  • Test: Wiggle the frame; any play over about 1 mm means the station needs adjustment screws tightened.
  • Success check: You hear a clear “clack” when seating, and the frame cannot rock in the jig.
  • If it still fails: Re-seat the bottom frame and recheck the station stops before marking or aligning shirt #1.
• Q: How do I stop a black T-shirt from shifting when closing a MaggieFrame magnetic hoop on a hooping station?
  A: Use a controlled “hover and drop” close and secure in a sequence—don’t let the magnets slam while the fabric can still slide.
  • Hover: Hold the top frame about 1 inch above the shirt and align the etched arrows before contact.
  • Anchor: Touch down the top edge first lightly, then lower the bottom edge.
  • Press: Push down firmly on the designated corners/white circles before fully releasing.
  • Success check: The chalk center (or reference point) stays aligned to the station guides after the frame is fully closed.
  • If it still fails: Add a very light mist of temporary spray adhesive to prevent the stabilizer/backing from skating under the magnets.
• Q: How can I prevent bird’s nests (thread tangles underneath) when embroidering knit T-shirts on a Brother multi-needle embroidery machine with a magnetic hoop?
  A: Start by making the stabilizer the anchor—most nesting starts when backing or fabric can move under the presser foot.
  • Lay: Place Cutaway stabilizer first and keep it flat before adding the shirt.
  • Smooth: Drape the shirt and micro-adjust by lifting and setting (do not pull-stretch the knit).
  • Check: Confirm bobbin tension pulls smoothly (not loose and not jerky) before the run.
  • Success check: The underside shows controlled bobbin coverage and no loose “spaghetti” loops building up during the first color.
  • If it still fails: Slow the machine to a safer starting point of 600–700 SPM and confirm the stabilizer is still flat (“drum skin”), not wrinkled.
• Q: Why is my logo design crooked on a black T-shirt even when the center mark looks correct on a hooping station?
  A: The neckline/shoulders are usually not square to the station—center can be right while orientation is wrong.
  • Square: Set the neckline perpendicular to the station before closing the hoop.
  • Align: Use the acrylic alignment tool grid to align the shoulders/horizontal reference, not only the center point.
  • Lock: Calibrate using shirt #1, then trust the fixture for the rest of the batch.
  • Success check: The collar line looks level relative to the station grid, and the stitched logo baseline is parallel to the shirt’s shoulder line.
  • If it still fails: Re-check that the station base is rigid (no wobble) and the bottom frame is fully seated.
• Q: What safety steps prevent finger injuries and magnetic hazards when using a MaggieFrame magnetic embroidery hoop in a production shop?
  A: Treat the hoop like an industrial clamp—keep fingers clear during closing, and keep magnets away from sensitive devices.
  • Handle: Grip the top frame by outer edges/handles only; never place fingers between top and bottom frames (pinch hazard).
  • Store: Keep hoops separated with the provided foam spacers to avoid uncontrolled snapping.
  • Protect: Keep magnets 6–12 inches away from pacemakers/implanted devices, and do not place phones, credit cards, or USB drives on the magnets.
  • Success check: The hoop closes without any finger contact in the pinch zone, and the shop has a consistent “magnet-safe” storage spot.
  • If it still fails: Slow down the close—control the “hover and drop” instead of letting the magnets pull the frame out of your hands.
• Q: When should an embroidery shop upgrade from traditional hoops to magnetic hoops, a hooping station, or a SEWTECH multi-needle machine for repeat T-shirt logo orders?
  A: Upgrade in layers based on the bottleneck—reduce risk first, then reduce prep time, then increase stitching capacity.
  • Level 1 (Technique): If placement drift and rework are frequent, standardize the workflow (shirt #1 calibration, acrylic alignment check, 600–700 SPM until stable).
  • Level 2 (Tool): If wrists hurt or hoop burn/hooping time is costing money, switch to magnetic hoops to remove screw torque and speed un-hooping.
  • Level 2 (Fixture): If alignment time is the bottleneck, add a hooping station to lock coordinates and repeat placement.
  • Level 3 (Capacity): If orders outgrow manual thread changes and downtime, move to a multi-needle platform like SEWTECH for production scaling (confirm requirements with the machine manual).
  • Success check: Batch output increases with fewer rejected shirts, and machine idle time drops noticeably between garments.
