Snapplique Fabric Prep That Actually Stays Organized: HeatnBond Lite, SF101 Opacity, and a Clean Trim with Trimmer by George

Snapplique is one of those techniques that feels like a "cheat code" for the uninitiated—until you are staring at a chaotic pile of tiny fabric scraps, a sticky iron soleplate, and a ScanNCut mat that has decided to eat your expensive adhesive.

As someone who has navigated the transition from "hobbyist frustration" to "production-grade precision" over two decades, I can tell you this: Applique is 20% stitching and 80% preparation.

If you are prepping for a multi-piece applique quilt block (like the intricate "Happy Halloween Quilt" style shown in source discussions), the logic is simple: The machine does the stitching, but you must engineer the stability. The real win isn't just cleaner shapes—it’s fewer lost pieces, zero "hoop burn," and a workflow that scales from one block to one hundred without breaking your spirit.

Snapplique + Brother ScanNCut: the calm way to prep applique fabrics before you cut anything

Snapplique is effectively an automated bridge between quilting and embroidery. You take a paper quilt pattern, scan it into a cutting machine (like the Brother ScanNCut), convert it into a machine embroidery file, and use that same cutter to precision-cut your fabric shapes.

The promise is speed—you are no longer manually tracing and scissor-cutting every ghost, pumpkin, or letter. However, the mechanism that makes or breaks your result is fabric physics.

If your adhesive (HeatnBond) isn't thermally bonded to the correct temperature, it will gum up your cutting blade. If your light fabrics are too sheer, your "white" ghost will look gray against a black background. And perhaps most critically, if you are struggling with the physical act of hooping these multi-layer sandwiches, you will introduce drag lines.

This is exactly where the mechanics of hooping for embroidery machine success starts to matter. It is not just about tightening a screw; it is about ensuring that your stabilizer, base fabric, and applique layers act as a single, unified skin. If they slip, the machine loses registration, and your outline stitch will miss the fabric entirely.

The “Master Key + Sticky Note” system that stops applique pieces from getting lost mid-project

Cognitive load is the enemy of embroidery. When a project has five characters, and each character has six fabric zones, your memory will fail you. You will swear that "Fabric 27" is the purple batik, and three days later, you will cut the wrong shade.

To combat this, we use a "Master Key" system. This is standard operating procedure in professional shops to prevent costly rework.

The Workflow:

1. The Source of Truth: Create (or print) a master key that correlates every pattern number to a specific physical fabric.
2. Single Block Focus: Do not batch process the whole quilt at once. Pull only the fabrics for "Mr. Monster."
3. The Sticky Note Tag:
   • Write the fabric code/number on a sticky note.
   • Write the cutting dimensions (derived from your Brother CanvasWorkspace).
   • Sensory Check: Stick this note firmly to the fabric bolt or scrap immediately. If the fabric is on the table, the note is on the fabric.

This seems tedious until you are 45 minutes into a cutting session. That sticky note is the difference between a meditative afternoon and a panic attack.

Prep Checklist (Do this BEFORE heating the iron)

• Master Key Created: Printed and placed in a clear visual line of sight.
• Isolation: Only fabrics for the current block are on the work table.
• Blade Check: Inspect your rotary cutter blade. If it skips threads, change it now.
• Adhesive Management: HeatnBond Lite roll is ready; check that the paper backing feels smooth, not crinkled or pre-separated.
• Surface Prep: Ironing board cover is clean. Run a lint roller over it to remove stray threads that could get fused into your work.
• The "Oh No" Bin: Have a dedicated trash bin for offcuts so they don't get mixed with usable pieces.

Stapling fabric ID tags to the selvage: the tiny habit that prevents expensive mix-ups

In a high-output environment, we don't trust adhesive notes alone on textured fabrics. The presenter in the walkthrough utilizes a physical anchor: stapling the store label or ID tag directly to the fabric selvage.

Why the selvage? The selvage is the tightly woven edge of the fabric. It is structurally sound and, crucially, it is non-production fabric. You will never cut your applique shape from the selvage.

Production Mindset Notes:

1. Corner Discipline: Place the staple in the extreme corner. A rogue staple in the center of your yardage can nick your rotary blade later (a $10 mistake).
2. Color Verification: If you sourced your own fabrics rather than buying a kit, your eyes can deceive you under different lighting. Trust the code, not the "look."


Warning: Staples and rotary cutters are natural enemies. If your rotary blade hits a metal staple, the blade is instantly ruined and can chip, sending metal shards flying. Always visualize your cutting path before applying pressure.

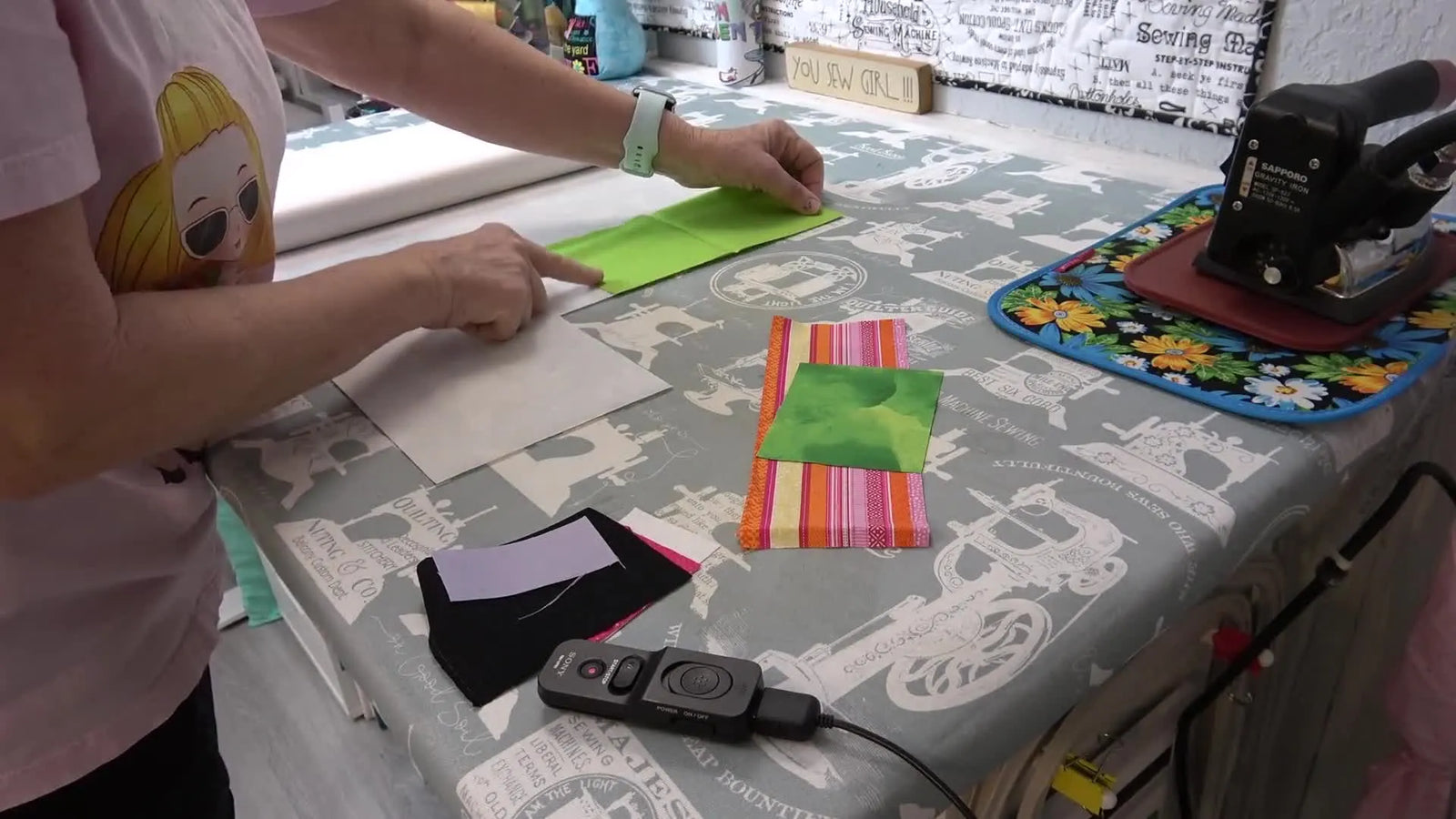

The upside-down HeatnBond Lite method: how to bond scraps without gumming up your iron

This is the "aha!" moment for many intermediates. Conventional instructions say "place adhesive on fabric." We flip that logic for efficiency.

The Inverted Process:

1. Lay the HeatnBond Lite on your pressing mat, adhesive side UP. (It will look shiny/textured).
2. Place your rough-cut fabric scraps Right Side UP directly onto the sticky adhesive.
3. Tetris Strategy: Arrange pieces to maximize the adhesive sheet, minimizing waste.
4. The Safe Zone: Ensure the fabric overlaps the HeatnBond edge by at least 2-3mm (a few threads width).

Why this works (The Physics): Fabric is a heat-safe barrier; adhesive is not. By ensuring the fabric overhangs the glue, your hot iron soleplate only touches cotton, never exposed adhesive. If you miss this step and touch the glue, you will create black, sticky drag marks on your next ten projects.

Ergonomics Note: If you find yourself doing this for hours, standing at a standard ironing board will wreck your back. This repetitive task is why professionals invest in a dedicated machine embroidery hooping station. It’s not just for hooping; having a stable, waist-height surface for precise fusing and cutting reduces fatigue, which is the primary cause of slippage errors.

Why the “couple threads over the edge” trick works (and when it fails)

This technique relies on the "Fabric Shield" principle.

• Success: The iron glides over cotton. The heat penetrates, activating the glue below without direct contact.
• Failure Mode: If the fabric shifts effectively exposing the glue, or if you used the "Steam" setting (which forces moisture into the glue, altering its chemistry and sometimes causing it to spit out the sides), you will have a mess.

Expert Rule: Dry Iron Only. No Steam. The moisture belongs in the washing machine, not the fusing stage.

Pellon SF101 under white applique: the clean fix for “shadowing” on dark backgrounds

White fabric on a black background is the ultimate test of applique quality. Without intervention, the black will "shadow" through, making your crisp white ghost look like dirty gray heavy water.

The Solution: Opacity Engineering. We add a layer of Pellon SF101 (Shape-Flex) to the back of light fabrics before adding the HeatnBond.

The Layer Stack (Bottom to Top):

1. Pellon SF101 (Adhesive side UP).
2. White Fabric (Right side UP).
3. Fuse these two first.
4. HeatnBond Lite (Adhesive side UP).
5. The Fused White Fabric unit (Right side UP).

Material Science: SF101 is a woven fusible interfacing. It adds density and blocks light transmission without making the fabric stiff like cardboard. It preserves the "hand" (drape) of the quilt while solving the color bleed issue.

Tack first, cut clean, then do the 5–8 second press that prevents ScanNCut mat disasters

Adhesion is a function of Time + Temperature + Pressure. Most failures happen because people rush the Time variable.

The Two-Stage Fuse:

1. The Tack: A quick 1-2 second press just to hold the "Tetris" pieces in place so you can carry the sheet to the cutting mat.
2. The Slice: Use a rotary cutter to separate the different fabric zones.
3. The Bond (Critical Step): Flip the separated pieces over (Paper side UP). Press firmly for 5–8 seconds.

Sensory Anchor: When you press, lean into the iron. You want to feel the heat penetrate. After it cools, try to peel a corner. It should require deliberate force to separate the paper. If the paper falls off, or if the fabric bubbles, the glue has not bonded to the fibers.

Why this matters for the ScanNCut: A high-tack cutting mat pulls hard. If your fabric isn't fused perfectly to the paper backing (which is held by the mat), the blade will drag the fabric off the paper, ruining the cut and jamming the machine.

Setup Checklist (The Pre-Flight Check)

• Iron Settings: Dry heat (no steam), set to "Wool" or medium-high.
• Layer Check: SF101 applied to all light-colored fabrics.
• Overhang: All fabric pieces overhang the HeatnBond edges (no exposed glue).
• Stabilization: Cutting mat is clean; no old lint that could cause bumps.
• Blade Depth: For ScanNCut users, perform a "Test Cut" on a scrap. You want to cut the fabric and adhesive but kiss-cut (barely mark) the backing paper.

How much extra fabric should you rough-cut for Snapplique pieces? Use the “+1 inch rule” and stop redoing work

Efficiency is not about using the smallest scrap possible; it's about never doing the same job twice.

The Rule: Add at least 1 inch (2.54 cm) of margin around your target shape when rough cutting.

The Logic:

• Grip: You need physical space to hold the fabric while fusing without burning your fingers.
• Seal: You need edge-to-edge adhesive coverage.
• Safety: While cutting on the machine, the blade needs a stabilized entry and exit path.

If you are producing kits or working in a small shop, fabric waste is a concern. However, rework costs more than cotton.

The Commercial Solution: If you find yourself trimming excessive margins just to get a secure hold in your hoop later, this is a hardware problem. Traditional screw hoops require "hooping leverage." Standard industry practice to reduce fabric waste (and struggle) is to switch to magnetic embroidery hoops. These clamps hold fabric flat without requiring massive excess margins for leverage, allowing you to be more economical with your cuts in the long run.

A quick decision tree: choose stabilizer/backing strategy based on fabric behavior

The video focuses on top-down prep, but the foundation (the hoop) dictates the stitch quality. If your stabilizer is wrong, all that precise cutting won't matter because the base fabric will pucker.

Decision Tree: Stabilizer Selection Strategy

• Scenario A: The Base is Stable Quilting Cotton
  • Path: Tear-Away (Medium Weight) or Iron-on Tear-Away.
  • Why: The cotton supports itself. The stabilizer just needs to hold the frame tension.
• Scenario B: The Base is Knit / Stretchy (e.g., T-shirt)
  • Path: Cut-Away (Mesh or standard) + Spray Adhesive.
  • Why: Knits stretch. Tear-away will shatter under the needle impact, causing the design to distort. You must use Cut-Away to lock the fibers.
• Scenario C: High Stitch Density / Satin Stitch Borders
  • Path: Fusible Cut-Away (PolyMesh).
  • Why: Thousands of needle penetrations will chew a hole in standard tear-away. Fusible stabilizers create a unified board-like structure that resists perforation.
• Scenario D: Delicate Fabrics (Velvet, Napped Cotton)
  • Path: Magnetic Hoop + Float Method (Don’t hoop the fabric, hoop the stabilizer and float the fabric).
  • Why: Traditional hoops crash the pile (hoop burn).

Trimmer by George + 60mm rotary cutter: the safest way to trim a quilt block without nicking your stitches

Post-embroidery trimming is the victory lap, but also the most dangerous moment for the project. One slip cuts the thread, unraveling the satin stitch.

The presenter uses a Trimmer by George tool. This acrylic ruler has a metal lip that seats inside the seam allowance, protecting the embroidery.

The Physical Technique:

1. Fold Back: Fold the "pretty" top fabric back, exposing the batting/stabilizer.
2. Seat the Lip: Slide the tool until the metal lip hits the stitch line physically. You should feel it stop.
3. The Cut: Use a 60mm Rotary Cutter.

Why 60mm? A 60mm blade has more torque and a shallower angle of attack than a standard 45mm blade. It slices through thick batting/stabilizer sandwiches with less downward pressure, reducing the chance of the ruler slipping.

Warning: Never "saw" back and forth with a rotary cutter. Make one confident, firm pass. If you must saw, your blade is dull. Change it immediately to prevent accidents.

Comment-driven fixes: the questions people ask when they’re stuck

Real-world friction points usually appear in the comments section. Here are the professional fixes to common amateur problems.

“Where do I get the fabric key?”

• The Issue: Confusion between kit-sourced numbering and generic pattern numbering.
• The Fix: If you buy a kit, the key is included. If you source your own, make your own key first. Do not start cutting until you have taped a physical scrap of "Fabric A" to a paper labeled "Fabric A."

“Can I use a 12x24 mat?”

• The Issue: Brother ScanNCut mat compatibility is notoriously specific to the model generation (CM vs. SDX series).
• The Fix: Check your specific machine manual. The SDX series auto-detects mats; older CM series are pickier. Never force a mat into the feeder if it feels tight—you will strip the roller gears.

“Should I spray starch before HeatnBond?”

• The Verdict: NO.
• The Why: Starch is a resistor. It coats the fibers and prevents the HeatnBond adhesive from penetrating into the weave. This leads to applique pieces that peel off three months later. Wash and dry your fabric to remove factory sizing, but do not add starch before fusing.

The upgrade path that actually makes sense: reduce rework first, then buy speed

We have covered the skills. Now let’s talk about the tools that solve the physical limitations of the human body and domestic machines.

Level 1: The "Hoop Burn" & Wrist Pain Solution

If you are pressing applique blocks correctly but still getting "rings" or "burn marks"—or if tightening the hoop screw is aggravating your carpal tunnel—it is time to upgrade the mechanism.

• The Tool: magnetic hoops for brother (or your specific machine brand).
• The Logic: Instead of friction (inner ring jamming inside outer ring), these use vertical magnetic force. They are faster, they do not distort the fabric grain, and they eliminate hoop burn entirely. The investment pays for itself in "saved garments" and saved wrists.

Warning: Magnetic Hazard. Commercial-grade magnetic hoops are incredibly strong. Keep fingers clear of the snap zone to avoid pinching. Do not place near pacemakers.

Level 2: The Consistency Solution

If you are doing production runs (10+ shirts or blocks) and struggling to get the design in the exact same spot every time:

• The Tool: A hoop master embroidery hooping station or hoopmaster system.
• The Logic: These stations use jigs to ensure that "Logo A" lands exactly 3 inches from the collar, every single time. It removes the eyewear/guesswork factor.

Level 3: The Throughput Solution (SEWTECH)

Finally, if you have mastered these techniques and your challenge is simply time— i.e., your single-needle machine takes 40 minutes per block and you have 20 orders waiting—no amount of "tips" will fix that.

• The Tool: SEWTECH Multi-Needle Machines.
• The Logic: Moving from a domestic unit to a multi-needle machine allows you to preload 10-15 colors (no manual thread changes) and stitch at 1000 SPM (Stitches Per Minute) reliably. This is the shift from "hobby" to "business."

Operation Checklist (The "Don't-Make-Me-Redo-This" Final Pass)

• Inventory: All fabric pieces are labeled with sticky notes until the moment they are placed on the mat.
• Fuse Check: HeatnBond is forcefully pressed (5–8s) and cooled. Peel test passed.
• Opacity: White fabrics have the SF101 "under-armor" layer.
• Tooling: Trimmer by George is seated against the stitching, not on it.
• Safety: 60mm cutter is retracted when not in hand. Magnetic hoops are stored away from electronics.
• Consumables: Have a spare rotary blade, extra bobbin thread, and a temporary spray adhesive (like 505) within arm's reach.

By systematizing your prep, you stop fighting the materials and start controlling the outcome. Happy stitching.

FAQ

• Q: How do I stop HeatnBond Lite adhesive from gumming up an iron soleplate when fusing small applique scraps for Brother ScanNCut Snapplique cutting?
  A: Use the upside-down HeatnBond Lite method so the iron only touches fabric, not exposed adhesive.
  • Place HeatnBond Lite on the pressing surface adhesive-side up, then place fabric scraps right-side up on top.
  • Overhang fabric past the HeatnBond edges by 2–3 mm so no glue is exposed.
  • Use a dry iron only (no steam) and do a quick 1–2 second tack press first.
  • Success check: The iron glides smoothly with no sticky drag, and there are no shiny glue smears on the soleplate.
  • If it still fails: Re-position pieces to eliminate exposed adhesive and avoid steam, which can push glue out the sides.
• Q: What iron settings and press time prevent Brother ScanNCut cutting mats from pulling fabric off the HeatnBond Lite paper backing during Snapplique prep?
  A: Do a two-stage fuse and finish with a firm 5–8 second press on the paper side to fully bond fabric to the backing.
  • Tack pieces for 1–2 seconds to hold the layout together before moving anything.
  • After separating pieces, flip them paper-side up and press firmly for 5–8 seconds.
  • Perform a peel test only after cooling; do not rush the cooling step.
  • Success check: Peeling a corner of the paper requires deliberate force (it should not “fall off”).
  • If it still fails: Increase pressure (lean into the iron) and confirm the iron is set to dry medium-high (“Wool” range), not steam.
• Q: How do I prevent white applique fabric from looking gray (“shadowing”) on dark quilt backgrounds when using Snapplique and HeatnBond Lite?
  A: Fuse Pellon SF101 (Shape-Flex) to the back of light fabrics before adding HeatnBond Lite to increase opacity.
  • Fuse SF101 to the white fabric first (SF101 adhesive side up, fabric right side up).
  • Then add HeatnBond Lite to the fused fabric unit for cutting and stitching.
  • Keep the pressing dry and controlled so layers fuse flat.
  • Success check: Hold the prepared white fabric over the dark background; the dark color should not visibly show through.
  • If it still fails: Re-check that SF101 was applied to every light piece before HeatnBond, not after.
• Q: How much extra margin should I rough-cut around Snapplique applique shapes before fusing HeatnBond Lite for Brother ScanNCut cutting?
  A: Use the “+1 inch rule” and rough-cut at least 1 inch (2.54 cm) larger than the target shape to avoid rework.
  • Add margin for safe handling during fusing and for full edge-to-edge adhesive coverage.
  • Avoid using tiny scraps that force you to re-fuse or re-cut after shifting.
  • Keep the workflow focused on one block’s fabrics at a time to prevent mix-ups.
  • Success check: The piece is easy to hold and press without finger burns, and the adhesive area fully covers the usable fabric.
  • If it still fails: Switch to larger scraps for fusing, then trim down after bonding rather than fighting minimal margins.
• Q: How do I stop applique fabric mix-ups when a Snapplique quilt block has many numbered fabric zones and similar colors?
  A: Use a Master Key plus physical fabric tagging so every fabric number stays attached to the correct fabric all the way through cutting.
  • Create/print a Master Key that maps each pattern number to a specific fabric and keep it in clear view.
  • Pull only the fabrics for the current block onto the table (do not batch the whole quilt).
  • Attach an ID note to the fabric immediately; in higher-output work, staple the store label/ID tag to the selvage corner.
  • Success check: At any moment, every fabric on the table has a readable identifier physically attached to it (not “nearby”).
  • If it still fails: Reduce the number of fabrics on the table to one character/block and discard offcuts into a dedicated bin immediately.
• Q: What is the safest way to trim an embroidered quilt block with a 60mm rotary cutter without nicking satin stitch borders (Trimmer by George method)?
  A: Seat the Trimmer by George lip against the stitch line and make one confident cut—never “saw” back and forth.
  • Fold the top fabric back to expose the batting/stabilizer so the ruler seats correctly.
  • Slide the tool until the metal lip physically stops at the stitch line.
  • Cut with a 60mm rotary cutter in a single firm pass; retract the blade when not cutting.
  • Success check: The cut edge is clean and the satin stitches remain fully intact with no sliced threads.
  • If it still fails: Replace the rotary blade immediately; a dull blade forces sawing and increases slip risk.
• Q: When should an embroiderer upgrade from screw hoops to magnetic embroidery hoops or a multi-needle machine for repetitive applique blocks and hooping pain?
  A: Upgrade in layers: first fix rework causes, then reduce hooping strain with magnetic hoops, and only then consider a multi-needle machine for throughput.
  • Level 1 (Technique): Standardize fusing, labeling, and stabilizer choices so pieces don’t shift and outlines don’t miss.
  • Level 2 (Tool): If screw-hooping causes hoop burn, fabric distortion, or wrist pain, magnetic hoops often reduce strain and improve consistency.
  • Level 3 (Capacity): If time is the bottleneck (too many orders, too many manual color changes), a multi-needle machine is the practical throughput step.
  • Success check: Rework drops (fewer mis-cuts/mis-placements), hoop marks reduce, and placement becomes repeatable across multiple blocks.
  • If it still fails: Add a hooping station/jig for repeat placement and review fabric/stabilizer slip as the root cause before buying speed.
