Mastering “Snapplique”: The Science of Machine-Quilted Appliqué

Snapplique is one of those techniques that feels like a magic trick the first time it works: you take a traditional quilting appliqué pattern, convert the shapes into stitches, and suddenly you’re building a crisp quilt block in minutes instead of wrestling with turn-and-stitch edges.

However, for the uninitiated, the software side can induce "paralysis by analysis." If you’re staring at Embrilliance and thinking, “I know nothing about this but need to learn,” you’re in good company. This workflow is absolutely learnable. Once you understand the physics behind the steps—why we adjust density, why we layer specific ways—you’ll stop fighting the software and start controlling it.

Snapplique on a Santa Quilt Block: What You’re Really Building (and Why It Stitches So Fast)

Snapplique takes the placement logic of a paper quilting appliqué pattern and turns it into a stitch sequence that layers fabric pieces cleanly. In this Santa block, every fabric piece overlaps. This is critical because it creates a "margin of error." Unlike raw-edge appliqué where gaps are fatal, Snapplique allows for slight variances without revealing the background.

The win is speed, but the hidden win is structural consistency. Once your file is clean, you can repeat the block with predictable results. This is where intermediate embroiderers level up: spending less time fixing puckers and bulk, and more time making blocks that actuallly square up.

Note: The example used here derives from the 'Merry Christmas' quilt by Amy Bradley Designs, digitized from that appliqué placement concept.

Importing Brother ScanNCut Vectors into Embrilliance Stitch Artist Level 3 Without Broken Nodes

The workflow begins with vector shapes. Whether scanned on a Brother ScanNCut or created in Illustrator, importing them into Embrilliance Stitch Artist is the first point of failure.

The “Reconstruct Outline” habit that prevents 30 minutes of weird problems later

Vectors created by auto-tracing often contain "noise"—hundreds of microscopic nodes that confuse embroidery machines.

The Clean-Up Protocol:

1. Select the imported vector graphics in Stitch Artist.
2. Select All (Ctrl+A / Cmd+A).
3. Execute: Go to Create → Outline → Reconstruct Outline.

In the example, you might only see a tiny shift in the line. Do not ignore this. That tiny shift is the software smoothing out jagged digital noise.

Why this matters (Expert Reality): Broken nodes cause the embroidery machine to decelerate and accelerate rapidly, creating "bird nests" of thread underneath the fabric. By reconstructing the outline, you ensure a smooth needle path. If you are looking for how to use magnetic embroidery hoop or other tools to improve quality later, none of them will help if your source file is corrupt.

The Layering Order in the Objects Panel: Fix It Here or Pay for It in Thread and Bulk

Embroidery is physics. You cannot stitch a hat brim under a face if the face is stitched first. Before applying any stitches, you must manually order objects in the Objects Panel to match your paper placement guide.

The Logical Sequence:

1. Background layers first.
2. Mid-ground details (like the Hat White).
3. Foreground details (Brim, Face).


The spacing rule that makes “Remove Hidden Stitches” actually trigger

As you rotate and nudge shapes into position, you must respect the "Overlap Goldilocks Zone."

• Too little overlap (<1mm): You risk gaps if the fabric shifts.
• Too much overlap (>5mm): You create bulletproof stiffness.
• Just right (2-3mm): Enough for security, but distinct enough for the software to detect.

Shop-Floor Tip: If two outline vectors are virtually on top of each other, the "Remove Hidden Stitches" function will fail because it cannot mathematically determine which object obscures the other. Nudge them apart slightly to give the software a clear hierarchy.

Blanket Stitch Settings for a Quilting Look: Use These Numbers, Then Test on Your Fabric

Once vectors are positioned, we convert them to stitching. Action: Click Applique > Select Blanket Stitch.

The "Sweet Spot" Parameters for Beginners:

• Stitch Length: 2.0 mm (Going lower than 1.8mm risks cutting the fabric).
• Stitch Width: 2.5 mm (Going wider than 3.5mm creates a "cartoonish" look).


Expert Note on Tension: If you are chasing that classic hand-quilted look, your tension is key.

• Visual Check: The bobbin thread (usually white) should pull slightly to the back, but not tunnel.
• Tactile Check: The blanket stitch should lay flat. If it feels like a raised ridge, your top tension is too tight, or your stabilizer is too light.

If you are using magnetic embroidery hoops, you’ll often notice your blanket stitch looks more even at the corners. This is because traditional hoops distort the fabric grain when tightened, while magnetic frames hold the grain perfectly square, allowing the E-stitch (blanket stitch) to form 90-degree corners cleanly.

Warning: Mechanical Safety. Keep fingers, pins, and snips away from the needle path—especially when you’re test-running placement stitches. A machine moving at 600 SPM gives you zero reaction time. Never place your hand inside the hoop while the machine is armed (green light).

“Remove Hidden Stitches” in Embrilliance Essentials: Clean Layers Without Turning Your Block Into Cardboard

After applying blanket stitches, we must manage density. If you stitch a blanket stitch underneath another layer, you are creating a microscopic ramp that will deflect the needle on the next pass, causing broken needles.

The Fix:

1. Switch to Embrilliance Essentials.
2. Click the Scissors icon (Remove Hidden Stitches).


Troubleshooting:

• Symptom: Stitches didn't disappear.
• Likely Cause: The top layer doesn't fully cover the bottom layer, or they are on the same color stop.
• Fix: Adjust rotation slightly or ensure they are separate objects in the sequence.

The real-world payoff: less bulk, fewer thread breaks, flatter blocks

Hidden stitches aren't just "invisible"—they are structural liabilities. Removing them reduces:

1. Heat buildup: Friction from dense stitching cuts thread.
2. Deflection: Needles hitting previous stitches at angles.
3. Distortion: "Push-pull" forces that warp your square block into a rhombus.

The Stitch Simulator Trick: Delete Only the Bottom Edge Blanket Stitches (So You Keep Seam Allowance)

This is the signature move for serious quilters. You need the appliqué to stop before the bottom seam allowance so you can sew the block into a quilt without stitching over a dense blanket stitch.

The Workflow:

1. Visualize: Open the Stitch Simulator.
2. Scrub: Move the slider until the needle reaches the start of the bottom edge.
3. Isolate: Hit Stop. Change the thread color (e.g., to Dark Fuchsia).
4. Advance: Scrub forward until the bottom edge stitching is finished.
5. Stop & Revert: Hit Stop. Change the next section back to the original color (Black).
6. Delete: In the Objects Panel, simply delete the new "Dark Fuchsia" color stop.


Expected Outcome: The machine will stitch up to the corner, jump over the bottom edge, and resume on the other side.

Critical Check: Ensure you changed the following color back to black. If you forget, the machine will think the rest of the design is part of the deletion group.

Printing Crosshairs and Full-Size Templates: Fix the Two Most Annoying Print Problems Fast

You cannot eyeball a quilt block. You need a printed template.

Problem 1: Crosshairs not visible in print preview

• Cause: Software preference lag.
• Fix: Fully Quit and Relaunch Embrilliance. The "Print Crosshairs" setting often requires a restart to initialize.

Problem 2: Design cut off in print preview

• Cause: The 10.5" block is larger than A4/Letter paper.
• Fix: Select "Print Actual Size." Let it span 2 pages. Print, trim the margins with scissors, and tape them together accurately.

Hidden Consumable: Translucent Vellum or Print-and-Stick Target Paper. Using semi-transparent paper makes alignment much easier than standard copy paper.

No Printer? You Can Still Stitch Snapplique—Here’s the Safe Workaround

A viewer asked if printing is mandatory. The Verdict: No, but it increases risk.

The "No-Print" Safety Protocol:

1. Oversize drastically: Cut your background fabric at least 2 inches larger than the finished block on all sides.
2. Mark Center: Use a water-soluble pen to mark a crosshair directly on the fabric.
3. Trace: Run a "Placement Stitch" (basting box) on the stabilizer first to see exactly where the design lands before you commit the expensive fabric.

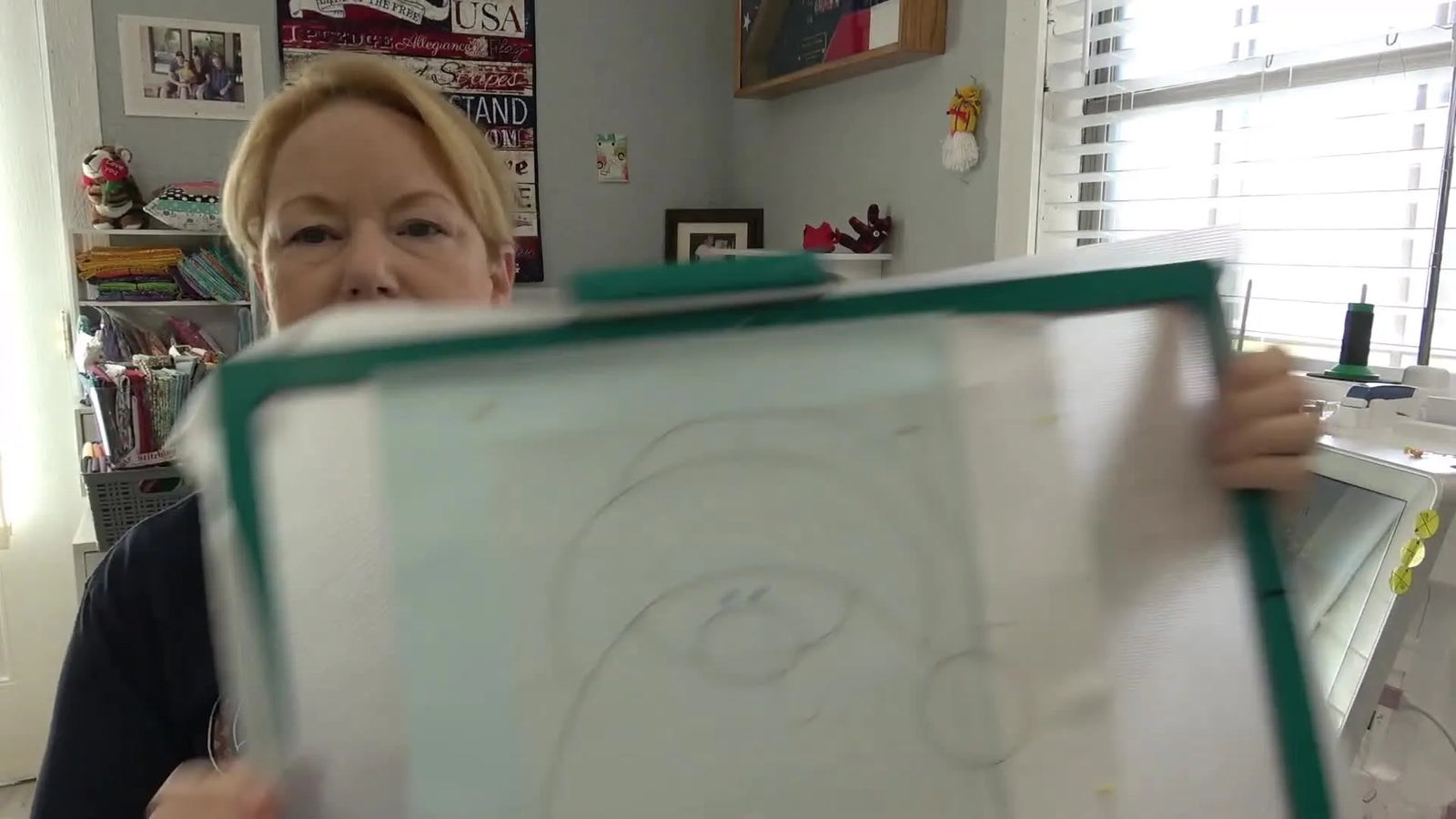

Floating Fabric on No-Show Mesh Stabilizer: The Calm, Controlled Way to Hoop a Quilt Block

"Floating" means hooping only the stabilizer and laying the fabric on top. This prevents "hoop burn" (white marks on dark fabric) and distortion.

The Setup:

1. Hoop: Poly-mesh (No-Show Mesh) stabilizer. Drum-tight.
2. Spray: A light mist of temporary adhesive spray (like 505) on the stabilizer.
3. Place: Lay the fabric block down, referencing your printed template.
4. Pin: Secure corners far away from the stitch area.


The Commercial Upgrade Path: If you are floating fabric because you hate tightening the screw or suffer from wrist pain, this is the Trigger Moment to consider tools. Professional shops rarely use screw hoops for this. They use floating embroidery hoop systems or magnetic frames. Why? Because magnets automatically clamp fabric at the correct tension without the "unscrew-adjust-rescrew" struggle.

The “Hidden” prep that keeps floating from turning into puckers

Floating relies on friction. If your stabilizer is loose, your block will pucker.

Prep Checklist (Pre-Flight):

• Stabilizer Tension: Tap the stabilizer. It should sound like a drum skin, not a paper bag.
• Adhesion: Is the fabric stuck flat? Air bubbles = puckers.
• Pin Safety: Are pins at least 1 inch outside the stitch field?
• Clearance: Is the fabric draped so it won't get caught under the hoop attachment arm?

Laser Crosshair Alignment on a Brother Luminaire Innov-is XP1: Fast Centering Without Guesswork

For owners of high-end machines like the Brother Luminaire, alignment is digital.

The Process:

1. Enter Embroidery Mode.
2. Activate the Projector/Laser capability (W Foot).
3. Project the crosshair onto your fabric.
4. Nudge the design onscreen until the projected red cross perfectly overlaps your printed template's crosshair.


No laser on your machine? The needle-drop method still works

1. Manually lower the needle bar (hand wheel) until the needle tip almost touches the fabric.
2. Check alignment against the center dot on your template.
3. Adjust hoop position.
4. Repeat until dead center.

Stitch-Out Flow: Peel the Target Paper, Smooth the Fabric, Then Let It Run

Important: Remove the paper template before you press start.

Speed Control: For complex Snapplique, do not run at max speed (1000+ SPM).

• Beginner Safe Zone: 600 SPM. This gives you time to react if thread shreds or fabric lifts.
• Expert Zone: 800 SPM, provided you are using high-quality thread and a stable magnetic hoop.


Warning: Magnet Safety. If you upgrade to magnetic embroidery hoops, be aware they use N52 industrial magnets. They snap together with extreme force (up to 30lbs). Keep fingers clear of the mating surfaces, and keep them away from pacemakers or magnetic media.

Setup Checklist (Machine-Side)

• Bobbin Check: Is the bobbin full? Running out mid-blanket stitch is a nightmare to patch.
• Needle Check: Are you using a fresh 75/11 Embroidery or Topstitch needle? A burred needle will snag cotton.
• Thread Path: Is the thread seated deep in the tension disks? Floss it in to be sure.
• Design Orientation: Does the "Top" of the design match the "Top" of your hoop?

Working with a 9x14 (or 9x15) Hoop: When You Can Avoid Multi-Hooping—and When You Can’t

A common frustration is having a design just slightly too big for the hoop.

• The Scenario: The Santa block is 10x16.
• The Constraint: Your machine (e.g., Brother Stellaire) maxes out at 9x14.
• The Fix: Split the design. Stitch the Hat/Face in one pass, then re-hoop for the lower section.

Pro Tip: If you own a Stellaire and dread re-hooping, a magnetic hoop for brother stellaire allows you to slide the fabric down and re-clamp in seconds, maintaining perfect vertical alignment compared to wrestling with a standard inner ring.

Cutting the Appliqué Pieces: ScanNCut Is Great, but You Still Have Options

The video uses a ScanNCut, but the principle is: Precision Input = Precision Output. If using a Cricut, ensure your "SVG" export from Embrilliance matches your distinctive cutting mat size. Always do a "Dry Run" – cut one shape on paper first to verify size matches your embroidery placement stitch.

Decision Tree: Stabilizer + Hooping Method for Snapplique Quilt Blocks

Don't guess. Use this logic flow to determine your setup.

1. Analyze Fabric Stability:
   • Is it Quilting Cotton (stable)? -> Proceed to Step 2.
   • Is it Knit/Jersey (stretchy)? -> STOP. You must use Fusible No-Show Mesh adhered to the back of the fabric before floating.
2. Determine Hoop Mark Risk:
   • High Risk (Velvet, Dark Solids): -> FLOAT method (or use Magnetic Hoop).
   • Low Risk (Patterned Cotton): -> Standard hooping is acceptable (Fabric + Stabilizer in ring).
3. Volume of Work:
   • Single Block: -> Pins and Spray are sufficient.
   • Batch Production (5+ Blocks): -> Using magnetic embroidery hoops for brother reduces wrist strain and increases throughput by ~30% per block.

The “Quiet” Quality Controls: What I Listen and Look For During the Stitch-Out

Embroidery is an auditory art. A happy machine hums; an unhappy machine thumps.

Finishing the Block Like a Pro: Trim, Clean, and Keep the Edges Quilt-Ready

My finishing standard for quilt blocks (The "White Glove" test):

1. Clip Jumps: Use curved snips to cut jump threads flush with the fabric. Do not pull them; you will distort the blanket stitch.
2. Back Clean-up: Trim "bird nests" on the back to prevent lumps when quilting later.
3. Final Trim: Only use your rotary cutter to square the block to 10.5" after you have verified the embroidery is centered.

Operation Checklist (Post-Production)

• Inspect Corners: Are stitch corners sharp? (Round corners indicate fabric drag).
• Verify Size: Does the block measure exactly what the pattern dictates?
• File Hygiene: Save the "Edited" file (with bottom stitches removed) with a clear name so you don't accidental re-stitch the wrong version later.

The Upgrade Path When You Start Making These for Real

Snapplique is fun as a hobby—but it also scales. If you start doing multiple blocks, team quilts, or making gifts for sale, hooping becomes your bottleneck.

Here is the professional "tool upgrade" logic:

1. Level 1 (Technique): Use float-and-pin to solve hoop burn on single projects.
2. Level 2 (Efficiency): If you are on a compatible machine, look for magnetic hoops for brother luminaire. These eliminate the need to unscrew rings and allow you to make minor adjustments by just "lifting and snapping" the magnet.
3. Level 3 (Consistency): If you struggle with landing the design straight every time, a hooping station for embroidery ensures your placement is identical on Block 1 and Block 20.

The goal isn’t gadgets for their own sake. The goal is removing variables. The fewer variables you battle, the more fun you have stitching.

FAQ

• Q: In Embrilliance Stitch Artist Level 3, how do I prevent broken nodes when importing Brother ScanNCut vectors for Snapplique appliqué?
  A: Run “Reconstruct Outline” on the imported vectors before you assign any stitches—this prevents jagged node noise that can cause slowdowns and underside thread nests.
  • Select: Click the imported vector artwork, then Select All (Ctrl+A / Cmd+A).
  • Execute: Go to Create → Outline → Reconstruct Outline.
  • Continue: Only after that, start positioning and converting to applique stitches.
  • Success check: The outline looks subtly smoother/cleaner and the machine path runs without hesitation instead of rapid stutter-start motion.
  • If it still fails: Re-check the source vector for auto-trace “noise” and simplify/clean the artwork before re-importing.
• Q: In Embrilliance Stitch Artist, why does “Remove Hidden Stitches” fail on overlapping Snapplique shapes, and what overlap spacing makes it work?
  A: Use a clear overlap that is not too tiny and not too excessive—about 2–3 mm—so the software can detect which layer is on top.
  • Measure: Ensure overlap is not under ~1 mm (gap risk) and not over ~5 mm (bulk/stiffness risk).
  • Nudge: If two outlines are nearly on top of each other, slightly separate/nudge them so there is a clear hierarchy.
  • Sequence: Confirm the Objects Panel order matches the paper placement logic (background → mid-ground → foreground).
  • Success check: After running Remove Hidden Stitches, the hidden stitches actually disappear and the block feels flatter, not “cardboard-like.”
  • If it still fails: Confirm the top layer fully covers the bottom layer and the items are separate objects/steps (not effectively merged in the same sequence).
• Q: In Embrilliance Stitch Artist applique blanket stitch, what stitch length and stitch width settings are a safe starting point for a quilting look on Snapplique blocks?
  A: Start with 2.0 mm stitch length and 2.5 mm stitch width, then test on the exact fabric/stabilizer stack.
  • Set: Choose Applique → Blanket Stitch, then enter Length 2.0 mm and Width 2.5 mm.
  • Avoid: Don’t go below ~1.8 mm length if the fabric starts getting cut by the needle penetrations.
  • Test: Stitch a small sample with the same cotton, stabilizer, and thread before committing the full block.
  • Success check: The blanket stitch lays flat with clean corners and does not feel like a raised ridge.
  • If it still fails: Adjust top tension (often loosen slightly if tunneling/ridging shows) and confirm the stabilizer is adequate for the fabric.
• Q: When floating quilting cotton on poly-mesh (No-Show Mesh) stabilizer for Snapplique, what is the success standard to prevent puckers and hoop burn?
  A: Float by hooping only the poly-mesh drum-tight, lightly spray adhesive, then place and pin the fabric—puckers usually come from loose stabilizer or poor adhesion.
  • Hoop: Hoop poly-mesh stabilizer drum-tight before adding fabric.
  • Spray: Apply a light mist of temporary adhesive spray to the stabilizer (not heavy saturation).
  • Place: Smooth the fabric down flat, then pin corners well away from the stitch field.
  • Success check: Tap the hooped stabilizer—it should sound like a drum skin (not a “paper bag”), and the fabric sits flat with no bubbles.
  • If it still fails: Re-hoop tighter and re-smooth; check that pins are at least 1 inch outside the stitch area and fabric is not catching under the hoop arm.
• Q: On a home embroidery machine without a projector/laser (for example, a Brother machine without the Luminaire-style projector), how can I center a Snapplique design accurately using the needle-drop method?
  A: Use the hand wheel to lower the needle tip near the fabric at the template center mark, then micro-adjust the hoop position until it lands dead center.
  • Mark: Draw a clear center crosshair on the fabric (water-soluble pen is commonly used for this).
  • Lower: Turn the hand wheel to bring the needle tip almost to the fabric at the intended center point.
  • Adjust: Shift the hoop position and repeat until alignment is correct.
  • Success check: The needle tip consistently lands on the center mark when re-checked, not “close enough” only once.
  • If it still fails: Stitch a placement stitch (basting box) on stabilizer first to confirm landing before stitching the applique sequence.
• Q: During Snapplique stitch-out, what should I do immediately if a multi-needle or single-needle embroidery machine makes a rhythmic “thump-thump” sound?
  A: Stop immediately—rhythmic thumping often indicates a dull needle or the needle is striking a hidden pin/obstruction in the hoop path.
  • Stop: Hit stop/pause right away and keep hands clear of the needle area.
  • Inspect: Check for pins too close to the stitch field or anything in the hoop’s travel path.
  • Replace: Change to a fresh 75/11 Embroidery or Topstitch needle if the needle may be dull/burred.
  • Success check: After restarting at a controlled speed, the machine returns to a smooth, steady hum with no impact sounds.
  • If it still fails: Re-check design area for dense stacked stitches (hidden stitches not removed) and verify fabric is not shifting into the needle path.
• Q: When should a Snapplique quilter upgrade from standard screw hoops to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine for efficiency and consistency?
  A: Upgrade when hooping becomes the bottleneck—use technique fixes first, then magnetic clamping for speed/strain relief, and consider a multi-needle system when repeatability and throughput matter.
  • Level 1 (Technique): Use float-and-pin to reduce hoop burn and distortion on single blocks.
  • Level 2 (Tool): Move to magnetic embroidery hoops when repeated hooping/re-hooping causes wrist pain, slow setup, or inconsistent fabric grain tension.
  • Level 3 (Production): Consider a SEWTECH multi-needle embroidery machine when you are batching multiple blocks and want faster color handling and consistent outcomes.
  • Success check: Hooping/re-hooping time drops noticeably and blocks stitch flatter with fewer placement misses and fewer thread issues.
  • If it still fails: Add a hooping station approach for repeatable placement and re-check the file order/density controls (object order + remove hidden stitches) before blaming the hoop.
