Split-Letter “Irish” in Wilcom Hatch V2: Knife Tool Stripes, Clean Welds, and a Hat That Actually Stitches Well

If you have ever watched a digitizer create something “from nothing” on a screen and thought, Sure, it looks good there, but mine will stitch out like a bulletproof vest or a thread-eating mess, you are not alone. That fear is the number one barrier between a hobbyist and a professional.

This project is the perfect skill-builder because it forces you to face that fear head-on. We aren't just tracing a picture; we are engineering a design. We will take a raw TrueType font, break it apart, surgically slice it, and rebuild it into a St. Patrick’s Day "Irish" split-logo using Wilcom Hatch Version 2.

As a veteran with 20 years on the shop floor, I can tell you: The software is just a tool. The art lies in understanding how thread behaves under tension. In this Masterclass walkthrough, I will guide you through the digital mechanics, but more importantly, I will point out the invisible traps—the Knife tool chaos, the angle drift, the density bricks—and give you the sensory cues to avoid them.

The “Don’t Panic” Primer: Why TrueType Lettering Fails (And How to Fix It)

The first moment that scares a novice digitizer is seeing those long satin stitches with dotted warning lines in TrueView. That isn't Hatch failing; that is Hatch being honest with you.

When you type with a standard font, the software tries to force it into "Satin" (the shiny, column-like stitches). But TrueType fonts are designed for print, not thread. They are often too fat. If a column is wider than 7mm to 9mm (depending on your machine), the machine has to slow down, and the loops become snag hazards.

The Mindset Shift: You are not married to the stitch type. In this project, the lettering ceases to be "text" and becomes a "shape." We will convert it to Tatami (a fill stitch) so it can cover wide areas smoothly without looping or breaking needles.

A viewer recently commented: “I tried TrueType for a name and it was very dense.” Dealing with density is about structure. In this tutorial, we prevent the "density brick" problem by:

1. Exploding the text into editable objects.
2. Structuring with Tatami to handle the width.
3. Managing Overlaps so we don't stack three layers of thread on one spot.

Phase 1: The Hidden Prep Work (Font, Size, and Reality Checks)

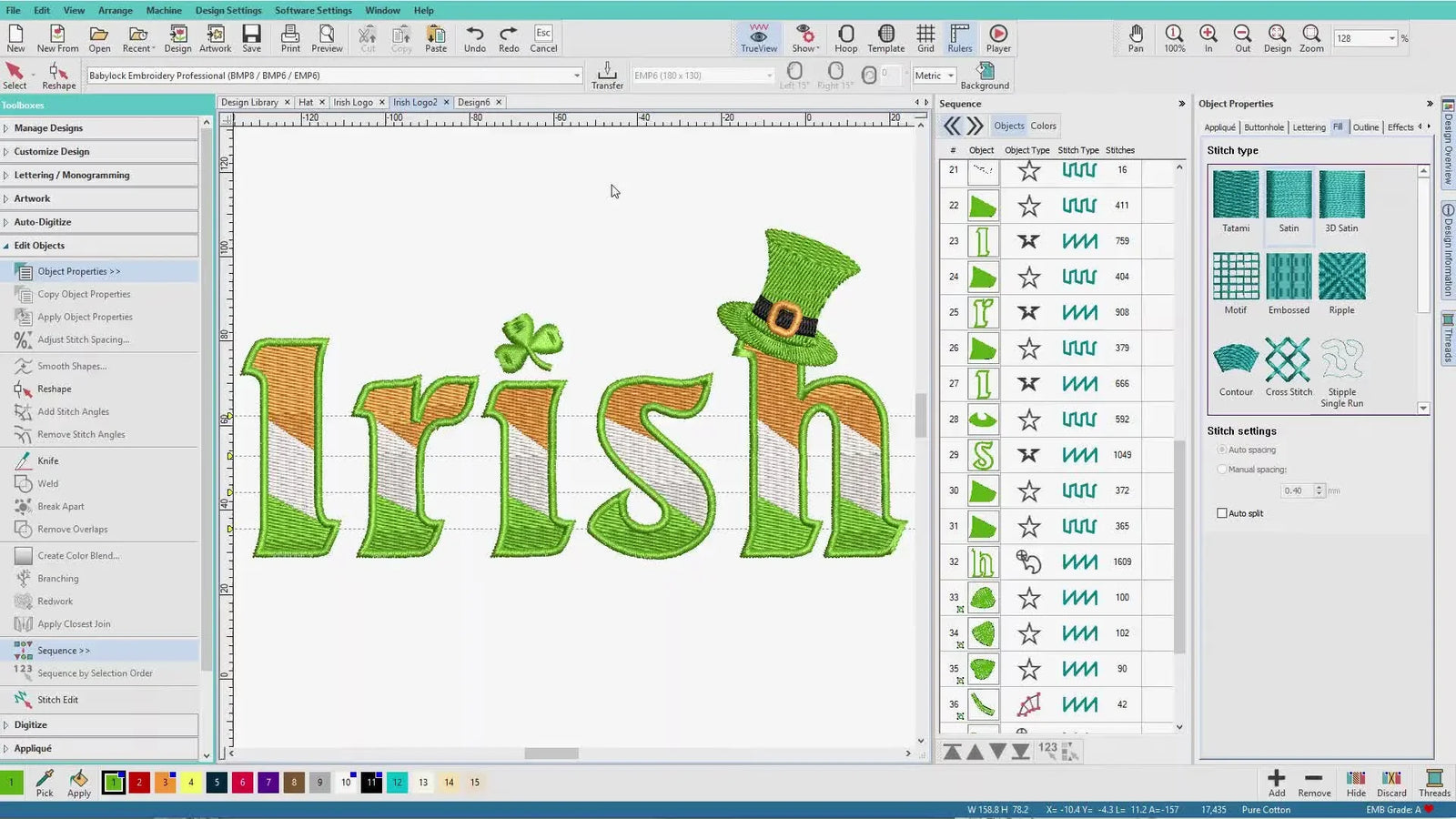

Lindee starts by creating the word Irish using the Lettering & Monogramming toolbox. She selects a TrueType font called Seagull Bold at a height of 50 mm.

Why this font? You need a "fat" font with substantial surface area. Thin serifs disappear when you slice them into stripes. Why 50mm? This is the "Sweet Spot." Smaller than this, and the details of the leprechaun hat will blur. Larger, and you might need to split the hoop.

Before touching the Knife tool, we must decide on the border strategy. A Satin border acts as a "containment wall." It creates a crisp finish, but it also hides the microscopic misalignments that happen when fabric shifts in the hoop.

Three Critical Prep Steps:

1. Adjust Letter Spacing: Increase spacing to 3.00 mm. Why? When you add a satin border later, it adds width. If the letters are too close, the borders will crash into each other, creating a knot of thread.
2. Outline Strategy: We create the border now using "Create Outlines and Offsets," but we will hide it during the cutting phase to protect it.
3. Visual Check: Turn on TrueView. If you see dotted lines, don't panic. We are about to change the stitch type anyway.

Prep Checklist: The "Pre-Flight" Inspection

• Software Verification: Ensure you are in Hatch Version 2 (some tools behave differently in V3 or V1).
• Typography Check: Font is Seagull Bold (or similar heavy block font); Height is 50mm; Spacing is 3.00mm.
• Border Plan: "Create Outlines" is ready, Color is set to Black, Offsets is Unchecked (crucial for a tight fit).
• Consumable Check: Do you have Temporary Adhesive Spray? You will likely need it for the stabilizer later.

Phase 2: Lock in a Clean Satin Border

The border is created using Create Outlines and Offsets. We want an Outline, set to Satin, colored Black.

The "Offset" Trap: In the dialog box, ensure "Offsets" is unchecked. In embroidery, an offset pushes the border away from the object. Here, we want the border to hug the edge perfectly. If you leave a gap, the fabric will peek through during stitching (this is called "gapping"), making the design look amateur.

Warning: Mechanical Safety. When stitching heavy satin borders, ensure your needle is sharp (size 75/11 is standard). A dull needle attempting to penetrate dense satin borders can deflect and strike the needle plate, potentially snapping the needle and sending shards flying. Wear eye protection.

Phase 3: Break Apart + Weld (Stop Being a Typist, Start Being a Digitizer)

This is the moment of transformation. We are converting the "live text" into "vector shapes."

1. Select the lettering.
2. Break Apart (Level 1): The word block becomes individual letters.
3. Break Apart (Level 2): The letters become raw editable objects.
4. Delete the Dot: Remove the dot over the "i"—we are replacing it with a shamrock later.
5. Weld: This is a pro move. The video shows welding parts of the "r" and "h" into solid objects.

Why Weld? If you don't weld, the software sees the letter as multiple overlapping strokes. It will try to put overlaps and tie-offs inside the letter. Welding creates one clean container for our Tatami fill.

Phase 4: The Physics of Tatami and the 0° Rule

After converting to objects, change the fill type to Tatami. Then, immediately do this:

1. Click Remove Stitch Angles.
2. Set Stitch Angle to 0 degrees.

The Expert's "Why": Embroidery is physics. Stitches pull the fabric in the direction they run. If the "I" stitches vertically (90°) and the "R" stitches horizontally (0°), they will distort the fabric differently. By forcing everything to 0° (horizontal), we ensure the "pull" is consistent across the entire logo. This creates a uniform "sheen" where light reflects off the thread evenly.

Even if you are running a compact monogram machine, this level of angle control is what keeps a text design from puckering the fabric.

Phase 5: The "Sandbox" Method for Knife Cuts

The Knife tool in Hatch is powerful, but it has no eyes. It cuts everything it touches—including the background, the borders, and hidden layers.

The "Sandbox" Solution: Instead of cutting directly on your main design, do this:

1. Ctrl+X (Cut) the target letters (the orange/white/green base).
2. Ctrl+N (New Document) to open a blank page.
3. Ctrl+V (Paste) the letters there.
4. Perform all your intricate slicing in this "safe sandbox."

Use ruler guides to mark the top, bottom, and exact thirds (using the 33% rectangle trick mentioned in the video). Slice straight across using the Knife tool.

The Angle Drift Trap: After you slice an object, Hatch often recalculates the stitch angle automatically, turning your nice horizontal fill into a random diagonal mess. The Fix: Immediately after cutting, Select All > Remove Stitch Angles > Set to 0° again.

Once the stripes are cut and angles fixed, copy them back into your main document. This keeps your borders and background pristine.

Phase 6: Color Construction

Now we color for production efficiency:

• Top Stripe: Orange.
• Middle Stripe: White.
• Bottom Stripe: Green.

Sequence by Color: This is vital. Select the whole design and use the "Sequence by Color" tool. This forces the machine to stitch all the Orange parts, then all the White, then all the Green.

• Bad Sequencing: Orange "I" -> stop -> White "I" -> stop -> Green "I"... (Repeat 5 times).
• Good Sequencing: All Orange tops -> All White middles -> All Green bottoms.

This saves you 12+ thread changes. On a commercial run of 50 shirts, that saves you about an hour of labor.

Phase 7: The Shamrock and the "Light Painting"

Instead of digitizing from scratch, Lindee grabs a Shamrock from the Monogramming Ornaments library. But she doesn't leave it stock.

1. Break Apart to get control.
2. Press H (Reshape): This reveals the stitch angle handles (orange lines).
3. Adjust Angles: She moves the angles so they fan out from the center of the petals.

Sensory Detail: Thread is shiny. By changing the angles, you change how light hits the thread. This makes the shamrock look 3D and organic, rather than a flat green sticker. It’s what professionals call "painting with light."

Phase 8: Manual Digitizing (The Leprechaun Hat)

We build the hat using primitives (basic shapes) to ensure geometric perfection.

1. Grid: Set to 5x5mm.
2. Base: Draw an oval (3 boxes wide). Convert to Tatami.
3. Top: Draw the cylinder using "Digitize Closed Shape."
4. Band & Buckle: Use "Digitize Blocks" for the band and "Standard Shapes" for the buckle.

The "Bulletproof" Problem: If you place the hat band on top of the hat body, you have two layers of Tatami. That is thick. If you place the buckle on top of that, you have three layers. That is "bulletproof"—stiff, hard, and likely to break needles. The Fix: Use Remove Overlaps. Select the top object (Band) and tell it to remove the stitches underneath it.

If you are experimenting with hooping station for machine embroidery workflows to increase your output, designs like this hat are exactly why clean overlap management matters. Thick, overbuilt designs force you to use heavier stabilizers and slow the machine down, killing your efficiency.

Phase 9: Final Assembly & The Hidden "Consumable" Layer

The hat is placed on the "H." Again, we must use Remove Overlaps so the texture of the "H" doesn't stitch underneath the hat.

Design Integrity Check:

• Buckle Outline: Set to 1.5mm Satin. This is wide enough to cover the edge but narrow enough to stay crisp.
• Underlay: For Tatami fills of this size, ensure you have a "Edge Run" or "Tatami" underlay enabled. This helps simpler designs stick to the backing.

Setup Checklist: The "Go/No-Go" Decision

• Stitch Angles: Are all stripes definitively set to 0°? (Check visually in TrueView).
• Overlap Check: Did you run "Remove Overlaps" on the Hat Band, the Buckle, and the Hat-to-H connection?
• Sequence: Is the Color Sequence logical? (Orange -> White -> Green -> Borders/Details).
• Machine Format: Export to the correct file (PES for Brother, DST for commercial, etc.).
• Bobbin Check: Do you have a full bobbin? A design with this much Tatami fill eats bobbin thread.

Troubleshooting: The "I Broke It" Table

Here are the common failures relative to this specific project type.

The Stabilizer Decision Tree: Matching Fabric to Design

This design is heavy. It has solid Tatami fills and Satin borders. It creates a lot of "pull." Your choice of stabilizer is the anchor.

Decision Tree (Fabric -> Stabilizer):

1. Is the fabric stretchy? (T-Shirt/Polo/Performance Wear)
   • YES: You MUST use Cutaway Stabilizer (2.5oz or 3.0oz). Do not use Tearaway; the design will distort into a circle. Use a fusible "mesh" for comfort if possible.
   • NO (Denim/Canvas/Twill): You can use a heavy Tearaway (or two layers), but Cutaway is still safer for the dense hat area.
2. Does the fabric have texture? (Fleece/Towel)
   • YES: You need a Water Soluble Topper (Solvy) on top to keep the stitches from sinking in.
   • NO: No topper needed.

Sensory Check: When you hoop the fabric with the stabilizer, drum your fingers on it. It should sound like a tight drum skin (thump-thump), not a loose flag (flap-flap).

The Commercial Reality: When Tools Limit Your Talent

You have mastered the software end. But what if the physical sew-out still fails? Often, the bottleneck isn't the file—it's the hardware.

If you are stitching this design on 50 team shirts, standard hoops become a nightmare. The constant clamping and unclamping causes "hooper’s wrist" and alignment errors.

• The Upgrade: Many professionals switch to magnetic embroidery hoops. These hold fabric firmly without the "burn" marks of traditional rings. Terms like magnetic embroidery hoop are your gateway to understanding efficient production.
• The Safety Note: > Warning: Magnetic frames are powerful industrial tools. Keep them away from pacemakers and be extremely careful of pinch points. They snap shut with significant force.

If you are struggling with consistent placement (crooked logos), look into a dedicated station. Something similar to a hoop master embroidery hooping station ensures every logo is in the exact same spot, creating a professional result. And for those strictly doing headwear, a specific fixture like a hat hoop for brother embroidery machine (or your specific brand) is non-negotiable for registration on curves.

Operation Checklist: The Final Run

• Test Sew: Run this on a scrap piece of similar fabric first. Never run the final product blind.
• Listen: Listen to your machine. A rhythmic "hum" is good. A sharp "slapping" sound means loose thread tension. A "thud-thud" means the needle is struggling with density (change needle or slow down).
• Speed: For the Satin borders, consider slowing the machine down to 600-700 SPM (Stitches Per Minute) to ensure corners are sharp.
• Hidden Consumable: Use Temporary Spray Adhesive (lightly!) to bond your stabilizer to the fabric before hooping. This prevents the "shifting" that ruins split designs.

By mastering the "Sandbox" cutting method and controlling your stitch angles, you move from "hoping it works" to "knowing it works." Happy stitching!

FAQ

• Q: In Wilcom Hatch Version 2, why do TrueType satin letters show dotted warning lines in TrueView, and how should TrueType lettering be stitched for a 50 mm “Irish” logo?
  A: Dotted warning lines usually mean the satin columns are too wide, so convert the lettering to Tatami and treat it as shapes, not text.
  • Explode the TrueType lettering into editable objects (Break Apart twice) before changing stitch types.
  • Change the fill to Tatami so wide areas stitch smoothly instead of forming long snag-prone satin loops.
  • Set up spacing at 3.00 mm first if a satin border will be added later.
  • Success check: TrueView no longer shows “problem” long-satin behavior across the wide strokes, and the fill looks even.
  • If it still fails: Re-check that the objects are no longer “live text” and that the fill type is truly Tatami on the lettering objects.
• Q: In Wilcom Hatch Version 2, how do you prevent “gapping” between a satin outline border and the lettering when using Create Outlines and Offsets?
  A: Uncheck “Offsets” so the satin border hugs the lettering edge tightly.
  • Open Create Outlines and Offsets and choose an Outline set to Satin (example color: Black).
  • Confirm “Offsets” is unchecked before applying the outline.
  • Preview in TrueView to spot any visible edge gaps before exporting.
  • Success check: The border sits flush to the lettering edge with no fabric “peek-through” areas.
  • If it still fails: Adjust Pull Compensation (the blog’s quick fix notes 0.40 mm as a corrective move) and re-check stitch angle consistency.
• Q: In Wilcom Hatch Version 2, why do Tatami stripe letters turn messy/diagonal after Knife tool slicing, and how do you lock stripe angles to 0°?
  A: Knife cuts often reset stitch angles, so immediately remove stitch angles and force everything to 0° again.
  • Select the sliced objects, then run Remove Stitch Angles.
  • Set Stitch Angle to 0 degrees (horizontal) across all stripe segments.
  • Repeat the same angle reset after every major cut or paste-back operation.
  • Success check: In TrueView, all stripe fills read as consistently horizontal with a uniform sheen, not random diagonal texture.
  • If it still fails: Confirm no leftover segments kept auto-angles after slicing (Select All and re-apply Remove Stitch Angles + 0°).
• Q: In Wilcom Hatch Version 2, how can the Knife tool “cut my border,” and what is the safest workflow to slice striped lettering without damaging outlines?
  A: Don’t cut on the main document—move the target letters into a blank “sandbox” document before using the Knife tool.
  • Cut (Ctrl+X) only the lettering objects that need slicing.
  • Create a New Document (Ctrl+N) and paste (Ctrl+V) the letters there to slice safely.
  • Slice the stripes in the sandbox, then reset angles to 0° and copy the finished stripes back.
  • Success check: The original border and other layers in the main design remain untouched after slicing.
  • If it still fails: Undo and confirm a clean selection is active before any Knife action, then repeat the sandbox method.
• Q: When digitizing a leprechaun hat in Wilcom Hatch Version 2, how do you stop the “bulletproof vest” density problem from stacked Tatami layers?
  A: Use Remove Overlaps so the hat band and buckle do not stitch full layers on top of the hat body.
  • Build hat components (base/body as Tatami; band/buckle as their own objects) but avoid leaving full areas stacked.
  • Apply Remove Overlaps to the top objects (Band, then Buckle) to delete stitches underneath.
  • Also remove overlaps where the hat sits on the “H” so the letter fill doesn’t stitch under the hat.
  • Success check: The hat area looks firm but not board-stiff, and the machine sound stays smooth instead of heavy “thud-thud.”
  • If it still fails: Simplify the layering order and re-run Remove Overlaps on every interface (band-to-hat, buckle-to-band, hat-to-letter).
• Q: What stabilizer should be used for a dense Tatami-fill + satin-border logo on a stretchy T-shirt vs. denim/canvas, and when is a water-soluble topper required?
  A: Use Cutaway for stretchy shirts; heavier Tearaway (or layered) can work on stable fabrics; add water-soluble topper for textured fabrics like fleece/towel.
  • Choose Cutaway (2.5 oz or 3.0 oz) for T-shirts/polos/performance wear; avoid Tearaway on stretch if distortion is happening.
  • Use heavy Tearaway (or two layers) on denim/canvas/twill, with Cutaway as the safer option for very dense areas.
  • Add water-soluble topper on fleece/towel to prevent stitches sinking into the nap.
  • Success check: Hooped fabric feels like a tight drum skin (“thump-thump”), not loose (“flap-flap”).
  • If it still fails: Lightly bond stabilizer to fabric with temporary spray adhesive before hooping to reduce shifting on split/striped designs.
• Q: What safety steps should be followed when stitching heavy satin borders on a multi-needle embroidery machine (needle size, speed, and warning signs)?
  A: Treat dense satin borders as a higher-risk operation: use a sharp needle (75/11 standard), slow down to 600–700 SPM for borders, and protect against needle breaks.
  • Replace dull needles before running dense satin outlines to reduce deflection and needle strikes.
  • Slow machine speed for satin borders to keep corners crisp and reduce stress on the needle.
  • Wear eye protection when testing dense borders because a snapped needle can send fragments outward.
  • Success check: The machine runs with a steady “hum,” not violent impact sounds, and borders stitch clean without needle deflection events.
  • If it still fails: Stop immediately, inspect needle/needle plate area, and reduce density/overlaps in the design before retrying.
