Split Text in Embrilliance Enthusiast, Then Nail 3D Puff on a T-Shirt (Without Bird Nests or Hoop Hits)

If you have ever watched a clean split-text design stitch out beautifully and thought, “I can do that”… you are right. However, success depends entirely on respecting two things: (1) how the software creates (and hides) travel stitches, and (2) how hoop tension and foam change the physics of stitching on a stretchy, tubular garment like a T-shirt.

This guide reconstructs the professional workflow for this specific challenge: splitting a bold word in Embrilliance Enthusiast, inserting a script word, precise hooping using a station and magnetic frame, and finally, executing a 3D puff stitch with 3mm foam. We will navigate the classic "bird's nest" panic points with specific, empirical settings to ensure your result is retail-ready, not rag-bin ready.

Calm the Panic: Embrilliance Enthusiast Split Stitches Are Fussy—That’s Normal

The tutorial creator leaves the imperfections in on purpose, which is vital for your psychological safety. When you are in "Stitch Edit" mode, Embrilliance can feel incredibly finicky. You might try to click a specific node, and the software selects the wrong object or nothing at all. This is not user error; this is the nature of vector-to-stitch editing.

A practical mindset that saves frustration: treat stitch editing like microsurgery, not landscaping.

• The Frustration: You click a point, but the software ignores you.
• The Fix: Do not keep clicking harder. Zoom in until the individual stitch points look like widely spaced marbles.
• The Sensory Check: When you successfully select a node, it will turn from a solid dot to an open square (or change color depending on your settings). If you don't see that visual confirmation, do not proceed.


The Hidden Prep Pros Do First: Embrilliance Canvas Setup + Garment Planning Before You Touch Foam

Before you make a single cut in the software, you must define your "Build Plan." 3D Puff embroidery is unforgiving of mistakes because the foam hides nothing and amplifies alignment errors.

One detail that often separates amateurs from pros is the use of physical boundaries. The host uses tape to mark the start point. This isn't just a suggestion; it represents a "Safe Zone" to ensure the needle bar perfectly clears the magnetic frame boundaries.

Prep Checklist (Complete BEFORE opening software):

• Software: Confirm you are in Embrilliance Enthusiast (Essentials does not have the stitch cutting tools required).
• Base Asset: Choose a thick Block Font (e.g., "FUN"). Thin fonts will slice the foam rather than cover it.
• Insert Asset: Choose a Script Font (e.g., "Summer") that contrasts well with the block font.
• Consumables:
  • Stabilizer: Heavyweight Cutaway (2.5oz - 3.0oz). Must use Cutaway for knits.
  • Foam: 3mm Puff Foam (color-matched to thread effectively hides gaps).
  • Needle: Size 75/11 Sharp or Ballpoint (Sharps cut foam better; Ballpoints are safer for T-shirts. Start with a fresh 75/11 Ballpoint for this specific combo).
  • Adhesion: Painter’s tape.

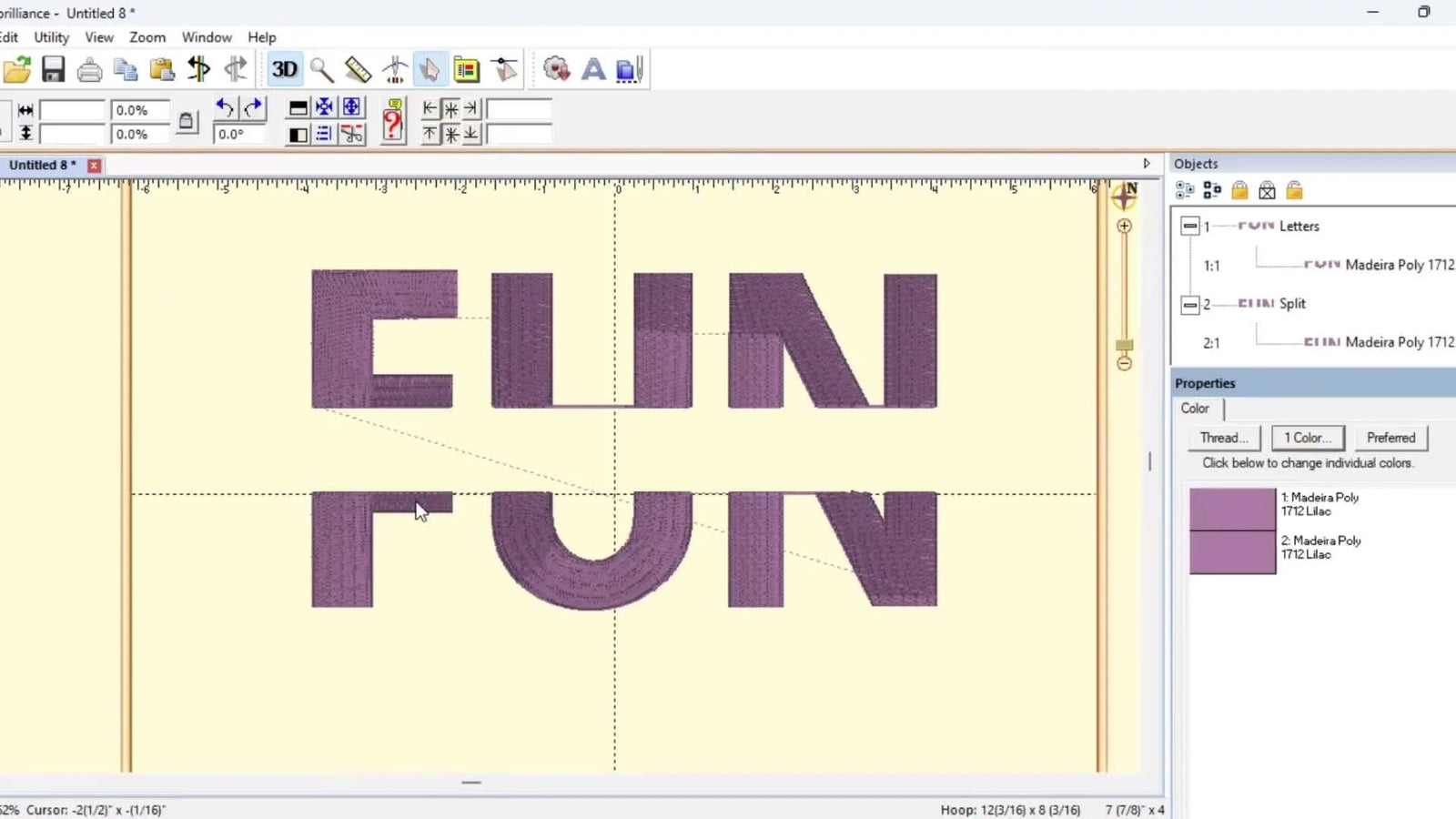

Split the Block Font in Embrilliance Enthusiast Without Mangling the Letter Shapes

Splitting a design is a destructive process—you are severing the digital instructions. Here is the safest sequence to ensure you can reverse if needed:

1. Zoom Out: See the whole word.
2. Enter Stitch Edit Mode: This changes your cursor toolset.
3. Marquee Select: Use the Rectangular Selection tool to draw a box around the exact bottom half of the letters you want to separate.
4. The Surgical Cut: Click the "Cut Stitches" (Split) icon. Listen for the mouse click—there is no dramatic sound, but look at the Object Pane.
5. Verify Separation: Look at your Object List on the right. You should now see the design split into "Top" and "Bottom" entries.
6. Create the Gap: Switch back to "Select Mode" (arrow cursor). Click the top half and drag it upward using the arrow keys on your keyboard for perfect vertical alignment. Avoid dragging with the mouse, which can shift it left or right.


Kill the Ugly Travel Lines: Convert Running Stitches to “Jump” in Stitch Edit Mode

After splitting, the software tries to be helpful by keeping the design connected with a "Travel Stitch" (a line of thread connecting the top and bottom). On a split design, this looks like a mistake. We must tell the machine to "Jump" (trim and move) rather than "Run" (stitch and move).

The Procedure:

1. Zoom in extremely close to the end of the cut letters.
2. Locate the diagonal line connecting the two sections.
3. Click the specific node (dot) where the travel line originates.
4. Right-Click > Select "Jump".

The Reality Check: Sometimes the line won't disappear on the screen immediately. This is often a rendering lag or you selected the neighbor node.

• Action: If it fails, zoom in further. Try the node immediately before or after.
• Success Metric: The solid thread line on screen turns into a dashed line (representing a jump/trim).

Work this into your muscle memory: when the software fights you, change your view (zoom), not your plan.

Insert the Script Word (“Summer”) and Nudge Letters Like a Digitizer, Not a Typist

When you type a script font in embroidery software, it often looks disjointed. This is because standard typing logic doesn't apply to thread tension.

Kerning for Thread:

• Visual Anchor: Look at the "tails" where one letter connects to the next.
• Action: Select individual letters (click the green center node of a letter) and nudge them closer until the stitches slightly overlap.
• Why: Fabric shrinks when stitched. If letters barely touch on screen, they will pull apart on the shirt, leaving gaps. Overlap is your insurance.

The Search Intent Connection: If you are currently researching hooping for embroidery machine, note that correct software setup (like this kerning step) is what makes the physical hooping worth the effort. No amount of perfect hooping can fix a design with bad gaps.

Hooping a Cotton T-Shirt on a Hoop Master Station + 8x13 Magnetic Hoop Without Stretching the Knit

This is the failure point for 50% of beginners. A T-shirt is a knit; it wants to stretch. If you stretch it in the hoop (creating the "drum" effect), it will snap back after un-hooping, creating puckers around your design.

The Magnetic Advantage: Using a magnetic hoop allows you to secure the fabric without the friction of jamming an inner ring into an outer ring.

The Workflow:

1. Station Prep: Place the Hoop Master station on a flat surface.
2. Stabilizer: Lay your Cutaway stabilizer. Spray adhesive is optional but recommended for puff to prevent shifting.
3. Tubular Loading: Pull the T-shirt over the station board.
4. Alignment: Feel the side seams of the shirt. Ensure they hang evenly on both sides of the station.
5. The Snap: Place the top magnetic frame. Do not pull the shirt. Let it rest naturally.

Sensory Check - The "Pinch" Test: Gently pinch the fabric inside the hoop. It should feel firm but not tight. It should not sound like a high-pitched drum when tapped. It should sound like a dull thud.

If you use a hoop master station, trust the alignment tabs. They are designed to remove the guesswork of "is this straight?"

Warning: Finger Safety
Magnetic hoops carry immense force. Never place your fingers between the top and bottom frames. Hold the top frame by the outer edges only. The "snap" is instantaneous and can cause severe pinching or blood blisters.

The Tape Mark Trick: Use a Start-Line Marker So the Needle Never Hits the Magnetic Frame

Hoop strikes (the needle hitting the metal frame) are violent and expensive. They can throw your machine's timing off instantly.

The Safety Protocol:

1. Before loading the hoop onto the machine, look at your screen. Where does the design start? (Usually center or top).
2. Place a piece of painter's tape on the magnetic hoop edge closest to the needle bar, marking the "Danger Zone."
3. This tape acts as a visual alarm. If your needle bar moves near that tape during the trace, STOP.

For those involved in magnetic hoop embroidery, this visual aid is a standard operating procedure in sewing factories to prevent machine damage.

The Non-Negotiable Safety Check: Trace on the Ricoma EM-1010 Before You Stitch

There is no "Command-Z" (Undo) in physical embroidery. The "Trace" function is your only chance to verify reality.

How to Trace Effectively:

1. Load the design.
2. Press the "Trace" (or Design Border) button.
3. Visual Lock: Do not look at the screen. Look at the Needle #1. Watch exactly how close it gets to the magnetic frame edges.
4. Clearance Rule: You need at least a finger-width (approx 10-15mm) of clearance between the needle drop point and the metal frame.

If you are operating a ricoma em 1010 embroidery machine, utilize its laser trace feature if available, but always trust the needle bar position over the laser.

Warning: High Velocity Debris
If a needle hits a magnetic hoop at 800 stitches per minute (SPM), it will shatter. The tip can fly into your eye. Always wear safety glasses or corrective lenses when running the first trace and test stitch of a new design.

Setup Checklist (The "All-Systems-Go" Verification):

• Bobbin: Is it full? (Running out under puff is a nightmare).
• Needle: Is it straight and sharp?
• Pathing: Is the machine programmed to STOP after the flat stitching (to allow foam placement)?
• Trace: Did you confirm 10mm+ clearance on all sides?
• Physics: Is the T-shirt fabric gathered behind the machine, or is it hanging free? (Ensure it doesn't get caught in the pantograph).


3D Puff on a T-Shirt: Place 3mm Foam Only After the Flat Base Is Done

Timing is everything. You cannot hoop the foam at the beginning; it is too thick and will interfere with the flat lettering.

The Sequence:

1. Stitch Flat Elements: Run the block letters (travel stitches) and the script word "Summer".
2. STOP: The machine halts for the color change/foam stop.
3. Place Foam: Lay the 3mm foam strip over the target area.
4. Oversize It: Cut the foam 1 inch wider and longer than the design. If the foam is too small, the needle will catch the edge and rip it.
5. Anchor It: Tape the corners of the foam to the T-shirt or hoop edge. Do not tape where the needle will stitch.

When using magnetic embroidery hoops, the surface is generally flatter, which helps the foam sit evenly. Ensure the foam is not "floating" above the fabric.

The Bird Nesting Trap: Why 850 SPM Fails on Puff Foam (And 450–500 SPM Works)

In the tutorial, the host experiences a "Bird's Nest"—a massive tangle of thread on the underside of the fabric. Why? She was running at 850 SPM.

The Physics of Failure: Foam adds significant friction. The needle has to punch through 3mm of dense rubber, then fabric, then stabilizer. At high speeds, the thread cannot form the loop quickly enough for the hook to catch it, or the tension discs cannot release thread fast enough. This causes the thread to shred or bunch up.

The Universal Fix:

• Speed Limit: Drop your machine speed to 450–500 SPM immediately upon placing the foam.
• Auditory Check: Listen to the machine.
  • High Sweeping Sound: Too fast.
  • Rhythmic, Distinct Thumping: Perfect.

Expected Outcome: By slowing down, you allow the needle flex to stabilize and the thread loop to form correctly. The result is satin stitches that lay flat and cover the foam completely.

Stabilizer Decision Tree for Cotton T-Shirt + 3D Puff: Pick Support Like You Mean It

Using the wrong stabilizer is the #1 cause of design distortion on T-shirts. The tutorial correctly uses Cutaway.

Decision Tree (Fabric + Project → Stabilizer Choice):

• Scenario A: Stretchy Knit (T-Shirt/Polo) + Any Design
  • Choice: Cutaway (2.5oz minimum).
  • Why: Keeps the shirt from stretching while the heavy foam is pounded into it.
• Scenario B: Stiff Woven (Denim/Canvas) + Puff
  • Choice: Tearaway is acceptable, but Cutaway is still superior for heavy puff.
• Scenario C: Thin/Vintage T-Shirt + Heavy Puff
  • Choice: No-Show Mesh (Fusible) + Medium Cutaway.
  • Why: The fusion prevents the thin jersey knit from puckering around the heavy 3D elements.

Pro Tip: For professional results on T-shirts, always use a temporary spray adhesive (like 505) to bond the shirt to the stabilizer. This turns your stretchy shirt into a stable "laminated" material during stitching.

Finishing the Puff Like a Pro: Tear the Foam Cleanly, Then Use a Heat Gun for the Last Tufts

The difference between "Homemade" and "Pro" is the cleanup.

The "Pull" Technique:

1. Do not yank the foam upward.
2. Pull the excess foam away from the satin colunn horizontally. The needle perforations act like a stamp; the foam should separate cleanly.

The Heat Gun Finish: You will see tiny "hairs" of foam poking through the satin stitches.

1. Set a heat gun to "Low" or use a garment steamer.
2. Hover 3-4 inches above the design.
3. Keep moving. Do not hold it in one spot (you will melt the polyester thread or scorch the cotton).
4. Magic Moment: Watch as the foam tufts shrink and disappear back into the thread. This tightens the stitches and gives that puffed, 3D dominance.


Troubleshooting Puff Embroidery on T-Shirts: Symptom → Likely Cause → Fix

If things go wrong, do not guess. Use this diagnostic table:

The Upgrade Path That Actually Makes Sense: When Magnetic Hoops and Multi-Needle Speed Pay You Back

If you successfully stitched this design once, congratulations. If you plan to stitch 50 of them for a client, you will quickly hit frustration bottlenecks.

Here is a logical framework for when to upgrade your tools, based on your specific pain points:

• Trigger 1: "My wrists hurt from tightening hoops."
  • Diagnosis: Repetitive Strain. Traditional screw-tightened hoops require significant grip strength.
  • The Solution: Magnetic Hoops. They snap shut using vertical magnetic force, requiring zero wrist torque to tighten. This is an ergonomic necessity for volume production.
  • Relevant Tool: mighty hoop 8x13 (Industry standard for mixed garment sizes).
• Trigger 2: "I'm spending more time hooping than stitching."
  • Diagnosis: Production Bottleneck.
  • The Solution: Hooping Station + Magnetic Hoops. This combination creates a repeatable template. You slide the shirt on, snap the magnet, and you are done in 15 seconds.
• Trigger 3: "Thread changes are killing my profit."
  • Diagnosis: Single-needle efficiency cap.
  • The Solution: Multi-Needle Machine. If most of your designs have 3+ colors (like this Split Text + Puff combo), a multi-needle machine automates the swaps, allowing you to walk away and do other tasks (like hooping the next shirt).

Final Operation Checklist (During Production):

• Machine speed reduced to 500 SPM maximum.
• Color Stop programmed correctly for foam insertion.
• Foam taped down securely to prevent "flagging" (bouncing).
• Watch the first 100 stitches of the puff section comfortably (do not walk away).
• Heat gun finish applied for retail polish.

By respecting the physics of the foam and the stretch of the T-shirt, and by utilizing the precision of magnetic hooping, you transform a "risky experiment" into a repeatable, high-value product.

FAQ

• Q: What supplies and machine checks are non-negotiable for 3D puff split-text embroidery on a cotton T-shirt using a Ricoma EM-1010 and 3mm foam?
  A: Use heavy Cutaway stabilizer, a fresh 75/11 needle, full bobbin, and a planned foam stop before starting—this prevents most “mystery” failures.
  • Confirm stabilizer: Use heavyweight Cutaway (about 2.5–3.0 oz) for knits; add temporary spray adhesive if shifting is likely.
  • Install needle: Start with a fresh 75/11 Ballpoint as a safe starting point for T-shirts (sharps cut foam better, but ballpoint is safer for knit).
  • Verify bobbin + pathing: Load a full bobbin and ensure the design is programmed to STOP after the flat section for foam placement.
  • Success check: The hooping and first stitches feel controlled—no fabric shifting, no sudden tension spikes, and the machine sound stays steady.
  • If it still fails: Re-thread completely and re-check that the foam is placed only after the flat base is finished.
• Q: How do you know cotton T-shirt hooping tension is correct when using an 8x13 magnetic hoop on a Hoop Master station for puff embroidery?
  A: Hoop the T-shirt firm-but-not-stretched—magnetic hoops should hold without creating a “drum-tight” knit.
  • Load garment naturally: Pull the shirt over the station board and align side seams so they hang evenly; do not tug the knit to “tighten” it.
  • Snap the frame gently: Place the top magnetic frame down without pulling fabric; let the magnet do the work.
  • Success check: Do the pinch test—the fabric inside the hoop feels firm but not tight, and tapping sounds like a dull thud (not a high-pitched drum).
  • If it still fails: If the design finishes crooked or puckered, re-hoop with less stretch and add temporary spray adhesive to bond shirt to cutaway.
• Q: How can you prevent a needle strike on a magnetic hoop when running a design trace on a Ricoma EM-1010?
  A: Always trace the design border and maintain at least 10–15 mm clearance from the metal frame before stitching.
  • Mark a danger edge: Add painter’s tape on the hoop edge closest to the needle bar as a visual “stop” reference during trace.
  • Trace correctly: Use the machine’s Trace/Design Border function and watch Needle #1 movement near the hoop edges (not the screen).
  • Enforce clearance: Keep at least a finger-width (about 10–15 mm) between needle drop points and the magnetic frame on all sides.
  • Success check: The trace completes without the needle bar approaching the taped danger zone and without any near-contact moments.
  • If it still fails: Reposition the design or re-hoop; do not “risk it,” because a hoop strike can damage timing.
• Q: What magnetic hoop safety rules prevent finger injuries when closing industrial-strength magnetic embroidery frames?
  A: Keep fingers completely out of the closing gap—magnetic hoops snap shut instantly and can cause severe pinching.
  • Hold by edges only: Grip the top frame on the outer edges; never hover fingertips between top and bottom frames.
  • Lower with control: Set the top frame down flat and let it snap—do not “guide” it with fingers inside the hoop window.
  • Keep the work area clear: Move tools, clips, and hands away before closing to avoid trapped objects that can bounce or shift.
  • Success check: The frame closes cleanly with no pinches and the fabric remains aligned (no sudden pull or twist).
  • If it still fails: Slow down the closing motion and reposition the garment so hands never need to be inside the frame area.
• Q: How do you stop bird nesting during 3D puff embroidery on a T-shirt when the machine is running 850 SPM?
  A: Drop speed to 450–500 SPM for the foam section—850 SPM is a common cause of bird nesting on 3mm foam.
  • Reduce speed immediately: Set maximum speed to 450–500 SPM as soon as foam is placed.
  • Re-thread after clearing: Cut away the nest, remove tangled thread, and re-thread top path before restarting.
  • Stabilize the foam: Oversize foam by about 1 inch past the design and tape corners so it cannot “flag” or bounce.
  • Success check: The machine sound becomes rhythmic with distinct thumping (not a high sweeping sound), and satin stitches form cleanly without underside tangles.
  • If it still fails: Check needle condition (replace if questionable) and confirm foam is being added only after the flat base is stitched.
• Q: How do you remove ugly travel lines after splitting block letters in Embrilliance Enthusiast so the machine trims instead of stitching across the gap?
  A: Convert the travel segment from a running stitch to a Jump in Stitch Edit mode, then confirm it displays as a dashed line.
  • Zoom in aggressively: Enlarge the view until stitch points are easy to target; don’t “click harder,” change zoom.
  • Select the correct node: Click the node where the connecting travel line starts (try the stitch just before/after if needed).
  • Convert to jump: Right-click and choose Jump so the machine trims/moves instead of running through the gap.
  • Success check: The travel line changes from a solid line to a dashed line on screen (jump/trim indication).
  • If it still fails: Assume you clicked the neighboring node—zoom in further and repeat on the adjacent stitch point.
• Q: When does upgrading from standard hoops to magnetic hoops or upgrading to a multi-needle embroidery machine make sense for split-text 3D puff T-shirt orders?
  A: Upgrade based on the bottleneck—magnetic hoops reduce hooping strain/time, and multi-needle machines reduce thread-change downtime for multi-color designs.
  • Level 1 (technique): Slow to 450–500 SPM on foam, use Cutaway on knits, and trace for 10–15 mm clearance to avoid rework.
  • Level 2 (tool): Choose magnetic hoops if wrists hurt from tightening hoops or hooping time is dominating production; add a hooping station for repeatable alignment.
  • Level 3 (capacity): Move to a multi-needle machine when frequent thread changes are cutting profit on 3+ color jobs and you need walk-away efficiency.
  • Success check: Hooping becomes repeatable (seconds, not minutes) and rehoops/restarts drop significantly across a batch run.
  • If it still fails: Track where time is actually lost (hooping vs thread changes vs restarts) and upgrade only the step that is limiting output.
