Spooktacular ITH Halloween Lanterns with Mylar + Puff Foam: The No-Shift Hooping Method That Makes Them Look Pro on Both Sides

Mastering ITH Freestanding Lanterns: The "No-Shift" Protocol for Flawless Registration

If you’ve ever watched an in-the-hoop (ITH) freestanding project stitch out and thought, “One tiny shift and this whole thing is toast,” you’re not being dramatic—you’re being realistic. These lantern panels run long straightaways and thousands of stitches, and that is exactly where "stabilizer creep" shows up.

The difference between a lantern that stands up straight and one that looks twisted lies entirely in mechanical control. This guide isn't just a tutorial; it's a re-engineering of your process. We will treat hooping like a clamping job, not a craft step.

Below is the full industry-standard workflow—hooping with leverage, Mylar insertion, low-density fills, optional puff foam structural elements, and the reversible bobbin technique. We will break this down into micro-steps to ensure your first attempt is showroom quality.

The “No-Panic” Primer: Why ITH Freestanding Lantern Panels Shift (and How This Project Prevents It)

Freestanding lanterns are stitched on stabilizer only—there is no fabric to “forgive” movement or absorb needle penetration force. That means registration depends on one thing: the stabilizer staying drum-tight from the first outline stitch to the last satin border.

In the industry, we know the real enemy is Pull Compensation on Long Runs. When the machine lays down long straight lines, the stabilizer fibers relax microscopically. If your hoop tension is even slightly loose, those tiny relaxations add up. By stitch #5,000, your corners won't match, and the panels will look skewed (a parallelogram instead of a rectangle).

The Solution: Lock the stabilizer so it physically cannot creep.

If you are building this on a commercial-style frame, you have an advantage. If you are on a smaller home machine, the physics are identical. You must create a "Zero-Movement Zone."

One critical note for your workspace: A stable surface matters as much as the hoop. A wobbly table turns “tight hooping” into “tight for five minutes” due to vibration. If you find your table walking across the room, weight it down. If you are setting up a professional corner, look for hooping stations or sturdy heavy-duty stands that don’t flex when you lean your body weight into them during the hooping process.

The “Hidden” Prep John Uses: Water-Soluble Stabilizer, T-Pins, and a Clean Start That Saves the Finish

For this project, we are using Water-Soluble Stabilizer (WSS). However, not all WSS is created equal.

• The Material: You generally have two choices: a "fibrous" WSS (looks like fabric) or a heavy-duty film (looks like plastic). For freestanding structures, fibrous is often preferred for stability, or a heavy micron film like "Badgemaster."
• The Layering: John uses a "Prep Patch" or two layers of WSS. Rule of Thumb: If you can poke your finger through it easily, it's too thin. You need resistance.

The part many people skip is the inset and tension discipline. You must inset the stabilizer deeply into the frame and pull until you feel significant resistance. Straight edges are where tension equalizes unevenly, so they are where slack sneaks in.

Then comes the signature move: The T-Pin Bridge. John inserts T-pins horizontally through the gap where the hoop frame sections meet. He uses the pin like a lever (a fulcrum) to pull the stabilizer tight across the open area before tightening the screw. That “bridge” keeps the stabilizer from relaxing mid-run.

Hidden Consumables List (Don't start without these)

• 75/11 Sharp Needle: Do not use a Ballpoint. You need to pierce the Mylar and WSS cleanly.
• Curved Snips: For trimming jump stitches flush against the stabilizer.
• Lighter: To burn off tiny fuzzies on the finished edges (carefully!).


Prep Checklist (Do this before the hoop goes on the machine)

• Material Check: Two layers of fibrous WSS or heavy film, cut 2 inches larger than your hoop on all sides.
• Leverage Tools: T-pins ready for the frame gap method.
• Bobbin Plan: Wind 2 white bobbins and 2 black bobbins. Running out mid-satin stitch is a nightmare on freestanding items.
• Hoop Verification: Confirm your hoop area matches the design (John’s hoop area shown is 300 x 200 mm).
• Safety Scan: Ensure the T-pins will not strike the needle bar (keep them near the outer frame edge).

Warning: T-pins and scissors are a sharp-tool combo. Keep fingers out of the pin’s lever path, and never “pull toward your hand.” One slip when tensioning stabilizer can turn a fun ITH project into a puncture injury.

Lock the Stabilizer Like a Clamp Job: Hooping Water-Soluble Stabilizer on a Commercial Style Hoop/Frame

Achieving "Commercial Tension" on a standard hoop requires technique. If you are using a standard screw-tighten hoop, follow this sequence exactly.

The Action-First Protocol:

1. Loosen the outer ring significantly.
2. Lay the stabilizer over the outer ring.
3. Press the inner ring in. Do not tighten the screw yet.
4. Pull the stabilizer on the straight areas first (North/South/East/West).
5. Insert T-pins through the frame gap where the hoop sections meet.
6. Lever the pin to pull the stabilizer drum-tight across the open gap.
7. Tighten the screw smoothly while holding that tension.

Sensory Verification (The Mirror Test):

• Touch: Tap the stabilizer. It should feel like a drum skin.
• Sound: It should make a rhythmic "thump-thump" sound, not a dull thud.
• Sight: There should be zero wrinkles or "waves" near the edges.

Checkpoint: When the machine runs the first outline stitch, look closely. The stabilizer should not "walk," flutter, or ripple. If it does, stop immediately and re-hoop.

The Commercial Pivot: If you are doing this repeatedly (holiday batches, craft fairs, or shop orders), manual hooping is the bottleneck. It causes wrist strain and inconsistent tension. This is why professionals upgrade. They build a dedicated hooping station for embroidery or switch to magnetic systems. It’s not for aesthetics; it’s because repeatability equals profit.

Sparkle Without Bulk: Floating Mylar Under a Low-Density Cross-Hatch Fill

To get the lantern "glass" effect, we use Mylar (iridescent film). We do NOT hoop the Mylar. We "float" it. This saves material and prevents the slippery Mylar from popping out of the hoop.

The Speed Limit: For this section, slow your machine down.

• Expert Range: 800+ SPM.
• Safe Range: 600 SPM.

High speed creates vibration. Vibration causes the Mylar to shift before the tack-down stitch catches it.

Step-by-Step:

1. Run the placement stitch on the stabilizer.
2. Lay the Mylar sheet loosely over the placement area.
3. Tape the corners with painter’s tape or embroidery tape.
   • Why? If the Mylar curls up, the presser foot will catch it and rip the sheet.

John notes you can substitute organza for a softer look. The design uses a low-density fill intentionally to let the light (and sparkle) through.

Setup Checklist (Right before you hit “start” on the Mylar section)

• Mylar Placement: Sheet covers the placement line by at least 1/2 inch.
• Tape Security: Corners are taped down flat; tape is outside the stitch path.
• Thread Check: White bobbin is installed.
• Foot Clearance: Ensure the presser foot height is standard (not set too low for fabric, as Mylar adds almost no thickness).

Checkpoint: Mylar lies flat; no tenting or bubbles. Expected outcome: The fill stitches tack the Mylar cleanly without shredding it. You should hear a distinct "crackle" sound as the needle perforates the film.

The Stitching That Makes It Stand Up: Low-Density X-Fill + Zigzag Hinges Between Panels

This section is pure structural engineering. John’s background stitching is a low-density fill that runs in an X/cross pattern.

The "Why" Behind the X-Pattern: Single-direction fills (like satin columns) pull the fabric in one direction, causing distortion (the "banana effect"). An X-pattern distributes the tension in four directions, neutralizing the pull. This keeps your square panels square.

The Hinge Mechanism: Notice the zigzag stitches between the orange panels. Do not overlook these or trim them!

• Function: They act as flexible hinges.
• Result: They hold the panels together during stitching but allow the lantern to fold 90 degrees later without snapping the thread.


If you are running this on a multi-needle setup, keep your thread path clean. A sudden change in sound (a grinding or slapping noise) during these long fills usually hints at thread drag or a developing snag. In general, your ears are a maintenance tool—if the machine starts sounding strained, slow down and check the spool.

The Reversible Finish Trick: Switching to a Black Bobbin When You Switch to Black Top Thread

This is the detail that separates "Home Hobbyist" from "Boutique Seller." Freestanding objects are visible from both sides. If you use a white bobbin for the entire project, the back of your black spider webs will look like a mess of white dots ("pokies").

The Protocol:

1. Stitch all base layers with White Top / White Bobbin.
2. STOP.
3. Change to Black Top / Black Bobbin.
4. Stitch the webs, spiders, and structural borders.




If you are trying to standardize your workflow across machines, this is the kind of detail that separates casual stitching from production thinking. When you are doing hooping for embroidery machine work that ends up as table décor, ornaments, or display pieces, the backside is the product.

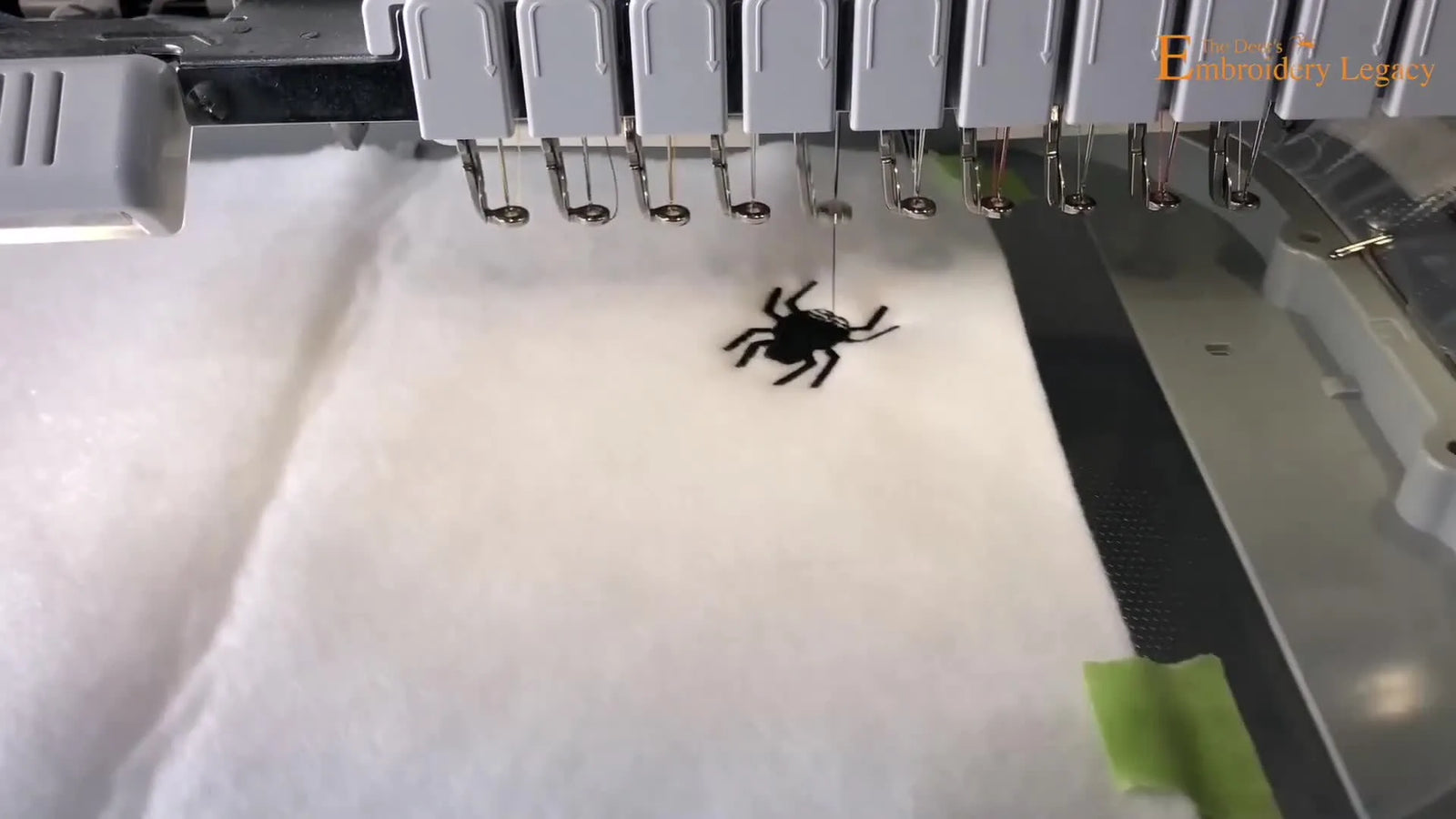

Puff Foam Spiders That Actually Pop: Taping Puff Stuff Down and Letting Satin Stitches Do the Cutting

Puff foam (3D Foam) adds incredible dimension, but it intimidates beginners. The secret? Don't stretch it.

The Process:

1. Remove the hoop (optional, but easier to place foam). Do not un-hoop the stabilizer.
2. Place the foam over the design area.
3. Tape it lightly. Just enough to keep it from flying away.
4. Do NOT pull it tight. Stretched foam rebounds after stitching, creating gaps at the edges.


The satin stitches are digitized with high density. They act like a perforation blade, "cutting" the foam at the edges.

Checkpoint: Foam covers the entire design area? Expected Outcome: After stitching, the excess foam should pull away easily, like perforated paper.

Clean Backs, Clean Edges: Trimming Order Matters More Than People Think

You have finished stitching. Now, resist the urge to just rip it out of the hoop. The order of operations saves you clean-up time.

The Master Trimming Sequence:

1. Back Side First: Trim all jump threads on the back while it's still in the hoop (or immediately after removing). Why? If you wash it first, these loose threads knot up.
2. Remove Tape: Peel tape gently to avoid distorting the warm stabilizer.
3. Mylar Removal: Tear away the excess Mylar. Do not yank across the satin edges. Pull away from the stitches.
4. Stabilizer Trim: Cut the excess WSS/Prep Patch with scissors, leaving about 1/4 inch around the edge.
5. Puff Foam Trim: Trim any stubborn foam bits before water touches it.






Why trim foam dry? Once foam gets wet, it becomes gummy and harder to remove. Dry foam crumbles; wet foam clings.

Operation Checklist (Right after the final stitches finish)

• Tail Inspection: All jump threads on the back are trimmed flush.
• Bobbin Check: Confirm the back looks finished (black bobbin under black borders).
• Hinge Safety: Ensure you haven't accidentally snipped the zigzag hinge stitches between panels.
• Foam Clean-up: All large foam chunks are removed.

Warning: When trimming close around satin stitches and raised foam, keep scissor tips angled away from the stitch edge. One accidental snip into the structural satin border will unravel a panel corner instantly. There is no fix for a cut border stitch.

Wash-Out Without Wrecking the Structure: Lukewarm Water + Soft Toothbrush

The Chemistry of Wash-Out:

• Hot Water: Dissolves WSS fast, but can make Mylar curl and some threads shrink.
• Cold Water: Too slow; leaves gummy residue.
• Lukewarm Water: The perfect balance.

The Action: Hold the piece under running water. Use a soft toothbrush to gently sweep away the "gel" formed by the dissolving stabilizer. Critical: Let it dry completely. Lay it flat on a towel. If you assemble the lantern while it is damp, it will dry in a warped shape.

The Stabilizer Decision Tree: Two Layers vs Prep Patch (And When Each Choice Behaves Better)

Use this logic flow to determine your needs. Always defer to your machine manual, but this is the general rule for freestanding lace/structures.

Decision Tree (Freestanding ITH on Stabilizer Only):

1. Is the design dense (lots of satin stitches, 20k+ count)?
   • Yes → Use Heavy Film (Badgemaster) or Prep Patch. Two layers of standard cheap WSS will tear.
   • No → Two layers of fibrous WSS is sufficient.
2. Are you stitching on a Multi-Needle Machine?
   • Yes → You can use standard hoops, but ensure they are tight.
   • No (Single Needle) → You must use the T-Pin method or a magnetic frame to ensure grip.
3. Do you want the back to look retail-finished?
   • Yes → You must match bobbin color to top thread color.
   • No → You can use white bobbin throughout, but the back will be visible on a lantern.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

The Upgrade Path That Actually Makes Sense: From Hobby to Production

If you completed this project and felt that the stitching was fun but the hooping was stressful, that is your data point. It’s not about "trying harder"; it’s about the limits of standard tools.

For many shops, the biggest quality jump comes from reducing hooping variability. If you’re doing repeated ITH runs, embroidery hooping system consistency matters more than almost any single software setting.

Here is the logical path for tooling up:

• Level 1: The Pain is Physical (Wrist/Hand Strain).
  If standard screw hoops hurt your hands or leave "hoop burn" marks on fabrics, consider magnetic embroidery hoops. The magnetic force clamps directly down (vertical pressure) rather than pulling sideways/distorting. This eliminates the "creeping" issue automatically.
• Level 2: The Pain is Ergonomic (Back/Shoulder).
  If you are leaning over a wobbly table, upgrade to a stable table and a magnetic hooping station. This fixtures your hoop in place so you can use both hands to smooth the stabilizer/fabric. It creates a repeatable "Load → Clamp → Stitch" rhythm.
• Level 3: The Pain is Speed (You can't sell enough).
  If you have orders for 50 lanterns, a single-needle machine will bottleneck you on thread changes (switching white to black manually). SEWTECH multi-needle embroidery machines are the answer here. They hold all colors simultaneously. You hit "Go," and the machine handles the swaps, cutting production time by 30-50%.
• Level 4: The Pain is Quality.
  Don't underestimate consumables. If your thread breaks every 5 minutes, buy better thread. If your satin stitches look thin, upgrade your stabilizer.

Magnet Safety Warning: Magnetic frames (like the MaggieFrame) use industrial-strength neodymium magnets. They are incredibly powerful.
* Pinch Hazard: Keep fingers clear of the contact zone. They slam shut instantly.
* Medical Safety: Keep them at least 6 inches away from pacemakers and other implanted medical devices.

A Few Community-Style Notes (Because You’re Not the Only One Thinking It)

People love this project not just for Halloween, but because the structure works for other themes too—swap the design out for holly leaves, snowflakes, or floral patterns, and you’ve got year-round lantern décor. That’s a smart way to get more value from the same technique: one reliable construction method, many seasonal skins.

When you nail the hoop tension and the bobbin-color planning, these lanterns stop looking like "a fun experiment" and start looking like something you could confidently gift, display, or sell for a premium price. Trust the process, respect the tension, and let the machine do the work.

FAQ

• Q: Which needle should be used for stitching ITH freestanding lantern panels with Mylar and water-soluble stabilizer?
  A: Use a fresh 75/11 Sharp needle (not a ballpoint) to pierce Mylar and WSS cleanly.
  • Replace: Install a new 75/11 Sharp before the Mylar section if the current needle has stitched dense satin or foam.
  • Avoid: Do not use a ballpoint needle, because it may push/tear film instead of piercing cleanly.
  • Slow down: Run the Mylar section at a safer 600 SPM to reduce vibration and needle stress.
  • Success check: The Mylar perforates with a consistent “crackle” sound and the needle does not deflect or shred the film.
  • If it still fails: If needle breaks continue, stop and change the needle immediately and re-check that tape is outside the stitch path and the film is lying flat.
• Q: How can water-soluble stabilizer be hooped “drum-tight” to prevent stabilizer creep on freestanding ITH lantern panels?
  A: Hoop the WSS like a clamp job and use the T-pin lever method across the frame gap before tightening the screw.
  • Loosen: Back the outer-ring screw off significantly, then press the inner ring in without tightening yet.
  • Pull: Tension the stabilizer on the straight sides first (North/South/East/West), not the corners.
  • Lever: Insert T-pins through the frame gap and use them as a fulcrum to pull the stabilizer tight, then tighten the screw while holding tension.
  • Success check: The stabilizer “thump-thump” sounds like a drum when tapped and shows zero ripples/waves near the hoop edge.
  • If it still fails: If the stabilizer flutters or walks during the first outline stitch, stop immediately and re-hoop—do not try to stitch through it.
• Q: What is the correct way to float and tape Mylar for the “glass” effect in ITH freestanding lantern panels without shifting?
  A: Float the Mylar (do not hoop it), then tape the corners flat outside the stitch path and slow the machine down.
  • Stitch: Run the placement stitch on the hooped stabilizer first.
  • Place: Lay Mylar so it covers the placement line by at least 1/2 inch on all sides.
  • Tape: Secure only the corners with painter’s/embroidery tape, keeping tape completely outside the stitching area.
  • Success check: The Mylar lies flat with no tenting/bubbles and does not get caught by the presser foot before tack-down stitches.
  • If it still fails: If the film curls or shifts, reduce speed toward 600 SPM and re-tape flatter—vibration is usually the culprit.
• Q: Why do freestanding ITH lantern panels turn diamond-shaped (skewed) after thousands of stitches, and what is the fastest fix?
  A: Diamond-shaped panels almost always mean stabilizer creep in the hoop, and the practical fix is to discard and re-hoop with higher tension control.
  • Stop: Do not keep stitching hoping it will “pull back”—it will not re-square.
  • Re-hoop: Use deeper inset, stronger pull on straight sides, and the T-pin lever method before tightening.
  • Stabilize: Use two layers of WSS or a stronger option (heavy film/Prep Patch) if the design is dense.
  • Success check: Corners stay aligned after the first outline and the stabilizer edge does not migrate under the hoop ring.
  • If it still fails: Consider a magnetic hoop/frame for repeatable clamping pressure, especially on long-run freestanding designs.
• Q: How can white bobbin “pokies” be prevented on black spider webs and black satin borders in freestanding ITH lanterns?
  A: Match bobbin color to top thread color when switching to black details, and fine-tune tension if white dots still pull to the top.
  • Plan: Stitch base layers with white top/white bobbin, then stop and switch to black top/black bobbin for webs/spiders/borders.
  • Adjust: If pokies appear, slightly loosen top tension or check for lint affecting bobbin tension.
  • Clean: Inspect and clean the bobbin area if tension suddenly changes during long fills.
  • Success check: The back of black borders looks retail-clean with no white specks showing through the black stitching.
  • If it still fails: Re-check that the correct bobbin was installed before the black section and test a small sample before restitching the full piece.
• Q: What is the safest way to use T-pins and scissors when tensioning stabilizer for ITH freestanding embroidery hooping?
  A: Use the T-pin as a lever away from your fingers and keep all sharp tools out of the lever path before tightening the hoop.
  • Position: Insert T-pins near the outer frame edge and verify they cannot strike the needle bar during stitching.
  • Pull: Apply leverage by pushing/pulling the pin away from your hand—never pull toward your fingers.
  • Secure: Tighten the hoop screw smoothly while maintaining tension, then remove or reposition anything that could contact moving parts.
  • Success check: Hands stay clear of the pinch/lever zone, and the first outline stitch runs with no pin contact risk or stabilizer movement.
  • If it still fails: If the setup feels unstable, stop and re-position the hoop on a sturdier surface—table wobble can undo “tight hooping” quickly.
• Q: When repeated ITH freestanding lantern runs feel stressful at hooping, what upgrade path makes the biggest quality difference?
  A: Treat hooping stress as a control problem: optimize technique first, then upgrade to magnetic clamping for repeatability, and only then consider multi-needle speed gains.
  • Level 1 (Technique): Use the drum-tight hooping protocol, T-pin leverage, and slower speed (around 600 SPM for Mylar) to reduce vibration-related shift.
  • Level 2 (Tooling): Move to a magnetic hoop/frame system to reduce creep and improve consistency when running batches.
  • Level 3 (Production): If thread changes (white to black) are the bottleneck for larger orders, a multi-needle embroidery machine reduces manual color-change time.
  • Success check: The workflow becomes “load → clamp → stitch” with fewer re-hoops and consistent panel registration across multiple runs.
  • If it still fails: If quality still varies, review consumables (stabilizer strength and thread reliability) before changing machine settings further.
