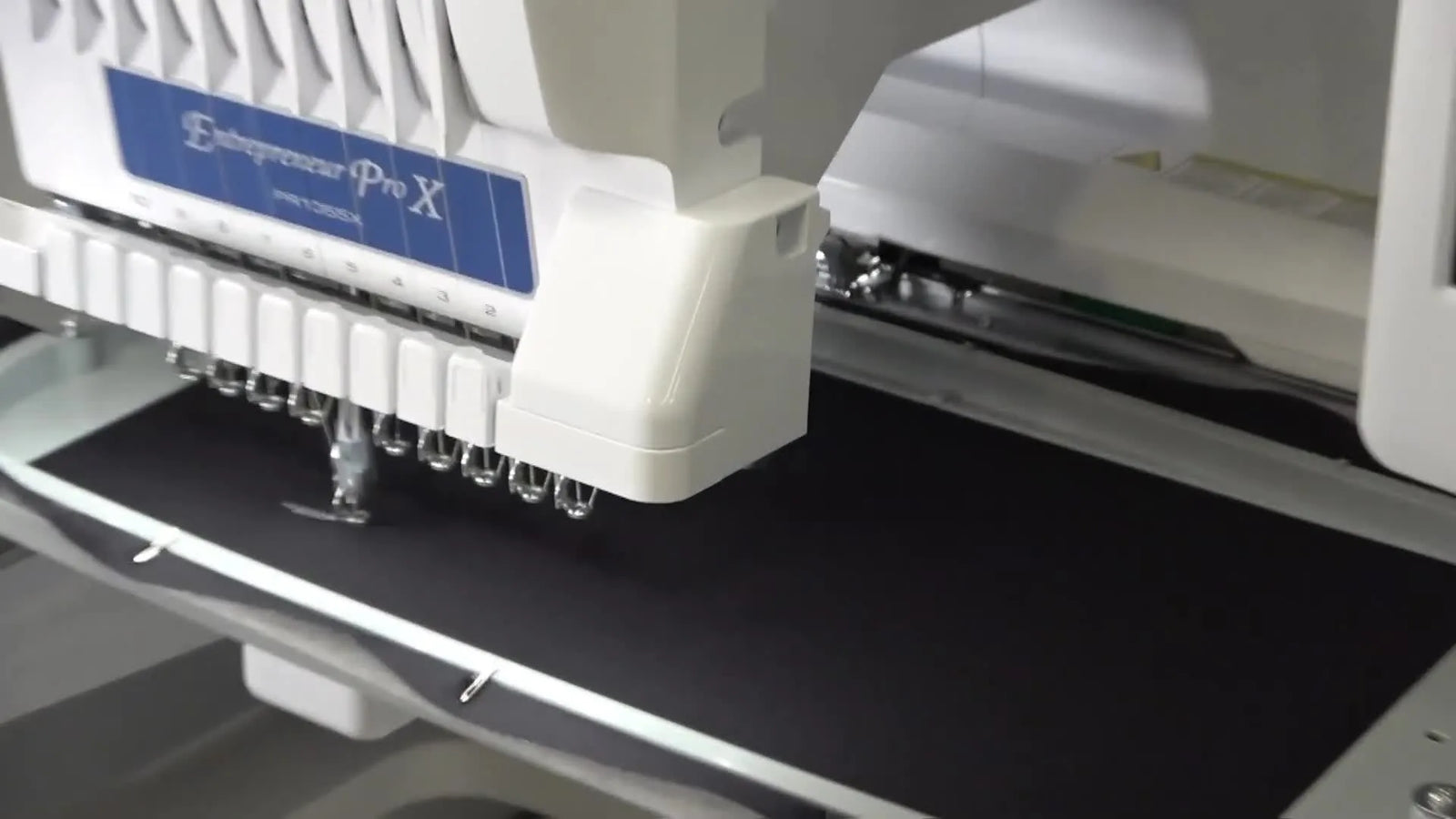

Stitch 3 Embroidery Tiles in One Hoop on a Brother PR1050X: The Color-Assignment Workflow That Saves Fabric (and Your Nerves)

If you’ve ever stared at a multi-needle screen thinking, “I know I saved this right… so why is the machine yelling at me?”, you’re in the right place.

This guide bridges the gap between digital design and physical production. We are going to combine tiles 29, 30, and 31 in Embrilliance Essentials, and then executed them as a single, flawless run on a brother multi needle embroidery machine (specifically the PR1050X).

Done correctly, this workflow is faster, cleaner, and far less mentally taxing than loading three separate files. Done incorrectly, it results in "hoop burn," broken needles, and ruined quilt blocks. Let’s turn your anxiety into a system.

Make Embrilliance Essentials Behave: Precision Placement Logic

The first win happens before you touch the machine. You must tell Embrilliance Essentials which physical hoop you are holding, then place the tiles so they stitch on the stable, reinforced area of your fabric.

The Workflow:

1. Define the Reality: Click Preferences (yellow icon) and select the 360 × 200 mm hoop. This matches the extra-large frame often used for multi-tile runs.
2. Import & Arrange: Drag tile 29, tile 30, and tile 31 into the workspace.
3. The "Safety Zone" Shift: Position the tiles slightly closer to the bottom of the hoop area. Do not dead-center them blindly.
   • Why? You need to ensure the stitching lands where your fusible woven interface actually sits on the fabric. If you stitch in "no-man's-land" (fabric without stabilizer), you will get puckering and registration drift.
4. The "Keyboard Nudge": Once designs are stacked, use your keyboard arrow keys for placement.
   • Sensory Check: dragging with a mouse is slippery; the arrow keys give you a mathematically precise "click-click" movement that prevents accidental overlapping.




Prep Checklist (Do this BEFORE saving to USB)

• Hoop Verification: Confirm Preferences is set to 360 × 200 mm.
• Layer Check: Verify tiles 29, 30, 31 are all visible and not accidentally stacked on top of each other.
• Stability Check: Visual confirm that the design sits low enough to hit your fusible woven backing.
• Micro-Adjustment: Used arrow keys to finalize position (no mouse dragging).

Stop Color Confusion: The "Tape & Label" Protocol

This is where most people lose time. The software says "Isacord 176," the PDF instructions say "Teal," and your machine instructions say "Color 4."

The Professional Fix: Don't try to reprogram the machine's entire thread library—that is a rabbit hole. Instead, map the physical reality to the digital instructions.

1. Trust Isacord (Physical): Use the thread number on your physical spool as the source of truth.
2. Ignore the Machine's Name: If the machine calls it "Blue" but you have "Teal" loaded and assigned to that needle, trust your assignment.
3. Black is the Anchor: In this project, Black is used as the "seam" / basting box. It is always the last stitch for each tile.
   • Why this matters: When stitching a long run, you can glance at the machine from across the room. If it's stitching black, you know a tile is finishing. It acts as your visual progress bar.

Exporting for Success:

1. File → Save Stitch File As.
2. Select USB drive.
3. Save as PES.


The "Hidden" Machine Prep: Lubrication & Bobbin Hygiene

Multi-needle machines are workhorses, but they are unforgiving of friction. Use the "One Drop Rule."

The Maintenance Ritual:

1. Clear the Deck: Remove the bobbin case entirely.
2. The "One Drop" Rule: Place exactly one drop of embroidery learning oil in the race (the small divot behind the hook assembly).
   • Sensory Check: It should glisten, not pool. If you see a puddle, you've used too much, which will stain your thread.
3. Bobbin Insert: Insert a fresh bobbin.
   • The "Click" Test: When inserting the case back in, push until you hear a sharp, metallic click. If it feels mushy, pull it out and try again. A loose bobbin case causes "bird nesting" instantly.

Warning: Keep scissors, tweezers, and fingers clear of the rotary hook area while the machine is on. Ideally, power down or engage "Lock Mode" before oiling.

The Tape-Label Trick: Beating "Color Amnesia"

When you are managing 6 to 10 needles, your memory will fail you. Do not rely on it.

The Setup:

• Place a strip of embroidery tape (paper tape) above each spool pin on the thread stand.
• Write the spool number (or color code) on the tape.
• Match this physical number to your written plan.

This is critical when performing hooping for embroidery machine tasks repeatedly. You want your brain focused on fabric alignment, not wondering if Needle 4 is "Dark Blue" or "Navy."

Beat the "Pattern Too Large" Pop-Up

You saved the file horizontally… but the machine reads it vertically. The PR1050X will throw a "Pattern Too Large" error.

The Fix:

1. Load design from USB.
2. Acknowledge the error.
3. Go to Edit/Settings and Rotate 90 degrees.
4. Visual Check: The design might load upside down. Rotate straight before you assign colors to ensure your tile order (29-30-31) stitches from top to bottom (or preferred order).

If you’re running the brother extra large embroidery hoop, orientation discipline is the difference between a smooth 20-minute stitch-out and a 2-hour nightmare.

Manual Needle Assignment: The "Anchor" Technique

Do not trust the "Auto-Assign" feature when combining external files. Use the Anchor Technique to lock your critical colors.

The Algorithm:

1. Identify Constants: determine which colors stay the same. Here, Needle 6 is White (15) and Needle 5 is Black (20).
2. Lock Them In: Go to the thread settings and set anchors for Needles 5 and 6. This prevents the machine from overwriting them if you reset the design.
3. Manual Walkthrough: Step through the design sequence on screen stitch block by stitch block. Use your finger to manually assign the correct needle number to the color block.


Setup Checklist (Do this BEFORE hitting Green)

• Orientation: Design rotated 90° and tiles are in the correct top-down order.
• Anchors: Needle 6 (White) and Needle 5 (Black) are physically loaded and digitally anchored.
• Sequence Walk: You have manually verified that every color block is assigned to the correct needle number.
• Bobbin Check: You heard the "click" when inserting the case.

Operation: Clean Starts and Thread Break Recovery

A clean start usually guarantees a clean finish.

The "Pro" Start:

1. Pre-tension: Reach behind the needle bar and pull the top thread slightly out of the tension disks/holder bar.
2. Start & Pause: Press Green. As soon as the needle cycles once (listen for the thump-thump), hit Stop.
3. Pull the Loop: Grab the top thread tail. You should see a loop of bobbin thread surface. Pull it through.
   • Why? This prevents the bobbin tail from getting tangled in the first few stitches (the dreaded "nest").
4. Trim: Run 3-4 stitches, stop, and trim the tails close.


Warning: If you upgrade to Magnetic Hoops, exercise extreme caution. These contain industrial-grade magnets. Keep away from pacemakers, smartphones, and credit cards. When attaching the top frame, keep fingers flat on the rim to avoid a painful pinch.

Recovering from a Thread Break (Needle #6 Scenario) Thread breaks are inevitable. How you react determines if the design is saved.

1. Don't Just Rethread: If the machine stops, check the bobbin area first. A break usually leaves a tiny snippet of "ghost thread" in the race.
2. Tweezers are Mandatory: Use fine-point tweezers to fish out any fuzz.
3. The -30 Rule: Use the machine interface to back up. Do not just go back 5 stitches. Go back 20 to 30 stitches.
   • Why? You need a solid overlap to lock the new thread in. A 30-stitch overlap is invisible; a gap is ruinous.








Stabilizer & Tooling: The Decision Matrix

The most common cause of registration errors (where outlines don't line up) is poor stabilization or "hoop shifting."

Decision Tree: Fabric → Stabilizer Choice

1. Is your base fabric stable (e.g., Quilting Cotton)?
   • YES: Proceed to step 2.
   • NO (Stretchy/Thin): You MUST apply a fusible stabilizer (like Shape-Flex) to the back of the fabric before hooping.
2. Are you stitching a high-stitch-count block?
   • YES: Use a layer of medium-weight cutaway stabilizer. Tearaway is not strong enough for dense blocks.
   • NO: Tearaway might suffice, but cutaway is safer.

The "Hoop Burn" Problem Traditional multi-needle hoops require you to screw the frame tight. On thick quilts, this crushes the batting and leaves permanent "burn" marks. It is also physically exhausting if you are doing 20 blocks.

The Solution: Upgrade Your Tooling If you encounter wrist fatigue or fabric damage, consider upgrading to a magnetic hoop for brother pr1050x.

• How it works: Instead of screws, powerful magnets clamp the quilt sandwich instantly.
• Benefit: Zero "hoop burn," 50% faster hooping time, and automatic adjustment to different fabric thicknesses.
• Context: In professional shops, terms like mighty hoop for brother pr1050x are often discussed, but various high-quality magnetic framing systems (like those from SEWTECH) offer the same ergonomic benefits for production runs.

If your volume increases further, pairing magnetic frames with a hoopmaster hooping station style system ensures that every single tile is placed in the exact same spot, removing the need for measuring every time.

Finale: The Clean Finish

When the job is done, don't rush.

• Clip Logic: Clip jump threads, but don't pull them.
• The Flip: Flip the hoop over. Clip the loose tails, but leave the small knots. They are invisible from the front and secure the stitching.
• Re-Hooping: If you are doing a second run, let the hoop cool down for a minute (friction generates heat), and clean any lint from the hoop brackets.


Operation Checklist (Post-Run)

• Bobbin Thread: Check if bobbin needs refilling (don't start a new tile with <10% bobbin).
• Lint Check: Blow out the bobbin area with air or a brush.
• Hoop Inspection: If using magnetic hoops, ensure no stray needles are stuck to the magnets.
• File Management: If you rotated the file on the machine, verify it didn't reset for the next run.

By mastering the software setup, the physical hooping, and the machine maintenance, you stop "hoping it works" and start "knowing it will." That is the difference between an owner and an operator.

FAQ

• Q: How do I stop Embrilliance Essentials multi-tile files (tiles 29–31) from shifting or stitching off the stabilized area in a 360 × 200 mm hoop?
  A: Set the correct hoop size first, then intentionally place the tiles slightly lower so stitching lands on the fusible woven—don’t dead-center the design.
  • Set: Open Preferences and select 360 × 200 mm hoop before importing anything.
  • Position: Move tiles 29–31 slightly toward the bottom of the hoop area to stay inside the reinforced/stabilized zone.
  • Nudge: Use keyboard arrow keys for final placement instead of mouse dragging.
  • Success check: The design preview sits fully over the area that actually has fusible woven/stabilizer behind it (no “no-man’s-land” fabric).
  • If it still fails: Re-check that tiles 29, 30, and 31 are all visible and not accidentally stacked directly on top of each other.
• Q: Why does the Brother PR1050X show “Pattern Too Large” after loading a combined PES file, and how do I fix the orientation?
  A: Rotate the design 90° on the PR1050X before doing needle/color assignment so the file matches how the machine reads the hoop orientation.
  • Load: Open the design from USB and acknowledge the pop-up.
  • Rotate: Go to the machine Edit/Settings and Rotate 90 degrees.
  • Verify: Confirm tiles stitch in the intended order (29 → 30 → 31) after rotation, then proceed to assign needles.
  • Success check: The warning stops, and the design fits the hoop boundary on-screen without overflow.
  • If it still fails: Rotate again to correct an upside-down load before assigning colors, then re-check tile order on the screen.
• Q: How do I prevent color/needle confusion on a Brother PR1050X when the PDF names don’t match the machine’s thread names?
  A: Treat the physical thread spool number as the source of truth and use a simple tape-label mapping instead of rewriting the machine’s thread library.
  • Label: Place paper tape above each spool pin and write the spool number/color code you actually loaded.
  • Trust: Follow the physical spool number even if the PR1050X calls the shade a different name (e.g., “Blue” vs “Teal”).
  • Anchor habit: Use Black as a progress anchor when it is the last stitch for each tile (easy to recognize from across the room).
  • Success check: You can point to Needle # on the thread stand and match it to the plan instantly without guessing mid-run.
  • If it still fails: Stop and re-map needle-by-needle on screen before stitching, rather than trying to “auto-fix” with Auto-Assign.
• Q: What is the correct Brother PR1050X bobbin-case “click” check to prevent instant bird nesting at the start of a run?
  A: Reinsert the bobbin case until a sharp metallic click is felt/heard—anything “mushy” can trigger immediate nesting.
  • Remove: Take the bobbin case out completely and re-seat it deliberately.
  • Push: Press the case in until the click happens (do not force at an angle).
  • Start clean: Use a fresh bobbin if the run is long.
  • Success check: The bobbin case insertion feels firm and “locked,” and the first stitches do not build a thread wad under the plate.
  • If it still fails: Power down (or use lock mode), remove the case again, and inspect for lint or a small thread snippet in the hook/race area.
• Q: How much oil should be used in the Brother PR1050X rotary hook area to reduce friction without staining thread?
  A: Use the “one drop rule”—exactly one drop in the race divot so it glistens but does not pool.
  • Remove: Take out the bobbin case to access the hook/race area.
  • Oil: Place one drop of embroidery machine oil into the small divot behind the hook assembly.
  • Reset: Reinstall the bobbin case securely before running.
  • Success check: The oil looks like a light sheen (glisten), not a puddle, and thread does not pick up oil marks.
  • If it still fails: If pooling or staining occurs, reduce oil next time and follow the machine manual’s maintenance guidance for cleaning excess oil.
• Q: What is the safest start procedure on a Brother PR1050X to avoid bobbin-thread nests in the first few stitches?
  A: Start, stop after the first needle cycle, then pull the bobbin loop up and trim—this prevents the tail from tangling underneath.
  • Pre-tension: Pull the top thread slightly out of the tension disks/holder bar area.
  • Start & pause: Press Green, then stop right after the first “thump-thump” needle cycle.
  • Pull up: Pull the top thread tail until the bobbin loop comes to the surface, then pull it through.
  • Success check: After 3–4 stitches, the underside shows clean formation without a growing thread wad.
  • If it still fails: Stop immediately and check the bobbin case seating (listen/feel for the click) before reattempting.
• Q: What should I do on a Brother PR1050X after a Needle #6 thread break to prevent a visible gap in the stitching?
  A: Clean the hook area and back up 20–30 stitches before restarting so the overlap locks in invisibly.
  • Inspect: Check the bobbin/hook area first—breaks often leave a small “ghost thread” snippet behind.
  • Remove: Use fine-point tweezers to pull out fuzz/snippets from the race area.
  • Back up: Use the PR1050X interface to reverse 20–30 stitches (not just a few).
  • Success check: The restart line blends with the previous stitches with no open gap or weak tie-in.
  • If it still fails: Re-check thread path and tension points, then repeat the 20–30 stitch overlap after confirming the hook area is clear.
• Q: When should embroidery hooping problems (hoop burn, shifting, wrist fatigue) be solved with technique vs upgrading to a magnetic hoop vs moving to a multi-needle production setup?
  A: Use a tiered approach: fix placement/stabilizer first, upgrade to magnetic hoops if hoop burn or fatigue persists, then consider a production machine only when volume demands it.
  • Level 1 (Technique): Shift the design onto fully stabilized fabric, use cutaway for dense blocks, and verify hoop/orientation before stitching.
  • Level 2 (Tooling): Switch to a magnetic hoop if traditional screw hoops crush quilt layers, leave permanent marks, or slow you down.
  • Level 3 (Capacity): Move to a dedicated multi-needle workflow when repeat runs and frequent color changes are limiting throughput.
  • Success check: Hoop marks reduce, alignment stays consistent across tiles, and re-hooping time drops without sacrificing registration.
  • If it still fails: Add a consistent placement system (a hooping station-style workflow) to eliminate repeated measuring and reduce human placement drift.
