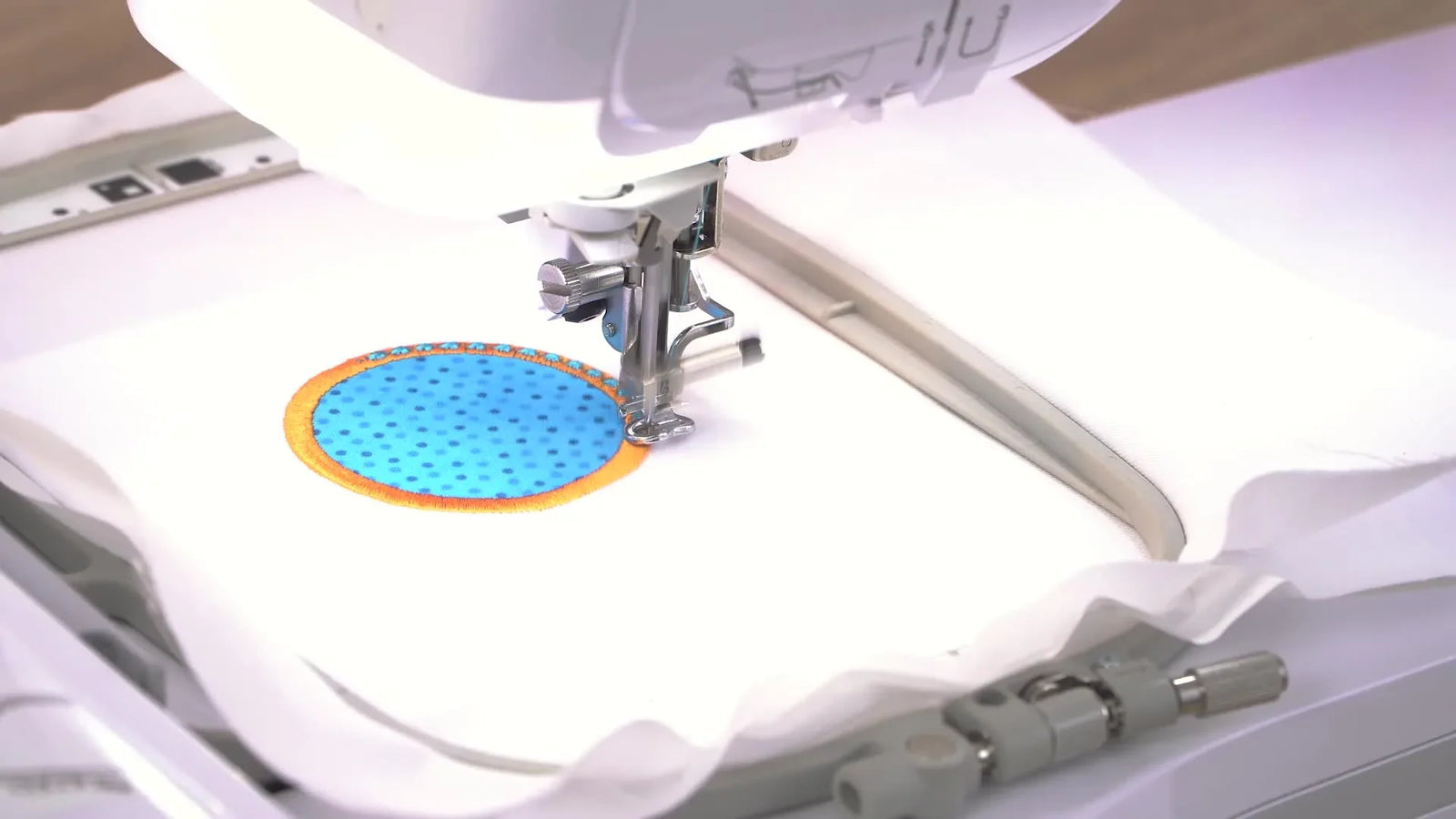

Stitch a Clean Circle Appliqué on the Brother Stellaire (My Design Center): Four Layers, Zero Guesswork

Master Class: The Absolute Beginner’s Guide to Flawless Appliqué on the Brother Stellaire

Appliqué is a deceptive art. It looks incredibly simple—just a piece of fabric stitched onto another—until you try it. Then reality hits: the fabric shifts during the tack-down, you accidentally snip a stitch while trimming, or the final satin stitch fails to cover the raw edge, leaving unsightly "whiskers" of fabric poking through.

If you feel a spike of anxiety before you hit the "Start" button, that is rational. You are managing tension, physics, and sharp blades all at once.

This guide is not just a tutorial; it is an operational standard operating procedure (SOP). We will deconstruct the logic of the Brother Stellaire’s My Design Center, provide exact empirical settings to guarantee success, and show you how to eliminate the variables that cause failure.

Whether you are a hobbyist aiming for perfection or a boutique owner scaling up, this is your blueprint for the perfect 2.50-inch decorative circle.

The Cognitive Frame: Understanding the "Four-Layer Sandwich"

On the Stellaire, success comes from understanding that you are not stitching one design. You are building a sandwich in four distinct distinct phases. The "secret" isn't a magic setting; it is the sequence.

You will create the same circle shape four times. Each layer has a specific engineering purpose:

1. Placement Stitch (The Map): A simple running stitch that marks exactly where your fabric needs to land.
2. Tack-Down Stitch (The Anchor): A secure stitch (often double-run) that locks the fabric to the stabilizer so you can trim safely.
3. Satin Finish (The Cover): A dense, wide column stitch that hides the raw edge and provides the visual border.
4. Decorative Overlay (The Texture): A final pass (like candlewicking) that sits on top for aesthetic depth.

If you skip a layer or misunderstand its function, the structure fails. If you build it correctly, the result is mathematically repeatable.

Phase 1: The "Hidden" Prep – Stabilizer, Physics, and the Hooping Plan

Most appliqué failures happen before the machine is even turned on. The interaction between your hoop, your fabric, and your stabilizer dictates 80% of the quality.

The Material Bill of Materials (BOM)

• Base Fabric: White woven cotton (Subject to "tunneling" if not stabilized).
• Appliqué Fabric: Blue polka dot woven cotton.
• Stabilizer: Cut-away (Recommended for beginners) or Heavy Tear-away.
  • Expert Note: Woven cotton is stable, but a wide satin stitch (like the one we will build) exerts massive inward pull. If your stabilizer is too weak, the circle will distort into an oval.
• Hidden Consumables:
  • New Needle: Size 75/11 or 90/14 (Sharp point). A dull needle pushes fabric rather than piercing it.
  • Appliqué Scissors (Duckbill): Essential. Theoretical "small scissors" work, but duckbill scissors prevent you from cutting the base fabric.
  • Temporary Spray Adhesive (Optional): A light mist on the back of the appliqué fabric prevents rippling.

The Hooping Reality Check

You need "Drum Skin Tension." When you tap the hooped fabric, it should make a dull thumping sound. Loose fabric causes registration errors—meaning your outline won't match your fill.

The Production Pain Point: If you are doing one-off gifts, a standard hoop is fine. However, standard hoops utilize friction and screw tension. If you are doing a run of 50 shirts, the constant "unscrew-hoop-screw-pull" motion causes wrist fatigue and "hoop burn" (permanent friction marks on delicate fabrics). This is the specific scenario where upgrading to a magnetic hoop for brother stellaire becomes a business decision, not just a luxury. Magnets provide consistent, vertical holding pressure without the friction burn.

Safety Warning: Mechanical Hazard
Appliqué requires your hands to be near the needle zone frequently. Never place your fingers inside the hoop area while the machine is live. Always verify the machine is stopped or in "Lock" mode before placing fabric or trimming.

Prep Checklist (Pre-Flight)

• Iron: Both fabrics must be perfectly flat. Wrinkles are permanent once stitched.
• Cut: Appliqué fabric must be cut 1 inch larger than the final design size (3.5" square for a 2.5" circle).
• Stabilizer Choice: Use Medium Weight Cut-Away (2.5 oz) for the highest safety margin.
• Tool Check: Duckbill scissors are placed at the machine station, not across the room.
• Bobbin: Ensure you have a full bobbin (white) to avoid running out mid-satin.


Phase 2: Machine Setup – Zeroing the Environment

We are dealing with precision engineering. We need to speak the machine's native language.

1. Unit Standardization: Go to Machine Settings and ensure measurement is set to Inches.
2. Frame Selection: Select the 9-1/2" x 14" frame (largest available on Stellaire).
3. Visual Declutter: Turn the Grid Display OFF.

Why this matters: When digitizing a 2.50-inch circle, a visual grid can be distracting. Furthermore, knowing your brother embroidery hoop sizes is critical. If you design for a 9.5" hoop but later try to squeeze it into a 4x4" hoop, the machine may force a resize that recalculates density, ruining your careful settings.

Phase 3: Digitizing in My Design Center (The 4-Layer Build)

You are now the engineer. We will program the machine to stop exactly when we need it to.

Layer 1: The Placement Line (Targeting)

1. Navigate to Shapes -> Select Circle.
2. Resize to exactly 2.50 inches. Use the arrows for precision.
3. Line Property: Select Double Straight Stitch.
   • Why: A single run is too faint. Double run is visible and robust.
4. Color: Green.
5. Action: Use the Bucket Tool to apply properties to the outline.
6. Set it to the embroidery screen.


Layer 2: The Tack-Down Line (Anchoring)

1. Recall the saved circle shape (do not draw a new one; exact sizing is key).
2. Line Property: Keep Double Straight Stitch.
3. Color: Change to Red.
   • Crucial Logic: The machine only stops automatically when it sees a color change. By changing from Green to Red, you force the machine to halt, giving you the window to trim your fabric.
4. Action: Bucket Tool -> Apply -> Set.

Pro-Tip: If you are doing high-volume production, stopping to trim is the bottleneck. Many professionals utilize a hooping station for brother embroidery machine to ensure the fabric placement is perfect before they even get to the machine, minimizing downtime.

Layer 3: The Satin Finish (The "Safety Blanket")

This is where beginners struggle. The default satin stitch is often too narrow (approx. 0.08" / 2mm) to cover the raw fabric edge effectively.

1. Recall the circle again.
2. Line Property: Select Satin Stitch.
3. Color: Change to Orange.
4. Parameter Adjustment (The "Secret Sauce"):
   • Width: Increase to 0.240 inches (approx. 6mm).
   • Expert Analysis: The video uses 0.240", which is very wide. It guarantees coverage of raw edges. However, for lightweight fabrics, this can cause tunneling.
   • Beginner Sweet Spot: If 0.240" feels too heavy, a range of 0.160" - 0.200" (4mm - 5mm) is the industry standard for safe appliqué coverage.
   • Density: Leave at 100%. If using thinner thread (60wt), increase density to 110-120%.
5. Action: Bucket Tool -> Apply -> Set.


Layer 4: The Decorative Overlay (Texture)

1. Recall the circle one last time.
2. Line Property: Select Candlewicking Stitch (or Motif Stitch).
3. Color: Change to Blue.
4. Action: Bucket Tool -> Apply -> Set.

Verification: Look at your screen. You should see a stack: Green Line, Red Line, Orange Satin, Blue Details.

Phase 4: The Stitch-Out – Execution & Kinetics

Now we move from software to physics.

Step 1: Placement & Fabric Laydown

• Action: Hoop the stabilizer and base fabric. Run color 1 (Green/Placement).
• Sensory Check: You should see a crisp, clean circle on your white fabric.
• The Laydown: Place your blue polka dot fabric over the circle. It must extend at least 0.5 inches past the line in all directions.
• Tip: Use a shot of temporary spray adhesive or a glue stick inside the circle (avoiding the stitch line) to keep the appliqué fabric from shifting.

If you struggle with fabric shifting ("creeping") during this step, especially on bulky items like towels, the holding force of a magnetic embroidery hoop can be a game-changer. It clamps the entire perimeter evenly, unlike inner-ring friction hoops that push fabric outward.

Step 2: The Tack-Down (The Lock)

• Action: Run color 2 (Red/Tack-down).
• Observation: The machine stitches the second circle, locking the blue fabric to the white base.


Step 3: The Trim (The Surgeon's Moment)

This is the most critical skill in appliqué.

1. Remove the hoop from the machine. Do not try to trim while the hoop is attached (you will damage the carriage).
2. Place hoop on a flat table. Do not trim in the air; flexing the hoop ruins tension.
3. The Cut: Using duckbill scissors, lift the raw edge of the blue fabric gently. Rest the "bill" of the scissors flat against the stitch. Cut smoothly.
   • Goal: Leave about 1mm - 2mm of fabric outside the stitch line.
   • Risk: If you cut too close, the fabric will fray out of the satin. If you leave too much, the satin won't cover it (you have 0.240" of coverage width—use it!).

Magnet Safety Warning
If you have upgraded to magnetic frames, handle them with extreme respect. They are powerful industrial tools. Keep them away from electronics, credit cards, and pacemakers. Watch your fingers—the "snap" force can cause severe pinch injuries.

Step 4: Final Finish

• Action: Reattach hoop.
• Check: Ensure no excess fabric is folded under the hoop.
• Run: Color 3 (Orange Satin) and Color 4 (Blue Candlewicking).


The Physics of Failure: Implementation Data

Why did it work? Or why might it fail?

Troubleshooting & The Upgrade Path

Even with perfect settings, hardware limitations can appear.

Symptom: "Hoop Burn"

• The Issue: The friction of the inner and outer rings leaves a permanent "shine" or crushing mark on velvet, corduroy, or delicate knits.
• The Fix: Steam pressing may remove it.
• The Upgrade: A brother magnetic hoop eliminates this entirely by using vertical magnetic force rather than friction.

Symptom: Wrist Pain / Fatigue

• The Issue: Repeatedly tightening hoop screws for large batches.
• The Upgrade: Magnetic hoops are "snap and go." They reduce hooping time by ~40% and eliminate wrist strain.

Symptom: "This takes too long!"

• The Issue: Changing threads manually (Orange -> Blue) and waiting for stops.
• The Reality: A single-needle machine like the Stellaire requires constant babysitting for multi-color work.
• The Commercial Solution: If you are producing team jerseys or selling patches, the time spent changing threads is lost profit. This is the trigger point to look at SEWTECH multi-needle machines, which can hold all 4 colors simultaneously and handle the stops automatically.


Common Questions from the Field

"My machine doesn't have My Design Center. Can I still do this?"

My Design Center is a verified feature of high-end Brother machines (Stellaire, Luminaire, Dream Machine). If you have a smaller machine (like the NV series), you cannot digitize on screen. You must buy a digitized appliqué file or use software (PE Design / Hatch) to create the file on a PC.

"Can I export this design?"

Yes, but Brother machines export MDC designs in .PHX format. This is a proprietary format. You generally cannot take this file and put it on a different brand of machine without conversion software.

"Where do I get fills if I don't draw them?"

For users without built-in digitizing, the workflow is:

1. Buy an appliqué design (e.g., from Etsy or Embroidery Library).
2. Load it via USB.
3. Follow the same color-stop logic (Placement -> Tack -> Trim -> Finish).

Decision Tree: Choosing the Right Stabilizer

Selecting the wrong foundation is the #1 cause of puckering satins.

START: What is your fabric?

1. Non-Stretch (Cotton, Denim, Canvas)
   • Heavy use/wear? -> Cut-Away (Best stability).
   • Light use/display? -> Tear-Away (Clean back).
2. Stretch (T-Shirts, Jersey, Performance Knit)
   • Standard: -> No-Show Mesh Cut-Away + Fusible Interfacing.
   • Rule: Never use Tear-away on knits; stitches will pop when the shirt stretches.
3. Texture (Towels, Fleece, Minky)
   • Bottom: -> Cut-Away.
   • Top: -> Water Soluble Topping (Solvy).
   • Why: The topping prevents the satin stitch from sinking into the pile and disappearing.

Operation Checklist: The Rhythm of Success

Print this out and tape it to your machine.

• Load & Thread: Design loaded, correct thread on needle 1.
• Hoop: Fabric is drum-tight.
• Pass 1: Run Placement (Green). STOP.
• Action: Apply Fabric (plus spray adhesive).
• Pass 2: Run Tack-Down (Red). STOP.
• Action: Remove hoop. Trim flat. Re-hoop.
• Pass 3: Run Satin (Orange).
• Pass 4: Run Candlewicking (Blue).
• Review: Inspect for loose threads. Un-hoop. Snip jump stitches.

Conclusion: Tools vs. Technique

Mastering the Stellaire's My Design Center turns you from a machine operator into a designer. The technique detailed here—layering stitch types to control the process—is universal.

However, as you move from learning to producing, remember that "fighting your tools" is not a badge of honor. Whether it is learning how to use magnetic embroidery hoop correctly to save your wrists, or upgrading to a multi-needle unit to save your time, the right tool applied at the right moment is the hallmark of a true professional.

Now, go stitch that perfect circle.

FAQ

• Q: What stabilizer should be used for Brother Stellaire appliqué satin borders to prevent puckering and circle distortion?
  A: Use medium weight cut-away for the highest safety margin, especially when using wide satin stitches.
  • Choose: Medium Weight Cut-Away (about 2.5 oz) for beginners; use Heavy Tear-Away only if the project can tolerate less support.
  • Match: Wide satin stitch pull with stronger stabilizer (wide satin can pull a circle into an oval if the stabilizer is weak).
  • Add: Consider a light mist of temporary spray adhesive on the appliqué fabric back to reduce rippling during tack-down.
  • Success check: After stitching, the circle stays round (not oval) and the base fabric stays flat without ripples near the satin edge.
  • If it still fails: Reduce stitch speed for the satin pass and re-check hoop tension for “drum tight” stability.
• Q: How can Brother Stellaire users confirm “drum-tight” hooping tension before stitching appliqué to avoid registration errors and nesting?
  A: Hoop until the fabric feels like a firm drum head—loose hooping is the fastest way to get misaligned outlines and thread issues.
  • Tap: Knock the hooped fabric; aim for a dull “thump,” not a loose, fluttery sound.
  • Pull: Smooth fabric evenly before tightening; avoid “hand tight” hooping that allows fabric to shift.
  • Stabilize: Hoop stabilizer + base fabric together to prevent flagging and movement during the placement and tack-down lines.
  • Success check: The placement stitch forms a crisp circle and the appliqué fabric does not creep during the tack-down run.
  • If it still fails: Slow the machine down (especially for satin) and verify the hoop is not flexing during handling.
• Q: Why does Brother Stellaire My Design Center appliqué require different thread colors for the placement stitch and tack-down stitch to force a stop?
  A: Change the placement line color and tack-down line color because Brother Stellaire stops at color changes, creating a safe trim window.
  • Digitize: Set Layer 1 (placement) to one color (example: Green) and Layer 2 (tack-down) to a different color (example: Red).
  • Use: Keep both lines as Double Straight Stitch so the map is visible and the anchor is secure.
  • Trim: Rely on the forced stop after the tack-down to remove the hoop and trim safely.
  • Success check: The machine automatically pauses between the placement pass and tack-down pass, and again before the satin pass.
  • If it still fails: Confirm the design stack shows separate color blocks (not merged into one color) before stitching.
• Q: What satin stitch width should Brother Stellaire users set in My Design Center for appliqué circles to fully cover raw edges without “whiskers”?
  A: Set a wider satin stitch than the default; a safe starting point is 0.160"–0.200", and 0.240" maximizes coverage but can be heavy on light fabric.
  • Adjust: Change the outline to Satin Stitch and increase width from the default (~0.08"/2mm) to 0.160"–0.200" (4–5mm) for most appliqué.
  • Use: Go up to 0.240" (about 6mm) when coverage is the priority and stabilizer support is strong.
  • Keep: Leave density at 100% as a baseline; with thinner thread (like 60wt), density may need to be increased (follow the machine guidance).
  • Success check: After stitching, no raw fabric edge shows through the satin border from any angle.
  • If it still fails: Trim leaving about 1–2mm outside the tack-down line and confirm the hoop stayed drum-tight during the satin pass.
• Q: How should Brother Stellaire appliqué trimming be done with duckbill scissors to avoid cutting base fabric or causing gaps after re-hooping?
  A: Always remove the hoop and trim on a flat table with duckbill scissors; trimming “in the air” often causes tension loss and coverage gaps.
  • Remove: Take the hoop off the machine before trimming (protects the carriage and improves control).
  • Support: Place the hoop flat on a table so the fabric stays evenly tensioned.
  • Trim: Rest the duckbill against the stitch line and leave about 1–2mm of fabric outside the tack-down stitches.
  • Success check: After reattaching the hoop, the appliqué edge lies flat and the satin stitch covers cleanly with no exposed “whiskers.”
  • If it still fails: Re-check that no excess fabric is folded under the hoop before running the satin pass.
• Q: What safety steps should Brother Stellaire users follow during appliqué to prevent needle-zone injuries while placing fabric and trimming?
  A: Treat every stop as a safety stop—keep fingers out of the hoop area when the machine is live and only handle fabric when the machine is stopped or locked.
  • Stop: Verify the machine is fully stopped (or in “Lock” mode) before placing appliqué fabric near the needle zone.
  • Keep clear: Never put fingers inside the hoop stitching area during operation.
  • Trim safely: Remove the hoop from the machine before trimming to avoid accidental movement near the needle and carriage.
  • Success check: Hands never enter the needle zone during motion, and trimming is done with the hoop completely off the machine.
  • If it still fails: Slow down the workflow—rushing is the common cause of close-call injuries during appliqué.
• Q: What magnetic hoop safety precautions should Brother Stellaire users follow to avoid pinch injuries and interference with electronics or pacemakers?
  A: Magnetic hoops are powerful—control the snap force, protect fingers, and keep magnets away from sensitive items and pacemakers.
  • Handle: Lower magnetic parts carefully; do not let frames “snap” together uncontrolled.
  • Protect: Keep fingertips out of the closing path to prevent severe pinch injuries.
  • Separate: Keep magnetic hoops away from electronics, credit cards, and especially pacemakers.
  • Success check: The frame closes without finger contact and holds fabric evenly with consistent vertical pressure.
  • If it still fails: Reposition fabric calmly and re-seat the frame—forcing magnets increases injury risk and can misalign fabric placement.
• Q: When Brother Stellaire appliqué production feels too slow, what is the practical upgrade path from technique changes to magnetic hoops to multi-needle machines?
  A: Start by optimizing settings and workflow, then reduce hooping friction with magnetic hoops, and consider a multi-needle machine when manual color changes become the profit bottleneck.
  • Level 1 (Technique): Slow satin stitching to about 600–800 SPM, keep hooping drum-tight, and stage tools (duckbill scissors and full bobbin) at the machine.
  • Level 2 (Tool): Use magnetic hoops to reduce hooping time and wrist strain, and to avoid hoop burn on delicate fabrics.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent manual thread changes and stop points (multi-color appliqué) are limiting output.
  • Success check: Cycle time per piece drops and results stay consistent (clean satin coverage, stable registration, fewer re-hoops).
  • If it still fails: Track where time is lost (hooping, trimming, thread changes) and address the single biggest bottleneck first.
