Stitching on the Brother Dream Machine 2 (XV8550D): Rotate, Trace, and Change Thread Without Wrecking Your Tension Disks

Sue’s project looks simple on the surface—an inspirational quote stitched on a pink woodgrain fat quarter—but it quietly covers the three habits that separate “lucky” stitch-outs from repeatable professional results: correct hoop tension physics, a verified trace check, and a thread-change method that protects your machine’s delicate tension discs.

If you’re new to the Brother Innov-is XV8550D (Dream Machine 2), this is exactly the kind of low-stress project that teaches the workflow without overwhelming you. However, machine embroidery is an experience-based science. Success doesn't come from the machine's price tag; it comes from understanding how fabric reacts to the push-and-pull of 800 stitches per minute.

Meet “McDreamy”: Calibrating the Brother Innov-is XV8550D for Success

Sue starts this session by introducing her Brother Innov-is XV8550D (the Dream Machine 2) and a clear objective: stitch the quote “Be Successful in Every Stitch” on a pink woodgrain fat quarter.

From a technician's perspective, the Dream Machine 2 is a powerhouse, but it is also an obedient robot. It cannot compensate for physical errors in setup. When users claim, “my machine hates this fabric,” it is almost invariably a failure of stabilization, hoop tension, or needle choice.

Sue’s approach demonstrates the "Golden Workflow": Load carefully, check hoop physics, trace the boundary, and monitor the feed.

The "Hidden" Prep: Understanding Hoop Physics and Fabric Grain

Sue shows the pink woodgrain fabric hooped in a standard embroidery frame. This specific moment—the hooping—is where 90% of embroidery failures occur.

A fat quarter (woven cotton) seems stable, but it has a "bias." If you pull it too tight in the hoop, you distort the grain. When you unhoop it later, the fabric snaps back, and your perfect circle becomes an oval, or your text puckers.

The Sensory Check: When hooping, your fabric should feel taut like a tambourine skin, not stretched tight like a trampoline. If you tap it, you should hear a dull thud, not a high-pitched ping. If you distort the woodgrain pattern while hooping, you have over-tightened.

For those doing production runs or fighting hand fatigue, the traditional screw-tightening mechanism is often the bottleneck. This is where researching a hooping for embroidery machine upgrade becomes a business decision. Advanced tools like magnetic hoops eliminate the "tug-of-war" with fabric, allowing the material to lay flat while strong magnets hold it securely without the friction burn caused by plastic inner rings.

Prep Checklist: The "Pre-Flight" Safety Protocol

Before you even touch the screen, ensure these physical parameters are met:

• Fresh Needle: Is your needle fresh? A 75/11 Embroidery Needle is standard here. If you hear a "popping" sound when the needle penetrates, it's dull—change it.
• Hoop Tension: Is the fabric smooth but not distorted? (Check the grain lines).
• Stabilizer Bond: Did you use a light mist of temporary spray adhesive (like 505) to bond the fabric to the stabilizer? This prevents "shifting" in the center of the hoop.
• Hidden Consumables: Do you have the correct bobbin weight (usually 60wt or 90wt for Brother) installed?
• Clearance: Is there enough space behind the machine for the carriage arm to move fully back?

Warning: Mechanical Safety. Keep fingers, scissors, and loose clothing (sleeves/drawstrings) at least 4 inches away from the moving hoop. A 1000 SPM machine moves faster than your reflexes; a needle strike can shatter the needle, sending metal shards toward your eyes.

Loading Data: Reading the Numbers Like a Pro

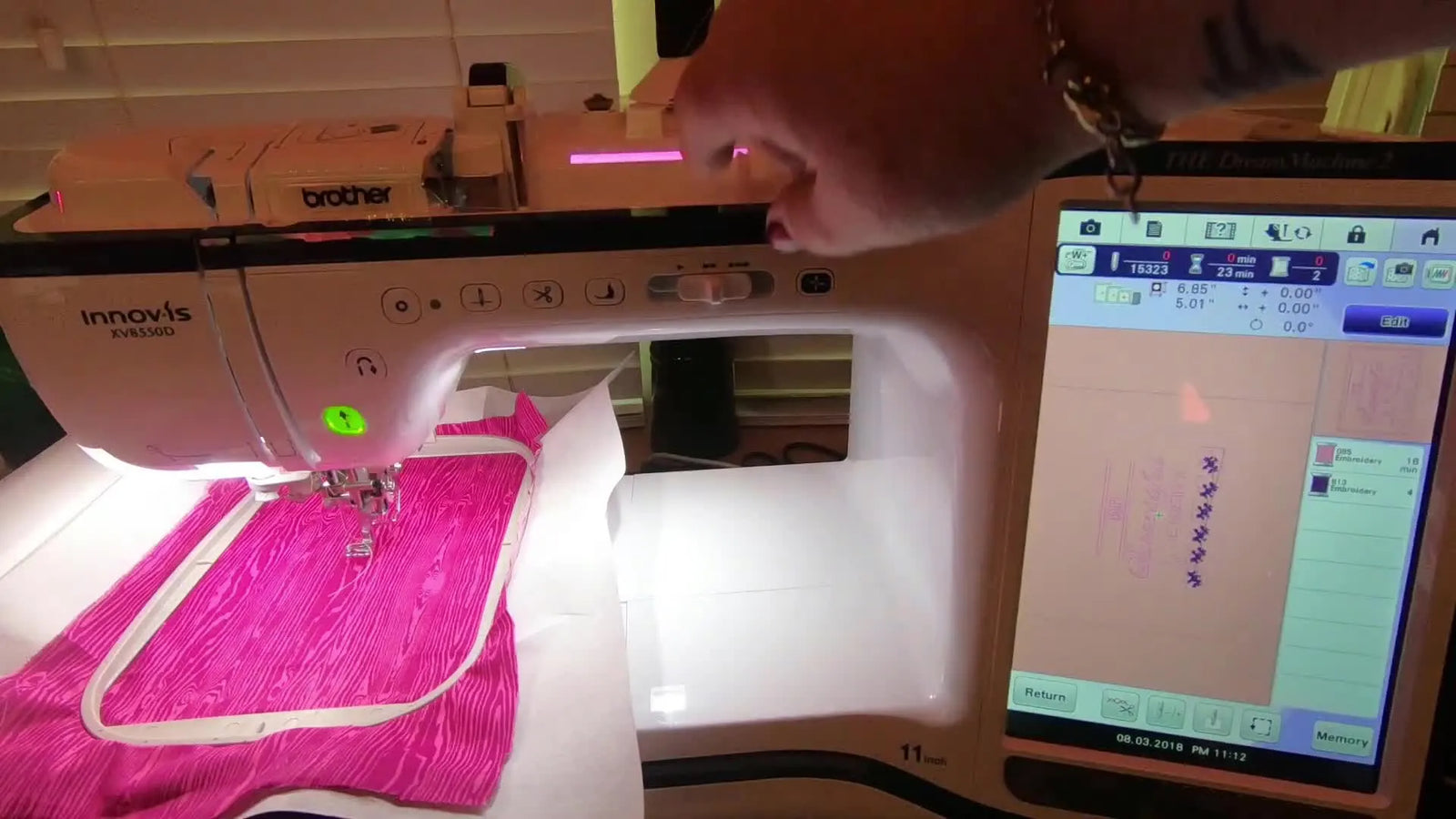

Sue loads the design into the Dream Machine 2. On the preview screen, she notes the critical data:

• Design size: 5.01" x 6.85"
• Stitch count: 16,323
• Time: ~23 minutes

Expert Analysis: 16,000 stitches is a distinct tipping point. On a single layer of cotton, this density will cause the fabric to shrink inward (pull compensation).

• If you see gaps: It means your stabilizer was too light.
• If you see bulletproof stiffness: It means you over-stabilized.

If you own multiple frames, managing these projects becomes a logistical puzzle. Many professionals migrate to magnetic embroidery hoops because they allow for faster "re-hooping" without unscrewing the frame every time—a massive time-saver when testing stitch counts.

The "Why Won’t It Fit?" Moment: Digital vs. Physical Orientation

Sue encounters a classic friction point: the design orientation doesn’t match the hoop configuration on-screen. She uses the Edit → Rotate function to turn the design 90 degrees.

The Cognitive Shift: Beginners often try to physically unhoop and rotate the fabric. Don't do this. Always manipulate the digital file to match the physical reality.

Practical Constraints:

1. The Grey Box: If the design touches the grey safety line on the screen, do not force it. It needs at least a few millimeters of buffer.
2. The Rotation Rule: If you rotate the design on the screen, you must run a trace immediately after. Your mental map of "top" and "bottom" has just flipped, and mistakes here lead to upside-down embroidery.

If you are looking for specific tools to help with large designs, specifically a magnetic hoop for brother dream machine, ensure you verify the sewing field limit. A hoop physically fitting the machine does not mean the machine knows it is there; the software limit is absolute.

The Trace Habit: Your Insurance Policy

Sue performs a trace (trial key). The hoop physically moves around the design boundary without stitching.

Why this is non-negotiable: Computer screens represent a "perfect world." The physical hoop is the "real world." A trace confirms that the needle bar will not slam into the hard plastic frame—a collision that can knock the timing of your machine out of alignment, costing hundreds in repairs.

Sensory Step: Lean in and watch the needle tip. As it traces the corners, ensure you have at least a finger-width of clear air between the needle position and the hoop edge.

Stabilizer Decision Tree: Fat Quarter & Text

Using the wrong stabilizer is the #1 cause of puckering. Use this logic flow:

1. Is the design text-heavy (like Sue's quote)?
   • Yes: Text requires absolute stability. The edges must be crisp.
   • No: Organic shapes can tolerate some movement.
2. Is the fabric stretchable?
   • Yes (Knits/Tees): STOP. You must use Cutaway stabilizer. No exceptions.
   • No (Woven Cotton/Quilting): Go to step 3.
3. Are you wearing it or framing it?
   • Wearing: Use Poly-Mesh Cutaway (soft against skin, permanent support) + Temporary Spray.
   • Framing/Decor: You can use Medium Weight Tearaway (2.5oz). If the stitch count is over 10k (like Sue's 16k design), float a second layer of tearaway underneath for "insurance."

The "Golden Minute": Monitoring the Start

Sue lowers the presser foot and presses the green Start/Stop button.

The Expert Rule: Do not walk away during the first 60 seconds. This is when the machine forms the "tie-in" knots. If the top thread is going to shred, or if the bobbin is going to vomit a bird's nest, it will happen now.

Sensory Feedback:

• Sound: Listen for a rhythmic chug-chug-chug. A sharp tick-tick-tick indicates a dull needle or a burr on the hook. Ideally, the sound should be hypnotic, not alarming.
• Sight: Watch the thread cone. Is it unwinding smoothly? Jerky unwinding causes tension lines in the satin stitches.




Setup Checklist: The "Go/No-Go" Sequence

• Hoop: Is the correct hoop selected on screen and clicked firmly into the machine arm?
• Clearance: Did the Trace complete without the needle hitting the frame?
• Foot: Is the embroidery foot (usually "W" foot) attached and lowered?
• Thread Path: Is the thread seated deeply in the tension discs? (Give it a gentle "floss" check).
• Speed: For complex text, reduce speed to 600 SPM (Stitches Per Minute) for sharper corners.

The Thread-Change Protocol: Saving Your Tension Discs

When the white stitching finishes, Sue changes to purple thread. She demonstrates the only acceptable method for removing thread from a modern embroidery machine.

The Protocol:

1. CLIP the thread at the spool pin (top).
2. PULL the excess thread out through the needle (bottom).

Why? (The Engineering Reality): Thread is covered in microscopic lint and fuzz. As it travels through the machine toward the needle, it deposits some of this lint. If you pull the thread backwards (from the needle back to the spool), you are dragging that collected lint, knots, and debris in reverse, jamming it directly into the delicate tension spring mechanism. Over time, this causes "mystery tension issues" where the machine can no longer hold the thread tight.

Automatic Threading & Built-in Fonts

Sue uses the automatic needle threader.

• Tip: If the threader misses, check your needle straightness. A slightly bent needle is often the culprit for failed auto-threading.

Sue mentions the font is built-in. Built-in fonts are digitized specifically for that machine's motor logic, meaning they often stitch cleaner than imported aggressive designs.

• Scaling Warning: Never resize a built-in font more than 20% up or down. If you shrink it too much, the density becomes too high, and the needle will hammer a hole in your fabric.


Finishing: The Jump Stitch & The Un-Hooping

The design finishes. Sue clips the jump stitches.

Post-Process Protocol:

1. Remove form Machine: Take the hoop off immediately.
2. Clip Jumps: Use curved snips (double-curved are best) to clip jump stitches close to the fabric before removing the stabilizer. The tension helps you cut safely.
3. Un-hoop: Release the screw.
4. Press: Do not iron directly on the stitches (it crushes the 3D effect). Iron face-down on a fluffy towel.

If you are producing multiple items, this un-hooping and re-hooping process is where fatigue sets in. This is the primary driver for upgrading to a machine embroidery hooping station, which holds the hoop standardized and steady, ensuring every single fat quarter is aligned exactly the same way without measuring twice.

Troubleshooting Guide: From Panic to Fix

Diagnose common issues based on sensory symptoms.

The Upgrade Path: Knowing When to Scale

Sue’s project is a perfect baseline. But as you move from "one-off gifts" to "selling sets of 50," the tools must change to protect your body and your profit margins.

When to upgrade your toolkit:

1. The "Hoop Burn" Crisis: If delicate fabrics (velvet, performance wear) are getting ruined by the plastic rings, the industry solution is magnetic embroidery hoops. They clamp down vertically rather than creating friction, preserving the fabric surface.
2. The 5x7 Bottleneck: If you find yourself constantly re-hooping medium projects, upgrading to a specific brother 5x7 magnetic hoop can reduce setup time by 40%.
3. Placement Anxiety: If you struggle to get text straight every time, stop guessing. A hooping station is not a luxury; it is an alignment tool that guarantees consistency.

Warning: Magnetic Safety. Professional magnetic hoops use N52 Neodymium magnets. They are incredibly strong. Keep them away from pacemakers. Watch your fingers—if they snap together, they can pinch severely. Do not slide them across the embroidery arm screen; the magnetic field can damage LCD components.

Operation Checklist: During the Stitch

• Listen: Is the sound consistent?
• Watch: Is the top thread feeding without jerking?
• Stop: If a thread breaks, do not just re-thread. Check why it broke (burr on spool? old needle?).
• Maintenance: Every 50,000 stitches, add one drop of oil to the hook race (if your manual permits).

FAQ

• Q: How tight should fabric be hooped on the Brother Innov-is XV8550D (Dream Machine 2) to avoid puckering and hoop burn on woven cotton fat quarters?
  A: Hoop the fabric taut but not stretched—aim for “tambourine skin,” not “trampoline.”
  • Tap-test the hooped fabric: listen for a dull thud (not a high-pitched ping).
  • Watch the fabric grain/print while hooping: if the woodgrain lines distort, loosen and re-hoop.
  • Bond fabric to stabilizer with a light mist of temporary spray adhesive to reduce center shifting.
  • Success check: after un-hooping, the fabric stays flat and the text area is not rippled or shiny-ringed.
  • If it still fails, switch stabilizer strategy (more support for text-heavy designs) and re-check hoop tightness before stitching.
• Q: What is the correct Brother Innov-is XV8550D (Dream Machine 2) trace (trial key) procedure to prevent the needle from hitting the embroidery hoop after rotating a design?
  A: Always run a trace immediately after any on-screen rotate to confirm real-world clearance before stitching.
  • Rotate the design using Edit → Rotate on the machine screen (do not unhoop and physically rotate fabric).
  • Start the trace and closely watch the needle tip as it travels the boundary.
  • Confirm clearance at corners and edges before pressing Start.
  • Success check: there is at least a finger-width of clear air between the needle position and the hoop edge during the trace.
  • If it still fails, reduce the design size or reposition it so it stays inside the safe boundary (do not force it near the grey limit).
• Q: On the Brother Innov-is XV8550D (Dream Machine 2), what stabilizer should be used for a 16,000-stitch text quote on a woven cotton fat quarter to reduce puckering?
  A: Use a stable base—medium-weight tearaway can work for decor, but dense text often needs extra support to prevent pull-in.
  • Choose by end-use: for framing/decor, use medium weight tearaway; for wearing, use poly-mesh cutaway.
  • Add insurance for high stitch counts: float a second layer under the hoop when stitch count is over 10k.
  • Lightly bond fabric to stabilizer with temporary spray adhesive to prevent shifting.
  • Success check: letter edges stitch crisp and the fabric around the text does not tunnel or wrinkle after unhooping.
  • If it still fails, move to cutaway support for the next run and reduce speed for cleaner corners.
• Q: How do you prevent a bird’s nest on the Brother Innov-is XV8550D (Dream Machine 2) during the first minute of stitching?
  A: Re-thread correctly and babysit the first 60 seconds—most nesting starts with top thread not seated in the tension system.
  • Re-thread completely with the presser foot UP so the tension discs are open during threading.
  • Start the design and watch the tie-in area for the first 60 seconds before walking away.
  • Observe thread feeding: ensure the cone unwinds smoothly (no jerky pull).
  • Success check: the machine makes a steady, consistent stitch sound and there is no wad forming under the needle plate.
  • If it still fails, stop immediately and check the full thread path for missed guides or snags before restarting.
• Q: What is the safest thread-change method on the Brother Innov-is XV8550D (Dream Machine 2) to protect the tension discs from lint buildup?
  A: Clip at the spool and pull the remaining thread out through the needle—do not pull thread backward through the tension discs.
  • Clip the top thread at the spool pin first.
  • Pull the thread tail down and out through the needle to remove it.
  • Re-thread and do a gentle “floss” check to confirm the thread is seated in the tension discs.
  • Success check: thread feeds smoothly without sudden tightening, and stitch formation stays consistent after the color change.
  • If it still fails, re-thread again from the start and inspect for lint around the tension area (cleaning needs vary by machine—follow the manual).
• Q: What mechanical safety steps should be followed when running the Brother Innov-is XV8550D (Dream Machine 2) embroidery hoop to avoid needle strikes and hand injuries?
  A: Keep hands and tools well away from the moving hoop and confirm clearance before stitching.
  • Keep fingers, scissors, sleeves, and drawstrings at least 4 inches away from the moving hoop during operation.
  • Run a trace to verify the needle will not contact the hoop/frame.
  • Ensure the correct hoop is selected on-screen and clicked firmly into the arm before starting.
  • Success check: the hoop moves freely through the full trace path without contacting anything, and the stitch-out begins without unusual ticking.
  • If it still fails, stop the machine immediately and re-check hoop seating, design position, and clearance behind the machine for full carriage travel.
• Q: What magnetic hoop safety rules should be followed when using professional N52 neodymium magnetic embroidery hoops with an embroidery machine setup?
  A: Treat magnetic hoops like industrial clamps—keep them away from medical devices and protect fingers from pinch points.
  • Keep magnetic hoops away from pacemakers and other sensitive medical devices.
  • Place magnets straight down and lift straight up; do not let magnets snap together over fingers.
  • Avoid sliding magnets across nearby screens/components where a strong magnetic field could cause damage.
  • Success check: magnets seat securely without shifting, and fabric is held flat without friction marks.
  • If it still fails, reduce fabric bulk under the magnets and re-seat the magnets evenly so clamping pressure is balanced.
