Stop Appliqué “Stop-Start Madness”: Color Sort a 3-Letter Monogram in SewWhat-Pro, Embird, and Embrilliance (Without Ruining Your Stitch Order)

If you’ve ever merged three separate appliqué letters only to watch your machine stitch Letter A completely, then stop, stitch Letter B completely, then stop, and stitch Letter C completely—you are not alone. And yes, it is maddening.

That default order is logical for software (each letter is an island), but it is brutal for real-world production. When you want one single piece of fabric to cover all your letters, that default "Stop-Go-Stop-Go" dance forces you to trim multiple times and handle the hoop excessively. Every time you touch that hoop in the middle of a job, you introduce vibration and movement—the two silent killers of registration.

This guide rebuilds Lydia’s workflow from Applique Market, injecting the shop-floor discipline and "experience-based" safety margins needed to keep you from wasting expensive fabric.

The Calm-Down Primer: Why Your Appliqué Monogram Stitches Letter-by-Letter (and Why It’s Not Your Machine’s Fault)

First, take a breath. Your machine isn't broken; it is just obedient. When you import three letters (e.g., "A", "B", "C"), the software treats them as three separate missions. The step list looks like a grocery list for three different dinners:

1. Letter A: Placement Stitch → Stop → Tack Down Stitch → Stop → Satin Finish
2. Letter B: Placement Stitch → Stop → Tack Down Stitch → Stop → Satin Finish
3. Letter C: Placement Stitch → Stop → Tack Down Stitch → Stop → Satin Finish

If you plan to use different fabrics for each letter (a rainbow look), leave it exactly like that.

However, 90% of the time, you want one strip of fabric to cover "ABC." To achieve this, we need to trick the machine into grouping the tasks by function, not by letter:

1. All Placements (A+B+C): One run.
2. All Tack Downs (A+B+C): One run.
3. All Satins (A+B+C): One run.

We call this Color Sorting (or "Step Sorting"). It is the difference between a 20-minute struggle and a 6-minute breeze.

The “Hidden” Prep That Prevents Shifting: Fabric, Stabilizer, and Hooping Before You Ever Click Color Sort

Software organizes the data, but physics dictates the quality. Color sorting makes the workflow faster, but it also increases the risk if your stabilization is weak. Why? Because you are laying down a large piece of appliqué fabric across a wider area. If your base garment shifts even 1mm between the "Placement" and the "Satin," you will see the raw edge poking out (the dreaded "gap of doom").

Whether you are doing one shirt or fifty, your setup must be rigid.

Stabilizer Decision Tree: The "Safety First" Protocol

Expert Rule of Thumb: If in doubt, choose the option that offers more stability. You can cut away excess backing, but you cannot add stability after the fabric buckles.

1. Analyze your Base Material:

• Is it Stretchy? (T-shirt, Polo, Minky, Jersey)
  • Verdict: Cutaway Stabilizer (2.5oz minimum). Do not use Tearaway. The needle perforations of a satin stitch will cut the yarns of a knit fabric; without Cutaway, you will get holes.
• Is it Stable? (Denim, Canvas Tote, Towel)
  • Verdict: Tearaway is acceptable, but for dense appliqués, a layer of medium-weight Cutaway still provides a sharper edge.

2. Analyze your Appliqué Fabric:

• Is it prone to fraying? (Cotton wovens)
  • Verdict: Apply a fusible backing (like Heat n Bond Lite) to the back of your appliqué fabric before you start. This acts as a "glue" during the tack down and prevents those little whiskers from poking through the satin.

3. Do you have a textured pile? (Towels, Velvet, Sherpa)

• Verdict: You must use a Water Soluble Topping (Solvy) to keep the stitches sitting on top of the loops.

The "Hidden" Consumables List

Professional shops always have these within arm's reach:

• Spray Adhesive (Temporary): Vital for floating fabric if you aren't using fusible backing.
• Appliqué Scissors (Duckbill): Mandatory for trimming close to the tack down without slicing the stitches.
• New Needles: A dull needle pushes fabric instead of piercing it, causing shifts. Use a 75/11 Ballpoint for knits or 75/11 Sharp for wovens.

Prep Checklist: The "Pre-Flight" Safety Routine

• Hoop Tension: Tighten your hoop until the fabric feels like a drum skin—taut, but not distorted. If you tap it, you should hear a dull thump, not a hollow ring.
• Center Mark: Mark your garment center with a water-soluble pen or chalk.
• Station Setup: If you struggle to get the shirt straight, using a dedicated embroidery hooping station removes the guesswork. It locks the outer hoop in place so you can slide the garment over efficiently—critical for team orders.
• Space Check: Ensure your machine arm has clearance. Appliqué steps involve the pantograph moving specifically to the far edges; ensure no wall or coffee cup is in the way.

Warning: Mechanical Safety. When the machine stops for you to place the appliqué fabric, keep your hands clear of the start button while your fingers are near the needle. It is easy to autopilot and press "Go" while smoothing fabric. Develop a habit: Hands off the hoop -> Count to one -> Press Start.

SewWhat-Pro “Numbering Trick”: Merge 3 Letters, Then Manually Group Placement → Tack Down → Satin

SewWhat-Pro (SWP) is a favorite because it gives you raw control. It doesn't "guess" what you want; you tell it exactly what to do. This manual reordering method is foolproof if you pay attention.

1. Merge the Three Letter Files

• Open your first letter.
• Go to File > Merge to bring in the second and third letters.
• Arrange them on the screen.
• Sensory Check: Look at the thread palette on the right. You will see a long list of repeating colors (Reference Lydia's example: 12 steps total).

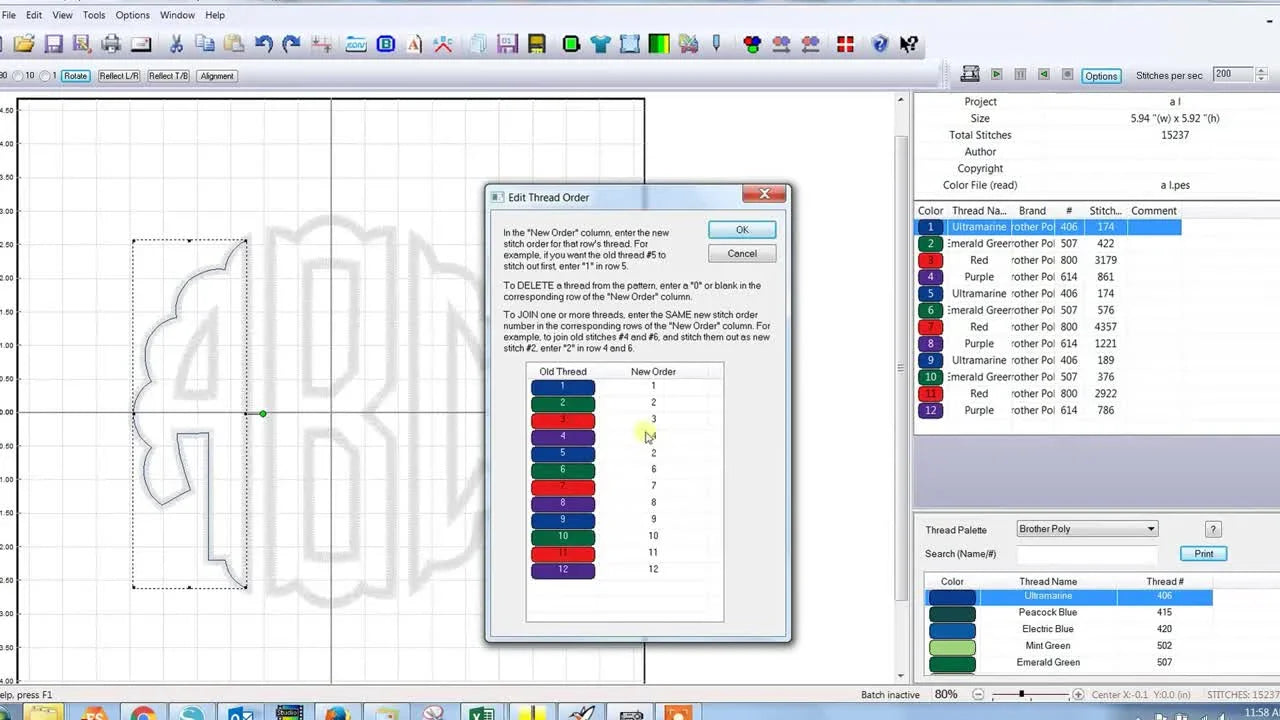

2. Enter the Thread Ordering Matrix

• Navigate to Edit > Order Threads.
• You will see a dialog box with numbers next to each color block.
• Concept: You are not changing the position of the letter; you are changing the time it stitches.


3. The "Like-with-Like" Renumbering Strategy

We are going to assign new execution numbers to group them.

• Group 1 (Total Placement):
  • Keep Letter A Placement as #1.
  • Find Letter B Placement (was #5) -> Change to #2.
  • Find Letter C Placement -> Change to #3.
• Group 2 (Total Tack Down):
  • Find Letter A Tack Down (was #2) -> Change to #4.
  • Find Letter B Tack Down -> Change to #5.
  • Find Letter C Tack Down -> Change to #6.
• Group 3 (Total Satin/Finish):
  • Assign the remaining Satin steps to #7, #8, #9.
• Note on Thread Colors: If all three letters use the same satin color, SWP will often auto-merge them into a single block once they are adjacent in the list.

Checkpoint: Look at the timeline on the right. It should now show a solid block of Placement colors, then a block of Tack Down colors.

Setup Checklist (SewWhat-Pro)

• Visual Simulation: Use the "Stitch Simulator" (play button) to watch the virtual needle. Does it draw all outlines first? Yes/No.
• Color Stop Verification: Ensure the software hasn't merged the Placement and Tack Down into one block (if they are the same color). You need the machine to stop so you can lay the fabric.
• Machine Format: Save as the correct format (PES/DST/JEF). If using a multi-needle machine, assign specific needles now to avoid confusion later. This is where the efficiency of a monogram machine shines—you set it once, and the machine handles the color swaps automatically.


Embird Smart Color Sort: Select All Letters (Ctrl), Then Let the Software Do the Heavy Lifting

Embird is powerful because it uses logic to predict what you want. The "Smart Color Sort" is excellent, but it relies entirely on you selecting the objects correctly first.

1. The Critical Selection Step

• Merge your letters.
• The Anchor Move: Click Letter A, then Hold the CTRL Key and click Letter B and Letter C.
• Visual Check: You must see a selection box (usually dashed lines or grab handles) surrounding all three letters simultaneously. If only "C" is highlighted, the sort will fail.


2. Execute Smart Color Sort

• Right-click on the selection.
• Hover over Colors.
• Select Smart Color Sort.


3. The Tolerance Setting (Don't Overthink It)

• A popup will ask for "Maximal difference."
• Lydia’s Advice: Leave it at 0.
• Why? We only want to merge colors that are identical code matches. Increasing the tolerance might accidentally merge a dark blue satin with a black outline, which you don't want.


Checkpoint: The detailed list on the right panel should shrink. You should now see fewer color blocks.

Operation Checklist (Embird)

• Step Count: Did the total number of color changes drop? (e.g., from 12 to 4).
• Stitch Order: Run the simulator.
• Hooping: Since you are now stitching a larger area at once, ensure your stabilizer is large enough to cover the entire hoop area, not just the letters.

Embrilliance Utility > Color Sort: The Paid-Version Shortcut (and the “Save & Reopen” Gotcha)

Embrilliance works differently. It calculates the sort in the background when you save the stitch file. This confuses many users who expect the screen to update instantly.

1. Verify Your Version

• This features requires the paid "Essentials" or higher. The free "Express" mode (used only for typing text) does not have utility sorting.
• Ensure you are working with a legitimate merged design.

2. Run the Utility

• Go to Utility in the top menu bar.
• Select Color Sort.


3. Decipher the Popup

• A window appears saying: "The design page has been reduced by X color changes."
• Interpretation: If it says "Reduced by 8", success! It found the repetitive steps and crushed them.
• Click New View or Save.


4. The "Save & Reopen" Rule

This is where 50% of beginners panic. "The screen looks the same!"

• Action: Save the stitch file (e.g., Monogram_Sorted.PES) to your USB or desktop.
• Verification: Close the current design. Open the new file you just saved.
• Visual: Now, expand the object tree. You will see the steps are grouped.


Checkpoint: The object list should show distinct layers: One "Placement" layer, one "Tack Down" layer.

The “Why” Behind Color Sorting: What Changes Physically in the Hoop (and How to Keep It Clean)

Why go through this trouble?

1. Speed: You stop the machine 3 times instead of 9 times.
2. Registration: Every time you touch the hoop to trim appliqué, you risk shifting the fabric. Less handling = better alignment.
   However, dealing with "Hoop Burn" (the ring mark left on fabric) becomes a concern when you are doing delicate items. Because we are grouping the steps, the fabric stays in the hoop longer under tension.

The Professional Solution for Sensitive Fabrics: If you are sorting colors to speed up production on velvet, corduroy, or performance polos, traditional plastic hoops can leave permanent "burn" marks or crush the pile. This is where seasoned embroiderers switch to magnetic embroidery hoops.

• Why? They clamp the fabric without forcing it into a ring, preventing the "crush" marks.
• Production Benefit: They are significantly faster to load, which complements the time you saved by color sorting.

Warning: Magnetic Safety. These are not fridge magnets; they are industrial neodymium magnets. Pinch Hazard: They snap together with enough force to bruise skin or break fingernails. Slide them apart; don't pry them. Medical: Keep at least 6 inches away from pacemakers.

Troubleshooting the Scary Moments: Symptoms → Likely Cause → Fix

If things go wrong, don't panic. Use this diagnostic table.

The Upgrade Path That Actually Makes Sense: When Color Sorting Isn’t Enough

You have mastered the software sort. You are saving 5 minutes per shirt. But if you have an order for 50 shirts, your bottleneck will shift. You will notice that changing threads and hooping garments are now eating up your time.

Here is the logical progression for upgrading your commercial workflow:

1. Level 1: Skill & Software (You are here). You optimize files using Color Sort to reduce machine stops. Cost: $0.
2. Level 2: The Stability Upgrade. You switch to high-quality stabilizers and specialized needles (Titanium or Ballpoint) to reduce thread breaks. Cost: Low.
3. Level 3: The Efficiency Upgrade. You introduce Magnetic Hoops. This eliminates hoop burn and makes hooping thick items (like Carhartt jackets or heavy towels) effortless. The speed gain here is often 30% faster prep time.
4. Level 4: The Production Upgrade. If you find yourself constantly re-threading your single-needle machine for these sorted colors, look at a multi-needle machine. A SEWTECH (or similar multi-needle platform) allows you to set up all 3-4 colors of the appliqué at once. You press start, and the machine handles the entire sequence while you prep the next hoop.

Final Thought: Always verify the stitch order visually on your machine screen before you press that green button. Software is smart, but your eyes are the final quality control. Happy stitching!

FAQ

• Q: Why does SewWhat-Pro stitch appliqué monogram letters A, B, C one-by-one instead of stitching all placements first?
  A: This is normal behavior because SewWhat-Pro treats each imported letter file as a separate “mission,” so it completes Placement → Tack Down → Satin for Letter A, then repeats for B and C.
  • Merge: Use File > Merge to bring all three letters into one workspace before changing the order.
  • Reorder: Use Edit > Order Threads and renumber so all Placements run first, then all Tack Downs, then all Satins.
  • Simulate: Run the stitch simulator to confirm the outlines (placements) draw for A+B+C before any tack down starts.
  • Success check: The color/step list shows one block of Placement steps, then one block of Tack Down steps, then one block of Satin steps (not A-complete, B-complete, C-complete).
• Q: How do I manually group Placement → Tack Down → Satin for a 3-letter appliqué monogram in SewWhat-Pro using the “Edit > Order Threads” numbering trick?
  A: Renumber the thread blocks “like-with-like” so the execution order becomes all placements first, then all tack downs, then all satins.
  • Assign: Keep Letter A Placement as #1, change Letter B Placement to #2, change Letter C Placement to #3.
  • Continue: Change Letter A Tack Down to #4, Letter B Tack Down to #5, Letter C Tack Down to #6.
  • Finish: Assign the remaining Satin/Finish steps to #7, #8, #9 (or the next available sequence).
  • Success check: The timeline/list reads as a clean sequence of Placement colors first, then Tack Down, then Satin; the simulator stitches all outlines before any fabric tack-down happens.
  • If it still fails: Verify the Placement and Tack Down were not accidentally merged into one color block—you need a stop between them to place fabric.
• Q: How do I use Embird Smart Color Sort correctly for appliqué letters when Embird only sorts one letter instead of all letters?
  A: The sort usually “fails” because only one letter was selected—select all letters first, then run Smart Color Sort.
  • Select: Click Letter A, then hold CTRL and click Letter B and Letter C until one selection box surrounds all letters.
  • Sort: Right-click the selection → Colors → Smart Color Sort.
  • Set: Keep “Maximal difference” at 0 to avoid merging near-matching colors unintentionally.
  • Success check: The right-side color/step list shrinks (fewer blocks) and the simulator shows all placements grouped before tack downs.
• Q: Why does Embrilliance Utility > Color Sort say “Reduced by X color changes” but the design still looks unsorted on screen?
  A: In Embrilliance, the visible change often appears only after saving the new stitch file and reopening it.
  • Confirm: Make sure the feature is available (paid “Essentials” or higher) and run Utility > Color Sort.
  • Save: Save a new stitch file (for example, a new .PES/.DST name).
  • Reopen: Close the current design and open the newly saved stitch file to view the grouped steps.
  • Success check: The object/step list displays grouped layers (one Placement layer, one Tack Down layer) instead of repeating letter-by-letter sequences.
  • If it still fails: Re-check that you are opening the exported stitch file, not the original working page.
• Q: What stabilizer and needle setup is a safe starting point before color sorting a wide appliqué monogram on stretchy T-shirts vs stable denim?
  A: Stabilization must be stronger when color sorting because the appliqué fabric spans a larger area, so use Cutaway for knits and be cautious about stretching during hooping.
  • Choose: For stretchy knits (T-shirt, polo, jersey) use Cutaway stabilizer (2.5 oz minimum); avoid Tearaway for satin-heavy appliqué.
  • Allow: For stable wovens (denim, canvas) Tearaway can work, but a medium Cutaway layer often keeps edges sharper on dense appliqué.
  • Match: Use a 75/11 Ballpoint needle for knits or 75/11 Sharp for wovens; replace dull needles early.
  • Success check: After hooping, the fabric feels like a drum skin—taut but not distorted—and stitches do not tunnel or pucker inside the satin.
  • If it still fails: Stop and “float” an extra piece of stiff cutaway under the hoop to finish the job, then upgrade stabilization on the next run.
• Q: What hooping tension “success check” helps prevent appliqué shifting after color sorting, and what prep tools should be on hand before pressing Start?
  A: Use a tight-but-not-stretched hooping standard and stage the small consumables so you do not handle the hoop excessively mid-design.
  • Tighten: Hoop until the fabric is taut like a drum (you should hear a dull “thump” when tapped), but do not distort the garment.
  • Mark: Mark the garment center with a water-soluble pen/chalk before stitching.
  • Stage: Keep temporary spray adhesive, duckbill appliqué scissors, and fresh needles within reach to avoid rushing during stop points.
  • Success check: The placement outline lands cleanly, the fabric stays aligned through tack down, and the satin fully covers the raw edge without “gaps.”
  • If it still fails: Reduce hoop handling—use adhesive/fusible backing so the appliqué fabric cannot creep while you trim.
• Q: What is the safest way to handle machine stops during appliqué placement so fingers do not get hit by the needle when restarting?
  A: Treat every stop as a safety step—keep hands clear of the start control until fingers are away from the needle area.
  • Pause: When the machine stops for fabric placement, keep one clear rule: hands off the hoop first, then restart.
  • Habit: Smooth the appliqué fabric, remove fingers fully from the needle zone, count to one, then press Start.
  • Focus: Avoid “autopilot” restarting while adjusting fabric near the needle.
  • Success check: Restart happens only after both hands are visibly away, and the first stitches after restart do not catch skin or pull fabric unexpectedly.
• Q: What magnetic hoop safety rules prevent pinched fingers and medical device risks when using industrial magnetic embroidery hoops for appliqué on velvet or polos?
  A: Industrial magnetic hoops can snap together hard—slide them apart and keep them away from pacemakers.
  • Handle: Slide magnets apart; do not pry them straight up where they can slam together.
  • Protect: Keep fingertips out of the closing path to avoid bruising or broken nails.
  • Distance: Keep magnets at least 6 inches away from pacemakers.
  • Success check: The hoop closes under control (no sudden snap), and fabric is clamped without crush marks or “hoop burn” on sensitive pile fabrics.
  • If it still fails: Slow down the loading motion and reposition hands—most pinches happen when trying to “catch” a magnet mid-snap.
