Stop Buying Pre-Cuts: Punch Perfect Appliqué Templates on a Brother PR-600 Using 110 lb Cardstock

Master the Art of Perfect Appliqué: The Cardstock Template Method

Advanced appliqué is the threshold where many embroiderers either level up their profitability or quietly give up in frustration. If you have ever purchased pre-cut appliqué packs just to avoid the headache of inconsistent shapes, shifting edges, or the dreaded "Which piece goes where?" confusion, you are not alone.

However, relying on pre-cuts limits your creativity. The solution lies in a workflow that turns your machine into a precision manufacturing tool.

In this guide, we will transform your Brother PR-600 series multi-needle embroidery machine into a high-precision paper punch. By hooping 110 lb cardstock and running only the outline placement stitches with no thread, you let the needle perforate the paper to create exact templates. This cardstock-template method is the calm, repeatable system you have been missing.

It sounds simple, but the difference between a messy template and a perfect one lies in the physics of how you hold the paper and how you configure the machine. Let’s break this down into a zero-friction process.

What You Need (And What Not To Overthink)

You don’t need expensive gadgets to make clean templates, but you do need specific materials. Using thin printer paper is a rookie mistake; it tears, buckles, and creates fuzzy edges. The stiffness of 110 lb cardstock is the non-negotiable variable here—it resists buckling so the needle holes land exactly where the thread will eventually go.

The "Mise-en-place" (Tools List)

• Brother PR-600 Series (or similar multi-needle machine).
• Standard Embroidery Hoop (approx. 130×180 mm class).
• 110 lb Cardstock (Stiff enough to snap when bent).
• Painter’s Tape or Masking Tape (Superior to cellophane tape as it peels off hoops without leaving residue).
• 75/11 Sharp Needle (Designate this as your "Paper Needle"—do not use your good embroidery needles, as paper dulls them instantly).
• Fine-Point Sharpie Marker.
• The Design File (Example: “Wishes Won’t Do Dishes”).

If your workflow is busy and you are tired of wrestling hoops for every single appliqué placement, this is also where a high-quality machine embroidery hooping station starts to make sense. While we are focusing on templates today, consistent hooping is the other half of the production battle.

Phase 1: The "Hidden" Prep

Goal: Create a paper surface that sits like a drum skin, not a trampoline.

This is the step that separates clean templates from frustrating ones. If the cardstock is loose, it will "flag" (bounce up and down) with the needle, causing perforation errors.

1. Trace the Inner Ring: Place your 110 lb cardstock flat on a table. Take the inner ring of your hoop and trace the inside edge onto the cardstock.
2. Cut Precision Circles: Cut on the line. Your goal is a cutout that fits the hoop opening cleanly without forcing it.

The Physics: Cardstock that is slightly oversized will wrinkle when you tape it, creating hills and valleys. Cardstock that is undersized will leave gaps. You want a surface that is perfectly flat and supported.

Prep Checklist (Pre-Flight)

Before you touch the machine, ensure:

• 110 lb cardstock is cut to match the inner hoop ring shape exactly.
• You have swapped your needle to an old or designated "paper needle."
• Scissors are sharp (ragged paper edges snag tape).
• Tape strips are pre-cut (about 1 inch long) for easy grabbing.
• Sharpie is uncapped and ready.

Warning — Finger Safety: Scissors + perforated cardstock can "run" like a zipper if you twist the paper while cutting. Keep your non-cutting hand flat and steady. Rotate the template, not your wrist, to avoid slips.

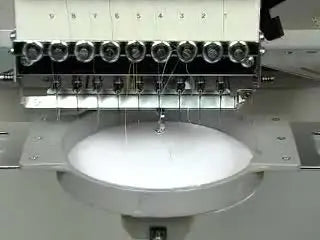

Phase 2: Hooping Cardstock on the Brother PR-600

Technique: Taping to the bottom of the inner ring.

Do not try to clamp the cardstock between the rings like fabric. Cardstock is too thick and will damage your hoop’s tension screws or pop out.

1. Flip the Inner Ring: Turn the inner hoop ring upside down.
2. Position: Place the cardstock cutout against the bottom of the ring.
3. Tape Anchor Points: Use your tape to secure the cardstock at 12, 3, 6, and 9 o'clock positions first. Then fill in the gaps.
4. Sensory Check: Tap the cardstock with your finger. It should sound like a dull thud (tight) and feel smooth. If it rattles, add more tape.

If you produce heavy items like sweatshirts or bags, you know that standard hoops can leave "hoop burn" (shiny marks) on fabric. This is the moment many shops consider magnetic embroidery hoops. Not just because they are trendy, but because the magnetic force holds thick material without the physical crushing action of traditional screws.

Phase 3: The Calm Machine Setup

Goal: Trick the PR-600 into sewing "air."

Your machine is designed to panic if it doesn't feel thread tension. We must override this.

1. Unthread the Needle: Physically remove the thread from the eye of the needle bar you intend to use (e.g., Needle 1).
2. Disable Sensors: Go into your Brother PR-600 settings.
   • Turn OFF the "Thread Breakage Sensor" (or Thread Detection).
   • Turn OFF the "Thread Wiper" (if applicable, to stop it from trying to cut non-existent thread).
3. Speed Regulation: Lower your speed.
   • Expert Tip: Do not run this at 1000 stitches per minute (SPM). High speed generates heat and can scorch the cardstock or melt the tape adhesive. Set your machine to a "Sweet Spot" of 400–600 SPM. This ensures clean, round holes rather than tears.




Setup Checklist (The "No-Panic" List)

• Hooped cardstock is mounted securely.
• Active needle is unthreaded.
• Speed is reduced to 600 SPM or lower.
• Thread sensors are disabled in the menu.
• Design is loaded, and you can see the color stop sequence.

Warning — Moving Parts: Sewing without thread still drives the needle mechanism with force. Keep fingers, tape ends, and loose clothing/hair away from the needle area. Never reach into the hoop while the machine is moving.

Phase 4: Execution – The "Skip and Punch" Method

The video’s design includes multiple color stops, but only the outline/placement runs are useful for templates. We will skip the fills, satins, and decor.

Perforate Stop #1 (Bubbles)

1. Run Stop 1: Press start. The needle will "air sew" the outline of the first shape.
2. Audio Check: You should hear a rhythmic pock-pock-pock sound as the needle pierces the cardstock.
3. Label Immediately: As soon as the machine stops, grab your Sharpie. Write "1" directly inside the perforated shape on the cardstock. Do not wait until the end.




Navigate: Use the Forward/Color Change Button

The next step in the design might be a zigzag tack-down (Stop 2). We don't need holes for that.

1. Skip Stop 2: Press the Forward/Color Change button on the panel to jump to Stop 3.
2. Run Stop 3 (Plate): Let the machine perforate the plate outline.
3. Label: Write "3" inside the shape.


If you are running a brother pr600 embroidery machine in a production setting, mastering this "Stop Navigation" is a skill that saves hours over a month. It allows you to utilize existing embroidery files for template creation without needing to edit the digital file in software first.

The "11a/11b" Rule for Multi-Part Stops

Often, a single color stop (like Stop 11) will stitch multiple separate objects (e.g., three scattered bubbles).

• The Issue: If you just label them all "11" and cut them out, you won't know which bubble goes where on the fabric later.
• The Fix: Watch the screen. As the machine moves to the top right bubble, label it 11a. When it moves to the bottom left, label it 11b.
• Why: Labeling inside the hoop preserves the orientation and logic of the design.






When you are doing a lot of repeat appliqué, managing hoops becomes critical. Keeping your brother pr600 hoops organized and perhaps dedicating an older, beat-up hoop specifically for "paper duty" prevents sticky residue from ruining your good fabric hoops.

Phase 5: The Clean Finish

1. Unmount: Remove the hoop.
2. Peel: Gently remove the tape. If you used Painter's tape, the cardstock should release without tearing.
3. Cut: Use scissors to cut along the dotted perforation lines.
   • Pro Tip: Cut slightly outside the dots if you want the fabric slightly larger, or on the dots for an exact match. Consistency is key.




Operation Checklist (Post-Production)

• Every shape is labeled with a number (and letter if necessary).
• You have re-enabled the Thread Sensors on your machine immediately (don't forget this!).
• CHANGE THE NEEDLE. The needle used for paper is now dull/burred. Throw it away or mark it for paper-only use. Installing a fresh needle prevents fabric snags on your next run.
• Finished templates are stored in a Ziploc bag with the design notes.

Decision Tree: When to Upgrade Your Tools?

This video uses a standard hoop and tape—and it works for small batches. However, in a commercial environment, time is money. Use this logic tree to decide if you need to upgrade your gear.

1. Are you making templates occasionally (1-5 times a month)?

• YES: The Standard Hoop + Cardstock + Tape method described above is perfect. Cost: $0.
• NO: Go to #2.

2. Are you doing volume production (Team uniforms, 50+ patches)?

• YES: Hooping time is your enemy. Consider magnetic hoops for brother. They allow you to "slap and go" without unscrewing rings, which speeds up both template making and the actual fabric production.
• NO: Go to #3.

3. Are you struggling with "Hoop Burn" or thick fabrics (Carhartt jackets, Hoodies)?

• YES: Standard hoops crush fabric fibers. Even if not for speed, magnetic hoops or magnetic frames are essential here to preserve garment quality.
• NO: Stick to standard hoops, but ensure you are using the correct backing (Stabilizer).

Warning — Magnetic Safety: Magnetic embroidery hoops contain high-power Neodymium magnets.
* Danger: Keep away from pacemakers and implanted medical devices.
* Pinch Hazard: Do not let fingers get caught between the magnets; they snap together with crushing force.

Troubleshooting: Why Did It Fail?

Even with a good guide, variables can mess things up. Here is a quick diagnostic table.

The Commercial Logic: When Tools Pay You Back

Once you have made templates like this, you will notice a shift: the repeatability creates value. The template itself takes 10 minutes, but it saves 2 minutes on every single shirt you embroider thereafter.

• If you are making one gift, standard tools are fine.
• If you are running a business, the time spent hooping and re-hooping is your biggest labor cost.

Level Up Your Workshop:

• Speed: If mounting 110 lb cardstock feels tedious, imagine doing it for 100 shirts. This is where magnetic hoops for brother pay for themselves in labor savings within the first few jobs.
• Consistency: If you struggle to align the appliqué on the garment exactly where the template dictates, a hooping station for machine embroidery ensures that every shirt is hooped in the exact same spot, matching your template's precision.
• Capacity: If your single-needle machine is slowing down your template creation (and production), moving to a multi-needle platform like SEWTECH machines can offer the industrial reliability needed for scaling up.

Final Pro Tip: Always keep a "Paper Kit" near your machine—a bag containing your cardstock, Sharpie, paper tape, and that specific "Paper Only" needle. When the tools are ready, the fear of complex appliqué disappears.

FAQ

• Q: How do I keep 110 lb cardstock from “flagging” when hooping cardstock templates on a Brother PR-600 series multi-needle embroidery machine?
  A: Tape the cardstock to the bottom of the inner hoop ring until the paper behaves like a tight drum.
  • Cut the cardstock to match the inner ring opening exactly (not oversized, not undersized).
  • Flip the inner ring upside down, place cardstock on the bottom side, and tape at 12/3/6/9 o’clock first, then fill the gaps.
  • Add tape anywhere the cardstock can lift, especially near corners/curves of the outline area.
  • Success check: Tap the cardstock— it should feel smooth and sound like a dull thud, not rattle or bounce.
  • If it still fails: Re-cut the cardstock closer to the traced inner-ring line (poor fit causes wrinkles or gaps that lead to bouncing).
• Q: Why does a Brother PR-600 series embroidery machine stop immediately when running placement outlines with no thread for cardstock template perforation?
  A: Turn OFF the thread-related sensors so the Brother PR-600 series does not “panic” when it detects no tension.
  • Unthread the active needle completely (remove thread from the eye).
  • Disable the Thread Breakage Sensor (Thread Detection) in the machine settings.
  • Turn OFF the Thread Wiper (if applicable) so the machine does not try to cut non-existent thread.
  • Success check: The machine runs the outline and you hear steady needle “pock-pock” perforation sounds without stopping.
  • If it still fails: Re-check the settings menu—one sensor left ON can still trigger an immediate stop.
• Q: What speed and needle should be used on a Brother PR-600 series machine to perforate 110 lb cardstock cleanly without tearing the template?
  A: Use a size 75/11 sharp “paper-only” needle and slow the Brother PR-600 series down to about 400–600 SPM.
  • Swap to an old or designated paper needle (paper dulls needles quickly—do not use a fresh embroidery needle).
  • Reduce speed to 600 SPM or lower; avoid high-speed runs that can cause tearing or heat issues.
  • Keep the cardstock tightly taped so the needle makes clean holes instead of pulling paper fibers.
  • Success check: Holes look round and consistent, and the cardstock edge does not shred along the perforation line.
  • If it still fails: Lower speed toward 400 SPM and confirm the needle is 75/11 (larger needles can worsen tearing).
• Q: How do I skip satin/fill steps and run only placement outlines on a Brother PR-600 series embroidery machine for appliqué cardstock templates?
  A: Run only the outline/placement stops and use the Brother PR-600 series Forward/Color Change button to jump past tack-down and decorative steps.
  • Start the design and run the first placement outline stop with the needle unthreaded.
  • Press Forward/Color Change to skip any zigzag tack-down or fill stops you do not want perforated.
  • Label each perforated shape immediately with its stop number before moving on.
  • Success check: Only the placement outlines are perforated, and there are no extra hole patterns from fill/satin areas.
  • If it still fails: Watch the color-stop sequence on screen and advance one stop at a time until the next placement outline appears.
• Q: How do I label multi-part objects from the same color stop on a Brother PR-600 series so appliqué cardstock templates don’t get mixed up later?
  A: Label each piece with a letter suffix (for example, 11a/11b) while the Brother PR-600 series is still inside the hoop.
  • Watch the machine stitch path on the screen and write the label as each separate object is perforated.
  • Write the label inside the perforated shape (not outside), so orientation stays clear when cutting.
  • Keep numbering consistent with the machine’s stop number to match the design logic later.
  • Success check: After cutting, each template piece can be placed correctly without guessing “which piece goes where.”
  • If it still fails: Re-run the outline stop and label in real time—waiting until the end is what causes confusion.
• Q: What safety steps should be followed when running a Brother PR-600 series multi-needle embroidery machine with no thread to punch cardstock templates?
  A: Treat “air sewing” like real sewing—keep hands and loose items away because the needle still drives with full force.
  • Keep fingers, tape tails, hair, and loose clothing clear of the needle area while the machine is moving.
  • Never reach into the hoop area during stitching, even though there is no thread.
  • Stop the machine before adjusting tape or repositioning anything near the needle.
  • Success check: The run completes with no contact near moving parts and no tape gets pulled into the needle path.
  • If it still fails: Slow down the process—reduce speed and pause between stops to manage labels and tape safely.
• Q: When should an embroidery business switch from standard hoops to magnetic hoops, or upgrade to a multi-needle machine, for repeat appliqué template work?
  A: Use a tiered approach: optimize the standard hoop workflow first, then move to magnetic hoops for speed/garment protection, and consider a multi-needle platform when production volume demands it.
  • Level 1 (Technique): Use 110 lb cardstock, tape to the bottom of the inner ring, disable sensors, and run at 400–600 SPM for repeatable templates.
  • Level 2 (Tool): Choose magnetic hoops if hooping time is the bottleneck or if hoop burn/shiny marks happen on thick or sensitive garments.
  • Level 3 (Capacity): Move to a multi-needle production platform when single-needle throughput limits growth and consistent output is required at scale.
  • Success check: The workflow saves measurable time per item and reduces placement mistakes across repeat runs.
  • If it still fails: Track where time is being lost (hooping vs alignment vs rework) and upgrade only the step causing the most downtime.
