Stop Changing Thread 24 Times: Baby Lock Vesta Color Sort + Small Motifs That Look Like a Big Custom Design

Small embroidery designs can feel underwhelming—until you repeat them with intention. If you’ve ever stitched one tiny flower, stepped back, and thought, “That’s it?”, you’re not alone. The beginner’s trap is thinking you need a bigger design, when what you actually need is a system for repetition.

The Baby Lock Vesta (and similar single-needle machines) has specific features to help you multiply impact without multiplying frustration. However, mechanically managing these repeats introduces new risks: alignment shifts, hoop burn, and thread nest incidents.

In this operator’s guide, we will move beyond the basic video demonstration to a production-grade workflow. You will learn to:

1. Locate micro-designs hidden in sub-menus.
2. Batch your color data to reduce thread changes from 20+ down to 4.
3. Stabilize the workflow physically to prevent "hoop drift."


Small motifs on cuffs and collars: why “tiny” designs on the Baby Lock Vesta are secretly powerful

A tiny design serves a structural purpose: it is the "mortar" between the "bricks" of your main design. Whether on cuffs, collars, or quilt blocks, these accents fill negative space.

However, from an engineering perspective, small designs are high-risk. They often contain satin stitches narrower than 2mm.

The Golden Rules of Micro-Embroidery:

1. Speed Limit: Do not run your machine at max speed (e.g., 1000 SPM) for tiny details. Slow down to 600-700 SPM. This reduces the vibration that causes small satin columns to look "shaky."
2. Scaling Constraints: Never scale a tiny built-in design up or down by more than 20%.
   • Risk: Scaling down >20% makes stitches too dense, leading to needle breakage.
   • Risk: Scaling up >20% reduces density, exposing the fabric underneath.
3. Batch Planning: If you place 12 flowers with 3 colors each, that is 36 manual thread changes. This is not just tedious; it is a repetitive strain injury risk. We must batch these.


Find the hidden “Buttonhole Embellishments” menu on the Baby Lock Vesta (and pick designs that stay crisp)

On the Vesta interface, these designs are sequestered because they are digitized differently than standard florals—they are optimized for high density in small footprints.

Navigation Path:

1. Select Exclusives from the home screen.
2. Locate the Buttonhole category (icon looks like a buttonhole).
3. Select Buttonhole Embellishments.
4. Visual Check: Look for the dimensions. Kathy selects a motif approx. 0.70" x 1.28" (18mm x 32mm).


What to do on the screen (exactly what the video demonstrates)

Follow this sequence to access the protected library:

1. Exclusives > Buttonhole > Buttonhole Embellishments.
2. Tap your motif.
3. Sanity Check: Look at the stitch count. A design this size should be under 2,000 stitches. If it is higher, it is too dense for lightweight fabrics without heavy stabilization.


The “color matching trick” inside Vesta memory: batch tiny designs so Color Sort can actually help

To the machine, "Green #307" and "Green #507" are different instructions, necessitating a stop and a trim. To make the Color Sort function work, you must manually homogenize these data tags.

The Procedure:

1. Select your first flower.
2. Change its leaf color to a primary palette color (e.g., Standard Red).
3. Select the second flower.
4. Change its leaf color to that exact same Standard Red.

Why this matters: You are creating a digital "marker." You are not necessarily committing to using red thread; you are simply telling the machine's processor, "Treat these two objects as one group."

Why this works (and how to avoid a common mistake)

• The Logic: The Vesta groups strictly by digital ID.
• The Error: If you eyeball it and pick a "similar" green, the machine will not group them. You must use the identical color chip from the machine's chart.

Big script, clean layout: rotate 90°, position precisely, then auto-center the whole composition

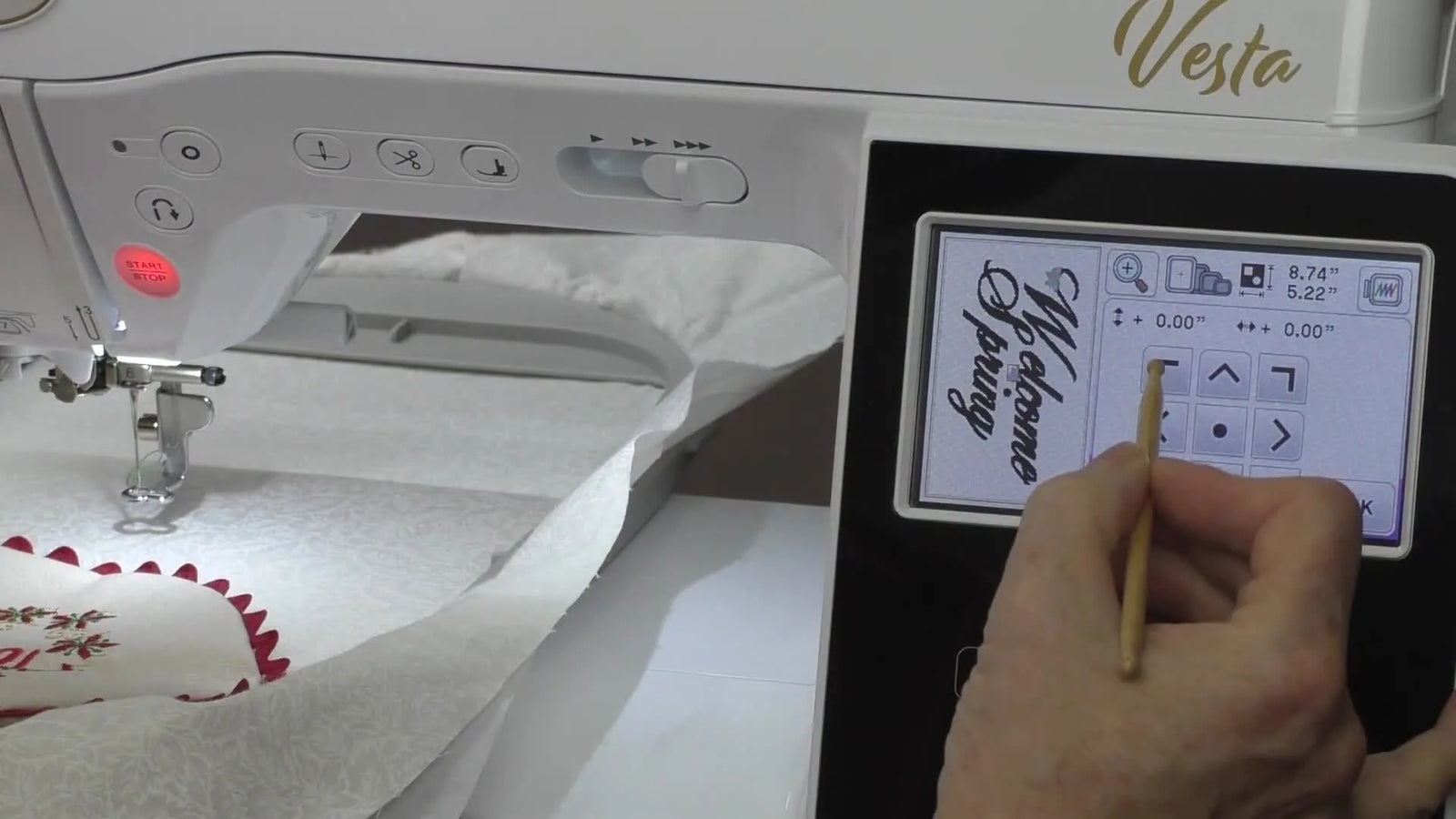

When working with the "Welcome Spring" exclusive script (approx. 9" x 3"), you are pushing the physical limits of standard 5x7 or 6x10 hoops.

The Physics of Rotation: The machine prompts a 90-degree rotation because the design width exceeds the hoop's X-axis limit.

• Note: When the machine rotates the design, you must ensure your stabilizer is hooped tightly enough to resist the change in "grain" pull. Stitches running perpendicular to the fabric grain cause more distortion than those running parallel.


The layout workflow shown in the video

1. Insert: Exclusive script letters.
2. Action: Tap "OK" on the 90° rotation prompt.
3. Alignment: Use the directional arrows to position "Spring" beneath "Welcome."
4. The "Click": Go to Edit End and press the Center icon. Visually confirm the design jumps to the crosshair center.


The Color Sort “gotcha” nobody tells you: overlapping red selection boxes break grouping

This is the most common reason for technical failure in "Color Sort."

The machine creates a saved boundary (a red box) around every design element. If Box A touches Box B, the machine's collision detection logic prevents it from reordering the stitches, fearing that changing the order will ruin the layering (e.g., stitching a flower under the leaves instead of over them).

Troubleshooting symptom (from the video)

• Symptom: You press "Color Sort," but the stitch list remains long (mixed colors).
• Likely Cause: Overlapping bounding boxes.
• Quick Fix: Use the Move tool to nudge elements apart by 1mm until the boxes no longer touch.
• Advanced Fix: The "Stitch in Layers" method (below).

The “stitch-in-layers” workaround: save two files in Vesta memory and stitch without re-hooping

If you cannot separate the designs (because you want them visually close), you must bypass the collision logic by splitting the job into two digital files but one physical session.

Critical Success Factor: This method relies entirely on Hoop Stability. If the fabric shifts even 1mm between File A and File B, your design is ruined. This is where standard plastic hoops often fail due to "flagging" (bouncing fabric).

Step-by-step (exact sequence demonstrated)

1. Design: Create the full layout (Text + Flowers).
2. Save Master: Save to machine memory.
3. File A (Text): Delete all flowers. Save as "Job_Text".
4. File B (Motifs): Reload Master. Delete all text. Turn on Color Sort (now that text boxes are gone, it should work). Save as "Job_Flowers".
5. Execution: Stitch File A. Do not touch the hoop lever. Load File B. Stitch File B.

Make Color Sort actually pay off: turn 24+ thread changes into a few grouped runs

Kathy demonstrates reducing a 24-change nightmare into a 4-change breeze.

Expert insight: batching is more than convenience—it’s stitch quality

Every time the machine stops for a thread change:

1. The trim mechanism engages (risk of pulling the bobbin tail).
2. You touch the hoop/machine (risk of bumping alignment).
3. The pantograph moves (risk of registration shift).

The Math: Reducing alignment events from 24 to 4 reduces your error probability by 83%.

The spool cap fix for thread “jumping”: use the large spool cap with straight-wound spools

Thread delivery tension is often the silent killer of small satin stitches.

• Parallel (Straight) Wound Spools: (Like cylinder shapes) The thread exits from the side. These require a spool cap slightly larger than the spool diameter to prevent the thread from snagging on the spool's distinctive notch.
• Cross Wound Spools: (X-pattern) These usually do not need a cap, or use a small one.

Sensory Check: As the thread feeds, listen. A rhythmic "tick... tick..." sound usually means the thread is catching on a spool nick or the cap is too small. Switch to the large spool cap immediately.

Warning: Mechanical Safety. Keep fingers, hair, and jewelry away from the take-up lever (the metal arm moving up and down). It moves faster than the eye can track. Never attempt to grab a loose thread tail while the machine is running.

The Shapes tab heart trick: use a heart outline as a placement template, then delete it before stitching

This is digital "basting." Using a shape as a temporary guide ensures symmetry without measuring.

What she does on-screen

1. Shapes Tab > Select Heart.
2. Resize to fill the safety area.
3. Place flowers along the line.
4. Critical Step: Delete the heart object before saving/stitching. If you forget, you will have an unwanted outline stitched through your flowers.


The “fill the gaps” method: re-layer motifs to make borders look intentional (not sparse)

Professional digitizers do not create perfectly mathematically spaced borders; they create optically spaced borders.

1. Place your primary anchors (corners and centers).
2. Step back and squint at the screen. Look for "holes" in the visual weight.
3. Duplicate a small bud or leaf to fill that gap.


The “hidden” prep that keeps repeats clean: stabilizer, hooping tension, and why re-hooping is where projects go wrong

The video covers the software, but the hardware determines the success. When stitching repeats, specifically text followed by borders, Hoop Burn and Hoop slippage are the enemies.

Standard plastic hoops rely on friction and screw tension. To hold fabric tight enough for dense satin stitches, you often have to overtighten the screw, which crushes the fabric fibers (hoop burn).

The Professional Solution: Many operators experiencing this issue upgrade to magnetic hoops for babylock embroidery machines.

• Why: Magnetic force distributes pressure evenly across the entire frame, rather than focusing it at the screw point. This eliminates hoop burn on sensitive fabrics (like velvet or dark cotton) and holds the material firmly without the "tug of war" required by plastic hoops.

Prep Checklist (Do this before you touch the screen)

• Needle: Is it fresh? Use a 75/11 Embroidery Needle. (Test: If it feels dull on your fingernail, trash it).
• Bobbin: Is the bobbin area clear of lint? A single lint ball can ruin tension on small fonts.
• Hidden Consumable: Do you have temporary adhesive spray (like KK100)? Use a light mist on your stabilizer to prevent the fabric from bubbling in the center of the hoop.
• Hoop: Clean the inner surface of your hoop. Oil/residue causes slippage.

Setup like a production-minded embroiderer: memory versions, color markers, and a simple decision tree for stabilizer

Stop guessing. Use this logic tree to determine your setup.

Stabilizer Decision Tree

Setup Checklist:

1. [ ] Memory: Saved "Text Only" and "Motif Only" files?
2. [ ] Center: Did you verify centering with the grid overlay?
3. [ ] Collision: Validated that no red bounding boxes overlap in the Motif file?
4. [ ] Thread: Large spool cap installed for straight-wound spools?

If you perform these setups frequently, consider an embroidery hooping station. This tool holds the hoop static while you align the garment, ensuring that your "Welcome Spring" isn't tilted 5 degrees to the left.

Operation: stitch text first, then motifs—without losing placement (and without losing your patience)

When executing the "Split File" method:

1. Run File A (Text).
2. STOP. Do not pivot the hoop. Do not rest your hand on the hoop.
3. Run File B (Motifs w/ Color Sort).

Production pros use hooping stations to ensure the initial hoop is perfectly square, but once it is on the machine, your hands should only touch the screen, not the fabric.

Operation Checklist (The "Pilot" Check)

• First 100 Stitches: Watch the needle. Is the fabric "flagging" (bouncing up and down)? If yes, your hooping is too loose. Pause -> Abort -> Re-hoop.
• Sound Check: Listen for the "Click" of the trimmer. If it sounds like a "crunch," check the bobbin case immediately.
• Color Change: Verify the machine is stopping for the color group you expect.

Two fast “watch outs” from the demo that save hours later

1. The "Ghost" Grouping: If you color sort and the machine still separates colors, you likely missed a bounding box overlap by a fraction of a millimeter. Zoom in to 200% on the screen to check.
2. The Marker Color: Always use high-contrast marker colors (like Neon Red or Blue) for your grouping, even if the final thread will be pastel. It makes visual verification on the screen much faster.

The upgrade path when you start doing this for real: speed, consistency, and fewer hoop marks

Once you master the software side of "small motif repeats," the physical limitations of single-needle machines and plastic hoops become the bottleneck. You may experience wrist pain from tightening screws or frustration from "hoop burn" marks that won't iron out.

Level 1 Upgrade: Tooling To solve hoop burn and speed up the framing process, look into a babylock magnetic embroidery hoop.

• Benefit: Zero-screw framing. You simply lay the top frame over the fabric.
• Selection: Check babylock magnetic hoop sizes carefully. A 5x7 magnetic frame is often the "sweet spot" for cuff and collar work discussed in this guide.

Level 2 Upgrade: Efficiency If you are producing 10+ items at a time, the magnetic embroidery hoops ecosystem allows you to hoop the next garment while the current one is stitching (if you buy a second hoop), doubling your throughput.

Warning: Magnet Safety. These are industrial-strength neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
* Medical Devices: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Do not place directly on top of smartphones or credit cards.

A final reality check: this is how small designs become a signature style

The difference between "homemade" and "handcrafted" is often the density of detail.

By using the Vesta's memory to layer designs, and using a magnetic embroidery hoop to ensure those layers align perfectly without shifting, you transform a standard "Welcome" text into a bespoke, high-value composition.

Start with one small flower. Batch it. Repeat it. That is how you build a border.

FAQ

• Q: On the Baby Lock Vesta, how can embroidery operators find the “Buttonhole Embellishments” menu for tiny high-density motifs?
  A: Use the exact on-screen path: Exclusives > Buttonhole > Buttonhole Embellishments.
  • Tap Exclusives on the home screen, then open the Buttonhole category (buttonhole icon).
  • Select Buttonhole Embellishments, then choose a small motif and confirm the displayed size.
  • Success check: the motif loads on-screen and the design dimensions are visible (example shown: about 0.70" x 1.28" / 18mm x 32mm).
  • If it still fails: return to the home screen and re-enter Exclusives (not the standard floral library), because these motifs live in a separate category.
• Q: On the Baby Lock Vesta, what stitch-count limit is a safe screen check for tiny motifs on lightweight fabrics before stitching?
  A: As shown in the workflow, a tiny motif around that size should generally be under 2,000 stitches unless heavy stabilization is used.
  • Open the motif and look at the stitch count before saving or duplicating.
  • Slow the machine down for micro-details (the guide recommends 600–700 SPM) to reduce vibration on narrow satin stitches.
  • Success check: the motif preview looks crisp and the stitch count stays in the “small” range (not unexpectedly high for the footprint).
  • If it still fails: add stronger stabilization (or choose a lighter motif) before forcing the same dense design onto lightweight fabric.
• Q: On the Baby Lock Vesta, how can embroidery operators make Color Sort work when “Green #307” and “Green #507” won’t group for repeated motifs?
  A: Change each repeated object to the exact same color chip in the Vesta palette to “homogenize” the digital color ID.
  • Select the first flower element and change the target area (like leaves) to one standard palette color.
  • Select every matching element in the other motifs and set it to that identical palette chip (not a “similar” shade).
  • Success check: after running Color Sort, the stitch list collapses into grouped color runs instead of many alternating stops.
  • If it still fails: zoom in and verify every repeated element truly uses the same palette chip, because the Vesta groups strictly by digital ID.
• Q: On the Baby Lock Vesta, why does Color Sort fail when repeated motifs are close together, and how can operators fix overlapping red selection boxes?
  A: Color Sort often cannot reorder stitches when the red bounding boxes overlap, so separate the objects slightly or use a layered-file workaround.
  • Nudge motifs apart by about 1 mm using Move until the red boxes no longer touch.
  • Re-run Color Sort and re-check the stitch list for grouped runs.
  • Success check: the stitch list becomes shorter and grouped by color (instead of staying long and mixed).
  • If it still fails: split the job into “Text Only” and “Motifs Only” files and stitch them sequentially without re-hooping.
• Q: On the Baby Lock Vesta, how can embroidery operators use the “stitch-in-layers” method (two saved files) without losing alignment between text and motifs?
  A: Save a master layout, then stitch File A (Text) and File B (Motifs) in one session without releasing or shifting the hoop.
  • Save the full layout as a Master file in machine memory.
  • Create Job_Text by deleting flowers; create Job_Flowers by deleting text and enabling Color Sort.
  • Stitch Job_Text, then load Job_Flowers without touching the hoop lever or bumping the hoop.
  • Success check: the second file lands exactly on the first file’s placement with no visible offset (even a 1 mm shift is a fail for this method).
  • If it still fails: treat it as a hoop-stability issue—re-hoop more firmly and consider tools that reduce fabric “flagging” and drift.
• Q: On the Baby Lock Vesta, how can embroidery operators stop thread “jumping” or ticking when using straight-wound spools on small satin stitches?
  A: Install the large spool cap when using parallel (straight) wound spools so the thread cannot catch on spool notches.
  • Identify the spool type: straight-wound spools feed from the side and commonly need a cap slightly larger than the spool diameter.
  • Listen during stitching and stop if a rhythmic “tick…tick…” starts—swap to the large cap immediately.
  • Success check: the ticking stops and thread feeds smoothly without sudden tension spikes that damage tiny satin columns.
  • If it still fails: re-check the spool for nicks/catching points and confirm the thread path is fully seated before restarting.
• Q: What machine safety rule should Baby Lock Vesta embroidery operators follow around the take-up lever when fixing a loose thread tail?
  A: Keep fingers, hair, and jewelry away from the take-up lever and never try to grab a loose tail while the machine is running.
  • Stop the machine first before touching thread near moving parts.
  • Hold thread tails only when the machine is stationary and you have full control.
  • Success check: no near-misses—hands stay clear of the fast-moving metal arm during operation.
  • If it still fails: pause the job, power down if needed, and re-thread calmly—rushing around the take-up lever is how injuries happen.
• Q: What magnetic hoop safety precautions should embroidery operators follow when using neodymium magnetic embroidery hoops/frames for repeated designs?
  A: Treat magnetic hoops as industrial-strength magnets: handle by the edges and keep them away from medical devices and sensitive electronics.
  • Keep fingers out of the closing gap to avoid pinch injuries when the frames snap together.
  • Maintain at least 6 inches clearance from pacemakers and insulin pumps.
  • Do not place magnetic frames directly on phones, credit cards, or similar items.
  • Success check: the frame closes without finger pinches and the workspace stays clear of at-risk devices/electronics.
  • If it still fails: slow down handling, separate magnets carefully, and set a dedicated “magnet-safe” area on the worktable before continuing.
