Stop Crooked Logos Fast: Hooping Shirts, Pockets, Cuffs, Hat Backs, Bags, and Towels with the All-In-One Hooper + Leveler Pro + Sleeve Board Pro

Master Class: Precision Hooping on the All-In-One Hooper

A Field Guide to Eliminating "Drift" and ghosting the fear of crooked logos.

If you run production embroidery, you already know the real enemy isn’t the stitch file—it’s placement drift. One crooked left-chest logo can wipe out the profit on the whole order. More importantly, the psychological toll of "hoping it's straight" instead of "knowing it's straight" leads to operator burnout.

This walkthrough rebuilds the exact workflow shown in the video for the All-In-One Hooper system (with the Leveler Pro and Sleeve Board Pro), but we are going deeper. We are adding the sensory cues, physics, and "old shop" discipline that keep hooping consistent when you’re tired, busy, or training a new operator.

The Calm-Down Moment: What the All-In-One Hooper System Actually Solves (and What It Doesn’t)

The All-In-One Hooper is a positioning and hooping workflow: it helps you repeat the same placement on shirts, pockets, cuffs, hat backs, bags, and towels by giving you hard reference edges, centerlines, and board markings. It replaces "eyeballing" with mechanical stops.

However, precise placement does not guarantee good embroidery. The station puts the hoop in the right spot, but physics dictates the quality. If your embroidery is straight but still puckers, that is a stabilizer + fabric tension issue, not a "station" problem.

If you’re comparing systems, many shops lump these tools into the same mental bucket as a machine embroidery hooping station—and that’s fair. The distinct advantage here is utilizing the interchangeable boards to minimize the amount of fabric you have to fight against, allowing your team to hit the same landmarks every time with less physical wrestling.

The “Hidden” Prep Before You Hoop Anything: Backing Timing, Hoop Ring Fit, and Landmark Discipline

The video shows a pattern that matters more than people realize: backing goes in early on narrow items (sleeves, headbands, totes), and the garment is always pulled and squared to a reference edge before the hoop is pressed.

Two habits prevent 80% of rehoops and production failures:

1. Landmarks first, hoop second. You must trust the physical geography of the garment. Shoulder seams, button placket center, pocket lip, cuff edge, hat back seam—pick the landmark that can’t move.
2. Hoop ring fully seated. The video repeats this for a reason: if the ring isn’t pushed in all the way, you’ll get micro-slippage.
   • Sensory Check: You should hear a distinct snap or feel the inner ring bottom out against the outer ring. If it feels "mushy," your backing or garment is folded improperly.

From a physics standpoint, hooping is controlled tension: you’re creating a flat, evenly stressed window. If one side is tighter (drum-tight) and the other is loose, the fabric releases that tension during stitching, causing the design to oval or ripple.

Warning: Mechanical Hazard
Keep fingers clear when pressing hoops into brackets and rings. The force required to seat a hoop over thick seams can be substantial. "Pinch points" are real, and a rushed press can bruise fingers or even crack acrylic boards if aligned poorly.

Prep Checklist (Do this once per job batch)

• Hoop & Ring Inspection: Check the inner hoop for burrs (run a fingernail around the edge) and ensure the adjustment screw on the outer hoop is set for the current fabric thickness.
• Consumables Check: Do you have enough pre-cut backing? Do you have temporary spray adhesive (e.g., 505 spray) or a water-soluble marking pen for dark fabrics?
• Landmark ID: Identify the specific landmark for this item (e.g., "Top of pocket," "Center of placket").
• Pre-load Decision: Decide if backing must be inserted into the garment before loading (sleeves, totes) or placed under the hoop later.
• Tension Calibration: Do a "pull test" on the first hooped item. The fabric should be taut like a trampoline, not stretched distortively like a rubber band.


Leveler Pro Setup: Using the 15 cm Crosshair + Green Sticker to Lock in Shirt Placement

In the video, the Leveler Pro is mounted so the 15 cm crosshair sits over the Large/Extra Large green color-coded sticker. That’s your repeatable reference for large garments.

The key is that the board gives you a consistent "zero point," but the garment still has to be squared:

1. Tug the garment down to remove slack.
2. Align shoulder seams with the front edge of the board.
3. Use the top reference line and the button placket to maintain center verticality.

This is the same mindset many operators bring from a hoopmaster hoop station workflow: the station provides the Euclidean geometry, but the operator must provide the discipline to load the garment straight. Without the operator's eye on the shoulder seams, the station cannot save you.

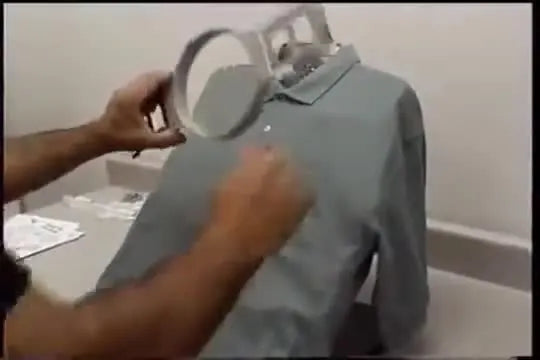

Large Knit Shirt Hooping on the All-In-One Hooper: The Tug-Down + Shoulder-Seam Rule That Keeps Logos Straight

The Goal: A left-chest logo that doesn't tilt when the wearer moves.

The Workflow (Action-First):

1. Mount the Leveler Pro with the 15 cm crosshair aligned to the green sticker.
2. Place the backing. Lift the plastic magnetic tab, slide the pre-cut backing in, and release the tab to clamp it.
   • Tip: Use a medium-weight Cutaway stabilizer (2.5oz - 3.0oz) for knits to prevent distortion. Only use tear-away if you want the design to warp after the first wash.
3. Load the shirt. Gather the hem and slide the shirt over the device like a pillowcase.
4. Square the fabric. Tug down firmly on the tail. Align the shoulder seams perfectly with the front edge of the board. Ensure the button placket runs directly over the center reference line.
5. Place the outer hoop so it rests securely on the bottom bracket.
6. Press the inner hoop into place. Use two hands for even pressure. Push until you feel it seat fully.
7. Remove. Pull the hoop toward you, then lift up and over the device.
8. Verify. Check the back of the hoop ring—it must be flush.

Target Outcome:

• Visual: Shoulder seams are equidistant from the hoop center.
• Tactile: The fabric in the hoop is smooth but not over-stretched.
• Metric: If you pull on the fabric inside the hoop, it should have minimal give, similar to a tightly made bed sheet.


Hooping Above a Shirt Pocket: Squaring the Hoop Arms to the Pocket Lip (So It Doesn’t Look ‘Off’)

Pocket-adjacent logos are where customers notice crookedness fastest because the pocket acts as a horizontal ruler.

The Workflow:

1. Setup: Use the same Leveler Pro position as the large shirt.
2. Load & Square: Insert backing, load shirt, align shoulder seams and center placket.
3. Reference: Rest the inner hoop on the lower bracket.
4. Refine: Pull the fabric gently around the outside of the hoop area to flatten it.
5. Align: Look at the bottom arms of your hoop. They should be perfectly parallel to the top hem of the pocket lip.
6. Press: Push the hoop firmly into place.

The "Why": Even if the shirt is technically straight on the board, pockets are often sewn crookedly at the factory. By visually "squaring" your hoop to the pocket lip, you ensure the embroidery looks correct relative to the pocket, which is what the eye perceives.

If you are building a scalable workflow for uniforms, this ability to reference existing seams is exactly why professional shops invest in hooping stations. They turn variable garments into fixed variables.

Sleeve Board Pro Swap: The Fast Changeover That Makes Cuffs and Narrow Items Possible

The video shows a high-value production move: removing the Leveler Pro and installing the Sleeve Board Pro.

Why it matters: Hooping a narrow sleeve on a wide board stretches and distorts current fashion-fit sleeves. A dedicated sleeve board isolates the work area, reducing the "fabric fight."

Quick Step:

• Unscrew/Unclip Leveler Pro.
• Slot in Sleeve Board Pro.
• Hidden Consumable Idea: Keep a small magnetic dish nearby for your screws. In a busy shop, a dropped screw is 5 minutes of lost profit.


Shirt Cuff Hooping on Sleeve Board Pro: Insert Backing First, Then Use Bracket Screws as Your Straight Edge

The Workflow:

1. Pre-load Backing: Roll your backing (likely tear-away or fusible) and insert it into the sleeve before sliding it onto the board.
2. Load: Slide the cuff onto the Sleeve Board Pro.
3. Align: Use the bracket screws on the station as your "hard ruler." Line up the finished edge of the cuff with these screws.
4. Press: Insert the hoop and press down.
5. Verify: Hold the shoulder up to ensure the sleeve seam runs straight down the center axis of the hoop.

Critical Success Factor: Cuffs are thick (multiple layers of fabric + interfacing). You need to apply significant pressure to get the hoop to seat. If the hoop pops out, do not increase steady pressure; instead, apply a quick, firm "pop" of force to lock the ring.

If you struggle here, this is a prime indicator that you might need to upgrade to Magnetic Hoops. They clamp thick cuffs without the friction struggle of traditional tension rings.

Hat Back Hooping (Adjustable Strap): Match the Curved Line on the Sleeve Board to the Hat Curve

The Workflow:

1. Reference: Locate the printed curved line on the Sleeve Board.
2. Load: Place the back of the cap (adjustable strap open) onto the board.
3. Align: Match the natural curve of the cap opening to the curved line on the board.
4. Flatten: Pull the cap material taut around the outside edges.
5. Press: Push the hoop down.
6. Backing: Slide a piece of tear-away backing underneath the hoop area (between the arm and the hat) before sewing, or float it under the machine needle.

Reality Check: This method is for the back arch of the cap only. It does not replace a cap driver for front panels. It is excellent for "Web Address" or "Staff Name" placements.

Hat Back Hooping (Fitted Cap): Use the Straight Line to Control the Back Seam

The Workflow:

1. Reference: Locate the straight vertical line on the board.
2. Align: Line up the vertical center seam of the fitted cap with this line.
3. Smoothen: Ensure the sweatband is flipped out or lying flat so it doesn't create a lump under the embroidery area.
4. Press: Hoop firmly.
5. Backing: Slide backing underneath the hoop assembly.

Outcome: The text will be centered exactly on the seam. Without this visual guide, it is nearly impossible to eye-ball a center seam on a curved surface.

Polar Fleece Headband Hooping: Control Stretch with One Hand While You Seat the Hoop

Fleece is deceptive. It looks stable, but it stretches violently under needle penetration, leading to distorted text.

The Workflow:

1. Stage Backing: Insert a layer of Cutaway backing inside the headband before loading.
2. Load: Slide headband over the sleeve board.
3. Align: Use the slim guide near the back-of-hat line.
4. Tension Control: Place one hand at the bottom of the band and apply slight downward tension to remove wrinkles. Do not over-stretch.
5. Press: Hoop with the other hand.

The "Why": If you stretch fleece tight while hooping, it will snap back to its original shape when you unhoop it, causing your embroidery to bunch up. You want "neutral tension."

Upgrade Note: For shops doing high volumes of fleece, combining proper backing with sleeve hoops for embroidery specifically designed for narrow diameters can reduce the "hoop burn" marks often left on plush fabrics.

Cooler Bags and Slim Pockets on Sleeve Board Pro: Isolate the Pocket, Then Square It

The Workflow:

1. Load: Slide the specific pocket you want to embroider over the board.
2. Isolate: Ensure internal dividers, linings, or other pockets are pushed away from the hoop area underneath.
3. Square: Align the pocket side-to-side and top-to-bottom using the board edges.
4. Press: Hoop firmly.

Pro Tip: Cooler bags often have foam insulation. This foam resists hooping. If you cannot get the inner ring to seat, do not force it to the breaking point. This is a scenario where Magnetic Hoops are superior, as they hold the thickness magnetically rather than relying on friction and displacement.

When Bag Material Bunches: The “Pull Around the Outside” Move That Saves You From Wrinkles

The video calls out a tactical fix for stiff materials (canvas, denier nylon):

The Symptom: The pocket face looks flat, but there is hidden slack trapped against the inner ring wall.

The Fix: Before pressing the hoop down that final millimeter:

1. Pause.
2. Sweep your fingers around the outside perimeter of the hoop.
3. Pull the slack outward, away from the center.
4. Finish the press.

This redistributes the material so the needle doesn't stitch a pleat into your bag.

Tote Bag Hooping: Match the Tote’s Top Edge to the Bracket’s Top Edge for Repeatable Placement

The Workflow:

1. Stage Backing: Place tear-away (or cut-away for heavy stitching) inside the tote.
2. Load: Slide the tote onto the board.
3. Stop: Pull the tote down until the top hem catches or aligns perfectly with the top edge of the hoop bracket. This is your mechanical stop.
4. Press: Hoop it.

Value: If you are doing 50 totes for a trade show, using this "mechanical stop" method ensures every logo is exactly 4 inches (or whatever your distance is) from the top edge, without measuring a single one.

Towel Hooping on the Sleeve Board: Backing Under First, Then Align Side-to-Side Before You Press

The Workflow:

1. Stage Backing: Place backing under the towel (or float cutaway under the hoop).
2. Topping (Crucial): Although not always shown, standard practice on towels requires a water-soluble topping (Solvy) on top to prevent stitches from sinking into the loops.
3. Load & Align: Slide towel over. Check the dobby border or side hem for straightness.
4. Press: Hoop safely.

Texture Check: Towels are slippery. Ensure your hoop screw is tightened before you press, so the ring grips the terry cloth immediately.

Stabilizer Decision Tree: The Logic Behind the Hooping

The station guarantees placement; stabilizer guarantees quality. Use this logic flow before every job:

1. Is the fabric stretchy (Knit shirt, Fleece, Beanie)?
   • YES: Use Cut-Away (2.5oz - 3.0oz). The backing must exist forever to hold the stitches.
   • NO: Go to step 2.
2. Is the fabric unstable/loose weave (Pique Polo, Towel)?
   • YES: Use Cut-Away for Polos; Tear-Away + Soluble Topping for Towels.
   • NO: Go to step 3.
3. Is the fabric stable and woven (Denim, Canvas Tote, Dress Shirt)?
   • YES: Use Tear-Away. The fabric supports itself; the backing just stabilizes the needle impact.
4. Is the item thick/unhoopable (Carharrt Jacket, heavy bag)?
   • YES: Use Sticky Backing or Spray Adhesive and "Float" the item, or upgrade to Magnetic Hoops.

Troubleshooting the Three Classic Hooping Failures

When things go wrong, check these Physical factors first before blaming the machine digitizing.

Setup Checklist (Pre-Flight for Production)

• Board Selection: Installed Leveler Pro (Shirts) or Sleeve Board Pro (Narrow items)?
• Geometry Check: Confirm the Crosshair (15cm) + Sticker (Green) alignment is set.
• Hardware Check: Are the screws holding the board tight? (Wobbly boards = crooked shirts).
• Dry Run: Load one garment without hooping it. Does it feel natural? Are your landmarks visible?
• Safety: Ensure the hoop arms are clear of the bracket mechanism to avoid cracking the plastic.

The Upgrade Path: When Good Hooping Isn't Enough

The All-In-One Hooper solves the "Where" (Placement). But as your business grows, you will encounter the limits of "How" (Mechanics) and "How Much" (Volume).

1. The Pain of "Hoop Burn" & Wrist Fatigue:
   If you are pressing hoops onto thick hoodies or delicate performance wear all day, you will eventually hurt your wrists or leave permanent ring marks on the clothes.
   • The Solution: Magnetic Hoops. They snap shut using magnetic force rather than friction. They are faster, require less physical force, and leave zero "hoop burn."

Warning: Magnetic Safety
Magnetic hoops are incredibly powerful. They can pinch skin severely if handled carelessly. Use the provided leverage tabs to open them. Do not use if you have a pacemaker, as the magnetic field can interfere with medical devices.

1. The Bottleneck of Volume:
   You have mastered placement, but you are still standing in front of a single-needle machine changing threads manually. You are spending more time swapping spools than hooping shirts.
   • The Solution: SEWTECH Multi-Needle Embroidery Machines. High-capacity machines allow you to set up 10-15 colors at once. The true production unlock is Overlap: You hoop the next shirt on your station while the machine stitches the previous one. This is how you move from a hobby to a profitable business.

Operation Checklist (The Final "Go/No-Go")

• Landmark Verification: Is the center placket/seam aligned with the board mark?
• Flatness Check: Is the fabric in the window taut but not distorted?
• Stabilizer Check: Is the correct backing present and covering the entire hoop area?
• Seat Check: Is the inner ring absolutely flush with the outer ring?
• Visual Tilt Test: Step back 3 feet. Does it look straight? (Your eye is better than a ruler).

If you build these checks into your muscle memory, you stop hoping for good results and start manufacturing them. Consistency is the only currency that matters in embroidery.

FAQ

• Q: On the All-In-One Hooper system, what causes the hoop ring to pop loose when hooping thick cuffs on the Sleeve Board Pro?
  A: The hoop ring usually pops loose because the inner ring is not fully seated or the outer hoop screw is too loose for the fabric thickness.
  • Tighten: Set the outer hoop screw slightly tighter before pressing the ring in (match the current cuff thickness).
  • Press: Use a quick, firm “pop” of force to lock the ring instead of increasing slow, steady pressure.
  • Verify: Check the back of the hoop ring and confirm the inner ring is flush with the outer ring.
  • Success check: Hear/feel a distinct “snap/thud” when the ring seats; the ring sits fully down with no gap.
  • If it still fails: Stop forcing the hoop and switch to a magnetic hoop for thick cuffs to clamp without friction struggle.
• Q: On the All-In-One Hooper Leveler Pro workflow, how can embroidery operators stop left-chest logos from drifting crooked on large knit shirts?
  A: Lock placement by squaring the shirt to fixed landmarks before pressing the hoop, not by “eyeballing” the design area.
  • Tug: Pull the garment tail down firmly to remove slack before hooping.
  • Align: Match both shoulder seams evenly to the front edge of the board and keep the button placket on the center reference line.
  • Press: Push the inner hoop with two hands evenly until it fully seats.
  • Success check: Shoulder seams look equidistant from hoop center, and the fabric feels taut like a trampoline (not stretched like a rubber band).
  • If it still fails: Re-check that the board is tight (no wobble) and redo the first garment as a tension/landmark “calibration” sample.
• Q: When hooping on the All-In-One Hooper system, how do embroidery operators fix fabric puckering caused by slack trapped inside the hoop ring?
  A: Use the “pull around the outside” move right before the final press to redistribute hidden slack away from the stitch window.
  • Pause: Stop just before the hoop is fully pressed down.
  • Sweep: Run fingers around the outside perimeter of the hoop area.
  • Pull: Draw slack outward away from the center, then finish seating the hoop.
  • Success check: The fabric surface inside the hoop looks smooth with no ripples, and it has minimal give when lightly tugged.
  • If it still fails: Confirm backing is used and the hoop ring is fully seated; inconsistent tension side-to-side will still pucker even with good placement.
• Q: What is the All-In-One Hooper prep checklist for backing timing, hoop ring fit, and consumables before running a production batch?
  A: Do one fast pre-flight per job batch to prevent rehoops: inspect the hoop, confirm consumables, and decide whether backing must be inserted early.
  • Inspect: Run a fingernail around the inner hoop edge for burrs and set the outer hoop screw for the current fabric thickness.
  • Stage: Prepare enough pre-cut backing and keep temporary spray adhesive (e.g., 505) or a water-soluble marking pen available when needed.
  • Decide: Insert backing early for narrow items (sleeves, headbands, totes) instead of trying to fight it later.
  • Success check: On the first hooped item, the fabric is taut but not distorted, and the ring feels fully seated (not “mushy”).
  • If it still fails: Re-check for folded backing/garment layers causing a “mushy” seat and redo the hoop with one clean layer at a time.
• Q: How should stabilizer be chosen for All-In-One Hooper jobs like knit shirts, towels, polos, denim/canvas totes, and thick bags?
  A: Use fabric behavior to choose stabilizer: cut-away for stretch or instability, tear-away for stable wovens, and topping for towels.
  • Choose: Use cut-away (2.5 oz–3.0 oz) for knits and fleece so the support remains after washing.
  • Add: Use tear-away plus water-soluble topping on towels to prevent stitches from sinking into loops.
  • Match: Use tear-away on stable wovens like denim, canvas totes, and dress shirts.
  • Success check: The design stays flat after unhooping—no edge ripples, no text distortion, and towel stitches sit on top of the loops (not buried).
  • If it still fails: For thick/unhoopable items, use sticky backing or spray adhesive and float the item, or move up to magnetic hoops.
• Q: What mechanical safety steps should embroidery operators follow when pressing hoops into brackets and rings on the All-In-One Hooper station?
  A: Keep hands out of pinch points and press with controlled, even force—thick seams can require surprising pressure.
  • Clear: Move fingers away from the bracket and ring interface before pressing.
  • Align: Ensure the hoop is properly aligned before applying force to avoid sudden slips and potential board cracking.
  • Press: Use two hands for even pressure when seating the inner ring.
  • Success check: The hoop seats cleanly without hand repositioning near the pinch zone, and the ring becomes flush without a struggle grind.
  • If it still fails: Stop and reset alignment—rushing a misaligned press is how bruised fingers and damaged boards happen.
• Q: What magnetic hoop safety rules should embroidery operators follow to prevent severe pinching when upgrading from tension hoops?
  A: Treat magnetic hoops as high-force tools: open and close them with the leverage tabs and keep skin clear of the closing path.
  • Use: Open magnetic hoops using the provided leverage tabs, not by prying at the seam with fingertips.
  • Keep clear: Maintain a safe gap between hands and the closing surfaces before letting the magnets snap shut.
  • Avoid: Do not use magnetic hoops if the operator has a pacemaker, because magnetic fields can interfere with medical devices.
  • Success check: The hoop closes without finger contact near the pinch zone, and the fabric is clamped securely with no “hoop burn” marks.
  • If it still fails: Slow down the handling sequence—most pinches happen during rushed alignment, not during stitching.
