Stop Cutting Fabric: A Ricoma HTV Appliqué Workflow That Rips Clean, Presses Flat, and Sews Fast

Mastering HTV Appliqué: The zero-cutting workflow for clean, lightweight embroidery

If you’ve ever loved the look of appliqué but hated the slow parts—cutting intricate shapes, trimming fraying edges with tiny scissors, fighting bulky layers—this HTV (Heat Transfer Vinyl) method is the kind of workflow typically reserved for high-volume shops.

In this guide, we break down how to run a standard appliqué design on a commercial machine (like a Ricoma or SEWTECH 15-needle), swapping fabric for Heat Transfer Vinyl. The mechanics are simple: the machine’s satin border stitches through the vinyl, creating a perforation line (like a postage stamp), allowing you to rip away the excess by hand. A final heat press permanently bonds the HTV to the shirt.

Done right, you achieve a "soft hand" finish that drapes beautifully on tees and teamwear, while slashing machine time by eliminating dense fill stitches.

Don’t Panic—HTV Appliqué Is Just Regular Appliqué with a Smarter “Top Layer”

HTV appliqué sounds high-tech, but let's demystify it: it is simply using a standard appliqué embroidery design (DST, PES, etc.). The difference lies in the material physics.

Instead of pre-cut fabric that frays, you tear off a rough piece of HTV that is simply larger than your design area. That one change removes the highest-friction step of classic appliqué: precision cutting before you even thread the needle.

If you are comfortable with garment hooping and tension basics, this is an “intermediate” technique. It combines two disciplines—embroidery mechanics plus heat transfer chemistry.

The “Hidden” Prep Pros Do First: HTV Side, Spray Control, and a Flat Garment Surface

The difference between a crisp logo and a wrinkled mess happens before you press start. We use a specific prep sequence to prevents 80% of common failures (wrinkles, shifting bubbles, and "lifting" later).

The Protocol (Why we do it)

1. Rough Tear: Tear a piece of HTV slightly larger than the design area. Do not waste time cutting it straight.
2. Adhesive Application: Spray temporary adhesive on the back side of the vinyl (the matte side that will touch the shirt).
3. The "Flat" Rule: Keep the vinyl strictly flat while spraying.

Sensory Check (Touch): The vinyl should feel tacky, like a Post-it note, not wet. If it feels wet, you've used too much spray, which will gum up your needle later.

Clarification: “Which side do I spray?”

This is a common point of confusion. You spray the carrier side's back—the side that lays against the fabric. You want the vinyl to stick to the shirt so it acts as one solid unit during the high-speed stitching.

Clarification: “What spray is that?”

We recommend a standard embroidery temporary adhesive spray (like Tempo or 505). These are designed to dissipate and not leave residue on your needle.

Prep Checklist (Do this or risk failure)

• Hidden Consumable: Do you have a Teflon sheet or parchment paper? (Required for the heat press step).
• HTV piece is torn larger than the full stitch area by at least 1 inch on all sides.
• Adhesive is sprayed lightly on the HTV back side (aim for a fine mist, not a puddle).
• Vinyl is held flat to avoid "memory curls" from the roll.
• Heat press is pre-heating to 320°F (160°C).

Hooping a T-Shirt in a Tubular Hoop Without Stretching It Out of Shape

The source video demonstrates using a standard green tubular hoop. While this works, hooping knits (t-shirts) is where most beginners fail.

The Physics of the "Lettuce Edge": If you pull a t-shirt "drum tight" in a standard hoop, you are stretching the fibers open. You then stitch a heavy satin border on top, locking the fibers in that stretched state. When you un-hoop, the fabric relaxes, but the stitches don't—creating a wavy, rippled border.

The Fix:

1. Stabilizer: Use Cutaway stabilizer. Tearaway is not strong enough for the specific density of satin borders on stretchy knits.
2. Tension: Hoop the shirt so it is stable, not stretched.

This is where the skill of hooping for embroidery machine dictates your quality.

Upgrade Path: Solving the "Hoop Burn" Pain

If you are doing production runs of 10+ shirts, standard hoops often leave circular "hoop burn" marks (crushed fibers) that require steaming to remove. This kills your efficiency.

The Solution: This is the specific scenario where upgrading to Magnetic Hoops (like the SEWTECH MaggieFrame series) pays for itself.

• Why? They use magnetic force rather than friction to hold the fabric. This eliminates hoop burn and allows you to adjust the fabric without un-hooping.
• Triggers for Upgrade:
  • You are spending more than 2 minutes hooping a single shirt.
  • You are rejecting garments due to "hoop rings" that won't wash out.
  • Your wrists hurt from tightening screws all day.
• Many professionals switch to magnetic embroidery hoops specifically for knitwear to maintain fabric integrity and speed up reloading.

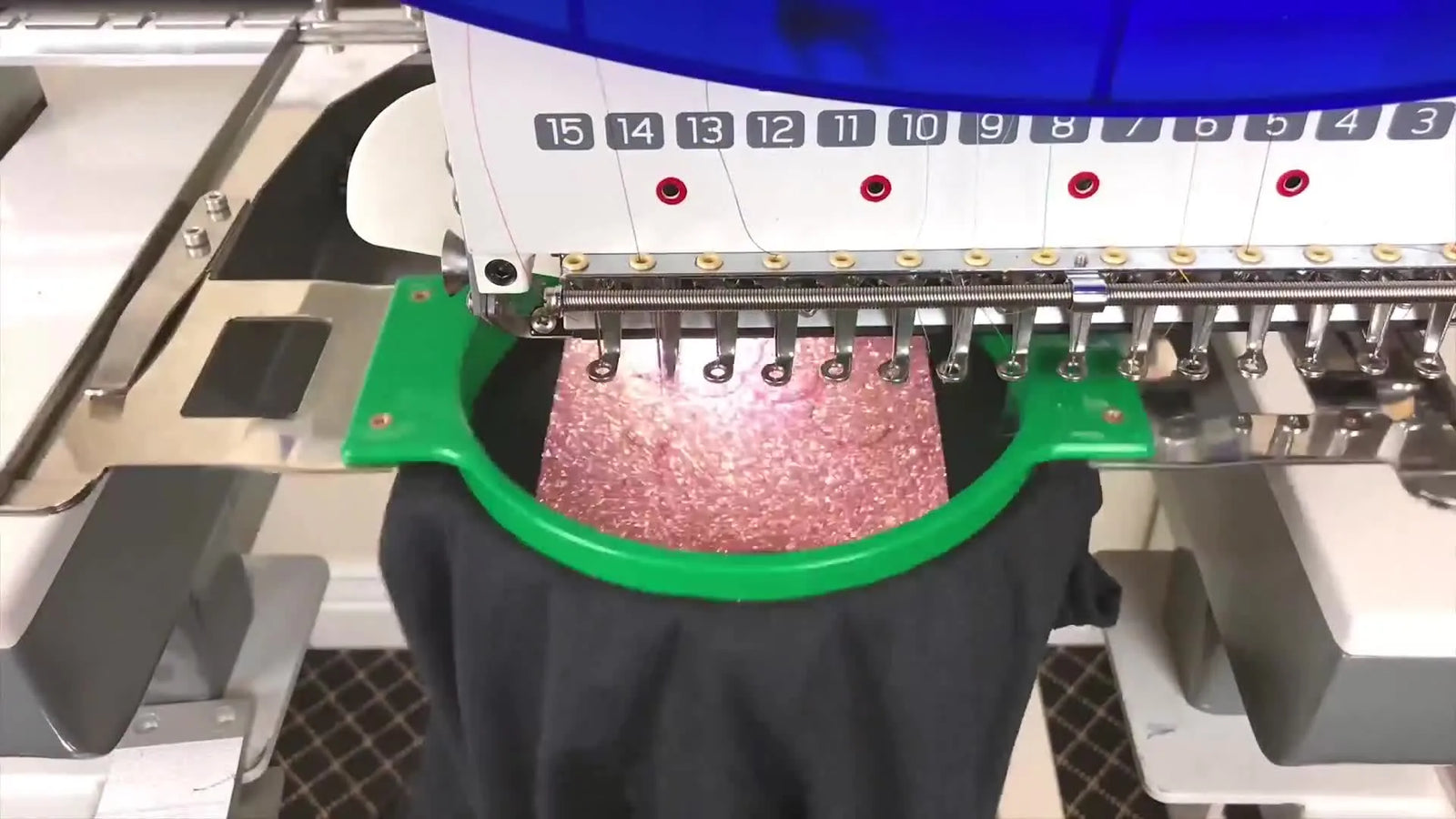

The Placement Ritual on a Ricoma Embroidery Machine: Spray, Lay Down, Then Trace Again

This step separates the "hobbyist luck" from "professional consistency."

The Sequence

1. Dock: Place the hooped shirt onto the machine arm.
2. Place: Lay the sprayed HTV directly over the target area.
3. Smooth: Use your palm to smooth it out from the center to edges. Ensure no air bubbles exist.
4. The Critical Trace: Run the machine's Trace (design outline) function.

Visual Check: Watch the laser or needle bar. Does the trace stay at least 0.5 inches inside the edge of your vinyl patch? If the needle falls off the vinyl edge, the perforation will fail, and the design is ruined.

Setup Checklist (Right before you press Start)

• HTV is smoothed flat—no bubbles, no lifted corners.
• You traced after placing the vinyl and visual confirmed coverage.
• Speed Check: Lower your machine speed. For satin cutting, I recommend a "Sweet Spot" of 600-700 SPM (Stitches Per Minute). Running at 1000+ SPM increases needle deflection, which can cause jagged cuts.
• Needle Check: Ensure you are using a sharp needle (75/11 Ballpoint for knits is standard, but a standard Sharp works well for cutting vinyl).

Warning: Mechanical Safety. Keep fingers, loose sleeves, and threading tools away from the needle area while tracing. Commercial machines do not stop if they hit your finger.

The Stitching Moment: Let the Satin Border Create the Perforation Line

The machine now runs the appliqué design. The magic happens during the satin border phase.

The needle penetrations create a "perforation line"—exactly like tearing a check out of a checkbook.

Pro-Tip on Density: If you digitized the file yourself, ensure the satin stitch density is tight (e.g., 0.40mm spacing). If the stitches are too loose, the vinyl won't perforate cleanly. If you are using a stock design, run a test on a scrap shirt first.

The Rip-Away Move: Tear the Excess HTV Cleanly (No Scissors, No Weeding Tools)

Once the machine simulates the "cut," remove the hoop (or just the fabric if using magnetic frames). Grab the excess vinyl outside the satin border.

Action: Pull gently. Sensory Anchor (Sound/Touch): You should hear a light zipping sound. The resistance should feel like peeling a price sticker off a book backing—consistent and smooth. If you have to fight it, or if the vinyl stretches like gum, your stitches were too loose or your needle was dull.

Safety: Support the stitches with your thumb while tearing to prevent distorting the knit fabric.

Comment integration: “Can I stitch into vinyl that’s already stuck on a sleeve?”

Technically, yes. However, lining up a pre-ironed vinyl shape with a needle requires precision within 1 millimeter. For beginners, the "oversize and rip-away" method described here is 10x safer and faster.

The Heat Press Step That Makes It Permanent: 320°F, 10 Seconds, Cover Sheet

Do not skip this. Right now, the vinyl is only held by the stitches. The adhesive on the back hasn't activated yet.

The Bonding Protocol

1. Temp: 320°F (160°C). (Range: 320–330°F).
2. Time: 10-15 seconds.
3. Pressure: Medium.
4. Protection: Always use a Teflon sheet or parchment paper between the heater and the embroidery. Direct contact can melt polyester thread or scorch the vinyl.








Common Question: “Can I use a normal iron?”

You can, but for commercial quality, we advise against it. An iron fluctuates in temperature and relies on you for pressure. This often leads to the vinyl peeling off after 2-3 washes. A heat press ensures the pressure is uniform, forcing the adhesive into the fabric weave.

Warning: Magnetic Safety. If you updated your workflow to use magnetic hoops, be aware they utilize strong Neodymium magnets. Pinch Hazard: They can snap together with enough force to bruise fingers. Medical: Keep them at least 6 inches away from pacemakers.

Why HTV Appliqué Looks So “Light” on a Polyester Tee

This technique solves the "Bulletproof Vest" effect. Traditional embroidery with fill stitches adds thousands of unconnected threads, making the chest of a t-shirt heavy and stiff.

HTV is a thin, flexible film. It allows the shirt to drape naturally. For clients requesting large team numbers or mascot logos on performance wear (Dri-Fit), this is often the only way to get a professional result that athletes will actually want to wear.

Sublimation vs HTV on Dark Garments: Don’t Mix Up the Two Processes

• Sublimation: Dyes the fibers. Only works on Light Colored 100% Polyester. Transparent ink.
• HTV Appliqué: Sits on top of the fiber. Works on Dark Cotton, Poly, or Blends. Opaque material.

If you have a black t-shirt, Sublimation is impossible. HTV Appliqué is the solution.

Decision Tree: Pick the Right “Fabric + Stabilizer + Hooping” Combo

Use this logic flow to determine your setup:

1. Is the garment a stretchy knit (T-shirt/Polo)?
   • Yes: Use Cutaway Stabilizer. (No exceptions). Do not over-stretch.
   • No (Denim/Canvas): Tearaway is acceptable.
2. Is your volume High (20+ items) or Low (1-5 items)?
   • Low: Standard plastic hoops are fine. Take your time.
   • High: Time is money. Switch to Magnetic Hoops to save 45-60 seconds per shirt.
3. Are you experiencing "Flagging" (fabric bouncing up and down)?
   • Yes: Your hoop is too loose. Consider a hooping station or ricoma embroidery hoops alternatives like the SEWTECH magnetic system to clamp the fabric firmly without stretching it.

Troubleshooting the Real-World Problems

When things go wrong, start here. Do not guess; diagnose.

Note on Needles

Standard 75/11 embrodery needles work. However, if you do this daily, Non-Stick or Titanium needles resist adhesive buildup significantly better, reducing thread breaks.

The Production Upgrade: When Hooping Speed Becomes Your Profit Lever

If you turn this from a hobby into a business, "Hooping Time" becomes your enemy.

The Math: Hooping a slippery performance tee in a standard hoop takes ~2 minutes to get perfect. With a magnetic hooping station, it takes ~20 seconds. Over an order of 50 shirts, that is 1.5 hours of labor saved.

If you are looking to scale, look for bundles that include a mighty hoop ricoma compatible equivalent (like SEWTECH frames). If you find your single-needle machine can't keep up with the orders, that is the clear signal to move to a multi-needle platform (like the SEWTECH 10 or 15 needle series) which allows you to hoop the next shirt while the current one runs.

Operation Checklist (the exact run sequence)

• Prep: Tear HTV larger than design + light spray on back.
• Hoop: Hoop shirt w/ Cutaway stabilizer (Neutral tension, no stretching).
• Place: Smooth HTV onto shirt in hoop.
• Trace: Confirm needle creates a perforation path fully inside the vinyl.
• Stitch: Run design (Satin cutting).
• Rip: Remove from machine, peel away excess vinyl.
• Finish: Heat press at 320°F for 10 seconds with cover sheet.








Where to Buy the Vinyl

You don't need "special" embroidery vinyl. Standard HTV from suppliers like Stahls' or even craft stores like Joann Fabrics works perfectly. The video uses "Glitter Flake," which is thicker and hides stitch flaws well, but standard matte HTV gives a sleek, modern look.

The “Upgrade Without the Hard Sell” Tool Map (Choose What Solves Your Pain)

• Level 1 (Technique): Use Cutaway stabilizer and Titanium needles. Solves: Quality issues.
• Level 2 (Efficiency): Upgrade to Magnetic Hoops. Solves: Hoop burn, wrist pain, and slow setup times on knits. Used by professionals to ensure consistent tension.
• Level 3 (Scale): Upgrade to a Multi-Needle Machine (SEWTECH/Ricoma). Solves: Capacity limits. If you have to turn down orders because you "don't have time," you are ready for this step.


FAQ

• Q: On a Ricoma or SEWTECH 15-needle embroidery machine, which side of HTV should receive temporary adhesive spray for HTV appliqué embroidery?
  A: Spray a light mist on the matte/back side of the HTV that will touch the shirt, not the shiny carrier face.
  • Tear: Rip the HTV oversized (at least 1 inch larger than the full stitch area on all sides).
  • Spray: Apply temporary adhesive lightly (Tempo/505-type), keeping the vinyl flat while spraying.
  • Place: Lay the sprayed side down onto the hooped shirt and smooth from center outward.
  • Success check: The vinyl should feel tacky like a Post-it note, not wet or slippery.
  • If it still fails: If the needle starts gumming or threads break, reduce spray amount and wipe the needle with an alcohol wipe.
• Q: For HTV appliqué on a knit T-shirt using a Ricoma or SEWTECH multi-needle machine, which stabilizer prevents “lettuce edge” wavy satin borders?
  A: Use cutaway stabilizer and hoop the shirt stable-but-not-stretched to prevent rippling.
  • Use: Choose cutaway stabilizer (avoid tearaway for this satin-border-on-knit scenario).
  • Hoop: Stop pulling the knit “drum tight”; keep neutral tension so fibers are not stretched open.
  • Stitch: Run the appliqué normally and let the satin border do the perforation.
  • Success check: After unhooping, the satin border stays smooth and flat (no wavy/rippled edge).
  • If it still fails: If hoop marks and distortion keep happening in production, consider switching from standard hoops to magnetic hoops to clamp without over-stretching.
• Q: On a Ricoma commercial embroidery machine, how can the Trace function confirm HTV coverage before stitching an appliqué design?
  A: Always trace after placing the HTV, and verify the needle path stays at least 0.5 inches inside the vinyl edge.
  • Dock: Mount the hooped shirt on the machine arm first.
  • Place: Apply the sprayed HTV patch and smooth it flat with your palm (remove bubbles).
  • Trace: Run the machine Trace/design outline and watch the needle/laser path.
  • Success check: The traced outline stays fully on the vinyl with a visible safety margin (about 0.5 inches inside the HTV boundary).
  • If it still fails: If the trace falls off the vinyl edge, reposition the vinyl (or use a larger patch) and trace again before pressing Start.
• Q: For satin-border “cutting” on HTV appliqué using a Ricoma or SEWTECH 15-needle machine, what stitch speed reduces jagged perforation and needle deflection?
  A: Slow down to a practical 600–700 SPM to keep the perforation clean and consistent.
  • Set: Reduce speed before the satin border runs (avoid 1000+ SPM for this step).
  • Check: Install a sharp needle (75/11 ballpoint is common for knits; a sharp needle can help with vinyl perforation).
  • Test: Run a sample on a scrap shirt if the file or material is new to you.
  • Success check: The ripped edge “zips” away smoothly without stretching like gum or leaving uncut bridges.
  • If it still fails: If perforation still does not tear cleanly, replace a dull needle and confirm the satin density is not too loose in the design file.
• Q: During HTV appliqué on a Ricoma or SEWTECH machine, what causes a sticky/gumming needle and thread breaks, and what is the fastest fix?
  A: The most common cause is too much temporary spray adhesive; clean the needle and spray lighter next run.
  • Clean: Wipe the needle with an alcohol wipe to remove adhesive buildup.
  • Adjust: Apply a finer mist next time (aim for tacky, not wet).
  • Slow: Drop speed toward the 600 SPM range if breaks continue.
  • Success check: Thread runs smoothly through the needle eye and stitches form without repeated breaks in the satin border.
  • If it still fails: Switch to non-stick or titanium needles to resist adhesive buildup, and re-check that the vinyl was not sprayed so heavily it stayed wet.
• Q: For HTV appliqué embroidery on shirts, what heat press settings make HTV permanent after stitching the satin border?
  A: Heat press at 320°F (160°C) for 10–15 seconds with medium pressure and a Teflon sheet/parchment cover.
  • Preheat: Bring the press to about 320°F (160°C) (320–330°F range).
  • Protect: Cover the embroidery with a Teflon sheet or parchment paper to prevent scorching or melting issues.
  • Press: Apply medium pressure for 10–15 seconds to activate the adhesive.
  • Success check: After cooling/handling, the HTV lies flat with no lifting corners and feels bonded—not just “held by stitches.”
  • If it still fails: If vinyl lifts after washing, avoid using a household iron and repeat the press step with verified temperature/time.
• Q: What safety rules prevent injury when tracing and stitching HTV appliqué on a Ricoma or SEWTECH multi-needle embroidery machine, and when using magnetic hoops?
  A: Keep hands and loose items away during trace/stitching, and treat magnetic hoops as a pinch hazard and medical risk near pacemakers.
  • Avoid: Keep fingers, sleeves, and tools away from the needle area during Trace and operation (commercial machines will not stop for a finger).
  • Handle: Separate and close magnetic hoops carefully; strong magnets can snap together and bruise/pinch.
  • Distance: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Success check: Hands never enter the sewing field while the machine is moving, and magnetic frames are opened/closed under control without sudden snapping.
  • If it still fails: If safe handling feels difficult during production, pause the workflow and set a consistent handling routine before running volume orders.
