If you’ve ever stared at a stitched patch thinking, "I digitized a circle, but it looks like a flat-tire," you are facing the most common hurdle in embroidery: the gap between human hand stability and machine precision. After 20 years in this industry, I can tell you that the fastest way to level up isn't always a new machine—it's mastering the geometry tools you're currently ignoring.

Sue from OML Embroidery highlights a critical workflow change in PE Design 10: stopping the "manual tracing" habit and utilizing the Shapes menu. Specifically, the Arc and String and Fan tools are not just drawing aids; they are stabilization engines that ensure your stitch angles calculate correctly.

This guide will deconstruct these tools from a production engineer’s perspective, ensuring your on-screen designs translate into bulletproof physical stitches.

The Calm-Down Moment: PE Design 10 Shapes Won’t Break Your File—They’ll Save It

Beginners often treat digitizing software like a sketchbook. They freehand a circle, add points, and hope for the best.

The Reality: An embroidery machine doesn't see a "drawing"; it sees a mathematical path. A hand-drawn circle has irregular node spacing. When the machine reads this, it constantly micro-adjusts the X/Y pantograph, creating vibration and uneven stitch density.

The Shapes tools provide Reference Geometry. This means the path is mathematically perfect. For the machine, this translates to a smooth, rhythmic hum rather than a jerky, noisy stitch-out. If you are building logos, badges, or foundations for appliqué, using these tools is the difference between a "homemade" look and a commercial finish.

The “Hidden” Prep Pros Do First: Set Yourself Up for Clean Shapes and Predictable Stitches in PE Design 10

Before you click a single tool, you need to perform a "Pre-Flight Check." Most failures happen here because the user hasn't decided on the object's physics before drawing its outline.

The 3-Second Mental Decision:

1. Is this a Structure (Fill)? It needs a closed boundary to hold the stitches.
2. Is this a Detail (Line)? It needs an open path.
3. Does it need a Border? Outlines add significant stitch count (often 200–500 extra stitches for small shapes) and stiffness.

The Physical Reality: When you transition from screen to fabric, perfect shapes often distort due to "flagging" (fabric bouncing in the hoop). If you are testing multiple iterations of a geometric logo and notice the fabric puckering or the shape turning into an oval, the issue might not be your file—it could be hoop tension. In professional repetitive testing, using magnetic embroidery hoops is standard practice because they allow you to adjust fabric tension evenly without the "hoop burn" damage caused by traditional screw-tightened inner rings.

Prep Checklist (Pre-Digitizing):

• Action: Verify you are on the Home tab.
• Check: Ensure the Shapes dropdown is visible.
• Decision: Am I making a closed filled object or an open line object?
• Decision: Do I need an outline? (If valid, keep it; if not, plan to mute it).
• Safety: Do I have Hidden Consumables ready? (Spray adhesive, water-soluble pen, fresh 75/11 needle).


Find the PE Design 10 Shapes Dropdown Fast (So You Actually Use It)

Sue starts her workflow at Home tab → Shapes dropdown. You will see standard options (Square, Circle), but for professional results, we focus on the complex geometry tools:

• Arc and String: Used for custom curves, mouths, and rockers (curved text baselines).
• Fan: Used for "Pac-Man" shapes, pie charts, or segmented logos.

Why utilize these? Calculating stitches on a hand-drawn curve is computationally heavy for the software and often results in "jaggies." Using these vectors ensures the software applies the stitch angle (usually 45 degrees for Tatami) evenly across the entire segment.

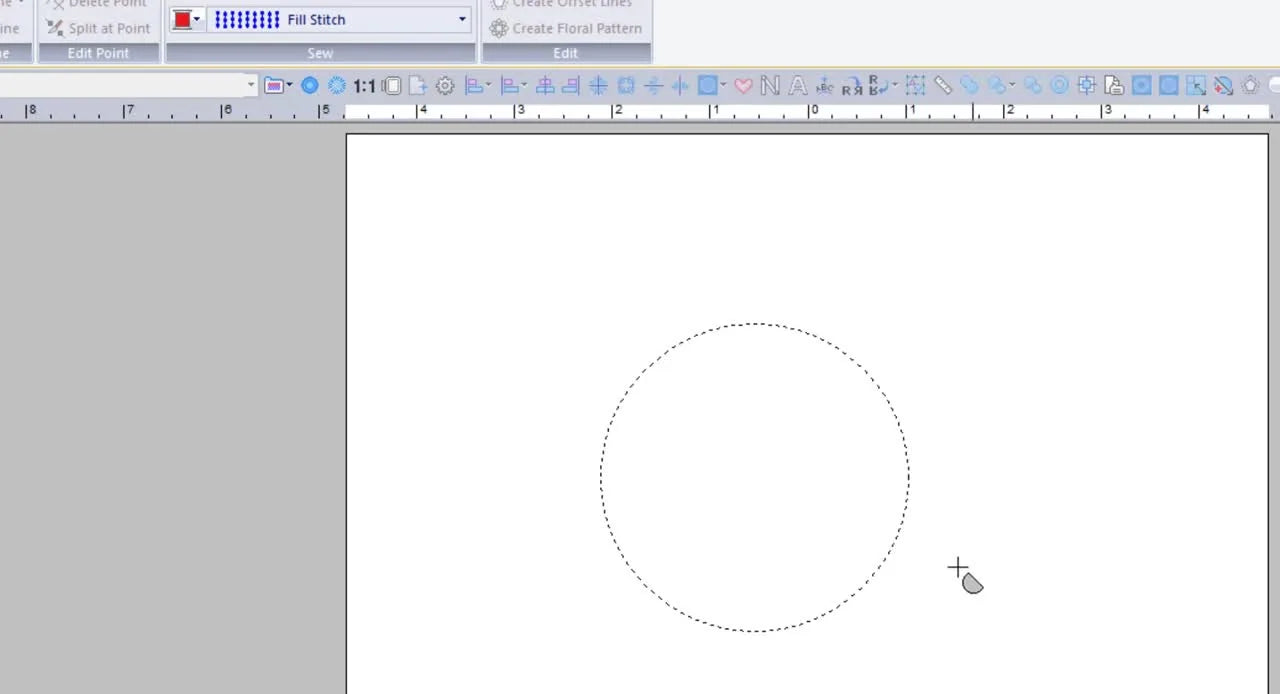

Arc and String in PE Design 10: Draw Perfect Half-Circles and Custom Curves Without Wobbly Nodes

This tool allows you to draw a curve defined by a radius and a chord (the straight line connecting the ends). It is critical for creating smooth smiles, eyelids, or architectural arches.

How to use Arc and String (Standard Operating Procedure)

1. Select Arc and String from the Shapes menu.
2. Left-click and Drag outward to define the radius of your circle.
3. Sensory Check: Hold Shift. You should see the shape snap to a perfect circle. If it looks like an oval, you aren't holding Shift.
4. Release the mouse button.
5. Click Point A: Click once on the circle perimeter to start your cut.
6. Click Point B: Click a second time to end your cut.

Result: A perfectly mathematically calculated chord.

Pro Tip: The "Brother" Factor

If you are digitizing for a brother embroidery machine, especially entry-level models (like the SE600 or NQ series), clean geometry is non-negotiable. These machines have lighter motors than industrial multi-needle units. A wobbly curve creates drag on the pantograph. A smooth curve allows the machine to run at its "sweet spot" speed (usually 400-600 SPM for detail work) without skipping stitches.

Fan Tool in PE Design 10: The Fastest Way to Make a “Pac-Man” Cutout for Logos or Appliqué

The Fan tool creates a sector of a circle. This is vastly superior to drawing a circle and trying to "cut" a slice out of it manually, which often leaves open nodes and messy jumps.

How to use Fan (Execution Sequence)

1. Select Fan from the Shapes dropdown.
2. Hold Shift and drag to create the radius.
3. Release the mouse button.
4. Click Once to start the wedge.
5. Click Again to end the wedge.






Warning: The "Wedge" Hazard.
The point where the two straight lines of a Fan shape meet (the center) creates a high-density area. If you place a heavy satin border around this shape, the needle will penetrate that center point dozens of times. Risk: This can cut a hole in your fabric.
Fix: On small Fan shapes (<1 inch), always remove the satin border or reduce the density of the fill to avoid "bullet hole" damage.

The Clean-Look Switch: Remove Outline Stitches in PE Design 10 Without Deleting the Object

A common amateur mistake is trying to "delete" the border, which sometimes deletes the whole object. The professional method is to tell the software the border exists but is "invisible."

Remove the Outline (The Non-Destructive Method)

1. Select the object.
2. Right-click to open properties.
3. Locate the Outline Sew or Line Sew attribute.
4. Select Not Sewn Line (or set stitch type to OFF).




Commercial Context: Sampling Efficiency

When refining a logo, you might print 5 or 6 variations to see which looks best. If you are doing this volume of testing, floating fabric (laying it on top of backing) is risky for geometric shapes. A machine embroidery hooping station ensures that every test patch is hooped with identical tension and alignment. This removes "user error" from your testing data, so you know if the file is bad or if you were just tired.

Open vs Closed in PE Design 10: The Real Reason Your Fill Stitch Disappears

This concept is binary: Logic Gate Open = No Fill. Logic Gate Closed = Fill.

The Mechanism

Sue demonstrates transforming an octagon.

1. She creates a closed polygon.
2. She Right-clicks → Selects Open.
3. Result: The fill vanishes immediately.








The Physics of Digitizing: The software calculates a "Fill" (Tatami or Satin) by bouncing back and forth between two borders. If you "Open" the shape, one border is removed. The software now has nowhere to bounce the stitch back from, so it defaults to a single running stitch line.

Rule of Thumb: Never "Open" a shape unless you intend for it to be a line drawing or a running stitch detail.

Setup Choices That Prevent Thread Breaks Later

Geometry on screen becomes tension on fabric.

• Nodes: Fewer nodes = smoother machine movement = fewer thread breaks.
• Angles: Sharp angles (like the Fan center) require Underlay adjustment to prevent bunching.

If you find that your geometric shapes are consistently pulling out of registration (e.g., the outline doesn't match the fill), verify your stabilization. For stretchy fabrics, a Cutaway stabilizer is mandatory. Additionally, the physical grip of your hoop matters. Many users searching for terms like magnetic hoop for brother are doing so because traditional hoops often slip on slick polyester or dense fleece, ruining the geometry Sue just taught you to create.

Setup Checklist (The "Save" Protocol):

• Geometry Check: Are my circles true circles? (Did I use Shift?)
• Outline Check: Do I have "Not Sewn Line" active on fills where borders aren't needed?
• Overlap Check: Does the fill overlap the outline slightly (Pull partial compensation ~0.2mm)?
• Function Check: Are fills Closed and lines Open?

A Practical Decision Tree: Closed Shape vs Open Path

Use this logic flow to determine your object type before drawing.

Decision Factor: What is the visual goal?

1. I need a solid block of color.
   • Action: Draw Closed Shape -> Set Fill Stitch ON -> (Optional) Set Outline.
   • Stabilizer Tip: Use Medium Weight Cutaway.
2. I need a thin detail or sketching effect.
   • Action: Draw Open Path -> Set Fill Stitch OFF -> Select Run or Triple Run stitch.
   • Stabilizer Tip: Tearaway is usually sufficient if density is low.
3. I need a border that doesn't touch the fill (e.g., a halo).
   • Action: Create Shape 1 (Fill, No Outline) -> Duplicate -> Convert Duplicate to Outline Only (No Fill) -> Resize Duplicate +10%.

Troubleshooting the “Scary” Moments

When things go wrong, do not panic. Follow this diagnostic table.

Operation Habits That Make Your Files Production-Friendly

Professional digitizers don't just clear the error messages; they optimize for the machine operator (which is often you).

1. Reduce Trims: Arrange your geometric shapes (using the sewing order list) so the machine flows from one to the next without cutting thread.
2. Batch Production: If you are stitching 50 patches, design the file to run efficiently.
3. Ergonomics: Creating perfect files is useless if you hurt your wrists hooping them.
   • For high-volume runs, a hooping station for machine embroidery is a health investment, not just a tool.
   • Using embroidery hoops magnetic can significantly reduce Repetitive Strain Injury (RSI) risks associated with tightening screws hundreds of times.

Warning: Magnetic Safety
If you utilize magnetic hoops, be aware they use powerful neodymium magnets.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical: Keep at least 6 inches away from Pacemakers or insulin pumps.

Operation Checklist (Final Output):

• Verify: No "Open" shapes that should be fills.
• Verify: Outline density is appropriate for the fabric weight.
• Verify: Start/End points of shapes are aligned to minimize travel.
• Verify: File format matches machine (PES for Brother).

The Upgrade Path: When Better Hooping Tools Make Digitizing Pay Off

You can be a master of PE Design 10, but if your physical setup is unstable, your results will vary.

• Level 1 (Hobbyist): Focus on stabilizing correctly (backing + topping) and using the Shapes menu for clean files.
• Level 2 (Prosumer): If you struggle with hoop marks or difficult fabrics (velvet, leather), upgrading to a magnetic hoop for brother or similar machine-specific frame eliminates the mechanical friction of hooping.
• Level 3 (Business): If you are consistently running orders of 20+ items, the bottleneck is no longer software—it's needle changes. Moving to a multi-needle platform (like the SEWTECH ecosystem) allows you to rack up colors and let the machine run while you digitize the next project.

Sue’s lesson is the foundation: Geometry is free. Use the Shapes tools to build a solid structure, and your machine will reward you with professional-grade embroidery.
