Stop Fighting Crooked Hoops: Dial-In Perfect Placement on the Brother VE2300 with the Ultrasonic Sensor Pen

If you have ever stared at a crisp design on your Brother VE2300 screen, hit "Start," and then watched in horror as it stitched 5–10 mm away from your mark, you know the sinking feeling of the "Hooping Blues." The gap between intended placement and actual stitching is where most beginners lose money on ruined garments.

The good news? The Brother VE2300 Ultrasonic Pen System is the "cheat code" for this problem. It disconnects the fabric's angle from the hoop's angle, allowing the machine to compensate for human error.

This guide rebuilds the workflow demonstrated on the Brother VE2300 Essence, but we are going to add the Level 2 Industry Insights—the sensory checks, the physics of stabilization, and the safety protocols—that prevent you from abandoning this tool after one failed attempt.

The Brother VE2300 Ultrasonic Sensor Pen System: the calm way to beat “hooping blues”

The Ultrasonic Pen System solves one specific, high-sakes headache: accurate geometric transformation (placement and rotation) when your fabric isn’t hooped perfectly square.

In the workshop, we call this "floating the coordinates." Instead of forcing your hands to hoop a shirt perfectly straight (which is physically difficult), you hoop it "mostly straight," and then use the pen to tell the machine: "This is my actual center, and this is my actual vertical line." The machine then calculates the offset and rotates the design to match your fabric.

One of the biggest mindset shifts is this: You are no longer fighting the hoop. You are communicating with the processor.

Ditch the crosshairs: two dots are enough for Brother embroidery placement

Traditional placement methods often require drawing complex crosshairs or grids on the fabric, which risks leaving permanent ink marks. The Ultrasonic method reduces the geometry to the absolute minimum required to define a vector: Two Points.

1. Dot #1 (Anchor): The exact center of where you want the design to sit.
2. Dot #2 (Vector): A point directly above or below Dot #1 that defines the vertical axis.

That’s it.

This minimalism is crucial for high-speed personalization. If you are embroidering names on team jerseys, you don't want to draw a grid on every chest. You want two small dots, a quick scan, and a start button.

The “Hidden” Prep pros do before touching the Sensor Pen (fabric, stabilizer, and marking discipline)

Before you even touch the pen, we must address the canvas. The sensor pen can fix mathematical errors (rotation), but it cannot fix physical errors (shifting, tunneling, or flagging).

A machine like the VE2300 is powerful, but it relies on fabric stability. If your fabric moves after you calibrate the pen, the design will be ruined.

1. The Physics of Hooping (Sensory Check)

You need to achieve "Hoop Neutrality."

• The Tactile Test: Run your fingers over the fabric. It should feel taut, like a drum skin, but not stretched.
• The Distortion Check: Look at the weave of the fabric. If the vertical grain lines look curved like a banana, you have over-tightened the screw. This will cause puckering later.

Industry Insight: If you struggle with "Hoop Burn" (those shiny rings left on velvet or dark cotton) or hand fatigue from tightening screws, this is a hardware signal. Professional shops often transition to magnetic embroidery hoops because the clamping force is distributed automatically by magnets, eliminating the "crank and pray" method of traditional screws.

2. Stabilizer: The Foundation

• Woven Fabrics (Towels, Denim): Usually require Tear-away.
• Unstable Fabrics (T-shirts, Knits): Must have Cut-away. No exceptions for beginners.
• Use a temporary spray adhesive (like 505) to fuse the fabric to the stabilizer. This prevents the "shifting sandwich" effect.

3. Marking Hygiene

Use a water-soluble or heat-erase pen specifically designed for fabric. Never use a ballpoint pen.

• The Target Size: Keep your dots under 2mm. A large dot creates a "margin of error" that can lead to crooked designs.

Warning: Needle Zone Safety. Keep fingers, scissors, and loose threads away from the active needle area when positioning the hoop. Startling the machine or accidentally hitting the "Start" button while your hands are inside the hoop path can result in severe injury (needle through finger).

Pre-Flight Prep Checklist

• Hoop Tension: Fabric is taut (drum sound on tap) but grain lines are straight.
• Stabilizer: Cut-away used for knits; Tear-away for wovens.
• Adhesion: Fabric is temporarily adhered to stabilizer (no floating effect).
• Clearance: Verify the hoop arm has full range of motion without hitting the wall or table.
• Consumables: Use a dedicated fabric marking pen (blue/purple air-erase).


Load the hoop and pick a test design on the Brother VE2300 screen (the exact menu path)

In the demonstration, the hoop slides onto the embroidery arm. Listen for the audible "click" to ensure the embroidery arm is fully engaged. A loose hoop causes registration errors that look like "drunk stitching."

The Path:

1. Embroidery
2. Embroidery Edit
3. Fonts → Select the letter “X”
4. Set → Embroidery

Why an "X"? We use a capital "X" for calibration because it has a definitive center and four corners, making it the perfect visual diagnostic tool to verify rotation.

Turn on the Sensor Pen icon and choose the reference point (Center is the workhorse)

Once the design is ready, locate the Sensor Pen icon (looks like a stylus) on the bottom toolbar. Tapping this activates the ultrasonic receiver.

The machine will display a 9-point grid (Top-Left, Top-Center, Center-Center, etc.). You must tell the machine which part of the design corresponds to Dot #1 on your fabric.

The "95% Rule" for Beginners

Unless you have a specific reason (like aligning a design to a pocket corner), always select the Center Reference Point.

• Why? It is visually intuitive. Measuring from the center outward splits your error margin in half.
• Workflow Note: If you are moving toward high-volume production, consistency is key. Using a brother magnetic hoop allows you to "slap and stitch" faster, but you still need a consistent reference point. Stick to the center until you master it.

Setup Checklist

• Design is loaded.
• Ultrasonic Pen is plugged precisely into the side port.
• Sensor Pen Icon is active (Green/Highlighted).
• Reference Point: Center of the grid is selected.
• Hoop is "Clicked" into the embroidery arm.

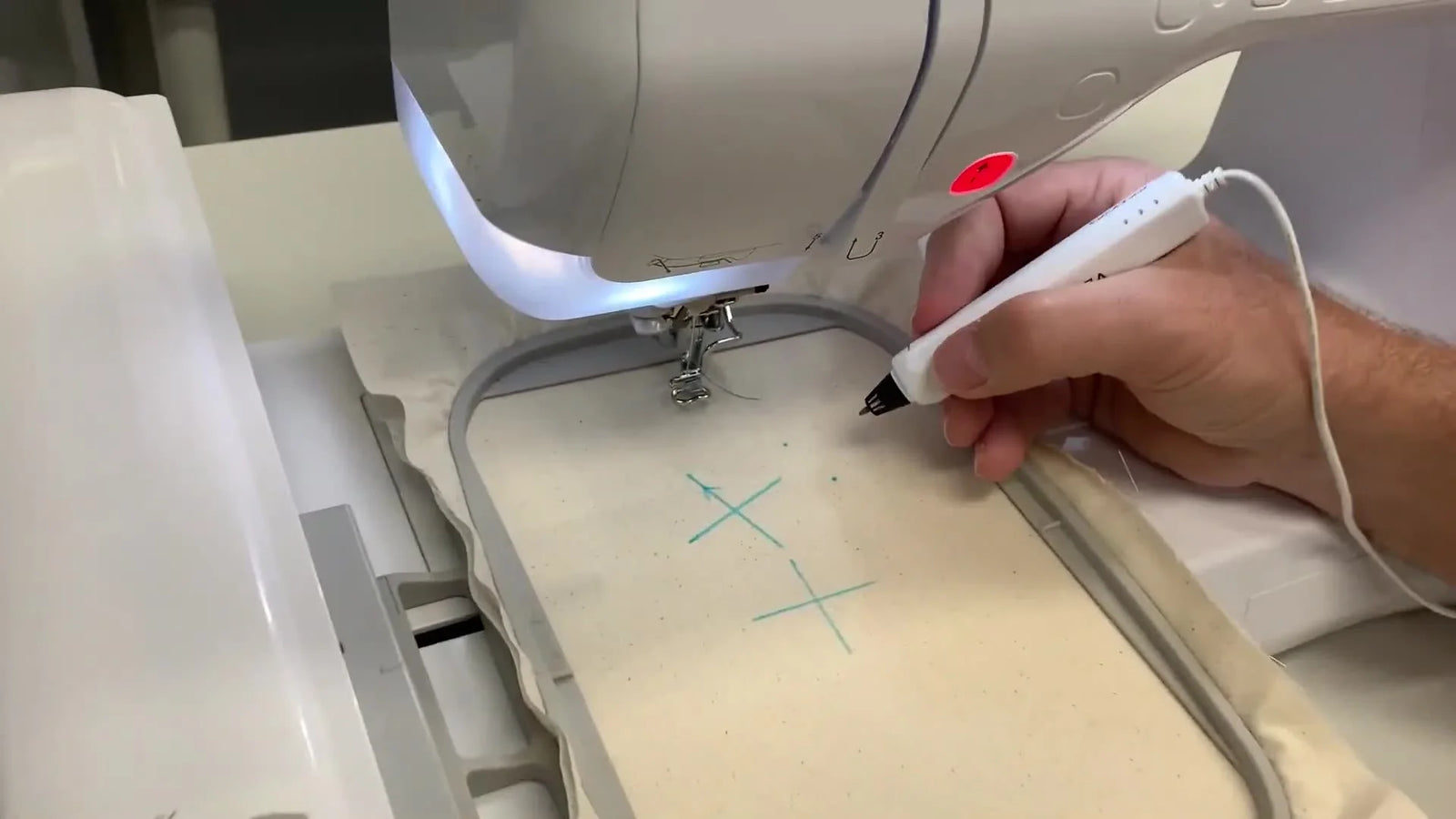

Tap Dot #1 and Dot #2 with the Ultrasonic Pen—then watch for the red confirmations

This is the moment of truth. Hold the pen perpendicular (straight up and down) to the fabric for the best signal transmission.

Position 1: The Anchor (Center)

Touch the pen tip gently to Dot #1.

• Sensory Cue: Do not press hard. You are not pushing a button; you are closing a circuit.
• Visual Confirmation: Look at the screen. The indicator number "1" will turn RED.




Position 2: The Angle (Rotation)

Touch the pen tip to Dot #2.

• Visual Confirmation: The indicator number "2" will turn RED.


The machine now calculates the hypotenuse. It knows exactly how crooked your hooping is and will mathematically rotate the design to compensate.

Use the Brother VE2300 LED Pointer to verify placement—and nudge it dead-center

Never trust a computer blindly. Always verify. The VE2300 offers an LED Pointer (a red crosshair or dot projected onto the fabric).

1. Visual Audit: Detailed inspection. Does the red LED light land exactly on top of your ink mark?
2. The Nudge: It is normal to be off by 0.5mm – 1mm due to the thickness of the pen tip. Use the arrow keys on the screen to "nudge" the LED light until it perfectly eclipses your ink dot.




3. Finalize: Press OK.
4. The Shift: Watch the screen. You will see the design physically move and rotate on the digital display to match the angle you tapped.


Speed Settings (New User Sweet Spot): The demo shows 350 SPM (Stitches Per Minute).

• Expert Advice: Do not max out your speed to 1050 SPM purely for this test. High speeds create vibration. For precision work, stick to 600-800 SPM. It allows the thread tension to stabilize and gives you reaction time if something goes wrong.

Operation Checklist (Pre-Stitch)

• LED Pointer sits exactly on Ink Dot #1.
• Rotation confirmed (Design looks tilted on screen).
• Presser Foot Clearance: Ensure the foot isn't caught on a rivet or thick seam.
• Speed: Set to 600 SPM for safety.

When calibration feels “off” on a brand-new Brother VE2300: what to check first

If the pen is consistently inaccurate (e.g., you tap Center, but the machine registers it 1 inch to the left), do not panic. It is rarely a broken machine. It is usually environmental interference.

Troubleshooting Protocol (Low Cost -> High Cost):

1. Audio Interference: Ultrasonic pens work on sound waves. Is the machine near an HVAC vent, a loud fan, or another ultrasonic device? Move them.
2. Obstructions: Is your arm or body blocking the line of sight between the pen and the sensors (the "eyes" on the machine head)? Stand back.
3. Hoop Integrity: Is the fabric "drum tight"? If the fabric sponges downward when you tap it, the Z-axis measurement is off.
   • Upgrade Path: If you cannot get the fabric tight enough, or if tightening the screw causes wrist pain, this is the prime scenario for a magnetic hoop for brother dream machine. The magnetic clamping force ensures zero fabric-flagging, giving the sensor a solid surface to read.

The scary scenario: hoop bumps, needle breaks, and the design “shifts” mid-project

This is the nightmare scenario: You are 80% done, the hoop hits a coffee mug you left on the table, the motors grind, and the alignment is lost.

The "Hard Truth" Recovery Method: If the hoop loses registration (the machine thinks it is at X:0 Y:0, but it is actually at X:5 Y:5), purely restarting won't help. A pen recalibration is risky mid-stitch because you cannot see the center mark anymore (it's stitched over).

1. Print a Template: Print the design on paper/transparency at 100% scale (using software like PE-Design).
2. Overlay: Place the paper template over the half-stitched design to find where the original center/angle marks were.
3. Re-Mark: Use the pen to re-triangulate based on the paper template.

This is advanced, but it separates the hobbyists from the pros.

A stabilizer decision tree that prevents “perfect placement” from turning into “perfect drift”

You can have perfect placement, but if your stabilizer is wrong, the fabric will "pucker" or "tunnel" as stitches accumulate.

Decision Tree: Stabilizer Selection

1. Does the fabric stretch? (T-Shirt, Jersey, Lycra)
   • YES: Cut-Away Stabilizer. (Must-have. Tear-away will rip and cause distortion).
   • NO: Go to step 2.
2. Is the design dense? (>10,000 stitches or solid fills)
   • YES: Cut-Away or Heavy Tear-Away. (Density pulls fabric; you need mass to counteract the pull).
   • NO: Tear-Away is acceptable.
3. Is it a towel or velvet?
   • YES: Use Tear-Away on the back + Water Soluble Topping on the front (to prevent stitches sinking).

Pro Tip: Don't skimp on consumables. Cheap thread breaks often, causing machine stops that ruin your flow. We recommend high-tenacity polyester embroidery thread for consistent feeding.

“Can I use the Ultrasonic Pen with a logo, not just a letter?” Yes—here’s the practical way to think about it

The "X" is just a placeholder. In the real world, you are placing logos.

The Logic of Visual Centering: When placing a customized logo, the "Center" isn't always the mathematical center. It is the visual weight.

1. Print a paper template of your logo.
2. Fold it to find the visual center.
3. Poke a hole in the template at that spot.
4. Mark your fabric through that hole.

If you are running a small business doing 50 corporate shirts, relying on manual screw hoops is slow. This is where hoops for brother embroidery machines that utilize magnetic closure shine—they allow you to keep the template in place while the magnets snap shut, preserving your alignment instantly.

Endless borders and quilt squares: what the comments reveal (and what to do meanwhile)

Doing "Endless Hooping" (connecting long borders) with the pen is possible but tricky. You are trying to match the end of Segment A with the start of Segment B.

• The Gap: A 1mm error in hoop 1 becomes a Visible Gap in hoop 2.
• The Fix: Use the pen to align the angle (Dot 2 is critical here).
• The Hardware: For serious quilters or border makers, standard hoops are frustrating because they require re-clamping every 6 inches.
• The Solution: Look into specialized stations. Terms like hoopmaster hooping station appear in forums for a reason—they offer a physical jig to ensure repeatability. Alternatively, moving to magnetic frames allows you to slide the fabric along the long edge without un-screwing the outer ring.

The upgrade path that actually makes sense (no hype—just fewer ruined blanks)

Embroidery is an expensive hobby and a profitable business, but only if you minimize waste. Here is the logical hierarchy of upgrading your toolkit based on your pain points.

Level 1: The "I keep ruining shirts" Stage

• Solution: Better preparation.
• Upgrade: High-quality Cut-Away stabilizer, reputable thread (Isacord/Madeira/Simthread), and Water Soluble Pens. Use the Ultrasonic Pen religiously.

Level 2: The "My wrists hurt" / "Production is too slow" Stage

• Solution: Faster Hooping.
• Upgrade: brother 5x7 magnetic hoop.
• Why: These hoops remove the physical strain of tightening screws and eliminate "hoop burn." They allow you to hoop thick items (towels/jackets) that standard hoops can't grip.

Level 3: The "I have too many orders" Stage

• Solution: Scalability.
• Upgrade: SEWTECH Multi-Needle Hardware.
• Why: Moving from a single-needle VE2300 to a multi-needle machine changes the game. You stop changing threads manually. You gain speed.

Warning: Magnet Safety. Modern magnetic hoops use industrial-strength neodymium magnets. They are incredibly strong.
* Pinch Hazard: They snaps shut instantly. Keep fingers clear.
* Medical Devices: Keep them at least 6 inches away from pacemakers.
* Electronics: Keep away from credit cards and hard drives.

A final reality check: what this feature does—and what it doesn’t

The Brother Ultrasonic Pen System is a brilliant tool for Placement Correction. It allows you to be human—imperfect and slightly crooked—and still produce professional results.

However, it is not a magic wand.

• It cannot fix loose stabilizer.
• It cannot fix cheap thread.
• It cannot fix fabric shifting in a loose hoop.

Master the basics: Get your fabric "drum tight" (consider magnetic hoops if you struggle here), use the right backing, and then let the pen handle the math. Once you trust this workflow, "Hooping Blues" become a thing of the past.

FAQ

• Q: Why does the Brother VE2300 Ultrasonic Sensor Pen stitch 5–10 mm away from the marked center dot after calibration?
  A: This is common—start by verifying the Brother VE2300 reference point, dot size, and hoop stability before assuming the pen is defective.
  • Select Center in the 9-point grid unless a specific corner alignment is required.
  • Re-mark Dot #1 and Dot #2 as under-2mm dots using a fabric-safe water-soluble or heat-erase pen.
  • Re-hoop for a firm surface: adhere fabric to stabilizer with temporary spray adhesive to prevent a “shifting sandwich.”
  • Success check: the on-screen “1” and “2” turn red when tapped, and the LED pointer can be nudged to perfectly eclipse Dot #1 before pressing OK.
  • If it still fails, check for ultrasonic interference (HVAC vents, loud fans, other ultrasonic sources) and move the machine to a quieter spot.
• Q: What is the correct Brother VE2300 menu path to run a quick calibration test design for Ultrasonic Sensor Pen placement?
  A: Use the built-in letter “X” as a fast diagnostic because it shows rotation and center clearly.
  • Tap Embroidery → Embroidery Edit → Fonts → select “X” → Set → Embroidery.
  • Turn on the Sensor Pen icon (stylus icon) and choose Center as the reference point.
  • Tap Dot #1 (anchor) then Dot #2 (vertical vector) with the pen held perpendicular.
  • Success check: the design visibly shifts/rotates on the VE2300 screen after pressing OK, and the LED pointer lands on the marked center when verified.
• Q: How tight should fabric be hooped on a Brother VE2300 before using the Ultrasonic Sensor Pen (to prevent drift, tunneling, or flagging)?
  A: Aim for “hoop neutrality”—taut like a drum, but not stretched or grain-distorted.
  • Tap the fabric: adjust until it feels drum-taut without warping the weave.
  • Inspect grain lines: loosen if vertical lines curve (the “banana” distortion), because over-tightening can cause puckering later.
  • Bond fabric to stabilizer with temporary spray adhesive to stop downward “sponging” when tapping the pen.
  • Success check: the fabric surface stays flat and firm when the pen touches down, not bouncing or dipping.
• Q: Which stabilizer should beginners use on a Brother VE2300 to stop “perfect placement” from turning into “perfect drift” during stitching?
  A: Match stabilizer to fabric stretch and design density first; the Sensor Pen corrects placement math, not fabric movement.
  • Choose Cut-away for knits and T-shirts (a safe rule for beginners).
  • Use Cut-away or heavy tear-away for dense designs (over ~10,000 stitches or solid fills) because stitch pull increases distortion.
  • For towels or velvet, use tear-away backing + water-soluble topping to prevent stitches sinking.
  • Success check: the fabric around the design stays flat with minimal puckering as stitches build, not drawing inward or forming tunnels.
• Q: What should a new Brother VE2300 owner check if the Ultrasonic Sensor Pen registers a tap far from the real dot (for example, 1 inch to the left)?
  A: Don’t worry—this is usually environment or technique, not a broken Brother VE2300.
  • Reduce audio/ultrasonic interference: move away from HVAC vents, loud fans, or other ultrasonic devices.
  • Avoid blocking sensors: reposition your body/arm so the machine head sensors have a clear “view” while tapping.
  • Re-hoop for a rigid surface: eliminate fabric “sponging” by improving hoop tension and stabilizer adhesion.
  • Success check: repeated taps on the same dot produce consistent on-screen confirmation and predictable LED pointer alignment.
  • If it still fails, re-check that the Sensor Pen is fully plugged into the side port and the Sensor Pen icon is active before tapping.
• Q: What safety rules should be followed on a Brother VE2300 when positioning the hoop and using the Ultrasonic Sensor Pen near the needle zone?
  A: Treat the Brother VE2300 hoop path as an active hazard zone—keep hands and tools out before starting.
  • Keep fingers, scissors, and loose threads away from the needle area while mounting and positioning the hoop.
  • Confirm the hoop arm has full clearance (no walls, tables, mugs) before pressing Start.
  • Use the LED pointer and on-screen nudges with hands outside the hoop travel area.
  • Success check: the hoop can move through its full range with no contact risk, and your hands are clear before stitch-out begins.
• Q: When should a Brother VE2300 user upgrade from screw hoops to magnetic embroidery hoops, and when does upgrading to a multi-needle machine make sense for production?
  A: Upgrade based on the pain point: improve technique first, then reduce hooping strain with magnetic hoops, then scale output with a multi-needle machine.
  • Level 1 (technique): improve prep—correct stabilizer, reliable thread, small clean dots, and consistent Center reference selection.
  • Level 2 (tool): switch to magnetic embroidery hoops if screw hooping causes wrist pain, slow hooping, hoop burn, or weak clamping that allows fabric flagging.
  • Level 3 (capacity): move to a multi-needle machine when order volume makes manual thread changes the bottleneck.
  • Success check: waste drops—fewer ruined blanks from misplacement, less hooping rework, and smoother workflow at safe speeds (often 600–800 SPM for precision).
  • If it still fails, slow down and re-verify hoop click-in, LED pointer alignment, and stabilizer adhesion before assuming a hardware limitation.
• Q: What magnet safety precautions are required when using magnetic embroidery hoops with a Brother VE2300 workflow?
  A: Magnetic hoops are extremely strong—prevent pinch injuries and keep magnets away from sensitive devices.
  • Keep fingers clear as the hoop snaps shut to avoid pinch hazards.
  • Keep magnets at least 6 inches away from pacemakers and other medical devices.
  • Keep magnets away from credit cards and hard drives to reduce damage risk.
  • Success check: the hoop closes under control with no finger exposure, and the workspace is cleared of sensitive items before clamping.
