Stop Fighting “Locked” Colors in Embird Editor: Split Join Your Monogram Letter from the Frame (and Keep Your Stitch-Out Clean)

If You Can’t Recolor a Monogram Letter, It’s Not Your Machine—It’s the “Group.” Here’s the Fix.

If you’ve ever opened a purchased (or free) monogram design and thought, “Why won’t this letter change color without changing the border too?”—take a breath. Nothing is wrong with your machine, and you don’t suddenly need a digitizing degree.

Computerized embroidery is an experience science. It sits at the intersection of digital logic and physical tension. When software behavior doesn't match your intuition, it triggers a very specific type of frustration—what I call "Operator Paralysis." You freeze because you are afraid of breaking the file or, worse, breaking the machine.

In this deep-dive guide based on the Embird Editor workflow, we are going to deconstruct this problem. We will move beyond simple button-pushing and into the logic of why designs behave this way, and how to safely manipulate them without causing "bird nests" or registration errors on your final garment.

You will learn to:

1. Diagnose the Structure: See the invisible connections between design elements.
2. Execute the Split: Safely separate a letter from its frame using Embird.
3. Prevent the "Drift": Ensure your physical hooping can handle the new software edits.


Calm the Panic: Why Embird Editor Won’t Let You Recolor the Letter Separately (Yet)

Most beginners assume the file is “corrupted” when the letter and border refuse to behave like separate colors. What’s actually happening is simpler: the designer built the letter and the frame border as a single connected object (in the same color block), so Embird treats them as one unit.

Think of it like a physical chain link fence. Even if you want to paint just the middle section, if the wire is continuous, the paint flows along the metal. In digitizing terms, to save the machine from cutting the thread (trimming) and tying in a new knot (tie-in), digitizers often "branch" objects together. It is an efficiency feature that becomes a customization bug.

That’s why you can change the color, but you can’t change the letter without also changing the frame. They are fused at the DNA level of the file.

If you are currently learning on an embroidery machine for beginners, this is often the first "software wall" you hit. It creates a feeling that your equipment is limited, when in reality, the fix is purely in the file structure.

The “Hidden” Prep Pros Do First in Embird Object Panel (So You Don’t Edit Blind)

Before you touch any colors, you need to confirm what is grouped and what is separate. In the video, Donna uses the right-side panel (object/color list) and the hide/show toggles to reveal what each color block actually contains.

Here’s the mindset: Do not guess—verify. Digital layouts can be deceptive. A gap on the screen might actually have a "travel run" stitch connecting it to the next element.

Visual Audit: What you’re looking for

Look at the right-hand panel in Embird. You are looking for a single color entry that highlights both the frame outline and the monogram letter simultaneously on the canvas (in the video, the red layer behaves this way). Conversely, you want to identify separate entries for other parts (like the leopard spots), which respond independently when hidden.

Prep Checklist: The "Safety First" Protocol

Before you even think about clicking 'Split', perform this 3-point diagnostic:

• Module Check: Confirm you are in Embird Editor (the puzzle piece icon), not the Manager or Digitizing Studio.
• The "Blink" Test: Click the suspected color block in the right panel. Watch the canvas. Does the specific letter and the frame blink/highlight together? If yes, they are grouped.
• Layer Isolation: Right-click the object and select "Hide Other Objects." Seeing the object in isolation prevents visual clutter from tricking your eye.

Make the Background Pop: Changing Thread Colors from the Embird Catalog Without Guesswork

Donna’s first visual upgrade is a classic: she changes the base/background color to a jewel tone so the design has more contrast.

The exact workflow shown:

1. Right-click the color chip on the right sidebar.
2. Choose color.
3. Choose Color from Catalog.
4. Scroll and select Royal Blue.

The result is immediate: the background field shifts from the original red to a bold blue.

Why this matters beyond “pretty” (The Physics of Contrast)

On real fabric, contrast isn’t just aesthetics—it’s readability. A monogram that looks subtle on a gray software canvas can disappear completely on a plush towel or fleece.

Expert Insight: When choosing colors in software, remember that light is additive (screen pixels emit light), but thread is subtractive (reflects light). A "Royal Blue" on screen might look dim, but in high-sheen Rayon or Polyester thread, it will catch the light.

• Action: If stitching on high-pile fabric (towels, velvet), always choose a thread color at least two shades lighter or darker than the fabric. If they are too close, the texture of the fabric swallows the design.

Isolate the Inner Leopard Layer: Recoloring the Secondary Fill for a Totally Different Look

Next, Donna selects a different layer (the inner spots backing) and repeats the same catalog method to switch it to a lighter pink.

Workflow shown:

1. Select the target layer.
2. Right-click its color chip.
3. Change Color → Choose Color from Catalog.
4. Pick a lighter pink.




The "Density Trap" (Critical Warning)

Changing colors is “safe” structurally, but it can change how you perceive density and coverage.

• Dark Colors (Black, Navy): Absorb light. They make separate stitches blend together, effectively hiding the fabric underneath.
• Light Colors (White, Pale Pink, Yellow): Reflect light. They highlight the shadows between the stitches.

The Risk: If a design was digitized for black thread with a standard density (e.g., 0.45mm spacing), and you switch it to white or pale pink, you might suddenly see the fabric showing through the stitches.

The Fix: If switching to a very light color on a dark fabric, consider slightly increasing the density (lowering the spacing value to 0.38mm or 0.40mm) if your software allows, or ensure you are using a solid opaque backing like Cutaway Stabilizer to provide a white foundation.

The Real Fix: Using Embird Edit > Split Join > Split to Separate the Letter from the Frame

Now for the move that solves the “locked color” problem. This breaks the digital chain link we discussed earlier.

Donna hides layers until she’s focused on the outline/frame and the letter, selects the combined object, then uses:

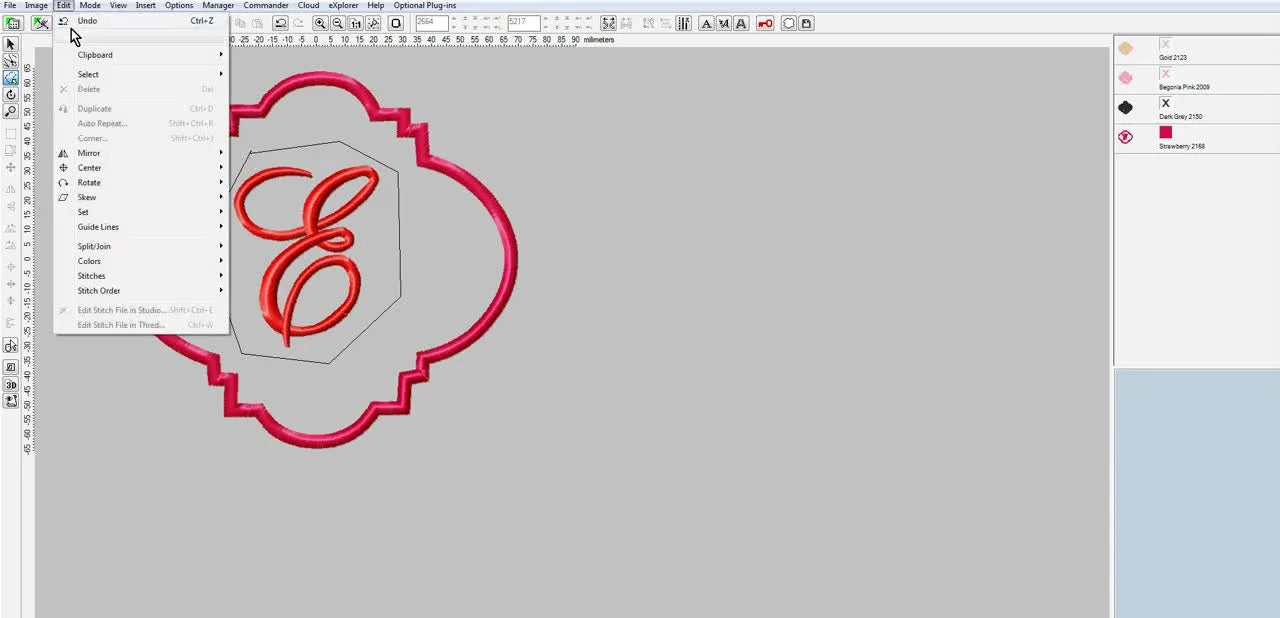

Edit → Split Join → Split

This command scans the object for stitches that are physically connected. If it finds a gap where the machine has to jump (even a tiny one), it breaks the object into two separate files at that gap.

What to watch for (your checkpoints)

Checkpoint 1: The right panel expands. Expected outcome: Where you previously had one combined item, you now see two distinct items in the list.

Checkpoint 2: The selection box shrinks. Expected outcome: You can click the letter alone, and the selection box (the dotted line) hugs only the letter, excluding the frame.

Warning: production Safety
Splitting objects changes the machine pathing. A single object flows continuously. Two objects require a Trim and a Lock Stitch (tie-in/tie-off) between them.
The Risk: If your machine's tension is off or your bobbin tail is too short, the machine might unthread itself during that extra trim.
The Fix: Ensure your top tension is not too tight (standard test: pull thread, should feel like flossing teeth) and watch the machine closely during the transition between the frame and the letter.

Why Split Join works (The Principle)

Embird isn’t reading your mind about what constitutes a letter “E”. It is reading geometry. It looks for coordinate continuity. When the letter and frame were built, the original digitizer likely put a forced jump between them but grouped them for color efficiency. Split Join simply respects that forced jump and turns it into a file separation.

The Payoff: Recolor Only the Monogram Letter (Without Touching the Border)

Once the letter is its own entity, Donna selects the letter “E” and recolors it via the catalog—this time choosing Green.

Workflow shown:

1. Left-click to select the isolated letter.
2. Right-click the color chip.
3. Choose Color from Catalog.
4. Apply a green.






The final preview shows the letter green while the frame border remains red, with the other recolors intact. You have successfully customized the file.

Setup Checklist: The "Pre-Flight" Confirmation

• Selection Test: Click the letter. Does it highlight independently?
• Layer Audit: Scroll through the right panel. Did you accidentally hide a layer and forget to unhide it? (Common mistake: stitching a design missing its underlay).
• Order of Operations: Ensure the background prints before the letter. Drag and drop layers if needed. If the letter stitches first and the background stitches on top, the letter will be buried.

The “Looks Great on Screen” Trap: How Software Edits Can Create Stitch Problems Later

The video focuses on recoloring and splitting, but here’s the production reality: a design that’s been split into more objects introduces Registration Risk.

When a design is one continuous piece, the fabric stays put under the tension of the thread. When you split it, the machine stops, trims, moves, and starts again. During that split second of movement, if your hooping is loose, the fabric relaxes.

The Symptom: You stitch the frame. The machine trims. It moves to stitch the green "E". But the fabric shifted 1mm. Now the "E" is off-center or overlapping the border.

The Solution:

1. Stabilization is King: For split designs, use a heavier stabilizer. If using a knit, use Cutaway stabilizer, not Tearaway.
2. Adhesion: Use a temporary spray adhesive (like 505 Spray) to bond the fabric to the stabilizer. This prevents the "micro-shifting" that happens during trims.

Quick Decision Tree: When to Keep It Simple vs. When to Upgrade Your Workflow

Use this logic flow to decide how much effort to put into a project.

Scenario A: One-off Gift or Personal Project

• Fabric: Stable (Denim, Canvas).
• Action: Recolor in Embird. Split the object. Use standard hooping.
• Acceptable Risk: Minimal.

Scenario B: 50+ Custom Polos for a Corporate Client

• Fabric: Unstable (Pique Knit, Performance wear).
• Action: Do not rely solely on software splitting. Standardize the colorway.
• Critical Need: You need absolute consistency in physical placement. Software edits are fast, but physical hooping is slow and prone to error.

Scenario C: High-Volume Monogramming

• Constraint: Your bottleneck is not the software; it is the physical act of hooping.
• Action: Upgrade your hardware tools. (See below).

Comment-Style Pro Tips: The Two Questions People Always Ask After This Edit

Pro tip: “How do I know what I’m about to recolor?”

Use the Hide/Show toggles exactly like Donna does. If you can’t confidently say what a layer contains, don’t recolor it yet. Hide everything else until the "mystery layer" is the only thing on the screen.

Watch out: “Why did my machine add trims after I split?”

Splitting creates separate entities. Some machines interpret separate entities as mandatory trim points instructions.

• Auditory Check: Listen to your machine. Does it make a vigorous clunk-swish sound (the cutter engaging) where it used to flow smoothly? This slows down production. If speed is critical, you may want to recombine layers in a dedicated digitizing module to optimize the path, though for beginners, the Split method is safer.

The Upgrade Path (When Your Real Problem Isn’t Embird—It’s Time, Hooping, and Consistency)

This tutorial is software-based, but most embroiderers eventually hit a different wall: Handling Time.

If you are customizing monograms for sale, the design edit in Embird takes 2 minutes. But hooping the shirt, measuring the placement, and clamping the frame can take 5-10 minutes per item. If you are struggling with registration errors (where the letter doesn't land inside the frame), the problem is usually the hoop, not the software.

Here is a practical "Scene → Solution" guide to upgrading your toolkit:

Scene 1: The "Hoop Burn" Nightmare

The Pain: You are monogramming velvet or delicate performance wear. To hold it tight enough for the "Split Join" technique, you crank the hoop screw tight. When you unhoop, there is a permanent "burn" ring or crushed pile that won’t steam out. The Fix: This is the primary use case for magnetic embroidery hoops. Instead of friction and mechanical force (stuffing an inner ring into an outer ring), they use vertical magnetic force. This holds the fabric firm without crushing the fibers, eliminating hoop burn and allowing for faster adjustments.

Warning: Magnet Safety
Modern magnetic hoops use Neodymium magnets—they are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Risk: Keep powerful magnetic frames at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Store away from credit cards and phone screens.

Scene 2: The "Wrist Fatigue" Production Run

The Pain: You have an order for 20 tote bags. The traditional hoop requires significant hand strength to clamp thick canvas. By bag #5, your wrists ache. The Fix: Many professionals search for embroidery hoops magnetic specifically to reduce ergonomic strain. The "snap" closure is instant and requires zero wrist torque. If you are doing volume, this preserves your body.

Scene 3: The "Color Change" Bottleneck

The Pain: You used the Split technique to make a 4-color design. Now your single-needle machine stops 4 times. You have to unthread, rethread, and restart. A 10-minute design becomes a 30-minute ordeal. The Fix: If software edits are creating too many color stops for your patience, this is the trigger point for a Multi-Needle Machine (like the SEWTECH ecosystem options). A Machine with 10+ needles creates those color changes automatically in seconds.

Scene 4: The "Wobbly" Letter

The Pain: You split the file, but the letter is crooked on the shirt. The Fix: You need a hooping station for embroidery. This is a board that holds your hoop in a fixed position while you align the garment. It guarantees that "center" is actually center, removing the human error from the physical setup.

Operation Checklist (The Final 60-Second Run-Through)

Before you press the green button, perform this final physical and digital check:

• File Logic: In the machine interface, does the design show as multiple steps now? (It should, if you split it).
• Consumables: Are you using 75/11 Sharp needles (for woven/towels) or 75/11 Ballpoint (for knits)? A dull needle will drag fabric and ruin the registration of your split design.
• Stabilizer Bond: Did you use a light mist of temporary spray adhesive (like 505) to adhere the fabric to the stabilizer?
• Hoop Tension: Tap the fabric in the hoop. It should sound like a dull drum—taut, but not stretched to distortion.
• Path Clearance: Ensure the garment isn't bunched under the hoop where the needle arm moves.

When you can recolor confidently and split objects cleanly, you stop being stuck with “whatever the designer chose” and start building your own signature look. Just remember: Software gives you the power, but your hooping technique gives you the precision.

FAQ

• Q: Why does Embird Editor recolor a monogram letter and the border frame together in the same color block?
  A: This is common—Embird Editor is behaving correctly because the digitizer built the letter and frame as one connected object in the same color block.
  • Verify: Click the suspected color block in the right panel and watch whether the letter and frame highlight/blink together.
  • Isolate: Right-click the object and choose “Hide Other Objects” to confirm exactly what that block contains.
  • Decide: If both elements highlight together, the design must be split before the letter can be recolored independently.
  • Success check: Hiding/showing that single entry makes both the letter and the frame appear/disappear at the same time.
  • If it still fails: Confirm the Embird module is Embird Editor (puzzle piece icon), not Manager or Digitizing Studio.
• Q: How do I use Embird Editor Edit > Split Join > Split to separate a monogram letter from a connected frame border?
  A: Use Edit → Split Join → Split on the combined object to break the connected stitch chain into separate items.
  • Focus: Hide layers until only the letter + frame area remains, then select the combined object.
  • Split: Run Edit → Split Join → Split once and wait for the object list to update.
  • Confirm: Look for the right panel to expand from one item into two distinct items.
  • Success check: Clicking the letter selects only the letter and the selection box hugs the letter without grabbing the frame.
  • If it still fails: Repeat the visual audit—some designs have multiple connected sections, and the wrong object may be selected.
• Q: After splitting a design in Embird Editor, why does a multi-needle embroidery machine add trims and tie-ins between the frame and the letter?
  A: Splitting creates separate entities, so many machines insert trims and lock stitches (tie-in/tie-off) between the new objects.
  • Expect: Watch the stitch sequence—there should now be an extra stop between the frame and the letter.
  • Listen: Pay attention for a stronger cutter sound where the design used to sew continuously.
  • Prevent: Keep top tension from being too tight and monitor the transition so the machine doesn’t unthread during the extra trim.
  • Success check: The machine completes the trim and restarts cleanly without pulling the thread out or leaving a loose start.
  • If it still fails: Recheck bobbin and top thread setup and test-sew the split area on scrap before stitching the final garment.
• Q: How do I prevent registration shift after using Embird Editor Split Join, when the monogram letter stitches off-center inside the border frame?
  A: Registration shift after a split is usually hooping and stabilization, not software—reduce fabric movement during trims.
  • Upgrade stabilizer: Use a heavier stabilizer; on knits, choose cutaway rather than tearaway.
  • Add adhesion: Lightly mist temporary spray adhesive (e.g., 505) to bond fabric to stabilizer to prevent micro-shifting.
  • Hoop correctly: Hoop taut like a dull drum—firm, but not stretched to distortion.
  • Success check: The letter lands centered inside the frame with no overlap or gap after the trim/restart.
  • If it still fails: Move up a level—use a hooping station to remove placement error and improve repeatability.
• Q: What needle type should be used before stitching a split, multi-step monogram design on towels versus knits to avoid drag and misalignment?
  A: Match the needle to the fabric so the needle doesn’t drag the material and throw off split-design alignment.
  • Use: 75/11 Sharp for woven fabrics and towels; 75/11 Ballpoint for knits.
  • Inspect: Replace a dull needle—dull points can pull fibers and worsen registration after trims.
  • Recheck: Ensure the garment is not bunched under the hoop where the needle arm moves.
  • Success check: The needle penetrates smoothly and the split areas line up without “pulling” the fabric.
  • If it still fails: Slow down and run a small test on the same fabric + stabilizer stack to confirm the setup before the full design.
• Q: How do I choose thread colors in Embird Editor so a monogram stays readable on high-pile fabric like towels or fleece?
  A: For high-pile fabric, pick thread colors with stronger contrast—on textured fabric, subtle color differences disappear.
  • Choose: Select a thread shade at least two shades lighter or darker than the fabric for better readability.
  • Preview: Recolor using the Embird catalog, then mentally “translate” from screen to thread (thread reflects light differently than a screen).
  • Plan: If a very light thread is used and fabric shows through, consider using cutaway stabilizer as a stronger foundation.
  • Success check: The monogram remains clearly legible at normal viewing distance, not just on the software screen.
  • If it still fails: Avoid extremely light colors for low-density areas or adjust the design structure only if the software supports it.
• Q: What is the safest way to use magnetic embroidery hoops to prevent hoop burn on velvet or performance fabric while keeping a split design stable?
  A: Magnetic embroidery hoops are often the safest upgrade for delicate fabrics because they hold with vertical magnetic force instead of crushing with a tight screw.
  • Handle safely: Keep fingers out of the snap zone to avoid pinch injuries.
  • Protect health devices: Keep magnetic frames at least 6 inches away from pacemakers or insulin pumps.
  • Store carefully: Keep magnets away from credit cards and phone screens.
  • Success check: The fabric stays secure for trim/restart points, and the unhooped fabric shows minimal or no permanent hoop ring.
  • If it still fails: Combine the magnetic hoop with stronger stabilization and adhesive to reduce movement during trims.
