Mastering Machine Embroidery Patches: The Zero-Distortion Guide for the Brother XJ1

If you’ve ever tried to force a finished backpack pocket, a thick denim jacket sleeve, or a heavy book bag onto your embroidery machine and thought, "There is physically no way this fits without disassembling the seams," you have hit the wall that separates hobbyists from pros.

The professional workaround isn't to fight the bag; it's to make a patch. Patches offer a controlled, flat surface that eliminates the "hoop burn" (permanent ring marks) and distortion that ruins expensive garments.

In this "White Paper" style guide, we are deconstructing the localized patch workflow on the Brother XJ1 (Stellaire) using Poly Patch Twill. We will cover the sensory checks you need to perform, the exact button clicks, and when to upgrade your tools from standard hoops to magnetic solutions for production speed.

The Material Science: Why Poly Patch Twill Beats Standard Fabric

The first rule of patch-making is substrate stiffness. In the provided visual, we see Poly Patch Twill in Uniform, Athletic, and Bright color families.

The Sensory Check:

• Touch: The material should feel stiff, almost like cardstock or heavy canvas. It should not drape over your hand.
• Sound: Flick the edge of the sheet. If it makes a sharp "thwack" sound rather than a soft rustle, it is ready for a dense satin border.




From a physics standpoint, this stiffness provides the "bite" for your border stitches. If you use floppy fabric (like standard quilting cotton) without heavy-duty fusing, the dense satin border—often 4mm wide with thousands of needle penetrations—will perforate and curl the edges like a potato chip.

Production Note: The roll size visible is 9" x 24". This allows you to "gang" (batch) multiple patches in a single 9.5" x 14" hoop, maximizing efficiency.

The Strategy: When to Patch vs. When to Upgrade Tools

The tutorial highlights universal pain points: sleeves, onesies, jeans repairs, and book bags. Here is the professional criteria for choosing your method:

1. The "Flatness" Rule: If the item cannot lie 100% flat in the hoop (e.g., a pre-sewn pocket), make a patch. Forcing it causes puckering.
2. The "Distortion" Risk: If the fabric is stretchy and you are embroidering a dense logo, a patch isolates the density from the stretch.

The Tool Upgrade Path: Sometimes, you must embroider directly on the item (e.g., corporate mandates). In these cases, standard screw-tight hoops are your enemy because they require excessive hand force and leave marks. This is where professionals pivot:

• Narrow Areas: Use a specific sleeve hoop designed for small diameters.
• Speed & Quality: Use a magnetic frame. Magnetic hoops clamp instantly without "unscrewing," preventing the dreaded hoop burn on delicate performance wear.

Pre-Flight Prep: The "Hidden" Consumables & Checks

Before touching the screen, you must stabilize your environment. A patch frame relies on a "stack" approach.

Recommended Stack:

• Base: Poly Patch Twill (or fused heavy twill).
• Stabilizer: 2.5oz or 3.0oz Cutaway Stabilizer. Never use Tearaway for patches; the border perforation will cause the patch to fall out of the stabilizer before it is finished.
• Needle: Size 75/11 Sharp (Ballpoint needles may deflect on the stiff patch material).

Warning: Safety First. When trimming patches after stitching, you will be working millimeters away from thread. Use "Duckbill" applique scissors to protect the stitches. Never trim while the hoop is attached to the machine; one slip can damage the pantograph drive system.

Phase 1: Preparation Checklist

• Needle Check: Is a fresh 75/11 Sharp needle installed? (Burred needles ruin satin borders).
• Bobbin Check: Do you have a full bobbin? (Running out mid-border is a disaster).
• Material Test: Does your patch material pass the "Flick Test" for stiffness?
• Design Plan: Have you decided between a Contour Border (Shield) or Geometric Border (Circle)?

Execution: The Brother XJ1 Workflow & The "Blocked Button" Trap

On the Brother XJ1 interface, the workflow is powerful but can be finicky if you don't follow the sequence.

The Sequence:

1. Select your design.
2. Tap Edit.
3. Tap the Shield Icon (Applique/Patch function) on the right sidebar.

The "Blocked Edit" Symptom: The host notes a common frustration: You press a button, and the machine ignores you (grayed out).

• The Cause: You are deep in a sub-menu or a "modal" window.
• The Fix: Press Return/Back until you exit the specific pattern selection screen, then re-enter the Edit mode.








Efficiency Tip: If you are batching patches, re-hooping breaks your rhythm. This is where a Hooping Station becomes vital. Researching a hooping station for machine embroidery will show you how to maintain consistent placement on every single run, reducing the "guesswork" of vertical alignment.

Phase 2: Setup Checklist

• Screen Clear: Ensure no error messages or sub-menus block the "Edit" button.
• Icon Located: Locate the Shield icon on the right menu bar.
• Hoop Tension: Sensory Check: Tap the hooped patch sheet. It must sound like a drum (tight). If it sounds like paper (loose), re-hoop. Loose material leads to "wobbly" borders.

Path A: The Auto-Contour (Shield Icon)

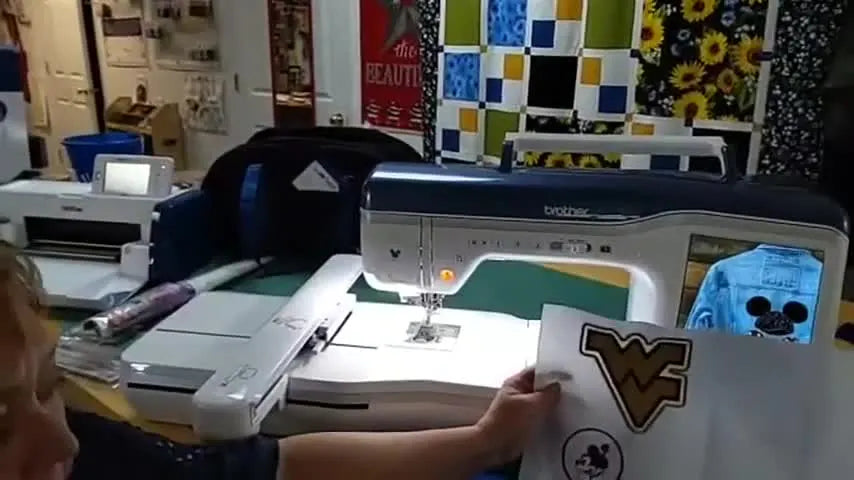

For the "WV" logo, the machine generates a border that hugs the design shape.

The "Double Border" Technique:

• Action: Press the Shield icon once for a single satin stitch.
• Action: Press the Shield icon a second time to generate a double border.
• Result: This creates a gap between the design and the edge, giving a "store-bought badge" aesthetic.

Calibrating the Machine: The standard Brother XJ1 offset is usually calculated automatically.

• Observation: If the border looks too close (touching the letters), you may need to manually adjust the Distance setting (if available in your specific firmware version) or resize the design slightly before applying the shield.

This process relies heavily on hoop stability. If you own this machine, looking into brother stellaire hoops upgrades—specifically magnetic options—can ensure the fabric does not shift while the machine calculates these precise contours.

Path B: The Manual Geometric Frame (The Minnie Mouse Fix)

The "Minnie" example demonstrates a failure of automation. The Shield icon attempts to trace every bow, ear, and eyelash, creating a "jagged" and messy border.

The Master Fix: Don't use the Shield. Build a frame manually.

1. Delete the auto-generated contour.
2. Tap Add.
3. Select Shapes (Circle/Square).
4. Resize until the shape frames the character with negative space.












Why this looks better: It mimics a retail patch. It provides "visual breathing room" around complex artwork.

Speed Limit: Dense satin circles generate high friction.

• Recommended Speed: Slow your machine down to 600-700 SPM (Stitches Per Minute) for the border.
• Risk: Running at 1000+ SPM on a dense border can cause thread breakage or needle deflection.

Decision Tree: Shield vs. Shape

Use this logic flow to determine your border strategy in under 10 seconds.

• 1. Is the design a solid shape (Logo, Lettering)?
  • Yes: -> Use Shield (Auto-Contour).
  • No (Complex Character/Fine Details): -> Go to step 2.
• 2. Can you simplify the design?
  • Yes: -> Simplify, then use Shield.
  • No: -> Use Manual Shape (Circle/Square) to frame it.

Troubleshooting & Community Intelligence

Addressing common questions from the field (and the video comments) ensures you don't stall out.

1. Scanning Custom Art The XJ1 can scan drawings via the My Design Snap app.

• Tip: Clean up your sketch first. High contrast (black marker on white paper) scans 10x better than pencil sketches.

2. Adhesion: Iron-on vs. Sew-on

• The Pro Standard: Stabilizer (fused or spray) helps during embroidery. For the final application to a backpack, use Heat Seal Backing (Iron-on) plus a zig-zag stitch if the item will be washed frequently. Glue alone eventually fails in the dryer.

3. Magnetic Hoops for the XJ1 Can you use them? Yes. In fact, for stiff patch material, they are superior.

• Why: A magnetic hoop for brother stellaire clamps straight down. It does not distort the weave by pulling it sideways like a screw hoop.

Warning: Magnet Safety. Industrial magnetic hoops are extremely powerful. They can pinch fingers severely. Never place them near pacemakers. Keep them separated with the provided spacers when not in use.

The Physics of Quality: Tension & Tooling

Even with perfect software settings, physical factors dictate the result.

1. Hoop Tension (The Foundation) The patch sheet must be drum-tight. If you see "puckering" inside the patch, your hooping was too loose. If you struggle with hand strength, a magnetic frame is a valid accessibility accommodation that improves quality.

2. Density Management A standard satin border has a density of roughly 0.4mm. If your machine is "jamming" or making a rhythmic thump-thump sound:

• Stop immediately.
• Check: You may be stitching a dense border on top of another dense stitch.
• Fix: Resize your border outward to avoid overlapping stitches.

3. The Consistency Upgrade If you are producing 50 patches for a local soccer team, consistency is your product.

• The issue: Hand-screwing a hoop 50 times results in fatigue and variable tension.
• The Solution: Many shops switch to brother embroidery machine magnetic hoop systems for production runs. They auto-adjust to the thickness of the patch material.

Diagnostics: Troubleshooting Table

Upgrade Path: From Hobby to Production

If patch-making becomes a core part of your business, your equipment needs to scale with your volume.

1. Level 1: Stability (The Essential)
   • Start with Poly Patch Twill and reliable Cutaway stabilizer.
   • Use temporary spray adhesive (like Odif 505) to float materials if needed.
2. Level 2: Efficiency (The Tooling)
   • If you lose 5 minutes per shirt struggling with hooping, upgrade to magnetic hoops. You might look up how to use magnetic embroidery hoop tutorials to see the speed difference in action.
   • Value: Faster throughput and less strain on your wrists.
3. Level 3: Scale (The Machine)
   • If you are running batches of 100+, a single-needle machine like the XJ1 requires a thread change for every color stop.
   • Solution: A SEWTECH Multi-Needle machine allows you to set up 10+ colors at once, press start, and walk away while the machine produces the patches automatically.

Phase 3: Operation Checklist

• Speed Set: Machine speed reduced to 600-700 SPM for the border run.
• Clearance: Hoop path is clear of walls/objects (the arm moves wide!).
• Stop/Start: You have planned your color stops (if doing the double border technique).
• Observation: Watch the first 100 stitches. If the patch sheet "bounces," pause and re-tighten.

By following this expert-calibrated guide, you move from "hoping it works" to "knowing it will work." The Brother XJ1 is a capable machine; paired with the correct stiffness of Poly Patch Material and the mechanical advantage of magnetic hoops, you can rival commercial patch factories from your studio.

FAQ

• Q: On the Brother XJ1 (Stellaire), why is the “Edit” button grayed out when trying to use the Applique/Patch Shield icon?
  A: Exit the modal/sub-menu first, then re-enter Edit—this is a common UI “blocked button” trap.
  • Press Return/Back repeatedly until the main design screen is fully visible.
  • Tap Edit again, then tap the Shield (Applique/Patch) icon on the right sidebar.
  • Avoid starting a new function while still inside a pattern/selection window.
  • Success check: The Edit button and Shield icon are no longer gray and respond immediately.
  • If it still fails: Re-select the design from the start and confirm no on-screen message is active.
• Q: What stabilizer and needle setup prevents patch edges curling when making machine embroidery patches on the Brother XJ1 (Stellaire) with Poly Patch Twill?
  A: Use 2.5oz–3.0oz cutaway stabilizer with a fresh 75/11 sharp needle—tearaway is the common cause of border blowout.
  • Stack Poly Patch Twill on top of 2.5oz or 3.0oz cutaway stabilizer (avoid tearaway for patches).
  • Install a new 75/11 Sharp needle (ballpoint needles may deflect on stiff twill).
  • Plan to trim with duckbill appliqué scissors after stitching.
  • Success check: The satin border stitches sit flat and the patch stays firmly supported until the run is complete.
  • If it still fails: Re-check substrate stiffness (do the flick test) and confirm the border is not stitching over another dense area.
• Q: How can Brother XJ1 (Stellaire) users tell if patch hoop tension is correct before stitching a satin border?
  A: Hoop the patch sheet drum-tight—loose hooping is the fastest way to get wobbly borders and puckering.
  • Tap the hooped patch sheet to do the sound test.
  • Re-hoop if it sounds like paper instead of a drum.
  • Avoid over-hand-tightening screw hoops on delicate items; consider a magnetic frame if consistent tension is hard to achieve.
  • Success check: A firm “drum” sound and no visible slack when pressing lightly with a fingertip.
  • If it still fails: Stop after the first stitches and re-hoop if the material “bounces” during stitching.
• Q: On the Brother XJ1 (Stellaire), why does the Applique/Patch Shield auto-contour create a messy jagged border on complex characters (like Minnie), and what is the fix?
  A: Skip auto-contour and build a simple manual shape frame—auto-tracing fine details is what creates the jagged edge.
  • Delete the auto-generated Shield border.
  • Tap Add → Shapes (Circle/Square) and resize to leave clean negative space around the artwork.
  • Use Shield auto-contour mainly for solid logos/lettering shapes.
  • Success check: The border is smooth (clean circle/square) and does not try to follow eyelashes, bows, or tiny details.
  • If it still fails: Simplify the design first, then retry Shield on the simplified version.
• Q: What Brother XJ1 (Stellaire) speed should be used to reduce thread breaks on dense satin patch borders?
  A: Slow the border run down to about 600–700 SPM to reduce friction and needle deflection on dense satin stitches.
  • Set machine speed to 600–700 SPM specifically for the border segment.
  • Pause immediately if you hear rhythmic “thump-thump” impacts and check for overlapping dense stitches.
  • Consider switching to a Size 80/12 needle if the patch is especially thick (start with the recommended 75/11 sharp first).
  • Success check: The border runs smoothly without repeated thread breaks and the needle penetrates without deflecting.
  • If it still fails: Move/resize the border outward so it does not stitch on top of another dense area.
• Q: What is the safest way to trim embroidered patches after stitching on the Brother XJ1 (Stellaire)?
  A: Never trim while the hoop is attached—remove the hoop and use duckbill appliqué scissors to protect the border stitches.
  • Remove the hoop from the machine before any cutting.
  • Use duckbill appliqué scissors and keep the “bill” under the stitches as a guard.
  • Trim slowly, staying millimeters away from the satin border.
  • Success check: The patch edge is cleanly cut with no nicked border threads.
  • If it still fails: Leave a small margin and re-trim carefully rather than chasing the edge aggressively.
• Q: What magnetic hoop safety rules should Brother XJ1 (Stellaire) users follow when upgrading to a magnetic embroidery frame?
  A: Treat industrial magnetic hoops like power tools—pinch injuries are common, and magnets must be kept away from pacemakers.
  • Keep fingers clear when lowering the magnetic ring; let the magnets “snap” together in a controlled way.
  • Store magnetic hoops separated using the provided spacers when not in use.
  • Keep magnetic hoops away from pacemakers and other sensitive medical devices.
  • Success check: The hoop closes without finger contact, and the fabric clamps evenly without needing forceful tightening.
  • If it still fails: Switch back to standard hooping for that job and reassess handling technique before the next run.
• Q: For high-volume patch runs on the Brother XJ1 (Stellaire), when should users upgrade from technique fixes to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: first stabilize/hoop correctly, then add magnetic hoops for speed/consistency, and move to multi-needle when thread changes dominate production time.
  • Level 1 (Technique): Use stiff patch material + cutaway stabilizer + drum-tight hooping to eliminate distortion and rework.
  • Level 2 (Tooling): Add magnetic hoops when repeated screw-hooping causes fatigue, hoop burn, or inconsistent tension across batches.
  • Level 3 (Capacity): Choose a SEWTECH multi-needle machine when runs of 100+ patches are slowed mainly by frequent color changes on a single-needle workflow.
  • Success check: Cycle time per patch becomes predictable (less re-hooping, fewer border failures, fewer stops for thread handling).
  • If it still fails: Track where time is lost (hooping vs. border breaks vs. color changes) and upgrade only the step causing the slowdown.
