Stop Fighting the Jumbo Hoop: Split a 14x14 Design in Embrilliance and Stitch It Cleanly on a Brother PR1055X

Mastering the Monster: The Definitive Guide to Split Designs on a 14x14 Magnetic Hoop

If you’ve ever stared at a jumbo frame and thought, “There’s no way this is going to line up,” you’re not alone. A 14x14 magnetic hoop is a productivity monster—but only if your software split, your machine alignment, and your hoop handling work in perfect unison.

In this "White Paper" grade workflow, we analyzed a session using a Brother PR1055X with a 14x14 jumbo magnetic hoop and Embrilliance software to stitch a large design in two perfectly aligned halves. We will deconstruct the "physics" of heavy hoops to ensure you get a perfect seam, every time.

The Jumbo 14x14 Magnetic Hoop Reality Check (Brother PR1055X + Aftermarket Frames) Before You Waste a Stitch

A jumbo hoop feels like freedom—until the needle path gets too close to the frame. The harsh reality of machine embroidery is that Brother machines are calibrated to recognize Brother-branded hoops. When you use aftermarket jumbo frames, the machine does not strictly "know" where the metal edge is.

The "Safe Zone" Rule: While the hoop is marketed as 14x14, experienced operators know the Safe Stitchable Area is actually closer to 13.5" x 13.5". You need a safety margin (roughly 1/4"–1/2") so the needle bar doesn’t strike the frame.

If you are shopping for magnetic hoops for brother pr1055x, treat “14x14” as the physical frame size, not a guarantee of edge-to-edge stitching.

Warning: ALWAYS run the machine’s Trace function before stitching. A needle strike on a metal magnetic hoop isn't just a broken needle—it can shatter the presser foot, knock the reciprocator out of timing, or damage the hoop itself. Listen for the faint "whir" of the pantograph moving; if it sounds likes it's straining at the edges, scale your design down 2%.

The “Hidden” Prep Pros Do Automatically: Stabilizer, Support Table, and Hoop Handling for a 14x14 Frame

Big hoops introduce big physics: more leverage, more bounce, and a higher chance the fabric shifts between Part 1 and Part 2. When a 14x14 hoop hangs off a single attachment arm, gravity is your enemy.

The Physics of Failure: If your hoop bounces during stitching (flagging), your registration will drift. If the heavy fabric drags off the table, it pulls the design out of alignment.

Decision Tree: Fabric vs. Strategy

If you are building a production workflow, a wide extension table is not optional—it is a critical part of your alignment system.

Prep Checklist (The "Pre-Flight" Safety Check):

• Gap Check: Ensure the frame bracket screws are tight. A loose bracket causes "runaway" designs.
• Support: Set up a support table. The hoop must sit flat, not hang in mid-air.
• Consumables: Have temporary spray adhesive (like 505) and masking tape ready to secure backing.
• Tactile Check: Tap the hooped fabric. It should sound like a drum—taut, but not stretched to the point of distortion.
• Thread Plan: Decide which needles carry which colors to avoid "air stitching" (stitching the wrong color).


Lock In Embrilliance Preferences (Multi-Position + Jumbo Frame 14x14) So the Split Tool Actually Works

The software setup is where most alignment disasters begin. You must tell the software exactly what physical boundaries exist.

In Embrilliance (Enthusiast level or higher recommended for splitting):

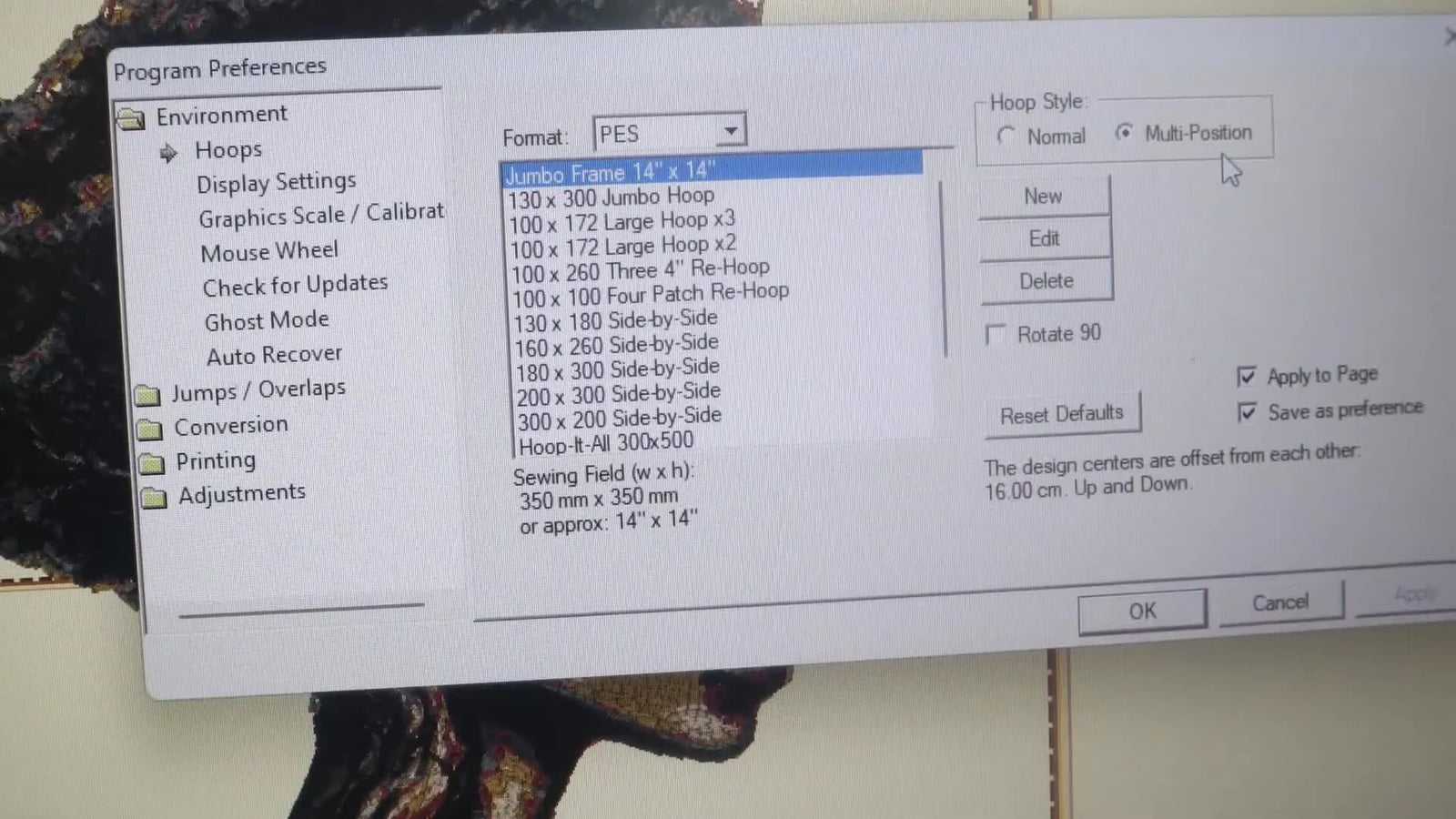

1. Go to Preferences > Hoops.
2. Select Multi-Position (radio button).
3. Select Jumbo Frame 14" x 14".
4. Click Apply.

Visual Confirmation: You know it is correct when the hoop display on your screen changes to show a "double boundary" line. This represents the two embroidery fields overlapping.

Commercial Context: If you own a brother pr1055x, you likely already have the machine capabilites, but investing in robust software like Embrilliance is what actually unlocks the jumbo hoop potential.

Split Into Hoop in Embrilliance: The 3-File Output That Confuses People (Top, Bottom, Combined)

Once the hoop preference is set, use the tool: Utility > Split Into Hoop.

Embrilliance calculates the "seam line" (where the design splits) and creates three specific files. Understanding these is crucial:

• The Combined File: For viewing/reference.
• Top Half (Part 1): The first file you load.
• Bottom Half (Part 2): The second file (after the flip).

Expert Tip on Cleaning: Many users encounter issues where the split won't save. This is usually because a stitch element is touching the absolute edge of the 360mm limit. Scale your design down to 98% before splitting. This tiny reduction is invisible to the eye but allows the software the math-space to create a clean split.

If you are learning Embrilliance split design workflows, remember: The software does the math, but you must provide the safety margin.

On the Brother PR1055X Screen: Load Part 1, Then Manually Map Threads with the Magic Wand

Load the Top Half file first.

Never trust the machine's default color assumption. Use the Magic Wand icon to access color settings and manually assign thread colors based on your physical needle setup (1–10).

The "Anchor" Color Technique: If your design has a black outline, keep Black on Needle 10 (or 1) permanently. This creates muscle memory and reduces setup time.

Machine Setup Checklist:

• Load: Select the "Top" file.
• Map: Use Magic Wand to link digital colors to physical needles.
• Speed: Beginner Sweet Spot = 600 SPM. Do not run a jumbo split design at 1000 SPM until you have successfully done it 5 times.
• Trace: Verify the needle clears the magnetic frame corners.


Stitch Part 1 at 500-600 SPM, Then Place the Brother Snowman Positioning Marker

The first half is the easy part. Relax, but keep an ear out for rhythmic sounds. A consistent "thump-thump" is good; a sharp "slap" sound means your thread tension is too loose or the hoop is bouncing.

The Critical Alignment Step: When Part 1 finishes, the machine stops and prompts you to place the Brother Snowman positioning marker.

1. Look at the Screen: It will show a specific red zone where the marker must go.
2. Apply the Sticker: Place the Snowman sticker on the fabric.
3. Precision is Key: Ensure the fabric is flat. If the sticker is on a wrinkle, the camera will misread the angle.




Troubleshooting Camera Failure: If the camera fails to find the Snowman (or starts the next part 3 inches off), it is usually due to lighting glare on the sticker or fabric texture confusing the sensor.

• Fix: Close the curtains/dim the lights slightly to reduce glare on the reflective sticker.
• Manual Override: You can use the physical arrow keys to jog the design into place if the camera fails, but this requires a keen eye.

Safety Warning: KEEP HANDS CLEAR. A multi-needle machine changes needles automatically. When the head moves, it moves fast and with torque. Never reach inside the frame area while the machine is active.

The 180° Flip That Makes or Breaks It: Bracket Orientation

After the Snowman is scanned, the machine instructs you to rotate the frame.

The Mechanical Flip: Remove the hoop. Rotate it 180 degrees. The top of your design should now be facing you.

The "Half-Bracket" Nuance: On a 14x14 jumbo workflow, the hoop has four mounting points, but the machine arm only grabs two at a time.

• Part 1: Uses positions A & B.
• Part 2: Uses positions C & D.

Sensory Check: When re-attaching the hoop, listen for a distinct "Click" or "Snap" as the bracket locks into the machine arm. If it feels "mushy," you haven't engaged the pins correctly, and your design will be ruined.

Kits that function similarly to how to use mighty hoop systems often have very strong magnetic force—ensure you don't pinch the fabric between the bracket and the arm when sliding it on.

“Positioning Mark Recognized”: What to Do on the PR1055X Screen Before You Touch the Second File

The machine will re-scan the Snowman sticker in the new position. When it says "Positioning Mark Recognized," STOP.

1. Peel the Sticker OFF: Do not stitch over the Snowman sticker. The glue will gum up your needle and the paper will get trapped under your stitches.
2. Select the Next Design: Only now do you load the Bottom Half file.


Stitch Part 2 Like a New Job: Reload, Re-Assign, Start

This is the "Silent Killer" of split designs. The machine treats Part 2 as a completely fresh start. It has forgotten your color settings from Part 1.

The Reset Ritual:

1. Load Bottom Half file.
2. Re-open Magic Wand.
3. Re-assign completely. (Yes, you have to do it again).
4. Trace again (just to be safe).

Once started, the machine adjusts the X/Y coordinates based on the Snowman scan and stitches the bottom half. If you prioritized stabilization, the seam should be invisible.

structured Troubleshooting: When Things Go Sideways

Real-world problems require structured solutions. Use this diagnostic table before panicking.

If you are struggling with standard hoops leaving "hoop burn" or slipping during the flip, many users find that switching to mighty hoop brother pr compatible magnetic frames eliminates the slippage variable entirely.

The Upgrade Path: From Frustration to Profit

Once you master the jumbo split, you move from "hobbyist" to "custom production." However, equipment limitations will eventually become your bottleneck.

The "Pain Point" Upgrade Logic:

1. Pain: "My wrists hurt from hooping jackets."
   • Solution: Magnetic Hoops. They clamp instantly without force. This is a health and safety upgrade as much as a speed one.
   • Search Strategy: Look for terms like magnetic embroidery hoop or specific sizes for your machine.
2. Pain: "I spend more time changing threads than stitching."
   • Solution: Multi-Needle Machine Upgrade. If you are doing runs of 20+ items, a single-head multi-needle (like the Brother PR or SEWTECH models) pays for itself in labor savings.
3. Pain: "My designs are pucker-city."
   • Solution: Consumables Audit. Upgrade to commercial-grade SEWTECH Stabilizers and verify you are using the correct needle point (Ballpoint for knits, Sharp for woven).

When comparing tools found by searching magnetic hoops for embroidery machines, always calculate the ROI based on time saved, not just the sticker price.

Warning: Magnetic Field Safety
Magnetic hoops use industrial-strength neodymium magnets.
* Do not place them near pacemakers or insulin pumps.
* Pinch Hazard: Keep fingers clear when the magnets snap together.
* Electronics: Keep phones and credit cards at least 12 inches away.

Final Operation Checklist:

• Part 1 stitched and threads trimmed.
• Snowman sticker placed on flat, non-wrinkled areas.
• Hoop rotated 180° and "Clicked" firmly into the arm.
• Snowman sticker REMOVED before Part 2 start.
• Colors re-mapped for Part 2.
• Final seam inspected for gaps before unhooping.

If you’re new to jumbo frames, expect your first attempt to take 3x longer than normal. That is not failure; that is learning the physics of the machine. By your third attempt, this workflow will be muscle memory.

FAQ

• Q: Why does a Brother PR1055X hit (or almost hit) a 14x14 magnetic hoop when the design should fit?
  A: Treat “14x14” as the physical frame size and keep the stitch file inside a safe stitchable area (often closer to 13.5" x 13.5").
  • Run: Use the Brother PR1055X Trace function before the first stitch and watch the needle path near all corners.
  • Reduce: Scale the design down about 2% if the pantograph sounds like it is straining at the edges.
  • Center: Reposition the design so no elements ride the boundary.
  • Success check: The full Trace completes with clear frame clearance and no “near-tap” moments at corners.
  • If it still fails: Stop immediately and re-split/re-digitize with a wider margin before stitching again.
• Q: What stabilizer and support setup prevents misalignment when splitting a large design on a 14x14 magnetic hoop with a Brother PR1055X?
  A: Prevent fabric drift by combining correct stabilizer choice with a support table so the heavy hoop does not hang and bounce.
  • Support: Set up a wide extension/support table so the hoop sits flat instead of pulling down off the arm.
  • Choose: Match stabilizer to fabric (woven: 2 layers medium cutaway; knit: fusible no-show mesh + tearaway; bulky: heavy cutaway, floated if needed).
  • Secure: Use temporary spray adhesive (e.g., 505) and masking tape to keep backing from shifting.
  • Success check: The hooped fabric taps like a drum—taut without distortion—and the hoop does not droop or “flag” during stitching.
  • If it still fails: Fuse fabric to stabilizer first or step up to heavier cutaway to reduce relaxation after Part 1.
• Q: How do you set Embrilliance correctly for a 14"x14" Jumbo Multi-Position split design so the split tool works reliably?
  A: Set Embrilliance to Multi-Position with the correct 14" x 14" Jumbo frame so the overlap boundary displays before splitting.
  • Go: Preferences > Hoops.
  • Select: Multi-Position, then choose Jumbo Frame 14" x 14", then click Apply.
  • Confirm: Look for the “double boundary” hoop display that indicates overlap.
  • Success check: The on-screen hoop shows the overlapping fields (double boundary) and the split preview makes a clean seam line.
  • If it still fails: Scale the design to about 98% before splitting if any element is touching the maximum boundary.
• Q: Why does Embrilliance “Split Into Hoop” fail to save cleanly for a Jumbo 14x14 split, and what is the fastest fix?
  A: A split often fails when stitches touch the absolute limit; scale the design down to about 98% to give the software margin.
  • Scale: Reduce the design to 98% before running Utility > Split Into Hoop.
  • Split: Re-run the split and verify it outputs the three files (combined, top, bottom).
  • Avoid: Keep a safety margin near the edges rather than forcing edge-to-edge stitching.
  • Success check: Embrilliance generates all three files without errors and the top/bottom files show a logical seam.
  • If it still fails: Re-check the hoop selection (Multi-Position + 14x14 Jumbo) and ensure no objects touch the boundary.
• Q: On a Brother PR1055X, why must thread colors be reassigned with the Magic Wand after loading Part 2 of a split design?
  A: The Brother PR1055X treats Part 2 as a new job, so color mapping must be reassigned to match the physical needles again.
  • Load: Stitch Part 1 (top), then later load Part 2 (bottom) as a separate file.
  • Re-map: Open the Magic Wand and re-assign every color to the correct needle positions.
  • Slow down: Use a safe starting speed (about 500–600 SPM) until the workflow is repeatable.
  • Success check: The on-screen needle/color list matches the actual thread setup and the first stitches start in the correct color (no “air stitching”).
  • If it still fails: Keep an “anchor” color (often black outline) on a consistent needle to reduce mapping mistakes.
• Q: What causes the Brother PR1055X Snowman positioning marker camera to miss the mark or start Part 2 inches off, and how do you fix it?
  A: Glare, wrinkles, or tricky fabric texture can prevent accurate camera reads; reduce glare and place the Snowman sticker on a flat area.
  • Dim: Lower harsh lighting or close curtains to reduce reflection on the sticker.
  • Place: Apply the Snowman sticker exactly in the red zone shown on screen and avoid wrinkles underneath.
  • Override: Use the physical arrow keys to jog position only if the camera cannot lock on (requires careful visual judgment).
  • Success check: The Brother PR1055X displays “Positioning Mark Recognized” and the preview alignment matches the stitched first half.
  • If it still fails: Re-apply a new sticker on a flatter spot and re-scan rather than forcing a bad alignment.
• Q: What are the two biggest safety risks when running a 14x14 magnetic hoop split design on a Brother PR1055X, and how do you prevent them?
  A: Prevent needle/metal strikes and hand injuries by tracing first and keeping hands out of the moving head area; add magnet safety if using magnetic hoops.
  • Trace: Always run Trace before stitching to avoid a hoop strike that can break needles and damage parts.
  • Clear: Keep hands completely clear during operation because the multi-needle head moves fast and changes needles automatically.
  • Remove: Peel off the Snowman positioning sticker before stitching Part 2 to avoid glue/paper issues at the needle.
  • Magnet-safety: Keep strong magnetic hoops away from pacemakers/insulin pumps, avoid finger pinch points, and keep phones/credit cards at least 12 inches away.
  • Success check: Trace runs cleanly, the hoop clamps without pinching fingers, and stitching starts with no contact noises or unsafe reaching.
  • If it still fails: Stop the machine and reset the setup—do not “test your luck” near the frame edge or during needle changes.
• Q: If split-design seams keep showing gaps on a Brother PR1055X 14x14 workflow, when should a user move from technique fixes to magnetic hoops or a multi-needle production upgrade?
  A: Start by fixing stabilization and support, then use magnetic hoops to reduce slip/hoop burn, and consider a multi-needle production workflow when labor becomes the bottleneck.
  • Level 1 (technique): Increase stabilizer support (often heavier cutaway) and add a support table so the hoop doesn’t bounce or drag.
  • Level 2 (tool): Switch to a magnetic hoop when standard hooping slips during the flip or leaves hoop burn; magnets can clamp consistently with less handling force.
  • Level 3 (capacity): Move to a dedicated multi-needle production mindset when time is lost to repeated setups and thread changes on larger runs.
  • Success check: The seam line becomes visually invisible (no gap) and repeat jobs hold registration without constant re-hooping tweaks.
  • If it still fails: Re-evaluate fabric-to-stabilizer pairing and confirm the hoop bracket locks with a firm “click/snap” after the 180° flip.
