Stop Fighting Thick Felt: Use Brother My Design Snap on a Stellaire to Place Designs Perfectly on Store-Bought Placemats

The dream of customizing store-bought decor often collides with the hard reality of physics: the item is too thick to clamp, the app won't detect the frame, and your "perfectly aligned" design stitches out crooked.

This guide addresses a classic challenge: adding a face to a thick, pre-cut felt pumpkin placemat using a Brother Stellaire Innov-is and the My Design Snap app. While the process looks fast on video, the gap between a professional finish and a ruined project lies in three invisible factors: stabilization mechanics, camera geometry, and hooping strategy.

As your guide, I will walk you through the "My Design Center" workflow, but more importantly, I will teach you the sensory cues and safety margins that protect your machine and your sanity.

The "Floating" Necessity: Why Standard Hoops Fail on Thick Felt

Before we touch the screen, we must address the physics of the material. Store-bought felt placemats are often 3mm to 5mm thick.

The Problem: Standard plastic inner/outer rings rely on friction and compression.

1. Hoop Pop: The thickness prevents the rings from locking. If you force it, you risk stripping the hoop screw or cracking the plastic.
2. Hoop Burn: Even if it locks, the pressure crushes the felt fibers, leaving a permanent "ghost ring" that ironing won't fix.
3. Distortion: Forcing a shaped item (like a pumpkin) into a square frame warps the fabric. When you unhoop it, the fabric relaxes, and your perfect circle becomes an oval.

The Level 1 Solution: Floating Kathryn’s method in the video is called "Floating." You hoop only the stabilizer, then pin the item on top. This eliminates hoop burn but introduces a new risk: shifting.

The Level 2 Solution: The floating embroidery hoop Technique To float successfully, you cannot rely on pins alone. You need a friction anchor.

• Sensory Check: When you hoop the stabilizer (tearaway or cutaway), drum on it with your finger. It should sound like a tight drum skin, not a dull thud.
• The Hidden Consumable: Use a light mist of Temporary Adhesive Spray (505 Spray) on the stabilizer before pinning the placemat. This creates a "sticky trap" that prevents the felt from creeping under the rhythmic pounding of the needle.


Prep Phase: Building a Safe Foundation

Successful embroidery is 80% preparation and 20% stitching. If you skip these steps, the best software in the world cannot save you.

Prep Checklist: The "Zero-Movement" Standard

Perform these checks in order before opening the app:

1. Select the Frame: Ensure you are using the Standard 9.5" x 14" hoop (or larger) that creates enough margin for the pumpkin.
2. Hoop the Stabilizer: Use a Medium Weight Cutaway (2.5oz) for best stability on felt, or a Heavy Tearaway for easier cleanup. Ensure it is drum-tight.
3. Apply Adhesion: Spray the stabilizer (away from the machine) or peel back the release paper if using sticky-back stabilizer.
4. Pin with Strategy: Place the placemat on the sticky stabilizer. Insert straight pins at the extreme edges, angled outward.
5. Tactile Test: Gently try to slide the pumpkin with your hand. If it moves more than 1mm, it is not secure enough. Add tape or more pins.
6. Clear the Markers: Ensure the black/white recognition stickers on the hoop frame are clean and unobstructed.

Warning: The "Pin Strike" Hazard
Pins and embroidery needles are mortal enemies. A needle hitting a pin at 800 stitches per minute can shatter the needle over 100mph, sending metal shrapnel into your eye or the machine's hook timing definition.
* Rule: Pins must be at least 1 inch (2.5cm) away from the intended stitch area.
* Check: Visually map your "No-Fly Zone" before loading the hoop.

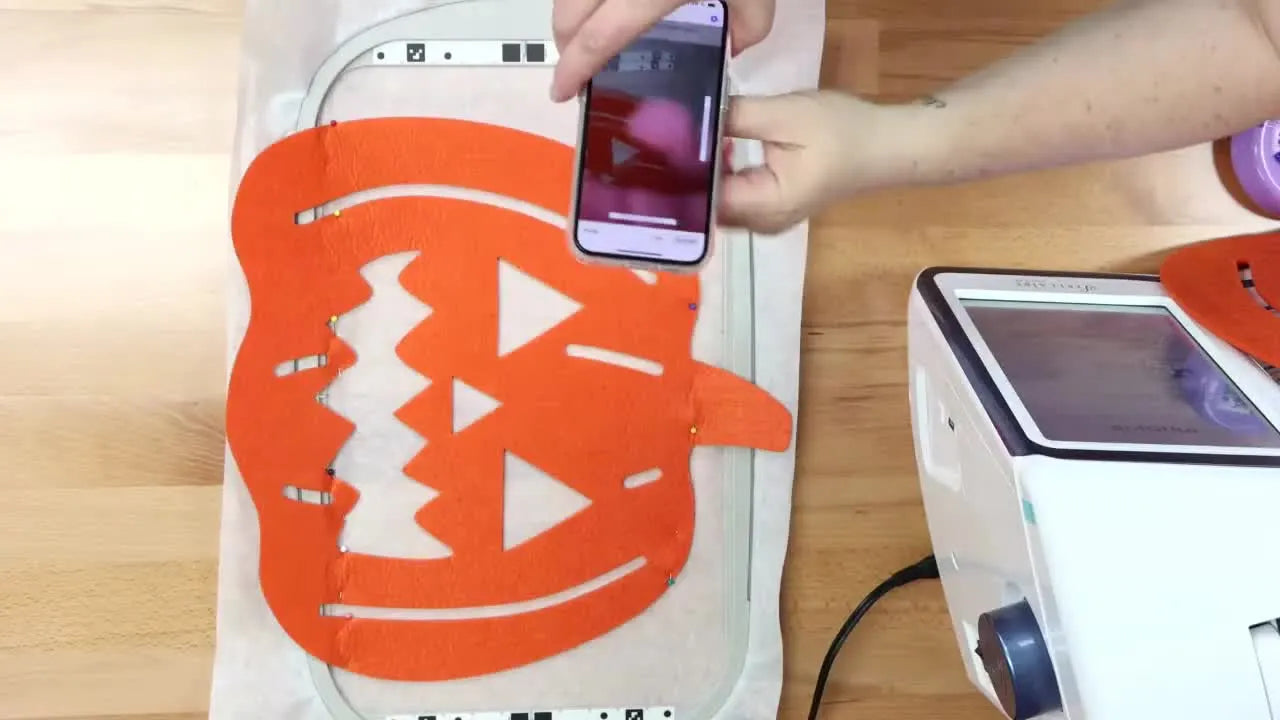

The Scan: Mastering "My Design Snap" Geometry

The Brother Stellaire's "My Design Snap" app uses a specific algorithm to detect where your hoop is. It relies on the distinct pattern of the frame markers.

Kathryn selects Snap Capture (the second icon). This mode takes a photo of the hoop and sends it to the machine as a background.

The "Parallax" Trap Most scanning errors happen because of user posture, not software bugs. If you hold your phone at an angle, the software cannot calculate the perspective correctly, leading to a "skewed" background.

The Correct Posture:

1. Stand up. Do not sit.
2. Hold the phone parallel to the floor (flat).
3. Look for the on-screen guide. The entire hoop frame must fit inside the brackets.

This alignment is the core function of Brother My Design Snap. It translates physical reality into digital coordinates.

Troubleshooting: "Embroidery Frame Cannot Be Detected"

In the video, Kathryn encounters the dreaded red error box. This is almost always a line-of-sight issue.

The Three Common Culprits:

1. The "Finger Eclipse": As seen in the video, holding the hoop rim often covers the recognition markers.
2. The "Shadow Realm": Standing directly under a bright light casts your phone's shadow onto the markers, confusing the sensor.
3. The "Shaky Hand": The camera needs a clear detailed shot.

The Fix:

• Place the hoop on a flat, neutral-colored surface (a table, not your lap).
• Remove your hands from the frame entirely.
• Hold your breath for a second when the shutter triggers to ensure stability.


If you are doing production runs—say, 50 personalized placemats for a fall craft fair—relying on a handheld phone scan for every single unit is a recipe for fatigue and error. This is where professionals build a designated hooping station for machine embroidery: a set area with controlled lighting and a marked table to ensure every scan is identical.

Wireless Transfer: The "Sent" Confirmation

Once the capture works, tap Send to Machine. Wait for the specific confirmation: "Sent."

Crucial Workflow Discipline: From the moment you see the word "Sent," DO NOT touch the hoop.

• Do not re-pin.
• Do not push down the fabric.
• Do not rotate the frame.
• Why? The image on your screen is a snapshot in time. If you move the physical object even 2mm after scanning, your digital design will be perfectly aligned to the photo, but misaligned on the fabric.


Integration: pulling Data into My Design Center

On your Brother Stellaire, navigate to My Design Center. This is your digitizing canvas.

The "Hidden" Leaf Button New users often get lost here. To retrieve your scan:

1. Look at the top icon bar.
2. Tap the Leaf Icon (this generally represents "Load Background").
3. Select the Wireless icon.




Expert Insight: The machine caches receive images. As Kathryn notes, the first image in the list is the last one you sent. Trust the timestamp if you are unsure.

Once you select your pumpkin image and tap Set, your screen transforms. You are no longer looking at a generic grid; you are looking at your placemat.

This real-time background is why a My Design Center Tutorial is so valuable—it bridges the gap between imagination and execution.

Designing on the Fly: Symmetry and Structure

With the pumpkin as your wallpaper, you can now use the built-in drawing tools.

Designing the Face:

1. Visual Centerline: The pumpkin shape is organic and irregular. Do not find the center of the hoop; find the visual center of the pumpkin.
2. Order of Operations: Draw the eyes first to establish the horizon line. Then add the nose and mouth relative to the eyes.
3. Stitch Type Selection: For felt, avoid heavy satin stitches if you haven't used enough stabilizer. A "Triple Bean Stitch" or a light fill works best for outlines.


The "Drift" Factor Felt has a "grabby" texture. When the foot travels, it can drag the fabric slightly. If you notice your design aligns on screen but stitches out 2mm to the left, it is usually because the "floating" pins allowed the fabric to pivot. This is why the adhesive spray recommended in the Prep section is mandatory, not optional.

Setup Checklist: The "Go / No-Go" Decision

Before you press the start button, pause and verify.

• 1. Obstruction Check: Are all pins outside current stitch path? (Spin the handwheel or use the "Check Area" button).
• 2. Thread Path: Is the upper thread seated in the tension discs? (Pull thread near the needle; you should feel "dental floss" resistance).
• 3. Bobbin Check: Do you have enough bobbin thread to finish the face? (Running out mid-eye is a disaster on felt).
• 4. Needle Choice: Are you using a 75/11 Sharp or 90/14? (Ballpoint needles may struggle to pierce thick compressed felt cleanly).
• 5. Presser Foot Height: For thick felt, raise your presser foot height in the settings (usually to 2.0mm or higher) to prevent the foot from dragging the fabric.

The Production Reality: When to Upgrade Your Tools

The "Pin and Float" method is excellent for one-off projects. However, if you are running a small business, this method is a bottleneck. It is slow, physically demanding on your fingers, and prone to alignment errors.

The Level 3 Solution: Magnetic Hoops If you find yourself customizing thick items (towels, felt, bags) more than three times a week, you have outgrown the pin method.

A magnetic embroidery hoops for brother upgrade solves the physics problem that pins try to hide:

1. Clamping vs. Pinching: Magnets clamp the thick felt firmly between two frames without forcing a ring insert.
2. No "Hoop Burn": Because there is no friction-rub, there is no permanent mark.
3. Speed: You eliminate the pinning, the spraying, and the fear of pin-strikes. You simply lay the specific backing, lay the placemat, and snap the magnets.

Warning: Magnetic Force Safety
Professional magnetic hoops use industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear of the mating surfaces.
* Medical Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place the hoop directly on top of your laptop or phone.

Decision Tree: Fabric, Stabilizer, & Hoop Choice

Use this logic flow to determine your setup for future projects.

When your hobby starts to hurt your hands or your schedule, that is the trigger to move from "Floating" (Skill Level 1) to "Magnetic Clamping" (Tool Level 2).

Universal Troubleshooting: Symptom → Cause → Fix

Save this table for when things go wrong interactively.

Operation Checklist: The Final Countdown

• Hoop: Standard 9.5x14 (or Magnetic Equivalent).
• Scan: "Sent" confirmed on phone.
• Load: Background image set via Leaf Icon.
• Align: Face drawn relative to pumpkin center, not hoop center.
• Safety: Hands clear, pins clear.

By following this hoop for brother embroidery machine protocol, you transform a nervous experiment into a repeatable manufacturing process. Whether you stick with pins or upgrade to magnets, the key is respecting the physics of the fabric and the geometry of the camera. Now, press start and watch that pumpkin smile.

FAQ

• Q: How do I embroider a thick felt pumpkin placemat on a Brother Stellaire Innov-is when the standard 9.5" x 14" hoop will not clamp the felt?
  A: Float the felt pumpkin placemat on top of a drum-tight hooped stabilizer instead of trying to clamp the felt in the hoop rings.
  • Hoop only a medium weight cutaway (2.5oz) or a heavy tearaway stabilizer, then tighten until it is firm.
  • Apply a light mist of temporary adhesive spray (e.g., 505) to the stabilizer (away from the machine), then place the placemat on top.
  • Pin at the extreme edges and angle pins outward so the center area stays clear for stitching.
  • Success check: Tap the hooped stabilizer with a finger— it should sound like a tight drum skin, and the placemat should not slide more than 1mm when you gently test it.
  • If it still fails, add more adhesion (spray or sticky-back stabilizer) and reduce any chance of pivoting by adding tape or more edge pins.
• Q: How do I prevent fabric shifting and crooked stitching when floating thick felt for Brother Stellaire Innov-is embroidery?
  A: Use adhesion plus strategic pinning, because pins alone often allow thick felt to creep or pivot during stitching.
  • Spray the hooped stabilizer lightly with temporary adhesive spray before placing the felt item.
  • Pin only at the far edges and keep pins at least 1 inch (2.5cm) away from the stitch area.
  • Re-check security before stitching by attempting to slide the felt with your hand.
  • Success check: The felt stays “locked” under your palm with no visible creep, and the stitched outline does not drift a couple millimeters left/right compared to the on-screen placement.
  • If it still fails, stop relying on pin-and-float for repeat work and switch to a magnetic clamping method for thick items.
• Q: How do I fix “Embroidery Frame Cannot Be Detected” in the Brother My Design Snap app when scanning a Brother Stellaire Innov-is hoop?
  A: Clear the recognition markers and improve line-of-sight by placing the hoop flat and keeping hands/shadows off the frame.
  • Place the hoop on a flat, neutral-colored table surface (not your lap).
  • Remove hands from the hoop rim so fingers do not cover the black/white recognition markers.
  • Reposition lighting to avoid casting a phone shadow across the markers, and hold still during capture.
  • Success check: The app completes the capture without the red error box and proceeds to the “Send to Machine” step.
  • If it still fails, clean and uncover the hoop markers completely and retry with steadier support (both elbows braced, breath held during shutter).
• Q: How do I prevent parallax skew when using Brother My Design Snap on a Brother Stellaire Innov-is so the background image is not crooked?
  A: Hold the phone parallel to the floor and keep the entire hoop frame inside the on-screen brackets before capturing.
  • Stand up (do not sit) to stabilize posture and camera angle.
  • Keep the phone flat/level so the camera is not tilted relative to the hoop.
  • Confirm the full hoop frame is visible within the app’s guide before taking the photo.
  • Success check: The background image lines up squarely in My Design Center (no “leaning” hoop edges) and the design placement matches the physical item.
  • If it still fails, re-scan with the hoop on a table and ensure the camera is not angled from the side.
• Q: After Brother My Design Snap shows “Sent,” why must the Brother Stellaire Innov-is hoop not be moved before stitching?
  A: Do not touch or re-position the hoop after “Sent,” because the design will align to the photo snapshot, not the moved fabric.
  • Wait for the exact “Sent” confirmation before doing anything else.
  • Do not re-pin, press down, rotate, or shift the placemat after the scan is sent.
  • Load the background in My Design Center and place the face relative to the pumpkin’s visual center (not the hoop grid).
  • Success check: On-screen placement and stitched placement match without a 1–2mm offset.
  • If it still fails, re-scan from scratch after securing the fabric again to the stabilizer so nothing changes between capture and stitch-out.
• Q: How do I avoid a pin strike and needle break when floating and pinning thick felt in a Brother Stellaire Innov-is hoop?
  A: Keep every pin at least 1 inch (2.5cm) away from the intended stitch area and verify the sewing path before pressing start.
  • Place pins only at the extreme edges, angled outward away from the design area.
  • Use the machine’s “Check Area” function (or equivalent) to confirm the stitch field clears all pins.
  • Stop immediately if a needle hits a pin, then remove broken fragments and re-check the hoop path before restarting.
  • Success check: The needle runs through the full design area with no contact risk and no sudden needle snap at the start of stitching.
  • If it still fails, remove more pins and rely more on adhesive/sticky stabilizer for hold-down, or change the hooping method to reduce pin use.
• Q: What safety precautions are required when using industrial magnetic embroidery hoops for thick felt items instead of pin-and-float?
  A: Treat magnetic hoops as high-force tools: keep fingers clear, keep away from medical devices, and do not place them on electronics.
  • Keep fingertips away from the mating surfaces when snapping the magnetic frame together (pinch hazard).
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Avoid setting magnetic hoops directly on top of a laptop or phone.
  • Success check: The hoop closes without finger pinches and the item stays clamped firmly without hoop burn or shifting.
  • If it still fails, slow down the closing motion, reposition fabric/backing flat, and ensure hands are fully clear before letting magnets snap together.
