Stop Fighting Your Combo Machine: Pick the Right Sewing & Embroidery Combo, Then Thread the SINGER Futura XL400 Without the Usual Tension Drama

The Unwritten Manual: Mastering Combo Machines & The “Impossible” Singer XL400 Threading

If you bought a sewing and embroidery combo machine thinking it would be the ultimate creative station, only to hit a wall of birdnesting, snapped needles, and cryptic error messages, take a breath. You are not alone.

Machine embroidery is an "empirical science"—it relies on physics, friction, and precise tension. When a combo machine fails, it is rarely broken; it is usually just confused. It’s trying to sew like a sewing machine when it needs to be threaded like an embroidery machine.

This guide acts as the missing "Field Manual" for the machines discussed in the video (Singer Futura XL400, Brother SE600/SE1900, Janome 9850, EverSewn Hero). It focuses heavily on the Singer XL400 because its threading path is the most unforgiving, but the physics lessons apply to every machine listed.

1. Buy Like a Pro: The Workflow-First Approach

A sewing and embroidery machine is a compromise by design. To choose the right one without regret, you must ignore the "feature list" and look at the "workflow."

After 20 years in the industry, here is how I categorize these specific models based on production reality:

• The "Quick Win" Station (Brother SE600): Best for hobbyists who want on-screen guidance. It’s reliable but limited by a 4x4 field.
• The "Engineer’s" Choice (Singer Futura XL400): This machine requires a PC connection and strict threading discipline (detailed below). It is powerful but has a steeper learning curve.
• The "Growth" Step (Brother SE1900): The jump to a 5x7 field isn't just about size; it's about reducing the number of times you have to re-hoop a garment.
• The Top Tier (Janome 9850 / EverSewn Hero): These offer smoother feeding systems and better interface logic, reducing the "friction" between you and a finished product.

The Golden Rule: Don't buy for the projects you might do. Buy for the projects you will do this week. If you plan to put logos on adult sweatshirts, a 4x4 machine will frustrate you within a month.

2. The Brother SE600 Reality Check: Screen vs. Physics

The Brother SE600 is praised for its 3.2-inch color LCD and ease of use. It helps beginners visualize designs before committing. However, the screen can't save you from the physical limitations of a 4x4 hoop.

The "Hoop Burn" Trap: Because the field is small, large designs require "multi-hooping" (moving the fabric). Every time you clamp a standard hoop, you risk:

1. Hoop Burn: Crushing the fabric pile (velvet/towels) permanently.
2. Registration Errors: A 1mm shift makes the design look disjointed.

If you find yourself constantly fighting a brother se600 hoop, realize that the struggle is mechanical. Standard plastic hoops rely on friction and muscle power. As you advance, you will learn that stability comes from holding the fabric, not crushing it.

3. The Singer Futura XL400: Converting "Frustration" into "Precision"

The XL400 is notorious for one thing: if you thread it wrong, it will birdnest instantly. But if you respect its physics, it is a workhorse.

The Foundational Law: Embroidery runs at high speeds (often 600+ SPM) with intense friction. You cannot use the same "loose" setup you use for hemming pants.

The "Hidden" Prep: Thread Physics 101

Before you even touch the machine, you must gather the correct consumables. The video touches on this, but let’s make it concrete.

The Consumables Trinity:

1. Top Thread: Rayon (high sheen, softer) or Polyester (stronger, colorfast). Do not use cotton sewing thread; it creates too much lint and breaks at high speed.
2. Bobbin Thread: 60wt or 90wt Bobbin Fill. This is thinner than regular thread. Why? It reduces bulk on the back, allowing the top thread to be pulled down cleanly.
3. The Bobbin Itself: Class 15J. Notice the "J". It has a slight curve. A standard Class 15 flat bobbin will rattle, causing tension spikes.


Prep Checklist: The "Pre-Flight" Inspection

• Needle Check: Install a fresh Embroidery or Topstitch Needle (Size 75/11 or 90/14). Running your finger over the tip—if it scratches your skin, bin it.
• Bobbin Check: Verfiy you are holding a Class 15J bobbin (curved top/bottom).
• Thread Check: Top thread is Poly/Rayon; Bobbin thread is lightweight fill.
• Safety Check: Clear the workspace of loose pins or scissors near the moving arm.

Warning: Embroidery machines move the hoop arm rapidly and automatically. Keep hands, hair, and loose clothing at least 6 inches away from the needle and carriage area during operation to avoid puncture injuries or pinch points.

4. Winding the Bobbin: The "Click" You Must Hear

Most looping issues start at the winding station. The video shows the path, but here is the sensory detail you need.

The Critical Tension Disc: When you wrap the thread around the winding tension disc (small metal button on top), you must pull it tight until you feel it pop or seat firmly inside the discs.

• Sensory Check: It should feel like flossing your teeth—a distinct resistance.
• The Risk: If it sits loosely on top, the bobbin winds "spongy." A spongy bobbin releases thread unevenly, causing loops on your fabric.


The "Tail Hold" Technique:

1. Thread through the bobbin hole from inside -> out.
2. Hold that tail used firmly while you start the machine.
3. Stop after 5 seconds. Trim the tail close to the plastic.
4. Resume winding. Never let the tail whip around; it can snap or get caught in the spindle.

5. Loading the Bobbin: The Counter-Clockwise Rule

This is non-negotiable for the XL400 and most drop-in systems.

1. Drop the bobbin in.
2. Pull the thread tail.
3. Visual Check: The bobbin MUST rotate Counter-Clockwise (forming the letter 'P').
4. If it rotates Clockwise (letter 'd'), the tension will be non-existent, and you will get a birdnest immediately.


The Finger trap: When routing the bobbin thread through the race (the little grooves), place your index finger gently on top of the bobbin to stop it from spinning. Pull the thread through the tension leaf spring until you feel a slight "click" or resistance.

6. Upper Threading: The "Presser Foot Up" Golden Rule

The video mentions raising the presser foot, but let's explain why so you never forget it.

Inside the tension dial are two metal discs.

• Foot DOWN: Discs are closed (clamped).
• Foot UP: Discs are open.

If you thread with the foot down, the thread floats on top of the discs. Zero tension is applied. The moment you start the machine, the thread creates a giant loop on the back of the fabric.

The Protocol:

1. Presser Foot UP.
2. Thread the path.
3. When you reach the U-turn and take-up lever, keep the thread taut.
4. Action: Before threading the needle, lower the foot. Pull on the thread.
5. Sensory Check: You should feel significant drag (tension). If it pulls freely, you missed the discs. Raise the foot and re-thread.

Imagine you are learning how to use magnetic embroidery hoop systems later to speed up production; those tools save time, but they cannot fix a machine that was threaded with the presser foot down. Physics serves no master.

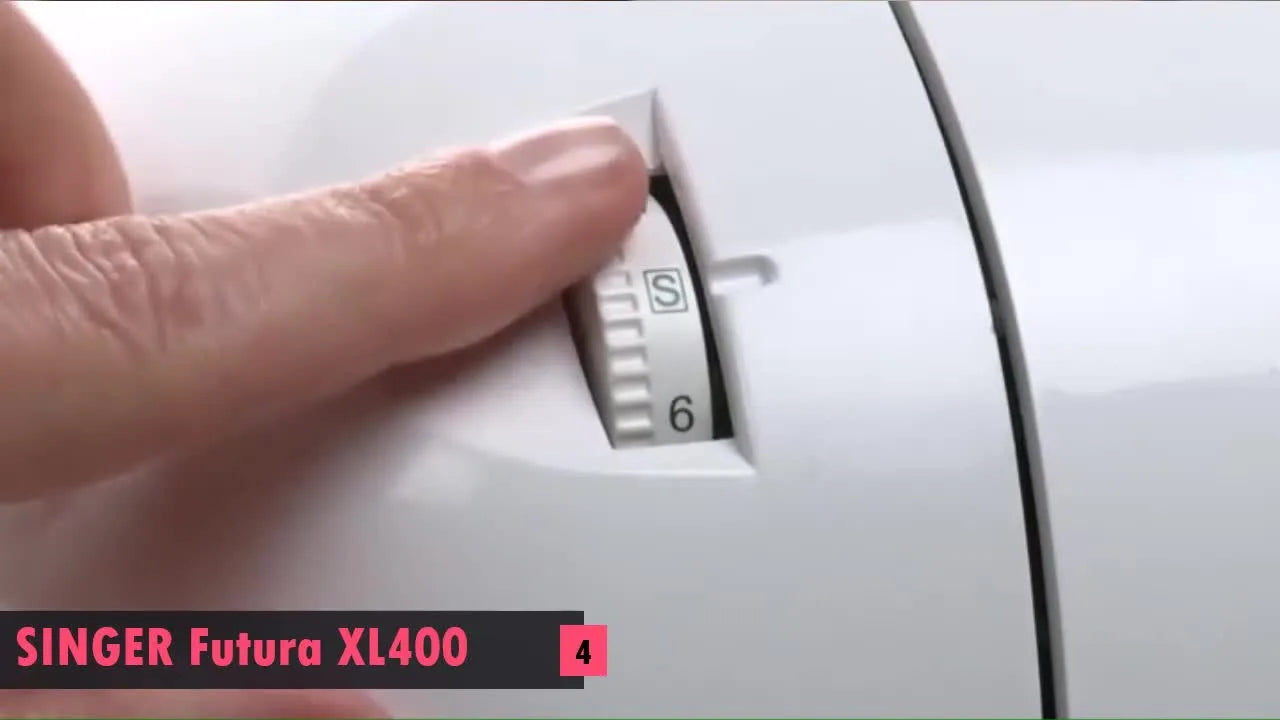

7. The "S vs E" Dial: The Secret Switch

On the Singer XL400, there is a distinct dial marked S (Sewing) and E (Embroidery).

• S Mode: Tightens top tension for a balanced seam (threads meet in the middle of fabric layers).
• E Mode: Loosens top tension.

Why E Mode? In embroidery, we want the bobbin thread to pull the top thread to the back of the fabric. This ensures the bobbin thread (which is usually white) never shows on the top of your design.

• Troubleshooting: If you see white dots on your colorful design, check this dial first. You likely left it on 'S'.


8. Stabilization Wisdom: The Fabric Decision Tree

The video mentions fabric types, but stabilization is the actual "foundation" of embroidery. Without it, thread density pulls fabric into a puckered mess.

Use this logic flow for every project:

• Scenario A: Stretchy Fabric (T-Shirts, Performance Wear)
  • Risk: Stitches distort the fabric grid.
  • Solution: Cutaway Stabilizer. It stays forever and holds the structure.
  • Adhesion: Use temporary spray adhesive to bind fabric to stabilizer.
• Scenario B: Stable Woven (Denim, Canvas, Twill)
  • Risk: Minimal.
  • Solution: Tearaway Stabilizer. It supports the needle penetrations but rips away cleanly.
• Scenario C: Napped/Pile (Towels, Velvet)
  • Risk: Stitches sink into the fuzz.
  • Solution: Tearaway on the back + Water Soluble Topper on the front. The topper acts as a platform for the stitches to sit on.
• Hidden Consumable: Always keep temporary spray adhesive (like 505) and a water-soluble marking pen in your kit. They are as vital as thread.

If precise placement is a struggle, many users eventually invest in a hooping station for embroidery. These devices hold the outer hoop and stabilizer steady while you align the garment, acting as a "third hand."

9. Operation Checklist: The "Go" Sequence

Perform this 10-second scan before every start button press.

• Unit Attached: Embroidery unit locked in.
• Mode Check: Tension dial set to E.
• Bobbin Check: Thread is feeding Counter-Clockwise.
• Hoop Check: Inner hoop is flushed with outer hoop; fabric is drum-tight (tap it, it should sound distinct).
• Clearance: No fabric bundled under the hoop; walls/objects clear of the moving arm.

10. Troubleshooting Architecture (Low Cost -> High Cost)

Don't guess. Follow this hierarchy to save money and time.

11. Scaling Up: When to Upgrade Your Tools

The Brother SE1900 offers a 5x7 field, which is a massive relief for garment workflows. But even with a larger field, the physical act of hooping remains the biggest bottleneck for production.

The "Hooping Pain" Threshold: If you start doing runs of 10+ items, standard screw-hoops essentially become torture devices for your wrists. They also leave "hoop burn" rings that require steaming to remove.

The Solution: Professionals switch to Magnetic Hoops.

• Speed: You simply lay the fabric and snap the top frame on. No screwing, no tugging.
• Safety: No friction burn on delicate velvets or performance wear.
• Compatibility: For the growth mindset, searching for brother se1900 hoops that are magnetic can double your hourly output.




Even for smaller machines, upgrading the toolset matters. If you are constrained by a brother 4x4 embroidery hoop, a magnetic frame allows you to float material and move faster, mitigating some of the small-field annoyance.

Warning: Magnetic Field Safety
Magnetic hoops use powerful industrial magnets (neodymium).
* Daily Use: Keep fingers clear of the "snap zone" to avoid painful pinches.
* Medical: Keep pace-makers and insulin pumps at a safe distance (consult device manual).
* Electronics: Keep credit cards and phones away from the magnets.

12. Conclusion: Master the Machine, Then Upgrade the Workflow

Whether you choose the Brother SE600 for its screen or the Janome 9850 for its prestige, the physics remain the same.

For the Singer XL400 user specifically: "S" is for Sewing, "E" is for Embroidery. Tattoo this on your mind. Use Class 15J bobbins. Thread with the foot up.

Once you stop fighting the machine's basic requirements, you can focus on the art. And when the art turns into a business, look for tools like a brother magnetic hoop 5x7 or specific magnetic hoop for brother models to protect your wrists and your fabric.

Start with the correct needle, the right stabilizer, and a disciplined threading routine. The rest is just practice. Consumers looking for reliable options often check compatibility lists for magnetic embroidery hoops for brother to ensure they get the exact fit for their specific machine model.

FAQ

• Q: Why does the Singer Futura XL400 create a birdnest (thread ball under fabric) right after pressing Start?
  A: Re-thread the Singer Futura XL400 upper path with the presser foot UP first—most instant birdnesting is zero top tension from missing the tension discs.
  • Raise the presser foot fully, then completely unthread and re-thread the top path.
  • Keep the thread taut at the U-turn and take-up lever, then lower the presser foot and pull the thread.
  • Success check: With the presser foot DOWN, the top thread should feel significant drag when pulled (not free-sliding).
  • If it still fails: Confirm the bobbin is installed to feed counter-clockwise and is properly seated in the bobbin race.
• Q: How do I load a bobbin correctly on the Singer Futura XL400 to prevent looping and birdnesting?
  A: Install the bobbin so it feeds counter-clockwise (the “P” direction) and seat the thread into the bobbin race tension path.
  • Drop the bobbin in and pull the thread tail so the bobbin rotates counter-clockwise, not clockwise.
  • Hold a finger lightly on the bobbin to stop it from spinning while routing the thread through the grooves.
  • Pull the thread under the tension leaf spring until a slight “click”/resistance is felt.
  • Success check: The thread pulls with light, consistent resistance and does not freely spill out in loose loops.
  • If it still fails: Verify the bobbin type is Class 15J (curved) and the bobbin thread is lightweight 60wt/90wt bobbin fill.
• Q: What bobbin type and bobbin thread should Singer Futura XL400 embroidery use for stable tension?
  A: Use a Class 15J bobbin and lightweight 60wt or 90wt bobbin fill—this combination reduces tension spikes and bulky backs.
  • Confirm “Class 15J” (the curved profile) rather than a flat Class 15 bobbin.
  • Load 60wt/90wt bobbin fill instead of regular sewing thread.
  • Success check: The back of the embroidery looks flatter/less bulky and tension stays consistent instead of surging.
  • If it still fails: Re-check bobbin winding quality (spongy winding often causes uneven feed).
• Q: How do I wind a bobbin on the Singer Futura XL400 so it doesn’t feel “spongy” and cause loops?
  A: Seat the thread firmly in the bobbin-winder tension disc and use the tail-hold method so the bobbin winds tight and even.
  • Wrap the thread on the winding tension disc and pull tight until it “pops”/seats into the discs.
  • Thread the bobbin hole from inside to outside and hold the tail firmly as winding starts.
  • Stop after about 5 seconds, trim the tail close, then resume winding.
  • Success check: The wound thread looks firm and even (not soft, puffy, or easily dented with a fingernail).
  • If it still fails: Re-seat the thread in the winder tension disc and re-wind a fresh bobbin rather than trying to “use it anyway.”
• Q: Why is white bobbin thread showing as dots on the top of Singer Futura XL400 embroidery?
  A: Switch the Singer Futura XL400 tension dial from “S” (Sewing) to “E” (Embroidery)—leaving it on “S” commonly makes the top look under-covered.
  • Set the dial to “E” before starting the design.
  • Confirm the bobbin thread is correctly routed in the bobbin race and not stuck.
  • Use 60wt/90wt bobbin fill to help the top thread pull down cleanly.
  • Success check: The top stitches look fully covered in the design color with no white speckling.
  • If it still fails: Re-thread the upper path with presser foot UP and verify the bobbin feeds counter-clockwise.
• Q: What stabilizer should I use for machine embroidery on T-shirts, denim, and towels to prevent puckering or sinking stitches?
  A: Match stabilizer to fabric: cutaway for stretch, tearaway for stable wovens, and tearaway + water-soluble topper for towels/velvet.
  • Use cutaway stabilizer on T-shirts/performance wear; add temporary spray adhesive to bond fabric to stabilizer.
  • Use tearaway stabilizer on denim/canvas/twill when the fabric is stable.
  • Use tearaway on the back plus a water-soluble topper on the front for towels/velvet to keep stitches from sinking.
  • Success check: After stitching, the fabric lies flat (no ripples) and satin/filled areas sit on top of the pile instead of disappearing into it.
  • If it still fails: Tighten hooping and reassess whether the fabric needs a stronger stabilizer (cutaway is often a safer starting point for distortion).
• Q: What safety rules should beginners follow when running a Singer Futura XL400 (or any combo embroidery machine) and when using magnetic embroidery hoops?
  A: Keep hands and loose items away from the moving hoop arm, and treat magnetic hoops as pinch hazards with strong magnets.
  • Keep hands, hair, and loose clothing at least 6 inches away from the needle and carriage area while stitching.
  • Clear pins, scissors, and loose tools from the machine bed before pressing Start.
  • Keep fingers out of the magnetic “snap zone” when closing a magnetic hoop to avoid painful pinches.
  • Success check: The hoop arm can travel its full range without contacting hands, tools, or nearby objects, and the magnetic frame closes without trapping skin.
  • If it still fails: Pause and power down before repositioning anything; if using medical implants (pacemakers/insulin pumps), keep magnets at a safe distance and follow the device guidance.
