Stop Forcing the Hoop: A Safe Brother Luminaire Embroidery Unit Spring Adjustment That Makes Frames Slide In Smoothly

It feels like a betrayal. You bought a high-end Brother Luminaire (or a similar XP/XJ series machine), and now, the simple act of sliding the embroidery hoop into the carriage feels like a wrestling match. You hear grinding plastic. You feel resistance. Panic sets in: “Did I bend the arm? Is my machine broken?”

Let me speak to you as a technician with two decades on the bench: Your machine is likely fine.

When a hoop won’t slide into a Brother embroidery unit, the instinct is to force it or, worse, to take sandpaper to your expensive hoops. Do not do this. Sanding acts as irreversible damage. The problem is rarely the hoop itself; it is the retention system inside the embroidery unit carriage pressing down too aggressively.

This guide rebuilds the standard repair method into a "White Paper" standard workflow. We will move beyond simple steps into sensory mechanics—what you should feel, hear, and see—to ensure you can perform this adjustment safely, without fear of "uncalibrating" your unit.

The Real Reason a Brother Luminaire Embroidery Hoop Feels “Too Tight” (and Why Sandpaper Is a Trap)

To fix this, you must understand the physics of what is happening. The embroidery arm holds your hoop using two forces:

1. Alignment (Horizontal): The bottom groove of the hoop locks into the rail tracks.
2. Retention (Vertical): A metal component known as the "butterfly spring" pushes down on the top edge of the hoop to keep it from rattling.

If that spring sits just one millimeter too low, the downward pressure creates excessive friction. You feel this as a "hard drag" or a gritty scraping sensation when inserting the frame.

The "Sandpaper Trap": Many forums suggest sanding the top of your plastic hoops to make them thinner. This is a critical error. Sanding destroys the geometry of the hoop, ruining its grip on the fabric. Furthermore, if you switch to third-party accessories—such as heavy-duty clamps or magnetic hoops for brother luminaire—you will find they don't fit at all because you modified the hoop instead of the machine.

The goal today is to calibrate the machine’s tolerance so it accepts all standard ISO-spec frames smoothly.

The “Hidden” Prep Before You Touch a Screw on the Brother Embroidery Unit (Do This First)

Before we pick up a screwdriver, we must establish a "Clean Bench" environment. Most mishaps happen because screws roll away or the unit scratches the table.

The "Zero-Power" Rule: Ensure the embroidery unit is disconnected from the machine. You are working on a mechanical assembly; there is no need for electricity, and working live risks shorting sensors.

Warning: Mechanical Hazard. Internal metal components, especially stamped steel springs, can have sharp edges. When the cover is off, keep fingers away from pinch points. Never force a screwdriver; if it slips, it can gouge the plastic housing or your hand.

Prep Checklist (Do not proceed until all are checked)

• Workspace: Clean, flat table with a soft towel or mat to prevent scratching the unit’s lid.
• Lighting: Bright, focused light (a phone flashlight or desk lamp) aimed at the carriage rail.
• Tool 1: Phillips #2 Screwdriver (Crucial: Use a driver with a good tip; a worn tip will strip the soft screw heads).
• Tool 2: Needle-nose Pliers (for the micro-adjustment).
• Consumable: A magnetic parts dish or a simple cup (do not place screws on the table where they can roll).
• Reference: Have your tightest hoop on hand for "Feel Testing."


Open the Brother Embroidery Unit Covers Without Breaking Tabs (Two Screws, Two Different Rules)

This is the step where anxiety usually spikes. The plastic covers are held by screws and hidden tabs. The secret is knowing which screw comes out and which one stays in.

1) Remove the small end plate on the underside (Remove Fully)

Flip the embroidery unit upside down on your soft mat.

• Locate the single screw on the small rectangular plate near the connector end.
• Action: Unscrew this completely. Place it in your dish.
• Sensory Check: Slide the small plate horizontally away from the center. You should feel a slight "pop" as the plastic clips disengage. Do not pry it up; slide it back.




2) Release the screw on the opposite end (Loosen Only)

Flip the unit right-side up. Look at the opposite end of the carriage (the far left if the connector is on the right).

• Locate the Phillips screw holding the large white cover.
• Action: Do NOT remove this screw. Turn it counter-clockwise about 4-5 full turns.
• Why? This screw acts as a clamp. You only need to loosen it to release the plastic tab tension. If you remove it, re-threading it later is difficult without magnetic tools.




Get to the Grey Plate and Expose the Butterfly Springs (This Is the Only Area You’re Adjusting)

With the outer plastic shells loose, we need to access the chassis. You are looking for an internal grey metal plate protecting the mechanism.

3) Remove the grey plate (One Out, One Loose)

• Screw A (Top): Remove this single screw completely.
• Screw B (Far End): Loosen this screw (similar to the step above).
• Action: Lift the grey cover up and off.

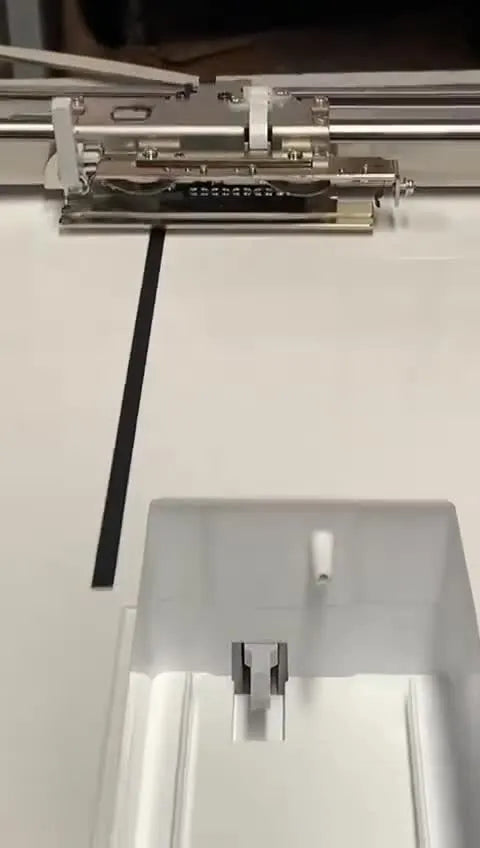

Visual Confirmation: You should now see the "Butterfly Springs." These are the shiny metal loops that sit directly above the rail where your hoop slides in.

The “Butterfly Spring” Test Fit: Watch Where the Hoop Actually Rubs

Stop. Before you grab pliers, we need to verify the diagnosis. This is the step most tutorials skip.

1. Take your problematic hoop.
2. Slide it into the exposed mechanism.
3. Look closely at the metal butterfly spring.
4. Sensory Check: As you push the hoop in, watch the spring lift. Does it look like it's struggling to climb over the hoop edge? Do you hear that scraping sound?

If you see the spring bowing significantly or digging into the plastic of the hoop, you have confirmed the issue. The "Ceiling" (spring) is too low for the "Car" (hoop).

The Pliers Move That Fixes Tight Brother Embroidery Hoops (Go Smaller Than You Think)

This is a precision adjustment, not a brute-force bend. We are relying on the property of hysteresis in the spring steel—we want to slightly deform it so its resting position is higher, reducing the downward force.

4) Adjust spring tension with pliers (Micro-Adjustment)

• Position: Place the jaws of your needle-nose pliers over the top and bottom of the butterfly spring loop.
• Action: Give it a gentle squeeze. Imagine you are squeezing a grape firmly, but not trying to crush it. You only want to compress the loop by about 1-2 millimeters.
• The Loop: You are flattening the "O" shape of the spring slightly.

The "Sweet Spot" Strategy: Squeeze once. Stop. Test fit the hoop.

• Does it slide in like butter? Stop immediately. You are done.
• Is it still grinding? Squeeze slightly firmly again.

Why Caution Matters: If you over-compress the spring, the hoop will become loose. It may rattle during high-speed stitching (1000 SPM), leading to poor registration.

If you plan to use aftermarket accessories, such as magnetic embroidery hoops, this adjustment is vital. Magnetic frames often have slightly different height tolerances than standard frames. A properly adjusted spring will accommodate both smoothly.

If you over-loosened it (The Reversal)

Did the hoop become floppy? Don't panic.

• Simply use your finger to press down on the top of the spring, bending it back toward the rail. Steel is forgiving; you can dial this in until the tension feels like a firm handshake—secure, but not crushing.


Setup Checklist (Do not reassemble until these pass)

• The Slide Test: Hoop inserts without needing to brace the unit with your other hand.
• The Lock Test: The locking lever engages with a distinct click or firm thud, not a mushy resistance.
• The Wobble Test: With the hoop locked, there is no vertical "play" (it doesn't bounce up and down).
• Asset Protection: You have verified no scratching on the hoop surface.

The Frame Sensor Pins Check: Fix “Hoop Not Attached” and “Wrong Size” Behavior Before You Button Up

While the unit is open, we must address a distinct but related issue: the Sensor Pins. These are the small black switches at the back of the carriage that tell the machine which hoop is attached.

If your machine throws "Hoop Not Attached" errors even when the hoop is locked in, it is usually because these pins are stuck with lint or dust.

The Fix:

• Locate the row of black pins at the back of the open arm.
• Action: Run your finger back and forth across them like playing a piano glissando.
• Sensory Check: You should hear them clicking up and down freely. If one stays down, gently wiggle it until it pops up.


Reassembly and the Final Fitment Test (Your Hoop Should Lock Without Drama)

Reassembly is the reverse of disassembly, but let's ensure we don't crack any plastic.

1. Grey Plate: Slide it back under the loosened screw -> Insert the removed screw -> Tighten both.
2. Large White Cover: Align the peg into the groove -> Slide it to lock -> Tighten the screw.
3. Small Bottom Plate: Slide it until it clicks/clips in -> Insert and tighten the screw.

Final Operation Test: Insert your hoop. It should glide in. Lock the lever. It should feel authoritative. Attempt to gently pull the hoop out without unlocking it; it should not move.

Operation Checklist (The "Go for Launch" Standard)

• Machine powers on without grinding noises during initialization.
• Hoop inserts with one hand (steady pressure, not force).
• LCD screen correctly identifies the hoop size immediately (thanks to the sensor pin sweep).
• Locking lever stays down without needing to be held.

Troubleshooting the Scary Symptoms People Mention in Comments (Symptom → Diagnosis → Fix)

If you still have issues, use this diagnostic table. Do not guess; follow the logic.

The "Broken Spring" Scenario: If you open the unit and find the butterfly spring is actually snapped in half (rare, but happens from extreme forcing), stop. You cannot bend it back. You need to order a replacement generic carriage spring or contact a dealer.

The “Why” That Prevents Repeat Problems: Spring Pressure, Frame Geometry, and Long-Term Wear

Why does this happen? Usually, it is not a manufacturing defect, but a combination of tolerance stacking and user habit.

1. Tolerance Stacking: If your hoop is 0.5mm thicker than spec, and the spring is bent 0.5mm lower than spec, you have a 1mm interference fit.
2. Muscle Memory: We get used to "fighting" the machine. We shove the hoop in at an angle. This twists the spring, making the problem worse over time.
3. The "Fix" creates the Habit: Once you adjust the spring, you must re-train your hands. Use finesse, not force.

A Simple Decision Tree: When to Adjust Springs vs. When to Upgrade Your Hooping Workflow

Is the problem the machine, or is it the limitations of the hoop itself?

Scenario A: Mechanical Resistance

• Symptoms: Grinding sound, requires two hands to push hoop in, standard hoops don't fit.
• Solution: Perform the Spring Adjustment (as detailed above). This is a hardware calibration issue.

Scenario B: Hooping Fatigue / "Hoop Burn"

• Symptoms: Hoop fits fine, but you hate loading the fabric. You get "hoop burn" (shiny marks) on velvet or pique. Your wrists hurt from tightening screws.
• Solution: Upgrade Your Tooling. This is not a repair issue; it's a workflow issue.
  • If you struggle with fabric slippage or marking, consider a magnetic hoop for brother. These use magnetic force rather than friction to hold fabric, eliminating the inner ring that causes hoop burn.
  • If you have trouble getting items straight, a hooping station for brother embroidery machine provides a standardized jig to ensure every chest logo is in the exact same spot.

Warning: Magnetic Safety.
If you upgrade to Magnetic Hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They can snap together violently. Keep fingers clear.
* Medical Devices: Maintain a safe distance (6 inches+) from pacemakers.
* Electronics: Do not place them directly on the machine's LCD screen or near credit cards.

The Upgrade Path (Without the Hard Sell): Match the Tool to the Job You’re Actually Doing

Once your Brother machine's carriage is calibrated, the mechanical barrier is gone. Now, look at your production constraints.

If you are a hobbyist doing one towel a week, the standard hoops are fine. But if you are doing runs of 20+ shirts, or working with thick Carhartt jackets, the standard plastic hoops are the bottleneck. They are physically difficult to snap together on thick seams.

• For Thick Materials: This is where brother embroidery hoops often fail. A magnetic frame floats over seams, holding the fabric without crushing it.
• For Speed: Professionals don't screw and unscrew. They click and stick. Searching for hooping for embroidery machine efficiency tips often leads to magnetic solutions because they cut load time by 50%.
• For Scale: If you find yourself constantly battling the single-needle limitations (color changes, hoop swaps), it might be time to look at the SEWTECH multi-needle ecosystem.

But it all starts with a healthy machine. Adjust that spring, save your wrist, and stop sanding your hoops. Your machine is a precision instrument—treat it like one.

FAQ

• Q: Why does a Brother Luminaire (XP/XJ series) embroidery hoop feel too tight and make a grinding plastic sound when sliding into the embroidery unit carriage?
  A: The Brother Luminaire embroidery unit butterfly spring is usually pressing down too aggressively, creating friction—do not sand the hoop.
  • Disconnect power and remove the embroidery unit before any adjustment.
  • Open the covers to access the grey plate, then expose the shiny “butterfly springs” above the rail.
  • Test-fit the tight hoop with the unit open and watch where the spring rubs as the hoop slides in.
  • Success check: The hoop should glide in with steady pressure and no gritty scraping sound.
  • If it still fails: Re-check that the rubbing is coming from the spring (not misalignment in the rail groove) before bending anything.
• Q: What is the safest prep checklist before opening a Brother Luminaire embroidery unit to adjust the butterfly spring tension?
  A: Set up a “zero-power, clean bench” workspace so screws don’t vanish and plastic tabs don’t crack.
  • Disconnect the embroidery unit from the machine (work with no power).
  • Prepare a soft towel/mat, bright light, a good Phillips #2 screwdriver, needle-nose pliers, and a cup/magnetic dish for screws.
  • Keep the tightest hoop nearby for repeated feel-testing.
  • Success check: Screws are controlled, the unit housing is not getting scratched, and tools fit screw heads without cam-out.
  • If it still fails: Stop and replace a worn screwdriver tip—stripped screws create bigger repairs than the tight hoop problem.
• Q: How do I open a Brother Luminaire embroidery unit cover without breaking tabs when one screw must be removed and the other must only be loosened?
  A: Follow the “two screws, two different rules” approach to avoid stressing hidden plastic tabs.
  • Remove the single screw on the small underside end plate completely, then slide the plate horizontally to disengage clips (do not pry up).
  • On the opposite end, loosen the Phillips screw about 4–5 full turns but do not remove it.
  • Lift/remove the internal grey metal plate using the same rule: one screw fully out, the far-end screw loosened.
  • Success check: Covers slide and unclip with a small “pop,” not a bending/creaking sound.
  • If it still fails: Do not force—reconfirm you are sliding parts horizontally where clips are designed to release.
• Q: How do I micro-adjust a Brother Luminaire butterfly spring with needle-nose pliers so the hoop slides in smoothly but does not rattle at high speed?
  A: Make a tiny “squeeze once, test once” adjustment—this is precision, not a bend-and-hope fix.
  • Place needle-nose pliers across the top and bottom of the butterfly spring loop.
  • Gently squeeze to flatten the loop by about 1–2 mm, then stop and test-fit the hoop.
  • Repeat only if needed; avoid over-compressing or the hoop can become loose.
  • Success check: The hoop slides in “like butter,” the locking lever engages with a distinct click/firm thud, and there is no vertical play when locked.
  • If it still fails: If the hoop becomes floppy, press down on the spring with a finger to restore retention, then re-test.
• Q: How do I fix “Hoop Not Attached” or “Wrong Size” behavior on a Brother Luminaire embroidery unit before reassembly?
  A: Free up the Brother Luminaire frame sensor pins—stuck pins commonly cause false hoop detection.
  • With the unit open, locate the row of small black sensor pins at the back of the carriage.
  • Sweep a finger across the pins like playing piano keys to make them click up and down.
  • Gently wiggle any pin that stays down until it pops back up.
  • Success check: The pins audibly click and spring freely, and the LCD identifies hoop size immediately after assembly.
  • If it still fails: Use compressed air to clear lint/dust around the pins and re-test.
• Q: What should I do if a Brother Luminaire embroidery hoop lever pops open during stitching, or the machine asks to recalibrate after a tight-hoop jam?
  A: Treat it as resistance-related first—reduce friction, then let the Brother XP/XJ auto-calibrate on restart.
  • If the lever pops open, re-check butterfly spring tension (it may still be too tight) and micro-adjust again.
  • Inspect the lever latch area for wear/rounding if tension changes do not help.
  • Power cycle the machine if it asks to recalibrate; the XP/XJ series typically auto-calibrates on startup once resistance is gone.
  • Success check: The lever stays down without being held and startup completes without grinding noises.
  • If it still fails: Stop forcing hoops—continued resistance can cause repeated step skips and deeper mechanical issues.
• Q: When should Brother Luminaire users choose technique optimization vs upgrading to magnetic hoops vs moving to a multi-needle workflow for hooping fatigue and hoop burn?
  A: Use a tiered decision: fix mechanical resistance first, then upgrade tools only if the pain is workflow-related.
  • Level 1 (Technique): If the problem is grinding/resistance and standard hoops won’t fit, adjust butterfly spring tension and confirm smooth insertion.
  • Level 2 (Tooling): If hoops fit but hooping causes hoop burn, fabric marking, or wrist fatigue from tight rings, consider switching to magnetic hooping to reduce pressure and load time.
  • Level 3 (Capacity): If frequent hoop swaps and color changes are the real bottleneck in runs of 20+ items, consider a multi-needle production workflow.
  • Success check: The chosen level removes the specific pain point (smooth slide for resistance; easier loading/no marks for fatigue; faster throughput for volume).
  • If it still fails: Reconfirm the symptom category—mechanical drag is not solved by new hoops until the carriage retention is correctly adjusted.
• Q: What magnetic hoop safety rules should Brother Luminaire users follow when switching to magnetic frames after adjusting the embroidery unit carriage?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from sensitive medical devices and electronics.
  • Keep fingers clear when magnets snap together; separate and assemble with controlled handling.
  • Maintain at least 6 inches distance from pacemakers and similar medical devices.
  • Do not place magnetic hoops on the machine’s LCD screen or near credit cards.
  • Success check: Magnets are handled without sudden snapping injuries and are stored away from electronics when not in use.
  • If it still fails: If safe handling is difficult, pause the upgrade and continue with standard hoops until a safer routine is established.
