If you’ve ever loaded a beautiful design, looked at your Baby Lock screen, and thought, “Why are my greens suddenly gray?”—take a breath. Your file usually isn’t “broken,” and your machine usually isn’t “wrong.” What’s happening is a digital translation error between palette protocols. On Baby Lock multi-needle interfaces (Array/Valiant style), you can fix this in seconds by bypassing the visual swatch interface and typing the thread manufacturer’s color number directly.

In this white paper, I will walk you through the exact on-screen path shown in the video. However, as an industry educator, I will also layer in the shop-floor habits and physical parameters that keep you from wasting an hour of stitching time on a color you never intended.

When a Baby Lock multi-needle embroidery machine shows gray instead of green, it’s usually palette translation—not your thread

On complex designs, the machine’s specific preview colors serve a critical function: they are your staging map to avoid catastrophic mistakes. However, when an imported design (especially .PES or .DST formats) gets “interpreted” through a machine's limited internal color lookup table, the preview can drift. We often see vibrant forest greens or deep burgundies rendering as nondescript grays or muddy browns.

That mismatch is not just an aesthetic annoyance; it is a production risk. It matters most when you are executing long, high-density stitch-outs. The video’s example is a Thomas Kinkade OESD tile scene. In professional stitching, we classify these as "High-Risk/High-Reward" projects.

• Empirical Data: A standard 5x7 tile in this style often contains 30,000 to 50,000 stitches.
• Time Commitment: At a safe running speed (I recommend 600–750 SPM for this density to prevent thread breakage), a single tile takes 75–80 minutes.
• The Risk: If you misinterpret a gray block for a shadow when it was meant to be a green leaf, you won't realize the error until minute 60.

A viewer summed up the feeling perfectly: “That is fascinating about the color changing.” It is—and mastering this translation layer is one of those skills that quietly saves real money by preventing ruined garments.

The reality check from an OESD Thomas Kinkade tile scene: dense stitching makes color planning non-negotiable

Tile scenes are unforgiving because they are engineered to be assembled edge-to-edge to form a larger tapestry. In the video, the host holds up stitched tiles and physically aligns tile 1 and tile 2 to check the seam match.

You can see how the “painting effect” is achieved through multi-layer shading. This density creates physical stress on the fabric.

• Sensory Anchor: When you run your hand over a finished tile like this, it should feel stiff and textured, almost like a flexible piece of armor. If it feels soft or floppy, your stabilizer was likely insufficient.

Two practical takeaways before we touch the screen:

1. Expect “Drift”: During an 80-minute run, fabric fibers relax. If you don't use the correct stabilizer (typically a 2.5oz or 3.0oz Cutaway for this density), the fabric will shrink inward, causing white gaps at the seams.
2. Color Codes are Law: Your preview screen is a workflow tool, but the thread chart is your bible.

If you are running a babylock multi needle embroidery machine for projects like this, the goal is simple: force the screen to match the thread brand numbers you hold in your hand, eliminating the cognitive load of guessing.

The “Hidden” prep before you edit colors: set yourself up so the screen fix actually prevents mistakes

Before you start tapping around the color menu, do the prep that experienced operators do automatically. We call this "Pre-Flighting." It prevents the most common operator error: "I changed the digital color to Green, but I physically left the Blue spool on Needle 3."

Prep Checklist (Do this BEFORE touching the Color tab)

This checklist ensures your physical environment matches your digital intent.

• File Verification: Confirm the design name/thumbnail matches your work order.
• Consumable Check: Ensure you have enough bobbin thread (a full L-style bobbin holds approx. 120-130 yards; a dense tile may consume 30-40 yards).
• Needle Inspection: For dense designs, use a fresh 75/11 Titanium Sharp or Topstitch needle to penetrate layers without deflection.
• Palette Decision: Decide which brand palette you are matching (Isacord, Madeira, Robinson-Anton).
• "No-Fly Zone": Plan your “no-interruption window.” Do not start a 75-minute tile 10 minutes before you need to leave the house.

Warning: Mechanical Safety. Keep fingers, hair, and loose sleeves at least 4 inches away from the needle bar area when the machine is powered. Multi-needle machines do not stop instantly. When changing settings, ensure the machine is in "Lock" mode if available, or keep hands clear of the Start/Stop button.

The calm alignment habit: checking tile seams now saves you from re-hooping later

In the video, the host holds two stitched tiles side-by-side to verify alignment. This is the habit that differentiates a hobbyist from a production manager. If you wait until all 20 tiles are stitched to check alignment, you are gambling with expensive materials.

The Physics of Misalignment: If you see a visible gap or mismatch, do not blame the color file. Alignment issues are 90% related to hooping consistency and stabilizer failure.

• Sensory Check: Take your two tiles. lay them on a flat table. Push them together. They should lock almost like puzzle pieces. If the edges curl up (the "potato chip effect"), your thread tension is too high or your stabilizer is too light.

A Practical Rule: If the tile edges don’t sit flat together in your hands, no amount of steam pressing will fix them later. You must solve the stability issue at the hoop level.

The screen path that matters: tap Edit on the Baby Lock Array/Valiant interface, then open the Color tab

Here is the exact navigation path to access the "Direct Entry" mode. This bypasses the visual guessing game.

1. Load/select your design on the machine.
2. Press the Edit key (usually a pencil or paper icon depending on firmware).
3. Select the Color tab (often represented by a spool icon).

This is the doorway to the ISO-standard feature most people miss: the switch from “Subjective Selection” (tapping a color that looks close) to “Objective Entry” (typing a database number).

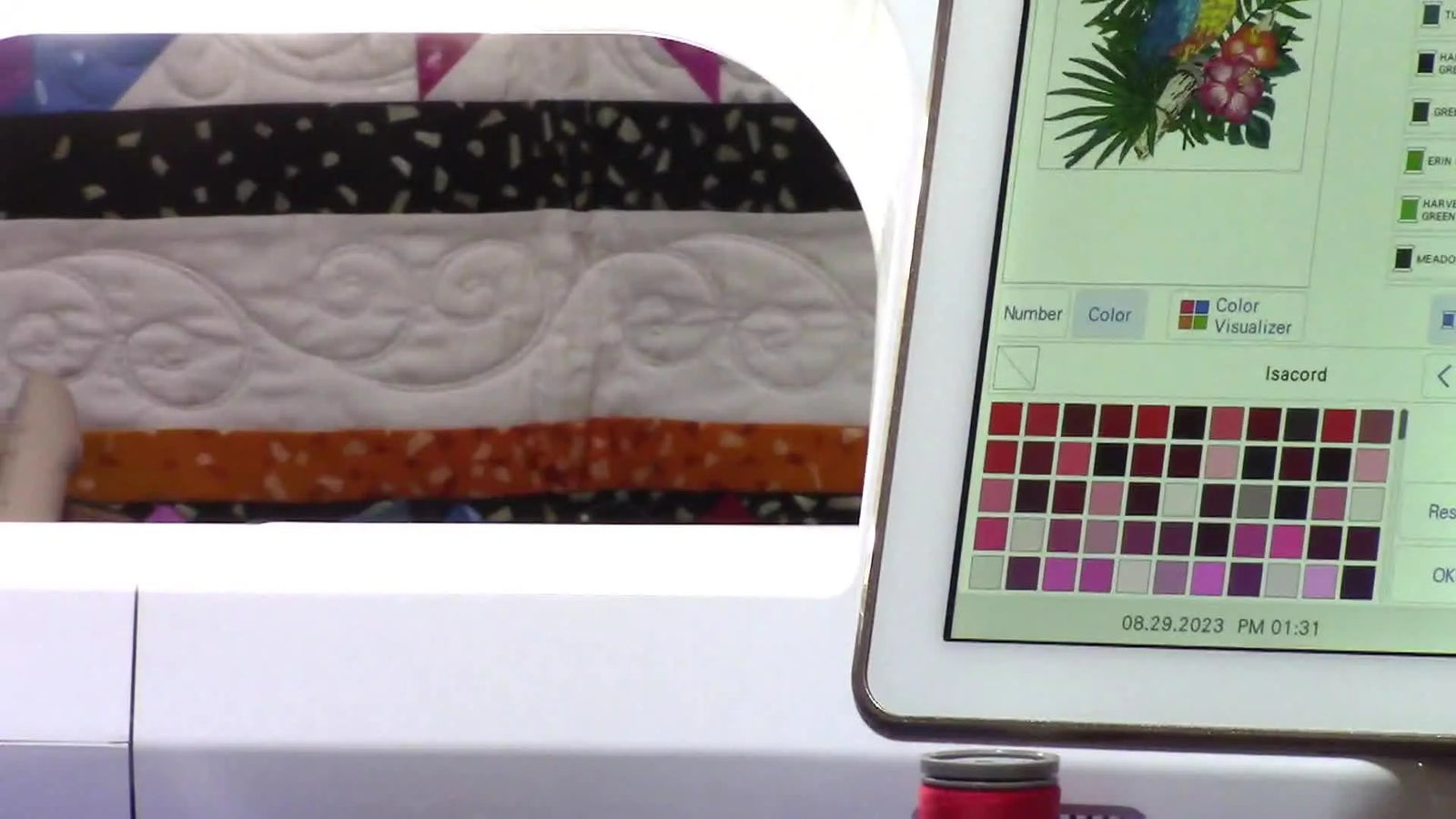

The fast fix: use the “Number” button to type Isacord 1361 (and watch the preview update immediately)

Once you are on the color page, ignore the palette swatches. They are approximations.

The Action Step:

1. Locate the button labeled Number (or #).
2. Tap it to open the numeric keypad overlay.
3. Reference your physical spool or the OESD PDF guide.
4. Type the thread number.
5. Press Set.

In the demonstration, the host types 1361 (an Isacord specific ‘Hunter Green’) and presses Set. The on-screen gray block transforms instantly to the correct green.

Why this is critical: You are not hunting through a pixelated chart wondering, "Is this Mint Green or Seafoam?" You are programming the machine with Data Point 1361. If you are working from a curated kit (the video mentions a thread kit), this ensures your machine's logic aligns perfectly with the kit’s inventory.

Repeat the same move for the next color block: entering Isacord 3673 keeps multi-color designs organized

After setting the first color, simply touch the next color block in the sequence and repeat.

In the video, the host enters: 3673. The workflow rhythm should be: Select Block → Number → Type 4 Digits → Set.

Production Tip: On a babylock 6 needle embroidery machine or 10-needle machine, you can map these colors to specific needle bars. By defining the exact color codes first, the machine can suggest the optimal needle assignment, reducing the number of unnecessary spool changes during the 80-minute run.

Why this works (and why it matters): limited palettes can mislead you on long stitch-outs, even when the file is fine

The host shows a printed comparison: the colors the machine originally “read” versus the intended reality. This highlights the "Gray Shift" phenomenon.

The Technical Explanation: Design files store color data as hexadecimal codes or proprietary index numbers. When a machine imports a file, it tries to match that data against its internal default palette. If the internal palette is small (e.g., only 64 standard colors) and the design uses a specific "Antique Olive," the machine's algorithm may calculate "Dark Gray" as the closest mathematical neighbor.

Typing the manufacturer number forces the machine to look up the specific shade in its extended database (Isacord, Madeira, etc.), overriding the faulty default logic.

Setup choices that keep tile scenes from drifting: hoop tension, stabilizer stiffness, and the “don’t fight the sandwich” rule

The video implies a stabilizer-heavy setup, which is mandatory for tile scenes. From an engineering perspective, here is how to prevent "Hoop Burn" and fabric shifting.

The Physics of Hooping: A stiff stabilizer stack can create a false sense of security. It feels tight to the touch, but the fabric layer can still "creep" or "flag" under the foot.

• Sensory Anchor: Tap the hooped fabric. It should sound like a dull thud (like a ripe watermelon), not a high-pitched ping (like a snare drum). If it pings, you have over-stretched the fabric bias, which will cause puckering when removed.

Workflow Best Practices:

1. Uniformity: Keep the "sandwich" (Fabric + Stabilizer + Topping) consistent for every tile.
2. Hoop Integrity: Inspect your hoop’s inner ring. If plastic hoops are worn smooth, they lose grip.
3. Hooping Aid: This is where workflow tools become essential. If you are re-hooping 20 times for a tile scene, manual alignment often drifts. hooping stations are investments that pay off by mechanically guaranteeing that every tile is hooped at the exact same tension and angle.

Setup Checklist (Before stitching the next tile)

• Hoop Verification: Ensure the hoop size matches the design (video uses 5x7).
• Palette Lock: Confirm correct thread brand is active.
• Physical Match: Look at Screen Color #1. Look at Needle #1. Do they match?
• Marker Check: Label the stabilizer corner "Tile 4" to avoid mixing up order.
• Seam Test: Physically abut previous tiles to check for density distortion.


Troubleshooting the “scary” color mismatch: symptom → likely cause → fix you can do in minutes

Use this logical flow to diagnose issues before ripping out stitches.

A decision tree for thread + workflow upgrades: when to stay manual, when to go multi-needle, and when magnetic hoops pay for themselves

In my 20 years of experience, I have seen many embroiderers burn out on large projects like tile scenes because they are fighting their equipment.

Decision Tree: Should you upgrade your tooling?

1. Are you spending >30% of your time changing thread spools?
   • Yes: You have outgrown single-needle. A multi-needle machine allows you to stage 6-10 colors at once, turning a 3-hour ordeal into a 1-hour passive run.
   • No: Stick to your current setup, but optimize your thread rack.
2. Are you experiencing hand/wrist fatigue from tightening hoop screws?
   • Yes: This is a medical risk. Start using magnetic embroidery hoops. They snap shut using magnetic force, eliminating the wrist torque required by traditional screw hoops.
   • No: Ensure you are not over-tightening your standard hoops.
3. Are you fighting "Hoop Burn" on delicate fabrics?
   • Yes: Traditional hoops rely on friction. Magnetic hoops rely on vertical force, which eliminates the "ring of death" mark on velvet or tough fabrics. Many professionals search for how to use magnetic embroidery hoop specifically to solve this issue.
   • No: Continue with standard hoops + careful steaming.

If you are running a high-volume studio or taking commissions, magnetic hoops for babylock embroidery machines are frequently the first upgrade I recommend. They don't just save time; they save your hands.

Warning: Magnetic Hazard. Magnetic hoops contain industrial-strength neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise or break fingers. Handle with deliberate care.
* Medical Device Safety: Keep at least 6 inches away from pacemakers or insulin pumps.
* Data Safety: Store away from credit cards, hard drives, and machine LCD screens.

The upgrade path I recommend for tile scenes and high-color projects (without the hard sell)

When a project requires 20+ hoopings (like a large tile scene), consistency is the enemy. Manual hooping varies by the hour as you get tired.

Here represents the "Professional Upgrade Path" to solve these friction points:

1. Level 1 (The Software Fix): Master the "Number Entry" method described above. This costs $0 and ensures your screen tells the truth.
2. Level 2 (The Stability Fix): Implement a hooping station for embroidery machine. This ensures that Tile 1 and Tile 20 are hooped at the exact same vertical alignment, which is crucial for edge-matching.
3. Level 3 (The Efficiency Fix): Switch to high-quality magnetic frames. If you are doing repeated production, the speed of "Snap-and-Go" hooping reduces downtime between tiles by 50%.

Operation habits that prevent the “I wasted a whole tile” moment

Once your colors are corrected and your tools are ready, the final step is operational discipline. Run your machine like a pilot runs a checklist.

Operation Checklist (The Final 30 Seconds)

• Tile ID: Confirm the correct tile (e.g., Tile #5) is loaded and the fabric matches the orientation.
• Spool Audit: Touch the spools physically. Are they in the order typically displayed on the screen? (Needle 1 = Color 1?).
• Vector Check: Trace the design boundary one last time to ensure the needle won't hit the hoop frame (Magnetic hoops are often thicker; ensure clearance).
• Auditory Check: Start the machine. Listen.
  • Sound Anchor: It should hum rhythmically. A "clack-clack-clack" means a thread path is snagged.
  • Sound Anchor: A "bird's nest" (tangle) under the plate often sounds like a muffled crunch. Stop immediately if you hear this.

By following this protocol, you turn a complex 80-minute anxiety session into a boring, predictable, and successful production run. And in the embroidery business, "boring" is the highest compliment we can pay to a workflow.

FAQ

• Q: Why does a Baby Lock Array or Baby Lock Valiant multi-needle embroidery machine show gray on the preview when the design chart says green?
  A: This is usually a palette translation mismatch, not a broken file or wrong thread.
  • Open the design, then go to Edit → Color.
  • Select the gray color block you want to correct.
  • Tap Number / #, type the thread manufacturer code (example shown: Isacord 1361), then press Set.
  • Success check: the preview color block changes immediately (gray shifts to the intended green).
  • If it still fails: confirm the correct thread brand palette is active and re-enter the number carefully (wrong digits = wrong shade).
• Q: What is the exact Baby Lock Array/Valiant screen path to enter thread colors by number instead of choosing swatches?
  A: Use the Color edit screen and the Number / # keypad to force an exact manufacturer match.
  • Load/select the design on the Baby Lock screen.
  • Tap Edit (pencil/paper icon varies by firmware).
  • Tap the Color tab (spool icon), then choose the specific color block.
  • Tap Number / #, enter the code, and press Set.
  • Success check: the block updates and the stitch sequence shows the corrected color name/number mapping you intended.
  • If it still fails: restart the edit flow and verify you are editing the correct color block in the sequence (not a neighboring block).
• Q: How can a Baby Lock 6-needle (or 10-needle) embroidery machine operator avoid stitching the “right screen color” with the wrong physical spool?
  A: Prevent operator staging errors by doing a quick “pre-flight” before touching Start.
  • Verify the design thumbnail/name matches the work order.
  • Decide the thread brand palette you will follow (Isacord/Madeira/Robison-Anton) and enter numbers first.
  • Physically touch-check spools on the needles after color edits so Needle assignments match the screen order.
  • Success check: Needle 1/Color 1 (and onward) matches what is actually threaded—no guessing when the run starts.
  • If it still fails: stop before minute 10, re-audit the thread path for the needle that looks “off,” and confirm the spool was not swapped during setup.
• Q: What stabilizer and speed are a safe starting point for dense OESD-style tile scenes on a Baby Lock multi-needle embroidery machine?
  A: Dense tile scenes need heavy stability and controlled speed to avoid drift and breaks.
  • Start with 2.5 oz or 3.0 oz cutaway stabilizer for this stitch density.
  • Run a safer speed range like 600–750 SPM for long, high-density stitch-outs.
  • Keep the fabric/stabilizer “sandwich” identical for every tile to prevent seam gaps.
  • Success check: finished tiles feel stiff/textured (not floppy) and edges meet without “white gaps” when aligned.
  • If it still fails: stop using tear-away for these runs and increase stability/consistency before blaming the file.
• Q: How can you tell if hoop tension is too tight for a dense tile scene before running a Baby Lock multi-needle embroidery machine?
  A: Use the quick tap-and-sound check to catch over-stretching that causes puckers later.
  • Tap the hooped fabric surface before stitching.
  • Aim for a dull thud feel/sound rather than a high-pitched “ping” (ping often means over-stretched).
  • Keep hooping pressure consistent tile-to-tile, and inspect worn hoop rings that may be slipping.
  • Success check: tiles sit flat when pushed together on a table (no “potato chip” curl).
  • If it still fails: reduce hoop torque, upgrade stabilizer weight, and re-check for fabric creep/flagging during stitch-out.
• Q: What should you do on a Baby Lock multi-needle embroidery machine if the stitch-out skips stitches in dense areas?
  A: Treat it like a penetration/deflection issue: change needle and slow down before you waste a full tile.
  • Replace the needle with a fresh 75/11 Titanium Sharp or Topstitch needle (as used for dense designs).
  • Reduce speed toward 600 SPM to stabilize stitch formation in heavy layering.
  • Watch for fabric flagging and stop early if you see inconsistent stitches building.
  • Success check: dense fills run with consistent coverage and no “holes” or missing segments.
  • If it still fails: re-check the hoop/stabilizer stack for movement and avoid pushing the design at high speed.
• Q: What safety steps should be followed when changing settings on a Baby Lock multi-needle embroidery machine near the needle bar area?
  A: Keep hands and anything loose away and treat the machine as “not instantly stopping.”
  • Keep fingers, hair, and sleeves at least 4 inches away from the needle bar area when powered.
  • Use Lock mode if available (or keep clear of Start/Stop) while navigating Edit/Color settings.
  • Pause and confirm the machine is not in motion before reaching into the front area.
  • Success check: no hand movement occurs within the needle bar zone unless the machine is fully stopped and controlled.
  • If it still fails: step back and power down before adjusting anything around needles or thread paths.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops or magnetic frames for embroidery machines?
  A: Handle magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive items.
  • Close magnetic hoops deliberately—do not let them “snap” together near fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Store magnetic hoops away from credit cards, hard drives, and LCD screens.
  • Success check: hoop halves are joined under control with no sudden snap and no finger contact in the closing zone.
  • If it still fails: switch to slower, two-handed placement and reposition fabric before bringing magnets together.
