The Chief Embroidery Officer’s Guide to Hooping: From Panic to Precision

You are not alone if you have stared at your Brother or Baby Lock tubular hoop and thought, “I just want the magnetic version of this—why is it so hard to match sizes?”

After 20 years managing commercial embroidery floors, I can tell you that "hooping anxiety" is a real stage of professional growth. The wrong hoop choice doesn’t just waste money—it wastes time, causes re-hooping frustration, and can turn a clean corporate logo into a puckered mess.

When you are starting out, hooping feels like a battle against the machine. But as you scale, you realize that hooping is actually physics. It is about tension, friction, and magnetic force.

This white paper reconstructs Jason’s size comparison video into a practical, shop-floor reference for Brother PR Series (PR600 / PR1050X) and Baby Lock multi-needle owners. We will move beyond simple dimensions and discuss the feel of a good hoop, the safety protocols you need, and the specific "tool upgrade paths" that turn a hobby into a profitable business.

Brother PR600 / PR1050X & Baby Lock hoop compatibility—get the calm answer before you buy anything

Jason’s first point is the one that saves the most headaches: identify your machine family correctly.

In the world of aftermarket tools, compatibility anxiety usually stems from two fears:

1. Bracket Fit Fear: "Will it physically snap onto my machine arms?"
2. Sewing Area Mismatch: "Will my design still fit where I expect it to?"

If you are shopping for magnetic embroidery hoops for brother, understand that the brackets are the easy part. Whether you own a Brother PR600, PR1050X, or a Baby Lock, the mounting width is standardized by the brand selection.

The Pro’s Rule of Thumb: Do not guess your bracket size. When ordering, simply select your machine make (Brother vs. Baby Lock) and the hoop size. The manufacturer pre-installs the correct width brackets. Your focus should be entirely on the sewing field dimensions.

The “small hoop” reality check: PRH/EPF60 (60×40mm) vs MaggieFrame ST-M0404 (100×100mm)

This is the first comparison Jason shows, and it represents a massive upgrade in usability.

• Brother Tubular Hoop (PRH/EPF60): 60×40mm (2.4×1.6")
• MaggieFrame ST-M0404: 100×100mm (3.9×3.9")

The Expert Analysis: The OEM 60x40mm hoop is notorious for being "too small to be useful" for anything other than monograms on cuffs. By switching to the ST-M0404, you are gaining nearly 4x the sewing area.

Why this matters for your workflow:

1. Placement Forgiveness: With the tiny OEM hoop, if you miss-center by 5mm, you hit the frame (needle break risk). With the 100x100mm magnetic field, you have room to adjust the design via the screen without re-hooping.
2. Hoop Burn Reduction: Bringing a small, tight tubular hoop aggressively close to the embroidery creates a deep "ring" mark. The larger magnetic frame pushes that pressure line 2 inches away from your design.


Warning: The "Snap" Trap
Magnetic hoops rely on powerful neodymium magnets. They do not close gently; they snap shut faster than human reaction time.
* Fingers: Never place fingers between the top and bottom frame. Hold the top frame by the handle or outer edges only.
Control: Do not "drop" the top frame. Lower it at an angle—engage one side first, then lower the other side slowly until it connects. Listen for a solid "thud," not a chaotic "clack."*

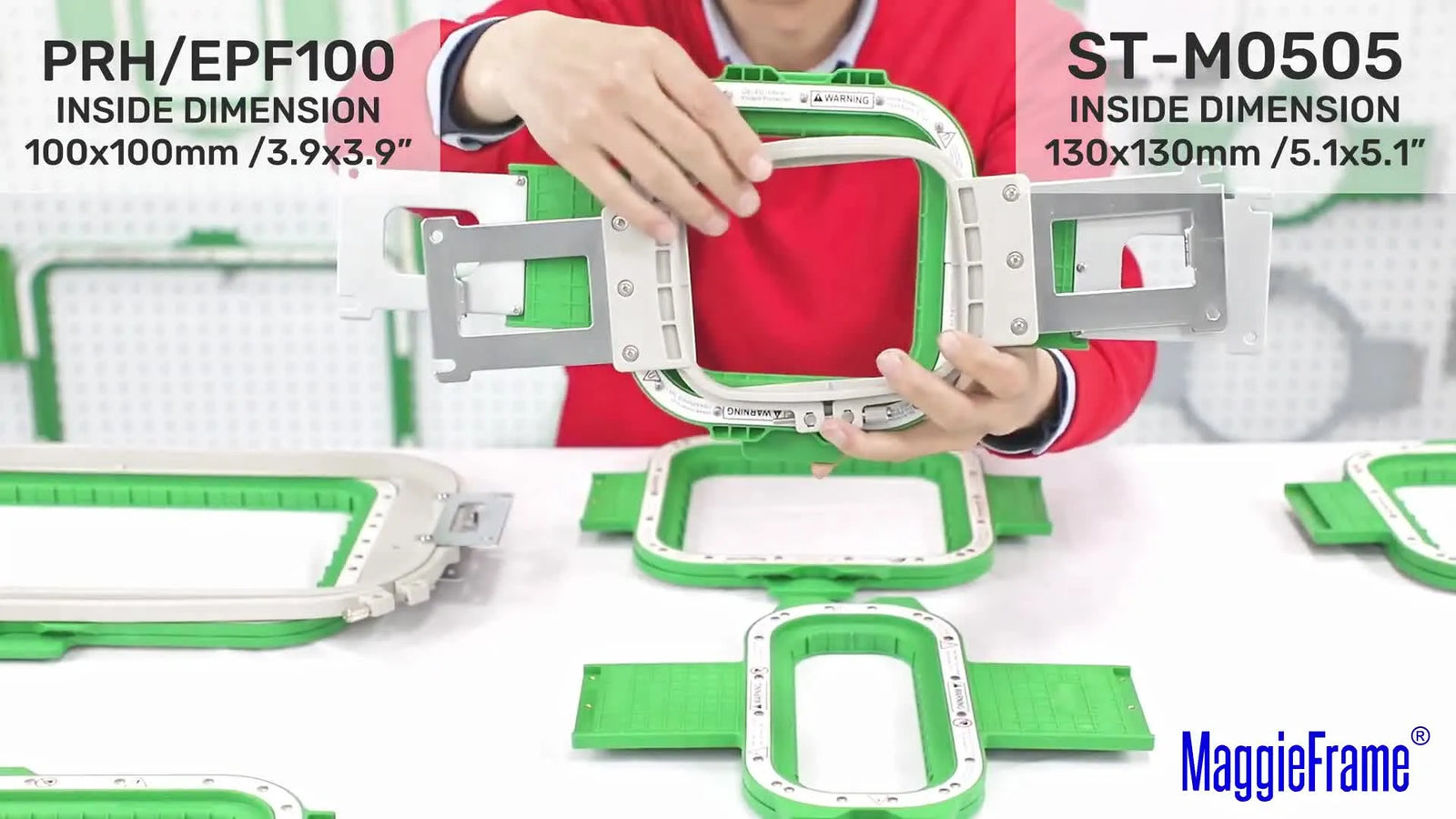

The everyday 10×10 swap: PRH/EPF100 (100×100mm) vs MaggieFrame ST-M0505 (130×130mm)

This is the comparison most shops care about because the 100×100mm (4x4") field is the daily driver for left-chest logos.

• Brother Tubular Hoop (PRH/EPF100): 100×100mm (3.9×3.9")
• MaggieFrame ST-M0505: 130×130mm (5.1×5.1")

Jason highlights the practical benefit: the ST-M0505 gives you more clearance around a standard 10cm design.

The Sensory Check: When you use a standard 100x100 tubular hoop for a 95mm design, the fabric near the edges gets "flagging" (bouncing up and down). This causes birdnesting. If you are considering a magnetic hoop for brother pr1050x, this upgrade to 130mm creates a "tension buffer."

• Touch: Press the fabric in the center. It should feel taut like a drum skin, but without the distortions seen in tubular hoops.
• Result: The extra 15mm on each side stabilizes the fabric grain, resulting in crisper text on the edges of your logo.


The 5×7 workhorse upgrade: PRH/EPF180 (130×180mm) vs MaggieFrame ST-M0608 (150×200mm)

Jason compares the popular 5x7" tubular hoop to its magnetic counterpart:

• Brother Tubular Hoop (PRH/EPF180): 130×180mm (5.1×7.1")
• MaggieFrame ST-M0608: 150×200mm (6.0×8.0")

Shop Floor Reality: This is your "Jacket Back Lite" or "XL Hoodie Front" hoop. The critical advantage here is thickness management. Tubular hoops struggle to close over hoodie pockets or zipper seams without popping open. Magnetic hoops clamp over the obstruction.

Commercial Context: If your shop runs lots of Carhartt jackets or heavy fleece, this size is non-negotiable.

• Level 1 (Skill): You struggle to force the plastic hoop closed, risking wrist strain.
• Level 2 (Tool): You switch to the ST-M0608 Magnetic Hoop. It clamps instantly.
• Level 3 (Scale): If you are doing 50+ hoodies a day, this is where you look at SEWTECH Multi-needle Machines to pair with these hoops for uninterrupted production cycles.


The “bigger isn’t always bigger” truth: PRH/EPF360 (200×360mm) vs MaggieFrame ST-M0813 (195×315mm)

This is the most critical technical distinction in the video.

• Brother Tubular Hoop (PRH/EPF360): 200×360mm (8.0×14")
• MaggieFrame ST-M0813: 195×315mm (7.7×12.5")

Physics Explained: Here, the magnetic hoop is slightly smaller than the OEM tubular hoop. Why? Magnetic Dissipation. As a magnetic rectangle gets longer, the center of the long sides becomes a weak point. If the manufacturer made it 360mm long, the middle might bow or lose grip, causing registration errors (outlines not matching). MaggieFrame opted for a slightly shorter 315mm length to ensure 100% clamping consistency around the entire perimeter.

Buying Advice: When shopping for magnetic hoops for embroidery machines, do not assume "bigger is better." Assume "stable is better." If your design is truly 350mm long, stick to the OEM tubular hoop or split the design. For 95% of large designs (which are usually under 300mm), the magnetic reliability wins.

The “hidden” prep that prevents puckers: fabric tension, stabilizer choices, and why magnetic hoops feel different

The video covers size, but size means nothing if your prep is wrong. Magnetic hoops change the physics of how fabric is held.

The "Friction vs. Pinch" Shift:

• Tubular Hoops: Rely on friction and distortion. You push the inner ring in, stretching the fabric.
• Magnetic Hoops: Rely on downward pressure. There is zero distortion. This is better for the fabric, but it means you cannot rely on the hoop to stretch out wrinkles for you. You must smooth the fabric before the magnets engage.

The Material Logic: Stabilizer Decision Tree

Use this logic flow to stop guessing.

Decision Tree: Fabric → Stabilizer Strategy

1. Is the fabric stretchy (T-shirt, Performance Polo, Beanie)?
   • YES: Cutaway Stabilizer (2.5oz or 3.0oz).
     • Why: The magnet holds the fabric, but the needle penetrations will push the fibers apart. Cutaway anchors the structure.
   • NO: Go to #2.
2. Is the fabric unstable/textured (Pique, Towel, Fleece)?
   • YES: Cutaway/Tearaway Combo + Water Soluble Topper.
     • Why: The topper prevents stitches from sinking (visual quality); the backing prevents shifting (structural quality).
   • NO: Go to #3.
3. Is the fabric stable woven (Denim, Canvas, Apron)?
   • YES: Tearaway Stabilizer is usually sufficient.
     • Why: The fabric supports itself; the magnet just keeps it flat.

Hidden Consumables Checklist

Novices forget these. Pros buy them in bulk.

• Spray Adhesive (e.g., 505 / Tempo): Essential for magnetic hoops to keep backing adhered to fabric, as there is no "friction pinch" to hold a loose sheet floating underneath.
• Painters Tape: For securing loose straps or backing edges outside the stitching field.
• Spare Needles (75/11 Ball Point): If you hit a magnet (rare, but happens), you must change the needle instantly.

Prep Checklist (Pre-Flight)

• Machine Check: Are you using the correct Brother/Baby Lock brackets?
• Obstruction Check: Zip up zippers; verify pockets are empty.
• Sandwich Check: Lightly mist stabilizer with adhesive -> smooth onto garment -> smooth garment onto bottom hoop.
• The "Click" Test: When closing the hoop, did it snap evenly? If it "rocked," there is an obstruction (seam/zipper). readjust.

Specialty hoops that save your sanity: ST-M0803 sleeve hoop, ST-M0606/ST-M7272 squares, and ST-M0413 strip hoop

After the four “closest replacements,” Jason shows four specialty sizes. These are your "Problem Solvers."

ST-M0803 strip frame (195×70mm): the sleeve and pant-leg problem solver

• Dimensions: 195×70mm (7.6×2.7")

The Pain Point: trying to hoop a pant leg or sleeve with a wide 5x7 frame often results in hooping the back of the leg to the front. The Fix: This narrow profile slides inside tight tubes. Usage Tip: This is the ideal sleeve hoop. When loading, listen for the crunch of fabric bunching under the arm. If you hear it, stop. This hoop minimizes that risk.

ST-M0606 square (165×165mm): when 5×7 feels cramped but a long rectangle feels awkward

• Dimensions: 165×165mm (6.5×6.5")

Application: Large circular logos, Quilt blocks, or "Badge" style designs. Square hoops provide equal tension in X and Y directions, which is superior for circular designs compared to rectangular hoops.

ST-M7272 square (175×175mm): a little more room for larger square designs

• Dimensions: 175×175mm (6.9×6.9")

Think of this as the "Carhartt Jacket Back" sweet spot for square corporate logos. It keeps the heavy magnetic frame away from the dense stitching, preventing the "bumping" sound of the needle bar getting too close to the frame edge.

ST-M0413 long narrow hoop (100×320mm): clean vertical text and long motifs in tight spaces

• Dimensions: 100×320mm (3.9×12.8")

Commercial Application: Vertical "text stacks" heavily used in spirit wear (e.g., "BASKETBALL" down a pant leg). The Value: Using standard magnetic embroidery frames for this is often too wide. This strip hoop matches the geometry of the text, maintaining tight registration from top to bottom.

Ordering brackets without the headache: choose brand + size, then let the pre-installed brackets do their job

Jason’s ordering instruction is critical for preventing returns. You do not need to measure your machine arms with calipers.

The Protocol:

1. Select Brand: (e.g., Brother PR / Baby Lock).
2. Select Size: (e.g., 100x100mm).
3. Trust: The brackets come pre-installed and calibrated.

If you are comparing magnetic hoops for babylock embroidery machines versus Brother options, simply select your machine type in the dropdown. The hoop body is the same; the metal arms (brackets) are the variable.

Setup Checklist (Machine Setup)

• Visual Inspection: Are the brackets screwed on tight? (Vibration loosens screws over time).
• The Slide Test: Slide the hoop onto the machine arms. It should glide with mild resistance but distinct "engagement." If it wobbles, check the bracket screws.
• Trace Function: Mandatory. Always run a trace (trial) before stitching to ensure the needle bar doesn't hit the metal frame. Iron magnets break needles; broken needles damage bobbin cases.

Medical Warning:
Strong magnetic fields can interfere with pacemakers and ICDs. If you or your operator has an implanted medical device, maintain a 6-inch (15cm) distance from the magnets or consult a physician. Do not drape the hoop over your shoulder or rest it on your chest.

The “why” behind bigger sewing areas: clearance, hoop marks, and smarter production choices

Why do MaggieFrame hoops often deviate slightly from OEM sizes? It comes down to Efficiency Engineering.

1. Clearance is your Safety Net

Operator error increases when tolerances are tight. A larger sewing area allows you to slap the hoop on quickly without needing “surgical” precision. You can fix the rotation on the screen because you have extra room.

2. The Economics of Hoop Marks

"Hoop burn" (crushed velvet, shine on polyester) ruins garments. It costs you money in refunds. A magnetic hoop does not pinch; it holds. The larger area moves the contact point away from the focal point.

• Result: Less steaming, less brushing, faster shipping.

3. Production Scalability: When to Upgrade?

In a shop environment, time is currency.

• The Bottleneck: If you spend 2 minutes hooping and 5 minutes stitching, your machine is idle 30% of the time.
• The Fix: Magnetic hoops drop hooping time to 15 seconds.
• The Next Step: If your hooping is fast but your machine is slow, look at SEWTECH multi-needle embroidery machines. High-speed machines paired with magnetic hoops are the ultimate production combo for profitability.

“What if something looks off?”—practical watch-outs people ask after switching to magnetic hoops

Troubleshooting magnetic hoops is different from tubular hoops. Here is your quick diagnostic table.

Pro Tip: The "Creep" Factor

If you pull on the fabric after the magnets are locked, you will induce "creep." The fabric stretches, but the backing stays. When you un-hoop, it wrinkles. Rule: Once it snaps, do not pull. If it is wrong, pop it off and redo it.

A clean, repeatable workflow: choose the hoop like a pro, then run the job without drama

Here is the operational flow I recommend for transitioning from tubular to magnetic.

1. Audit: Identify your 3 most common job types (e.g., Left Chest Polo, Jacket Back, Cap/Beanie).
2. Match: Use the list below to pick your primary magnetic hoop.
   • Small Logos: Replace PRH60 with ST-M0404.
   • Standard Chest: Replace PRH100 with ST-M0505.
   • Large Backs: Replace PRH180 with ST-M0608.
3. Specialize: Add ST-M0803 (Strip) or Sleeve hoops only if you have a recurring contract for sleeves/legs.

Operation Checklist (The Daily Close-out)

• Clean Surfaces: Wipe the magnet contact surfaces. Lint and thread scraps weaken the magnetic hold.
• Store Flat: Do not store magnetic hoops clicked together without the separator foam, or they may pinch fingers when you try to separate them next time.
• Inspect Brackets: Check screws for tightness weekly.

Embroidery is a game of variables. By standardizing your hoops, you remove one massive variable from the equation, letting you focus on tension, thread, and scaling your business. Start with your "Daily Driver" size, master the feel of the magnets, and enjoy the sound of production without the pain of hooping.

FAQ

• Q: How do I choose the correct brackets for a Brother PR600, Brother PR1050X, or Baby Lock multi-needle machine when ordering a magnetic hoop?
  A: Choose the machine brand (Brother PR vs. Baby Lock) and the hoop size, and use the pre-installed brackets—do not measure the machine arms.
  • Select: Pick the correct brand in the dropdown, then pick the sewing field size you need.
  • Inspect: Check bracket screws are tight before mounting (vibration can loosen them).
  • Slide: Mount the hoop and confirm it glides with mild resistance and a clear “engagement,” not a wobble.
  • Success check: The hoop feels stable on the arms with no side-to-side play.
  • If it still fails: Recheck bracket screw tightness and confirm the correct brand was selected for the brackets.
• Q: How do I safely close a magnetic embroidery hoop without pinching fingers when the magnets snap shut?
  A: Never place fingers between the top and bottom frame—lower the top frame at an angle and control the snap.
  • Hold: Grip the top frame by the handle or outer edges only.
  • Lower: Engage one side first, then slowly lower the other side until it connects.
  • Listen: Aim for a solid “thud,” not a chaotic “clack.”
  • Success check: The hoop closes evenly without rocking or sudden shifting.
  • If it still fails: Stop and reopen—rocking usually means a seam/zipper/bump is trapped in the clamp zone.
• Q: What safety step prevents a Brother PR or Baby Lock multi-needle machine needle from hitting a magnetic hoop frame?
  A: Always run the machine’s trace/trial function before stitching and keep a safety margin from the frame edge.
  • Trace: Run a full trace every time you change hoop size or rotate/resize a design.
  • Margin: Leave about 10 mm of “white space” between the design and the hoop edge.
  • Verify: Watch the needle path closely near corners and along long edges.
  • Success check: The traced path clears the metal frame with no near-misses or contact sounds.
  • If it still fails: Resize or reposition the design in software before stitching again.
• Q: What prep consumables should I use with magnetic hoops to prevent fabric slip and puckering on Brother PR and Baby Lock jobs?
  A: Use spray adhesive to bond stabilizer to fabric before hooping, because magnetic hoops clamp without the friction “pinch” of tubular hoops.
  • Mist: Lightly spray adhesive (e.g., 505/Tempo) on stabilizer, then smooth stabilizer onto the garment.
  • Smooth: Flatten wrinkles on the garment before closing magnets (do not rely on the hoop to “stretch it out”).
  • Secure: Use painters tape to control loose straps or backing edges outside the sewing field.
  • Success check: The fabric feels flat and stable before stitching and does not shift when lightly pressed in the center.
  • If it still fails: Upgrade to a heavier stabilizer choice (often cutaway) rather than increasing clamp force.
• Q: How do I know magnetic hooping tension is correct for Brother PR600/PR1050X and Baby Lock embroidery, and what causes birdnesting near the edges?
  A: Aim for drum-tight fabric without distortion, and use a larger hoop when a design is too close to the edges.
  • Press: Push the fabric at the center; it should feel taut like a drum skin, not wavy or stretched out of shape.
  • Buffer: Avoid stitching a ~95 mm design in a tight 100×100 mm tubular field; extra clearance reduces edge “flagging.”
  • Adjust: If placement is off, reposition on-screen rather than pulling fabric after the magnets lock (pulling causes “creep”).
  • Success check: The fabric does not bounce (“flag”) near the design edges during stitching, and thread does not pile up underneath.
  • If it still fails: Re-hoop and add adhesive; if edge instability continues, move up to a larger sewing field for more clearance.
• Q: How do I fix puckering in the center when using a magnetic embroidery hoop on stretchy or unstable fabrics?
  A: Treat center puckering as fabric slip under the magnet—bond the layers and choose stabilizer based on fabric behavior.
  • Bond: Use spray adhesive to attach stabilizer to the garment so the backing cannot float.
  • Choose: Use cutaway for stretchy garments; use a cutaway/tearaway combo plus water-soluble topper for textured fabrics like pique/towel/fleece.
  • Smooth: Flatten the garment fully before closing the magnets; do not pull after closing.
  • Success check: After stitching, the design lays flat with minimal rippling when the garment is relaxed off the hoop.
  • If it still fails: Step up to a heavier cutaway and recheck hoop closure for rocking (an obstruction can cause uneven grip).
• Q: When should a shop upgrade from technique changes to magnetic hoops, and when does it make sense to move to SEWTECH multi-needle embroidery machines for production?
  A: Start with technique fixes, move to magnetic hoops to cut hooping time, and consider a multi-needle machine when hooping stops being the bottleneck.
  • Level 1 (Skill): Improve prep—smooth fabric before clamping, use the stabilizer decision logic, and run trace every time.
  • Level 2 (Tool): Switch to magnetic hoops when thick seams/hoodies fight tubular hoops or when hooping time is slowing daily output.
  • Level 3 (Scale): Consider SEWTECH multi-needle machines when volume is high (for example, dozens of hoodies per day) and the machine’s stitch time—not hooping—is limiting throughput.
  • Success check: The machine spends more time stitching and less time idle waiting for re-hooping or forced closures.
  • If it still fails: Track where minutes are lost (hooping vs. stitching vs. rework); upgrade the step that is consistently costing the most time.
