Stop Guessing on Prints: My Design Snap Easy Mode Placement on the Brother Stellaire (Without the Usual Hoop Headaches)

If you’ve ever tried to place embroidery on a busy print and thought, “I’ll just eyeball it,” you already know how that story ends: the design lands on the wrong flower, the motif looks crooked, or the whole thing feels “off” even when the stitching is perfect. Even a 2-millimeter error can turn a boutique-quality garment into a “seconds” bin reject.

Brother’s My Design Snap Easy Mode is one of the cleanest ways to stop guessing—especially on patterned fabric—because it lets you scan what’s inside the hoop and position your design directly on that photo before you stitch. It bridges the gap between digital precision and physical reality.

This article rebuilds the full workflow shown in the video (Brother Stellaire Innov-is XJ1/XE1 + My Design Snap), then adds the shop-floor details—from stabilization physics to proper lighting—that keep the scan reliable and the placement accurate.

First, Breathe: My Design Snap Easy Mode Is About Placement—Not Digitizing Magic

My Design Snap’s “Snap Capture with frame” feature is a positioning tool. It doesn’t change your stitch file; it gives your Stellaire a background image of the hooped fabric so you can place the design exactly where you want it. Think of it as an augmented reality overlay for your needle.

That’s why this method shines on printed cotton and other fabrics where the background matters. If you’re working on a solid blank, you may not need the scan—but once you’ve used it on a floral or plaid, it’s hard to go back to measuring tapes and chalk marks.

One key reality check: the app only works with specific hoops that have the black-and-white registration marks on the frame. If you skip that requirement, the scan won’t lock on—no matter how steady your hands are.

The “Hidden” Prep That Makes the Scan Lock Fast (and Keeps Fabric From Shifting Later)

Before you touch the app, start at the machine and make sure your physical setup is stable. The scan is only as trustworthy as the hooping. If your fabric is loose, the photo you take will not match the fabric reality once the needle starts pounding at 800 stitches per minute.

In the video, the fabric is already hooped (a floral print), and the design chosen is the built-in dragonfly (design #10) with a displayed size of 2.35" x 2.82".

Here’s what experienced operators do before scanning:

• Hoop tension should be even, not extreme. Often described as "drum tight," this can be misleading. You want it taut like a trampoline—firm, but not stretched so tight that the print distorts. Over-tight hooping distorts your placement reference; under-tight hooping causes the fabric to "flag" (bounce) and shift during stitching.
• Stabilizer choice matters even for “just placement.” If the fabric can move during stitching, perfect placement on-screen still becomes imperfect placement on fabric. For printed cottons, a medium-weight cutaway provides the most security against shifting.
• Lighting and glare control help the camera lock. Shiny hoop rims, harsh overhead glare, or deep shadows can slow recognition.

If you’re building a repeatable workflow, set up a dedicated embroidery hooping station with consistent, diffused lighting and a flat surface. It’s not about being fancy—it’s about eliminating variables so your camera locks instantly every time.

Prep Checklist (do this before you open the app):

• Surface Check: Work surface is stable (no wobble while you scan).
• Hoop Check: You are using the correct Brother frame with visible, unblemished black-and-white registration marks.
• Tension Check: Fabric is smooth; pulling gently on the fabric separates it from the stabilizer (bad) or moves the whole unit (good).
• Lens Check: Phone camera lens is wiped clean (fingerprints are the #1 cause of focus hunting).
• Visual Check: You can clearly see the print detail you intend to align the embroidery to.


On the Brother Stellaire: Load the Built-In Design So the Workspace Is Ready

The video begins on the Stellaire touchscreen. You must have the design ready in the machine's buffer before you can bring in the background image.

1. Tap Embroidery on the main screen.
2. Go to Embroidery category 1, then sub-category 1 (or your USB source if using custom files).
3. Select design number 10 (the dragonfly).
4. Confirm the design details (size and color breakdown are visible).
5. Tap Set, then tap Embroidery to enter the embroidery workspace.

At this point, the design is loaded—but you still don’t have the background scan. That’s expected. The machine is now "listening" for the incoming image data.

In My Design Snap: Choose “Snap Capture with Frame” (Easy Mode That Actually Works)

Now move to your mobile device and open the My Design Snap app.

In the video, the top option is selected: “Snap Capture with frame for pattern positioning.” This is the mode that uses the hoop’s registration marks to recognize the frame and map the image correctly.

This is also where many users get tripped up: they try to scan with a hoop that fits the machine but doesn’t have the required markers (fiducials). Standard aftermarket hoops or magnetic hoops generally do not work for this specific scanning feature because they lack the high-contrast code the app needs to read.

If you’re shopping or sorting your frames, keep this mental label: brother stellaire hoops for Snap must be the marked version. Save your other specialty frames for production runs where visual scanning isn't the priority.

The Non-Negotiable Hardware Detail: Registration Marks on the Hoop Frame

The video shows a close-up of the hoop bezel with the black-and-white “snowman-like” registration marks.

Those marks are not decoration. They are fiducial markers—reference points that allow the software to calculate depth, angle, and scale. They tell the app exactly where the embroidery field starts and stops.

Pro Tip: Keep these marks clean. A stray thread, lint, or scratch on these markers can prevent the app from "locking on."

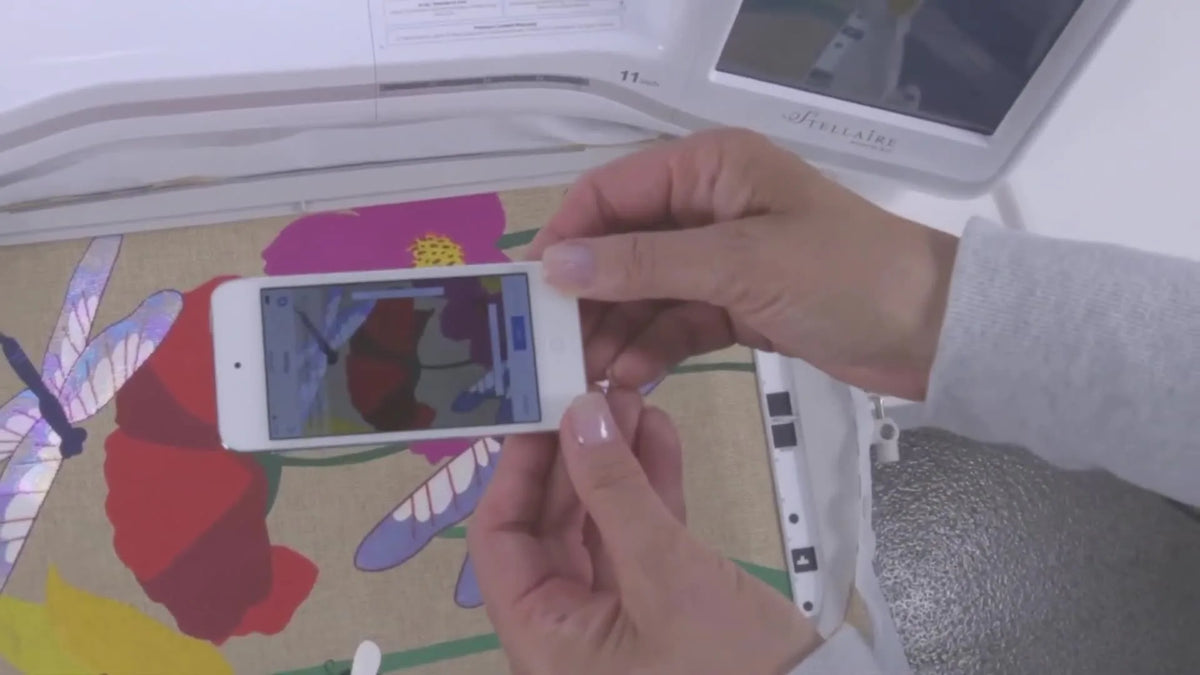

The Scan Ritual: Hold the Phone Flat, Start Low, Rise Slowly, Then Freeze for 3-2-1

This is the heart of Easy Mode. It uses your body mechanics to help the accelerometer in the phone steady the shot.

1. In the app, start Snap Capture with frame.
2. The app prompts you to hold your device flat to the hoop. Parallelism is key here.
3. The video demonstrates starting low (closer to the hoop) and slowly raising the phone.
4. As you raise it, you’ll see a hoop graphic appear on the phone screen.
5. When the overlay aligns with the real hoop, it locks in and you get the 3-2-1 countdown.
6. Hold perfectly still until it completes the capture.

This “start low and come up” motion is not random—it helps the camera find the frame boundaries and stabilize the perspective calculation.

Warning: Safety Protocol: Before you proceed, ensure your hands only handle the hoop. Keep fingers, tools, and loose sleeves away from the needle area and embroidery arm. When the machine calibrates after you attach the hoop, the carriage moves automatically and swiftly. It can pinch fingers or strike hard objects with enough force to throw the arm out of alignment.

Send to the Machine via Wi-Fi, Then Confirm “Sent”

After the scan completes, the app displays “Send to the machine.” This transfers the high-resolution image data from your phone to the Stellaire's temporary memory.

1. Tap Send to the machine.
2. Wait while it shows Sending… (Duration depends on your Wi-Fi strength).
3. Confirm when it shows Sent, then tap OK.

That’s it on the phone—the video shows the app returning to the beginning screen. You can put the phone down now.

Back at the Stellaire: Attach the Same Hoop You Scanned (Then Let It Calibrate)

On the machine screen, you’ll see a message that the image was sent from the mobile app.

1. Tap OK to update.
2. The machine prompts: “Attach the frame used in the image.”
3. Slide that specific hoop onto the embroidery arm. Listen for the distinct "click" of the locking mechanism. If it doesn't click, it's not safe to stitch.
4. Tap OK again.
5. The carriage moves to calibrate position.

This is where people rush. Don’t. Let the machine finish its movement cycle (the "wiggle"). This calibrates the X/Y axes to the physical hoop center.

The Payoff: Your Fabric Photo Appears as the Background on the Touchscreen

Once calibration completes, the photo you captured is displayed on the Stellaire screen as a background image.

Your dragonfly design is now visible on top of that background. This is your "What You See Is What You Get" moment. You can now place the virtual embroidery relative to the real-world print.

Place the Design Two Ways: Drag for Big Moves, Arrow Keys for “Surgical” Micro-Adjustments

The video demonstrates two placement methods. Experienced digitizers use a combination of both for efficiency.

Method 1: Touch-and-drag (Macro Placement)

• Action: Touch the dragonfly directly on the screen and drag it.
• Use Case: Getting the design from the corner to the general area of the flower.

Method 2: Layout → Move (Micro Placement)

• Action: Tap Layout (top right) → Move. Use the directional arrow keys.
• Use Case: Nudging the design 0.5mm at a time to perfectly center it on a stem or stripe.

This is the difference between “close enough” and “looks professionally intentional.” If you’re aligning to a geometric pattern (plaid, stripes) or a specific floral center, rely on the arrows. Fingers are too thick for millimeter-perfect work.

If you find yourself doing excessive placement adjustments on every item in a batch, you likely have a hooping consistency issue. This is where better tools—like a hopping station or upgraded frames—pay for themselves by reducing the "fiddle factor."

Setup Checklist (right before you commit to stitching):

• Visibility: Background image is crisp; you can identify the weave or print pattern.
• Clearance: Design fits within the hoop’s safety boundary (red line on screen).
• Obstructions: Design does not overlap with any hoop clamps or metal hardware.
• Intent: You are satisfied with the alignment relative to the fabric motif.

Rotate Like a Pro: Use Layout → Rotate to Match the Print’s “Visual Gravity”

After positioning, the video goes back to Layout and selects Rotate.

Rotation is where many beginners accidentally make a good placement look wrong. Printed fabric often has a directional flow—vines growing upward, stripes running diagonally. Even if the embroidery is technically "straight" to the grain, it might look crooked against the print.

Use Rotate to angle the dragonfly so it follows the "visual gravity" of the print. If a vine curves right, rotate the dragonfly to follow that curve. Harmony beats rigidity.

The Sanity Check Toggle: Background On/Off to Confirm the Design Itself Still Looks Right

The video shows a simple but powerful verification step: a toggle switch that turns the background image off and on.

• Background ON: confirms placement relative to the print (Context).
• Background OFF: confirms the design’s orientation and overall look without visual noise (clarity).

This is how you catch “it’s aligned, but it feels upside down” errors before you waste thread and fabric.

Why This Works (and Why It Sometimes Doesn’t): Hooping Physics, Fabric Behavior, and Camera Perspective

Even though the video makes it look magical, the results depend on three strict physical factors:

1. Hooping tension changes fabric geometry. If you over-stretch printed cotton to get it into the hoop, the flower you are aligning to is physically distorted. You scan the distorted flower, place the design, and stitch. When you un-hoop, the fabric relaxes, and the embroidery might pucker or shift.
2. Stabilization controls drift. A background scan can’t prevent the fabric from creeping during the stitch process. If your stabilizer is too weak, the fabric will push ahead of the presser foot.
3. Hoop Burn. To get the fabric flat enough for a good scan in a standard hoop often requires tight clamping, which can crush delicate naps (velvet/corduroy) or leave shiny rings on dark cotton.

If you are consistently fighting "hoop burn" or hand fatigue from tightening screws, this is where many shops transition to a magnetic hoop for brother stellaire for their non-scanning production work. While you must use the Brother marked hoop for the Snap feature, magnetic hoops are superior for batching t-shirts or towels where speed and fabric protection are the priority.

Warning: Magnet Safety: Magnetic embroidery frames are incredibly powerful. They can pinch skin causing blood blisters. Use the provided leverage tools to open them. Keep magnets away from pacemakers, insulin pumps, and credit cards.

A Simple Stabilizer Decision Tree for Patterned Cotton

The video uses printed cotton fabric. Cotton is forgiving, but placement jobs on prints are visually unforgiving—a 1mm shift screams "mistake."

Use this decision tree to ensure your fabric stays exactly where you scanned it:

Decision Tree: Fabric + Project Goal → Stabilizer Approach

1) Is the cotton lightweight (quilting cotton) or loosely woven?

• Yes → Go to Step 2.
• No (Canvas/Denim) → Tear-away is usually sufficient (use 2 layers if design is dense).

2) Is the design dense (high stitch count, full fill) or light (outline/text)?

• Dense (>10k stitches) → Fusible Cut-away. The adhesive prevents the fabric from rippling, and the cut-away structure prevents the dense stitches from perforating the fabric.
• Light → Fusible Tear-away. Ironing it on prevents shifting better than floating, but it removes cleanly.

3) Do you completely trust your hooping tension?

• No → Add a layer of Water Soluble Topping (Solvy) to help the foot glide and prevent fabric distortion, even on cotton.

Hidden Consumable: Always keep a can of temporary spray adhesive or a glue stick handy. For precise placement, "floating" (not hooping the backing) is risky. It is safer to hoop the backing and fabric together or adhere the fabric firmly to the hooped backing.

Common Watch-Outs (Even When the Video Makes It Look Effortless)

Real-world embroidery is simpler when you know what usually breaks. Here is a troubleshooting guide for the "My Design Snap" workflow.

The Stitch-Ready Moment: Return to Embroidery and Run It Like You Mean It

In the video, after placement and checks:

• Tap OK.
• Go back to Layout → Return.
• Then go to Embroidery and you can stitch.

This is where you slow down for 10 seconds to save yourself 30 minutes of picking out stitches.

Operation Checklist (right before you press start):

• Secure: Hoop is fully seated and locked on the embroidery arm.
• Clear Path: Nothing is in the carriage path (hands, tools, wall, thread tails).
• Verification: Design placement has been verified with background ON/OFF toggle.
• Aesthetics: Rotation looks intentional relative to the print flow.
• Monitor: You are ready to watch the first 100 stitches to ensure the thread catches and tension is good.

The Upgrade Path: When “One-Off Fun” Turns Into Repeat Work

My Design Snap is excellent for unique placement on prints, but it reveals a bottleneck: speed. Hooping for perfect scanning is slow.

If you’re doing occasional personal projects, your standard brother embroidery machine hoops are perfectly adequate.

However, if you start taking orders—50 team polos, 30 tote bags—the standard hooping process becomes your enemy. You will face:

1. Time Loss: Screwing and unscrewing hoops takes 2-3 minutes per item.
2. Hoop Burn: Pressing rings into delicate performance fabrics.
3. Fatigue: Wrist strain from repetitive tightening.

This is the commercial "tipping point." Professionals solve this by using a brother magnetic hoop for their bulk production jobs (where scanning isn't needed, just consistent centering). Magnetic hoops slash hooping time to under 10 seconds and eliminate hoop burn.

Furthermore, if your volume grows to where the single-needle changes are eating your profit, this is when shops upgrade to multi-needle platforms (like SEWTECH distributed machines). These allow you to set 6+ colors at once and hoop the next garment while the first one stitches, doubling your throughput.

Quick Recap: The Clean Easy Mode Workflow You Can Repeat Without Drama

• Prep: Hoop with even tension using the marked Brother frame.
• Load: Select design on the Stellaire (e.g., dragonfly #10).
• Scan: Open Snap Capture with frame, hold phone flat, lift slowly, hold for 3-2-1.
• Transfer: Wi-Fi send to machine.
• Hardware: Attach hoop, verify click, allow calibration.
• Micro-Place: Drag for rough spot, use Arrow Keys for precision.
• Rotate: align with the print's "visual gravity."
• Verify: Background Toggle ON/OFF.
• Stitch: Monitor the start.

Mastering the setup is 90% of the battle. If you get the physics right—tight hooping, correct stabilizer, and clean markers—the digital magic of My Design Snap works every single time.

FAQ

• Q: Why does the Brother My Design Snap “Snap Capture with frame” mode not lock onto the hoop on a Brother Stellaire Innov-is XJ1/XE1?
  A: Use the Brother hoop that has clean, visible black-and-white registration marks, and scan in even light—most lock failures are hoop/lighting/marker issues, not the app.
  • Switch: Confirm the hoop is the marked Brother frame (the mode requires those fiducial marks).
  • Clean: Wipe the registration marks and the phone camera lens with a microfiber cloth.
  • Adjust: Move to diffused lighting and reduce glare/shadows on the hoop rim.
  • Success check: The hoop overlay aligns and the app triggers the 3-2-1 countdown without hunting.
  • If it still fails: Reposition the phone to stay parallel to the hoop and repeat the “start low, rise slowly, then freeze” capture motion.
• Q: What is the correct phone movement for Brother My Design Snap Easy Mode “Snap Capture with frame” to get an accurate scan on a Brother Stellaire hoop?
  A: Hold the phone flat (parallel) to the hoop, start low, rise slowly, and then hold perfectly still through the 3-2-1 capture.
  • Start: Keep the device parallel to the hoop—tilt is a common reason the overlay won’t match.
  • Move: Begin close to the hoop, then raise the phone slowly until the hoop graphic aligns.
  • Freeze: Stop moving as soon as alignment happens and keep still until capture completes.
  • Success check: The overlay “locks” cleanly and the countdown completes without blur.
  • If it still fails: Improve lighting and wipe both the registration marks and the phone lens again (fingerprints often cause focus hunting).
• Q: How can Brother Stellaire Innov-is XJ1/XE1 users prevent embroidery placement from shifting after using My Design Snap on printed cotton?
  A: Stabilize for zero drift first, because a perfect on-screen placement can still shift during stitching if the fabric moves.
  • Choose: For printed cotton, use a medium-weight cutaway when maximum security against shifting is needed.
  • Secure: Avoid “floating” when possible; hoop fabric + stabilizer together or bond firmly using temporary spray adhesive or a glue stick.
  • Control: Keep hoop tension even—taut like a trampoline, not stretched enough to distort the print.
  • Success check: During the first stitches, the fabric does not bounce/flag and the design stays aligned to the print reference you scanned.
  • If it still fails: Upgrade stabilizer support (move from tear-away to cut-away, or add adhesive) and re-hoop with the fabric grain straight before scanning.
• Q: How can Brother Stellaire Innov-is XJ1/XE1 users tell if hooping tension is correct before scanning with My Design Snap on patterned fabric?
  A: Aim for even, firm tension without stretching the print—over-tight hooping distorts the scan reference, and under-tight hooping causes fabric flagging.
  • Smooth: Remove ripples but do not pull so hard that the floral/plaid print visually warps.
  • Test: Gently tug the fabric—movement should shift the whole hooped unit rather than separating fabric from stabilizer.
  • Recheck: Ensure the print detail you want to align is clearly visible and not skewed by tension.
  • Success check: The fabric surface looks smooth and consistent, and the print alignment you see in the hoop matches real-world geometry.
  • If it still fails: Re-hoop with less clamp pressure or add better stabilization so the fabric stays stable without extreme tightening.
• Q: What should Brother Stellaire Innov-is XJ1/XE1 users do when stitches land shifted even though My Design Snap placement looked perfect on-screen?
  A: Treat it as fabric drift during stitching—fix stabilization and hoop security, not the on-screen placement.
  • Upgrade: Use stronger stabilization (often switching from tear-away to cut-away) and add adhesive support if needed.
  • Avoid: Do not rely on floating for precision placement jobs; secure the fabric to the hooped backing.
  • Monitor: Watch the first 100 stitches to confirm the fabric is not creeping under the foot.
  • Success check: The stitched design lands where the background image indicated, without gradually walking off position.
  • If it still fails: Re-hoop and rescan—distorted hooping or loose tension can create a mismatch between the scan image and stitch reality.
• Q: What safety steps should Brother Stellaire Innov-is XJ1/XE1 users follow when attaching the hoop after sending a My Design Snap image to the machine?
  A: Keep hands and tools out of the needle/carriage path and let the machine complete calibration—carriage movement is fast and can pinch or strike objects.
  • Attach: Slide the same scanned hoop onto the embroidery arm and listen for the distinct “click” of the lock.
  • Clear: Remove fingers, tools, and loose sleeves from the embroidery arm area before pressing OK.
  • Wait: Allow the carriage “wiggle” calibration cycle to finish before touching anything again.
  • Success check: The hoop is fully seated and locked, and the machine completes calibration without contact or obstruction.
  • If it still fails: Stop immediately, re-seat the hoop until it clicks, and confirm nothing is physically blocking the carriage travel.
• Q: How should embroidery operators handle magnetic embroidery hoops safely when using them for non-scanning production work (after using Brother My Design Snap only for placement)?
  A: Magnetic hoops are extremely strong—open them with the provided leverage tools and keep them away from pacemakers, insulin pumps, and credit cards.
  • Handle: Use leverage tools to separate magnets; do not pry with fingertips near the pinch zone.
  • Protect: Keep skin clear when the frame snaps together to avoid blood blisters.
  • Isolate: Store magnets away from sensitive medical devices and magnetic-stripe cards.
  • Success check: The hoop closes cleanly without pinching, and fabric loads quickly without excessive force.
  • If it still fails: Pause use and review the hoop’s handling instructions—magnet strength varies, and safe technique matters more than speed.
