Stop Guessing Placement: Build a Snap-Fit Grid Insert for a Brother Dream Machine 9x14 Hoop (and Make Every Hoop Behave)

Precision Protocol: The DIY Hoop Grid Masterclass

In the world of professional embroidery, accuracy isn’t a luxury—it is the difference between profit and a pile of ruined, expensive garments. When a hoop grid goes missing, gets tossed during a cleanup, or tears after years of adhesive and handling, it doesn’t just “look messy”—it steals your accuracy. And accuracy is what keeps a clean logo from becoming an expensive do-over.

This is not just a craft project; it is a calibration of your primary tool. This guide uses a cognitive "micro-step" approach to help you fabricate a replacement grid using template plastic. We will focus on the Brother Dream Machine 9x14 hoop as our case study, but the physics and measuring logic apply to any hoop with a recessed inner ledge.

A Hoop Grid Isn’t a Luxury—It’s Your Fastest Path to Repeatable Placement on a Brother Dream Machine 9x14 Hoop

If you’ve ever centered a design “by eye,” stitched, and then realized it’s 1/4" too high, you already understand why grids feel priceless. In my 20 years of floor experience, I have seen seasoned operators lose confidence simply because they lost their visual anchor.

A properly fitted grid insert helps you:

• Visual Validation: Find true center quickly (especially when your design requires centering relative to a pocket or collar).
• Consumable Economy: Mark your stabilizer and fabric consistently, reducing waste.
• Batch Consistency: Repeat placements across multiple items without re-measuring the garment every time.

One viewer summed up what I hear constantly in shops: machines are expensive, and it’s frustrating when grids aren’t included or are flimsy. The good news is you can make a professional-feeling replacement for a few dollars—if you respect the hoop’s inner geometry.

The “Hidden Prep” That Makes This DIY Grid Actually Snap In (Not Bow, Buckle, or Drift)

Before you draw a single line, you need to understand the physical constraint that makes or breaks this project: the inner lip/ledge inside the hoop. That lip is the shelf your plastic insert will sit on.

Most beginners fail here because they trace the frame, not the shelf. On the Brother 9x14 hoop shown in the analysis, the lip measurement is not uniform. This is standard in industrial design to accommodate pantograph attachment points.

The Empirical Reality:

• The long sides typically accommodate a narrower shelf (refined to 3/16" overlapping the lip).
• The short ends often have a deeper recess (measured at 5/8").

That difference is exactly why people end up with a grid that “almost fits” but never lays flat. If the plastic is too wide, it buckles upward (creating a parallax error). If it is too narrow, it falls onto the fabric, obstructing the needle.

A second pro reality: Many hoops are subtly asymmetrical top-to-bottom. If you install the insert upside down, you can see a gap on one end and an overlap on the other. You must treat your hoop as a directional tool.

Prep Checklist (Do this before uncapping a marker)

• Identify the Model: Confirm your hoop inner dimensions (e.g., 9" x 14").
• Surface Prep: Clean the inner hoop lip with isopropyl alcohol. Remove bulky adhesive residue or lint that could change how the plastic sits.
• Orientation Check: Locate the hoop’s molded arrows or center markers.
• Tool Choice: Ensure you have a Washable Marker (blue/water-soluble) for the plastic. Do not use permanent marker for the draft lines.
• Environment: Clear a flat table and set up a cutting mat. Align the plastic grid lines with the mat lines so your eyes don’t fight the geometry.


Materials That Won’t Betray You Mid-Cut: Gridded Template Plastic, Markers, Rulers, and a Punch That Isn’t the “Squeeze Type”

Materials matter. Standard cardstock is useless here; it warps with humidity. You need specific Template Plastic.

The Gold Standard: Easy Quilting Gridded Template Plastic with 1/8" squares. Why 1/8"? Because standard embroidery nudge increments often align with this grid, helping you count offsets and notch widths without constantly reaching for a tape measure.

The Hidden Consumables List:

• Cutting Mat: Self-healing preferred.
• Quilting Ruler: Clear acrylic, strictly straight.
• Small Ruler: For high-precision center line extension.
• Rotary Cutter: 45mm or 28mm blade (fresh blade is mandatory for safety).
• Scissors: Small, sharp detail scissors for curves and notches.
• Sharpie: For permanent labeling only (not drafting).
• Eyelet Punch: Specifically a Screw-Down or Hammer-Set punch.

Why not the "Squeeze Punch"? As noted in the source analysis, squeeze-type hand punches often lack the torque to pierce thick template plastic cleanly. They tend to leave a "dented" or jagged hole which catches the needle tip. You want a punch that shears a clean cylinder of plastic.

Thickness Calibration: If you buy generic plastic, look for "Medium Weight."

• Too Thin: It flutters during machine movement.
• Too Thick: It creates a "step" that can snag the presser foot during travel.
• Sensory Check: The plastic should be rigid enough to “snap” when flexed, but flexible enough to bend 45 degrees without creasing white.

If you’re trying to solve placement and hooping speed at the same time—especially for repeat orders—this is also where many shops consider a hooping station for embroidery as a workflow upgrade. These stations hold the hoop outer ring and backing static, allowing you to use your new grid with even greater precision.

Trace the Inner Boundary with a Washable Marker (and Mark Where the Lip Starts/Stops)

This is the part that separates a “close enough” template from a snap-fit insert. We are capturing the negative space of the hoop.

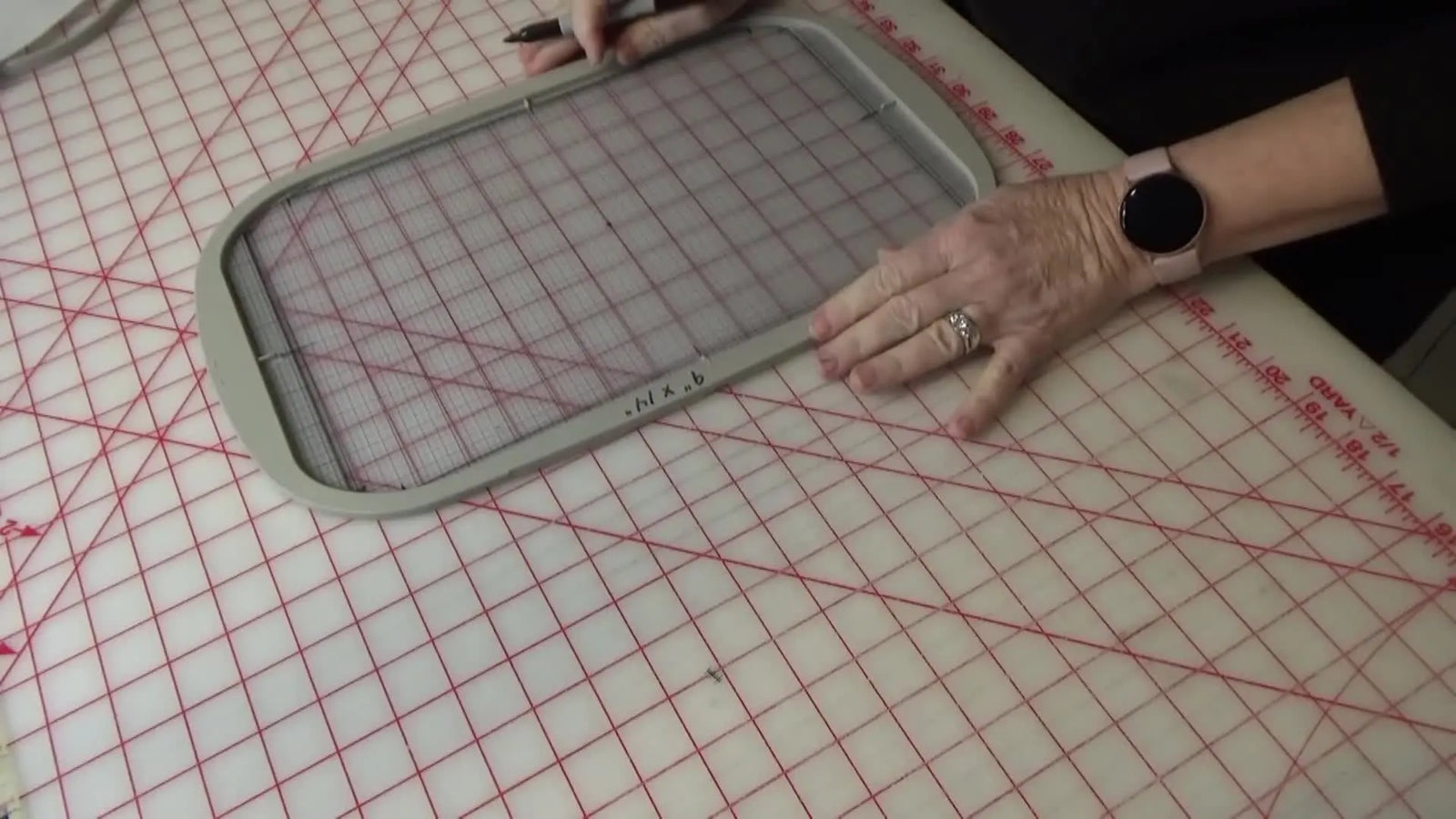

1) Align the plastic to your cutting mat

Lay the gridded plastic flat. Align its printed black grid lines with the bold inch lines on your cutting mat. The goal is simple: reduce visual confusion. If your plastic grid is askew, your cuts will be parallelograms, not rectangles.

2) Mark center and reference points

Place the inner hoop on top of the plastic. Align the hoop's molded center marks with a major crosshair on the plastic grid. Mark these North/South/East/West anchor points immediately.

3) Trace the inner perimeter

Using the washable marker, trace firmly along the inside edge of the hoop frame throughout the entire circumference.

Warning: Mechanical Safety
Rotary cutters are essentially unguarded razor blades on a wheel.
* Never cross your arms while cutting.
* Always cut away from your body.
* Retract the blade immediately after every single cut.
A slip here can ruin the template and requires stitches—the medical kind, not the embroidery kind.

4) Mark the lip start/stop points

Where the inner lip begins and ends (especially near corners and notches), add small tick marks perpendicular to your trace line. Those ticks tell you where data changes from "straight edge" to "corner curve."

The Offset Math That Decides Everything: Measuring the Hoop Lip (3/16" Long Sides, 5/8" Short Sides)

Here is the critical concept: You are not cutting on the traced line. If you cut on the traced line, the grid will fall straight through the hoop onto the fabric. You must cut an outward offset so the grid has shoulders to rest on.

The Formula: Cut Line = Traced Line + Shelf Depth - Tolerance

Long Sides (The Narrow Shelf)

• Place the quilting ruler on the traced line.
• Measure outward by the lip width.
• Experience Value: For the Brother 9x14, the sweet spot is 3/16".
• Why not 1/4"? 1/4" often binds against the upper wall. 3/16" provides a secure shelf rest without friction binding.
• Draw a straight cut line that extends past the corners.

Short Ends (The Deep Shelf)

• Measure 5/8" outward from the traced line on the short ends.
• Draw straight lines for those ends.

Expert Note: Manufacturing tolerances vary. Your hoop might be a "Monday hoop" or a "Friday hoop." Always start with a slightly wider allowance (e.g., add an extra 1/16"). You can always trim plastic off; you cannot glue it back on.

If you are the type who is already thinking about reducing hooping headaches long-term, this is the moment people start comparing a DIY insert versus magnetic hoop for brother dream machine options. Why? Because magnetic hoops grasp the fabric between magnets rather than friction-fitting an inner ring, effectively removing the "lip-fit" variable entirely for hooping, although a grid remains useful for centering.

Smooth Corners Now or Suffer Later: Blending Curves with a Tailor’s Curve (or a Plate)

The video’s advice is empirically sound: the more you refine the drawn curve, the less micro-trimming you’ll do later. Sharp corners on plastic create Stress Risers—points where physical force concentrates, leading to cracking after repeated flexing.

The Technique:

• Use a curved ruler (tailor’s curve or French curve) to connect the offset long-side cut line to the offset short-side cut line.
• The "Kitchen Hack": If you lack a French curve, find a dinner plate or cup that matches the radius of the hoop corner.
• Draw a smooth arc connecting your offset lines.


Extend the North/South/East/West Lines to the Edge (So You Can Actually Use the Grid)

Once your perimeter is drafted, do not unclamp the hoop or move the plastic yet. You must extend the center markings all the way to the edge of the plastic.

This turns a "cover" into a "tool." You will use these extension lines to:

• Draw crosshairs on stabilizer with a water-soluble pen.
• Align fabric grain (ensuring the weft is perpendicular to the hoop).
• Repeat placements across multiple garments (e.g., "Left Chest" logos positioned 3 inches down from the collar).


Cut Like a Production Shop: Rotary Cutter for Straights, Scissors for Curves, and 1/8" Notches That Don’t Overbite

Now you are ready to excise the grid.

Straight Edges (High Velocity)

• Tool: Rotary Cutter.
• Action: Align the quilting ruler with your outer offset lines. Press down firmly on the ruler (engage your core, not just your wrist). Slice firmly.
• Check: Keep the ruler aligned with the printed grid markings to ensure squareness.

Curves and Notches (High Precision)

• Tool: Sharp Scissors.
• Action: Cut along the drawn curves.
• The Notch Factor: Most Brother hoops have small protrusions on the inner ring to lock the hoop together. You must cut U-shaped notches in the plastic to accommodate these.
• Dimension: Approximately 1/8" wide.
• Depth Warning: Do not cut deeper than the traced inner line. If you cut too deep, you compromise the structural integrity of the grid.


The “One-Cut Rule”: Micro-Trim 1/32" at a Time Until the Grid Snaps Flat on the Ledge

This is the phase of "Finessing the Fit." Do not rush.

The Protocol:

1. Insert: Place the cut grid into the inner hoop.
2. Diagnose:
   • Does it bow up? It is too wide.
   • Does it overlap the edge? It is too long.
3. Trim: Remove the grid. Shave off a hairline sliver (1/32") with scissors from the binding edge.
4. Repeat: Test fit after every single cut.

Sensory Feedback: You are looking for a fit where the grid drops in and settles with a soft "thud" against the ledge. If it makes a loud "snap" and requires force, it is too tight—this tension will warp the plastic over time.

Pro Tip: The Orientation Trap

If you see a gap at the top and an overlap at the bottom, stop cutting. Your dimensions are likely correct, but the hoop is asymmetrical. Rotate the grid 180 degrees. It will likely fit perfectly. This "orientation first, trimming second" habit prevents the most common DIY mistake: trimming a perfectly good insert into a permanently undersized one.

Lock in Orientation and Punch a True Center Needle Hole (Plus the Circle That Prevents a Costly Mis-Center)

Once the fit is "Goldilocks" (just right):

1) Label Orientation

• Write “TOP” or draw an arrow with a Sharpie on the upper edge. This ensures you always install it matching the hoop's asymmetry.

2) Punch the Center

• Use your eyelet punch to create a hole at the exact center crosshair.
• Check: Ensure the hanging chad of plastic is completely removed.

3) Visual Safety

• Draw a bold circle around the center hole. Why? When you are tired or rushing, every grid intersection looks like the center. The circle is a cognitive trigger that says "Aim Here."

The creator suggests punching five holes (Center, Top, Bottom, Left, Right). This allows you to mark a full crosshair onto your fabric through the grid.

Setup Checklist (Before trusting the grid on a $50 Hoodie)

• Planar Check: Insert the grid. Run your hand across it. It must differ from a drum skin in that it feels flat, but not under tension. It should not "pop" up and down.
• Orientation verification: Confirm the “TOP” mark aligns with the hoop’s master arrow.
• Centering Audit: Drop your machine's needle (gently) or simple sight down the needle bar. Does it land exactly in the hole?
• Clearance: Check that notches clear the hoop’s alignment protrusions without bucking.
• Debris: Ensure no plastic shards remain in the punched hole; these can snag delicate poly threads.


The “Why It Works” (and Why Some Grids Fail): Fit Physics, Repeatability, and When to Upgrade Tools

A snap-fit grid works because it is constrained in three dimensions:

1. Perimeter Friction: Prevents rotation.
2. Ledge Contact: Prevents vertical drop into the stitch field.
3. Notches: Key it into the locking mechanism.

When DIY grids fail, it is usually because the offset was guessed rather than measured, or the corners were cut squarely, creating fracture points.

Decision Tree: Troubleshoot or Upgrade?

Use this logic flow to determine your next step based on your current pain point.

• Scenario A: Missing/Broken Grid
  • Solution: Make the DIY Insert (Current Tutorial). It is cheap and effective for restoration.
• Scenario B: Hoop Burn / Wrist Fatigue
  • Symptom: You are struggling to hoop thick items (towels, jackets), or the outer ring leaves permanent marks ("hoop burn") on velvet/performance wear.
  • Solution: Consider magnetic hoops for embroidery or specific magnetic embroidery hoops. These use strong magnets to sandwich fabric without the friction-rub of traditional rings, eliminating hoop burn and the need for intense hand strength.
• Scenario C: Production Volume (50+ items/week)
  • Symptom: You are spending more time hooping than stitching.
  • Solution: Invest in consistency tools. Many shops evaluate a hoop master embroidery hooping station or hoopmaster system. These fixtures hold the hoop geometry constant, allowing you to load garments in seconds with perfect alignment.
• Scenario D: Third-Party Snap Frames
  • Symptom: You like the speed of clamped frames but miss the grid.
  • Solution: A snap hoop for brother usually requires a different approach. Since they lack the "inner ledge," you rely on marking the stabilizer or using laser alignment.

A Note on Magnetic Hoop Grids

You might ask, "Can I make this grid for my magnetic hoop?" The answer is generally No. Magnetic hoops (like the dime snap hoop or generic dime hoop styles) are designed to be flat. There is no inner recessed lip to hold a plastic sheet. If you place a plastic sheet under the magnets, it may slide; if you place it over, it may obstruct the needle bar. For magnetic hoops, rely on drawn center lines on your stabilizer or the machine’s laser pointer.

Warning: Magnetic Field Safety
Magnetic frames use industrial-grade Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers or crack fingernails. Handle with open palms.
* Medical Device Safety: Keep magnets at least 6 inches away from pacemakers, ICDs, and insulin pumps.
* Electronics: Store away from phones, credit cards, and computerized machine screens.

Wash Off the Draft Lines, Keep the “TOP” and Center, and Put It to Work on Real Projects

After you are satisfied with the fit:

• Wash the grid with warm water and mild soap.
• Dry it with a lint-free cloth.
• Your washable marker draft lines will vanish, leaving only your permanent Sharpie “TOP” and center reference.

This is the moment you are “in business.” You have restored the functionality of your machine.

Operation Checklist (The Daily Workflow)

• Load: Hoop your stabilizer and fabric.
• Insert: Snap the grid in, matching “TOP”.
• Align: Use the center hole/crosshairs to verify your chalk marks on the fabric match the hoop center.
• Remove: CRITICAL STEP. Remove the grid before attaching the hoop to the machine (unless you are only doing a trace checks). Never start stitching with the plastic grid inside.
• Store: Store the grid flat (e.g., in a file folder). Do not lean it against a wall, or gravity will warp it into a curve that fights the hoop ledge.

If you are doing this because replacement grids are surprisingly expensive, you are making a smart operational choice. But remember, the grid is just one part of the equation. If you find yourself constantly fighting the physical act of hooping, recognize that as a signal that your business volume may be ready for magnetic frames or high-productivity setups. Tools should serve the artist, not tire them out.

FAQ

• Q: How do I measure the inner lip correctly to make a snap-in DIY hoop grid for a Brother Dream Machine 9x14 hoop?
  A: Measure the recessed inner ledge (shelf), not the hoop frame, then draft an outward offset so the plastic rests on the ledge instead of falling through.
  • Clean the inner lip first (isopropyl alcohol) so residue does not change the “seat” height.
  • Trace the inner perimeter, then mark where the lip starts/stops with small tick marks near corners/notches.
  • Offset the cut line outward from the trace: commonly 3/16" on the long sides and 5/8" on the short ends for the Brother Dream Machine 9x14 hoop.
  • Success check: the insert drops in and lays flat on the ledge without bowing or drifting.
  • If it still fails… start slightly wider (a safe starting point is adding about 1/16"), then trim down gradually; manufacturing variation is common.
• Q: Why does a DIY template-plastic hoop grid for a Brother Dream Machine 9x14 hoop bow upward, buckle, or “drift” after snapping in?
  A: Bowing or buckling usually means the insert is too wide for the ledge or the corners are too sharp, creating tension that warps the plastic.
  • Trim the binding edge in micro-cuts (about 1/32" at a time) and test-fit after every cut.
  • Smooth and blend corner curves using a French curve or a plate to avoid stress points that push the insert up.
  • Confirm the insert is keyed around hoop protrusions with shallow U-notches (about 1/8" wide) without cutting deeper than the traced inner line.
  • Success check: the grid settles with a soft “thud” and does not “pop” up/down when you run your hand across it.
  • If it still fails… stop trimming and check orientation first; many hoops are subtly asymmetrical.
• Q: What should I do if a DIY hoop grid insert fits one way but shows a gap on one end and an overlap on the other in a Brother Dream Machine 9x14 hoop?
  A: Rotate the DIY grid insert 180 degrees before trimming, because Brother Dream Machine 9x14 hoops may be asymmetrical top-to-bottom.
  • Look for the hoop’s molded arrows/center markers and treat the hoop as directional.
  • Flip the insert 180° and re-seat it on the ledge before removing any more material.
  • Label the correct orientation with “TOP” once the best fit is found.
  • Success check: the gap/overlap swaps sides after rotation and then disappears when installed in the correct orientation.
  • If it still fails… only then micro-trim (about 1/32") from the tight contact areas and test again.
• Q: What tools and materials prevent cracking, jagged holes, or bad cuts when making a DIY hoop grid from template plastic for a Brother Dream Machine 9x14 hoop?
  A: Use medium-weight gridded template plastic plus the right cutting and punching tools so edges stay square and holes stay clean.
  • Choose gridded template plastic with 1/8" squares; avoid cardstock (warps) and avoid plastic that is extremely thin or overly thick.
  • Cut straight edges with a rotary cutter and quilting ruler; cut curves/notches with sharp detail scissors.
  • Use a screw-down or hammer-set eyelet punch for center holes; avoid squeeze punches that may dent or leave jagged edges.
  • Success check: edges feel smooth (no burrs), the punched hole is a clean circle with no hanging “chad,” and the insert seats without catching.
  • If it still fails… replace the blade (dull rotary blades wander) and re-punch on a firm surface to prevent ragged holes.
• Q: What is the safest way to use a rotary cutter while cutting a Brother Dream Machine 9x14 DIY hoop grid insert from template plastic?
  A: Treat the rotary cutter like an exposed razor and cut in controlled, one-direction passes to avoid slips that injure hands and ruin the template.
  • Cut away from the body and never cross arms while cutting.
  • Press the quilting ruler down firmly before the cut so the plastic cannot slide.
  • Retract the rotary blade immediately after every cut.
  • Success check: the cut line is straight with no “stair-steps,” and hands stay clear of the blade path at all times.
  • If it still fails… stop and switch to shorter cuts or reposition the material; forcing a long cut is when slips happen.
• Q: How do I confirm the center is truly correct on a Brother Dream Machine 9x14 DIY hoop grid insert before using it on an expensive garment?
  A: Punch and mark the true center, then verify the machine needle alignment visually before trusting the grid on a costly item.
  • Extend North/South/East/West lines to the edge of the insert so the grid functions as an alignment tool, not just a cover.
  • Punch a center hole with an eyelet punch and remove all plastic debris from the hole.
  • Draw a bold circle around the true center so the correct intersection is obvious when tired or rushing.
  • Success check: gently dropping/sighting the needle shows the needle lands exactly in the center hole.
  • If it still fails… re-check that the hoop’s molded center marks were aligned during tracing; do not “eyeball” a new center after cutting.
• Q: How do I decide between a DIY hoop grid insert, magnetic embroidery hoops, or a production upgrade when a Brother Dream Machine 9x14 hoop setup keeps slowing down repeat jobs?
  A: Match the fix to the pain point: restore accuracy with a DIY grid, reduce hooping strain/marks with magnetic hoops, and consider higher-productivity systems when volume is consistently high.
  • Use a DIY grid insert when the problem is missing/broken grid or inconsistent placement; it restores repeatable visual centering.
  • Move to magnetic embroidery hoops if hoop burn or wrist fatigue is the main issue (magnetic clamping often reduces friction marks and hand force).
  • Consider a hooping station approach if hooping time dominates the workflow (commonly when doing high weekly volume), because fixtures keep geometry consistent.
  • Success check: placement becomes repeatable without re-measuring every garment, and hooping time drops without increasing rejects.
  • If it still fails… separate the problem: fix placement (grid/marking) first, then fix hooping force/throughput (magnetic/production tools) based on the remaining bottleneck.
• Q: What magnetic field safety rules should be followed when using magnetic embroidery hoops instead of a Brother Dream Machine 9x14 traditional hoop grid setup?
  A: Handle magnetic hoops as industrial neodymium magnets: protect fingers, keep away from medical implants, and store away from sensitive electronics.
  • Keep hands open and clear of pinch points; magnets can snap together hard enough to bruise fingers or crack nails.
  • Keep magnetic hoops at least 6 inches away from pacemakers, ICDs, and insulin pumps.
  • Store magnetic hoops away from phones, credit cards, and computerized machine screens.
  • Success check: magnets are controlled during assembly (no “slamming” together) and the work area stays clear of vulnerable items.
  • If it still fails… change the handling routine (one magnet half at a time on the table) to prevent uncontrolled snaps.
