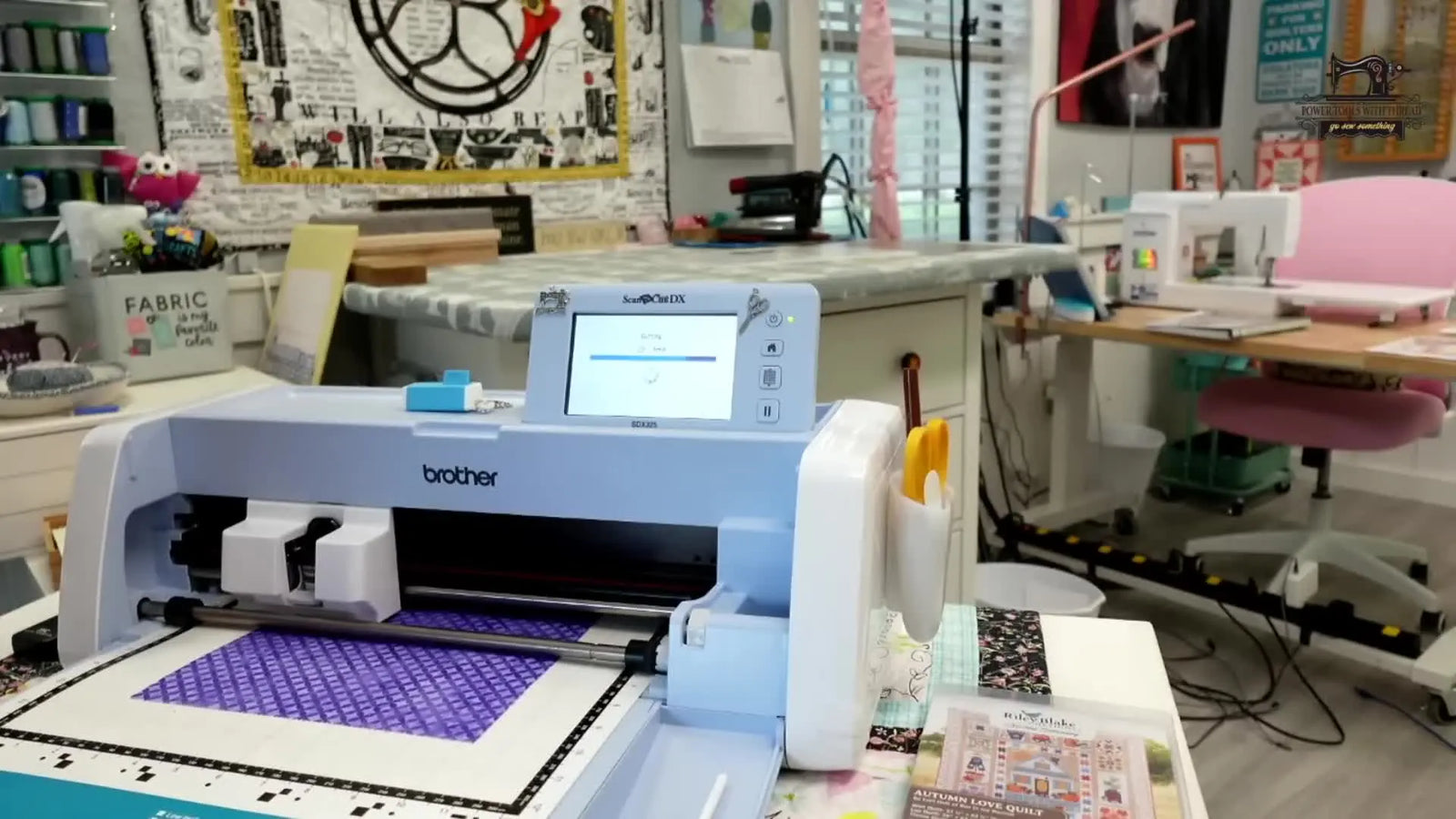

Stop Hand-Cutting Appliqué: A Brother Luminaire + ScanNCut “My Connection” Workflow That Actually Fits

If you’ve ever stared at a complex appliqué-heavy quilt block and felt that cold wave of panic—“I’m going to have to hand-cut all of that with scissors?”—you’re not alone. The friction of manual cutting is the number one reason sewists abandon appliqué projects.

The good news is: if you own a specific tier of Brother embroidery ecosystem—specifically the My Connection feature found on the Luminaire (XP series) or Stellaire (XJ/XE series) paired with a compatible ScanNCut (SDX series)—you possess a “digital scissor” system. This system allows you to generate cut data directly from your embroidery file’s placement lines.

However, technology often fails without technique. This guide rebuilds the standard workflow into a shop-floor-ready protocol, adding the sensory checks and safety buffers that manuals usually omit.

The Calm-Down Truth About Brother My Connection: It’s Not Magic—It’s Precision You Can Control

Brother’s My Connection is a bridge protocol. It allows your embroidery machine to identify specific vector data (the placement stitch) and send it wirelessly to the ScanNCut. The cutter then replicates that shape physically in fabric.

Why does this matter? Because the “perfect fit” isn’t just aesthetic; it’s structural. Hand cutting introduces “human wobble”—micro-variations that lead to frayed edges, satin stitches that miss the fabric, or the dreaded “peek-a-boo” where the base fabric shows through the gap.

The Cognitive Shift: Stop thinking of your embroidery machine and cutter as separate entities. Think of them as a single manufacturing unit. The success of this workflow depends entirely on one variable: Data Integrity. You must correctly identify which color stops are placement lines and tag them. Do that, and the cutting becomes boringly predictable.

Compatible Brother Luminaire / Stellaire + ScanNCut Models: Don’t Guess, Confirm Your Transfer Path

In this protocol, we are analyzing the workflow between a Brother Luminaire Innov-is XP1 (embroidery) and a Brother ScanNCut SDX325 (cutting).

Hardware Reality Check:

• Embroidery Side: Available on Brother Luminaire (XP1/XP3) and Stellaire (XJ1/XJ2/XE1/XE2).
• Cutting Side: Requires ScanNCut DX models with WLAN capability (e.g., SDX225, SDX325, SDX330D).
• The Link: If your Wi-Fi is unstable or your machines are in different rooms (faraday cage effect), you can utilize the USB transfer method (detailed later).

The Physical Bottleneck: While this software bridge solves the cutting speed, it exposes the next bottleneck: hooping. When you are processing 20+ quilt blocks, the recurring strain of clamping fabric into standard hoops causes wrist fatigue and potential "hoop burn" (permanent crush marks on velvet or high-loft batting).

For production-level batching, many users mitigate this friction using a brother luminaire magnetic hoop. Unlike standard screw-tightened hoops, magnetic frames allow you to "slap and snap" the fabric, maintaining tension without the physical wrestling match, which is critical when you are moving back and forth between the cutter and the needle all day.

The “Hidden” Prep Before You Touch the Screen: File Hygiene, Fabric Plan, and Mat Discipline

90% of cutting failures happen before you touch the LCD screen. We must establish a "Clean Room" mindset for your materials.

The Toolkit (Validated)

• The Machine: Brother Luminaire (or Stellaire).
• The Cutter: Brother ScanNCut SDX.
• Data Transport: USB flash drive (Formatted to FAT32, <32GB recommended for stability).
• The Mat: Low Tack Mat (Turquoise/Green depending on region). Start with this. Standard Tack mats are often too aggressive for fabric backed with paper, causing the backing to rip and stick to the mat forever.
• The Medium: Premium Cotton Fabric.
• The Stabilizer (Fabric): HeatnBond Lite. Crucial: Do not use "Ultra Hold" if you plan to sew it; Ultra Hold gums up needles. Use Lite.
• The Adhesion Assistant: KK2000 Temporary Spray Adhesive (or failing that, a fresh High Tack Sheet).

Pro Tip: Mat Hygiene & Recovery

If you accidentally transfer paper residue (from the HeatnBond) onto your mat, do not scrape it with metal. Wash the mat gently with cool water and use your fingers to roll the paper off. Let it air dry to regenerate the stickiness.

Warning: Blade Safety. The ScanNCut Auto Blade is essentially a computer-controlled X-Acto knife moving at high velocity. Keep fingers clear of the mat loading path. Verify there are no pins or staples in your fabric—hitting metal will shatter the blade tip, potentially sending shard debris into the mechanism.

Prep Checklist (End-of-Prep)

• File Logic: Confirm you have the .PES file loaded. (Ignore .PHX or .DST for this specific internal function).
• Connectivity: Both machines are on the exact same 2.4GHz Wi-Fi network (My Connection often fails on 5GHz bands).
• Material Prep: Fabric is ironed flat. HeatnBond Lite is fused to the wrong side (back). Paper backing is peeled off (Optional: some cut with backing on, but peeling first yields a cleaner edge for the needle).
• Mat Check: You are holding a Low Tack Mat. It feels tacky to the touch, not "aggressive like duct tape."
• Adhesion: A light mist of KK2000 is applied (from 12 inches away) to center of the mat.


On the Brother Luminaire XP1: Load the PES Design and Get Into Edit Mode (Don’t Stitch Yet)

Your first instinct is to hit "Sew." Suppress that. You are currently in the Data Prep Phase.

1. Insert USB: Place the drive into the top slot of the Luminaire.
2. Navigate: Go to Embroidery -> Memory (USB Icon).
3. Selection: Tap the design file.
4. Action: Tap SET, then immediately tap EDIT.

Critical Distinction: You may see multiple file extensions. You must select the .PES file. The proprietary data structures required for My Connection are embedded in the PES header.

The Scissor Icon Trick: Tag the Correct Placement Lines as “Appliqué Material” on the Luminaire

This is the single most important technical step in this guide. You are translating "stitches" into "cut paths."

The Protocol:

1. Open Color Palette: Inside Edit mode, tap the Spool Icon.
2. Force the Palette: Ensure the thread chart is set to Brother Embroidery colors. If it displays Isacord or Madeira, shift it back to Brother. The specific metadata tag is linked to the Brother color index.
3. Locate the Anchor: Scroll through the color list until you see a special icon: an Orange Spool with a Pair of Scissors.
4. The Designation: Identify the color stop that corresponds to the Placement Line (the very first stitching line that shows you where to put the fabric). Tap the Scissor Icon for that specific stop.

Visual Verification: When successful, the color block in your sequence will physically change from a solid square to a Spool/Scissor Icon.

The Pitfall: Do not tag the Tack-down line (usually the second step) or the Satin Finish (the last step). If you tag the Satin stitch, the machine will cut a shape the size of the outside of the satin column, which will be too big and show raw edges.

Transfer to ScanNCut via My Connection: The “Temporary Data Pocket” Limitation You Must Respect

Once tagged, the data needs to move.

1. Exit Edit: Tap OK or Memory.
2. Initiate Transfer: Tap the My Connection Icon (visual: a stylized sewing machine emitting radar waves to a cutter).
3. Confirm: Tap Transfer.

The Volatile Memory Warning: My Connection uses a "Single Slot" temporary memory buffer. It can only hold one design file at a time.

• Scenario: You send Design A. Then you send Design B.
• Result: Design A is deleted from the cloud buffer. Design B allows access.

Workflow Discipline: If you are processing multiple blocks (e.g., a 9-block quilt), the rhythm must be: Send A -> Cut A -> Send B -> Cut B. Do not batch-send all files at once; they will overwrite each other.

On the ScanNCut SDX325: Retrieve the Design, Enter Appliqué Mode, and Select the Exact Piece to Cut

Move physically to your cutter.

1. Home Screen: Tap Pattern (or the Cloud icon depending on firmware).
2. Source: Tap My Connection.
3. Command: Tap Retrieve.
4. Mode Selection: The machine will present the data. You must tap the Shield Icon (this represents Appliqué/Cut Data).
5. Part Selection: If the design has multiple unique appliqués (e.g., a Flower and a Leaf), verify which one you are cutting. Becky demonstrates selecting "Piece C."

The Golden Rule of Geometry: DO NOT RESIZE. The interface allows you to resize. Do not touch it. The embroidery file is a fixed coordinate system. If you shrink the cut file by even 1%, it will not maximize the satin stitch coverage, leading to gaps.

The Fabric-Waste Problem (and the Real Fix): Why Some Appliqué Layouts Won’t Ungroup on the Machine

A common frustration arises here: The ScanNCut often imports the appliqué shapes as a "Fixed Group." If you have a Star and a Moon, they might be spaced 6 inches apart (matching the hoop layout), wasting a massive strip of fabric in between.

The Limitation: On the machine screen directly via My Connection, ungrouping is often disabled to protect the coordinate alignment.

The Solutions:

1. The "Acceptance" Method: If you are doing one block, accept the fabric waste as the cost of speed.
2. The "Canvas" Method (Advanced): Users report success sending the file to Brother's CanvasWorkspace software (PC/Cloud), ungrouping the vectors there to nest them tighter, and sending back to the machine.
3. The "Scrap" Method: Cut your fabric into smaller scraps and place them on the mat exactly where the widely-spaced shapes will fall (requires precise background scanning).

Commercial Insight: Efficiency isn't just about fabric yield; it's about ergonomic flow. If you are setting up a dedicated cutting corner, a hooping station for embroidery machine allows you to prep hoops while the cutter is running, doubling your throughput. The goal is to never have the machine waiting on you.

Mat + Fabric Setup: HeatnBond Lite, KK2000, and “Pretty Side Up” (Plus What Can Go Wrong)

The sandwich physics determine the cut quality.

The Layup:

1. Mat: Low Tack (Green/Turquoise).
2. Chemical Bond: Light spray of KK2000 on the mat.
3. Fabric: Cotton with HeatnBond Lite fused to the back.
4. Orientation: Pretty Side UP.

Why Face Up? The embroidery machine sends the data as it looks on the screen (Right Side Up). Unless you manually mirror the data on the ScanNCut, you must cut from the front of the fabric.

Sensory Check - The "bubble Test": Run your flat palm over the fabric. If you feel a "bubble" or air pocket, the blade will drag and snag there. Lift and re-smooth until it feels like a second skin on the mat.

Setup Checklist (End-of-Setup)

• Blade Check: Auto Blade holder cap is tight; no debris inside the cap.
• Mat Hygiene: No deep grooves or fuzz from previous felt projects.
• Adhesion: Fabric does not lift when you brush your hand over it.
• Orientation: Fabric is Right Side Up.
• Scaling: You have strictly avoided the Resize button.


Scan-and-Place Like a Pro: Use Background Scan So You Don’t Cut Off the Edge

Blind cutting is gambling. Use the Background Scan feature.

1. Load Mat: Press the Load button (feed the mat straight—do not let it skew).
2. Scan: Tap the "Background Scan" icon (Blue square with scanner bar).
3. The "Thump-Thump": The machine will pull the mat in and photograph it.
4. Review: On one screen, you will see your fabric photo.
5. Position: Drag your cut design (the Star) so it sits safely inside the fabric boundaries.

Safety Margin: Leave at least 5mm of fabric buffer around the cut line. Do not cut right on the edge of the frayed fabric scrap.

Blade Choice and Cut Execution: What We Know (and What You Should Test)

Becky uses the Auto Blade (Standard Black cap).

The Physics of the Cut: The Auto Blade detects thickness, but it can sometimes be "heavy-handed" with fused cotton.

• Test Cut: Always run a 1cm "Test Triangle" in the corner of your fabric scrap.
• Success Metric: The cut should penetrate the fabric and the HeatnBond, but barely verify the mat surface.
• Failure Metric: If the blade cuts deep into the mat, the fabric edges will be curled and pressed down, making them hard to peel.


Verify Fit in the Hoop: The Placement Line Should Be Your Truth, Not Your Eyes

Once cut, peel the detailed shape off the mat using a flat metal spatula. Do not pull by the fabric grain (diagonal pull) as this can bias-stretch the shape.

Return to the Luminaire. Stitch Color Stop 1: Placement Line.

Place your cut fabric inside the stitched line.

The Moment of Truth: It should drop in like a puzzle piece. No trimming scissors needed. Iron it down (using a mini iron) to activating the HeatnBond and stick it to the stabilizer.

The "Gap" Anxiety: "Shouldn't it be bigger?"

A common panic moment: "The fabric fits exactly inside the line... won't the tack-down stitch miss it?"

The Expert Answer: No. Professional digitizing includes Pull Compensation. The Placement Line shows you the exact geometry. The Tack-down stitch (Step 2) is usually digitized to land slightly inset (1-2mm) or distinctly zig-zag over the edge to catch exactly this shape. Trust the digitizer. If you resize the cut piece to be bigger, you risk the fabric bunching up under the satin stitch, creating a "bubble" effect.

USB Workaround for Older Machines: Still Works, Still Accurate, Just Slower

If "My Connection" is grevying out or failing:

1. Save the Edit data (with Scissor icons) to USB.
2. Walk the USB to the ScanNCut port.
3. Load -> Retrieve from USB.
4. The machine will parse the PES data and find the cut lines just the same.

Decision Tree: Choose Your Appliqué Workflow Based on Your Gear and Your Time

Not every project requires this tech stack. Use this logic to decide.

Path A: The "One-Off" Block

• Scenario: Making a single birthday shirt.
• Verdict: Use Scissors. The time to boot up the cutter + mat prep > time to hand cut one star.

Path B: The "Heirloom Quilt" (20+ Blocks)

• Scenario: High precision required, repetitive shapes.
• Verdict: Use My Connection. The consistency is mandatory. Hand cutting 20 blocks introduces fatigue error (Block 1 looks great; Block 20 looks sloppy).

Path C: The "Production Run" (50+ Items)

• Scenario: Commercial order. Speed and durability are key.
• Verdict: Combine Tech. Use My Connection for cutting + Magnetic Hooping.
• Why? The bottleneck shifts to the physical loading. Integrating magnetic embroidery hoops for brother allows for rapid-fire material changes without unscrewing frames, reducing the cycle time per unit by 30-40%.

The "Why It Works" (So You Don’t Break It Next Time): Tension, Setup, and Consumables

The system works because it relies on Absolute Positioning. However, three physical variables can destroy this digital perfection:

1. Hooping Tension: If you hoop your base fabric too loosely ("trampolining"), the fabric will shrink when the needle hits it. Your perfect cut piece will then look "too big" for the shrunken placement line.
2. Stabilizer Mismatch: Appliqué requires rigidity. Use Cutaway or heavy Tearaway (depending on base fabric). Flimsy stabilizer allows the outline to distort.
3. Hoop Physics: If you are struggling to keep thick quilt sandwiches taut, standard hoops fail. This is where the industry pivots to other clamping methods. For varied project sizes, having a versatile embroidery machine 6x10 hoop in a magnetic format ensures that the tension remains uniform across the entire field, preventing the distortion that ruins appliqué alignment.

Warning: Magnetic Hazard. Commercial-grade magnetic hoops use Neodymium magnets. They possess crushing force.
* Pacemakers: Keep 6 inches away.
* Pinch Points: Do not place fingers between the brackets.
* Electronics: Keep USB drives and phones away from the magnetic rim.

Operation Checklist (End-of-Operation)

• Tagging: Placement lines identified with Scissor Icon in Luminaire Edit screen.
• Transfer: Data sent to "Temporary Pocket" one file at a time.
• Retrieval: "Shield Icon" selected on ScanNCut (not Draw or Emboss).
• Geometry: NO resizing occurred.
• Verification: Background scan confirms cut path is 100% on fabric.
• Execution: Cut is clean; fabric lifted with spatula (not pulled).
• Placement: Fabric ironed inside the placement stitch before Tack-down runs.

The Upgrade Path (When You’re Ready): Cut Faster, Hoop Faster, Finish More Projects

Mastering "My Connection" solves the cutting accuracy problem. But as you scale—whether that means finishing a king-size quilt or fulfilling an Etsy order—you will find that Preparation Time becomes the enemy to profit and joy.

• Level 1 (Technique): Use the low-tack mat and heat-fused fabric to speed up cutting.
• Level 2 (Tooling): Implement magnetic hoops for brother to eliminate the "unscrew, hoop, tighten, scream, repeat" cycle. This protects your wrists and ensures the base fabric tension matches the precision of your cut pieces.
• Level 3 (Architecture): Create a dedicated workspace. A magnetic hooping station allows you to align garments and fabrics precisely using template grids before locking them with magnets. This separates the "Prep" from the "Production," allowing you to hoop a stack of shirts/blocks in advance while the machine is running, effectively doubling your output.

By combining digital precision (My Connection) with ergonomic efficiency (Magnetic Hooping), you move from "struggling hobbyist" to "master maker."

FAQ

• Q: Which Brother Luminaire or Stellaire embroidery machines support the Brother My Connection appliqué transfer to a Brother ScanNCut SDX?
  A: Brother My Connection appliqué transfer is available on Brother Luminaire XP series (XP1/XP3) and Brother Stellaire series (XJ1/XJ2/XE1/XE2) when paired with a WLAN-capable ScanNCut SDX model.
  • Confirm: Check the Luminaire/Stellaire screen for the My Connection icon and confirm the ScanNCut model is an SDX with WLAN (for example SDX225/SDX325/SDX330D).
  • Stabilize: If Wi-Fi is unstable or machines are far apart, switch to USB transfer instead of wireless.
  • Success check: The ScanNCut shows a “My Connection” source option and can retrieve the design.
  • If it still fails… Verify both devices are on the same 2.4GHz network (My Connection often fails on 5GHz) or use the USB workflow.
• Q: Why does Brother Luminaire My Connection not generate cut data unless the Brother .PES file is selected in Embroidery Memory?
  A: My Connection relies on Brother-specific data embedded in the .PES header, so selecting .PES (not .PHX or .DST) is the safe requirement for reliable cut-path transfer.
  • Select: Load the design from USB, tap SET, then go into EDIT (do not press Sew yet).
  • Confirm: Make sure the file you opened is the .PES version of the design.
  • Success check: The design opens in Edit mode and allows the appliqué “scissor” tagging step.
  • If it still fails… Re-export or re-save the design as .PES from the source and re-load from a FAT32 USB drive (<32GB recommended for stability).
• Q: How do you tag the correct appliqué placement line on a Brother Luminaire XP1 using the orange spool-and-scissors icon for ScanNCut cutting?
  A: Tag only the appliqué placement line color stop with the spool-and-scissors icon, because that stitch line becomes the cut path.
  • Enter: In Edit mode, open the color palette (spool icon) and set the thread chart to Brother Embroidery colors.
  • Identify: Find the placement line (usually the first appliqué step), then tap the orange spool with scissors for that exact stop.
  • Avoid: Do not tag the tack-down line or the final satin stitch (tagging satin can produce an oversized cut).
  • Success check: The chosen color block changes from a solid square to the spool/scissors symbol in the sequence.
  • If it still fails… Re-check that the thread chart is set to Brother (not Isacord/Madeira) and re-tag the correct stop.
• Q: Why does Brother My Connection only keep one design at a time, and how should Brother Luminaire users process multiple appliqué blocks with a ScanNCut SDX?
  A: My Connection uses a single-slot temporary buffer, so sending a second file overwrites the first—send and cut one design at a time.
  • Sequence: Send Design A → Retrieve/Cut A on ScanNCut → then send Design B → Retrieve/Cut B.
  • Control: Do not “batch-send” multiple designs expecting them to queue.
  • Success check: The ScanNCut retrieves the exact design you just transferred (not an earlier file).
  • If it still fails… Use USB transfer per file to prevent accidental overwrites and reduce Wi-Fi variables.
• Q: What is the correct Brother ScanNCut SDX setting after retrieving My Connection data to cut appliqué shapes, and why should Brother users never resize the cut file?
  A: Retrieve from My Connection, then choose the Shield (Appliqué/Cut Data) mode and do not resize, because the embroidery file is a fixed coordinate system.
  • Select: On ScanNCut, tap Pattern/Cloud → My Connection → Retrieve → then tap the Shield icon (not Draw/Emboss).
  • Verify: If multiple appliqué pieces exist, select the specific piece to cut.
  • Protect: Avoid the Resize function even “a little,” because it can create satin coverage gaps in the hoop.
  • Success check: The cut piece drops into the stitched placement line like a puzzle piece without trimming.
  • If it still fails… Confirm no resizing happened and re-check that the placement line (not tack-down/satin) was the line tagged on the Luminaire.
• Q: What mat, adhesive, and fabric prep prevents paper residue and lifting when cutting HeatnBond Lite appliqué pieces on a Brother ScanNCut SDX?
  A: Start with a Low Tack mat and a light mist of temporary spray adhesive, because overly aggressive mats and poor adhesion cause lifting, tearing, and residue transfer.
  • Use: Choose the Low Tack mat (not a Standard Tack mat) as the safe starting point for fabric backed with fusible paper.
  • Prep: Fuse HeatnBond Lite to the wrong side; avoid “Ultra Hold” if the piece will be sewn.
  • Apply: Mist KK2000 lightly from about 12 inches to the center of the mat and smooth fabric “pretty side up.”
  • Success check: The “bubble test” passes—your palm feels no air pockets and the fabric does not lift when lightly brushed.
  • If it still fails… Clean the mat gently with cool water and fingers (no metal scraping) and re-check mat grooves/fuzz before cutting.
• Q: What safety precautions matter most when using a Brother ScanNCut Auto Blade and when handling commercial-grade magnetic embroidery hoops?
  A: Treat the ScanNCut Auto Blade like a fast moving knife and treat magnetic hoops like pinch-force tools—keep fingers and sensitive devices clear.
  • Avoid: Keep fingers away from the mat loading path and remove pins/staples before cutting (hitting metal can shatter the blade tip).
  • Test: Run a small test cut first; adjust only if needed to avoid deep mat gouging.
  • Handle: Keep neodymium magnetic hoops away from pacemakers (about 6 inches) and avoid placing fingers between magnetic brackets.
  • Success check: Cutting completes without unusual noise or blade damage, and magnetic clamps close without finger pinch incidents.
  • If it still fails… Stop immediately, inspect for broken blade tips/debris, and follow the machine manual’s safety and maintenance guidance before restarting.
• Q: How do you decide between technique changes, magnetic embroidery hoops, and upgrading to a multi-needle embroidery machine when Brother My Connection appliqué cutting is accurate but production is still slow?
  A: Use a tiered fix: first remove setup friction, then reduce hooping labor with magnetic hoops, and only then consider a production machine if volume demands it.
  • Level 1 (Technique): Standardize the routine—Low Tack mat, HeatnBond Lite, background scan, and “send → cut → send” discipline.
  • Level 2 (Tooling): Switch to magnetic embroidery hoops if standard hoops cause wrist fatigue, slow clamping, or hoop burn on sensitive materials.
  • Level 3 (Capacity): Move to a multi-needle system when the real bottleneck is frequent thread changes and high unit counts (often noticeable in 50+ item runs).
  • Success check: The embroidery machine spends more time stitching and less time waiting for cutting/hooping prep.
  • If it still fails… Audit where time is being lost (transfer, cutting, hooping, or stitching) and upgrade only the step that is consistently limiting throughput.
