Stop Hand-Cutting Appliqué Circles: A ScanNCut SDX325 + Embrilliance Stitch Artist 2 Workflow That Actually Stays Organized

The 19-inch stem. It’s the number that stops most machine embroidery enthusiasts in their tracks.

When you are staring at a quilt block specification like Lori Holt’s Hollyhocks—where one stem measures 19 inches and the other 15 inches—your brain likely triggers a "Hooping Alert." Standard hoops don't go that long seamlessly. You imagine the nightmare of splitting the design, re-hooping three times, aligning split points, and praying the fabric doesn't shift.

But professional embroidery isn't about forcing every element into a hoop; it's about choosing the right tool for the physics of the fabric.

In this guide, we are deconstructing a hybrid workflow that solves the "Impossible Block." By combining domestic sewing for the long straight lines (stems) and automated cutting/digitizing for the complex shapes (blossoms), you eliminate the risk of alignment failure. We will break down Becky’s ScanNCut and Embrilliance workflow into a military-grade operation that guarantees precision, safety, and scalable efficiency.

The “Long-Stem Reality Check”: Why the Hollyhocks Block Breaks Normal Hoop Logic on a Brother Luminaire XP1

Technically, you could hoop a 15-inch stem in a Brother Luminaire 10" x 16" hoop. But just because you can, doesn't mean you should.

Hooping a large quilt block background introduces fabric tension distortion. The more you handle the fabric—pushing, pulling, and clamping—the more the grain line warps. For a 19-inch stem, you would be looking at multiple re-hoopings. The margin for error is zero; a 1-degree shift at the bottom becomes a half-inch gap at the top.

The Hybrid Strategy: Becky makes a decision based on risk management:

1. The Stems (High Risk in Hoop): She takes these to a domestic sewing machine. Using a small blanket stitch foot, she sews the long lines manually. This removes the size constraint entirely.
2. The Blossoms (High Complexity by Hand): Circles are notoriously difficult to cut and appliqué perfectly by hand. She outsources this to the ScanNCut for cutting and the embroidery machine for the appliqué stitch.

Why this matters for your shop: If you are running a small business, you must identify your "Bottleneck to Profit." Wrestling a hoop for 20 minutes to stitch a straight line is lost revenue. Automate the complex (circles), and manually handle the oversized (stems).

The Sticky-Note System That Saves Your Sanity: Labeling Fabric Scraps So Similar Circles Don’t Get Mixed Up

Visual confusion is the enemy of accuracy. In this project, circle sizes are incrementally different—often by less than a few millimeters. Under workshop lighting, a 2.5" circle looks identical to a 2.75" circle.

Becky’s "Sticky-Note Protocol" is a low-tech fail-safe. Before cutting, she pins a note to every fabric scrap.

The Protocol:

• Write: The specific shape numbers (e.g., "1-05", "2-04s") and the quantity required.
• Pin: Attach it directly to the fabric scrap.
• Mark: Write the number on the back of the fabric itself if the pile is large.


Sensory Check (The "Panic" Test): If you drop a stack of cut circles on the floor, can you identify them without a ruler? If the answer is no, your labeling system is insufficient. Number the back of the fabric with a chalk pen or water-soluble marker.

Prep Checklist (Do Attempt Without Completing)

• Visual Reference: Print the PDF guide or layout map. Tape it to eye-level on your wall.
• Fabric Labeling: Verify every fabric scrap has a sticky note with Shape ID and Count.
• Consumable Check: Ensure you have a fresh Standard Tack Mat (for the ScanNCut) and a sharp Rotary Auto Blade or Standard Blade.
• Workflow Split: Confirm "Stems = Sewing Machine" and "Blossoms = Embroidery Machine."
• Marking Tool: Locate a heat-erasable (Frixion) or water-soluble pen for the crosshairs.

CanvasWorkspace on a 12x24 Mat: Batch Your Circle Cuts Without Wasting Fabric (and Without Locking Yourself In)

Efficiency in embroidery is often determined by how well you batch your cutting. Using Brother CanvasWorkspace (the cloud-based platform), we move from "cutting one by one" to "mass production."

Step-by-Step Configuration:

1. Project Setup: Create a new project. Immediately change the input media size to 12 x 24 inches. Standard mats will be too short for efficient batching here.
2. Import & Duplicate: Pull in your circle vectors. Duplicate them to match the counts on your sticky notes.


The "Group & Measure" Technique: Becky demonstrates a critical spatial check. She groups the circles by fabric color and moves them to the corners of the digital mat.

• Action: Select the group.
• Read: Look at the dimension box (e.g., 4.28" x 4.88").
• Buffer Calculation: Add 1 inch to both straight dimensions. This is your cutting size for the physical fabric. Example: Cut the fabric to 5.5" x 6".

The "Ungroup" Safety Rule: Before you hit download/transfer, you must ungroup the shapes.

• Why? If you leave them grouped, the machine treats them as a single rigid object. You cannot nudge a single circle on the machine's screen if you notice a wrinkle in your fabric. Ungrouping gives you surgical control later.

The Heat n Bond Lite “Overhang” Trick: Press Fast, Cut Clean, and Keep Glue Off Your Iron

Applying adhesive backing (fusible web) is a sensory process. Too little heat, it peels; too much, it stiffens the fabric.

Becky introduces an "Overhang" technique to protect your equipment. She cuts the fabric slightly smaller than the adhesive sheet, or positions it so the fabric overhangs the adhesive by 1/8th of an inch.

• The Physics: When you press, the adhesive melts and spreads slightly. If the adhesive goes to the edge of the fabric, it bleeds onto your ironing board cover or, worse, your iron’s soleplate.
• The Fix: Ensure fabric covers 100% of the glue plus a margin.


Sensory Cues for the Perfect Fuse:

1. Touch: Do not press until the fabric becomes stiff or "glassy." You want a "tack fuse."
2. Time: Press for 2 to 3 seconds only. You should be able to peel the paper backing off with a slight "zipper" sound, not a tearing struggle.
3. Trim: After cooling, trim the stabilizer/adhesive flush to the fabric edge.


Warning: Physical Hazard
Scissors used on adhesive-backed fabric will gum up instantly. This increases resistance, causing hand fatigue and slip risks. Clean your scissor blades with rubbing alcohol every 10 cuts, or use non-stick coated scissors specifically for this task.

ScanNCut SDX325 Background Scan Alignment: The Two Settings That Fix 90% of “Why Is My Mat Grayed Out?” Problems

You have loaded your 12x24 mat. You look at the screen. The bottom half is grayed out. Panic sets in.

This is not a machine failure; it is a software safety default.

Troubleshooting Sequence:

1. The Issue: The machine defaults to a 12x12 cut area to prevent the carriage from hitting potential obstructions.
2. The Fix: Tap the Wrench Icon (Settings). Scroll to Cut Area. Change it from 12x12 to 12 x 24.

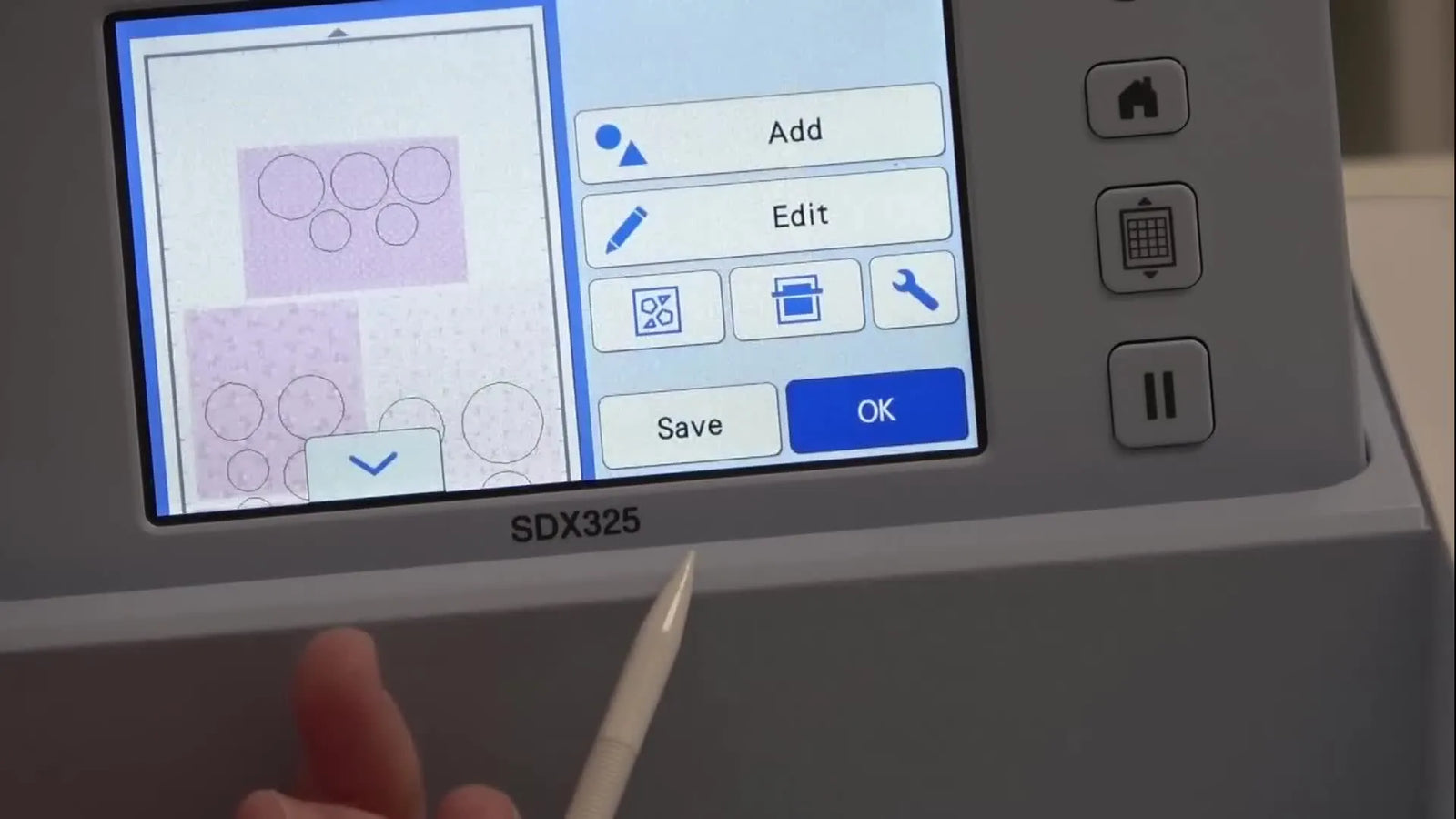

The Background Scan (The "X-Ray" Vision):

1. Load the mat with your fabric scraps placed roughly in corners.
2. Tap Background Scan.
3. Visualization Fix: If your dark fabric disappears against the dark scan background, go to Settings → Background → Change to Light.


Now, use the stylus to drag your virtual cut files directly over the image of the fabric scraps.

Expert Insight: This "Background Scan" feature is the single biggest advantage of the ScanNCut ecosystem. It tolerates human error. You don't need to place fabric perfectly straight; you just need to move the cut line to match the fabric tilt.

Setup Checklist (The "Pre-Flight" Confirmation)

• Software Sync: Confirm CanvasWorkspace project is set to 12 x 24 inches.
• Hardware Sync: Confirm ScanNCut Cut Area is physically toggled to 12 x 24 (Settings Menu).
• Blade Depth: If using an Auto-Blade, ensure the cap is tight. If manual, start at depth 3-4 for cotton + Heat n Bond Lite.
• Visual Contrast: Run the background scan and switch Background to Light if contrast is poor.
• Alignment: Use the stylus to ensure every vector line is at least 2mm inside the fabric edge.

The “No-Fiddle” Embrilliance Stitch Artist 2 Method: Convert FCM Vectors into Individual PES Appliqué Files

We are not digitizing from scratch. We are converting the cutting data into stitching data to ensure a 100% mathematical match.

The Workflow in Embrilliance Stitch Artist 2:

1. Import: Click Vector and load the .FCM file you used for cutting.
2. Trace: Use the Draw with Points tool to create a closed shape over the vector (or convert the vector directly if your version allows).
3. Convert: Select the shape → Click the Appliqué button in the toolbar.


Critical Parameter Settings: To get that "hand-stitched" look that won't fray, enter these specific values:

• Stitch Type: E-Stitch or Blanket Stitch.
• Stitch Width: 3.0 mm (This is the industry "Sweet Spot"—wide enough to catch the raw edge, narrow enough to look delicate).
• Stitch Length: 2.0 - 2.5 mm.


The "Single File" Strategy: Becky saves each circle as a separate file (e.g., HH-01.pes, HH-02.pes).

• Why? It allows you to place them one by one on the quilt block using the machine's laser or needle drop key, rather than trying to hoop a massive area and hoping the relative spacing is perfect.

The Crosshair Placement Habit: How to Make Blossoms Land Exactly Where You Want (Even When Sizes Are Close)

Precision in embroidery comes from geometry, not guessing.

The "Crosshair" Protocol:

1. Lay out your stems (sewn on the domestic machine).
2. Place your physical cut circles (with sticky notes!) onto the background.
3. Once satisfied, lift the edge of a circle and draw a Crosshair (+) on the background fabric at the exact center of the circle.
4. Hoop the background fabric.
5. On your embroidery machine, align the needle (or laser pointer) exactly to the center of your Crosshair.

When you execute this, you are effectively "zeroing" the machine to your fabric. It eliminates the need for perfect hooping alignment because you are aligning the design to the fabric, not the fabric to the hoop.

A Fabric-to-Stabilizer Decision Tree for Appliqué on Long Runners (So Your Placement Doesn’t Creep)

The hidden variable in this project is the Long Runner. A 19-inch runner behaves differently than a 4-inch square. It drags. It pulls. It distorts. Proper stabilization is your structural engineering.

Use this decision matrix to select your foundation:

Decision Tree: Fabric Type → Consumable Choice

1. Is your background standard Quilting Cotton?
   • Yes: Proceed to #2.
   • No (Knit/Stretch): STOP. You must use Fusible Mesh Cutaway. Tearaway will cause the appliqué to bubble.
2. Will you be re-hooping more than twice?
   • Yes: Use a Medium Weight Tearaway (sticky or iron-on preferred) to prevent "Hoop Slippage."
   • No: Standard Tearaway is acceptable.
3. Are you experiencing "Hoop Burn" (shiny ring marks) on the quilt block?
   • Analysis: Traditional hoops rely on friction and high pressure. On bulky quilt blocks, this crushes fibers.
   • Solution Level 1: Hover steam the marks after stitching.
   • Solution Level 2 (Tool Upgrade): Switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction rings, eliminating hoop burn completely and making re-hooping 5x faster.

Warning: Magnetic Field Safety
magnetic embroidery hoops for brother (and other brands) generate strong magnetic fields.
* Pinch Hazard: Fingers can be severely pinched between magnets. Handle with a full palm grip.
* Medical Devices: Maintain a 6-inch safe distance from pacemakers and insulin pumps.
* Electronics: Do not place SD cards or credit cards directly on the magnets.

Troubleshooting the Exact Problems Becky Shows (and the Fast Fixes That Keep You Moving)

When the machine stops or the cut fails, use this diagnostic logic flow (Low Cost → High Cost).

1) Bottom half of the 12x24 mat is dark/blocked

• Likely Cause: Software safety lock.
• The Fix: Settings (Wrench) → Cut Area → Toggle to 12 x 24.

2) Cut lines are invisible against the dark fabric scan

• Likely Cause: Low contrast visualization.
• The Fix: During the scan preview, go to Settings → Background → Toggle to Light.

3) Adhesive gunk on the iron soleplate

• Likely Cause: Fabric edge receded, exposing the glue sheet.
• The Fix: Use the "Overhang Method." Use an iron cleaning sheet while hot to remove existing glue.

4) Fabric looks "puckered" or loose in the hoop

• Likely Cause: Hoop tension failure due to thick seams (stems).
• The Fix: Do not over-tighten the screw (this strips it). Use magnetic hoops for embroidery machines. They automatically adjust to varying thicknesses (like hopping over a bulky stem) without losing tension.

The “Batch Like a Shop” Upgrade: Where Time Disappears (and How to Get It Back)

Becky’s workflow is excellent for a single quilt. But what if you are making 10 kits? Or launching a small Etsy line of appliquéd runners?

The "Becky Method" has a bottleneck: Re-hooping. Every time you unclamp, move, and reclamp that long runner, you lose 3-5 minutes and risk alignment error.

The Productivity Ladder:

1. Level 1 (Hobbyist): Optimize the software. Group your cutting files efficiently as shown above.
2. Level 2 (Pro-sumer): Upgrade the holding tool.
   • If you own a Brother Luminaire, searching for brother luminaire magnetic hoop or generally magnetic hoops for brother will lead you to tools that let you slide the fabric without unclamping the outer ring. This creates a "slide-and-shoot" workflow that cuts re-hooping time by 70%.
3. Level 3 (Business Production): Upgrade the platform.
   • Single-needle machines require frequent thread changes for multi-colored appliqué (Placement -> Tack-down -> Satin).
   • If you are doing 50+ blocks, a multi-needle machine (like the SEWTECH ecosystem) allows you to set all appliqué colors at once. It stitches continuously without you babysitting the spool changes.

Operation Checklist (The "Live Fire" Rules)

• Cut First: Batch cut all circles before turning on the embroidery machine.
• Organization: Transfer sticky notes immediately from the scrap fabric to the corresponding stack of cut circles.
• Zeroing: Use the Crosshair method + machine laser/needle drop to align every single blossom.
• Auditory Check: Listen to your embroidery machine. A rhythmic "thump-thump" is good. A sharp "slap" sound usually means the thread is caught or the hoop is hitting the arm. Pause immediately.
• Hooping: If using standard hoops, check for "Hoop Burn" after the first blossom. If present, relax the screw slightly or consider a magnetic embroidery hoop for the remainder of the project.

By respecting the physics of the fabric and automating the difficult cuts, you turn a weekend of frustration into an afternoon of precise creativity. The 19-inch stem is no longer a problem; it's just a straight stitch.

FAQ

• Q: Why does a Brother ScanNCut SDX325 gray out or block the bottom half of a 12x24 mat during cutting?
  A: Set the ScanNCut SDX325 Cut Area to 12 x 24; the machine often defaults to 12x12 as a safety lock.
  • Tap Settings (wrench icon) → find Cut Area → switch from 12x12 to 12 x 24.
  • Confirm the CanvasWorkspace project media size is also set to 12 x 24 before transferring.
  • Re-load the mat and run Background Scan again after changing the Cut Area.
  • Success check: The full 12x24 workspace becomes selectable and the cut boundary is no longer grayed out.
  • If it still fails: Re-check that a 12x24 mat is actually loaded and the project sent to the machine is not a 12x12 layout.
• Q: How do I make Brother ScanNCut SDX325 cut lines visible when scanning dark fabric in Background Scan?
  A: Change the ScanNCut SDX325 scan preview Background setting to Light to increase contrast.
  • Run Background Scan with the fabric on the mat.
  • Open Settings during the scan preview → Background → select Light.
  • Drag the on-screen cut files onto the fabric image using the stylus.
  • Success check: The fabric edges and the cut vectors are clearly visible enough to place lines at least 2 mm inside the fabric edge.
  • If it still fails: Reposition the fabric into clearer areas of the mat image and re-scan to improve the camera view.
• Q: How do I stop HeatnBond Lite fusible web glue from getting on the iron soleplate when fusing appliqué fabric?
  A: Use the HeatnBond Lite “overhang” method so fabric fully covers the adhesive and prevents glue squeeze-out.
  • Position the fabric so it overhangs the adhesive by about 1/8 inch (fabric covers the glue sheet edge).
  • Press for 2–3 seconds only to achieve a “tack fuse,” not a stiff/glassy fuse.
  • Let it cool, then peel the paper backing; trim the fused layer flush after cooling.
  • Success check: The paper backing peels with a light “zipper” feel and the iron soleplate stays clean (no sticky drag).
  • If it still fails: Clean the iron with an iron-cleaning sheet while hot, then re-fuse using shorter press time and better edge coverage.
• Q: What is a safe way to cut adhesive-backed appliqué fabric without scissors gumming up and causing hand slip hazards?
  A: Expect adhesive buildup and clean often; sticky blades increase resistance and can cause slips.
  • Wipe scissor blades with rubbing alcohol frequently (about every 10 cuts in this workflow).
  • Consider using non-stick coated scissors dedicated to adhesive-backed materials.
  • Pause when cutting starts to “grab” and clean immediately instead of forcing the cut.
  • Success check: Scissors glide smoothly without sudden sticking or extra hand force.
  • If it still fails: Switch tools (non-stick scissors) and reduce adhesive exposure by keeping fabric fully covering the fusible edge during pressing.
• Q: How do I prevent appliqué placement from creeping on a long quilt runner when using a Brother Luminaire XP1 embroidery hoop?
  A: Stabilize for the runner length and reduce re-hooping; long pieces drag and distort more than small blocks.
  • Choose stabilizer by fabric type: quilting cotton can use tearaway; knit/stretch generally needs fusible mesh cutaway (tearaway may bubble).
  • If re-hooping more than twice, use a medium weight tearaway (sticky or iron-on preferred) to reduce hoop slippage.
  • Mark a center crosshair (+) where each circle will land and align the needle/laser to the crosshair rather than “guessing by hoop position.”
  • Success check: Appliqué circles land centered on the crosshair and do not drift as the runner weight hangs off the machine.
  • If it still fails: Support the runner’s weight during stitching and consider upgrading the holding method (magnetic hoop) to reduce clamp distortion on bulky areas.
• Q: How do I stop hoop burn (shiny ring marks) on quilt blocks when using a Brother Luminaire XP1 standard embroidery hoop?
  A: Reduce pressure where possible and switch hoop style if marks persist; hoop burn is caused by friction and high clamping force.
  • Check after the first blossom and avoid over-tightening the hoop screw (over-tightening can strip hardware and still distort fabric).
  • Remove marks by hover steaming after stitching when the fabric allows it.
  • If hoop burn continues on bulky quilt layers, upgrade to a magnetic embroidery hoop style that uses vertical holding force instead of friction rings.
  • Success check: No shiny ring appears after stitching, or existing marks relax after hover steam without fabric distortion.
  • If it still fails: Reassess stabilizer choice (slippage can tempt over-tightening) and reduce re-hooping by using the crosshair placement method with single appliqué files.
• Q: What magnetic field safety rules should be followed when using magnetic embroidery hoops on Brother-style embroidery machines?
  A: Treat magnetic embroidery hoops as pinch-and-electronics hazards and handle them with deliberate spacing.
  • Keep fingers out of the closing path and use a full palm grip to prevent pinching.
  • Maintain at least 6 inches distance from pacemakers and insulin pumps.
  • Keep SD cards, credit cards, and sensitive electronics away from the magnets.
  • Success check: Magnets seat without finger pinches and no electronics/cards are stored on or against the hoop magnets.
  • If it still fails: Stop and change handling technique (set magnets down first, then bring the frame in) before continuing production work.
