Stop Losing Designs on Your USB: A Calm, Repeatable System for Downloading, Unzipping, and Organizing Embroidery Files

The Digital Workshop: A Master Class in Managing Embroidery Designs (Without Losing Your Mind)

Digital embroidery is a paradox. It is an art form built on threads and fabric, yet it lives or dies by zeros and ones. I have spent twenty years on the production floor, and I can tell you this: Disorganized files cause more downtime than broken needles.

If you have ever downloaded a stunning design, only to lose it in a "Downloads" folder abyss, or worse—transferred it to your machine only to find it won't stitch—you are not unskilled. You are simply missing the "Shop Floor" system.

This guide is not just about clicking buttons in Windows. It is about building a digital infrastructure that mirrors a professional studio. We will transform your computer from a junk drawer into a precision warehouse, ensuring that when you sit down to stitch, your focus remains entirely on the art.

The "Shop Inventory" Mindset: Why Files Get Lost

In my early years, I treated design files like casual emails—saved wherever, named whatever. The result? Hours of panic when a client requested a re-run of a logo I couldn't find.

Here is the cognitive shift you must make: Treat your digital library exactly like your physical thread rack.

• The Problem: Most beginners download files to a default "Downloads" folder. This is the equivalent of dumping all your thread cones, bobbins, and needles into a single laundry basket.
• The Fear: "If I move the file, the software won't find it."
• The Reality: Embroidery machines are simple creatures. They don't care where the file was; they only care where it is now.

A proper structure prevents the three most expensive errors in our industry:

1. Duplicate Buying: Purchasing a design you already own but can't find.
2. Version Corruption: Stiching "Flower_V1" instead of the corrected "Flower_V2."
3. The "Move" Disaster: Accidentally deleting the master file from your PC while trying to load a USB.


Tool Selection: Why We Use PeaZip (The "Safety Cutter" for Files)

Embroidery designs almost always arrive compressed in ZIP archives. To open them, we need a tool that is precise and safe. The video walkthrough utilizes PeaZip for Windows. Think of PeaZip as your box cutter—it slices open the delivery package so you can access the goods inside.

The Installation Ritual (Zero-Friction Guide)

Follow this exact sequence to ensure a clean install without "bloatware" (unwanted extra software):

1. Open Browser: Navigate to the official PeaZip website.
2. Download: Select the "Windows Installer."
3. Execute: Run the installer file.
4. The Critical Decision: When prompted, select Standard Installation.
5. File Association: Allow PeaZip to associate with .ZIP and .RAR files.
   • Sensory Check: You generally won't "feel" anything change, but your file icons might shift appearance slightly. This is good—it means the tool is ready.


Why Not Just Use Windows?

Windows can open ZIP files, but it treats them like folders. This often leads to "Ghost Files"—you think you've extracted the design, but you're actually just viewing a preview. When you try to load that "ghost" onto a machine, it fails. A dedicated archiver like PeaZip forces you to physically extract the file, ensuring it is solid and writable.

Warning: Digital Hygiene
Always download software from the direct publisher. "Download Portal" sites often bundle hidden adware that slows down your digitizing software. If an installer asks to install a "Search Bar" or "Weather App," uncheck that box immediately.

The Architecture of Efficiency: Building Your Digital Warehouse

An organized file system is the backbone of scalability. Whether you are a hobbyist or a budding business, you need a structure that grows with you.

In the demonstration, a hierarchy is built deeply: Regina (User) > Embroidery Designs > Kreative Kiwi (Designer) > Dresden (Project)

The "2-Zone" System (Expert Recommendation)

I recommend a slightly more rigid system to separate "Incoming" from "Storage."

1. The Loading Dock (Downloads Folder): This is for unprocessed ZIP files. It is messy, temporary, and disposable.
2. The Warehouse (Embroidery Library): This folder lives on your main drive or cloud storage. Nothing enters here until it is unzipped and renamed.

The Naming Convention: I strongly suggest renaming folders to: [Category] - [Designer] - [Project Name].

• Example: Christmas - Kreative Kiwi - Placemat
• Why? when you are looking for a holiday design five years from now, you will search for "Christmas," not "Kreative Kiwi."

Hidden Consumables for Your Digital Desk: Just as you keep spare needles, ensure you have:

• A dedicated External Hard Drive (for backups).
• A Cloud Storage account (Google Drive/Dropbox) for off-site safety.


The Intake Process: Downloading Without the Chaos

The exact moment you click "Download" is where organization begins. Do not let the browser choose the destination.

The "Save As" Discipline

1. Log into the vendor site (e.g., Kreative Kiwi).
2. Navigate to your purchase history.
3. The Pause: Before clicking download, open your File Explorer and create the specific folder for this project in your "Warehouse."
4. Click Download.
5. The Override: When the "Save As" window pops up, navigate to that new folder. Do not just hit "Enter."


Expert Note: The "Partial Download" Fake-out

• Visual Anchor: Chrome and Edge show a progress circle or bar.
• Wait: Do not try to open the file until the circle is complete and the icon stops flashing. Opening a file mid-download creates a corrupted header, which means your embroidery machine will see the file as "unreadable data."

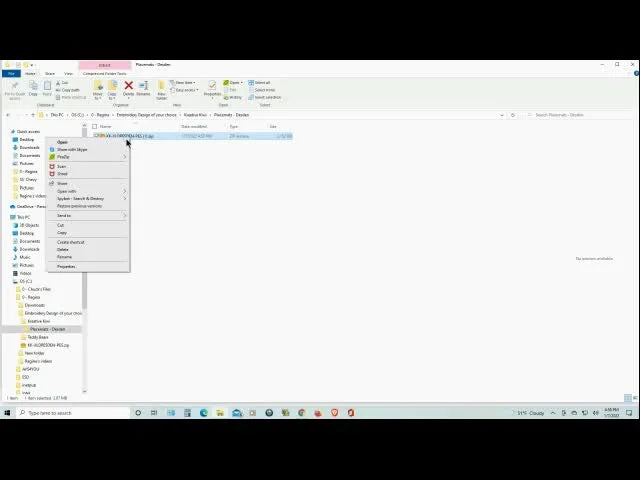

Extraction: The "Extract Here" Technique

Once the ZIP file is in its permanent home, we use PeaZip to unpack it.

1. Right-click the ZIP file.
2. Select PeaZip > Extract Here.


Why "Extract Here"?

Standard extraction often creates a folder inside a folder inside a folder (e.g., Project > Project_Files > Project_Files_v2). This "Russian Nesting Doll" effect drives us crazy when trying to browse on the embroidery machine's small screen. "Extract Here" dumps the contents right in front of you—visible, accessible, and ready.

The Blueprint: Analyzing the PDF Worksheet

This is the most skipped step, and it is the #1 cause of production failure. The PDF included with the design is not a suggestion; it is a manufacturing blueprint.

The Prep Checklist (The "Pre-Flight" Check)

Before you even touch a USB stick, open the PDF and verify these four data points against your physical inventory.

• Hoop Capability: The PDF says "5x7," but does the design fill the whole area?
  • Reality Check: If the design is 128mm wide and your hoop limit is 130mm, you have zero margin for error.
• Fabric Requirement: Check the "Finished Size."
  • Action: Cut your fabric at least 2 inches wider than the hoop on all sides for safe clamping.
• Stabilizer Match: Does the PDF specify a stabilizer?
  • Rule of Thumb: If not specified: Wovens get Tearaway; Knits/Stretchy fabrics get Cutaway.
• Needle Readiness: Are you using the right needle?
  • Inventory Check: Do you have a fresh 75/11 (standard) or a Ballpoint (for knits)?

The Transfer: The "Ctrl-Drag" Safety Maneuver

Moving files to a USB stick seems trivial, but it is high-risk. If you simply drag a file from your folder to the USB, Windows defaults to Moving it.

• The Result: The file exists on the USB but is deleted from your computer. If that USB breaks (and they all do eventually), your design is gone forever.

The Fix: The Copy Command

1. Insert your USB drive.
2. Select your design files (Hold Shift to select multiple).
3. The Action: Click and drag the files toward the USB drive icon.
4. The Modifier: Before releasing the mouse button, Hold the CTRL Key.
   • Visual Anchor: Look closely at the cursor. You will see a tiny Plus Sign (+) appear next to the arrow.
   • Text Check: The text will change from "Move to USB" to "Copy to USB."
5. Release the mouse button then release the Ctrl key.






This ensures the Master File stays in your library, and only a Clone goes to the machine.

Setup Checklist (The "load-And-Go" Protocol)

• Format Check: Did you copy the .PES, .DST, or .JEF file? (Do not copy the PDF to the machine; it can crash older processors).
• Capacity: Is the USB drive under 4GB? (Many older machines cannot read large, modern drives).
• Root Directory: Did you put the file inside a folder? Some machines prefer files loosely on the "root" (main layer) of the Drive.
• Safe Eject: Did you right-click and "Eject" the USB? Removing it "hot" can corrupt the file header instantly.

The Physical Reality: From File to Fabric

You have successfully organized, extracted, and transferred. The digital work is done. Now the bottlenecks shift to the physical world.

As you move from hobby sewing to production runs, you will notice that file management saves you minutes, but hooping costs you hours.

The Decision Tree: Sticking vs. Magnetics

When you open that PDF and see the required dimensions, you must make a tooling decision based on your fabric and volume.

Scenario A: The Hobby One-Off

• Project: Single towel or t-shirt.
• Tool: Standard plastic hoop included with machine.
• Risk: "Hoop Burn" (shiny rings left on fabric) or wrist strain from tightening screws.
• Mitigation: Use "Floating" technique with adhesive stabilizer.

Scenario B: The Production Run (5+ Items)

• Project: 20 Polos or thick jackets for a team.
• Pain Point: Re-adjusting the screw for every single shirt; thick seams popping out of the hoop.
• The Upgrade: This is where professionals switch to magnetic embroidery hoops.
  • Why? You eliminate the screw-tightening variable. The magnets clamp automatically for different thicknesses.
  • Efficiency: It turns a 2-minute struggle into a 10-second "Click."
  • Fit: If you use Brother, Janome, or similar, ensure you search for magnetic frames for embroidery machine compatible with your specific arm width.

Scenario C: Precision Placement

• Project: Left-chest logos that must be exactly 4 inches down.
• The Upgrade: Pairing your hoop with a machine embroidery hooping station. This allows you to pre-measure the garment so the file (which you organized so perfectly!) actually lands where it is supposed to.

Warning: Magnetic Force Safety
magnetic embroidery hoops use industrial-grade neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can slam together instantly, severely pinching fingers.
* Medical Device Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on top of your laptop hard drive or credit cards.

Troubleshooting: When the Machine Says "No"

Even with perfect files, things go wrong. Use this diagnostic table before you assume the machine is broken.

Operation Checklist: The Final Run

Follow this for every single design to ensure consistency.

• Computer: Download -> Extract Here -> Rename.
• PDF: Check dimensions -> Select Stabilizer.
• Transfer: Insert USB -> Select File -> Ctrl+Drag (Plus sign visible) -> Eject.
• Material: Cut Stabilizer -> Prep Fabric.
• Tooling: Select correct Hoop (Standard vs. Magnetic).
• Machine: Load USB -> Trace Design -> Stitch.

By mastering the invisible art of file management, you do more than just clean up your desktop. You buy yourself peace of mind. And in the world of embroidery, a calm mind leads to perfect tension, smooth satin stitches, and a finished product you are proud to sign your name to.

FAQ

• Q: Why does a Brother embroidery machine say the USB design file is unreadable after downloading a ZIP file in Chrome or Edge?
  A: This is commonly caused by opening the ZIP file before the download finishes—re-download and wait for the progress circle to fully complete before extracting.
  • Re-download the ZIP and do not click it until the browser shows the download as finished (no flashing icon).
  • Extract the ZIP with a dedicated tool (for example, PeaZip) instead of “browsing inside” the ZIP like a folder.
  • Copy the extracted embroidery file (such as .PES) to the USB, not the ZIP itself.
  • Success check: the extracted file opens normally on the computer and the Brother screen shows a clean preview instead of an error.
  • If it still fails: delete the broken download, download again, and try a different USB stick formatted to FAT32.
• Q: How do I stop Windows from creating “ghost files” when extracting embroidery ZIP files for a Janome embroidery machine?
  A: Do a real extraction (not a ZIP preview) by using “Extract Here” in a dedicated archiver so the design file becomes a normal, writable file.
  • Right-click the ZIP file and choose the archiver option to Extract Here.
  • Avoid dragging files directly out of the ZIP window, which can leave you with a non-solid file.
  • Keep the extracted design files in the final project folder before transferring to USB.
  • Success check: the file is no longer shown with a zipped-folder icon and can be copied/renamed like a normal file.
  • If it still fails: extract again into a brand-new folder and confirm the design file extension matches the Janome format you intend to load.
• Q: How do I copy embroidery files to a USB for a Brother embroidery machine without accidentally deleting the master file from the computer?
  A: Use the Windows Ctrl-drag copy method so Windows copies to USB instead of moving the only master file.
  • Insert the USB drive and open the folder that contains the design files.
  • Click-drag the files toward the USB drive, then hold CTRL before releasing the mouse.
  • Confirm the cursor shows a small plus sign (+) and the action text indicates “Copy.”
  • Success check: the design file remains in the computer folder after transfer and also appears on the USB.
  • If it still fails: use right-click Copy on the computer and right-click Paste on the USB.
• Q: Why can’t a Brother embroidery machine see .PES files on a USB drive even though the files are on the USB?
  A: The most common causes are USB size/format issues or placing files where the machine won’t browse—use a small FAT32 USB and try the root directory.
  • Confirm the file you copied is the embroidery file (for Brother, a .PES), not a PDF worksheet.
  • Try a smaller-capacity USB drive (older machines often struggle with large modern drives).
  • Reformat the USB to FAT32, then copy the file again.
  • Place the file in the root directory (not inside multiple folders) if the machine’s browser is limited.
  • Success check: the Brother file list shows the design by name and allows preview/selection.
  • If it still fails: safely eject the USB, retry with a different brand USB stick, and avoid copying any non-design files to that drive.
• Q: How do I fix “Hoop Size Exceeded” on a Brother embroidery machine when the design should fit a 5x7 hoop?
  A: Many machines need a small buffer—reduce the design slightly (about 2%) so it is not exactly at the hoop limit.
  • Open the design in embroidery software and resize down slightly (a small reduction is often enough).
  • Re-save the adjusted file and transfer the new version to USB.
  • Verify the PDF worksheet’s stated size versus your hoop’s actual stitch field—leave margin instead of running edge-to-edge.
  • Success check: the Brother screen no longer shows “Hoop Size Exceeded” and the design can be traced within hoop boundaries.
  • If it still fails: re-check that the correct hoop is selected on the machine and confirm the design is centered within the hoop in software.
• Q: How do I fix immediate thread nesting at the start of a design on a multi-needle embroidery machine when the bobbin looks fine?
  A: Don’t worry—this is common; rethread the top thread with the presser foot UP so the thread seats correctly in the tension discs.
  • Raise the presser foot fully before threading (this opens the tension discs).
  • Rethread the top path carefully, following every guide point.
  • Start again and watch the first few stitches slowly.
  • Success check: the stitch start lays flat with no “bird’s nest” under the hoop and the machine runs smoothly past the first color.
  • If it still fails: stop immediately, remove the nest, and repeat threading—most “bobbin” nests trace back to top threading/tension seating.
• Q: What magnetic hoop safety rules should operators follow when using industrial magnetic embroidery hoops in a production shop?
  A: Treat magnetic hoops as pinch-hazard tooling—keep fingers clear when closing and keep magnets away from pacemakers, insulin pumps, and sensitive electronics.
  • Close the magnetic frame slowly and keep fingertips away from the closing gap.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Do not place magnetic hoops directly on laptops, hard drives, or credit cards.
  • Success check: the hoop closes without a sudden slam and the fabric is clamped evenly without operator hand strain.
  • If it still fails: pause the job, reposition the fabric and stabilizer, and consider switching to a standard hoop for delicate materials where marks or handling risk is high.
