Stop Sewing Your Gym Bag Shut: A Clean “Eat Sleep Train Repeat” Stitch-Out with Wilcom + a 5.5" Magnetic Hoop

Drawstring Gym Bag Embroidery: A Production-Grade Masterclass

A drawstring gym bag looks like an “easy blank”—until you hoop it crooked, the fabric tunnels under the needle, or (the nightmare scenario) you stitch the front pocket shut to the back.

Because these bags are 3D objects made of slippery synthetic fibers, they don't behave like flat cotton t-shirts. They require a shift in mindset from "hobbyist decoration" to "engineered production."

Whether you are customizing a single bag for yourself or a run of 50 for a local martial arts dojo, the workflow determines the result. Below is a reconstructed, professional-grade guide based on the provided video workflow (using Wilcom digitizing, a HappyJapan multi-needle machine, and a magnetic hooping station). We have enhanced this with crucial safety checks and sensory cues to ensure your first bag looks as good as your fiftieth.

1. Digitizing Strategy: Building Text That Survives Distortion

The video begins in Wilcom’s Lettering Tool. Takes the phrase “Eat Sleep Train Repeat” and breaks it into separate lines. The creator uses Center Justification to align the text block at the absolute center (0,0) of the grid.

The "Zero-Point" Habit

Why does "zeroing out" the design matter? In a production environment, consistency is king. If your design is centered in the software, and your hoop is centered on the station, your embroidery lands in the same spot on every bag.

• Action: Select your text object.
• Check: Look at the X/Y coordinates. Both should read 0.00.
• Outcome: Eliminates the "why is my design slightly to the left?" panic later on.


Simplicity Wins

The design shown is text-only. On nylon or polyester gym bags, minimizing stitch density and cutting jump threads reduces the risk of the fabric puckering (wrinkling) around the letters.

2. The "Secret Sauce" Parameters: Underlay & Pull Compensation

Standard text settings often fail on gym bags because the fabric is unstable—it stretches and moves under the needle. The video modifies two critical Object Properties: Underlay and Pull Compensation.

Parameter 1: Edge Run Zigzag Underlay

Think of Underlay as the foundation of a house.

• The Setting: Change Underlay Type to Edge Run Zigzag.
• The Physics: An edge run traces the outline of the letter first, pinning the slippery fabric to the stabilizer. The zigzag then creates a "mesh" for the satin stitches to sit on top of. Without this, your satin stitches will sink into the fabric, looking thin and messy.

Parameter 2: Pull Compensation (0.25mm)

Embroidery shrinks. As the needle creates a column, tension pulls the fabric inward, making letters look skinny or leaving gaps between the outline and the fill.

• The Setting: Increase Pull Compensation to 0.25 mm.
• The Logic: This tells the software to "overstitch" the edges slightly. When the thread tightens, it shrinks back to the correct width.


Expert Note: If you are searching for embroidery pull compensation settings for text, know that 0.25mm - 0.35mm is the "Beginner Sweet Spot" for synthetic bags. If your bold fonts still look skinny, bump it to 0.30mm. If small text looks like a blob, reduce it to 0.15mm.

3. Pre-Flight Preparation: Don't Waste the Blank

Before you touch the machine, you must physically inspect the bag. Unlike a shirt, a bag has straps, pockets, and linings that can trap a needle.

Prep Checklist (The "Save Your Sanity" Protocol):

• The "Single Layer" Pinch: Pinch the embroidery area. Can you feel only the front fabric and the lining? If you feel a thick seam or a pocket divider, stop. You cannot stitch there effortlessly.
• Consumable Check:
  • Needle: A 75/11 sharp/ballpoint (depending on fabric weave). Is it straight?
  • Bobbin: Is there enough bobbin thread? Running out mid-letter on a bag is painful to fix.
• Sizing: The video sets the width to 2.5 inches. Measure your bag's available space between the drawstring channels. Leave at least a 1/2-inch safety margin on all sides.
• Stabilizer Prep: Cut your stabilizer sheet 1 inch larger than the hoop on all sides.

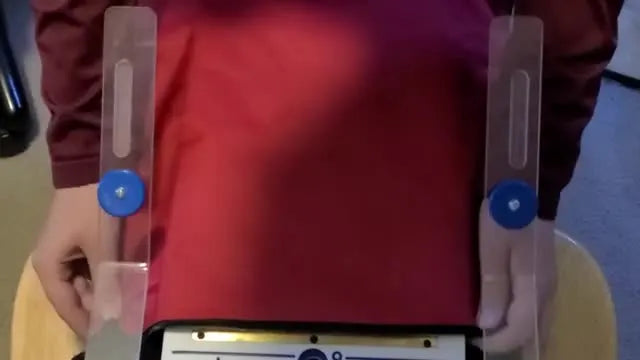

4. The Hardware Upgrade: Magnetic Hoops & Stations

The video demonstrates a workflow using a hooping station and a magnetic hoop. This is the professional standard for bags because traditional screw hoops (tubular hoops) are notoriously difficult to tighten on thick, uneven items without causing "hoop burn" (permanent ring marks).

Why use a Station?

A hooping station (like the generic fixture or branded ones similar to a hoop master embroidery hooping station) holds the bottom hoop ring and the stabilizer in a fixed position.

• Benefit: You don't need three hands. The station holds the bottom ring; you use two hands to smooth the bag; gravity does the rest.


Stabilizer Selection: Tearaway vs. Cutaway

The video chooses Black Tearaway Stabilizer.

• Why Tearaway? Aesthetics. It tears away cleanly from the back, leaving the inside of the bag looking neat.
• The Risk: Tearaway offers less support than Cutaway. Since this bag is relatively stable (not a stretchy t-shirt), Tearaway works.

5. The Critical Maneuver: Hooping Single-Layer

This is the moment where most beginners fail. You must hoop only the front panel of the bag.

The Process:

1. Load: Place the bottom magnetic ring into the station fixture.
2. Backing: Place the stabilizer over the bottom ring.
3. Dress: Slide the open bag over the station neck like a pillowcase.
4. Align: Adjust the bag so the target area is centered. Smooth it out with your hands.
5. Snap: Place the top magnetic ring over the fabric.


Warning: Magnetic Safety
Magnetic hoops snap together with significant force (often 10-30 lbs or more).
Pinch Hazard: Keep fingers firmly on the handles* or outside edges, never between the rings.
* Electronics: Keep the magnets away from pacemakers, credit cards, and machine screens.

If you are researching a magnetic hooping station, look for models that allow you to adjust the bag before the magnets fully engage. This prevents the "shifting" that often happens right as the magnets grab.

The Physics of the "Snap"

Unlike screw hoops that drag the fabric as you tighten them, magnetic embroidery hoops camp straight down. This vertical clamping force reduces fabric distortion and eliminates the friction marks known as hoop burn. For production runs, this tool minimizes operator fatigue and re-hooping attempts.

6. Mounting & Safety: Avoiding the "Sewn-Shut" Disaster

The video demonstrates mounting the hoop onto a HappyJapan HCH-701 multi-needle machine.

The "Arm-In" Rule

You must ensure the machine’s sewing arm (the lower beam) goes INSIDE the bag.

• Visual Check: The bag should drape around the arm, hanging freely below. The only thing between the needle plate and the needle should be the single layer of fabric and stabilizer.

Warning: Mechanical Safety
Do NOT press start yet. Before any movement:
* Check that the drawstrings are not dangling near the needle bar.
* Verify the bag is not bunched up behind the hoop where the pantograph moves. A trapped bag can stall the motors or snap a needle bar, causing expensive damage.

If you own a happy japan machine, utilizing its open-arm architecture is key here. Standard flatbed machines cannot easily do this job without taking the bag apart.

7. The Trace: Your Cheap Insurance Policy

Before stitching, the video user hits the Trace button. The machine moves the hoop around the design's perimeter without stitching.

Why Trace?

1. Clearance: Ensures the needle won't hit the plastic frame of the hoop (which shatters needles firmly).
2. Centering: Visually confirms the text is centered visually on the bag.
3. Slack Check: As the hoop moves, watch the bag. Is it pulling tight? Is a strap getting caught?

Setup Checklist (The "Green Light" Protocol):

• Hoop is locked firmly into the machine arms (listen for the "click").
• Sewing arm is inside the bag.
• Excess bag material is folded back or clipped out of the way (use hair clips or magnetic clips if needed).
• Trace completed with at least 5mm clearance from the hoop edge.
• Pattern orientation is correct (text is not upside down).

8. The Stitch Out: Sensory Monitoring

The machine starts stitching the blue text. In the video, the speed sounds consistent.

What to Listen and Look For

When stitching on bags, you are the quality control sensor.

• Sound: You want a rhythmic, consistent "thump-thump-thump." A sharp "tick-tick" or a grinding noise usually means the needle is dull or hitting a hidden seam.
• Sight: Watch the letters form. Are the columns nice and fat (thanks to that 0.25mm pull comp)? Or are they narrowing?
• Tension: The fabric should look tight like a drum skin inside the hoop. If you see waves or rippling (flagging) as the needle goes up and down, your hooping is too loose.




Operation Checklist (During the Run):

• Start: Watch the first 100 stitches closely. This is when "birdnesting" (thread tangles under the plate) usually happens.
• Mid-run: Don't walk away. Bags can shift.
• End: Wait for the machine to stop completely before reaching in.

9. Finishing & Quality Control

The video concludes by removing the bag and tearing away the stabilizer.

The "Clean Inside" Standard

Because gym bags are used to carry clothes, the inside must be smooth.

• Action: Tear the stabilizer gently. Support the stitches with your thumb to prevent distorting the letters while tearing.
• The Result: No scratchy paper, no messy fuzz. Just the back of the white bobbin thread.

Decision Tree: Choosing Your Stabilizer

Not all bags are the same. Use this logic flow to choose the right backing.

Decision Tree (Fabric Type -> Stabilizer):

1. Is the bag fabric stiff canvas or thick nylon?
   • Yes -> Use Tearaway (Clean finish).
   • No -> Go to Step 2.
2. Is the bag thin polyester or lightweight nylon (like a windbreaker)?
   • Yes -> Use Cutaway (Maximum stability to prevent puckering).
   • No -> Go to Step 3.
3. Is the fabric textured or does it have a mesh overly?
   • Yes -> Use Cutaway underneath AND a Water Soluble Topping (Solvy) on top to keep stitches from sinking.

Troubleshooting: What If It Goes Wrong?

Even pros have bad days. Here is how to fix common bag issues.

10. Commercial Reality: When to Upgrade Your Tools

If you are stitching one bag, patience and a standard hoop work fine. However, if you encounter the following "Pain Points," it is time to upgrade your toolkit:

1. Pain Point: Your wrists hurt from tightening screws, or you are getting frequent "hoop burn" marks on sensitive nylon.
   • The Upgrade: Magnetic Embroidery Hoops (specifically sizes like the mighty hoop 5.5 or compatible equivalents). They eliminate the physical strain and the friction marks.
2. Pain Point: You have an order for 20 team bags and you can't get the logo in the same spot twice.
   • The Upgrade: A Hopping Station / Fixture (like a hoopmaster station kit). This turns "guessing" into "mechanical precision."
3. Pain Point: You are spending more time changing thread colors on a single-needle machine than actually sewing.
   • The Upgrade: A Multi-Needle Machine (like the magnetic hoops for happy embroidery machine setup shown). Combine this with magnetic frames, and you move from "hobbyist" to "production shop."

By following this strict workflow—digitizing with compensation, hooping on a station, and verifying with a trace—you transform a $5 blank bag into a $25 custom product with confidence.

FAQ

• Q: In Wilcom Lettering Tool, how do I center drawstring gym bag text consistently using the X/Y 0.00 “zero-point” method?
  A: Set the lettering object so the design’s X and Y coordinates read 0.00 before exporting, then center the bag on the hooping station.
  • Action: Select the full text block and confirm Center Justification is applied.
  • Action: Check the object position values and set X = 0.00 and Y = 0.00.
  • Action: Hoop the bag with the target area centered on the station before snapping the frame.
  • Success check: Repeated bags land in the same visual spot without “slightly left/right” drift.
  • If it still fails: Re-check physical alignment on the hooping station and run a machine Trace before stitching.
• Q: In Wilcom satin text for nylon/polyester drawstring gym bags, what underlay and pull compensation settings prevent skinny letters and gaps?
  A: Use Edge Run Zigzag underlay and start pull compensation at 0.25 mm for text on synthetic bags.
  • Action: Change Underlay Type to Edge Run Zigzag in Object Properties.
  • Action: Set Pull Compensation to 0.25 mm (often a safe starting point for synthetic bags).
  • Action: If bold fonts still look skinny, increase gradually (the blog notes 0.30 mm as a common next step); if small text blobs, reduce (the blog notes 0.15 mm).
  • Success check: Satin columns look “nice and fat,” and edges do not show gaps after stitching tightens.
  • If it still fails: Switch stabilizer choice (Cutaway for thinner/slipperier bags) and verify hooping is drum-tight.
• Q: How do I hoop a drawstring gym bag with a magnetic embroidery hoop without accidentally stitching the front pocket or back layer shut?
  A: Hoop single-layer only—trap just the front panel (and stabilizer) inside the magnetic frame, not the full bag.
  • Action: Do the “single layer pinch” test at the embroidery zone and stop if you feel a pocket divider or thick seam.
  • Action: Slide the open bag over the station neck like a pillowcase so only the front panel lies on the stabilizer.
  • Action: Smooth and center the target area before letting the top magnetic ring snap down.
  • Success check: You can freely separate the inside layers below the hoop, and the bag body hangs open with no layer caught.
  • If it still fails: Un-hoop and repeat slower—magnetic frames can grab and shift fabric if alignment isn’t finished before engagement.
• Q: What are the safety rules for using magnetic embroidery hoops on drawstring gym bags to avoid finger pinches and magnet hazards?
  A: Treat magnetic hoops like a pinch tool—keep fingers on handles/outer edges and keep magnets away from sensitive items.
  • Action: Hold the hoop by the handles or outside edges only; never place fingers between the rings during the snap.
  • Action: Let the magnets engage vertically—do not “slide” the rings together.
  • Action: Keep magnets away from pacemakers, credit cards, and machine screens/electronics.
  • Success check: The hoop closes cleanly without finger contact in the gap and without shifting the bag at the last moment.
  • If it still fails: Use a hooping station/fixture that allows alignment before full magnetic engagement.
• Q: On a HappyJapan HCH-701 multi-needle embroidery machine, how do I mount a hooped drawstring gym bag safely using the “arm-in” rule?
  A: Ensure the machine sewing arm is inside the bag so only one fabric layer is under the needle—then secure loose drawstrings and excess material.
  • Action: Drape the bag around the sewing arm so the bag hangs freely below the arm.
  • Action: Confirm drawstrings are not dangling near the needle bar area.
  • Action: Fold, clip, or secure excess bag material so it cannot bunch behind the hoop during pantograph movement.
  • Success check: The bag moves during Trace without tugging, catching, or tightening around the arm.
  • If it still fails: Stop and remount—trapped material can stall motion or snap needles; run Trace again before stitching.
• Q: On a HappyJapan multi-needle machine, how does the Trace function prevent needle breakage on drawstring gym bag embroidery with magnetic frames?
  A: Always run Trace before stitching to confirm clearance from the hoop and to catch straps or slack that will snag during motion.
  • Action: Press Trace to run the design perimeter without stitching.
  • Action: Watch for at least 5 mm clearance from the hoop edge and confirm the text is centered on the bag.
  • Action: Observe the bag while tracing to ensure no strap, drawstring, or excess fabric is being pulled tight.
  • Success check: The traced path clears the frame and the bag stays relaxed with no sudden pulls.
  • If it still fails: Reposition the hoop/design placement and re-trace; do not start sewing until clearance is confirmed.
• Q: How do I fix hoop burn, puckering, and off-center placement when embroidering drawstring gym bags, and when should I upgrade to magnetic hoops or a multi-needle setup?
  A: Use a levelled approach: optimize technique first, then upgrade hooping tools, then upgrade production hardware if volume demands it.
  • Action (Level 1): For puckering, improve stability (Cutaway for thin/slippery bags) and adjust pull compensation (the blog suggests moving from 0.25 mm up to 0.30 mm if needed).
  • Action (Level 2): For hoop burn and placement repeatability, switch from screw hoops to magnetic hoops and use a hooping station/fixture.
  • Action (Level 3): For frequent runs and reduced downtime on color changes, move from single-needle workflows to a multi-needle machine setup.
  • Success check: Ring marks stop appearing, wrinkles around text reduce, and repeated bags place the logo/text consistently after Trace.
  • If it still fails: Re-check single-layer hooping and run Trace for clearance; needle strikes often indicate a hidden seam/pocket or incorrect mounting.
