Stop Skinny, Broken Script: Make Embrilliance Fonts Bolder with the Comp Setting (and Know When Hats Need a Different Font)

The "Sink or Swim" Guide to Embroidery Fonts: Mastering Compensation, Fabric Physics, and the Art of the Save

If you’ve ever watched a beautiful, delicate script font turn into a skinny, broken mess on a structured cap, you’re not alone—and more importantly, you’re not “bad at embroidery.” You are simply running into a collision between font geometry, fabric physics, and pull compensation.

Embroidery is not printing. It is an attempt to force a three-dimensional thread onto a flexible, moving substrate. When you stitch on a curve (like a hat) or a soft pile (like fleece), that thread wants to disappear.

In this industry-level guide, we are going to deconstruct Jeanette’s workflow in Embrilliance to teach you the one setting that saves thin fonts: Compensation (or "Comp"). But we go further—we will cover the sensory checks, the safety margins, and the hardware upgrades that turn a "hobbyist struggle" into a "production success."

The "Comp" Reality Check: Why Letters Fail on Fabric

Jeanette’s lesson revolves around one critical knob inside Embrilliance: Comp (Compensation).

To understand Comp, you must understand Pull. When a needle penetrates fabric thousands of times, the tension of the thread pulls the fabric inward. This causes column stitches (the satin stitches that make up letters) to become narrower than they look on screen.

Comp is the counter-attack. It tells the software to digitally thicken the column before it stitches, so that after the thread pulls tight, the letter ends up the correct width.

Here is the emotional reality: when a cap job fails, most beginners blame the machine. But usually, the machine is perfectly executing a flawed file on an unforgiving surface.

On structured baseball hats, the "buckram" (the stiff mesh inside the front panel) fights the needle. If your script font is too thin, the needle perforations simply cut the fabric, or the thread sinks into the texture. Jeanette shows two caps that failed and admits the hard truth: sometimes software isn't enough—you need to change the font.

The Hat Failure Autopsy: Anatomy of a "Sinking" Script

Jeanette displays two white caps with failed attempts. The core issue wasn't tension; it was physics.

• The Scenario: A thin script font on a structured baseball cap.
• The Result: The thread looks like it "fell into" the hat. The loops look disjointed.
• The Physics: Caps are curved and often thick. A narrow satin column (under 1.5mm) doesn't have enough "bridge" to sit fast on top of the fabric.

She mentions pushing "Comp" to 3 on the hat, yet it still failed. This effectively demonstrates that while Comp is a powerful tool, it cannot perform miracles on a font that is structurally too fragile for the medium.

Warning: Physical Safety First
If you are tempted to "pick out" a failed design on a structured cap to save the blank, stop. Seam rippers and stitch erasers slip easily on curved, hard surfaces like cap fronts. One slip requires significant force and can result in a deep puncture wound to your non-dominant hand holding the cap. Always cut away from your body. If the blank cost less than $5, consider it a sacrificial lesson and throw it away.

The Hidden Prep: What Pros Do Before Touching the Software

Before you even open Embrilliance, you must perform a "Pre-Flight Check." 90% of lettering issues are actually stabilization and hooping issues in disguise.

1. The Stabilizer Foundation

If you are stitching on a knit shirt, are you using tear-away? If so, stop. Knits require Cutaway stabilizer to support the stitches over time. If you use tear-away, the letters will distort as the shirt stretches.

2. The Hooping Variable

Jeanette’s video focuses on software, but in a real shop, the file and the hoop are married. If your fabric is "flagging" (bouncing up and down) because it's loose in the hoop, your letters will look jagged regardless of your Comp setting.

This is where hardware solves skill gaps. On difficult-to-hoop items like thick jackets or bags, traditional plastic hoops struggle to maintain even tension without leaving "hoop burn" (crushed fabric marks). This is why many shops upgrade to magnetic embroidery hoops. The magnetic force clamps thick materials instantly without the need to force an inner ring into an outer ring, reducing hand strain and fabric damage.

Prep Checklist (The "Do Not Skippables")

• Check the Substrate: Is it flat (shirt) or curved/structured (hat)?
• Check the Font Architecture: Does the font have thin, spindly lines? If yes, you must add Comp.
• Hoop Integrity: When you tap the hooped fabric, does it sound like a dull thud (too loose) or a crisp drum tap (correct)?
• Tool Check: If you are struggling to get straight placement on shirts, do not guess. A hooping station for embroidery allows you to pre-measure and replicate the exact placement on 50 shirts in a row.


Step-by-Step: Increasing Thickness in Embrilliance

Jeanette starts with a simple text object. Follow this exact workflow to replicate the "thickening" effect.

Step 1: Create the Object

• Click the “A” icon (Create Letters) in the top toolbar.
• Sensory Check: You should see a default block text ("ABC") appear in the center of the hoop.


Step 2: Customizing the Text

• In the properties panel, change the text to your name (Jeanette uses "Jeanette").
• Select a Script Font. This is crucial because script fonts usually suffer the most from "pull" issues.
• size it to approximately 1 inch.
• Why 1 Inch? At this small size, the satin columns are very narrow. This is the "danger zone" where Comp is most needed.

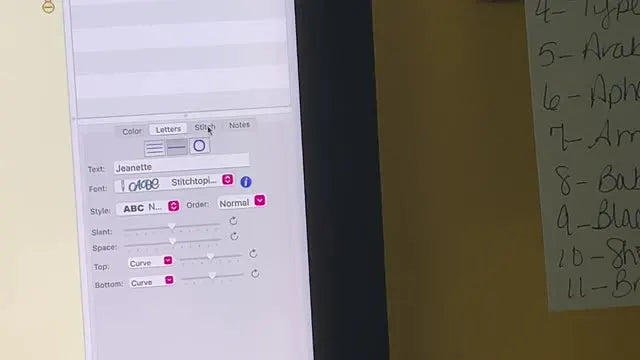

The "Stitch" Tab: The Control Center

This is the most common mistake beginners make: looking for thickness settings in the "Letters" tab. You must go deeper.

Action:

1. Highlight your text.
2. Look at the Properties Inspector (usually on the right).
3. Click the third tab labeled Stitch (it often looks like a needle icon or a stitch path).




The Adjustment: Moving the Comp Slider

Jeanette moves the Comp slider from 0 pt upwards.

• Visual Anchor: Watch the blue wireframe preview on your screen. As you slide closer to 1, 2, or 3, you will see the letters physically bloat.
• The Physics: You are telling the machine: "Stitch slightly outside the lines you see."

Jeanette pushes the example to Comp: 9 pt to demonstrate the extreme. In reality, you will rarely go this high, as it will cause the letters to touch and bunch up.

The "Negative Comp" Trap: When and Why?

Jeanette demonstrates sliding backward to negative numbers (e.g., -4 pt). The letters become skeletal.

Why does this exist? Sometimes, on very plush fabrics (like faux fur) using very thick fonts, the letters can look too bulky. Negative comp helps trim them down.

The Trap: For beginners, negative comp often results in "sawtooth" edges. If you remove too much stitch data, there is no structure left to hold the thread tension. The result is a messy, jagged line.

• Rule of Thumb: Unless you have a specific reason to thin a font, stay positive.




The "Comp 2" Sweet Spot: A Production Standard

Jeanette mentions she usually sets her font to Comp 2 for shirts. This isn’t just her random preference; it’s industry logic.

Why "Comp 2"?

• Most fonts are digitized with 0.1mm - 0.2mm of Pull Compensation built-in.
• Most shirts are knits. Knits require 0.2mm - 0.4mm of total compensation to look sharp.
• Setting Comp to 1-2 points (0.1mm - 0.2mm) reliably fills in the gaps without making the letters look distorted.


The "Pivot" Decision: Hats vs. Shirts

Jeanette’s most valuable lesson isn't the slider—it’s the decision she makes after the slider fails.

She switched to a Block/Collegiate font for the hat.

Decision Tree: The Hardware-Software Connection

Use this quick decision tree to avoid "fixing" the wrong thing.

1. Is your script font readable on a Hat at Comp 0-2?
   • Yes: Proceed.
   • No: Increase to Comp 3-4.
   • Still No: STOP. Switch to a thicker, simpler font. Do not force fragile scripts onto structured caps.
2. Is the item hard to clamp or shifting?
   • Yes: Your "problem" may be hoop grip, not Comp. Consider whether embroidery hoops magnetic would reduce slippage and speed up hooping on awkward items.
   • No: Comp adjustments are more likely to behave predictably.
3. Is the design "sinking" into the fabric?
   • Yes: Check your Needle Type. Sharp needles (standard) cut knit fibers. Ballpoint needles push them aside. Use Ballpoint for knits.


Troubleshooting: The Sensory Fix Checklist

Below are the two problems Jeanette demonstrates, rewritten into shop-floor troubleshooting format.

Symptom 1: Script on Cap Looks "Choppy" or Illegible

• Likely Cause: Font strokes too thin; structured cap interference.
• The Check: Run your finger over the embroidery. Does it feel rough and sunken?
• The Fix: Switch to a bold Block font.

Symptom 2: Jagged Edges in Preview

• Likely Cause: Negative Comp removing critical density.
• The Check: Zoom in to 400%. Do the satin columns look like "steps"?
• The Fix: Reset Comp to 0 or +1.

Upgrading the Workflow: From Frustration to Production (commercial integration)

This tutorial highlighted a specific pain point: the struggle to get clean embroidery on difficult items (hats).

If you are fighting clamp pressure, hoop burn, or slow rehooping on garments, consider upgrading your magnetic hoop for brother (or your specific machine brand). These allow you to hoop without unscrewing/tightening rings, reducing repetitive strain and increasing speed.

Warning: Magnetic Hazards
hoop master embroidery hooping station magnets and high-power brother se1900 hat hoop alternatives are incredibly strong. Keep them away from pacemakers/implanted medical devices. Keep fingers clear when magnets snap together—they can pinch skin severely. Store away from credit cards and phones.

If you are consistently struggling with hats on a flatbed machine, acknowledge the limitation. Many professionals eventually graduate to a multi-needle machine (like the SEWTECH ranges) which allows for true 270-degree cap embroidery without fighting the fabric flat.

Operation Checklist: Your "One-Test-Stitch" Routine

Run this checklist every time you try a new font.

1. Confirm Item Type: Shirt (Flat/Knit) or Cap (Structured/Woven).
2. Verify Comp Tab: Ensure you are in Stitch Tab, not Letters.
3. Apply Baseline Comp: Start at Comp 2 for standard knits.
4. Cap Safety Check: Treat thin script as high-risk. Test on a scrap first.
5. Negative Comp Avoidance: Unless for a specific effect, avoid negative numbers.
6. Save as Version: (e.g., “Jeanette_script_Comp2”) so you can repeat success.

Hidden Consumables: Don't start without these:

• Puffer Foam (specifically for 3D Puff needs on caps).
• Water Soluble Topping (essential for towels/fleece to stop sinking).
• New Needles (change every 8 hours of stitching).

FAQ

• Q: In Embrilliance, where is the Comp (Pull Compensation) setting for embroidery fonts, and why is it not in the Letters tab?
  A: Adjust font thickness by selecting the text object and using the Stitch tab—Comp is controlled there, not in Letters.
  • Click the A (Create Letters) tool, type the text, then select/highlight the text object.
  • Open the Properties Inspector and click the Stitch tab (needle/stitch icon).
  • Slide Comp upward and watch the on-screen wireframe preview thicken.
  • Success check: the preview columns visibly “bloat” as Comp increases (you can see the letter strokes widen before stitching).
  • If it still fails: stop chasing menus—confirm the object is selected, then re-check you are on the Stitch tab (not Letters).
• Q: What is a safe starting point for Embrilliance Comp when stitching small script lettering on knit shirts (about 1 inch tall)?
  A: A safe starting point for knit shirts is often Comp 2, then test-stitch and adjust.
  • Start with the text sized around 1 inch, because this is a common “thin-column danger zone.”
  • Set Comp to 2 in the Stitch tab before changing other variables.
  • Stabilize knits with cutaway, not tear-away, so the lettering holds shape over time.
  • Success check: letters look filled-in (not skinny) and edges look clean rather than broken or gappy.
  • If it still fails: treat it as a fabric/hooping issue next—recheck stabilization and whether the fabric is bouncing (flagging) in the hoop.
• Q: Why can a thin script embroidery font still look “sunk in” and broken on a structured baseball cap even after increasing Embrilliance Comp to 3?
  A: On structured caps, some thin scripts are physically too fragile for the surface—Comp helps, but it cannot make an underbuilt font behave like a bold one.
  • Increase Comp modestly first, but don’t force extreme values to “save” a fragile script.
  • Switch to a thicker Block/Collegiate-style font when the cap material fights the needle and the satin columns are too narrow.
  • Treat very thin satin columns as high-risk on caps and do a test stitch on a scrap when possible.
  • Success check: the stitched letters sit on top of the cap surface and remain readable, not disjointed or “fallen into” the fabric texture.
  • If it still fails: stop adjusting software—change the font architecture (thicker strokes) because the limitation is structural, not just settings.
• Q: What does negative Comp do in Embrilliance, and why does negative Comp often cause jagged “sawtooth” edges on lettering?
  A: Negative Comp thins the stitch columns, and beginners often over-thin the structure, which can create jagged edges.
  • Use negative Comp only when there is a clear need to reduce bulk (for example, overly puffy-looking lettering).
  • Avoid large negative values while learning; return to 0 or +1 if the preview starts looking skeletal.
  • Zoom in closely before stitching to judge edge quality.
  • Success check: at high zoom (e.g., very close preview), satin columns look smooth and supported rather than stepped and broken.
  • If it still fails: reset Comp to a small positive value and address “sinking” with appropriate toppings/stabilization instead of removing stitch structure.
• Q: How can embroidery hooping quality be checked before stitching to prevent jagged lettering and fabric flagging, and what is the “drum tap” test?
  A: Use a quick hoop integrity check before touching settings—loose hooping can ruin lettering even with perfect Comp.
  • Tap the hooped fabric and listen/feel for the difference between a dull thud (too loose) and a crisp drum tap (correct).
  • Inspect for fabric movement: if the material bounces up/down during stitching, tighten the hooping method or improve clamping.
  • For hard-to-hoop thick items, consider using magnetic hoops to clamp evenly without forcing rings and to reduce hoop burn risk.
  • Success check: the hooped fabric feels stable and “drum-tight,” not springy or shifting under light finger pressure.
  • If it still fails: treat placement and repeatability as the next bottleneck—use a hooping station for consistent alignment on batches.
• Q: What are the safety risks of removing failed embroidery from a structured cap with a seam ripper or stitch eraser, and what is the safest alternative?
  A: Picking stitches on a structured cap is a common injury trap—curved, hard cap fronts make tools slip, so the safest option is often to discard the blank if it’s low-cost.
  • Stop before unpicking if the cap is structured and you must apply significant force to reach stitches.
  • Cut away from your body and keep the non-dominant hand out of the tool’s path.
  • Treat a cheap blank as a “sacrificial lesson” rather than risking a puncture wound.
  • Success check: your hands never need to brace the cap in a way that puts fingers in front of the blade/ripper path.
  • If it still fails: don’t escalate force—switch to a new blank and fix the root cause (font choice, Comp limits, stabilization, and hooping).
• Q: What are the safety rules for using high-power magnetic embroidery hoops and magnetic hooping stations around pacemakers and pinch hazards?
  A: High-power magnetic hoops can pinch skin and can be hazardous around implanted medical devices—handle them like industrial magnets, not normal hoops.
  • Keep magnetic hoops and hooping stations away from pacemakers/implanted devices.
  • Keep fingers clear when magnets snap together; separate and close magnets slowly and deliberately.
  • Store magnets away from credit cards and phones to reduce damage risk.
  • Success check: magnets can be opened/closed without sudden snapping and without fingers entering the clamping zone.
  • If it still fails: stop using the magnetic setup until the workspace is reorganized for safe handling and storage.
