Stop Stipple From Sewing Over Your Text: The Brother Luminaire/Stellaire “Stamp” Trick That Makes Quilting Fills Behave

You’re not imagining it: the moment you add initials (or any second element) to a design, Brother’s "easy" stipple feature can suddenly suffer from selective amnesia. It acts like that new object doesn’t exist—and it will happily stitch right over your beautiful lettering.

If you’ve ever felt that spike of panic—hearing the rhythmic thump-thump-thump of the needle burying your text under a layer of background quilting—you are in good company. But here is the truth: This isn’t a broken machine; it’s a logic gap. The machine doesn’t "see" the text as a barrier unless you force it to.

Once you understand how to register a "Keep-Out Zone" using the Stamp feature on the Brother Luminaire, Stellaire, or XV, you regain control. You stop wasting expensive stabilizer and start producing results that look like they came from a high-end quilting studio.

Calm the Chaos: Why Brother Luminaire Stipple Quilting Can Ignore Added Text (and How to Stay in Control)

On the Brother embroidery edit screen, the automatic stipple feature is seductive. It’s fast. But it has a fatal flaw regarding layers. In the video, the presenter demonstrates the classic heartbreak: A Minnie Mouse design looks perfect. They add text ("CC") next to it. It looks fine on screen. But when they hit "preview," the background stitches run straight over the initials like a bulldozer.

The Experience of Failure: Why does this happen? The machine’s automatic stipple algorithm calculates the boundary based on the primary selection. It does not automatically treat every newly added object (like your text) as a "solid wall." If the boundary logic is wrong, no amount of hoping will stop the needle. You must explicitly register a combined outline—essentially telling the computer, "These two separate items are now one single island; do not swim here."

One more variable that trips up even seasoned pros: Hoop Reversion. After certain operations, the machine often defaults back to its largest hoop setting. You might be looking at a preview that is technically "valid" but completely wrong for the 5x7 hoop you actually have physically attached.

The Fast Luminaire Method: Using the Stipple Icon (Distance + Spacing) Without Overthinking It

If you are working with a single, simple design (no added text, just one file), you don't need complex workarounds. The on-screen stipple is your best friend.

Here is the "Beginner Sweet Spot" workflow from the video:

1. Load: Set your design on the embroidery screen.
2. Edit: Enter the Edit menu.
3. Activate: Tap the stipple icon (the flower surrounded by dots).
4. Calibrate:
   • Distance: The "Safety Gap" between your embroidery and the quilting.
   • Spacing: How "loose" or "tight" the quilting looks.

Empirical Data for Success: In the video, the machine suggests a Distance of 0.084" and Spacing of 0.200".

• My Expert Recommendation: For beginners, keep your Distance between 0.080" and 0.120". Anything tighter than 0.080" dares the machine to clip your design if there is even minor fabric shifting.
• Spacing: A value of 0.200" to 0.300" creates a soft, pliable quilt feel. Anything under 0.100" creates a stiff, bulletproof patch—avoid that unless you are making coasters.


The “Why Is It Sewing Over My Initials?” Moment: Reproducing the Overlap Limit on Brother Stellaire/Luminaire/XV

The presenter intentionally triggers the failure to insulate you from making it yourself.

• They add text ("CC").
• They reposition it (Coordinate check: Y axis -1.89").
• They re-apply automatic stipple.
• The Result: The preview shows stippling stitches obliterating the "CC."

This is the exact scenario that leads to "Hoop Burn" and ruined garments. You realize the mistake, you have to rip out hundreds of stitches, and often the fabric is perforated beyond repair.

If you are doing hooping for embroidery machine work for quilt blocks, precision is everything. This specific software glitch compounds the physical difficulty of hooping. If your fabric isn't perfectly square (a common issue with standard hoops that require excessive wrist force), and your software is also misaligned, you are setting yourself up for a double failure.

The Real Fix: Using the Brother Stamp/Badge (Shield) Icon to Create One “Keep-Out” Boundary

This is the "Secret Handshake" of the Brother interface. Most people ignore the Shield/Badge icon, but it is the only way to merge multiple objects into one protective forcefield.

The Protocol:

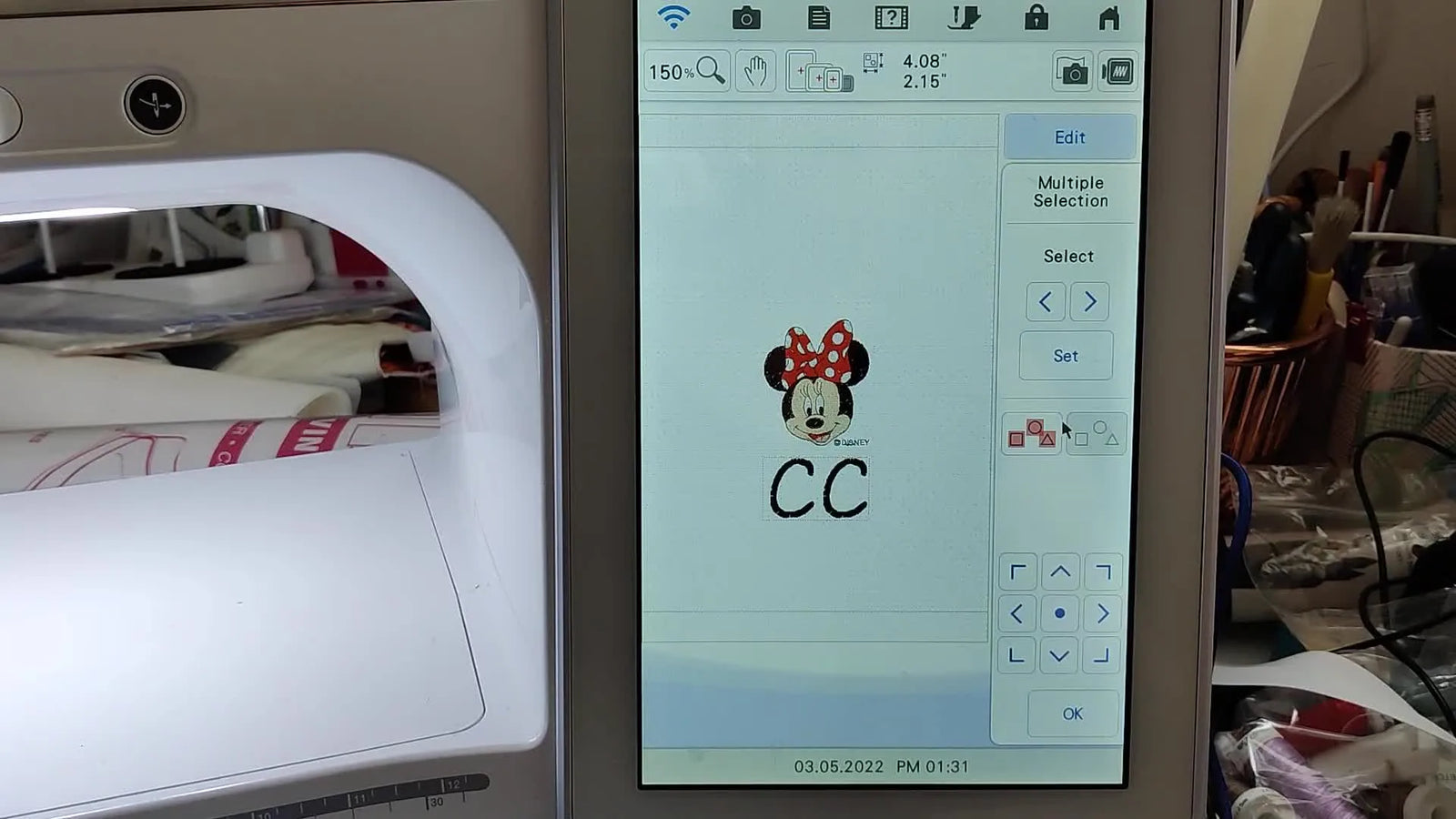

1. Select All: Highlight every element you want protected (The Minnie Design + The "CC" Text).
2. Engage Shield: Tap the icon that looks like a Stamp/Badge (often next to the Appliqué key).
3. Visual Confirmation: Watch the screen intensely. The selected items must turn grayed out or pinked out.
   • Sensory Check: If they don't change color/opacity, the machine hasn't registered them. Do not proceed until you see this visual shift.

Expected Outcome: You have now created a unified "No-Sew Zone." To the machine, "Minnie" and "CC" are no longer two things; they are one island that the water (stippling) must flow around.

Practical Checkpoint: Immediately after stamping, check your hoop size again. The machine loves to revert to the giant 9x14 or 10x16 settings here. Reset it to your actual working hoop.

The “Hidden” Prep Pros Do Before Quilting Fills: Hoop Choice, Stabilizer Logic, and a Quick Reality Check

The video teaches button-pushing, but as an embroidery veteran, I must teach you physics. Quilting fills introduce massive sheer force to your fabric.

The Physics of Failure:

• Needle Penetration: A fill background adds thousands of extra needle drops. Every drop pushes the fabric slightly.
• The "Push-Pull" Effect: Without absolute stabilization, your square block will turn into a rhombus, and your "Keep-out zone" will drift, causing the needle to strike your design anyway.

This is where your tool choice defines your success. Repeatedly hooping thick quilt sandwiches or delicate blocks in standard hoops is physically exhausting and prone to slippage.

• Scenario: If you are struggling to close the hoop screw or seeing "burn marks" (shiny rings) on your fabric.
• Tool Upgrade: A hooping station for embroidery machine ensures your block is square every time. Furthermore, upgrading to a magnetic frame can eliminate the "wrestling match." Magnetic frames hold thick quilt sandwiches firmly without the friction burn of traditional inner rings.

Hidden Consumables you need:

• Fresh Needle: Use a Topstitch 90/14 for quilting layers.
• Temporary Spray Adhesive (e.g., Odif 505): Essential for keeping the batting from sliding.

Prep Checklist (The "Pre-Flight" Inspection)

• Workflow Confirmation: Are you using the Stamp Method (My Design Center), not just "Edit"?
• Hoop Physical Check: Is the fabric drum-tight? Flick it—it should sound like a dull thud, not loose paper.
• Hoop Digital Check: Does the screen match the physical hoop size?
• Needle Check: Is the needle fresh? (A burred needle will shred thread during dense fills).
• Bobbin Check: Do you have a full bobbin? (Running out of bobbin thread mid-fill leaves an ugly seam).


Save It the Right Way: Why the Stamp Must Go to Brother Machine Memory (Not USB)

Here lies a digital trap. You cannot save a Stamp Outline to a USB drive and expect My Design Center to find it easily.

In the video, the presenter presses Memory and selects the Machine Icon (Internal Memory).

• Why? The specific communication channel between "Embroidery Edit" and "My Design Center" looks at the machine's local cache.

The "Where is it?" Panic: If you save to USB, you will open My Design Center and find nothing. Save to the machine.

• Pro Tip: If you are doing this for a recurring client, rename the file immediately so it doesn't get lost in the "stamped_001" abyss.


Pull the Stamp Into My Design Center (IQ Designer): The Exact Buttons That Matter

Now we enter the "Digitizing Brain" of the machine.

The Sequence:

1. Open: Go to My Design Center (IQ Designer).
2. Hoop First: Set your hoop size inside MDC immediately (Presenter uses 8x8).
3. Shapes Menu: Tap the square/circle icon.
4. Recall: Choose the specific Stamp Recall icon (it looks like the shield you pressed earlier).
5. Select: Tap the file you just saved to memory.

Expected Outcome: You should see the red line outline of Minnie + "CC" on the grid.

Crucial Warning: If you are shopping for brother stellaire hoops or swapping between sizes, realize that MDC does not automatically know what is on your arm. If you have a 5x7 hoop attached but MDC is set to 9.5x14, you will design a pattern that creates a "Hoop Strike"—where the needle smashes into the plastic frame. Always match the screen to reality manually.

Flood-Fill Like a Pro: Region Property + Paint Bucket to Quilt Around the Design (Not Through It)

With your outline (the island) on screen, it's time to pour the water (the stitches).

The Steps:

1. Region Property: Tap the box with the zig-zag texture.
2. Select Fill: Choose Stipple or Fancy Fill.
3. Tool: Select the Paint Bucket.
4. Action: Tap the empty space outside your red outline.

Sensory & Physics Check: The background should fill with pattern, but the inside of your Minnie/"CC" shape remains empty.

• Expert Note: If your fabric is stretchy (knits/jersey), decorative fills will pull it inward. The fabric will contract. If you are experimenting with magnetic embroidery hoops, their strong, even clamping pressure helps counteract this contraction better than unevenly tightened standard hoops.




Make It Look Finished (Not Homemade): Turning the Outline Stitch On and Adjusting Thickness in My Design Center

A raw fill edge can look fuzzy or unfinished. The presenter highlights a pro finishing touch: adding a run-stitch border to the fill.

• In MDC, toggle the Outline Stitch: ON.
• Thickness: You can adjust the density/thickness of the line here.

Effect: This creates a crisp "frame" around your keep-out zone, making the embroidery look like it was professionally appliquéd rather than just avoided. Consumers notice this clean edge, even if they can't articulate why it looks better.

Warning: Mechanical Safety.
Quilting fills involve rapid, multi-directional movement. Keep your fingers at least 4 inches away from the needle bar at all times. Do not try to "guide" the fabric with your hands while stippling; if the hoop moves unexpectedly, your finger could be pulled under the needle.

Final Assembly That Prevents Puckering: Convert to Embroidery, Then Add the Original Design Back on Top

You are not done yet. You have a background, but you need the foreground.

The Assembly Line:

1. Convert: Press Next to turn the MDC shape into stitches.
2. Combine: On the Embroidery Screen, press Add.
3. Recall: Grab the original Minnie + "CC" file from memory.
4. Overlay: The machine will place the design exactly over the "hole" you created in the stipple.

Why Stitch Order Matters: The video shows the background stitching first. This is non-negotiable.

1. Background (Stipple): Flattens the batting and stabilizes the sandwich.
2. Foreground (Design): Stitches on top of the now-stable surface.

Reverse this, and your design will distort as the background pushes fabric against it.

Setup Checklist (Right Before Pressing Start)

• Hoop Size Match: Screen matches Frame.
• Boundary Check: Zoom in 200%. Does the stipple cross the red line? (It shouldn't).
• Stitch Order: Fill first -> Design second.
• Thread Path: Is the thread caught on the spool pin? (Common cause of tension snaps).




Decision Tree: Choosing Stabilizer + Hooping Strategy for Quilting Fills (So the Pretty Screen Matches Real Fabric)

The video skips materials, but sticking a dense fill on a flimsy shirt is a recipe for disaster. Use this logic tree.

Start: What is your base material?

A) Stable Woven Cotton (Quilt Blocks)

• Layer: Fabric + Batting + Backing.
• Hoop: Standard hoop is okay, but a Magnetic Frame is faster for batches.
• Stabilizer: If batting is thick, you might skip stabilizer. If thin, use Medium Tear-away.

B) Stretchy Knit / Performance Wear

• Layer: Fabric only.
• Hoop: Must use Cut-away Stabilizer (No-Show Mesh).
• Crucial: Do not stretch the fabric when hooping. It must lie neutral.
• Recommendation: Use a heavier outline to cover the raw edge of the fill.

C) Delicate / Slippery (Silk, Satin)

• Risk: "Hoop Burn" (shiny crush marks).
• Solution: Use a brother magnetic frame. The flat magnets hold without crushing the fibers into a groove.
• Stabilizer: Use fusible PolyMesh to prevent the fill from puckering the satin.

Warning: Magnet Safety.
Magnetic hoops are incredibly powerful. Keep them away from pacemakers, ICDs, and magnetic storage media. Watch your fingers—these magnets can pinch severely if they snap together unexpectedly.

Troubleshooting the Two Most Common “I’m Stuck” Problems

If things go wrong, do not change ten variables at once. Follow this path.

The Upgrade Path That Actually Makes Sense: When Better Hoops Beat More Screen Tapping

If you are doing this once a month for a hobby project, the workflow above is all you need.

However, if you are a small business owner making custom quilt blocks, patches, or jackets, your bottleneck is not the software—it is the physics of hooping.

When to Upgrade:

• The Trigger: You dread the "stipple" step because hooping thick layers hurts your wrists.
• The Criteria: Are you doing runs of 10+ items? Are you seeing Hoop Burn rejection rates over 5%?
• The Solution:
  1. Level 1 (Comfort): Get magnetic hoops for brother luminaire. They reduce hooping time by 50% and eliminate "burn" marks.
  2. Level 2 (Versatility): A specific brother 5x7 magnetic hoop is the gold standard for repetitive quilt block work.
  3. Level 3 (Scale): If you are running fills all day, a single-needle machine will slow you down. A multi-needle machine (like SEWTECH models) combined with industrial magnetic frames turns "custom quilting" into a profitable production line.

Operation Checklist (While stitching):

• The Sound Check: Listen for a smooth hum. A loud CLACK-CLACK means the needle is dull or hitting a knot in the batting.
• The "Drifting" Check: Watch the border for the first 2 minutes. If the fill gets dangerously close to the text, STOP. Your fabric has shifted.
• The Thread Path: Ensure the thread cone is feeding smoothly without jerking.

By mastering the "Stamp" feature, you stop fighting the machine's logic. By upgrading your hooping strategy, you stop fighting the fabric's physics. Do both, and you win.

FAQ

• Q: Why does Brother Luminaire/Stellaire/XV automatic stipple quilting stitch over added text or initials in Preview?
  A: Brother’s automatic stipple boundary is calculated from the primary selection, so added text may not be treated as a “keep-out” barrier unless the objects are merged via the Stamp/Badge (Shield) method.
  • Select: Highlight the main design and the added text together (select all protected elements).
  • Stamp: Tap the Stamp/Badge (Shield) icon so the machine registers one combined boundary.
  • Re-check: Confirm the hoop setting did not revert to a larger hoop after stamping.
  • Success check: The preview shows stipple flowing around the lettering with a clear gap (no stitches crossing the protected area).
  • If it still fails: Repeat the Stamp step and do not proceed until the selected items visually change (gray/pinked out).
• Q: How do I use the Brother Luminaire/Stellaire/XV Stamp/Badge (Shield) icon to create a single “keep-out zone” before stippling?
  A: Use the Stamp/Badge (Shield) icon to force Brother Luminaire/Stellaire/XV to treat multiple objects as one protected island.
  • Select: Highlight every element that must be protected (design + text).
  • Engage: Tap the Stamp/Badge (Shield) icon (often near the Appliqué key).
  • Verify: Wait for the visual confirmation (items turn grayed out or pinked out).
  • Success check: The selection visibly changes opacity/color, indicating the machine actually registered the stamp boundary.
  • If it still fails: Re-select all elements and try again—if there is no color/opacity change, the boundary was not created.
• Q: What Brother Luminaire on-screen stipple “Distance” and “Spacing” settings are a safe starting point for beginners?
  A: A safe beginner starting point on Brother Luminaire is Distance 0.080"–0.120" and Spacing 0.200"–0.300" for a soft quilted feel.
  • Set: Use Distance as the safety gap between embroidery and quilting; avoid going tighter than 0.080" if fabric may shift.
  • Choose: Use Spacing 0.200"–0.300" for pliable quilting; very tight spacing can make the area stiff.
  • Test: Preview before stitching to confirm the quilting does not crowd the design edge.
  • Success check: The stipple looks evenly spaced and stays off the embroidery edge with a visible safety margin.
  • If it still fails: Increase Distance slightly and re-check hooping stability (fabric shift can defeat tight margins).
• Q: Why does Brother My Design Center (IQ Designer) show “File Not Found” after saving a Stamp, and where should the Stamp be saved?
  A: Save the Stamp to Brother machine internal memory (not USB), because My Design Center relies on the machine’s local memory/cache for Stamp recall.
  • Save: Press Memory and choose the Machine icon (internal memory).
  • Recall: Open My Design Center, set hoop size first, then use the Stamp Recall icon to load the saved outline.
  • Rename: Rename the file right away to avoid losing it among similar default names.
  • Success check: The Stamp outline appears as a red line shape on the My Design Center grid.
  • If it still fails: Confirm the file was saved to internal memory (not USB) and try recalling again after setting hoop size.
• Q: How do I prevent Brother Luminaire/Stellaire/XV hoop strike when importing a Stamp into My Design Center (IQ Designer)?
  A: Set the hoop size inside My Design Center before importing/recalling the Stamp, and manually match it to the physical hoop attached to the machine.
  • Set: Enter My Design Center and select the correct hoop size immediately.
  • Recall: Import the Stamp outline only after hoop size is correct.
  • Confirm: Double-check the embroidery screen hoop setting again after stamping/recalling (hoop reversion can happen).
  • Success check: The design layout stays within the hoop boundary and the needle path preview never approaches the frame edge.
  • If it still fails: Stop and re-select the correct hoop size on-screen—do not stitch until screen and physical hoop match.
• Q: What is the Brother quilting-fill “pre-flight checklist” to reduce puckering, thread issues, and wasted stabilizer?
  A: Use a quick pre-flight routine: confirm Stamp workflow, hoop tightness, hoop size match, fresh needle, and a full bobbin before starting dense quilting fills.
  • Confirm: Use the Stamp method (not only basic Edit stipple) when text/extra elements are added.
  • Check: Flick the hooped fabric—aim for a dull “thud” (drum-tight), not a loose paper sound.
  • Verify: Match the on-screen hoop size to the physical hoop attached.
  • Replace: Install a fresh needle (Topstitch 90/14 is used in the workflow for quilting layers).
  • Success check: The first minutes stitch smoothly with no drifting toward the protected outline and no sudden thread shredding.
  • If it still fails: Pause and re-hoop tighter, add temporary spray adhesive for layer control, and re-thread top and bobbin before continuing.
• Q: What safety rules should be followed when Brother Luminaire/Stellaire/XV is stitching stipple quilting fills, and what magnetic hoop safety matters?
  A: Keep hands at least 4 inches from the needle bar during rapid quilting motion, and treat magnetic hoops as pinch- and medical-device hazards.
  • Keep clear: Do not “guide” fabric with fingers while stippling; the hoop can move fast in multiple directions.
  • Stop first: If you need to adjust anything, pause/stop the machine before reaching near the needle area.
  • Separate safely: Handle magnetic hoop parts slowly to prevent sudden snap-together pinches.
  • Success check: Hands remain outside the movement zone and hoop motion stays unobstructed throughout the fill.
  • If it still fails: For magnetic hoops, keep magnets away from pacemakers/ICDs and magnetic storage media, and reposition using controlled placement rather than letting magnets jump into place.
• Q: When Brother Luminaire/Stellaire/XV quilting fills keep causing hoop burn, wrist strain, or shifting, what is the practical upgrade path from technique to magnetic hoops to multi-needle production?
  A: Start by fixing workflow and hoop settings, then upgrade to magnetic hoops for faster, more consistent clamping, and consider a multi-needle machine when volume makes single-needle fills a bottleneck.
  • Level 1 (Technique): Use the Stamp/Badge boundary, verify hoop size match, and stitch order as background fill first then foreground design.
  • Level 2 (Tooling): Switch to magnetic hoops if standard hooping causes hoop burn, slippage, or painful screw-tightening—magnetic clamping is often more even and faster for batches.
  • Level 3 (Capacity): Move to a multi-needle setup when running frequent large batches of fills/designs where changeovers and stitch time limit throughput.
  • Success check: Rejection rate drops (less hoop burn/puckering), hooping time decreases, and the fill stays safely outside the protected outline without drifting.
  • If it still fails: Re-evaluate stabilization (spray adhesive + correct stabilizer choice) and re-check early stitching for drift—stop immediately if the border starts creeping toward lettering.
