Stop the Banging on Brother Luminaire & Solaris: The 5-Minute Tape Bridge That Saves Your Magnetic Hoop (and Your Nerves)

That sudden bang from your embroidery unit can make your stomach drop—especially when you are standing in front of a premium machine like a Brother Luminaire or Brother Solaris. You paid the price of a small car for this technology, so when you are quilting with a heavy magnetic hoop and the noise is loud enough to make you jump, you’re not being dramatic. You are being protective.

The good news: in most cases, you didn’t “break the machine.” The bad news: repeated catching is abusive to the embroidery unit’s stepper motors (the "muscles" that move the arm), and it creates immediate registration errors throughout your design.

This is a “White Paper” grade guide to a known mechanical issue: the quilt’s weight pushes the hoop down just enough that the hoop’s underside catches on the plastic seam where the embroidery unit connects to the machine bed. The solution is simple—a strategic "tape bridge"—but the application requires precision.

The Heart-Stopper Noise on Brother Luminaire & Brother Solaris: Find the Exact Catch Point Before You “Fix” Anything

When this problem shows up, it feels sporadic. You might stitch five blocks perfectly, and then—CRACK—the machine stalls or shifts.

Here is the cognitive disconnect: The hoop slides normally when empty. It only fails under load. You must diagnose this with your hands, not just your eyes. We call this "Tactile Diagnostics."

If you’re working with a heavy-duty setup like a brother luminaire magnetic hoop, perform this “Stress Test” before you blame the digitizing file:

1. Attach the Hoop: Lock it into the carriage.
2. The "Dry Run" Slide: Gently slide the hoop back and forth over the bed area near the connection seam. It should glide silently.
3. The "Loaded" Slide: Now, apply moderate downward pressure on the front of the hoop frame with your hand (mimicking the drag of a heavy quilt sandwich).
4. The Sensory Check: Slide it again toward the machine body while pressing down.
   • Listen: Do you hear a plastic-on-plastic click?
   • Feel: Do you feel a "speed bump" or a sudden resistance in your wrist?

What you’re looking for is a very specific obstacle: the plastic seam/gap where the embroidery unit meets the machine bed extension. In the video, even a fingernail catches on that raised lip—so it’s no surprise a loaded hoop can snag.

Warning: Pinch Point Hazard! Keep fingers, tools, and loose sleeves away from the hoop path while testing. If you accidentally hit the "Move Carriage" button or if the machine resets, the arm moves with high torque and can pinch fingers or knock tools into the needle bar area.

The “Weight Shift” Reality: Why Heavy Quilts Make Magnetic Hoops Drag (Even When Everything Looks Supported)

This issue isn’t about software settings—it’s about Newtonian Physics.

Even if you support the bulk of your quilt on a table, the fabric inside the hoop creates a "diving board" effect. The weight of the magnets plus the fabric creates a fulcrum. That tiny downward shift changes the hoop’s angle by mere millimeters—but that is enough for the underside ribbing of the hoop frame to dive below the machine's bed seam.

A few practical notes from 20 years of production troubleshooting:

• Mass Matters: magnetic hoops for brother luminaire are fantastic for quilting because they hold thick layers without "hoop burn," but they are significantly heavier than the plastic hoops that came with your machine.
• Clearance is Binary: The machine has a tolerance gap. You are either clearing the gap (silent) or hitting it (noise). There is no middle ground.
• The "Bang" Consequence: That noise is the hoop hitting the wall, the motor forcing it over, and the belt possibly slipping a tooth. This is why your edge-to-edge designs suddenly look like they were cut in half and shifted.

Read the Scars: Inspect the Underside of Your Magnetic Hoop for Scratches and Gouges

Before applying the fix, we need forensic evidence. Flip your hoop over and inspect the bottom frame.

You are looking for “Trauma Marks”—white scratches, gouges, or smoothed-down plastic on the ribbing.

This inspection serves two critical purposes:

1. Confirmation: If the scuffs align with the machine's seam, you have 100% verified the root cause.
2. Asset Protection: A damaged hoop acts like sandpaper. If you continue to use a gauged hoop, it will scratch your machine bed even after you fix the seam issue.

If you are using third-party gear like a dime hoop, the physics are identical. Check the underside for fresh scuffs. If you see them, you must perform the tape fix below to protect both your $15,000+ machine and your $200+ hoop.

The “Tape Bridge” Fix on the Embroidery Unit Seam: How to Apply Clear Packing Tape So the Hoop Glides Quietly

We are going to engineer a "ramp" over the gap. This is a temporary but highly effective solution.

The Goal: Create a smooth surface that allows the hoop to "ski" over the seam rather than crashing into it.

Hidden Consumables You Need

• Heavy Duty Clear Packing Tape: Do not use cheap, thin tape that tears. Use 3M or Scotch shipping grade.
• Alcohol Prep Pad: (Crucial Step) To clean the machine bed oil so the tape actually sticks.

How to apply it (The Zero-Friction Method)

1. Clean the Surface: Wipe the seam area with alcohol to remove finger oils and lint. Let it dry.
2. Identify the Gap: Locate the seam where the embroidery module locks into the machine body.
3. The Bridge Strategy: Tear a strip of tape (approx 3-4 inches). Place it directly centered over the seam.
4. The Seal: Press it down firmly, pushing air bubbles out from the center.
5. The Edge Meld: Use your fingernail to burnish (rub hard) the leading and trailing edges of the tape.










Why burnish the edges? If the tape edge lifts even 0.5mm, the hoop will catch on the tape instead of the seam, creating a sticky mess. It must be perfectly flush.

If you are currently shopping for magnetic hoops for brother luminaire, add a roll of high-quality packing tape to your cart. It is the cheapest insurance policy you will ever buy.

Warning: Magnetic Safety Alert. When handling high-end magnetic hoops, always slide the magnets apart; never pry them. Keep them away from pacemakers, key fobs, and credit cards. The pinch force on industrial-grade magnets can cause blood blisters instantly.

The Proof Test: Simulate Quilt Pressure and Confirm Smooth Clearance (No Clicks, No Stops, No Drama)

Do not press "Start" yet. We must validate the repair.

1. Re-Simulate: Attach the hoop and apply that same downward "quilt pressure" with your hand.
2. The Slide: Move the hoop back and forth over your new tape bridge.
3. Sensory Success Metric: You should feel zero resistance. It should feel like sliding on ice. The "click" sound should be completely gone.

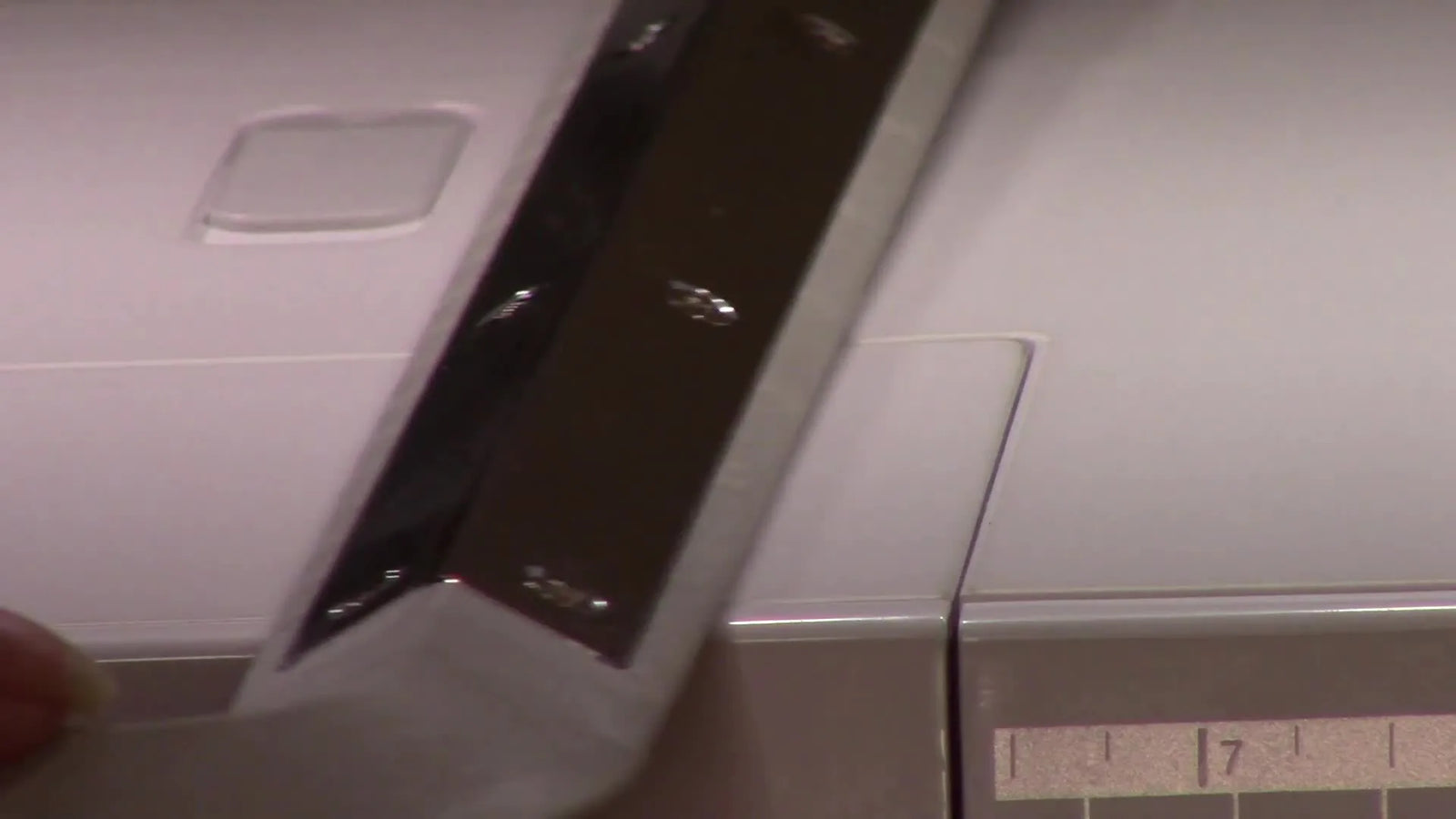

In the visual below, note the slight shadow under the hoop. The tape ensures that even if the hoop dips, it deflects off the tape ramp and continues moving smoothly.

The “Hidden” Prep Pros Do First: Stabilize the Quilt Load and Reduce Drag Before the First Stitch

The tape is a patch; good technique is the cure. Experienced pros win by managing the "Physics of Drag."

Your goal is to neutralize the weight of the quilt so the hoop doesn't want to dip.

Prep Checklist (Pre-Flight Protocol)

• The Slide Test: Confirm hoop glides freely over the tape bridge under simulated pressure.
• The Support System: Are you using a table extension or holding the quilt weight? (Never let a heavy quilt hang off the edge).
• The Landing Zone: Clean the machine bed. Dust + Tape = Sticky Gunk.
• The Hoop Check: Inspect the hoop underside to ensure no old burrs are catching.
• The Consumables: Do you have fresh tape and alcohol wipes nearby for re-application?

When Leveling Feet Don’t Help: Why “Adjust the Levelers” Often Fails on This Specific Clearance Issue

You may read online advice to "adjust the feet under the embroidery unit." While valid for general leveling, it often fails here.

Why? The issue isn't that the unit is tilted; the issue is that the design of the connection seam creates a lip. Raising or lowering the feet moves the whole unit, but it rarely eliminates that specific plastic ridge.

The Pro Verdict: Do not mess with your machine’s leveling feet unless you have a level and know the factory specs. The tape bridge is non-invasive, reversible, and targets the friction point directly.

Keep Your Brother Luminaire Bed Clean: Remove the Tape After the Project to Avoid Adhesive Residue

This is a "Surgical Intervention," not a permanent implant.

The Rule: Remove the tape when the quilt is finished. Leaving packing tape on high-gloss plastic for weeks will result in adhesive curing to the machine.

Removal Technique:

• Peel slowly at a sharp 180-degree angle (pulling the tape back against itself).
• If adhesive remains, use a tiny drop of sewing machine oil or Goo Gone on a cloth—never spray directly on the machine.

Troubleshooting the Loud Banging Noise, Hoop Drag, and Misalignment: Symptom → Cause → Fix

When you are mid-production and panic sets in, use this rapid diagnostic table.

Decision Tree: Choose the Right Stabilizer/Backing Strategy for Quilting With Magnetic Hoops (So the Hoop Isn’t Fighting the Fabric)

The "Bang" is a mechanical issue, but Drag is a stabilizer issue. If your stabilizer is too weak, the fabric shifts, changing the center of gravity and causing the hoop to dive.

The Stabilizer Decision Matrix:

1. High-Loft Quilt Batting + Cotton:
   • Risk: High Drag.
   • Solution: Use No-Show Mesh (Poly Mesh). It reduces bulk but adds structural friction.
2. T-Shirt Quilt (Stretchy):
   • Risk: Distortion & Hoop Dip.
   • Solution: Fusible Woven Interfacing on the back of the shirt blocks + Medium Tearaway.
3. Dense Edge-to-Edge Design:
   • Risk: High Stitch Count = warping.
   • Solution: Heavy Cutaway. Yes, it's stiff, but it acts as a "tray" to support the quilt weight.

If you are building your toolkit of magnetic hoops for embroidery machines, do not skimp on the stabilizer. A $1 sheet of backing protects a $50 quilt block.

The Upgrade Path (Without the Hard Sell): When a Better Hooping Workflow Pays for Itself

If you are a hobbyist doing one quilt a month, the Tape Bridge is your best friend. Look no further.

However, if you are running a business, "Hacking" your machine with tape is not a scalable strategy. If you face constant wrist fatigue, alignment battles, or speed limitations, you need to evaluate your toolkit.

The "Pain-to-Solution" Pathway:

• Pain Level 1: "I hate hoop burn and struggle to frame thick items."
  • The Fix: Upgrade to Magnetic Hoops. They are faster, safer for fabric, and prevent the "ring around the design."
• Pain Level 2: "I spend 10 minutes hooping and my wrists hurt."
  • The Fix: Add a hooping station for embroidery machine. Consistency equals speed. It stops you from fighting the fabric.
• Pain Level 3: "I am turning away orders because I'm too slow."
  • The Fix: This is the ceiling of a single-needle machine. A multi-needle machine (like the SEWTECH commercial line) has a tubular arm design.
  • Why it matters: With a tubular arm, the bag/shirt hangs under the machine arm. There is no "bed" to hit. There is no seam to traverse. The "Bang" problem physically cannot exist.

Setup Checklist (Pre-Start Confirmation)

• Obstruction Check: Slide hoop across the seam (with pressure). Result: Silent.
• Tape Integrity: Edges are burnished down; no lifting corners.
• Bobbin Check: Full bobbin inserted (changing bobbins with a quilt loaded is a nightmare).
• Needle Freshness: New Organ/Schmetz needle (Size 75/11 or 90/14 for quilting).
• Clearance Zone: No scissors or tweezers sitting on the machine bed.

Operation Checklist (During the Stitch)

• The Ear Check: Listen for rhythmic "thump-thump" (good) vs. sharp "clicks" (bad).
• The Drift Watch: Watch the outline run—is it centered? If it drifts early, stop immediately.
• Weight Management: As the machine moves, gently lift/guide the quilt bulk so it doesn't drag on the table edge.
• Post-Op: Remove the tape immediately after the final block to keep your machine pristine.

By mastering the "Tape Bridge," you turn a terrifying noise into a managed variable. You are no longer just an operator; you are a mechanic of your own craft. Stitch on.

FAQ

• Q: How do I stop a Brother Luminaire or Brother Solaris magnetic hoop from making a loud “bang/click” when quilting?
  A: Apply a clear packing-tape “bridge” centered over the embroidery unit seam so the hoop ramps over the lip instead of catching.
  • Clean: Wipe the seam area with an alcohol prep pad and let it fully dry.
  • Bridge: Place a 3–4 inch strip of heavy-duty clear packing tape directly centered over the seam and press from the center outward.
  • Burnish: Rub the leading and trailing tape edges hard with a fingernail so every edge is perfectly flush.
  • Success check: Under hand-applied downward “quilt pressure,” the hoop slides over the seam silently with zero “speed bump” feel.
  • If it still fails: Remove the tape, re-clean (oil/lint prevents adhesion), and re-apply—lifted tape edges can become the new catch point.
• Q: How do I find the exact catch point on a Brother Luminaire or Brother Solaris embroidery unit when a heavy magnetic hoop only snags under quilt weight?
  A: Use a hands-on “loaded slide” stress test to reproduce the snag and confirm the seam lip is the true obstacle.
  • Attach: Lock the hoop into the carriage.
  • Dry-run: Slide the hoop near the connection seam with no pressure to confirm it glides normally.
  • Load-test: Press down moderately on the front of the hoop (to mimic quilt drag) and slide toward the machine body.
  • Success check: The catch is confirmed when a distinct plastic-on-plastic click or a wrist “speed bump” appears only during the loaded slide.
  • If it still fails: Re-check quilt support (hanging weight can exaggerate dip) and inspect the hoop underside for burrs or damage.
• Q: How do I confirm a Brother Luminaire or Brother Solaris hoop-drag problem is seam impact and not a digitizing issue?
  A: Inspect the underside of the magnetic hoop for fresh white scratches/gouges that match the bed seam contact.
  • Flip: Turn the hoop over and examine the bottom ribbing carefully.
  • Match: Look for scuffs in the area that would pass over the embroidery unit-to-bed connection seam.
  • Protect: Stop using a gouged hoop until the seam is bridged—damaged ribbing can scratch the machine bed.
  • Success check: After bridging the seam, a loaded slide produces no new scuffs and the hoop movement stays smooth.
  • If it still fails: Lightly address any burrs on the hoop that could be catching, then re-test the glide under pressure.
• Q: How do I apply clear packing tape on the Brother Luminaire or Brother Solaris embroidery unit seam so the magnetic hoop does not catch on the tape edge?
  A: Use heavy-duty packing tape on a cleaned surface and burnish both tape edges aggressively so no corner can lift.
  • Choose: Use shipping-grade clear packing tape (avoid thin/cheap tape that tears or wrinkles).
  • Prep: Degrease with an alcohol wipe and let the plastic dry completely before taping.
  • Seal: Press firmly and push air out; then burnish the front and back edges with a fingernail.
  • Success check: Running a fingertip over the tape edges feels perfectly flush, and the hoop does not “stick” mid-travel.
  • If it still fails: Replace the tape immediately—if an edge lifts even slightly, the hoop can catch the tape and create drag/residue.
• Q: What is the safest way to test hoop clearance on a Brother Luminaire or Brother Solaris without getting pinched by the moving carriage?
  A: Keep hands and tools out of the hoop path during any carriage movement and only do slow, manual slide tests with full awareness of pinch points.
  • Clear: Remove scissors/tweezers from the bed and keep sleeves/cords away from the hoop travel zone.
  • Control: Do not place fingers between the hoop and machine body while checking the seam area.
  • Test: Perform the manual slide and loaded slide slowly, stopping at the first sign of resistance.
  • Success check: The test can be completed with hands never entering the hoop’s travel path and no unexpected carriage movement.
  • If it still fails: Pause and reposition—if there is any risk of accidental carriage motion, re-start the check only when the area is fully clear.
• Q: What magnetic hoop safety rules should I follow when using a heavy magnetic hoop on a Brother Luminaire or Brother Solaris for quilting?
  A: Handle magnets by sliding them apart (never prying) and keep magnets away from sensitive items and body risks.
  • Slide: Separate magnets by sliding sideways to control pinch force.
  • Distance: Keep magnets away from pacemakers, key fobs, and credit cards.
  • Control: Keep fingertips out of pinch zones when placing magnets on thick quilt layers.
  • Success check: Magnets can be positioned and removed without sudden snapping or finger pinches.
  • If it still fails: Slow down and reposition—if magnets snap violently, reduce the angle and increase the sliding motion before lifting.
• Q: When Brother Luminaire or Brother Solaris quilting keeps causing hoop drag and design misalignment, what is the best step-by-step upgrade path?
  A: Start with technique fixes, then improve hooping tools, and only then consider a machine workflow change if production demands it.
  • Level 1 (Technique): Support quilt weight, keep the bed clean, and validate silent glide with the loaded slide test before stitching.
  • Level 2 (Tooling): Use magnetic hoops for thick quilts to reduce hoop burn and improve holding—then manage seam clearance with the tape bridge as needed.
  • Level 3 (Capacity): If constant drag, wrist fatigue, or speed limits block orders, consider a multi-needle tubular-arm workflow where bed-seam catching is not part of the design.
  • Success check: Each step reduces either catching events (no clicks) or production friction (less re-hooping/restarts) before moving to the next level.
  • If it still fails: Stop the run at the first sign of drift/impact and return to mechanical clearance verification before blaming files or settings.
