Stop the “Check Upper and Bobbin Thread” Panic: Clean and Rebuild Brother PR/VR Tension Discs the Right Way

The dreaded "beep-beep-beep." You look at the screen of your Brother multi-needle, and there it is again: “Check upper and bobbin thread.”

You know the bobbin is full. You know the upper thread isn't broken. You’ve re-threaded the path three times. Yet, the machine refuses to sew. For a novice, this is panic-inducing. For a shop owner with a deadline, it’s a profit killer.

I have spent two decades on the shop floor, and I can tell you this: The machine isn’t lying, but it is confused. On Brother PR and VR platforms (and their SEWTECH or Baby Lock equivalents), this error usually isn't about the thread itself—it’s about the physics of resistance inside your tension dials.

This guide takes the raw mechanical steps and layers them with the "sensory experience" you need to master. We will move from simple cleaning to a full teardown, and finally, look at how tool upgrades like magnetic hoops and SEWTECH multi-needle machines can eliminate the variables that cause these errors in the first place.

Why Brother PR/VR tension discs fail quietly (and why double-wrapping thread makes it worse)

To understand the fix, you must visualized the anatomy of the failure. The tension system on a machine like the brother vr embroidery machine is a precision sandwich: Felt > Disc > Felt.

These layers are designed to create consistent, smooth drag on the thread—think of it like the brakes on a car.

• The Problem: Over time, lint from cheap thread or dusty backings gets trapped between the discs. It acts like gravel in your brake pads. The discs can no longer clamp down. The sensor detects zero resistance, assumes the thread is broken, and triggers the alarm.
• The Bad Habit: When this happens, many YouTube "gurus" tell you to wrap the thread twice around the tension knob. Stop. Do not do this. Double-wrapping is a band-aid that doubles this friction artificially. It might work for ten minutes, but it grinds that lint deeper into the felts and creates aggressive tension spikes that snap needles.

The Golden Rule: Tension issues are 80% contamination (dust), 10% mechanical wear, and only 10% actual settings.

The “Hidden” prep pros do first: isolate the real cause before you disassemble anything

Before you grab a screwdriver, we need to perform a "Pre-Flight Check." I have seen operators dismantle an entire tension assembly only to realize a $2 needle was bent.

The "Low-Cost" Elimination Strategy: In embroidery, we always fix the cheapest things first. Avoid the "mechanic's trace" by ruling out these three impostors:

1. The Path Check: Is the thread caught under the rotary metal disc? (Common on 6-needle machines).
2. The Bobbin Drop: Inspect your bobbin case. If it was dropped on a concrete floor, it may be slightly oval-shaped. No amount of upper tension tweaking will fix a bent bobbin case.
3. The "Floss" Test: Pull the thread through the needle (with the presser foot down). Does it feel smooth like cutting butter, or jerky like pulling a zipper? Jerkiness confirms debris.

Warning: Mechanical Safety
Before touching the tension assembly, Power Down the machine. You will be working inches away from the take-up levers. If your finger slips and hits the start button or handwheel, the torque of these machines can cause severe injury.

Prep Checklist: The "Don't Touch Tools Yet" Protocol

• Verify the Error: Is it actually a tension error, or a wiper error?
• Unthread Completely: Remove the spool and thread from the path to see clearly.
• Surface Prep: Clear a small table area. Place a light-colored cloth or magnetic tray down to catch small dropping parts.
• Lighting: Use your phone flashlight to look deep into the tension discs. Do you see a "fuzz ring"?


The 30-second rescue: cleaning with thin copy paper before you tear down the tension unit

This is the "Secret Weapon" of high-volume shops. Before disassembling, try the Non-Invasive Clean.

Tools Needed: A sheet of crisp, thin printer paper (or a business card, though paper is better for flexibility).

The Procedure:

1. Fold a corner of the paper to create a stiff edge.
2. Slide the paper edge right between the tension discs (where the thread goes).
3. Floss it back and forth gently.
4. Listen: You might hear a faint scratching sound—that is the crystallized lint breaking loose.

Safety Check: Look at the paper. Do you see a line of grey or colored fuzz? If yes, blow out the area with canned air (gently!) and re-test. This fixes the issue 50% of the time.

If your shop uses multiple hooping stations, keep a stack of "tension cleaning strips" (cut paper) nearby. It’s a preventive maintenance habit that saves hours of downtime.

The safe teardown: disassembling the Brother tension disc assembly without losing the magnetic ring

If the paper trick failed, we operate. This procedure requires steady hands.

Disassembly Sequence (Top to Bottom):

1. Blue Tension Nut: Unscrew completely. (Count the turns or mark it with a sharpie if you are nervous, though we will recalibrate later).
2. Metal Washer: Lift off.
3. Conical Spring: Note which end is wider (usually the bottom).
4. Plastic Presser: This is the white cap.
5. Top Blue Felt: Inspect this closely.
6. Rotary Metal Disc (Assy B): Lift this carefully!

CRITICAL ALERT:
There is a tiny Magnetic Ring attached to the bottom of the Rotary Metal Disc. It is essential for the sensor to read rotation. Do not drop this. If it rolls under a heavy cabinet, your machine is dead in the water until a replacement arrives.

Blue tension disc felts (S36299001): how to judge “cleanable” vs “replace now”

You are now holding the "Blue Felts" (Part #S36299001). These are consumables, just like tires on a car.

The "Finger Test" for Wear:

• Good Felt: Rests flat, feels fuzzy/soft, holds its circular shape.
• Bad Felt: Looks shiny (glazed by friction), is compressed thin like paper, or is permanently deformed/oval.

The Replacement Interval:

• Clean: Every 3 months (using the paper method or during teardown).
• Replace: Every 2 years (or sooner if running 8+ hours/day).

Pro Tip: If you use "sticky" stabilizers or spray adhesives heavily, chemical residue travels up the thread. This glazes the felts faster. High-quality Stabilizers (like reputable tear-away or cut-away) produce less lint, extending the life of these parts.

Reassembly that actually works: the exact Brother PR/VR stack order (standard needles)

Reassembling incorrectly is worse than the original clog. You must rebuild the stack in the precise mechanical order.

The Stack (Bottom to Top):

1. Bottom Felt: Lay it flat.
2. Rotary Metal Disc (Assy B): MAGNETIC SIDE DOWN. This is non-negotiable. If you put the magnet facing up, the sensor reads nothing.
3. Top Felt: Lay it on top of the metal disc.
4. Plastic Disc Presser: Centers everything.
5. Conical Spring: Narrow side usually faces up (check your specific manual, but ensure it sits flush).
6. Washer.
7. Blue Nut.

Sensory Check: As you turn the Blue Nut, you should feel the spring resistance engage smoothly. If it feels "crunchy" or gets stuck immediately, back off—threads might be crossed.

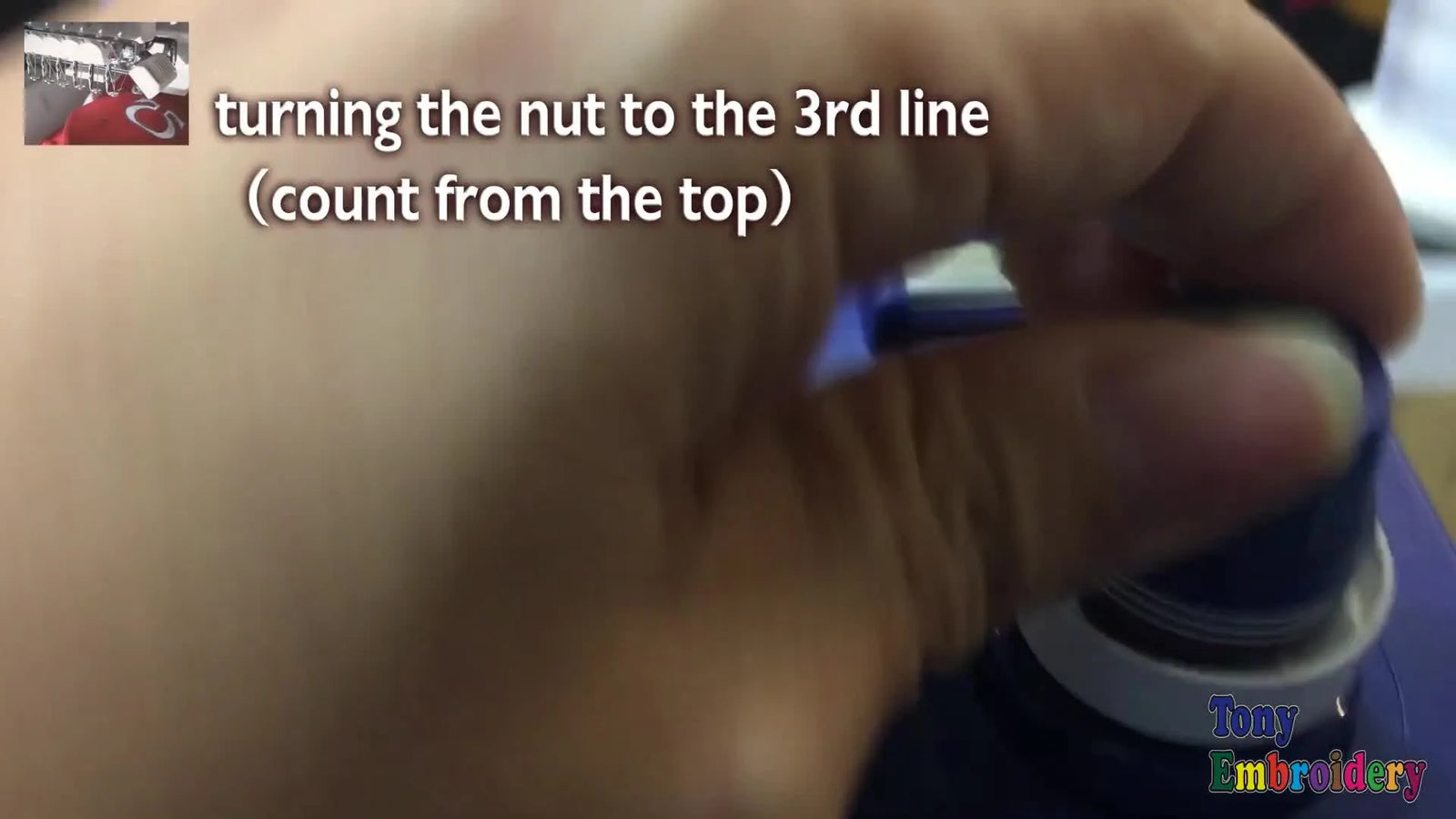

The “3rd line” calibration rule: set the tension nut so you’re not chasing settings all day

You’ve reassembled it. Now, how tight should it be?

The Visual Anchor: Tighten the blue nut until the top of the nut aligns with the Third White Line (counting from the top of the threaded post).

• Why here? This is the factory "neutral" zone for standard 40wt embroidery thread.
• Is it absolute? No. It is your "Known Good Starting Point." From here, you will adjust +/- half a turn based on the test sew-out.

Note: If you are operating a brother persona prs100 embroidery machine, this baseline is generally consistent, but always consult your specific service manual if the machine is under warranty.

Needle #4 on 6-needle Brother machines: the “extra washers” detail that causes endless false alarms

If you own a 6-needle machine (PR600 series, PR650, etc.), Needle #4 is the "Trouble Child."

Due to the geometry of the thread path, Brother engineers added a spacer system to Needle #4 only.

The Needle #4 Exception:

• You must install a Black Washer and a White Washer before the spring.
• The Trap: If you mix up the parts from Needle #3 and Needle #4 during cleaning, Needle #4 will be too loose, and Needle #3 might be too tight.

Organization Tip: Never clean all tension knobs at once. Do them one at a time to prevent part mixing.

Built-in Tension Test Bars: the only honest way to confirm you fixed it (not just silenced it)

Don't trust a regular design to test tension. Use the "Lie Detector"—the I-Test or H-Test.

The Setup:

1. Menu: Navigate to the machine's built-in test patterns (usually a Block Letter 'I' or 'H').
2. The Canvas: Hoop Two Layers of medium/heavy Cutaway Stabilizer. Do not use felt or scrap fabric; we need a uniform surface.
3. The Hoop: Use the standard 7"x5" (180x130mm) hoop.

The Visual Standard (The "1/3 Rule"): Flip the hoop over. Look at the satin column on the back.

• Perfect: You see a white strip (bobbin thread) taking up exactly 33% (1/3) of the width in the center.
• Too Tight: The white strip is very wide (over 50%) or you see bobbin thread on top.
• Too Loose: The white strip is a thin line or invisible (loops).

Legacy Machine Note: Users of the pr600 embroidery machine using original brother pr600 hoops often face "Hoop Burn" or slippage during these tests. If the fabric slips, the tension looks loose even if the machine is perfect.

Operation Checklist: The Valid Test Run

• Hoop Tightness: The stabilizer should tap like a drum. (Consider Magnetic Hoops if you struggle with this).
• Placement: Move the test pattern to the Center of the hoop. Edges always have distortion.
• Speed: Run the test at a moderate speed (600-800 SPM), not max speed.
• Inspection: Check the back. Is the 1/3 rule met?

A decision tree that saves hours: backing choice and hooping stability before you blame tension

Sometimes, the machine is fine, but your setup is flawed. Use this decision logic before touching the tension knobs again.

Decision Tree: Is it the Machine or the Setup?

1. Is the "Error" happening on all needles or just one?
   • Just One: Mechanical issue (Cleaning/Spring/Felt needed).
   • All Needles: Check Bobbin Case or Hooping issue.
2. Are you stitching on thick/difficult items (Jackets/Bags)?
   • Yes: The fabric might be "flagging" (bouncing up and down). This triggers false thread break sensors.
   • Solution: This is a Tooling Problem, not a tension problem.
3. Does the tension drift halfway through a job?
   • Yes: Your hoop might be losing grip.

The Tooling Solution: If you struggle with hooping consistency on thick items, traditional screw-tighten hoops are often the culprit.

• Upgrade Criteria: If you do production runs of 50+ items or thick deliverables.
• The Fix: magnetic embroidery hoops. These hold thick fabric firmly without the "hoop burn" or hand strain, keeping the specific tension on the fabric constant. If the fabric doesn't move, the tension sensors stay happy.

Troubleshooting the scary symptoms: symptom → likely cause → fix

Here is your quick-reference diagnostic table, synthesized from shop-floor experience and the source tutorial.

The “Why” behind the fix: what lint, felts, and weak springs do to tension physics

Why does a tiny piece of fluff cause a machine to stop?

The Physics of Drag: The thread sensor is an encoder wheel. It expects the wheel to spin at a rate proportional to the stitch speed.

• Lint: Creates a gap. The wheel stops spinning. The computer thinks, "The thread broke!" -> Alarm.
• Worn Spring: It loses its "memory." It applies 100g of force on Monday and 60g on Tuesday. You chase the settings forever.

Replacing consumables like O-Rings (on the pretension guide) and Felts resets the physics of the machine to factory zero.

The upgrade path that’s not hype: when tools and workflow changes beat “more tweaking”

If you have cleaned everything, replaced the felts, and calibrated to the 3rd line, but you are still struggling with efficiency, you have hit a Hardware Limitation.

In a commercial environment, time spent troubleshooting is money lost.

Three Levels of "Peace of Mind" Upgrades:

1. Level 1: Stability Upgrade (Hooping)
   If your tension issues stem from fabric slippage (especially on backpacks, caps, or puffer jackets), stop fighting the screw-hoop.
   • Solution: Magnetic Hoops. They snap on, hold tight, and maintain the "drum skin" tension required for perfect sensing.
2. Level 2: Reliability Upgrade (Consumables)
   Using cheap, dusty stabilizer clogs your machine faster.
   • Solution: Switch to premium Stabilizers (Cutaway/Tearaway) that shed less lint. It buys you time between cleanings.
3. Level 3: Capacity Upgrade (The Machine)
   Brother PR/VR machines are workhorses, but if you are running them 10 hours a day and dread the maintenance downtime, you may need "Redundancy."
   • Solution: Adding a SEWTECH Multi-Needle Embroidery Machine to your fleet.
   • Why? Having a second machine (like the brother pr1055x or a robust SEWTECH 15-needle) allows you to keep production moving while one machine is down for deep maintenance. It transitions you from a "Hobbyist" mindset (panic when broken) to a "Factory" mindset (scheduled rotation).

Warning: Magnet Safety
When using Mighty Hoops or similar magnetic sewing frames, be aware of the "Pinch Zone." These magnets are industrial strength. Do not let them snap together on your fingers. Keep them away from pacemakers and magnetic media.

Setup Checklist: The "Pro Shop" Standard

• Maintenance Schedule: Set a calendar reminder: "Clean Tension Discs" every Solstice/Equinox (Quarterly).
• Parts Bin: Keep spare Felts (S36299001), Springs, and a spare Bobbin Case in stock.
• Upgrade Review: If you spend >15 mins/day hooping, look at Magnetic Hoops.
• Documentation: If running mixed fleets (older 6-needle vs. newer 10-needle), label the machines that have "quirks" (like the Needle #4 washers).

Mastering tension is not about luck; it is about cleanliness, order, and knowing when to upgrade your tools to match your ambition.

FAQ

• Q: How do I fix the Brother PR/VR error message “Check upper and bobbin thread” when the bobbin is full and the upper thread is not broken?
  A: Do a non-invasive tension-disc cleaning first; the error is often caused by lint reducing thread resistance, not an empty bobbin.
  • Power down the Brother PR/VR machine and unthread completely.
  • Slide a thin strip of crisp printer paper between the tension discs and “floss” back and forth.
  • Blow out loosened fuzz gently and rethread normally (do not double-wrap the thread).
  • Success check: the paper comes out with a grey/colored fuzz line and the machine stitches the test pattern without beeping.
  • If it still fails… perform the full tension assembly teardown and inspect felts and the magnetic ring.
• Q: Why should Brother PR/VR owners stop double-wrapping thread around the tension knob to silence “Check upper and bobbin thread” alarms?
  A: Stop double-wrapping because it artificially increases friction, can grind lint deeper into the felts, and may create tension spikes that lead to needle breaks.
  • Remove the extra wrap and return to standard threading through the correct path.
  • Clean the tension discs (paper floss method) to remove the real cause: contamination in the felt-disc-felt “sandwich.”
  • Recalibrate from a known baseline instead of “chasing” tension with wraps.
  • Success check: thread pull feels smooth (not jerky) with presser foot down, and the machine runs without immediate false alarms.
  • If it still fails… inspect for worn/glazed felts or a weak spring during a careful teardown.
• Q: What is the correct Brother PR/VR tension disc reassembly stack order, and which side of the rotary metal disc must face down?
  A: Reassemble in the exact factory stack order, and install the rotary metal disc with the magnetic side facing down so the sensor can read rotation.
  • Stack bottom-to-top: Bottom felt → Rotary metal disc (magnetic side down) → Top felt → Plastic disc presser → Conical spring → Washer → Blue tension nut.
  • Turn the blue nut slowly and ensure the spring engages smoothly (do not force if it feels crunchy).
  • Success check: tightening feels smooth/consistent and the machine passes a built-in test sew-out without false thread-break warnings.
  • If it still fails… re-open the stack to confirm the magnet is present and not flipped or missing.
• Q: What is the “3rd white line” calibration rule for the Brother PR/VR blue tension nut, and how do I use it as a safe starting point?
  A: Set the blue tension nut so the top of the nut aligns with the third white line as a known-good baseline for standard 40wt thread.
  • Tighten to the third white line, then run the built-in I-test or H-test on two layers of medium/heavy cutaway stabilizer.
  • Adjust only in small steps (about half a turn) based on the test result, not on guesswork.
  • Success check: the back of the satin column shows bobbin thread centered at about 1/3 of the width.
  • If it still fails… check for contamination, worn felts, or a bobbin case issue (especially if problems appear across all needles).
• Q: How do I troubleshoot Brother 6-needle machines when Needle #4 keeps triggering false tension alarms after cleaning the tension unit?
  A: Verify Needle #4 has its correct spacer washers installed because Needle #4 uses an exception washer stack that other needles do not.
  • Clean and service one tension knob at a time to prevent mixing Needle #3 and Needle #4 parts.
  • Confirm Needle #4 includes the black washer and white washer before the spring (as required by the Needle #4 geometry).
  • Success check: Needle #4 stitches the built-in test pattern with the same 1/3 bobbin-on-back standard as the other needles.
  • If it still fails… inspect the spring and felts for wear and replace consumables if the machine is older/high-hour.
• Q: How do I use the Brother PR/VR built-in I-test or H-test to confirm tension is truly fixed (not just temporarily silenced)?
  A: Use the built-in test pattern on a controlled “canvas” so the stitch result honestly reflects tension, not fabric variables.
  • Hoop two layers of medium/heavy cutaway stabilizer in a standard 7"×5" (180×130mm) hoop and place the test in the center.
  • Sew at a moderate speed (about 600–800 SPM), then flip the hoop and inspect the satin column backing.
  • Success check: bobbin thread forms a centered strip about 33% (1/3) of the column width on the back.
  • If it still fails… re-check hoop tightness and fabric slippage, because movement can mimic “loose tension” and trigger sensors.
• Q: What safety steps should Brother PR/VR owners follow before disassembling the tension assembly or working near the take-up levers?
  A: Power down first and treat the needle/take-up area as a pinch-and-torque hazard; avoid any chance of accidental motion.
  • Turn off the machine before hands go near the tension assembly or take-up levers.
  • Clear a small work surface and use a light-colored cloth or magnetic tray to catch small parts.
  • Handle the rotary metal disc carefully to avoid dropping the tiny magnetic ring required for sensor function.
  • Success check: parts are removed and staged without any missing pieces, and the machine reassembles without leftover hardware.
  • If it still fails… stop and consult the service manual for the exact model before forcing components or continuing teardown.
