Stop the Drawer Tangle and the Random Thread Breaks: A Veteran’s Take on the Hemingworth Spool Cap System (and What to Upgrade Next)

The Embroidery Thread Management Bible: From Tangled Mess to Perfect Stitch Quality

If you have ever opened a drawer to find a chaotic "bird’s nest" of unraveling thread—and promptly closed it, pretending you didn't see it—you are not alone. In my 20 years of managing embroidery production floors, I have learned that a messy thread drawer is not a character flaw; it is a mechanical liability.

Loose thread ends do more than clutter your space. They develop "micro-kinks" and collect microscopic dust that your machine’s tension disks will hate. When a novice sees a thread break, they blame the machine. When a pro sees a thread break, they check their storage habits.

This guide reconstructs the principles of the Hemingworth spool system into a universal "Shop Standard" routine. We will cover how to prevent tangles using proper capping, maintain consistent tension, and know exactly when to upgrade your tools—from stabilizers to the game-changing magnetic embroidery hoops—to stop fighting your equipment and start producing professional work.

The Hidden Physics of the "Thread Disaster"

The video illustrates a pain point every machine embroiderer recognizes: spools rubbing together create friction, static, and tangles. But let’s look closer at the consequence.

When thread unravels in a drawer, three things happen that ruin future stitch-outs:

1. Memory Twist: Thread that sits loosely coiled develops a "memory." When you finally thread it, it spirals off the spool, whipping against the thread mast and causing "looping" on your fabric.
2. Lint Contamination: If you store thread near cutaway scraps or spray adhesive, the thread becomes a wick for debris. This debris clogs your tension disks, causing the tension to drift from a perfect 110g-120g down to a loose 80g without you noticing.
3. Adhesive Transfer: Using tape to secure tails leaves a sticky residue. As that sticky section passes through the needle eye (moving at 10-15 times per second), it causes gumming and immediate shredding.

If you are running a sensitive brother embroidery machine, these "random" breaks are rarely random. They are the delayed penalty of poor storage.

Phase 1: The "Clean Hands" Prep & Safety Protocol

Before you touch a spool, you must establish a sterile field. The video highlights two critical prep concepts: oil awareness and skin contact.

The "为什么要这样做" (The Why)

Human skin contains natural oils and acids. When you grip the thread fiber instead of the spool base or cap, you deposit oils that attract dust. Over months of storage, this creates dirty patches that discolor clean white satin stitches.

The Oil Hazard

Machine lubrication is essential, but oil mist is invisible.

• The Rule: Never oil your machine with thread spools sitting on the stand. Oil first, run a test swatch to clear excess oil, then load your thread.
• The Production Reality: If you are upgrading to a brother pr680w or a similar multi-needle machine, build a habit of staging your next run's colors in a clean bin, away from the moving needle bar.

Warning: Mechanical Safety
Embroidery machines have high-torque moving parts. The needle bar and take-up lever move faster than your eye can track. Always power off or engage "Lock Mode" (if available) before oiling, changing needles, or reaching into the thread path. A needle puncture is bad; a needle puncture while the machine is running at 1000 SPM is a hospital trip.

Prep Checklist: The "Clean Start" Protocol

• Hand Check: Hands are washed and dried (no lotion residue).
• Oil Check: Machine was oiled >10 minutes ago and test-run on scrap fabric.
• Debris Check: Blow out the bobbin case with low-pressure air (canned air) to remove lint.
• Consumable Check: Have your "Hidden Consumables" ready—fresh needles (size 75/11 usually), adhesive spray, and curved scissors.

Phase 2: The Cap Locking System (The Solution to Tangles)

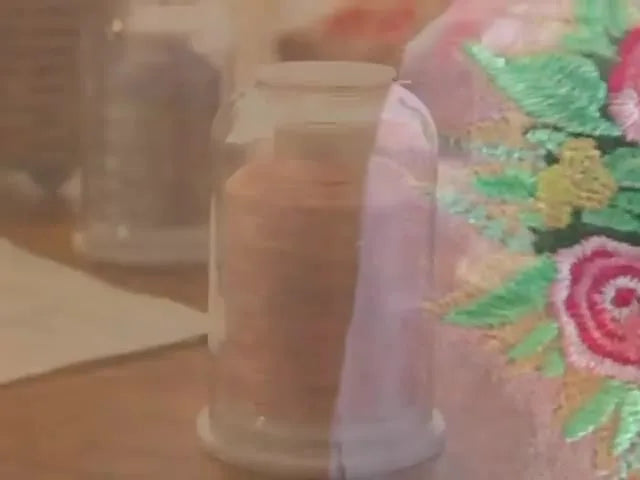

The video demonstrates a specific spool cap system, but the principle applies to any thread management strategy: Positive Locking.

The Execution: Locking the Tail

1. Cut Clean: After your stitch-out, cut the thread leaving a 3-inch tail. Do not break it by hand; stretching the poly/rayon damages the fibers.
2. Cap It: Place the protective cap over the spool.
3. Engage the Anchor: Press the soft rubber stopper insert into the cap's top opening. You should feel a tactile thud or resistance as it seats flush.
4. The "Tug Test": Gently pull the tail. It should hold firm. If it slips, the stopper isn't seated.

The Sensory Check:

• Visual: The cap is flush; no fibers are poking out the side.
• Tactile: The spool feels solid, like a single unit.

Pro Tip: The "No Tape" Rule

If you have been using masking tape or thread nets, stop. Nets compress the thread (bad for tension consistency), and tape leaves residue. Trust the mechanical lock of the cap.

Phase 3: Vertical Feeding & Pathing (Standardizing Tension)

Novices often blame the tension knob when the problem is actually the feed path. The video shows how threading through the cap's center hole stabilizes the delivery.

Why Gravity Matters

Thread must flow off the spool with zero drag.

• The Problem: If thread comes off the side of a spool sitting on a horizontal pin, the spool has to rotate. Heavy spools have inertia; they jerk when the machine accelerates to 600+ SPM, causing tight stitches. When the machine slows down, the spool keeps spinning, causing loose loops.
• The Solution: Vertical feeding through a center guide allows the thread to "puddle" off the spool without making the heavy spool rotate.




Setup Checklist: The "Pre-Flight" Inspection

• Vertical Alignment: The thread rises straight up from the cap center.
• Clear Path: No other cones are touching the active thread.
• Bobbin Check: Look at your bobbin. Is the thread cross-hatched? It should be smooth. A spongy bobbin will ruin top tension.
• Distraction Check: Do not multitask. If you are researching hooping for embroidery machine techniques on your phone, put it down. Threading requires focus.

Phase 4: Horizontal Feeding (Exceptions to the Rule)

Can you feed sideways? Yes, as the video shows. But you need to know when it is safe.

The "Sweet Spot" for Horizontal Spools

• Safe Zone: Small spools (1000m or less) often feed fine horizontally because they have low mass/inertia.
• Danger Zone: Large 5000m cones should never remain horizontal; their weight creates massive drag.
• The Cap Upgrade: Even in horizontal setups, using a cap with a center guide keeps the thread from falling behind the spool pin and wrapping around the shaft—a classic cause of "mystery thread breaks."

If you are building a professional embroidery hooping system, consistency is king. Try to use vertical stands whenever possible.

Phase 5: The Bleach Test (Material Science)

The video performs a destructive test using a Clorox bleach pen on "Rayon" vs. "PolySelect." The result? Rayon fades; Poly survives. This is a crucial lesson in Lifecycle Durability.

The Business Implication

Your customer does not care about your "shiny thread." They care if their logo fades after three washes.

• Rayon: High sheen, soft hand, but fragile. Breaks easily at high speeds (>800 SPM). Reacts to bleach. Use for: Wall art, delicate heirlooms.
• Polyester (PolySelect): High tensile strength, resists bleach, colorfast. Use for: Uniforms, towels, kids' wear, anything washed frequently.

Phase 6: The "Real" Bottleneck – Hooping & Stabilization

You have fixed your thread storage. You have dialed in your tension. But your embroidery still puckers, or you are getting "hoop burn" (those shiny crush marks on the fabric).

Thread is rarely the only variable. Rigid stabilization and accurate hooping are where the pros separate themselves from the hobbyists.

The Decision Tree: Fabric, Stabilizer, & Hoop Choice

Use this logic flow to prevent failure before you press "Start."

1. What is the Fabric Structure?
   • Stable Woven (Denim, Twill): Use Tearaway.
   • Unstable Knit (T-Shirt, Polo): You must use Cutaway. No exceptions. Tearaway will eventually distort.
   • High Pile (Towel, Fleece): Use Cutaway + Water Soluble Topper (to keep stitches from sinking).
2. What is the Production Volume?
   • One-off Custom: Standard manual hoop is fine.
   • Batch of 20+ Polos: Manual hooping is too slow and risks Repetitive Strain Injury (RSI).
3. Are you fighting Hoop Burn?
   • Yes: This is the trigger to upgrade tools. Traditional hoops pinch fabric rings.
   • Solution: This is why professionals switch to magnetic embroidery hoops. The magnetic force clamps the fabric without "crushing" the fibers into a plastic ring. It creates a flat, consistent surface that machines love.

Warning: Magnetic Field Safety
magnetic hoop for brother and industrial frames use neodymium magnets with extreme force.
* Pinch Hazard: Keep fingers clear of the snap zones. They can bruise or break skin.
* Medical Safety: Keep magnets away from pacemakers, insulin pumps, and credit cards.

Troubleshooting: The "Symptom-Cause-Fix" Matrix

Don't guess. Use this low-cost-to-high-cost checklist.

The Upgrade Path: Scaling Your Success

A tidy drawer is Step 1. But if you want to move from "frustrated hobbyist" to "efficient producer," look at your workflow's friction points.

1. Level 1 (The Basics): Implement the cap-and-stopper system. Buy generic "sewer's aid" lubricant for the needle (rarely needed if thread is quality).
2. Level 2 (The Workflow): If you struggle with alignment, invest in a hooping station for machine embroidery. Consistency saves materials.
3. Level 3 (The Production Speed): If you are doing volume, the "Hoop Burn" and wrist fatigue from manual frames will stop you. Upgrading to magnetic hoops for brother (or your specific brand) is the industry standard for speed.
4. Level 4 (The Scale): If you are capped out on speed, a single-needle machine is your limit. A SEWTECH multi-needle embroidery machine moves you from 0 profit to production capability, allowing you to queue colors without manual swaps.

Operation Checklist: The Shutdown Routine

• Cut & Park: Trim thread at the spool, not just the needle.
• Lock It: Re-cap spools immediately. Engage the stopper.
• Scan the Floor: Pick up stray thread bits (they get sucked into cooling fans).
• Log It: If a specific design caused breaks, note it on your run sheet. It might be the digitizing density, not the thread.

Embroidery is a game of variables. By controlling your thread storage and feed path, you eliminate the most annoying variable of all, leaving you free to focus on the art.

FAQ

• Q: How can a Brother embroidery machine user prevent thread drawer tangles and “bird’s nest” spools between jobs?
  A: Use a positive locking cap-and-stopper routine instead of tape or thread nets to stop tails from unraveling.
  • Cut a clean 3-inch tail after stitching (do not snap thread by hand).
  • Cap the spool and press the rubber stopper insert into the cap until it seats flush.
  • Perform a gentle tug test on the tail before storing the spool in rows so spools do not rub.
  • Success check: the cap sits flush, no fibers poke out, and the tail does not slip during the tug test.
  • If it still fails, separate spools so they cannot touch and remove any spools with sticky tape residue from the drawer.
• Q: How can a Brother embroidery machine operator reduce “random” thread breaks caused by lint contamination and sticky residue in the thread path?
  A: Keep thread clean and keep adhesive residue out of the needle/tension system; many “random” breaks are delayed storage and handling penalties.
  • Stop using tape to secure thread tails because residue can gum up at speed and shred thread.
  • Wash and dry hands before handling thread fibers; grip the spool/cap instead of the thread.
  • Keep spools away from cutaway scraps and spray adhesive areas so thread does not wick lint and debris.
  • Success check: thread runs through the path without sticky drag and breaks stop appearing “out of nowhere.”
  • If it still fails, rethread the top thread to ensure it is seated in the tension disks and change to a fresh needle.
• Q: What is the safest mechanical procedure for oiling a Brother PR680W embroidery machine around the needle bar and thread stand?
  A: Power off or use the machine’s lock mode and keep thread spools off the stand during oiling to avoid injuries and oil contamination.
  • Power off (or engage Lock Mode if available) before reaching into the needle bar/take-up area.
  • Oil first, then run a test swatch on scrap fabric to clear any excess oil mist.
  • Load thread spools only after the test run so oil cannot mist onto thread and attract dust.
  • Success check: no fresh oil spots appear on the test swatch, and thread stays clean when loaded afterward.
  • If it still fails, pause production and follow the machine manual for lubrication points and safety steps.
• Q: How do I set up vertical thread feeding to stabilize tension on a Brother embroidery machine when using large cones?
  A: Feed vertically through a center guide so thread can “puddle” off the spool without forcing a heavy cone to spin and surge tension.
  • Route thread straight up from the spool cap center hole/guide so the delivery line is vertical.
  • Ensure no neighboring cones touch the active thread path.
  • Check the bobbin winding quality before chasing top tension issues.
  • Success check: the thread rises straight up, runs smoothly without jerks during acceleration/deceleration, and stitches stop swinging from tight to loopy.
  • If it still fails, avoid horizontal feeding with large 5000m cones and rethread to confirm the thread is seated in the tension disks.
• Q: When is horizontal spool feeding acceptable on a Brother embroidery machine, and when does it cause “mystery” thread breaks?
  A: Horizontal feeding is usually fine for small spools (about 1000m or less), but large 5000m cones should not stay horizontal due to drag and inertia.
  • Use horizontal only for small spools with low mass so rotation does not surge tension.
  • Avoid horizontal placement for large cones because the weight increases drag and can cause breakage.
  • Use a cap with a center guide even horizontally to prevent thread falling behind the spool pin and wrapping the shaft.
  • Success check: thread does not wrap the spool pin/shaft and breaks do not appear mid-run without an obvious snag.
  • If it still fails, switch the same cone to a vertical stand and compare results to confirm inertia/drag as the cause.
• Q: How can a Brother embroidery machine user stop bobbin “bird’s nest” tangles on the underside during a stitch-out?
  A: Rethread the upper thread and make sure it is fully seated in the tension disks; underside nesting usually means the top thread has no effective tension.
  • Raise the presser foot (if applicable) and rethread the top path from the spool forward.
  • “Floss” the thread firmly into the tension disks so it seats instead of riding on the edges.
  • Inspect for lint buildup in the bobbin area and blow out the bobbin case with low-pressure canned air.
  • Success check: the underside changes from loose loops/nests to a clean, controlled bobbin line.
  • If it still fails, change to a fresh 75/11 needle and verify the bobbin is wound smoothly (not spongy).
• Q: How do I reduce hoop burn and puckering on polos and knits when hooping for a Brother embroidery machine, and when should I switch to magnetic hoops or a multi-needle system?
  A: Start with correct stabilizer for the fabric, then upgrade hooping tools if hoop burn and consistency problems persist—this is common and fixable.
  • Choose stabilizer by fabric: use cutaway for knits (no exceptions), tearaway for stable woven, and add water-soluble topper for high pile.
  • Avoid over-tight framing that crushes fibers; focus on flat, even support rather than maximum pinch.
  • If hoop burn is recurring, switch to magnetic hoops to clamp fabric evenly without crushing ring marks.
  • Success check: the fabric surface stays flatter with fewer shiny crush marks, and puckering reduces after stitching.
  • If it still fails, add a hooping station for repeatable alignment; if volume is high and manual hooping causes wrist fatigue/slowdowns, consider moving to a multi-needle production setup.
