Every embroidery operator knows that specific sinking feeling: you’ve bought a new set of expensive magnetic hoops, but you’re terrified to press "Trace."

What if I typed the dimensions wrong? What if the pantograph slams the hoop into the needle bar?

This fear is rational. In commercial embroidery, a "crash" isn't just a noise; it’s a bill for a re-timed machine and a destroyed garment. However, on the Ricoma Marquee 2001 (and similar machines using the 10S touchscreen panel), the logic for centering custom hoops is actually highly predictable—if you ignore the rumors and follow the data.

This guide reconstructs the proven workflow used by experts like Delanda, layering in the "shop floor" sensory checks and safety protocols that prevent expensive mistakes. We will move from Data Entry to Physical Setup to Production Logic, ensuring your new hoops are safe, centered, and profitable.

1. The "Secret" Logic: Decoding X/Y Centers

Before you enter a single number, you must understand how the machine thinks. A common misconception is that you need to calculate the center of your new hoop using math. You do not.

The machine already knows where "Center" is based on the factory presets.

The Empirical Test

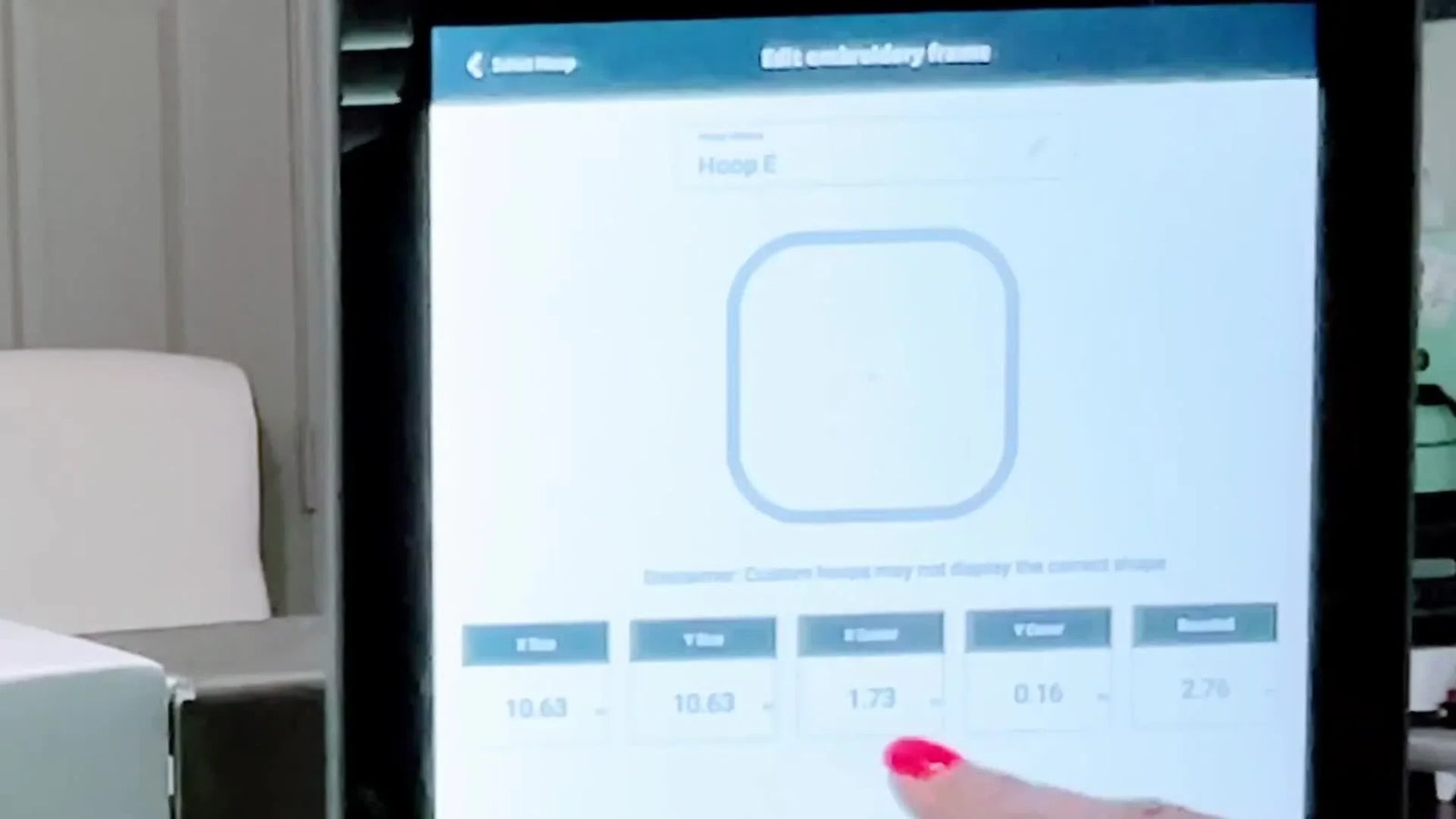

When you open the factory presets (Hoop A through Hoop F) in the Edit menu, observe the data. You will likely see a pattern:

• Hoop A: X Center = 1.73 / Y Center = 0.16
• Hoop F: X Center = 1.73 / Y Center = 0.16

Even though the sizes change, these coordinate values remain static. This is your Machine’s Logical Center. To make a custom hoop work, we simply tell the machine: "This is a new size, but use the standard center."

Note: If your machine’s factory hoops show different numbers (e.g., X=0.00), use those numbers. The goal is to copy the existing reference, not the specific numbers in this article.

2. The "Inside Dimension" Rule: Never Trust the Nickname

Here is the #1 cause of hoop strikes: Entering the hoop's "marketing name" as the size.

A "5.5-inch hoop" is rarely 5.5 inches of sewable field. It might be 5.3 inches inside, or 5.75 inches outside. If you program "5.5" but the safe area is "5.3," you risk hitting the frame.

The Measurement Protocol

Do not guess. Go to the manufacturer's website (e.g., HoopMaster) and find the Inside Dimensions (ID).

• Metric vs. Imperial: The Ricoma 10S usually accepts inches, but verify your specific firmware setting.
• Round Down for Safety: If a dimension is 12.8125, rely on 12.81. Never round up.

Data recorded for this session:

1. 5.5" Hoop: Input 5.30 x 5.30
2. 8 x 13" Hoop: Input 12.81 x 7.66
3. 11 x 13" Hoop: Input 12.81 x 10.81


✅ Checklist 1: The "Pre-Flight" Prep

Do not touch the screen until you check these boxes.

• Identify Control Panel: Confirm you are using the 10S Panel. (Workflows differ for 8S or 7S).
• Harvest Data: Open two factory hoops (e.g., A and C) and write down the X Center and Y Center values.
• Verify ID: Write down the Inside Dimensions of your custom hoops (not the outer frame size).
• Orientation Check: Decide which side of the hoop is the "Width" (X-Axis). Rule: The side running Left-to-Right on the machine is always X.
• Tool Check: Have a #4 Metric Allen Wrench and a ruler/calipers ready.

3. Programming the Hoops: The Data Entry Phase

We will now use the Add Hoop > Custom function.

Crucial Mental Model:

• X Size: Left-to-Right dimension.
• Y Size: Front-to-Back dimension.
• Rounded: This defines the corner radius. For Mighty Hoops, 1.5 is the industry standard "Sweet Spot" to prevent the needle from hitting the rounded corners.


A. The 5.5 inch Station (Left Chest/Pocket)

If you are programming a mighty hoop 5.5 for standard left-chest logos, precision is key because the frame is small.

• X Size: 5.30
• Y Size: 5.30
• X Center: 1.73 (Or your machine's reference)
• Y Center: 0.16 (Or your machine's reference)
• Rounded: 1.5


B. The 8 x 13 Station (Large Logos/Onesies)

When you set up an 8x13 mighty hoop, orientation matters. If the hoop is wider than it is tall, the larger number goes into X.

• X Size: 12.81 (Widest dimension)
• Y Size: 7.66 (Shortest dimension)
• X Center: 1.73
• Y Center: Automatic/0.16
• Rounded: 1.5


C. The 11 x 13 Station (Jacket Backs)

The mighty hoop 11x13 is a production workhorse. An error here is dangerous because the hoop extends far toward the pantograph arm.

• X Size: 12.81
• Y Size: 10.81
• X Center: 1.73
• Y Center: 0.16
• Rounded: 1.5


✅ Checklist 2: The Digital Handshake

Perform immediately after saving.

• Selection Test: Select the custom hoop from the list. Does the machine accept it without error?
• Visual Check: Does the on-screen shape match the physical hoop (rectangular with rounded corners)?
• Center Zero: When the hoop is selected, look at the position coordinates. They should read X: 0.00 / Y: 0.00.

Warning: Mechanical Safety
When you press "Trace" or "Center," the pantograph moves fast.
* Keep hands clear of the rail.
* Ensure no loose garments are draped near the emergency stop button.
* Never assume the trace is safe until you have watched it run at low speed once.

4. The Physical Installation: The "Bracket-First" Method

Novices often attach the brackets to the machine rail first, and then try to wrestle the strong magnetic hoop into them. This is wrong. It leads to misalignment and spacing errors.

The Pro Technique:

1. Attach Brackets to Hoop: Install the metal brackets onto the magnetic hoop’s arms while holding the hoop in your hands.
2. Finger Tighten: Tighten the thumb screws just enough so they don't slide, but can still wiggle slightly.
3. Pantograph Mounting: Now, bring the entire assembly (Hoop + Brackets) to the machine.






Sensory Cues for Correct Installation

• Visual: Count the notches on the pantograph rail. Delanda recommends the 5th notch from the center line for standard alignment.
• Tactile: Push the bracket onto the rail. You should feel a distinct resistance.
• Auditory: Listen for a sharp "Click" or "Snap." If it feels mushy, it is not seated.
• The Wrench Feel: Use your #4 wrench. Tighten until you feel firm resistance (like a firm handshake), but do not over-torque and strip the threads.

Warning: Magnet Safety
magnetic embroidery hoops are incredibly powerful.
* Pinch Hazard: They can crush fingers. Handle rings by the edges, never placing fingers between them.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or USB drives directly on the magnet.

5. Validation: The "Trace & Notch" Test

You have programmed the data and installed the hoop. Now, we verify reality.

The "Center Notch" Alignment

Look at the front of the blue hoop frame. There is a small molded notch or arrow.

• The Test: This notch must align visually with the center of the machine's needle arm cylinder.
• The Fix: If it is off by 1 inch, you likely mounted the brackets in the wrong notch (e.g., 4th notch instead of 5th). Move the brackets, do not change the digital settings.


The "Zero Coordinates" Confirmation

On your 10S panel, with the design centered:

1. Press the "Hoop" button and select your custom "MH 5.30".
2. The machine will move.
3. Check the X/Y Axis readout. It must read straight zeros.

If it reads X: +1.20, your machine thinks the center is somewhere else. Return to Step 1 and verify your X Center inputs.

✅ Checklist 3: Operation Ready

Do this before every production run.

• Notch Check: Physical notch aligns with Needle Arm.
• Zero Check: On-screen coordinates read 0.00 / 0.00.
• Perimeter Trace: Run a "Contour Trace" (not just a box) to ensure the needle bar does not hit the frame edges.
• Clearance: Verify the garment is not bunching behind the machine arm (the "bird's nest" cause).

6. Troubleshooting: When Logic Fails

Even with perfect inputs, things go wrong. Use this table to diagnose issues.

7. Production Strategy: Stabilizers & Scaling Up

Programming the hoop is only half the battle. Magnetic hoops change how fabric is gripped. Unlike traditional hoops that use friction/screw tension, magnetic hoops use vertical clamping force. This requires a shift in your stabilizer strategy to prevent "shifting" or "flagging."

Decision Tree: Stabilizer Selection for Magnetic Hoops

• Scenario A: Stretchy Fabric (Performance Polos, Knits)
  • Risk: Fabric stretches under the magnet.
  • Rx: Cut-away Stabilizer (Must rely on glue/spray adhesive to bond fabric to stabilizer) + Water Soluble Topping (to prevent sinking).
• Scenario B: Structured Fabric (Caps, Canvas, Denim)
  • Risk: Minimal.
  • Rx: Tear-away Stabilizer is usually sufficient.
• Scenario C: Slippery Fabric (Silk, Rayon)
  • Risk: Fabric slides out.
  • Rx: Fusible (Iron-on) Stabilizer or Cut-away with distinct hoop burn protection.

Hidden Consumables List (What you forgot to buy)

• Temporary Spray Adhesive (e.g., KK100): Crucial for magnetic hoops to prevent movement.
• Masking Tape: To tape excess fabric out of the way.
• Spare Bobbins (Magnetic Core): For consistent tension at higher speeds.

8. The Business Case: When to Upgrade Your Tools

We start with manual programming because it's free. But as your business grows from "hobby" to "production," you will hit bottlenecks. Here is how to identify when you need to upgrade your gear.

Level 1: The "Hoop Burn" Bottleneck

Problem: You spend 5 minutes hooping a shirt, and the traditional screw hoop leaves a ring (hoop burn) that you have to steam out. Solution: Many professionals search for magnetic frames for embroidery machine capabilities early on. Action: Invest in high-quality SEWTECH Magnetic Hoops.

• Why: They snap on instantly (seconds vs. minutes) and drastically reduce hoop burn, saving you the "ironing" time.

Level 2: The "Batch Consistency" Bottleneck

Problem: You are running 50 shirts. Re-adjusting the brackets for every shirt is causing alignment errors. Solution: Hooping Stations (like the HoopMaster system used by Delanda) coupled with SEWTECH Industrial Magnetic Frames.

• Why: This ensures every logo is in the exact same spot, reducing "B-Grade" rejects.

Level 3: The "Capacity" Bottleneck

Problem: You have perfectly programmed your specific single-needle machine, but you are turning away orders because you can't stitch fast enough or hate changing clearance colors. Solution: It is time to look at mighty hoops for ricoma or similar setups on a dedicated SEWTECH Multi-Needle Machine.

• Why: Moving from 1 needle to 15 needles, combined with the instant-load capability of magnetic sizing, can triple your daily output. The centering logic you learned here applies directly to these larger production workhorses.

Final Thoughts

Mastering the Ricoma 10S panel logic gives you control. But upgrading your hooping hardware gives you speed. Start with the data, secure your safety checks, and then invest in the tools that let you run fast without fear.

FAQ

• Q: How do I program custom Mighty Hoops on a Ricoma Marquee 2001 10S touchscreen without a hoop crash when pressing Trace?
  A: Copy the factory hoop X Center/Y Center values first, then enter only the custom hoop inside dimensions and test with a controlled trace.
  • Open Edit on factory hoops (A–F) and write down the existing X Center and Y Center shown on the 10S panel.
  • Add the custom hoop using Add Hoop > Custom and enter inside dimensions (ID) for X Size/Y Size (do not use the hoop “marketing name”).
  • Keep Rounded = 1.5 as a safe starting point for Mighty Hoops to avoid corner strikes.
  • Success check: Run a slow first Trace/Contour Trace with hands clear; the frame should clear the needle bar with no contact or “limit” beep.
  • If it still fails: Reduce the entered X/Y size by 0.1" and re-test, and re-verify that the X Center/Y Center were copied (not guessed).
• Q: What X Center and Y Center values should be used for custom hoops on the Ricoma 10S panel to keep designs centered?
  A: Use the same X Center/Y Center values shown in the Ricoma 10S factory hoop presets on that specific machine.
  • Read the X Center/Y Center in two factory hoops (for example Hoop A and Hoop C) to confirm the machine’s reference center.
  • Enter those exact values into the custom hoop record; do not calculate a new center with math.
  • Success check: After selecting the custom hoop with the design centered, the position readout should show X: 0.00 / Y: 0.00.
  • If it still fails: Re-check that you did not change Y Center (for example from 0.16 to 0.00) and re-save the custom hoop entry.
• Q: How do I enter the correct hoop size on a Ricoma 10S for a “5.5 inch” Mighty Hoop so Trace does not hit the frame?
  A: Program the inside dimensions, not the hoop nickname; for the 5.5" station shown, use 5.30 × 5.30.
  • Look up the hoop’s Inside Dimensions (ID) from the hoop manufacturer, then enter those for X Size (left-to-right) and Y Size (front-to-back).
  • Round down (never up) when you must shorten decimals for safety.
  • Keep Rounded = 1.5 as the corner radius starting point for Mighty Hoops.
  • Success check: The on-screen hoop outline should match the physical hoop shape, and a contour trace should clear all edges.
  • If it still fails: Confirm X/Y were not swapped and reduce the X/Y size slightly before tracing again.
• Q: How do I install Mighty Hoops brackets on a Ricoma-style pantograph rail to prevent misalignment and spacing errors?
  A: Install brackets onto the hoop first in your hands, then mount the hoop+bracket assembly onto the rail.
  • Attach the metal brackets to the magnetic hoop arms before touching the machine rail.
  • Finger-tighten thumb screws so parts hold position but can still “wiggle” slightly for alignment.
  • Push brackets onto the rail until they seat firmly, then tighten with a #4 metric Allen wrench to firm resistance (do not over-torque).
  • Success check: You should feel distinct seating resistance and often hear a sharp “click/snap” when the bracket is fully seated.
  • If it still fails: Move bracket placement by notch count on the rail (do not change the digital hoop center first).
• Q: How do I verify a custom Mighty Hoop is physically centered on a Ricoma 10S setup before running production?
  A: Use the physical front notch alignment plus the 10S “zero coordinates” check before stitching.
  • Align the hoop’s molded front notch/arrow visually to the center of the needle arm cylinder.
  • Select the custom hoop on the 10S panel with the design centered and confirm the position reads X: 0.00 / Y: 0.00.
  • Run a Contour Trace (not only a box trace) to verify real clearance around rounded corners and edges.
  • Success check: Notch lines up with the needle arm and the trace completes without frame contact or limit alarms.
  • If it still fails: Adjust the bracket notch position on the pantograph rail (for example, being off by one notch can shift about an inch).
• Q: What should I do if a Ricoma 10S custom hoop Trace hits the frame or the design rotates 90 degrees after programming?
  A: Treat it as a measurement or axis-entry problem: re-check inside dimensions first, then confirm X/Y orientation.
  • Re-verify the hoop Inside Dimensions (ID) and enter the widest left-to-right dimension as X Size and front-to-back as Y Size.
  • If the design rotates 90°, swap X and Y because width/height were entered backwards.
  • Reduce entered X/Y by 0.1" if clearance is tight and you suspect the ID was optimistic.
  • Success check: On-screen hoop shape matches the real hoop orientation and a contour trace clears the frame on all sides.
  • If it still fails: Confirm the correct X Center/Y Center were copied from factory hoops and re-save the custom hoop entry.
• Q: What safety checks should be followed when using Magnetic Embroidery Hoops on a Ricoma 10S machine to avoid injuries and machine damage?
  A: Treat both the pantograph movement and the magnets as hazards: keep hands clear during Trace and handle the rings only by the edges.
  • Keep hands off the rail area before pressing Trace or Center because the pantograph moves fast.
  • Handle magnetic rings by the outer edges; never place fingers between inner/outer rings (pinch hazard).
  • Keep magnets at least 6 inches from pacemakers and avoid placing phones/USB drives directly on the magnet.
  • Success check: Trace runs without any need to “reach in,” and hoop loading/unloading happens without finger pinch events.
  • If it still fails: Stop and reset the setup—re-check bracket seating and run the first trace at the lowest safe speed you can manage.
• Q: When hoop burn and slow hooping become a bottleneck, what is a practical upgrade path from manual tweaks to magnetic hoops and then to a multi-needle machine?
  A: Start with technique (Level 1), move to magnetic hoops for speed and reduced hoop burn (Level 2), then consider a multi-needle machine when order volume outgrows single-needle throughput (Level 3).
  • Level 1 (Technique): Tighten the process—use inside dimensions, copy factory centers, and always do notch/zero/contour-trace checks.
  • Level 2 (Tool): Switch to magnetic hoops/frames when hooping time and hoop burn are consistently costing minutes per garment.
  • Level 3 (Capacity): Move to a multi-needle machine when you are turning away orders or losing time on frequent color/needle changes.
  • Success check: Hooping time drops from minutes to seconds, rejects from misalignment decrease, and production runs repeat reliably.
  • If it still fails: Audit stabilizer and fabric control—magnetic clamping often needs stronger bonding (for example, spray adhesive) to prevent shifting/flagging.
