SVG to Stitches in EL Digitizer: The Manual Prep That Saves Trims, Thread, and Headaches

If you’ve ever imported a beautiful SVG and immediately thought, “Why does this look like a pile of random shapes?”—you’re not alone. The panic is real, especially when you’re on a deadline, the client is waiting, and you can hear the clock ticking louder than your machine.

Here’s the truth: Vector art is math. Embroidery is physics. Most SVGs are drawn for screens (flat, weightless pixels), not for needles (friction, tension, and physical pull). The “glitchy” look isn’t a software failure; it’s a translation gap.

The fix isn’t magic. It is a repeatable, “military-grade” prep-and-digitize workflow that turns artist-friendly vectors into machine-friendly stitch paths. Whether you are running a single-needle home unit or a bank of SEWTECH multi-needle workhorses, this guide will bridge that gap.

Artist SVG files in EL Digitizer: calm down first, then prep like a production digitizer

When an artist exports an SVG, they are thinking in layers, fills, and visual balance. They are not thinking about:

• Pull Compensation: How the thread will squeeze the fabric.
• Travel Stitches: The path the machine takes to get from Point A to Point B.
• Trims: The "click-clack" of the blade that slows down production and risks birdnests.

A production digitizer’s job is to impose stitch logic onto the art. You want fewer jumps (less time), fewer trims (less risk), and a path that flows like handwriting.

One viewer asked if this is really “a SVG file that you are turning into an embroidery file?” Yes. This workflow is the industry standard: Import Art $\rightarrow$ Prep Logic $\rightarrow$ Convert to Stitches $\rightarrow$ Validate Sequence.

The “hidden” setup that prevents rework: start with the Cotton recipe and lock your target size (5 inches)

In the video, the instructor starts a new page set to the Cotton recipe (the default), then imports the SVG using Import Vector Art. After import, they select everything (Ctrl+A) and set the Width to 5 inches in the Properties box.

Why 5 inches? Why not 3? This size decision is structural, not cosmetic. Stitch generation is based on density.

• Scenario A: If you digitize at 2 inches and later resize to 5 inches, the stitches will spread apart, revealing the fabric underneath (gapping).
• Scenario B: If you digitize at 8 inches and shrink to 3 inches, the stitches crush together. This leads to needle breaks and stiff, bulletproof embroidery.

The "Sweet Spot" Rule: Always digitize at the exact size you intend to sew. If you need multiple sizes, you generally need to adjust densities for each version.

If your Properties box isn’t visible, the instructor shows two ways to bring it back:

• Click the Properties area in the interface, or
• Right-click the selected artwork and open the Properties box from the menu.


Warning: Mechanical Safety Protocol
Before you run any sew-out, engage in a physical safety check. A bent needle (check by rolling it on a flat table) or the wrong needle size (e.g., using a 75/11 on thick canvas where a 90/14 is needed) can cause catastrophic needle deflection.
* Risk: The needle hits the needle plate, shatters, and flies toward your eyes.
* Protocol: Always stop the machine completely before reaching near the needle or presser-foot area. Wear safety glasses if you are running test files at high speeds (>800 SPM).

Prep Checklist (Do this **before** you touch “Convert”)

• Recipe Check: Is the page set to Cotton (or your specific fabric profile)? This sets the default density (usually around 0.40mm).
• Size Lock: Is the design width set to 5 inches (or your target size)?
• Canvas Discipline: Is the artwork perfectly centered? (Digitizing off-center creates hoop alignment nightmares later).
• Visual Triage: Open Sequence View. Does the layer order make sense?
• Strategy: Decide your sew priority. (Standard logic: Center out, or Background $\rightarrow$ Foreground. In the video: Lettering $\rightarrow$ Leaves $\rightarrow$ Center $\rightarrow$ Burst).


Sequence View triage: color-code objects so you can see what the SVG is really doing

The instructor’s first “cleanup” move is deceptively powerful: they assign unified colors to parts that should behave as one group.

The logic:

• Two parts that look blue on the canvas might be "Blue #1" and "Blue #2" in the file.
• The machine interprets these as two different instructions, potentially stopping for a color change that isn't needed.

By forcing them to the exact same color index, you tell the software: "Treat these as one continuous job." This isn't about the final thread color (you can put pink thread on a 'blue' file); it's about grouping.

Expert Note on Overlaps: A commenter asked why overlapping shapes (leaves/flower) aren’t removed.

• Don't Delete Deep Layers: In stabilizer-dependent fabrics, you need overlaps. The bottom layer bonds the fabric to the stabilizer. If you delete the overlap, gaps will appear when the fabric shifts.
• The "3mm Rule": Generally, keep a 2-3mm overlap between background fills and borders to account for "pull" (the fabric shrinking inward).


Branching in EL Digitizer: the fast way to combine artwork pieces before slicing

In the video, the instructor copies and pastes the image to create two identical pieces, selects both, recolors them purple, then uses Branching to combine them.

Think of Branching as "welding" structure. It reduces clutter. If you are digitizing a cursive word, you don't want the letter "a" to be five separate vectors; you want one fluid shape. Combining them first allows you to slice them later with surgical precision.

This is the difference between an amateur file and a pro file:

• Amateur: 100 small objects, random jumps.
• Pro: 10 combined objects, logical flow.

Shape Edit slicing in EL Digitizer: the real reason cursive letters get split into 3 parts

A viewer specifically asked: “You split letters into more objects… Letter E was divided into 3 objects, but why?”

The Physics of the Satin Stitch: Satin stitches are like little ropes pulling the fabric edges together.

• If a satin column makes a sharp 90-degree turn without being sliced, the stitches on the inside corner pile up (bulk), and the stitches on the outside fan out (gaps).
• Slicing allows you to change the Stitch Angle (Inclination) for each segment.

The "Handwriting" Simulation: You slice to force the machine to mimic a pen stroke.

1. Upstroke (Segment 1) $\rightarrow$ Slice $\rightarrow$ Downstroke (Segment 2).
2. This allows the machine to place a "corner point" where the needle pivots gracefully, rather than forcing a messy turn.

In the video, slicing is done with Shape Edit:

1. Choose Shape Edit.
2. Click two points to define the cut line (left-click, left-click).
3. Right-click to execute the slice.


Why this matters on the machine (the “pull” and “push” reality)

Embroidery isn’t printed ink; it is thread under high tension.

• The Sense of Touch: When you run your finger over a bad satin turn, it feels hard and lumpy. A good turn feels smooth.
• Pull Compensation: A vertical column will get narrower as it sews (fabric creates a "waist"). Slicing lets you widen specific segments to counteract this distortion. This is vital for small text (<10mm height).

Kerning and color discipline: set your lettering color before you start dropping connectors

Before converting stitches, the instructor checks kerning (spacing).

• Visual Anchor: Use the ruler to create a guide. Spacing that looks good on screen often looks too tight on fabric because thread has loft (thickness). Give letters room to breathe.

Then, they set the lettering color to a specific index (Video: 44). Why? If you add a "Connector Stitch" (a bridge/travel run) later, it must be the exact same color index. If the letter is "Blue 1" and the connector is "Blue 2," the machine will perform a Trim and a Stop. You want continuous flow.

Convert to Satin in EL Digitizer: the “black object” moment and manual inclination lines

Once prepped, the instructor converts lettering pieces to satin.

The Workflow:

1. Select the vector slice.
2. Click Convert to Satin.
3. Visual Cue: The object turns black. This means it is no longer just artwork; it is a "Stitch Object" waiting for instructions.
4. Inclination: Draw lines across the shape. Imagine these lines are the rungs of a ladder; the thread will lay parallel to them.
5. Press Enter twice.

Zoom Discipline: The instructor works at 600% zoom. You cannot judge stitch angles from a "fit to screen" view.

Setup Checklist (So your satin doesn’t fight you)

• Order Verification: Are the letters stacked 1, 2, 3 in the sequence view?
• Consumable Check: For satin lettering, use a 75/11 Needle. A standard 90/14 needle is too thick and creates large holes that degrade crisp edges.
• Color Block: Are all letter segments the exact same color index?
• Test Convert: Convert one segment first. Does it look twisted? If yes, adjust your inclination lines.

Digitize After in EL Digitizer: hide a connector stitch so trims disappear between letters

This is the "Secret Sauce" of high-production files.

The Problem: Between the "E" and the "L", the machine normally cuts the thread (Trim).

• Cost of a Trim: Approximately 6-10 seconds of downtime + risk of thread pulling out of the needle.

The Solution (Digitize After):

1. Select the finished "E".
2. Right-click $\rightarrow$ Digitize After.
3. Create a manual Running Stitch from the end of "E" to the start of "L".
4. Crucial: Place this running stitch underneath where the "L" will eventually sew.

The "L" (Satin) will sew over the running stitch, burying it completely. The result? Zero trims. The machine just keeps humming.

The production logic (why manual beats auto here)

A commenter questioned why do this manually when "Auto-Digitize" exists.

• Auto-digitize is a shotgun; manual is a sniper rifle.
• Auto often places connectors in the shortest path, which might be across an open gap (visible jump stitch).
• Manual allows you to route the path strictly through "safe zones" (areas that will be covered by top stitches).

Fill stitch and layering: building the flower center, then the satin edges

The instructor converts the center piece to a Fill Stitch (Tatami).

• Tatami vs. Satin: Use Satin for narrow columns (<7mm). Use Tatami for large open areas. Satin over large areas creates loose loops nicely called "snag magnets."

Layering Logic:

1. Underlay/Fill: Creates the foundation.
2. Satin Border: Sits on top of the fill edge.

The instructor slightly enlarges the fill to ensure it tucks under the satin border. This prevents the dreaded "white gap" between the flower center and the petals.

When Convert to Satin won’t work: the “convert back to artwork” reset that fixes glitches

Sometimes, the software gets confused. You click "Convert," and nothing happens. The Fix:

• Right-click $\rightarrow$ Convert to Artwork.
• This strips away any corrupted stitch properties and resets the object to a clean vector.
• Try Convert to Satin again.


Redraw like a veteran: simulate the sew order before you waste stabilizer and thread

Never, ever run a file without a Redraw (Simulation). Watch the virtual needle on the screen.

• Look for: Random jumps across the design.
• Look for: Stitches sewing from top to bottom (fighting gravity/hoop stability).
• Look for: Color changes that shouldn't exist.

In the video, the instructor catches a starburst pathing error and fixes it using node editing. This took 30 seconds on screen but saved 5 minutes of frustration at the machine.

Operation Checklist (The "Pre-Flight" Check)

• Hide Vector: Turn off the background artwork layer. Look only at the stitches.
• Connectors: Do you see long lines across your canvas? If yes, are they trims (dotted) or jumps (solid)? If jumps, go back and add trims or route them manually.
• Underlay Check: Does every satin object have an underlay (zig-zag or center run) enabled? This stabilizes the fabric before the heavy stitching hits.
• File Save: Save as native .JDX or .EMB first (editable), then export to .PES/.DST (machine format).

Decision tree: choosing stabilization and hooping strategy for a clean test sew-out

You can have a perfect file, but if your physical setup is weak, the embroidery will fail. Use this tree to diagnose your needs.

1. Analyze your Fabric

• Is it Woven (Shirt, Denim, Twill)?
  • Stable: Use Tearaway (light) or Cutaway (medium).
  • Hooping: Should feel tight "like a drum skin" but not stretched.
• Is it Knitted / Stretchy (T-Shirt, Polo, Hoodie)?
  • Unstable: Must use Cutaway (No-Show Mesh or 2.5oz). Tearaway will fail, and the design will warp.
  • Needle: Switch to Ballpoint Needle to avoid cutting fabric fibers.
• Is it Textured (Towel, Fleece)?
  • Lofty: Use a Water Soluble Topper (Solvy) to keep stitches from sinking into the pile.

2. Analyze your Pain Points (The Commercial Upgrade Path)

• Pain Point: "I can't get the fabric straight," or "I'm getting 'hoop burn' (shiny rings) on delicate fabrics."
  • Diagnosis: Traditional screw-tightened hoops put uneven pressure on fibers.
  • Solution: This is the trigger to investigate magnetic embroidery hoops. They clamp fabric flat without forcing it into a ring, eliminating hoop burn and essentially solving the "crooked loading" issue for beginners.
• Pain Point: "Hooping takes me 5 minutes per shirt, and my wrists hurt."
  • Diagnosis: Production bottleneck.
  • Solution: A embroidery hooping station standardizes placement. If you are moving toward bulk orders (50+ shirts), this tool + magnetic frames cuts prep time by ~60%.

Warning: Magnet Safety
magnetic embroidery hoops use industrial-strength magnets (Neodymium).
* Pinch Hazard: These clamp with extreme force. Keep fingers clear of the mating surfaces.
* Medical Safety: Keep away from pacemakers.
* Electronics: Keep away from screens and legacy magnetic storage.

Comment corner: quick answers to the questions people keep asking

“Why is my SVG importing as totally black?”

This is an interpretation error between Adobe Illustrator and EL Digitizer.

• Fix: It’s not broken. The shapes are there. Use the Sequence View to select the "invisible" black shapes and assign them colors. It’s just a visual reset.

“Is there a video that explains the logic on the splicing?”

The logic is Pathing Flow.

• Imagine writng the letter "S" with a fountain pen without lifting the tip. You naturally vary pressure. The machine needs that same guidance. Slicing breaks the "S" into curves that allow you to dictate exactly where the "pen" goes next.

“This was way too fast—assumes everyone knows the program.”

Start slow. Do not try to digitize a whole logo.

• Exercise: Import a simple shape (a circle or square). Convert it to Satin. Slice it in half. Change the angles. Sew it out.
• Once you understand how the machine reacts to the slice, the software speed will follow.

The upgrade path: when digitizing is solid but production is still slow

Digitizing is the software side; production is the hardware reality.

If your files are running clean (no breaks, good flow) but you aren't making money (or progress), look at your hardware constraints.

• Hooping Consistency: If every shirt looks slightly different, or if you dread the hooping process, look at hooping for embroidery machine tutorials. Often, the technique is fine, but the tool (standard hoop) is the friction point.
• Batch Speed: For shop owners, brother embroidery hoops are standard, but upgrading to third-party magnetic systems can double your hourly throughput by reducing "fiddling time."
• The Big Leap: If you are frustrated by color changes on a single-needle machine (threading... sewing... stopping... re-threading), the solution isn't better digitizing—it's hardware. Moving to a SEWTECH multi-needle system allows you to set 10+ colors and walk away.

Many users searching for how to use magnetic embroidery hoop videos are actually signaling that they are ready to move from "hobbyist" to "producer."

The result you’re chasing: a production-friendly file that sews clean the first time

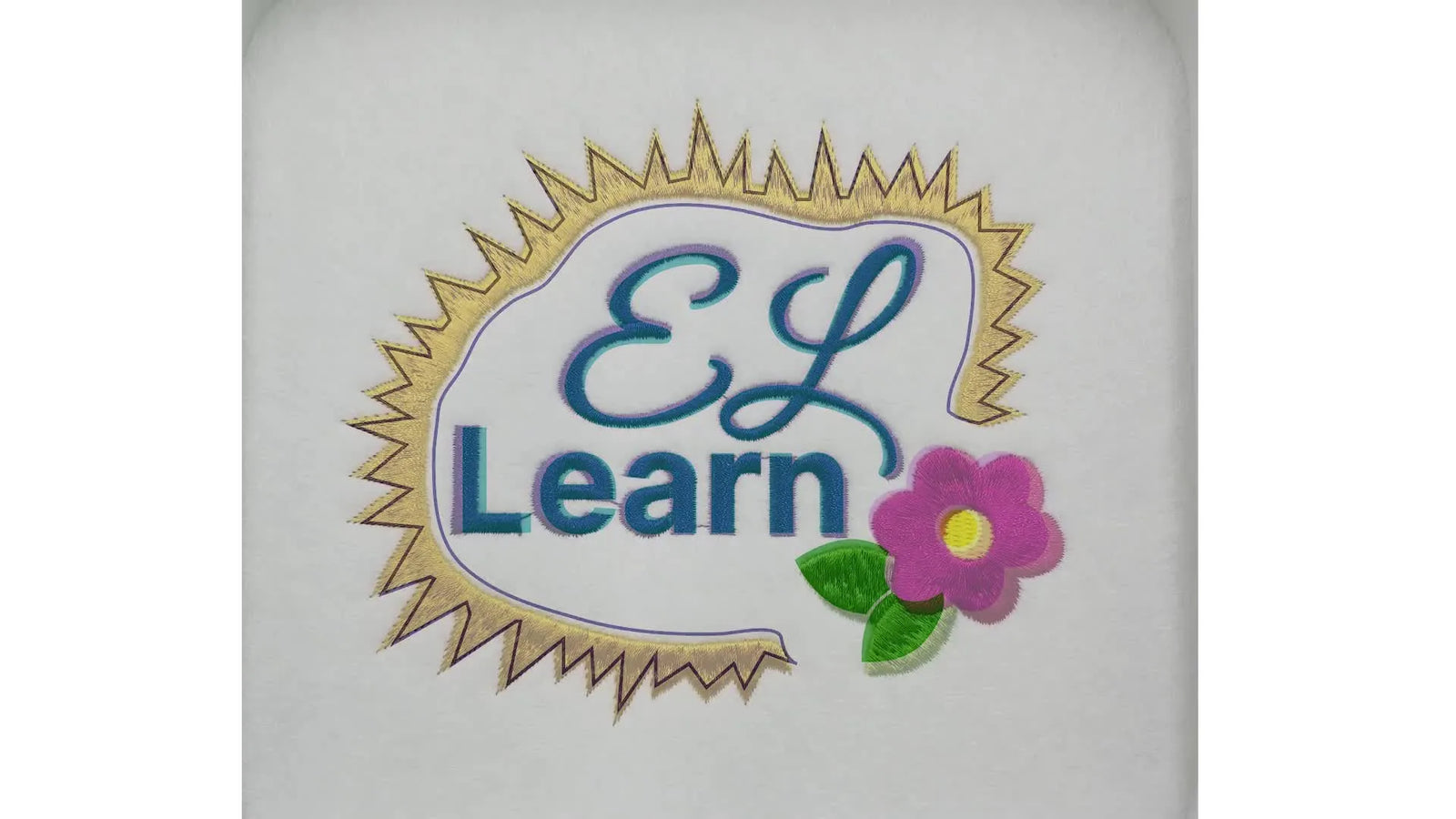

At the end of the video, the instructor runs the sample.

• Sound Check: A good file sounds rhythmic and steady (thump-thump-thump). A bad file sounds erratic (thump-CLICK-whirrr-stop).
• Visual Check: The manual connectors we hid? Invisible. The satin edges? Crisp.

If you build these habits—Pre-size, Slice, Angle, Layer, Simulate—you will spend less time fighting with "random shapes" and more time watching beautiful embroidery stitch out.

FAQ

• Q: Why does an Adobe Illustrator SVG import into EL Digitizer as a totally black design?
  A: This is usually a color-interpretation mismatch; the shapes are still there—reassign colors in Sequence View to “reset” visibility.
  • Open Sequence View and click individual objects that look “invisible” on the canvas.
  • Assign a new, unified color index to the selected shapes so you can see and group them.
  • Re-check for duplicate colors (e.g., “Blue #1” vs “Blue #2”) and force matching parts to the exact same index.
  • Success check: the artwork becomes clearly separated into intended groups, and Sequence View no longer shows surprise color blocks.
  • If it still fails: convert the problem objects back to artwork and re-import the SVG, then recolor again.
• Q: Why does resizing an EL Digitizer design after conversion cause gapping or overly dense “bulletproof” stitching (example: digitized at 2 inches then resized to 5 inches)?
  A: Digitize at the exact final sew size (example: lock width to 5 inches first) because stitch density is generated for that size.
  • Set the page recipe (Cotton or the intended fabric profile) before importing or converting.
  • Select all artwork (Ctrl+A) and set the target width (e.g., 5 inches) in Properties before clicking Convert.
  • Avoid major post-conversion scaling; if multiple sizes are needed, adjust densities per size version.
  • Success check: fills look evenly covered (no fabric showing through) and satin columns feel smooth, not rock-hard.
  • If it still fails: start a new file, lock the size first, then convert again using the same recipe.
• Q: Why does EL Digitizer split cursive satin lettering into multiple objects (example: Letter “E” divided into 3 parts), and when should Shape Edit slicing be used?
  A: Slice satin letters at sharp turns so each segment can have its own stitch angle, preventing inside-corner bulk and outside-corner gaps.
  • Use Shape Edit to define a cut line (left-click two points) and right-click to execute the slice.
  • Convert each sliced segment to Satin and set inclination lines for that segment’s direction change.
  • Work zoomed in (the example workflow uses 600% zoom) so stitch angles are judged accurately.
  • Success check: satin turns feel smooth to the touch and corners stitch clean without ridges or open gaps.
  • If it still fails: re-slice tighter around the corner and redraw inclination lines so the stitch direction follows the “handwriting” flow.
• Q: How does EL Digitizer Digitize After remove trims between satin letters (example: connecting “E” to “L” without visible jump stitches)?
  A: Use Digitize After to manually place a running-stitch connector under the next satin area so the machine keeps sewing without trimming.
  • Select the finished letter (e.g., “E”), right-click, choose Digitize After.
  • Create a Running Stitch path from the end of the first letter to the start of the next letter.
  • Route the connector through a “safe zone” that will be covered by the next satin object.
  • Success check: the stitch simulation shows continuous sewing between letters with no trim/stop, and the connector is invisible after sew-out.
  • If it still fails: confirm the connector and the letters share the exact same color index so the machine doesn’t force a trim.
• Q: What needle safety checks should be done before a high-speed test sew-out to prevent needle deflection and needle-plate strikes (example: running above 800 SPM)?
  A: Stop first and physically verify needle condition and needle size selection; a bent or mismatched needle can deflect and strike the needle plate.
  • Power down/stop the machine completely before reaching near the needle or presser-foot area.
  • Check for a bent needle by rolling the needle on a flat table.
  • Match needle size to fabric thickness (the example warns a 75/11 may be wrong for thick canvas where a 90/14 is needed).
  • Success check: the needle runs centered without audible “ticking” contact, and stitching sounds steady rather than sharp impacts.
  • If it still fails: slow down for the test run and reassess fabric/needle pairing per the machine manual.
• Q: Why does EL Digitizer Convert to Satin sometimes do nothing, and how does “Convert to Artwork” fix the conversion glitch?
  A: Reset the object by converting it back to clean vector artwork, then convert to Satin again.
  • Right-click the problem object and choose Convert to Artwork.
  • Re-select the cleaned vector and click Convert to Satin again.
  • Re-enter inclination lines and press Enter to confirm.
  • Success check: the object turns black (stitch object state) and redraw/simulation shows satin stitches instead of raw vector outlines.
  • If it still fails: convert one segment at a time to isolate the corrupted piece and rebuild that segment.
• Q: What is the fastest stabilization and hooping decision tree for preventing distortion on stretchy knits, and when do magnetic embroidery hoops help with hoop burn and crooked loading?
  A: Match stabilizer to fabric first (knits need cutaway), then address hooping pain points—magnetic hoops are a strong option when hoop burn or crooked loading persists.
  • Choose stabilizer by fabric: use Cutaway for knitted/stretchy garments; use Tearaway or Cutaway for stable wovens; add water-soluble topper for towel/fleece textures.
  • Hoop “tight like a drum skin” without stretching the fabric (especially on knits).
  • If hoop burn or crooked loading happens on delicate fabrics, switch from screw-tight hoops to a magnetic clamping style that holds fabric flat more evenly.
  • Success check: the sew-out stays square (no warping), and the fabric shows no shiny hoop rings after unhooping.
  • If it still fails: upgrade placement consistency with a hooping station, then reassess whether production volume justifies a multi-needle workflow for faster color handling.
