T-Shirt Machine Embroidery That Doesn’t Pucker: The 3-Inch Placement Rule + Drum-Tight Hooping on a Brother Innov-is F440E

If you have ever hooped a simple cotton t-shirt, hit the start button with high hopes, and watched in horror as the knit fabric rippled like a potato chip under the needle, take a deep breath. You are not "bad at embroidery." You are simply fighting physics.

Knit fabric (jersey) behaves like a fluid. It stretches, moves, and distorts. Woven fabric (like denim) behaves like a solid grid. When you treat a t-shirt like a pair of jeans—pulling it tight in the hoop—you are pre-loading disaster. The moment the needle penetrates, that tension releases, and your design buckles.

In this white-paper-style guide, I am rebuilding a specific workflow (based on the Brother Innov-is F440E, though applicable to most single-needle machines) into a shop-ready Standard Operating Procedure (SOP). We will cover the "Trinity of Control": Placement (using templates), Stabilization (using fusible mesh), and Tension (the "drum skin" sensory check).

The Calm-Down Primer: Why Knit T-Shirts Pucker So Easily (and Why This Method Works)

To master t-shirts, you must understand the material science. A t-shirt is made of interlocking loops of yarn. When you pull a standard hoop tight, you stretch those loops open. You stitch a dense design on top of stretched loops. When you unhoop, the loops try to snap back to their original shape, but the stitches hold them open. The result? Permanent puckering.

Paula’s method works because it mechanically arrests this stretch before stitching begins:

1. Placement control: A paper template guarantees the design lands where you want it, not where the fabric drifts.
2. Stabilization control: Fusible No-Show Mesh (a type of cutaway) effectively turns the stretchy knit into a stable woven fabric temporarily.
3. Tension control: The "floating-style" hooping technique minimizes loop distortion.

If you are building a repeatable workflow, this is the foundation of hooping for embroidery machine mastery that I would teach a new apprentice before letting them touch a customer's garment.

The “Hidden” Prep Pros Do First: Pre-Wash, Needle Choice, and a Stabilizer Reality Check

Before you touch the hoop, we must mitigate the variable risks. In a professional shop, 80% of the work happens at the prep table.

Pre-wash matters. Cotton fibers are under tension from the factory. Hot water relaxes them. If you embroider a brand new shirt, and then the customer washes it, the shirt will shrink around the polyester embroidery (which doesn't shrink). The result is "bacon neck" or wavy designs.

• The Pro Rule: If you cannot pre-wash (e.g., commercial inventory), steam the area heavily with an iron to pre-shrink the local fibers.

Needle choice matters. You cannot use a universal sharp needle here. A sharp needle can piece the yarn itself, causing runs (ladders) in the knit.

• The Specification: Use a 75/11 Ballpoint (BP) needle. The rounded tip slides between the knit loops rather than cutting them.

Stabilizer choice matters. We need a specific "sandwich":

• Backing: Fusible No-Show Mesh (Poly-Mesh). This is a thin, translucent cutaway stabilizer. Being fusible prevents the layers from shifting (shearing) during stitching.
• Topping: Water-Soluble Film (Solvy). This sits on top to prevent stitches from sinking into the soft cotton loops.


Prep Checklist (Do not skip items)

• File Check: Review design density. (Sweet spot for knits: avoid heavy, bulletproof fills; lighter density is better).
• Fabric Prep: Wash/dry OR steam iron the placement area.
• Needle Swap: Install a fresh 75/11 Ballpoint needle. (Check for burrs by running it through nylon hose—if it snags, trash it).
• Backing Prep: Cut Fusible No-Show Mesh slightly larger than the hoop.
• Topping Prep: Cut Water-Soluble stabilizing film.
• Thread Selection: Polyester 40wt (Standard).
• Bobbin Check: Wind a fresh bobbin. Running out mid-design on a t-shirt often results in a misalignment when restarting.

Warning: Mechanical Safety. Never change a needle with the machine powered on. A stray foot on the pedal or a glitch can cycle the machine, driving the needle bar through your finger. Power off, always.

The Paper Template Trick: Fast, Accurate Placement Without Guessing

Why use paper? Because paper doesn't stretch. Beginners often try to mark center lines directly on the shirt with chalk, but as the shirt moves, the lines skew. A paper template provides a rigid "source of truth."

How to make the template (The "Crosshair" Method)

1. Digital to Physical: Print your design at 100% scale (or measure the digital dimensions).
2. The Cut: Cut a piece of paper or cardstock to the exact maximum width and height of the design.
3. The Geometry: Fold the paper in half vertically, then horizontally. crease it.
4. The Mark: Draw bold lines along the creases. The intersection is your True Center.
5. Orientation: Mark an arrow pointing "UP" on the template.

The 3-Inch Rule on a T-Shirt Neckline: Mark the TOP of the Design (Not the Center)

Placement anxiety is real. Too high, and the design chokes the wearer. Too low, and it sits on the stomach. The industry standard "sweet spot" for an adult Left Chest or Center Chest design starts roughly 3 inches (7.5 cm) down from the bottom of the crew neck collar.

CRITICAL DISTINCTION: This measurement marks the top edge of the design, not the center.

Marking and measuring (The "T" Method)

1. The Vertical Center: Lay the shirt flat. Fold it vertically in half (shoulder to shoulder). Iron a crease down the center fold. This is your Y-axis.
2. The Anchor Point: deeply measure 3 inches down from the collar seam along that center crease. Mark this spot. This is your "Design Top" limit.
3. The Template Match: Place your paper template so its top edge aligns with your 3-inch mark, centered on the crease line.
4. The Target: Stick a pin or use a water-soluble pen to mark the center crosshair of your template onto the fabric. Mark the four corners of the template as well for rotational reference.

• Commercial Note: If you are processing 50 shirts, measuring each one with a ruler is too slow. This is where an embroidery hooping station becomes an essential asset. These devices use pre-set jigs to ensure every shirt loads at the exact same vertical position, removing the "ruler fatigue" error.

Fuse the No-Show Mesh Stabilizer Inside the Shirt (So It Can’t Drift While You Hoop)

This step separates the pros from the frustrated. By fusing the stabilizer, you essentially laminate the knit fabric to a stable base before hooping. This eliminates "fabric drift"—where the bottom layer slides away from the top layer during the friction of hooping.

The Fusing Protocol

1. Turn the shirt inside out.
2. Place the Fusible No-Show Mesh (shiny side down) over the marked area.
3. Heat Press / Iron Settings:
   • Temp: Medium-High (Cotton setting).
   • Steam: OFF (Steam can effect adhesion).
   • Time: Press firmly for 10-15 seconds.
4. The Bond Test: Let it cool. Try to peel a corner. It should hold firm. If it lifts, press again.
   • Alternative: If you lack fusible mesh, spray a standard No-Show Mesh with temporary adhesive spray (like Spray and Bond). It must be tacky enough to prevent shifting.

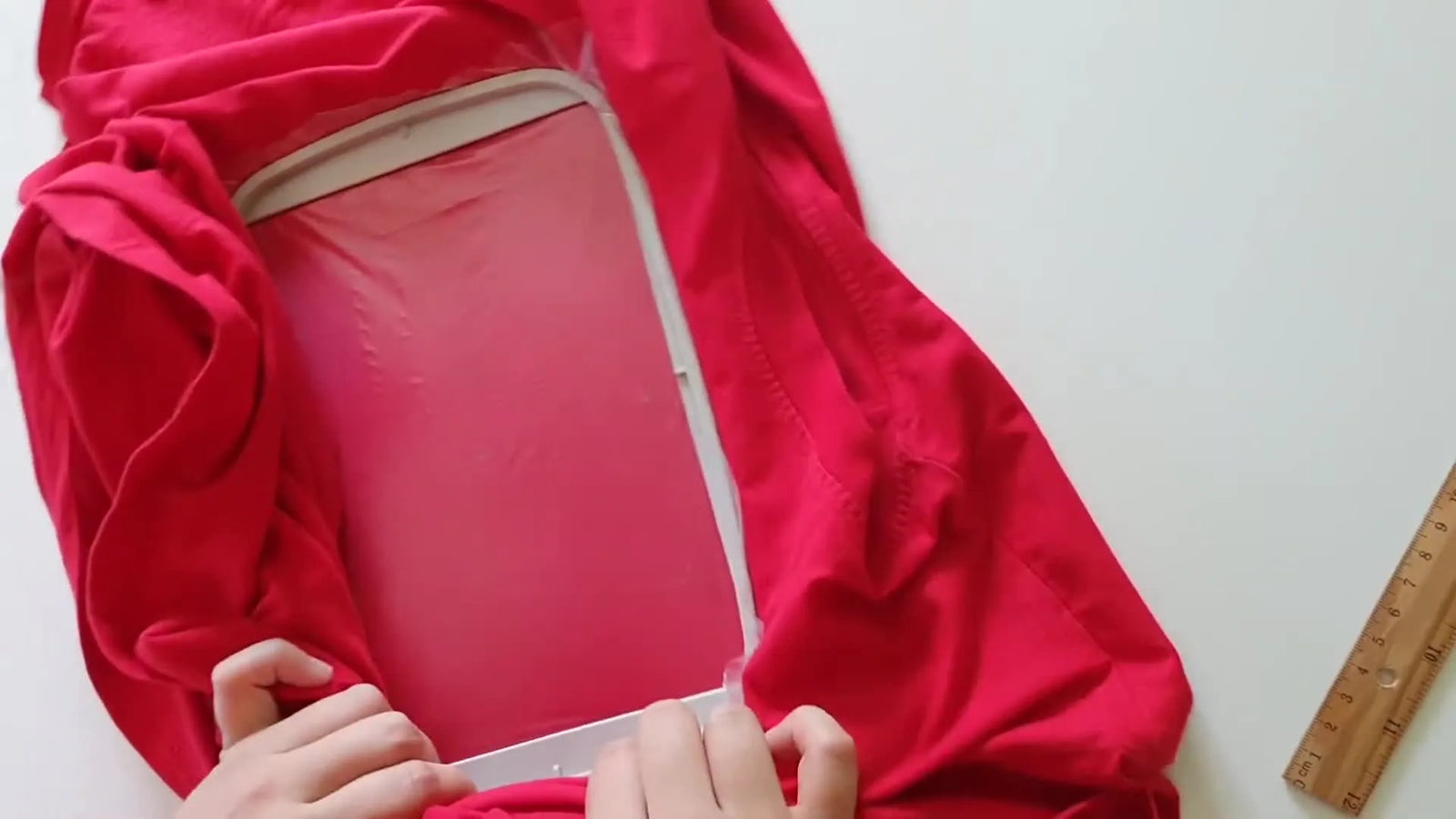

The Drum-Membrane Hooping Method in a Standard 5x7 Hoop (Without Stretching the Knit)

This is the high-risk maneuver. Standard two-part hoops work by friction and tension. The danger is "Hoop Burn" (permanent crushing of fibers) and "Hooping Distortion" (stretching the knit as you force the inner ring in).

Paula’s technique uses a "Pseudo-Tubular" approach to manage the bulk.

Hooping sequence (Tactile & Auditory Checks)

1. Inversion: Turn the shirt right-side out. The stabilizer is now hidden inside, fused to the back of the front panel.
2. The Insert: Slide the outer hoop (frame) inside the shirt. Note: Some users prefer outer ring inside, some inner ring inside. Paula places the bottom hoop element inside. Ensure the mounting bracket makes sense for your machine arm.
3. The Float: Smooth the fabric over the bottom hoop. Align your marked center point with the center marks on the hoop frame.
4. The Topping: Lay your Water-Soluble Film on top.
5. The Press (Crucial): Place the inner hoop on top. Do not push it in yet. Check alignment.
6. The Engagement: Gently press the top ring into the bottom ring.
   • The "No-Pull" Rule: If wrinkles appear, do not pull on the fabric edges to smooth them. Pulling stretches the knit loops. Instead, lift the ring, smooth the fabric flat, and press again.


7. The Lock: Tighten the screw.
8. The Sensory Check: Tap the hooped fabric.
   • Auditory: You want a dull "thud," not a high-pitched "ping." A "ping" means it is stretched too tight (potato chip risk). A floppy sound means it is too loose (registry error risk).
   • Tactile: It should feel like a drum membrane—firm, but with the natural elasticity of the knit still present, not maxed out.


9. Commercial Solution: If you struggle with hand strength or consistent tension, this is the prime use case for magnetic embroidery hoops. Unlike friction hoops, magnetic hoops clamp straight down with vertical force. There is no "sliding" action to distort the fabric, and they automatically adjust for thickness (like seams). For knitwear production, they are statistically safer for the fabric and faster for the operator.

Warning: Magnetic Hazard. Magnetic hoops use industrial-grade neodymium magnets. They can pinch fingers severely (blood blister risk) and erase credit cards. Keep them at least 6 inches away from pacemakers and computerized machine screens.

Loading a Hooped T-Shirt on the Brother Innov-is F440E: Don’t Stitch the Back Layer by Accident

The "Death Stitch"—sewing the front of the shirt to the back of the shirt—is a rite of passage for every embroiderer. It ruins the shirt immediately.

The "Bunk Bed" Check

1. Slide the hoop onto the embroidery arm.
2. The Tuck: Reach under the hoop. Gather the excess fabric (the back of the shirt and the sleeves).
3. The Clip: Use hair clips or gentle clamps (like "peggys") to secure this excess fabric away from the moving needle bar and the traveling hoop.
4. The Travel Test: Before stitching, use the machine's "Trace" or "Check Size" function. Watch the hoop move through the four corners. Does it drag the heavy shirt fabric? Does the fabric get caught on the presser foot lever?

The 90° Rotation Fix on the Brother F440E Screen (When You Hoop Sideways)

Because a t-shirt is a tube, you often hoop it "sideways" (90 degrees) to fit the hoop length onto the machine arm. Your machine doesn't know this. If you press start now, you will stitch a sideways logo.

The Cognitive Calibration

1. Visual Confirmation: Look at the screen. The top of the design is "UP."
2. Physical Reality: Look at the hoop. The neck of the shirt is likely to the LEFT (or Right).
3. The Fix: Go to the edit screen. Rotate the design 90° (Right or Left depending on your hooping) until the "Top" of the design on screen points toward the Neck of the actual shirt.
4. Re-Center: After rotation, your center point may have shifted slightly. Use the arrow keys to jog the needle until it is directly over your marked crosshair center on the fabric.

This need for constant rotation and alignment is specific to standard hoops. Many users find that third-party accessories, often searched as brother f440e hoops with magnetic attachments, can sometimes allow for easier "vertical" hooping depending on the hoop size and garment size.

Thread, Bobbin, and Color Planning: Small Choices That Prevent Mid-Design Panic

The Consumable Strategy

• Thread: Paula uses Madeira Polyneon 40wt. This is the industry workhorse.
  • Expert Tip: If your design has tiny text (under 4mm), switch to a 60wt thread and a 65/9 needle to improve legibility.
• Bobbin: Use a 60wt or 90wt bobbin thread.
  • Color Match: For professional results on dark shirts, switch to a black bobbin. If the white bobbin thread pulls to the top (which happens on knits), it looks like lint. Black bobbin thread hides these tension errors.
• The "Fresh Bobbin" Rule: On a single-needle machine, changing a bobbin requires removing the hoop (often). Removing the hoop mid-design risks a slight shift in alignment. Always start a t-shirt with a full bobbin.

Setup Checklist (The "Pre-Flight" Check)

• Hoop Clear: Under-hoop area is clear of shirt fabric.
• Trace Complete: Needle does not hit the plastic frame.
• Orientation: Design rotated 90° to match shirt?
• Center: Needle aligned with marked crosshair?
• Topping: Solvy is covering the entire design area?
• Presser Foot: Height set correctly (usually "1" or slightly higher for thick knits to prevent drag).

Stitching the Design: What to Expect While the Machine Runs

Hit the green button—but don't walk away. T-shirts need supervision.

Sensory Monitoring

• Sound: Listen for a rhythmic thump-thump. A harsh metal click usually means the needle is hitting the hoop or the needle tip is bent.
• Sight: Watch the fabric "flagging" (bouncing up and down). If it bounces too much, the fabric is too loose. You may need to pause and float a scrap of tearaway under the hoop to add stiffness, or slightly lower the presser foot height.
• Push/Pull Compensation: Knits shrink in the direction of stitches. A circle might stitch out as an oval.
  • The Fix: A good digitizer adds "pull compensation" to the file. If you are digitizing yourself, add 0.4mm pull comp for jersey knits.


Finishing Like a Pro: Trim Jump Stitches First, Then Remove Topping, Then Clean the Back

The difference between "Homemade" and "Handmade" is the finishing.

1. The "In-Hoop" Trim: Before unhooping, trim the long jump stitches. The tension helps you lift them cleanly.
2. Unhoop: Release the screw.
3. The Tear: Rip away the water-soluble topping. (Use tweezers or a damp Q-tip for tiny bits trapped in letters).
4. The Cut: Flip the shirt. Do not tear the stabilizer.
   • Lift the Fusible Mesh.
   • Use curved applique scissors or embroidery snips.
   • Cut the stabilizer roughly 1/4 to 1/2 inch away from the stitches.
   • Round your corners: Sharp corners of stabilizer can scratch the wearer's skin. Cut in a smooth kidney bean or oval shape.




Quick Decision Tree: Stabilizer + Needle Choices for T-Shirt Embroidery

Use this logic flow to make decisions on the fly.

Start: Is the fabric a Stretchy Knit (T-shirt/Polo)?

• YES:
  • Needle: 75/11 Ballpoint.
  • Backing: Fusible No-Show Mesh (Cutaway).
  • Topping: Water Soluble Film.
  • Decision: Can you easily hoop it without stretching?
    • No: Use a magnetic hoop for brother OR use the "Floating" method (hoop only stabilizer, stick shirt to it).
    • Yes: Proceed with drum-tight method.
• NO (Woven Shirt/Denim):
  • Needle: 75/11 Sharp or Universal.
  • Backing: Tearaway (Medium Weight).
  • Topping: None usually needed.

Troubleshooting the Problems Everyone Hits on T-Shirts

When things go wrong, use this diagnostic table starting from the Mechanical (easiest fix) to the Digital (hardest fix).

The Upgrade Path When You Start Doing More Than One Shirt a Day

Paula’s workflow is perfect for the hobbyist doing one customized gift. But if you try to replicate this for a 20-shirt order, you will hit three walls: Time, Consistency, and Ergonomics.

Here is the professional upgrade logic:

1. The Hooping Bottleneck: Standard hoops require brute force and constant readjustment. If your wrists hurt or you are getting inconsistent tension, magnetic embroidery hoops are the Level 1 upgrade. They reduce hooping time by ~40% and drastically lower the risk of hoop burn on delicate knits. When researching, compare brands like the dime snap hoop against industrial-grade options—look for magnet strength and frame durability.
2. The Placement Bottleneck: If you spend 5 minutes measuring every shirt, you are losing money. A hoop master embroidery hooping station or similar fixture allows you to set the jig once and load every subsequent shirt in 30 seconds with identical placement.
3. The Production Bottleneck: The Brother F440E is a solid machine, but it has one needle. Every color change requires you to walk over, re-thread, and restart. If you have a 6-color design on 10 shirts, that is 60 manual thread changes. This is where a Multi-Needle Machine (like the SEWTECH commercial line) pays for itself. You set 10 colors, hit start, and walk away to hoop the next shirt.

The goal isn't just to buy tools—it's to buy back your time and protect your reputation for quality.

Operation Checklist (The Final Quality Control)

• Jump Stitches: All trimmed flush?
• Topping: Fully removed (no slimy residue)?
• Backing: Trimmed smoothly with no sharp corners?
• Integrity: No holes cut in the shirt?
• Drape: Hang the shirt. Does the design hang flat, or does it pull? (If it pulls, steam it. If it still pulls, density was too high or hooping was too tight).

By respecting the physics of the knit and using the right combination of fusible stability and gentle tension, you transform the scary "potato chip" t-shirt into a professional, wearable product.

FAQ

• Q: How do I stop a cotton jersey T-shirt from puckering into “potato chip” ripples when using a standard 5x7 embroidery hoop on a Brother Innov-is F440E?
  A: Use fusible No-Show Mesh + water-soluble topping, and hoop with a “no-pull” drum-membrane tension (not stretched tight)—this is the most reliable pucker prevention on knits.
  • Fuse: Iron Fusible No-Show Mesh inside the shirt (steam OFF), let it cool, and confirm it will not peel up.
  • Hoop: Re-hoop if wrinkles appear; do not pull the shirt edges to “fix” wrinkles while the hoop is tightening.
  • Add: Place water-soluble film on top to prevent stitches sinking into the knit.
  • Success check: Tap the hooped area—aim for a dull “thud,” not a high “ping” (too tight) and not floppy (too loose).
  • If it still fails: Re-check design density (lighter density for knits) and confirm the fabric was not stretched during hooping.
• Q: What needle should be used to embroider a knit cotton T-shirt on a Brother Innov-is F440E to prevent holes and runs (ladders) around the stitches?
  A: Switch to a fresh 75/11 Ballpoint (BP) needle—sharp/universal needles can pierce yarn loops and cause holes in knits.
  • Replace: Install a new 75/11 Ballpoint needle before starting the shirt.
  • Inspect: Check for burrs by running the needle through nylon hose; discard if it snags.
  • Pause: Stop immediately if holes start appearing—continuing will enlarge damage.
  • Success check: Stitching forms cleanly with no “cut” holes or laddering radiating from the design.
  • If it still fails: Confirm the needle is not blunt/bent and verify the fabric is stabilized with cutaway (No-Show Mesh) for knits.
• Q: How do I prevent sewing the front of a T-shirt to the back (“Death Stitch”) when loading a hooped shirt onto a Brother Innov-is F440E embroidery arm?
  A: Always secure the excess shirt fabric away from the hoop travel path before stitching.
  • Tuck: Reach under the hoop and gather the back layer and sleeves so they are not under the needle area.
  • Clip: Use hair clips or gentle clamps to hold excess fabric clear of the moving hoop and needle bar.
  • Trace: Run the machine’s “Trace/Check Size” and watch all four corners for dragging or snagging.
  • Success check: During tracing, the hoop moves freely and no loose fabric gets pulled toward the needle area.
  • If it still fails: Re-clip higher and re-trace until the hoop travel is completely unobstructed.
• Q: How do I rotate an embroidery design 90° on the Brother Innov-is F440E screen when the T-shirt is hooped sideways to fit the machine arm?
  A: Rotate the design 90° in the edit screen so the on-screen “top” points toward the actual neck direction of the hooped shirt.
  • Compare: Look at the screen orientation, then look at the hoop to identify where the collar/neck actually is.
  • Rotate: Turn the design 90° (left or right) until “top of design” matches “toward the neck.”
  • Re-center: Jog the needle with arrow keys to align directly over the marked crosshair center.
  • Success check: A final trace shows the design boundary sitting correctly relative to the neckline and not drifting off the marked placement.
  • If it still fails: Re-check that the placement mark you used represents the intended reference (template crosshair) and not a shifted fabric fold.
• Q: What is the correct stabilizer “sandwich” for embroidering a cotton T-shirt, and how do I stop the layers from drifting while hooping?
  A: Use Fusible No-Show Mesh (cutaway) as backing plus water-soluble film topping; fusing prevents shear/drift during hooping.
  • Apply: Turn the shirt inside out and fuse No-Show Mesh over the marked area (steam OFF), pressing firmly 10–15 seconds.
  • Cool: Let it cool fully before moving; adhesion improves after cooling.
  • Top: Add water-soluble film on top right before stitching to prevent stitch sink.
  • Success check: After cooling, a corner of the fused mesh resists peeling and the fabric does not slide while hooping.
  • If it still fails: If fusible mesh is unavailable, use temporary adhesive spray on standard No-Show Mesh and ensure it is tacky enough to prevent shifting.
• Q: What are the most important pre-checks before embroidering a T-shirt on a Brother Innov-is F440E to avoid mid-design rehooping and misalignment?
  A: Start with a full bobbin, confirm design density is knit-friendly, and do the hoop/trace/orientation checks before pressing start.
  • Wind: Load a fresh bobbin to avoid running out mid-design (restarting can shift alignment).
  • Review: Check the file density—knits generally stitch cleaner with lighter density than “bulletproof” fills.
  • Verify: Confirm topping coverage, hoop clearance, and run “Trace/Check Size” to prevent frame strikes.
  • Success check: The machine traces without hitting the hoop, and the needle sits precisely over the marked crosshair before stitching.
  • If it still fails: If alignment keeps shifting, revisit hooping tension (no-pull rule) and consider floating-style methods for difficult knits.
• Q: What safety steps should be followed when changing an embroidery needle on a Brother Innov-is F440E to prevent hand injuries?
  A: Power the machine off completely before touching the needle—never rely on “idle” mode when hands are near the needle bar.
  • Power off: Switch off the machine before loosening the needle clamp.
  • Replace: Install the correct needle (often 75/11 Ballpoint for knits) and tighten securely.
  • Re-check: After replacement, run a slow trace/check to confirm clearance.
  • Success check: The needle change is completed with the machine fully off and the first trace runs without abnormal clicking or strikes.
  • If it still fails: If the machine makes harsh clicks after a needle change, stop and inspect for a bent needle or hoop contact before continuing.
• Q: When should a T-shirt embroiderer upgrade from a standard friction hoop to magnetic embroidery hoops, and when is a multi-needle machine like SEWTECH the next step?
  A: Upgrade to magnetic hoops when hooping causes hoop burn, inconsistent tension, or wrist fatigue; upgrade to a multi-needle machine when thread-change time becomes the main bottleneck on multi-color orders.
  • Diagnose: If standard hoops force repeated re-hooping, stretching, or “shiny ring” hoop burn, treat hooping as the constraint.
  • Level 1 (Technique): Improve with fusible mesh + no-pull hooping + trace checks for repeatability.
  • Level 2 (Tool): Use magnetic hoops to clamp straight down and reduce distortion and hoop burn risk on knits.
  • Level 3 (Production): Move to a multi-needle machine when frequent color changes on a single-needle machine dominate labor time.
  • Success check: Hooping becomes faster and more consistent (less re-hooping), and shirts finish with flatter drape and fewer puckers.
  • If it still fails: If quality is stable but throughput is still too slow, track time spent on rethreading vs hooping to identify the true bottleneck before upgrading.
