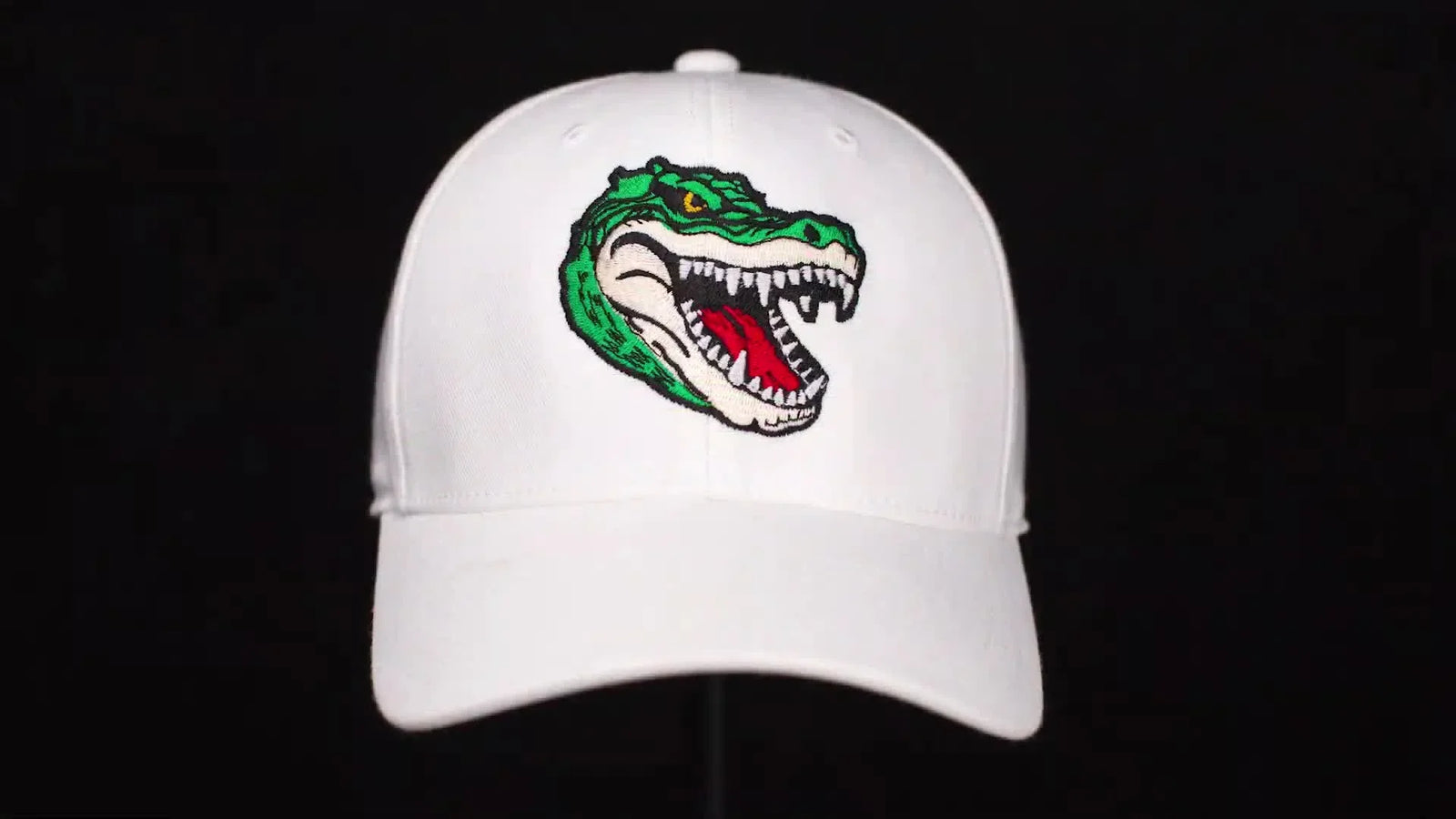

Tajima TMBR2 Cap Stitch-Out That Actually Registers: Presser Foot, Tatami Fill, and the 1.0–1.4 mm Overlap Rule

Cap embroidery is usually where the honeymoon phase with your machine ends.

If you have ever watched a design stitch beautifully on a flat swatch, only to see it turn into a disaster of tiny gaps, misaligned outlines, or the dreaded "white cap showing through" on a structured hat—take a breath. You are not fighting magic; you are fighting physics. The curve of the cap and the bounce of the structured buckram create a hostile environment for needle penetration.

This guide reconstructs a professional stitch-out workflow on a Tajima TMBR2 system. However, we are going to look past the basic digitizing numbers to the sensory checkpoints—the sounds, gaps, and tension feelings—that experienced operators use to prevent ruined caps.

The calm-before-you-stitch check: Tajima TMBR2 + adjustable presser foot at 1.5 mm (so you don’t crush the cap)

The video starts with a mechanical setting that separates clean cap work from constant thread breaks: the digitally adjustable presser foot (DCP) is set to 1.5 mm.

On a structured cap, this clearance is non-negotiable. The cap front has thickness (fabric + buckram + stabilizer), curvature, and "spring." If your foot is too low (crushing the cap), you will hear a rhythmic thud-thud-thud as the foot impacts the fabric, likely distorting the stitch field. If it is too high, the fabric will "flag" (bounce up with the needle), causing loopiness and shredded thread.

Expert Tip: For users without digital control, manually adjust your presser foot cam so that at its lowest point, you can just barely slide a credit card between the foot and the cap fabric.

If you are running a driver with a tajima cap frame, treat presser-foot height like a "first principles" setting. It is not about speed; it is about stabilizing the material while the needle punches at a challenging angle.

The Sensory Check:

• Visual: The foot should hover just above the fabric surface without depressing it deeply.
• Auditory: The machine should hum, not hammer. A sharp slapping sound means your foot is hitting the driver or the cap seam too hard.

Warning: Keep hands, snips, and loose tools away from the needle bar area during operation. The cap driver creates serious pinch points, and a 1,000 SPM needle bar can cause severe puncture injuries instantly.

The “hidden” prep that saves caps: thread path, bobbin consistency, and hooping tension before the first stitch

The video focuses on digitizing parameters, but the result—clean coverage and crisp edges—depends heavily on the "invisible" prep work. Experienced operators know that 80% of embroidery failures happen before the start button is pressed.

The cap-specific reality (Physics of the curve)

Caps amplify push/pull distortion because:

1. The Curve: The needle hits the fabric at varying angles as the driver rotates.
2. The Structure: The stiff buckram resists the needle, causing deflection.
3. The Driver: It holds the bill and back, but the sewing field often floats slightly.

Prep Checklist: The "Pre-Flight" Routine

• Inspect the Bobbin: Ensure the bobbin tension is correct. When you pull the bobbin thread, you should feel slight resistance, similar to pulling a spiderweb, but the bobbin case should not drop if you hold it by the thread (the "Yo-Yo test" is a bit risky for caps; aim for slightly tighter than flat embroidery).
• Tactile Thread Path Check: Run your fingers along the thread path from the cone to the needle. Feel for snags on the guides. Floss the tension discs to dislodge built-up lint.
• Needle Freshness: If you can’t remember when you changed the needle, change it now. A 75/11 or 80/12 sharp needle is your safest bet for canvas caps.
• Hooping Station Check: Is the cap centered? The sweatband must be flipped out smoothly, not bunched.

Hidden Consumables you need nearby:

• Temporary spray adhesive (light mist on stabilizer).
• A lighter or heat gun (to remove fuzz later).
• Standard 3 oz tear-away backing (caps usually require stiffness).

If your shop has multiple people loading caps, inconsistency is your enemy. A dedicated hooping station for machine embroidery is often the first tool upgrade a growing shop should make to standardize placement tension across different operators.

The foundation layer that makes or breaks registration: black tatami fill with 0.4 density, 4 mm stitch length, 45° angle

The stitch-out begins with the black silhouette of the crocodile. This isn't just color; it is the "concrete slab" foundation for the rest of the house.

The video uses specific numbers that are industry "sweet spots":

• Fill Density: 0.40 mm (Standard coverage. Going tighter, like 0.35mm, often perforates the cap).
• Stitch Length: 4.0 mm (Longer stitches add sheen and reduce needle penetrations).
• Stitch Angle: 45° (Crucial for caps—this diagonal angle fights the vertical and horizontal grain of the woven fabric).
• Underlay: Tatami with 3.0 mm spacing and an angle of 135°.

Why 135° Underlay? By running the underlay perpendicular to the top stitch (135° vs 45°), you create a cross-hatch "plywood" effect. This locks the fabric fibers in place, preventing the cap from distorting as the density builds up.

What you should see:

• A smooth, flat texture.
• No "waves" or pukering at the edges.
• The cap should not look pulled or wrinkled around the perimeter of the black fill.


The gap-killer rule: set overlap tolerance to 1.0–1.4 mm between color blocks (and stop chasing white peeking through)

Here is the secret sauce. If you take one note from this guide, make it this: Overlap tolerance on caps must be aggressive—between 1.0 mm and 1.4 mm.

On a flat T-shirt, a 0.2 mm overlap is fine. On a curved cap, the "Push and Pull" forces are extreme. As the driver rotates, the fabric pulls away from the center of the design. If your overlap is timid (e.g., 0.5 mm), you will get white gaps between the black body and the green fill.

The Psychology of Overlap: Beginners fear that large overlaps will create bulky ridges. Get over that fear. On structured caps, the fabric can hide that bulk, but it cannot hide a white gap.

If you are constantly fighting gaps and you are already using a standard tajima hat embroidery setup, do not blame the machine timing yet. Open your software and measure your overlaps.

Warning: If you decide to upgrade to magnetic hoop systems to fix hooping issues, be aware of safety. Keep strong magnets away from pacemakers, ICDs, and credit cards. They also pose a severe pinch hazard to fingers.

Keep tatami from warping on a cap: why the 135° underlay angle matters more than people think

The video reiterates the importance of the underlay angle. The 135° angle is chosen specifically to brace against the fabric's movement.

The Physics of Distortion: When stitches land on a cap, they pull the fabric towards the center of the fill. Without a strong underlay (foundation), the buckram relaxes, and the cap shape distorts. The 135° underlay acts as a skeleton.

Decision Tree: Stabilizer & Prep

• Scenario A: Structured 6-Panel Cap (Cotton/Canvas) -> Use 2 layers of Tear-away stabilizer. Hooping tension: Tight ("Drum skin").
• Scenario B: Unstructured "Dad Hat" -> Use 2 layers of Tear-away + 1 layer of Cut-away (if design is dense).
• Scenario C: Flexfit / Stretchy Mesh -> Use Cut-away stabilizer (Mandatory) to prevent design distortion.


The clean color-change moment: switching to green fill without losing registration

After the black foundation, the machine swaps to green. This is the "Truth Moment." Since the cap has been pounded by thousands of stitches, has it shifted?

The green fill must align perfectly against the black base. This is where your 1.0–1.4 mm overlap pays off. The stitches naturally pull back, revealing a perfect hairline meeting point rather than a bulky overlap or a gap.

Tooling Note: The video uses a standard cap driver. However, if you find that your caps are constantly slipping despite perfect digitizing, your clamping system might be the weak link. Many high-volume shops upgrade to magnetic hoops for tajima because they secure the hat without the brute force of mechanical clamps, often reducing "flagging" and maintaining better registration during these critical color changes.

The green layer has one job: be boringly perfect so the teeth and scales look sharp

The instructor is blunt: "Everything must be super super clean because we are going to put all the details on top of this."

The green layer is not the star of the show; it is the canvas for the detail. It needs to be flat. If this layer is lumpy or loose, the upcoming satin stitches (teeth, eyes) will sink into the gaps or snag.

Visual Check: Look at the green fill from the side. Is it "lifting" off the cap? If so, your top tension is too tight, pulling the bobbin thread up, or your thread path has too much friction. It should look like it is painted on.

Detail stitching on a curved cap: choosing sand stitches vs run stitches (and why every digitizer’s version differs)

The stitch-out moves to the "interpretation" phase—the scales and texture. The digitizer here is testing Sand Stitches (a textured fill) versus Run Stitches (simple lines).

Rule of Thumb for Caps:

• Run Stitches: Great for sharp definitions but can get "lost" in the texture of canvas caps. Double-run them for visibility.
• Satin Stitches: Best for visibility but keep them wider than 1.5mm to prevent thread breaks.
• Sand/Texture Stitches: Excellent for adding depth without adding massive stitch counts/weight.

Needle Selection Strategy: While not explicitly detailed in the video, detail work on caps screams for a fresh Titanium needle. The coating reduces friction heat (buckram melts glue onto needles), and the sharp point ensures crisp turning on small satin columns.

The teeth and mouth are where thread breaks start: keep detail density honest and watch your machine’s “feel”

Now the red mouth and white teeth are applied. This is the danger zone. You are stacking density (White) on top of density (Green) on top of density (Black).

Sensory Warning Signs:

• "Birdnesting" Sound: A crunching sound under the throat plate. Stop immediately.
• Fraying: If you see "fuzz" on the thread before the needle eye, your eye is burred or tension is too high.

The Fix: If you get breaks here, do not just re-thread. Slow down. Drop your speed from 850 SPM to 650 SPM. The reduction in heat and friction often saves the cap.

Outline and scale texture: make the design read from a distance, not just in a close-up photo

The final texture passes are applied. A common mistake is over-digitizing here. On a cap, you are viewing the design from 3 feet away, not under a microscope.

The "Bulletproof Vest" Problem: If you add too much detail density, the cap becomes stiff and bulletproof. This causes the fabric to pucker around the design (the "bacon effect"). The video demonstrates restraint—using texture to suggest scales rather than filling every millimeter.

The slow-down at the end is a clue: finishing details cleanly beats finishing fast

Notice the machine slowing down for the eye detail. Speed is for fills; precision is for faces. The final 30 seconds of a run determine the perceived quality of the entire job.

Operational Discipline: Train yourself (or your team) never to walk away during the final 30 seconds. This is when a thread tail not trimming correctly can ruin the eye. Be there to snip it manually if the trimmer misses.

Final inspection on a white cap: check registration lines first, then judge the whole design

The stitch-out is done. Do not just take it off the machine. Inspect it while it is still hooped (in case you need to do a miraculous repair).

The Inspection Protocol:

1. The Pull Test: Gently tug the embroidery. Does the center feel loose? (Stabilizer failure).
2. The Gap Check: Look at the border between Black and Green. Any white showing?
3. The Hoop Burn: Check the bill/brim area where the strap clamped down. (Steam can usually fix this, but prevention is better).


Setup checklist (cap driver + file settings) so you can repeat this stitch-out without guessing

Repeatability is the only thing that matters in production. Here is your "Save File" configuration.

Setup Checklist

• Presser Foot: Locked at 1.5 mm (Use a credit card to gauge if manual).
• Design Settings:
  • Density: 0.4 mm
  • Stitch Length: 4.0 mm
  • Base Underlay: Tatami / 135° angle / 3mm spacing
  • Overlap Tolerance: 1.2 mm (Target)
• Needle: 75/11 Sharp active on the necessary needles.
• Driver: checked for stability (no wiggle).

If you are using a mechanical cap hoop for embroidery machine, ensure the strap is tight enough to "ping" like a guitar string, but not so tight it crushes the bill.

The “gap-free” result—and the upgrade path when you’re ready to scale beyond hobby speed

The result is a retail-ready cap. Clean edges, no gaps, flat fill. This quality comes from respecting the physics of the machine and the material.

However, technique only gets you so far. As your volume increases, physical bottlenecks appear.

Decision Tree: When to Upgrade?

Use this logic to determine if you have a skill problem or a tool problem.

Problem: "I have gaps between colors."

• Solution: This is a Digitizing issue. Increase overlap to 1.2mm. Do not buy gear; fix the file.

Problem: "My fingers hurt / It takes 5 minutes to hoop one cap / I have hoop burn marks."

• Solution: This is a Tooling issue. The standard mechanical strap hoop is slow and aggressive.
• Upgrade Level 1: Consider magnetic embroidery hoops. They snap on instantly, hold the cap firmly without "burn," and drastically reduce operator fatigue.

Problem: "I can't stitch caps fast enough / I need to run 50 caps by Friday."

• Solution: This is a Capacity issue.
• Upgrade Level 2: Moving to a dedicated multi-needle platform like a SEWTECH multi-needle machine allows you to preserve exact tension settings for caps on specific needles without messing up your flat embroidery settings.


Operation checklist (during stitching): the checkpoints that prevent wasted caps mid-run

Print this out and tape it to your machine.

Operation Checklist

• Zone 1 Start: Watch the first 100 stitches of the black fill. Is the cap flagging (bouncing)? Stop and lower presser foot.
• Color Change 1: Inspect the Black-to-Green transition. If a gap appears now, stop. You may need to slightly nudge his position or float a piece of backing.
• Sound Check during Mouth: Listen for the "crunch." If heard, pause, clean the bobbin area, and check for a bent needle.
• Final Trim: Watch the automated trims on the eye detail. If the tail is too long, pause and snip it manually before the next stitch covers it.

Troubleshooting Matrix

Embroidery is an engineering discipline disguised as art. Use the overlap numbers from the video, trust your ears, and respect the curve.

FAQ

• Q: How do I set the presser foot height to 1.5 mm on a Tajima TMBR2 cap driver to stop cap flagging and thread breaks?
  A: Set the presser foot clearance to 1.5 mm so the foot stabilizes the structured cap without crushing it.
  • Adjust: Set Tajima TMBR2 digitally adjustable presser foot (DCP) to 1.5 mm; if manual, set the cam so a credit card barely slides between foot and cap at the lowest point.
  • Listen: Reduce the “thud-thud” hammering sound by raising slightly; reduce fabric bounce/flagging by lowering slightly.
  • Confirm: Re-run the first 100 stitches before committing to full speed.
  • Success check: The machine should “hum, not hammer,” and the cap surface should not visibly bounce with each needle penetration.
  • If it still fails: Slow the machine down (e.g., 850 SPM to 650 SPM) and re-check thread path friction and needle condition.
• Q: What overlap tolerance should cap embroidery files use on a structured white cap to prevent white gaps between color blocks?
  A: Use aggressive overlap tolerance—typically 1.0–1.4 mm (target around 1.2 mm) for cap embroidery to prevent white showing between colors.
  • Change: Open the embroidery software and measure overlap between adjacent color blocks (e.g., black base to green fill).
  • Set: Increase overlap into the 1.0–1.4 mm range instead of “flat embroidery” overlaps like 0.2–0.5 mm.
  • Test: Stitch the black foundation and inspect at the first color change before continuing.
  • Success check: At the Black-to-Green border, the meeting line looks like a clean hairline with no white cap fabric peeking through.
  • If it still fails: Re-check cap hooping/clamping stability and presser-foot height before blaming machine timing.
• Q: What cap embroidery stabilizer setup should be used for structured caps, unstructured “dad hats,” and Flexfit/stretch mesh caps?
  A: Match stabilizer to cap structure: tear-away for structured, add cut-away for unstable hats, and use cut-away for stretch caps.
  • Use: Structured 6-panel cotton/canvas caps → 2 layers tear-away backing; hoop tension tight (“drum skin”).
  • Use: Unstructured dad hats → 2 layers tear-away + 1 layer cut-away if the design is dense.
  • Use: Flexfit/stretchy mesh → cut-away stabilizer is mandatory to reduce distortion.
  • Success check: After the first large fill, the edge perimeter stays smooth with no waves/puckering and the cap shape does not collapse around the design.
  • If it still fails: Increase foundation strength (underlay strategy) and confirm the cap is centered with the sweatband flipped out smoothly, not bunched.
• Q: How do I prep the thread path, bobbin, and needle for cap embroidery to prevent birdnesting and inconsistent coverage before pressing Start?
  A: Do the “pre-flight” routine—most cap failures happen before stitching begins, so standardize bobbin feel, thread path, and needle freshness.
  • Inspect: Check bobbin tension for slight resistance when pulling thread (aim slightly tighter than flat embroidery for caps).
  • Feel: Run fingers along the top thread path to detect snags; floss tension discs to remove lint buildup.
  • Replace: Install a fresh 75/11 or 80/12 sharp needle (a safe starting point for many canvas caps; confirm with the machine manual).
  • Stage: Keep temporary spray adhesive (light mist on stabilizer) and standard 3 oz tear-away backing ready to avoid rushed loading.
  • Success check: The first fill stitches form evenly with no looping, and the thread runs smoothly without “fuzz” forming before the needle eye.
  • If it still fails: Re-thread completely and clean the bobbin/throat plate area before restarting.
• Q: What underlay and fill settings help stop tatami fill from warping on cap embroidery designs?
  A: Use a strong cross-hatch foundation: tatami underlay at 135° paired with a 45° top fill to brace against cap push/pull distortion.
  • Set: Fill density around 0.40 mm and stitch length around 4.0 mm for the main tatami fill (tighter settings may perforate structured caps).
  • Set: Top stitch angle to 45° and underlay tatami angle to 135° with about 3.0 mm spacing to create a “plywood” effect.
  • Watch: Inspect edges during the first large fill for waves or perimeter puckering.
  • Success check: The fill looks smooth and flat, with clean edges and no wrinkling radiating around the fill boundary.
  • If it still fails: Reduce speed and confirm hooping tension and cap seating on the driver are stable (no wiggle).
• Q: What should I do immediately when birdnesting (thread glob) happens during cap embroidery on a multi-needle machine?
  A: Stop immediately, then correct either top-thread tension/path or cap seating—birdnesting is usually a threading/tension issue or the cap has shifted.
  • Pause: Stop the machine as soon as a “crunching” sound or thread glob is suspected to avoid jams under the throat plate.
  • Clear: Remove the hoop/driver safely, clean the bobbin area, and remove tangled thread.
  • Reset: Re-thread the top path fully and confirm the cap is still firmly clamped/hooped.
  • Success check: After restart, stitches form cleanly without looping underneath and the machine sound returns to a smooth hum.
  • If it still fails: Inspect for a bent needle and slow down (heat/friction often triggers repeat nesting on dense areas).
• Q: What safety rules should operators follow when running a cap driver and needle bar at high speed during cap embroidery?
  A: Treat the cap driver and needle bar as pinch-and-puncture hazards—keep hands and tools out of the needle bar area during operation.
  • Keep clear: Do not reach near the needle bar, presser foot, or cap driver while stitching—use the stop/pause function first.
  • Remove hazards: Keep snips, tools, and loose items away from moving parts to prevent grabbing/pinch incidents.
  • Monitor: Stay present during critical moments (starts, color changes, final trims) instead of walking away.
  • Success check: All interventions (snipping, repositioning, cleaning) happen only when the machine is stopped and the needle is parked safely.
  • If it still fails: Train a standard operating routine for operators and reduce speed on dense detail zones to maintain control.
• Q: When should a cap embroidery shop upgrade from a mechanical strap cap hoop to magnetic hoops, or from a single setup to a SEWTECH multi-needle machine?
  A: Use a layered decision: fix the file for gaps, upgrade clamping for hooping pain/slip, and upgrade machine capacity for volume deadlines.
  • Diagnose: If gaps between colors persist → adjust digitizing overlap (target about 1.2 mm) before buying equipment.
  • Upgrade tooling: If hooping takes too long, causes finger fatigue, or leaves hoop burn → magnetic hoops often reduce clamping force and speed up loading.
  • Upgrade capacity: If the issue is throughput (e.g., “50 caps by Friday”) → a multi-needle platform can keep cap-ready tension/needle setups without constant changeovers.
  • Success check: After the change, loading time drops, registration holds through color changes, and rework/ruined caps decrease noticeably.
  • If it still fails: Standardize operator loading (hooping station and repeatable checks) and re-validate presser foot height and stabilizer choice before scaling further.
